USER MANUAL GrandHeat 2500 Flatbed Touch CECOTEC

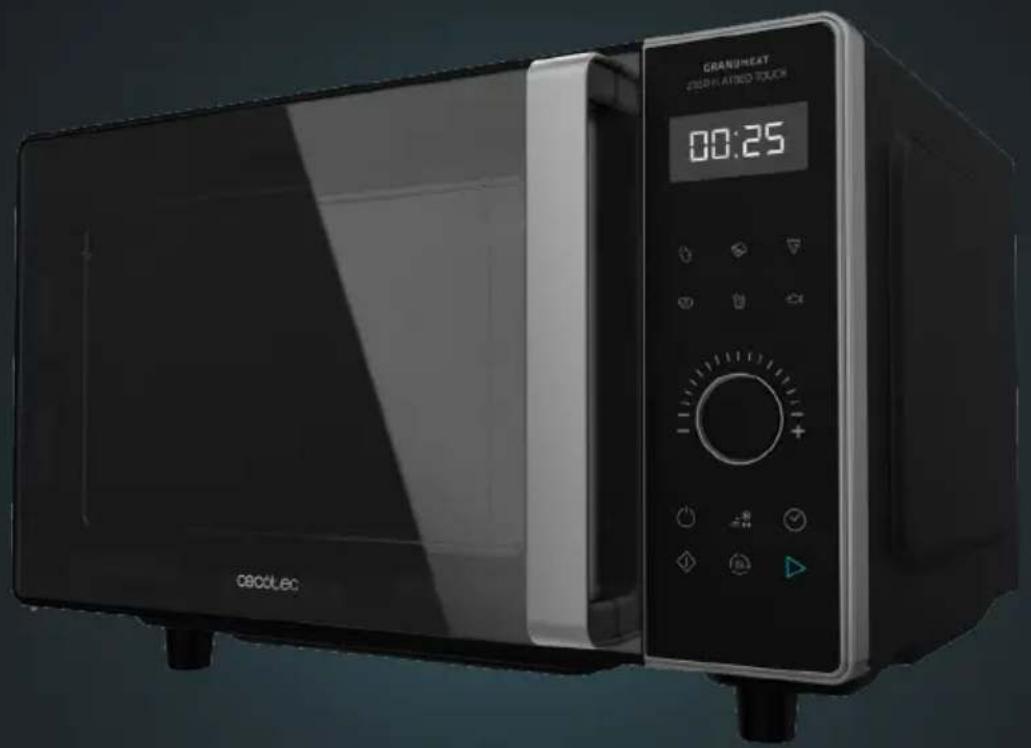

Digital flatbed microwave with touch panel, 25-litre capacity and 800 W.
-
Parts and components 66
-
Before use 66
-
Product installation 67
-
Operation 67
-
Cleaning and maintenance 70
-
Troubleshooting 71
-
Technical specifications 71
-
Disposal of old electrical appliances 71
-
Technical support and warranty 72
SOMMAIRE
Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users. Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
This appliance must be grounded.
This device is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.
Do not operate outdoors.
This product is designed only for household use. It is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
Use this appliance only for intended purposes as described in this manual. Do not use corrosive chemicals or vapours in this appliance, it is not designed for industrial or laboratory use.
If the door or door seals are damaged, the product must not be operated until it has been repaired.
Do not operate the device empty.
Do not attempt to operate the device with the door open since open door operation can result in harmful exposure to microwave energy.
Do not operate this appliance if it has a damaged cord or plug or if it is not operating properly. In case the device does not operate correctly, please contact our Technical Support Service of Cecotec.
Only use utensils that are suitable for microwaves. Make sure utensils do not touch the interior walls during operation.
Do not use the microwave cavity for storage purposes.
Do not attempt to deep-fry in this device.
In order to reduce fire risk:
Do not overcook food.
Remove wire twist-ties from paper or plastic bags before placing them inside the microwave.
Do not place the device where heat, moisture, or high humidity are generated, or near combustible materials.
Do not heat liquids or other foods in sealed containers.
Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. In case of smoke or fire inside the device, keep the door closed, turn the product off and disconnect it from the power supply.
After operating, the container is likely to be very hot. Use gloves
in order to avoid burns and injuries.
All parts of the device will be very hot during and after operation, including door and top part of the microwave. Remember to use gloves or any other type of protection.
Technical service and reparations that involve cover removals or exposure to cables must always be carried out by a competent, professional and qualified person.
Supervise young children to make sure that they do not play with the appliance. It can be used by children over 8 if they are continually supervised.
This product can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.
This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is suitable for domestic use and in establishments directly connected to a low voltage power supply network, which supplies buildings used for domestic purpose.
Microwave-safe materials
| Utensils Remarks | |
| Browning dish Follow the manu | facturer's instructions. The bottom of browning dish must be at least 3/16 inch (5 mm) above the glass tray. Incorrect usage may cause the glass tray to break. |
| Dinnerware Microwave-safe only | Follow the manufacturer's instructions. Do not use cracked or chipped dishes. |
| Glass jars Always remove the lid | Use only to heat food until just warm. Most glass jars are not heat resistant and may break. |
| Glassware Heat-resistant microwave | waveglassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. |
| Microwave cooking bags Follow | the manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape. |
| Paper plates and cups Use for s | short-term cooking/warming only. Do not leave microwave unattended while cooking. |
| Paper towels Use to cover food | for reheating and absorbing fat. Use with supervision for a short-term cooking only. |
| Parchment paper Use as a cover | to prevent splattering or a wrap for steaming. |
| Plastic Microwave-safe only. | Follow the manufacturer's instructions. Should be labelled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. |
| Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. |
| Thermometer Microwave-safe only (meat and candy thermometers). |
| Wax paper Use as a cover to prevent splattering and retain moisture. |
Materials to be avoided in microwaves
| Utensils Remarks | |
| Aluminium tray May cause arcing | Transfer food into microwave-safe dish. |
| Food carton with metal handle | May cause arcing. Transfer food into microwave-safe dish. |
| Metal or metal-trimmed utensils | Metal shields the food from microwave energy. Metal trim may cause arcing. |
| Metal twist ties May cause arcing | and could cause a fire in the microwave. |
| Paper bags May cause a fire in the microwave. | |
| Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. |
| Wood Wood will dry out when used in the microwave and may split or crack. |
INSTRUCTIONS DE SÉCURITÉ
- Automatic menus
- Time/weight knob
- On/off
- Defrost
- Clock
- Stop/Cancel
- Reheat
- Start/+30 sec
2. BEFORE USE
Take the product out of the box. If the microwave has a protective film, tear it off before starting operation. Check carefully if there is any damage, and if there is, immediately notify the Technical Support Service.
The product must be placed on a flat, stable and dry place and kept away from corrosive materials, heat and humidity, such as gas burners or water.
The product must be placed in such way that the plug is accessible and must ensure an effective grounding in case of leakage in order to avoid electric shocks.
The microwave door must be closed in order to operate.
In case there is any manufacturing rests in the microwave cavity or on the heating elements, leave the microwave open to ensure good ventilation. In such case, it is recommended to heat a glass of water at high power for several times.
Warning: Do not remove the light brown mica cover that is attached to the microwave cavity to protect the magnetron.
3. PRODUCT INSTALLATION
Countertop installation
Place the appliance on a flat, stable surface.
The minimum installation height is 85 mm.
The rear surface of appliance shall be placed against a wall.
Leave a minimum clearance of 30 cm above the microwave, a minimum clearance of 20 cm is required between the microwave and any adjacent walls.
Do not remove the legs from the bottom of the microwave.
Blocking the intake and/or outlet openings can damage the microwave.
Place the microwave as far away from radios and TV as possible. Operation of microwave may cause interference to your radio or TV reception.
Plug the device into a power supply.
Warning: Do not install microwave over a range cooktop or other heat-producing appliance.
If installed near or over a heat source, the microwave could be damaged, and the warranty would be void.
4. OPERATION
Clock settings
When the device is plugged in, it will beep once.
Tap the clock icon to set the time. The hour digits will blink.
Turn the knob to set the correct hour, between 00 and 23.
Tap the clock icon. The minutes digits will blink.
Turn the knob to set the correct minutes, between 00 and 59.
Tap the clock icon to save the time settings.
Note:
If the clock is not set, the current time will not be displayed when the device is turned on.
During the process of clock setting, tap the Stop/Clear icon to go back to the previous status automatically.
Timer
Turn the Time/weight knob to increase or decrease the cooking time.
Note: If the clock has been set (24-hour system), the display will show the current time.
Pause or cancel
During the cooking process press the Stop/Cancel button once to pause or 2 to cancel the
ENGLISH
cooking process. During the configuration of the cooking settings, press the button to cancel the settings.
Microwave cooking
Tap the On/off icon once. The screen will display "P100".
Tap the On/off icon several times to select the microwave power, from P100 to P20.
Tap the Start/+30sec icon to confirm.
Turn the knob to select the desired cooking time. The set time should be 0:05-60:00.
Tap the Start/+30sec icon to start cooking.
Microwave power chart
| Press 1 time 2 times 3 times 4 times 5 times | |||||
| Microwave power | P100 P80 P60 P40 P20 |
Weight defrost
Tap the Weight defrost icon once, the display will show "dEF1".
Turn the knob to select the weight of the food to be defrosted.
The weight must be between 100 and 2000 g.
Tap the Start/+30sec icon to start the defrost process.
Time defrost
Tap the Time defrost icon once, the display will show "dEF2".
Turn the knob "+" or "-" to set the desired defrost time.
The maximum time is 60 minutes.
Tap the Start/+30sec icon to start the defrost process.
Reheat
The Reheat function is used to reheat cooked food. Press the Reheat button to activate this function. The display will show 0.2 kg–0.4 kg–0.6 kg in cycle. Once the weight is selected, press the start button to start reheating food.
Express cooking
In standby mode, tap the Start/+30sec icon to operate the appliance at 100 % power level for 30 seconds. Each touch on the same icon will increase the cooking time by 30 seconds. The maximum time is 60 minutes.
Turn the time knob to select the desired cooking time. After setting the cooking time, tap the Start/+30sec icon to start cooking at 100 % power level.
During operation, each touch on the same icon will increase the cooking time by 30 seconds.
Note: This option is not available under Weight defrost or Auto menu cooking modes.
Multi-sequence cooking
A maximum of 2 sequences can be set for a cooking process. If one of the sequences included is defrosting, it should be set as the first one.
Note: Auto menu and Express cooking menu cannot be set as one of the multi-sequences.
Example: Defrost food for 5 minutes, then cook with 80% microwave power for 7 minutes.
Tap the Weight defrost icon, the display will show "dEF2".
Turn the time knob to select 5 defrost minutes.
Tap the On/off icon twice to select 80 % microwave power.
Tap the Start/+30sec icon to confirm.
Turn the time knob to set the cooking time to 7 minutes.
Tap the Start/+30sec icon to start cooking.
Checking settings
During operation, tap the On/off icon, the current power level will be displayed for 3 seconds.
During operation, tap the Clock icon, the current time will be displayed for 3 seconds.
Child lock system.
In standby mode, hold down the Stop/Cancel icon for 3 seconds. The device will emit a long beep indicating this function has been activated.
In standby mode, hold down the Stop/Cancel icon for 3 seconds. The device will emit a long beep indicating this function has been deactivated.
Auto menu
In standby mode, tap the corresponding icon to select the Auto menu function.
Turn the knob to set the weight.
Tap the Start/+30sec icon to start cooking.
Menus:
| Menu Weight Display | ||
| Pizza 200 g 200 | ||
| 400 g 400 | ||
| Meat | 250 g 250 | |
| 350 g 350 | ||
| 450 g 450 |
ENGLISH
| Vegetables | 200 g 200 | |
| 300 g 300 | ||
| 400 g 400 | ||
| Potato | 200 g 200 | |
| 400 g 400 | ||
| 600 g 600 | ||
| Fish | 250 g 250 | |
| 350 g 350 | ||
| 450 g 450 | ||
| Popcorn | 50 g 50 | |
| 85 g 85 | ||
| 100 g 100 |
The above information correspond to food at 20-25 °C. If the food is at different temperatures, the cooking effect will be different. Adjust time and temperature according to the food's temperature.
When cooking potatoes, for example, it is recommended to cover the food with a layer of wrap to prevent evaporation of water during cooking.
The shape, weight and temperature of the food will affect the cooking process and results. When using the automatic cooking menu programme, please follow the conditions mentioned. If the cooking result is not satisfactory, modify settings.
Auto reminder
When the cooking or defrost process is completed, the device will emit 3 beeps. If the door is not opened or "Stop/Cancel" button is not pressed, the microwave will beep once every 3 minutes.
5. CLEANING AND MAINTENANCE
The device, as well as food rests, must be cleaned and removed regularly.
Unplug the cable from the power supply before starting the cleaning. Do not immerse the product in water or any other fluid during cleaning.
The lack of maintenance and cleaning of the product may cause a deterioration on its surface and affect its lifespan.
Do not use strong detergents, powder abrasives or metal brushes to clean the device.
Do not remove the mica plate.
When the microwave has been used for a long time, some strong odours may arise from inside.
ENGLISH
In order to get rid of them, follow one of the steps below:
Place several lemon slices in a cup and heat them at high power for 2 or 3 minutes.
Place a cup of red tea inside the microwaves and heat it at high power for 2 or 3 minutes.
Place orange peels inside the microwaves and heat it at high power for 1 minute.
Use a dampened soft cloth to clean enclosures, door, interior walls and the door frame.
Warning: All maintenance tasks must be strictly carried out by qualified technical personnel.
6. TROUBLESHOOTING
| Problem Cause Solution | ||
| The device stops working or does not turn on | The power cord is not properly plugged. | Disconnect it and connect it again after 10 seconds. |
| Fuse blow or short circuit. Contact the official Technical Support Service of Cecotec. | ||
| Faulty power outlet. Test the power outlet with a different appliance. | ||
| The device does no heat The door is not closed properly. | Close the door properly. | |
7. TECHNICAL SPECIFICATIONS
01405 GrandHeat 2500 Flatbed Touch Black
Rated input power: 1280 W
Rated output power: 800 W
230 V \~ 50 Hz
Capacity: 25L
Made in China | Designed in Spain
8. DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.
The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose
ENGLISH
of the appliance correctly.
Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.
9. TECHNICAL SUPPORT AND WARRANTY
This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.
The warranty will not cover the following situations:
The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
Faults deriving from the normal wear and tear of its parts, due to use.
The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.
If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at +34 963 210 728.
