USER MANUAL ProClean 5005 CECOTEC

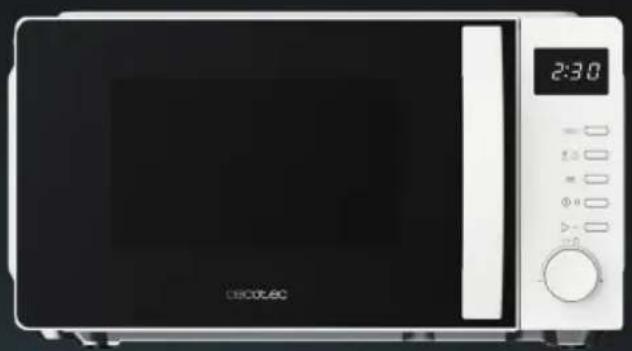

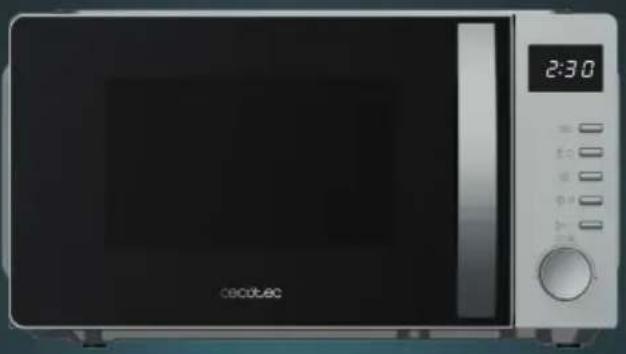

PROCLEAN 5005 WHITE/SILVER/BLACK

Microondas digital. / Digital microwave.

Front view of a modern microwave oven with digital display and control panel (no visible text or symbols)

Exterior view of a modern microwave oven with control panel and digital display (no visible text or symbols on main body)

Front view of a modern microwave oven with digital display showing 2:30 time (no visible text or symbols on the device body)

1. Parts and components 70
2. Before use	70
3. Installation	70
4. Operation	71
5. Tips	75
6. Cleaning and maintenance	77
7. Troubleshooting	78
8. Recycling of electrical and electronic equipment	78
9. Copyright	79
10. Simplified EU Declaration of Conformity	79

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage specified on the product rating label and that the plug is earthed.
• Do not use outdoors.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• This symbol means: Caution, hot surface. Accessible surfaces of the microwave may reach high temperatures during operation. Be careful not to burn yourself.
• WARNING: If the door or its gaskets are damaged, do not operate the appliance until it has been repaired by a qualified technician.
• WARNING: It is dangerous for anyone other than a qualified technician to perform maintenance or repair tasks involving the removal of a cover that provides protection against exposure to microwave energy.
• WARNING: liquids and other foods should not be heated up in sealed containers, as they may explode.
• Use this appliance only for its intended purpose, as described in this manual. Do not use corrosive chemicals or vapours in this appliance. It is not designed for industrial or laboratory use.
• This appliance is intended for heating beverages and food. Drying food or clothing and heating pillows, shoes, sponges, wet clothes and similar items may involve risk of injury, ignition or fire.

• Heating up beverages may cause them to boil. For this reason, precautions must be taken when handling the container.

• Contents of baby bottles and baby food jars should be swirled or shaken and the temperature should be checked before consumption to avoid burns.

• Eggs in their shell and whole hard-boiled eggs should not be heated in microwaves, since they may explode even after microwave heating has ended.
• Do not operate the microwave when empty.
• This microwave is not intended to be built-in or installed in furniture. It must be freely positioned ensuring the following clearances:
• Top: at least 20 cm apart.
• Between the appliance and any adjacent wall: at least 5 cm.
• Rear: leave a 10 cm gap.
• From the microwave to the ground: 85 cm.
• Check the power cord regularly for visible damage. If the power cord is damaged, it must be replaced by Cecotec's Official Technical Support Service, or similarly qualified personnel, to avoid any hazard.
• Do not operate the appliance if it has a faulty power cord or plug, or if it is not working properly. In case of malfunction or breakdown, please contact Cecotec's Official Technical Support Service.
• You must be careful to ensure that the turntable does not shift when the containers are removed from the appliance.
• Only use utensils that are suitable for microwave use. Make sure cookware does not touch the interior walls during operation.
• Do not use the appliance for storage purposes.
• Do not attempt to fry food in the microwave.
• In order to reduce fire risk:
  a. Do not overcook food.

b. Remove wire twist-ties from paper or plastic bags before placing them inside the microwave.
c. The microwave should be watched when heating food in plastic or paper containers.
- In case of smoke or fire inside the appliance, keep the door closed, turn the appliance off, and unplug it from the power supply.
- Do not place hot or frozen food or cookware on the turntable to prevent breakage.
- After operation, the container is likely to be very hot. Use gloves to avoid burns and injuries.
- The appliance must be cleaned regularly, removing any food remains. The door seals, cavities and adjacent parts of the microwave must be cleaned as described in the cleaning and maintenance section.
- Failure to keep the microwave clean could lead to deterioration of the surface and could adversely affect the shelf life of the appliance and cause hazards.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
- This appliance is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is suitable for

domestic use and in establishments directly connected to a low voltage power supply network, which supplies buildings used for domestic purpose.

• Metal food and beverage containers must not be used for microwave cooking.
• The appliance is not intended to be operated by means of external timers or separate remote-control systems.

INSTRUCTIONS DE SÉCURITÉ

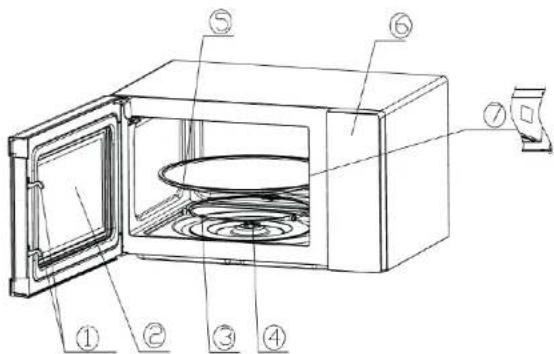

1. Door lock
2. Viewing window
3. Turntable ring
4. Rotating shaft
5. Turntable
6. Control panel
7. Mica plate

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Microwave
• Glass turntable
• Instruction manual
• Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.
• ⚠ WARNING Do not remove the mica plate under any circumstances.

3. INSTALLATION

• Microwaves should be placed in dry, non-corrosive environments away from heat and moisture, such as gas burners or water tanks.
• To ensure proper ventilation, the distance from the rear of the microwave to the wall must

be at least 20 cm; from the side, at least 5 cm; from the top, at least 20 cm. The distance from the microwave to the floor should be at least 85 cm.

• The position of the microwave should be away from televisions, radios or antennas to avoid image interference or noise. The distance must be greater than 5 m.
• The appliance must be positioned so that the plug is accessible and a good ground connection must be ensured to avoid electric shock.
• The microwave must always be operated with the door completely closed.
• Do not place the microwave inside a cabinet; it is designed to operate independently.
  It is possible that, due to manufacturing residues or oil in the cavity or in the heating element, an odor or even some smoke may be emitted. This is normal and will disappear after several uses. To ensure good ventilation, keep the door or window open. It is recommended to place a cup of water inside the microwave, set to high power and operate several times.
• !CAUTION

o Install the turntable ring first.

o Make sure that the turntable is correctly aligned with the axis of rotation.

4. OPERATION

For microwave assembly, place the turntable ring first, then fit the turntable onto the rotating shaft and ensure it is properly positioned.

Control panel

Fig. 2

1. Display
2. Microwave function button
3. Defrost/Clock function button
4. Programme button
5. Stop/Lock button
6. Start/30s button
7. Knob

Before cooking

The display lights up when the power supply is connected, then enters standby mode and shows 1:00.

Microwave function

• There are five microwave power levels: 100P, 80P, 50P, 30P and 10P, respectively.
• Press the button continuously to select the desired power.
• Turn the knob to select the cooking time, which can be set between 0:10 and 60:00.

ENGLISHENGLISH

• After selecting the cooking time, press the button to start.
• A buzzing sound will notify the completion of the operation.

HIGH (high/maximum power)	100% power	Suitable for fast and thorough cooking.
M. High (medium -high power)	80% power	Suitable for medium express cooking.
Med (medium power)	50% power	Suitable for steam cooking.
M. Low (medium -low power)	30% power	Suitable for defrosting food.
LOW (low power)	10% power	Suitable for keeping warm.

CAUTION

a. The maximum time that can be set up is 60 minutes.
b. Never use the grill rack during microwave cooking.
c. Never operate the microwave empty.
d. At full microwave power, the appliance will automatically reduce power after a certain cooking time to extend its service life.
e. If you turn food over during operation, press the button once and the preset cooking procedure will continue.
f. If you wish to remove the food before the preset time, you must press the button once to clear the preset procedure and avoid an unwanted operation the next time you use it.

Defrost/ Clock

• Press this button to select two defrost functions and eight menu functions.
• Press this button continuously to select the function sequences: defrost by weight - defrost by time - A.1-A.2-A.3-A.3-A.4-A.5-A.6-A.7-A.8, and so on.

Defrost

- There are two defrost modes, dEF1 and dEF2, respectively.

a dEF1 for defrosting by weight.
o dEF2 for defrosting by time.

• Press the ⚙ button to select defrost by weight or by time; and the display will show "dEF1" or "dEF2".
• Turn the knob to select the food weight or defrost time.
• The weight range of dEF1 is from 100 to 1500 g, and the optional time range of dEF2 is from

0:10 to 60:00.

• After selecting the defrost weight or time, press the button to start.
• A buzzing sound will notify the completion of the operation.
• The defrost mode dEF1 by weight will emit a sound to indicate that the food should be turned over during defrosting.

CAUTION

a. It is necessary to turn the food during operation to achieve a uniform cooking result.
b. Usually, defrosting will take longer than cooking the food.
c. If food can be cut by knife, the defrosting process is complete.
d. Microwaves penetrate about 4 cm into most food.
e. Defrosted food should be consumed as soon as possible. It is not advisable to refrigerate and refreeze it.

Clock (24-hour format)

• To set the clock while the microwave is in standby mode, press and hold the button for more than 3 seconds.
• The display will start flashing showing the hours. Set the hour by turning the knob.
• Once the time has been set, briefly press the button to confirm and proceed to the minutes setting.
• Set the minutes by turning the knob.
• After setting the minutes, briefly press the button again to confirm and exit the setting mode.

Automatic cooking programmes

• There are eight automatic menus A.1-A.B: potato, pasta, pizza, popcorn, vegetables, drinks, meat and fish, respectively.
• You must press the ≡ button continuously to select the desired menu, then turn the knob to choose the food portion size.
• After selecting the portion size, press the button to start.
• A buzzing sound will notify the completion of the operation.

Display	Type	Method
A.1	Potato	Optional weights are 250 g, 500 g and 750 g.
A.2	Pasta	Optional weights are 50 g, 100 g and 150 g.
A.3	Pizza	Optional weights are 200 g and 400 g.
A.4	Popcorn	Optional weight is 100 g.
A.5	Vegetables	Optional weights are 200 g, 400 g and 600 g.

ENGLISHENGLISH

A.6 Drinks The options are 1 cup, 2 cups or 3 cups, each of approximately 250 mL

A.7 Meat Optional weights are 200 g, 400 g and 600 g.

A.8 Fish Optional weights are 200 g, 400 g and 600 g.

CAUTION

a. Food should be at a temperature of 20-25°C before cooking. Higher or lower temperatures will require the cooking time to be increased or decreased accordingly.
b. The temperature, weight and shape of the food will greatly influence the cooking result. If any deviation is detected in the factors indicated in the previous menu, the cooking time can be adjusted to obtain the best result.

Pause/Lock

To cancel the cooking setting and return to standby mode, press this button during the setting process.
If the microwave is in operation, you can pause the cooking process by pressing the same button.
In the paused state, press the button again to cancel the function and return to standby mode.

Start/+30s

Once the cooking time or food weight has been set, press this button to start operating the microwave immediately.

During operation, you can add 30 seconds to the cooking time by pressing the same button.
Please note that in the menu and defrost by weight modes, it is not possible to adjust the time.
If the microwave is paused, press it to resume cooking.

Express

In standby mode, after placing the food and closing the door, you must press the ▷+30s button to quickly start the microwave.
The default operating time is 30 seconds
During operation, you can add an additional 30 seconds by pressing this button again.
A buzzing sound will indicate that the operation is complete.

Child lock function

Use this function to lock the control panel when cleaning or to prevent children from using the appliance without supervision.
All buttons are inoperative in this mode.

Activating the lock: In standby mode, press and hold the button for more than 3 seconds. The child lock function will be activated, and all buttons on the microwave will be inoperative.

Deactivating the lock: In the child lock state, press and hold the button for more than 3 seconds to cancel the lock function. All buttons on the microwave will return to normal operation.

5. TIPS

The following factors may affect the cooking result:

Food distribution

Place the thicker parts towards the outside of the dish and the thinner parts towards the centre, distributing them evenly. Do not overlap them if possible.

Setting the cooking time

Start cooking with a short time, evaluate later and adjust as necessary. Overcooking can cause smoke and burns.

Uniform cooking

Food such as chicken, hamburgers or steak should be turned over once during cooking. Depending on the type of food, if applicable, remove it from the outside to the centre of the dish once or twice during cooking.

Allow standing time

After the cooking time has finished, leave the food in the microwave for an appropriate time to complete its cooking cycle and cool down gradually.

Check whether the food is ready

The colour and firmness of food help to determine whether it is properly cooked. This includes:
- Steam coming from all parts of the food, not only from the edges.

• Poultry joints move easily.
• Pork or poultry show no signs of blood.
• Fish is opaque and can be easily cut with a fork.

Browning dish

When using a browning pan or self-heating pan, always place a heat-resistant insulator, such as a porcelain plate, underneath to prevent damage to the turntable and rotating ring.

ENGLISHENGLISH

Microwave-safe plastic film

When cooking foods with high fat content, do not allow plastic film to come into contact with the food, as it may melt.

Microwave-safe plastic utensils

Although some plastic containers are microwave-safe, they may not be suitable for cooking food items with high fat and sugar content. Furthermore, ensure that you do not exceed the recommended preheating time stated in the container's instruction manual.

Microwave-safe containers

It is strongly recommended to use suitable and safe containers for microwave cooking. In general, heat-resistant ceramic, glass or plastic containers are suitable for microwave cooking. Never use metal containers for microwave or combination mode cooking, as they may produce sparks.

You can refer to the table below for reference.

Food container material	Microwave	Notes
Heatproof ceramics	Yes Never	use ceramics decorated with metallic or glazed edges. It is recommended to use ceramic, heat-resistant glass and plastic containers that withstand temperatures above 120°C.
Heatproof plastic	Yes Cannot be used for microwave cooking for extended periods.
Heat-resistant glass	Yes
Plastic film	Yes	Do not use when cooking meat or chops, as high temperatures may damage the film.
Grill rack No The grill rack can only be used in grill and combination mode.
Metal container	No Must not be used in the microwave. Microwaves cannot penetrate through metal.
Lacquer No Poor heat resistance. Cannot be used for high-temperature cooking.
Bamboo wood and paper	No Poor heat resistance. Cannot be used for high-temperature cooking.

6. CLEANING AND MAINTENANCE

CAUTION: The microwave must be cleaned regularly and any food residue removed.

WARNING

a. Unplug the power cord from the mains before cleaning. Do not immerse the appliance in water or other liquids.

b. Failure to maintain the microwave clean may lead to deterioration of the surface, which could adversely affect the service life of the appliance and possibly result in a hazardous situation.

c. Never use harsh detergents, gasoline, abrasive powders or metal brushes to clean any part of the appliance.

d. Do not remove the waveguide cover.

e. When the microwave has been used for a long time, strange odours may appear inside. The following methods can remove them:

o Place several lemon slices in a cup and heat on high power for 2-3 minutes.

o Place a cup of red tea and heat on high power.

o Put some orange peels in the microwave and heat on high power for 1 minute.

f. When the product is not in use, it should be placed in dry, well-ventilated areas whenever possible.

WARNING. Details on how to clean food-contact surfaces:

After use, clean the mica plate cover with a damp cloth and then with a dry cloth to remove food splatters and grease. Accumulated grease can overheat and cause smoke or catch fire.

Cleaning tips

Details for cleaning door seals, cavity and adjacent parts:

Exterior: Clean the exterior with a soft, damp cloth.

Door: Clean the door and viewing window with a soft, damp cloth. Clean the door seals and adjacent parts to remove any spills or splashes. Clean the control panel with a slightly damp cloth.

Interior walls: Clean the interior surfaces with a soft, damp cloth. Clean the mica plate cover to remove any food residue.

Turntable / Turntable ring / Rotating shaft: Wash with mild soap and water. Rinse with clean water and allow to dry completely.

ENGLISHENGLISH

7. TROUBLESHOOTING

If the appliance does not work (interior light does not switch on, turntable does not rotate, food does not heat up, etc.):

• Make sure the appliance is securely plugged to the socket. If not, unplug it, wait 10 seconds, and properly re-plug it.
  Check that no fuse has blown and that no short circuit occurred. If not, test the socket with another appliance.
• Check that the door is properly closed and that the door locking system is properly engaged.
  If none of the above options solve the problem, please contact Cecotec's Official Technical Support Service. Do not try to repair the appliance by yourself.
  If the appliance causes interference with radio, television, or other electrical appliances:
  a. Clean the door and the sealing surface of the appliance.
  b. Reorient the receiving antenna of the radio or television.
  c. Move the microwave.
  d. Place the microwave away from the receiver.
  e. Plug the appliance into a different outlet so that it and the receiver are on different branch circuits.

8. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated

by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

Information regarding national packaging recycling systems and their marking can be found on our website.

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this product complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAISFRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

7. PROBLEEMOPLOSSING

https://cecotec.es/es/information/declaration-of-conformity

Fig./Img./Abb./Afb./Rys.1

1 2:30

2

3

4

5 ◇ 日

6 ▷...

Fig./Img./Abb./Afb./Rys.2

www.cecotec.es
