USER MANUAL Bolero Squad I 2100 CECOTEC

Two large circular diagrams on a dark background, one with a diagonal line and the other with a central dot, displayed in a digital interface (no text or symbols on the diagrams themselves)

Safety instructions 11

1. Parts and components 84

2. Before use 84

3. Installation 86

4. Operation 88

5. Cleaning and maintenance 97

6. Troubleshooting 98

7. Technical specifications 100

8. Disposal of old electrical and electronic appliances 100

9. Technical support and warranty 101

10. Copyright 101

SOMMAIRE

Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• It is recommended that the installation and connection of the appliance be carried out by authorised specialists. The manufacturer is not liable for damage caused by installation or connection errors.
• Only a qualified technician must modify your home wiring system.
• This appliance must be connected to a circuit fitted with an isolating switch that allows total disconnection from the mains.
• If the device is not correctly installed, any guarantee or liability claims may be voided.
• If the cable is damaged, it must be replaced by Cecotec or qualified personnel to avoid hazards.
• The appliance must be properly fitted and installed in a suitable and approved kitchen unit and worktop.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• The device is not designed for outdoor use.
• Warning: If the induction hob surface shows cracks or damage, turn off the device to avoid possible electric shocks and contact the Technical Support Service of Cecotec. Do not cook on a cracked or broken hob.
• The appliance heats up during use. Avoid touching the

heating elements inside.

• The cookware handles may be hot to the touch after use. Check the cookware handles do not overlap other cooking areas that are on. Keep the handles out of the reach of children. Failure to follow this advice may result in burns.
• WARNING: the appliance and its accessible parts may heat up during use. Avoid touching the heating elements. Children under 8 years of age should be kept away from the appliance unless continuously supervised.

- Do not steam-clean the appliance.

- Metal objects such as knives, forks, spoons, and lids should not be placed on the surface of the hob, as they may become hot.

- Stop operation of the the hob by means of its control device and not by means of the container detector after use.

- The appliance is not intended to operate by means of an external timer or a separate remote-control system.

- WARNING: unattended cooking on a greasy or oily hob can be dangerous and may cause a fire. NEVER try to extinguish the fire with water. You must switch off the appliance and cover the flames with, e.g., a fireproof lid or blanket.

- CAUTION: always supervise the cooking process. Constantly monitor short cooking processes.

- WARNING: fire hazard: do not store nor place objects on the cooking surfaces nor use them as a work surface.

- Never use the device to heat a room.

- Do not stand on the hob.

- Never leave the device unattended during use. Boiling causes fumes and grease spills that can ignite.

- WARNING: only use the manufacturer's designed hob guards (if any). The use of unsuitable protectors can cause accidents.

• The appliance must not be installed behind a decorative door to avoid overheating.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with, sit or stand on the appliance. Cleaning and user maintenance must not be carried out by unsupervised children.

- Do not store objects of interest to children in the cabinets above the appliance. Serious injury can occur if children climb on the hob.

- Do not leave children alone or unsupervised in the area where the device is used.

- Remove all labels and stickers from the ceramic glass.

- Do not modify the appliance in any way.

- The induction hob cannot be used as a support or work surface.

- Do not allow your body, clothes or any other object which is not suitable cookware to come into contact with the hob surface until the surface is cold.

- The sharp blade of the hob scraper (not included) is exposed when the safety cover is retracted. Use it with extreme care and always store it safely and out of reach of children. Failure to exercise caution may result in injury or cuts.

- The appliance must be earthed in accordance with local regulations.

- Do not place the appliance on top of a dishwasher or tumble dryer to avoid steam damage.

• After use, always turn off the cooking areas and the hob as described in this manual.
• Monitor the cooking of very fatty or oily foods to avoid fire.
• Be careful not to burn yourself while or after using the appliance.
• Make sure that no cords of any fixed or mobile appliance touch the glass or hot cookware.
• Magnetic objects (credit cards, calculators, etc.) must not be placed near the appliance when plugged in.
• Never cover the appliance with a cloth or protective film to prevent overheating and fire.
• Cookware with worn or damaged bottoms can damage the ceramic glass.
• Sand or other abrasive materials may damage the ceramic glass.
• Do not use scouring pads or other abrasive cleaning products to clean the hob, as they could scratch the glass.
• Prevent objects of any size from falling onto the ceramic-glass panel.
• Avoid hitting the edges of the hob with cookware.
• Careful: the panel edges are sharp. Failure to exercise caution may result in injury or cuts.
• Do not use cookware with jagged edges or drag pans across the glass surface of the hob as this may scratch the glass.
• Ensure that the appliance is sufficiently ventilated in accordance with these instructions.
• Do not place or leave empty cookware on the induction hob.
• Sugar, synthetic materials, or aluminium foil must not come into contact with the cooking zones. These may cause breakage or other damage to the ceramic-glass panel due to cooling: switch on the appliance and remove them from

the cooking zone immediately (being careful not to burn yourself).

- Never place hot containers on the control panel.

- Do not place any flammable material or product on this appliance at any time.

- Do not place nor leave magnetised objects (e.g., credit cards, memory cards) or electronic devices (e.g., computers, MP3 players) near the device as they may be affected by its electromagnetic field.

- If there is a drawer under the built-in appliance, make sure there is enough space between the contents of the drawer and the bottom of the appliance (at least 2 cm). This is essential to ensure proper ventilation.

- Never store flammable objects (e.g., aerosols) in the drawer under the induction hob. Drawers and their contents must be heat resistant.

- Precautions in the event of a fault: if you notice a fault, switch off and unplug the appliance.

- Unplug the cooking hob before carrying out any cleaning or maintenance task.

- The appliance must be repaired by qualified professionals. Do not try to fix the appliance yourself. Do not repair or substitute any part of the device, all repair tasks must be carried out by a qualified technician.

- Always make sure that cookware is well centred on the cooking zone. The bottom of the cookware should cover as much of the cooking zone as possible.

- This device complies with the electromagnetic safety standards. However, the magnetic field of the appliance may affect the operation of pacemakers or other implants such as insulin pumps. For more information, seek or

consult a specialist doctor or the implant manufacturer before using this device to ensure that your implants will not be affected by the electromagnetic field.

• These devices must comply with EU Council Directive 90/385/EEC of 20 June 1990 and with EN 45502-2-1, EN 45502-2-2.
• Do not use aluminium or synthetic containers to prevent them from melting due to the residual heat of the cooking zones.
• NEVER try to put out the fire with water. Turn off the appliance and smother the flame with, e.g., a fireproof lid or blanket.
• USING POOR QUALITY COOKWARE OR ANY INDUCTION ADAPTER FOR NON-MAGNETIC COOKWARE IS A BREACH OF WARRANTY. CECOTEC IS NOT LIABLE FOR ANY DAMAGE CAUSED TO THE INDUCTION HOB AND/OR ITS SURROUNDINGS.

INSTRUCTIONS DE SÉCURITÉ

1. Cooking zone 1 (2000 W)
2. Cooking zone 2 (1500 W)
3. Control panel

Control panel. Fig. 2

1. On/off icon
2. Child lock icon
3. Power level slider
4. Boost function icon
5. Timer icon
6. Start/pause
7. Cooking-zone selection
8. Keep Warm function
9. Timer display

Please note

The graphics in this manual are schematic representations and may not exactly match the appliance.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the Official Cecotec Technical Support Service immediately.

Information on induction cooking

Induction cooking is a safe, advanced, efficient, and economical cooking technology. The induction hob works by electromagnetic vibrations that generate heat directly in the cookware, rather than indirectly by heating the surface of the glass. The glass heats up because the cookware is hot.

Using the icons

• The icons react to touch, so there is no need to apply any pressure.
• Use the base of your finger, not the tip.
• You will hear a beep every time the hob detects a finger.
• Make sure the icons are always clean and dry and that no objects (for example, a utensil or a cloth) are covering them. Even a thin layer of water can hinder the proper operation of the touch icons.

Choosing the right cookware

• Only use cookware with a base suitable for the induction hob. Look for the induction symbol on the packaging or at the bottom of the utensil.
• You can check if your cookware is suitable with a magnet test. Move a magnet towards the base of the cookware. If it sticks or is attracted by the utensil, this means that the utensil is compatible with the induction hob.

- If you do not have a magnet:

1. Pour some water into the utensil to be tested.

2. Follow the steps in 'Using the induction hob'.

3. If does not appear on the display flashing and water heats up, the cookware is suitable.

- Cookware made of the following materials is incompatible: pure stainless steel, aluminium or copper without magnetic base, glass, wood, porcelain, ceramic and earthenware.

Cooking zone size (diameter/mm) Minimum size of cookware (diameter/mm)
160 120
180 140

• Cookware should be placed exactly in the centre of the cooking zone.
• In some cooking zones there is an inner diameter with a lighter contour which recommends the user to change to a smaller cooking zone, if available, with a smaller diameter utensil. This results in optimum performance and efficiency. However, you can use cookware with diameters smaller than this limit.

Box content

• Induction hob
• Instruction manual
• Sealing tape
• Support feet

3. INSTALLATION

Selection of the installation tools

• Cut out the worktop according to the dimensions shown in the figure. (Fig. 3)
• For its installation and use, you must keep a space of at least 5 cm around the gap.
• Place a towel or cloth on the worktop surface and place the induction hob face down on it.
• Place the sealing tape supplied with the induction hob to seal it on the worktop surface.

Figure 4

1. Rear of the plate
2. Glass Surface
3. Towel or cloth
4. Tape

5. Self-adhesive tape

6. Do not use silicone. Apply the tape to the edge of the bottom of the induction hob, leaving about 3 mm from the edge of the glass. Apply the tape all around the perimeter.

7. Cut off the excess and join the two ends of the tape to match.

Warning

• The worktop material should be impregnated wood or other insulating material.
• In any case, make sure the hob is well ventilated and the air inlet and outlet are not blocked. Make sure the induction hob works correctly, as shown below.

Please note

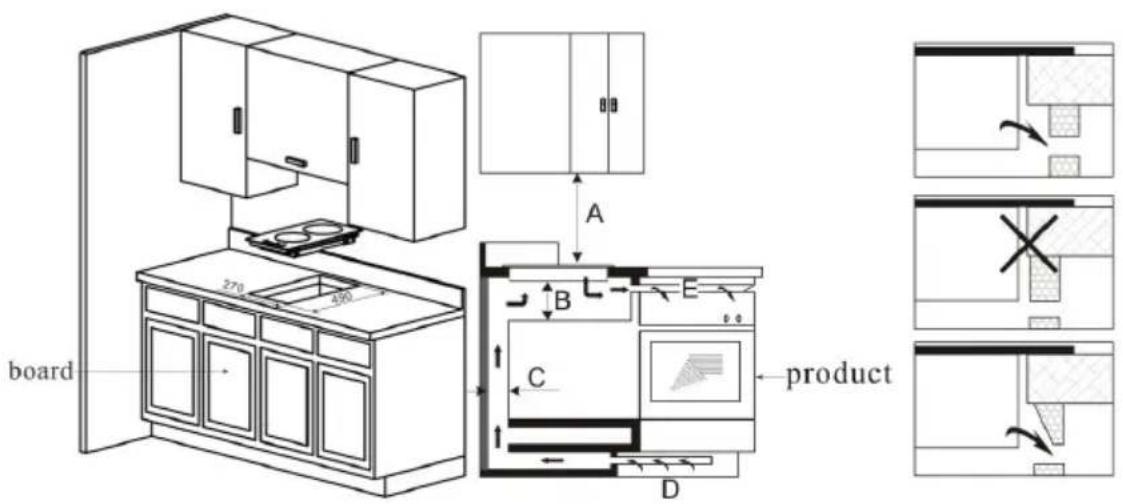

The safety distance between the hob and a cabinet over the hob must be at least 760 mm.

A (mm) Amplitude	(mm) C (mm) D E
760 Min. 50 Min.	20 Air inlet Air outlet	5 mm

Before installing the induction hob, make sure that:

• The worktop is level and square-shaped, and no structural elements violate the space requirements.
• The worktop material is heat resistant.
• If you install the cooking hob over an oven, the latter must have a cooling fan.
• The installation will comply with all the safety requirements, and the applicable rules and regulations.
• The hob incorporates a safety switch that allows it to be completely disconnected from

the mains, which has been installed and positioned in accordance with local electrical rules and regulations.

• The isolating switch must be of an approved model and provide 3 mm contact separation on all poles (or on all active [phase] conductors if local wiring regulations allow this variation of requirements).
• The user can easily access the isolation switch with the induction hob installed.
• If in doubt about the installation, seek advice from local building authorities and regulations.
• Use heat-resistant and easy-to-clean finishes (such as ceramic tiles) on the walls surrounding the hob.
• If the induction hob is installed near a cabinet or drawers, a thermal protection barrier must be installed between the hob and the furniture.

When you have installed the induction hob, make sure that:

• The power cord is not accessible through cabinet doors or drawers.
• There is an adequate flow of fresh air from the exterior of the cabinet to the hob base.
• If the hob is installed above drawers or cabinets, you must install a thermal protection barrier under the hob base.
• The isolation switch is easily accessible to the user.

Before attaching the fixing brackets:

You must place the unit on a stable and smooth surface (you can use the packaging). Do not exert force on the controls protruding from the plate.

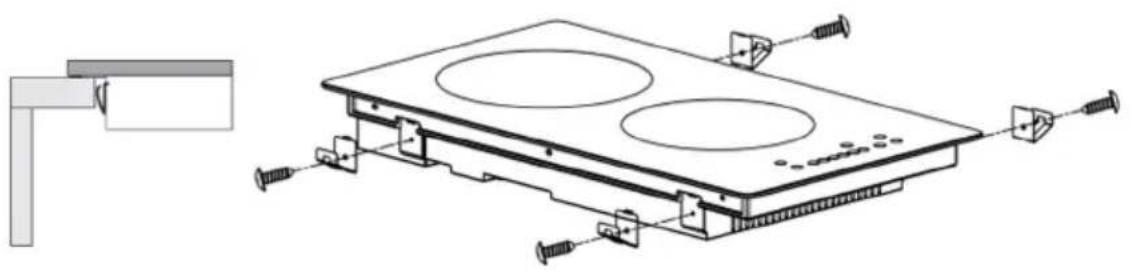

Before attaching the fixing brackets (Fig. 6):

Secure the brackets on the left and right side with screws as shown in the picture. Place the induction hob on the pre-cut board.

Warning

• The induction hob must be installed by qualified personnel or technicians. Never carry out the operation by yourself.
• Do not install the induction hob above refrigeration appliances, dishwashers, and tumble dryers.
• The hob must be installed in a manner that ensures the best heat radiation to obtain the best results.
• The wall and the area over the work surface must withstand the heat.
• To avoid any damage, the bonding layer and the adhesive must be heat resistant.
• You should not use steam cleaners.
• This induction hob may only be connected to a power supply with a resistance of not more than 0.427 ohm. If necessary, consult the service department for information on the resistance of the power supply.

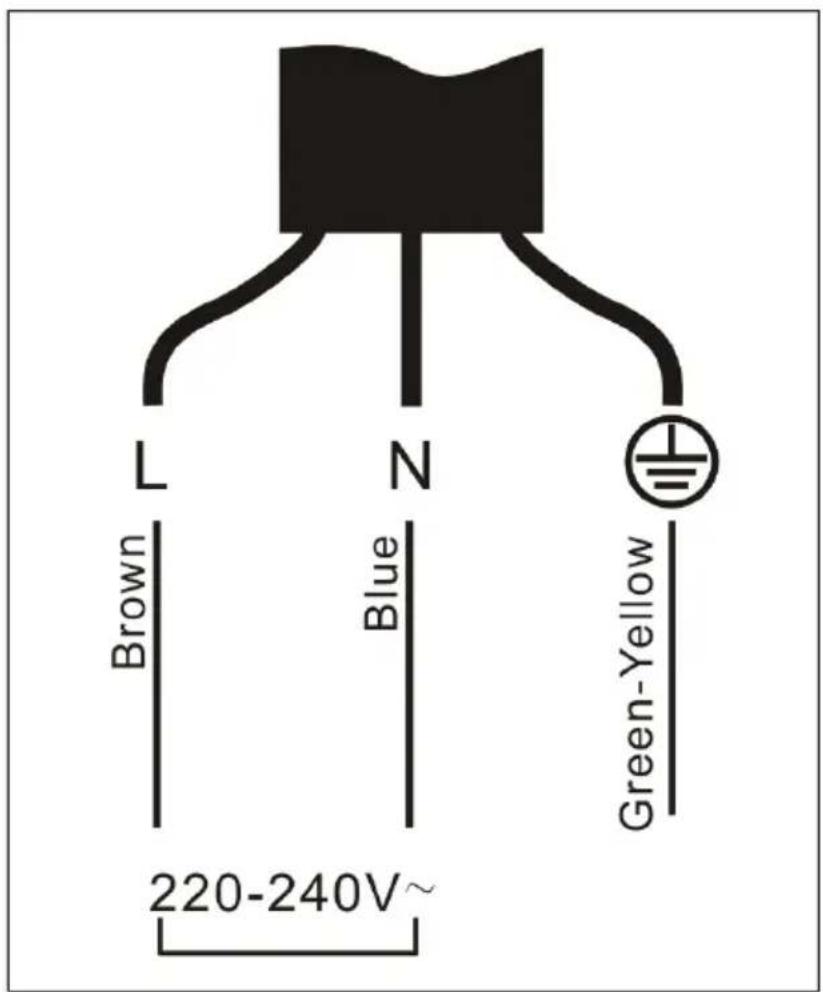

Connecting the hob to the mains (Fig. 7):

The induction hob must be connected to the mains by a suitably qualified person. Before connecting the hob to the mains, check that:

1. Your home wiring system is suitable for the power consumption of the cooking hob.
2. The mains voltage matches the voltage stated on the rating label of the appliance.
3. The power cable sections can withstand the load specified on the product rating label. To connect the hob to the mains, do not use adapters, reducers, or branching devices, as they may cause overheating or fire.

- The power cord should not be in contact with any hot parts and must be positioned so as to avoid its temperature exceeding 75^ C.

- Check with an electrician whether your home wiring system is suitable without modifying it. Any modifications should only be carried out by a qualified electrician.

- If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.

- If the appliance is connected directly to the mains, a single-pole residual current circuit breaker with a minimum contact separation of 3 mm must be installed.

- The person in charge of the installation must ensure that a correct electrical connection has been made and that it complies with safety regulations.

- Do not bend or press the cord.

- Check the cord for damage regularly. It must only be replaced by a duly qualified person.

4. OPERATION

No. Reference Description
1 On/o	ch on or off the appliance.
2		Child lock: press the icon once and the appliance will lock.The other icons will not work if the child lock is activated. To unlock, press the icon for some seconds.
3 Slider	increases on reduces the power level.
4 Boos	tion.
5 Time	ne time you want.
6 Paus	on.
7 Uppe	ng zone.
8 Bott	ing zone.
9 Keep	n function.
10	_	Display: it displays the power level, error codes and status of the induction hob.
11 Time	_ _

Induction hob's diameter

When the induction hob is switched on, it will beep, and all indicators will light up for 1 second indicating that the hob has entered standby mode.

1. Press the on/off icon, all the indicators will show '-'. If power is not selected within 1 minute, the hob will turn off automatically.
2. Place a suitable cookware on the cooking zone you wish to use. Make sure the bottom of the cookware and the cooking-zone surface are clean and dry.

ENGLISH

3. When you press the icon of the desired cooking zone, the indicator next to the icon will flash (lower zone).
4. Select a power level by sliding your finger on the slider. If power is not selected within 1 minute, the hob will turn off automatically. If so, go back to step 1 and try again. You can change the power setting at any time during cooking.

Once cooking is complete:

1. Press the icon of the cooking zone you wish to switch off (lower zone).
2. Turn off the cooking zone by sliding the slider to the left.Make sure the display shows “0”.
3. Switch the induction hob off by pressing the on/off icon.
4. Be careful, the surface may be hot.The “H” symbol indicates that the corresponding cooking zone is still hot. The H symbol will disappear once the surface has cooled down and reached a safe temperature. It can also be used as an energy-saving function: if you want to heat more cookware, use the area that is still hot.

Boost function

The Boost function is able to reach maximum power in a very short time. It is perfect, for example, to boil water.

Activation of the Boost function1. Select the cooking zone in which you want to activate the Boost function.2. When the Boost icon is pressed, the display will show "B".
Cancellation of the Boost function1. Select the cooking zone with the Boost function activated.2. By pressing the slider, the Boost function is cancelled, and you can select the power you want to adjust.3. The Boost function can only operate for 5 minutes, after which the zone will automatically switch to level 9.

Child lock function

You can lock the icons to avoid any unintentional use (e.g., children accidentally turning on the cooking zones).

When you activate the lock, all the icons will be disabled, except the on/off icon.

ENGLISH

To lock the icons:Press the Child lock icon. The timer display will show “Lo”.
Unlocking the hob1. Make sure the hob is on.2. Press and hold the Child Lock icon for 3 seconds.3. Resume use of the hob.

When the hob is locked, all touch icons are disabled except the on/off icon for possible emergency shutdown. Should it be the case, it will be necessary to unlock the icons upon switching the hob back on.

Using the timer

• The timer can be used in two ways:
• It can be used as a timer. In this case, no cooking zone will be switched off once time elapses.
• You can use it as an automatic timer to switch off one or more cooking zones after the time has elapsed.
• The timer can be set for up to 99 minutes.

1. Make sure that the hob is switched on and that the cooking zone icon is not selected (the zone indicator does not flash).Note: you can set the timer before or after the end of the cooking zone power setting.
2. Press the timer icon. "10" will appear on the timer display and "0" will flash.
3. Adjust the time using the slider.
4. Press the timer icon again, this time the "1" will flash.

1. Adjust the time using the slider.
2. Once time is confirmed, the countdown will start automatically. The display will show the remaining time at each hour.
3. When the countdown is finished, it will beep for 30 seconds, and the timer display will show “--”.

Use of the timer to turn off one or more cooking zones:

1. Press the icon of the cooking zone in which you want to set the timer (lower zone).
2. Press the Timer icon. "00" will appear on the timer display and "0" will flash.
3. Adjust the time using the slider.
4. Press the Timer icon again, this time the "0" will flash.
5. Adjust the time using the slider.
6. Once time is confirmed, the countdown will start automatically. The display will show the remaining time at each hour.NOTE: there will be a red dot in the lower right corner of the power level indicating that the zone is selected.
7. When the countdown ends, the corresponding cooking zone will turn off automatically.NOTE: the other cooking zones will continue running if previously switched on.

Setting the timer in more than one zone:

1. When you set the timer for several cooking zones, this is indicated by red dots on the corresponding cooking zones. The timer display will show the remaining time. The corresponding cooking zone point will flash.	(set to 15 minutes) 7.(set to 30 minutes) 6.
2. When the countdown is over, the corresponding cooking zones will be switched off. The display will show the new timer and the corresponding zone dot will flash.NOTE: press the icon of a cooking zone to make the timer display show the remaining time.

Canceling the timer:

1. Press the icon of the cooking zone in which you want to cancel the timer.
2. Press the timer icon and the timer display will flash.
3. Use the slider to set the timer to '00' and cancel it.

Using the Keep Warm function:

• This function is useful for keeping food warm.
• Use the Keep Warm function to achieve a stable temperature.

1. Press the icon of the cooking zone where you want to use the Keep Warm function and the indicator will flash.
2. Press the Keep Warm icon: the cooking zone indicator will show "A".
3. If you wish to disable the Keep Warm function, press the cooking-zone selection icon, then press the Keep Warm icon.

Using the Start/pause function:

This function can be enabled at any time during cooking. It allows you to pause the induction hob and then resume cooking.

1. Make sure the cooking zone is running, press the Start/Pause icon, the cooking zone indicator will show '||||'. All cooking zones except the Start/Pause, on/off and Child Lock icons will be disabled.
2. To cancel the pause, press the STOP&GO icon and the cooking zone will return to the previously set power level.

Automatic protection shutdown

The induction hob features an automatic protection shutdown function. It will be active when you forget to turn off a cooking area. The default auto switch-off times are shown in the following table:

Power level 1 2 3 4 5 6 7 8 9
Default operating time (hours) 8 8 8 4 4 4 2 2 2

When you remove the cookware, the induction hob will stop heating immediately and the hob will turn off automatically after 1 minute.

Residual heat

When you use the cooking hob for some time, this will maintain the residual heat after its operation. The display will show "H" to warn you to be careful.

Temperature setting

Temperature setting Suitable for
1 - 2	Lightly heat small amounts of food.Melting chocolate, butter and foods that burn quickly.SimmeringGradually heating
3 - 4	ReheatQuickly cookingCooking rice
5 - 6 Crepes/melettes
7 - 8	Stir-fryCooking pasta
9	Stir-frying at a higher temperatureFryBoiling soupBoiling water

5. CLEANING AND MAINTENANCE

The following settings are for guidance only. The exact setting will depend on different factors, such as cookware and the amount of food cooked. Test the induction hob to find the settings that suit you best.

Dirt Manual cleaning	con Important
Usual dirt on glass (fingerprints, marks, food stains, etc.)	Unplug the cooking hob from the mains.Apply a worktop cleaner while the glass is still warm (but not hot).Rinse and dry with a clean cloth or a paper towel.Plug the induction hob back into the power socket.	When the power to the induction hob is switched off, there will be no “hot surface” warning, but the cooking zone may still be hot.Abrasive cloths, some nylon scouring pads, and strong/ abrasive cleaning products may scratch the glass. Always read the label to check if your cleaning product or scouring pad is suitable.Never leave cleaning product residues on the induction hob to avoid staining the glass.
Hot sugar spills on the glass	Remove them immediately with a spatula or razor blade scraper suitable for induction hobs but be careful with the hot cooking zones.Unplug the induction hob from the mains.Hold the scraper or cookware at a 30° angle and scrape the dirt or spillage onto a cool area of the induction hob.Wipe up the dirt or spillage with a kitchen or paper towel.Follow steps 2 to 4 from the ‘Usual dirt on glass’ section.	Remove melted and sugary food stains or spills as soon as possible. If left to cool down on the glass, they may be difficult to remove or may even permanently damage the glass surface.Cutting hazard: the blade of the scraper may be very sharp, be careful when removing the guard.Use it with extreme care and always store it safely and out of the reach of children.

ENGLISH

Spills on touch icons

Unplug the cooking hob from the mains.Blot the spill.Clean the touch control area with a sponge or a damp and clean cloth.Dry the area completely with a paper towel.Unplug the cooking hob from the mains.

The induction hob may emit an acoustic signal and switch off, and the icons may not work if wet. Be sure to dry the touch icons before switching the induction hob back on.

6. TROUBLESHOOTING

Problem Possible causes	Possible solution
The induction hob does not turn on	There is no electricity. Make sure the hob is connected to the mains and it is on.Check if there has been a power failure. If the problem persists, please contact the official Cecotec Technical Support Service.
The touch icons do not work	The icons are locked. Unlock the touch icons. Check the instructions in the "Operation" section.
It is difficult to use the touch icons	There may be a slight film of water on the buttons, or you may be using your fingertip to press the buttons.	Make sure the touch icons are dry and press them with the base of your finger.
The glass is damaged Irregular-edged cookware.Use of inappropriate and abrasive scouring pads or cleaning products.		Use cookware with flat and smooth bases. See section on "Choosing the right cookware".See section on "Cleaning and maintenance".
Some frying pans make crackling or popping noises	This may be due to the construction of your cookware (layers of different metals that vibrate differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes a slight buzzing sound when used at high power	This is due to the induction cooking technology.	It is usual, but the noise should decrease or completely disappear by lowering the power setting.
Fan noise from the induction hob	A cooling fan integrated in this induction hob has been activated to prevent overheating of the electronic components. It may still operate even after turning off the induction hob.	This is normal and not a cause for concern.Do not unplug the hob from the mains if the fan is still running.
Cookware does not heat up and does not appear on the display	The induction hob does not detect the cookware because it is not suitable for induction cooking.The induction hob does not detect the cookware because it is too small for the cooking zone or not well centred on it.	Use only cookware compatible with the induction hob. See section on “Choosing the right cookware”.Centre the cookware and make sure its base matches the size of the cooking zone.
The induction hob or a cooking zone has turned off unexpectedly, emits a sound and an error code is displayed	Technical fault. Note down the	error codes,disconnect the induction hob from the power supply and contact a qualified technician.

If a fault occurs, the induction hob will automatically go into protection mode and display the corresponding fault codes:

Problem Possible cause Possible solution
	No cooking utensil or unsuitable utensil.	Change the cookware.
E2/E3 Abnormal supply voltage.		Check if the power supply operates correctly. After connecting to the mains, the product turns on as usual.

ENGLISH

E4/E5	Fault in the temperature sensor of the insulated-gate bipolar transistor	Please contact the official Cecotec Technical Support Service for technical assistance.
E7/E8	Fault of the temperature sensor	Please contact the official Cecotec Technical Support Service for technical assistance.
E6/E9	Malfunction of the induction hob.	Let the hob cool down and restart it. If the fault persists, please contact the official Cecotec Technical Support Service for technical assistance.
Eb/EC PCBA	communication error	Please contact the official Cecotec Technical Support Service for technical assistance.

Do not try to disassemble the unit on your own to avoid hazards and damages to the induction hob.

7. TECHNICAL SPECIFICATIONS

Product reference: 02853

Product: Bolero Squad I 2100 hob

Cooking areas: 2 areas

Supply voltage: 220-240 V \~ 50/60 Hz

Installed electric power: 3500 W

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Power down

Hand holding a square button with an open padlock icon (no text or symbols)

Technical diagram showing labeled components of a layered structure with numbered parts 1 to 5

Fig. / Img. / Rys. / Obr. 4

board 270 450 A B C D product

Fig. / Img. / Rys. / Obr. 5

Technical line drawing of a mounted electrical enclosure with mounting brackets and internal components (no text or symbols)

Fig. / Img. / Rys. / Obr. 6

L N Brown Blue Green-Yellow 220-240V~

Fig. / Img. / Rys. / Obr. 7

www.cecotec.es
