USER MANUAL MMX 330 PRO BEYERDYNAMIC

Safety instructions 3

Versions....4

Supplied accessories 4

Accessories and replacement parts 4

Putting into operation....4

How to connect the cable.... 4

How to connect the headset to a PC.... 4

How to connect the headset to a game console.... 5

Putting on the headset....5

Adjusting the headband 5

Adjusting the microphone....5

Remote control....5

Maintenance....5

How to change the ear pads....6

How to change the headband pad 6

Technical Specifications ....7

Service....7

Disposal....7

Warranty....7

Thank you for purchasing the MMX 330 PRO gaming headset with STELLAR.45 drivers from beyerdynamic.

Please take some time and read this information carefully before using the product.

SAFETY INSTRUCTIONS

Risk of injury

We would like to point out that an excess of high volumes and long periods of listening may cause hearing damage. Hearing defects always constitute an irreversible impairment of hearing ability.
▶ If you suffer from tinnitus, do not use headphones, or reduce the volume.
According to regulations to protect employees against damages caused by noise and vibrations, please follow these instructions:

Sound pressure level	Period of listening
at 85 dB max. 8 hours
at 88 dB max. 4 hours
at 91 dB max. 2 hours
at 94 dB max. 1 hour
at 97 dB max. 30 minutes
at 100 dB max. 15 minutes

When connecting the headphone, please ensure that the volume is turned down to minimum. Adjust the volume after putting on the headphone.
When wearing wired headphones, avoid sudden movements. You could seriously injure yourself, especially if you have any piercings or wear earrings or glasses, etc. that can get caught in the cable.

Microphone

▶ Please make sure that you do not connect the microphone to microphone inputs supplying phantom power (12 - 48 V), as this will damage the microphone.

Danger to life

▶ Headphones drastically reduce perception of external sounds. Using headphones in road traffic can be potentially dangerous. The user's hearing must not be impaired to the extent that it causes road safety risks. Please also make sure that you do not use the headphones in traffic, especially within an area of potentially dangerous machines and tools.
▶ Furthermore, avoid using the headphones in situations where hearing must not be affected, especially when crossing a railway crossing or at a construction site.

Liability / intended use

▶ Do not use the headphones for any application which is not described in this product information.
The company beyerdynamic GmbH & Co. KG accepts no liability for damage to the headphones or injury to persons caused by careless, improper or incorrect use of the headphones, or by use for purposes not specified by the manufacturer.

VERSIONS

MMX 330 PRO Gaming headset, open, black .... . Order # 1001163

MMX 330 PRO MANUFAKTUR Gaming headset, open, with individually selectable features ..... Order # 1001566

SUPPLIED ACCESSORIES

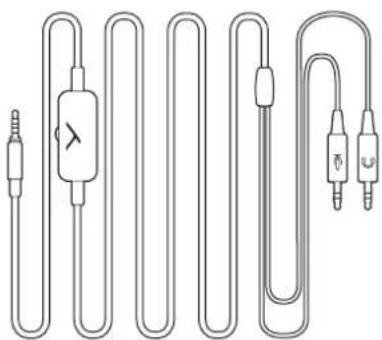

1 x Connection cable with 2 x 3-pole mini jack plugs (3.5 mm) to connect to a headphone output and microphone input, e.g. PC

Pure electrical circuit lines without any symbols

1 x Adapter with 2 x mini jack sockets (3.5 mm) and 1 x mini stereo jack plug (3.5 mm) to connect to mini combination jacks (3.5 mm), e.g. game consoles, tablets, smartphones etc.

ACCESSORIES AND REPLACEMENT PARTS

Accessories and replacement parts can be found on the internet at: https://www.beyerdynamic.com
If you have technical problems while using the MMX 330 PRO or need further guidance, please visit our FAQ website at: https://support.beyerdynamic.com

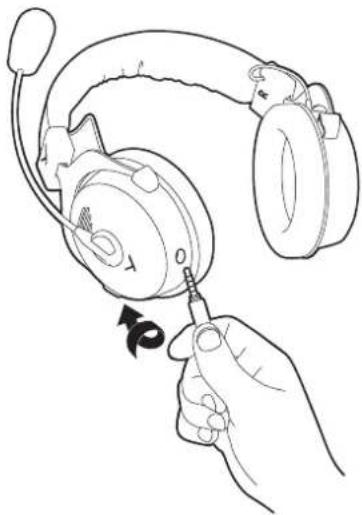

How to connect the cable

The cable that connects to the headphone is provided with a 5-pole jack plug that has a locking protection.

Connect the cable to the headset with a slight twisting motion.

Line drawing of a hand using a screwdriver to adjust the headband of an ear (no text or symbols present)

A common source of error is that the 5-pole jack plug is not connected properly to the headset.

When a malfunction occurs, simply pull out the plug again and push it firmly into the socket with a slight twisting motion.

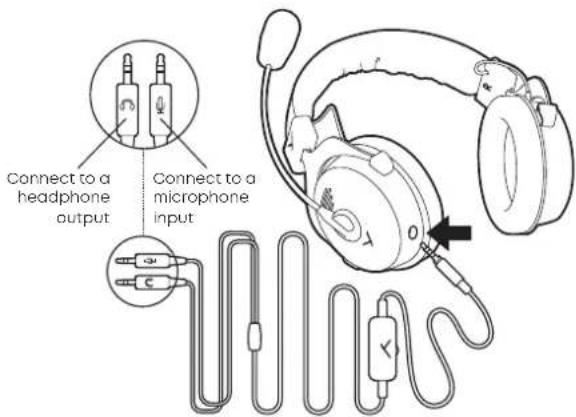

How to connect the headset to a PC

At the other end, the cable is provided with two 3-pole mini jack plugs (3.5 mm) to connect to a PC.

Connect the plug with the headphone symbol to the headphone output of your PC.
Connect the plug with the microphone symbol to the microphone input of your PC.

Connect to a headphone output Connect to a microphone input

How to connect the headset to a game console

In contrast to a PC, game consoles only have one mini jack connection (3.5 mm).

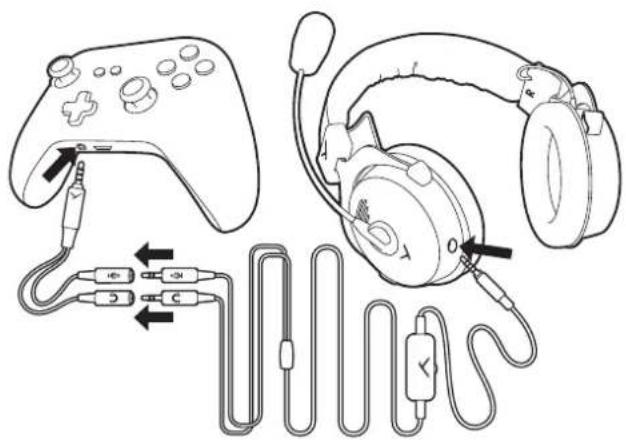

Connect the supplied adapter and the cable to your game console as illustrated.
▶ Optionally, you can purchase a 1.2 m long console cable (order # 918105) with a mini jack plug (3.5 mm).

Diagram showing a game controller connected to a headset via audio and audio cable, with labeled connectors and connection points.

Putting on the headset

Put the headset on your head. The microphone is on the left-hand side.
▶ Position the microphone in front of the middle of your mouth. In order to avoid pop noise, you should use the microphone with a pop shield.

Adjusting the headband

To optimise the wearing comfort, adjust the headband of the headset to your head via the adjustable yokes on the left and right side of the housing shells.
▶ Wear the headset so that the headband runs over the centre of your head and adjust the headband so that
- your ears are completely enclosed by the ear pads,
• you feel a gentle pressure around your ears,
• both ends of the headband have the same length.

Adjusting the microphone

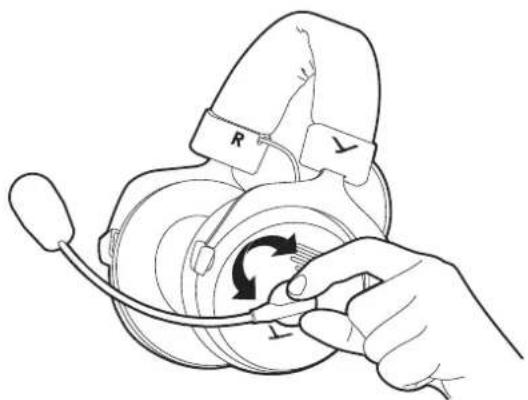

▶ Turn the microphone holder (never the gooseneck!) to position the microphone as requested.

Line drawing of a hand holding a headset with a rotary knob and scroll (no text or symbols)

▶ Make sure that the pop shield completely encloses the microphone.

▶ Bend the flexible gooseneck so that the microphone is placed about two centimetres in front of your mouth.

In order to avoid overstretching and premature wear and tear never bend the gooseneck more than 90°.

Remote control

The connection cable has an integrated remote control with a volume control and a mute switch. Use the volume control to adjust the volume of the headset. Use the mute switch to mute or activate the microphone.

Increase the volume:

▶ Turn the volume control upwards.
▶ Turn the volume control downwards.

Reduce the volume:

Mute the microphone:

▶ Slide the mute switch downwards (red marking visible).

Activate microphone:

▶ Slide the mute switch upwards (red marking not visible).

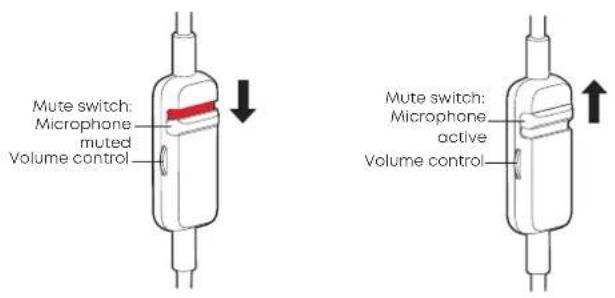

Mute switch: Microphone muted Volume control Mute switch: Microphone active Volume control

MAINTENANCE

As with any equipment which will be used near sensitive areas of the body, it is essential that the ear pads and headband are kept clean. Use a soft cloth moistened with water for cleaning. Make sure that no water drops into the ear cups or transducers.
If necessary, you can carefully remove the ear pads and headband pad and clean them with mild soapy water.

Never use any solvent cleaning agents! Furthermore, the pads must be completely dry before they are reattached to the MMX 330 PRO.

Never use a vaccum cleaner for cleaning the MMX 330 PRO, as this may cause irreparable damage.

Should it become necessary to replace the ear pads or the headband pad, refer to "Replacement parts and Accessories". You can easily do this yourself. Refer to the chapters "How to change the ear pads" and "How to change the headband pad".
If other components must be replaced, please contact your local beyerdynamic representative.

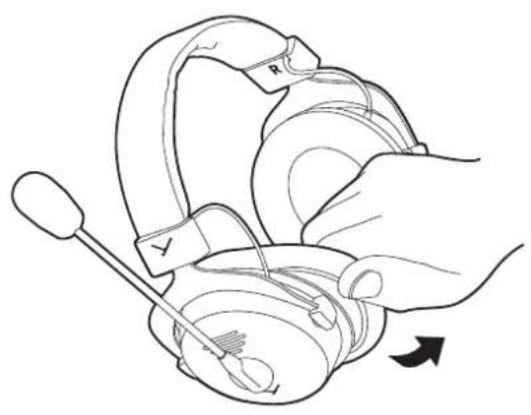

HOW TO CHANGE THE EAR PADS

▶ Use your fingertips to carefully pull the ear pad away from the housing.

Illustration of a hand using a medical or surgical tool to interact with a device (no text or symbols visible)

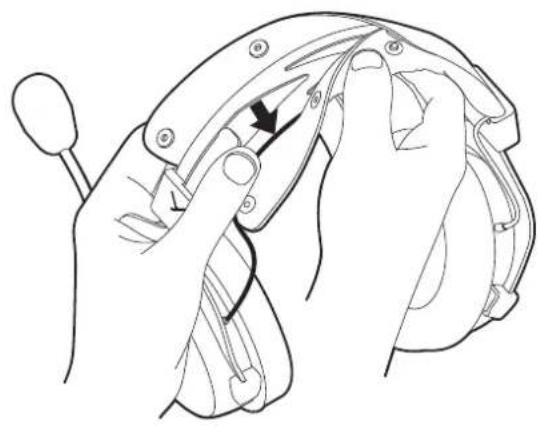

HOW TO CHANGE THE HEADBAND PAD

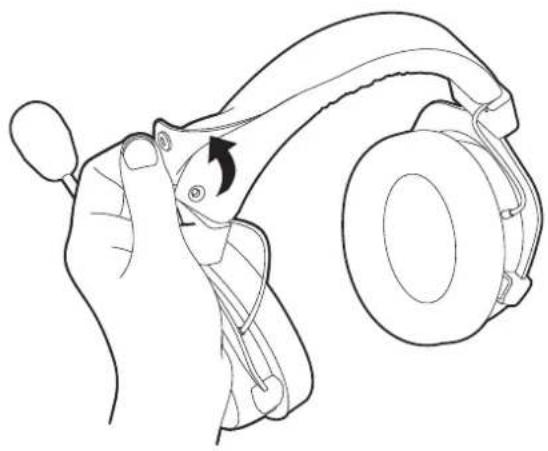

Carefully unbutton the headband pad and remove it.

Line drawing of a hand holding a device with a curved handle and a circular head (no text or symbols)

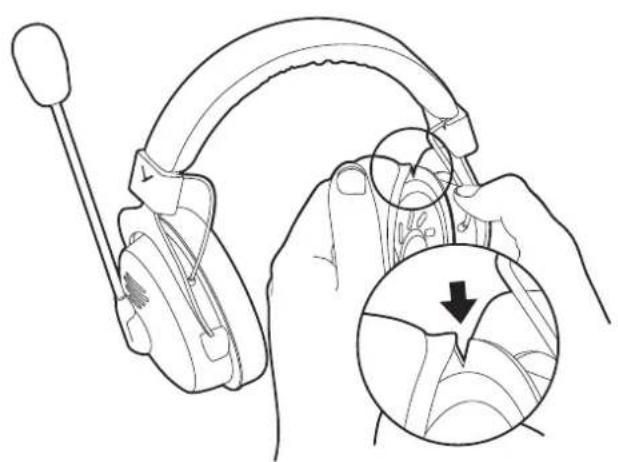

▶ Insert the plastic lip of the ear pad into the groove of the housing and turn the ear pad clockwise until it is fully attached.

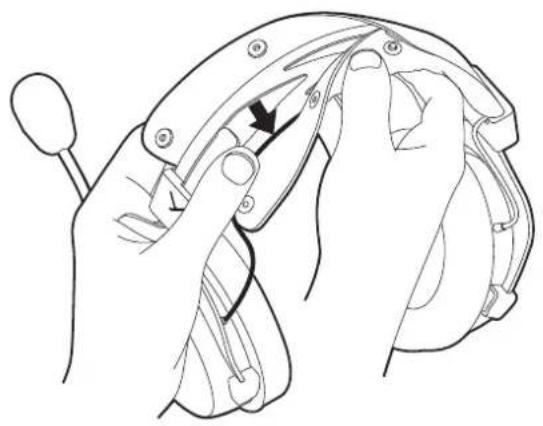

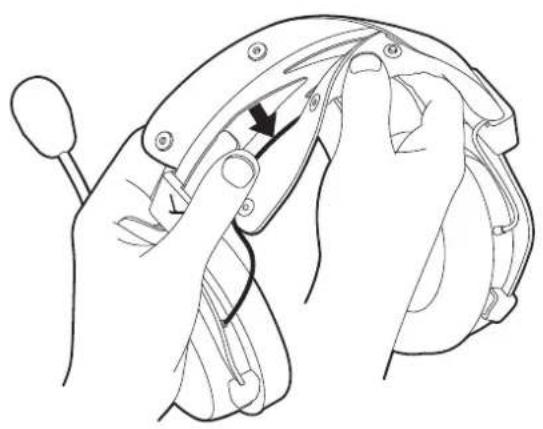

Place the new headband pad around the headband and connecting cable and fasten the buttons.

Illustration of a person using a headset to interact with a gear, showing a magnified inset of the gear mechanism (no text or symbols present)

Line drawing of hands adjusting a mechanical component with a black arrow indicating the turning point (no text or symbols present)

TECHNICAL SPECIFICATIONS

Headphone

Transducer type Dynamic
Operating principle Open
Wearing type Over-ear
Frequency response 5 - 40,000 Hz
Nominal impedance 48 Ω
Sound pressure level @ 1 mW/500 Hz	96 dB
T.H.D. @ 500 Hz < 0.05 %
Power handling capacity 30 mW
Headband pressure 5.5 N
Weight 318 g
Length and type of cable 2.5 m / straight cable, detachable, single-sided with 5-pole stereo jack plug
Connection 2 x mini stereo jack plugs (3.5 mm), adapter 1 x 4-pole mini jack plug (3.5 mm) to 2 x 3-pole mini jack socket (3.5 mm)

Microphone

Transducer type Condenser	(back electret)
Operating principle	Pressure gradient
Polar pattern Cardioid
Power supply	AB powering
Supply voltage	2 - 9 V
Current consumption	0.6 mA
Sensitivity at f = 1 kHz	21.6 mV/Pa
Frequency response	20 - 20,000 Hz
Max. sound pressure level	121 dB
Microphone output unbalanced
Length mic boom	approx. 190 mm
Microphone head diameter	13 mm

(All specifications acc. to EN 60 268-7)

SERVICE

▶ If you require service, please contact qualified service personnel or directly:

beyerdynamic service and logistics centre E-mail: [e-mail]

Dismantling the MMX 330 PRO yourself will invalidate the guarantee.

DISPOSAL

This symbol on the product, in the operating instructions or on the packaging means that electrical and electronic devices must be disposed of separately from household waste at the end of their life cycle.
▶ Always dispose of used equipment in accordance with applicable regulations.

For sale within the EU only:

For the return of old equipment, there are free collection points or a free return to beyerdynamic, as well as other acceptance points for reuse. The addresses are available at the local city or municipal administration.
▶ Dealers for electronic equipment are generally obliged to take back waste electrical/electronic equipment free of charge. This obligation also applies to sales via remote communication.
For further information, please contact the local authorities or the dealer from whom the product was purchased.

WARRANTY

The company beyerdynamic GmbH & Co. KG offers a limited warranty of 2 years on the purchased beyerdynamic product. The exact warranty conditions can be found on our website at https://www.beyerdynamic.com/service/warranty

INHALT

Pure electrical circuit lines without any symbols

Line drawing of a hand using a screwdriver to adjust the ear of an耳机 (no text or symbols present)

Diagram showing a game controller connected to a headset via cable and plug, with labeled connectors and connection points.

Headset aufsetzen

Illustration of a hand holding a headset with a rotary knob and labeled buttons (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

KOPFPOLSTER WECHSELN

Line drawing of a hand holding a device with a curved handle and a circular head (no text or symbols)

Illustration of a person using a headset to interact with a magnified inset showing a hand holding the ear (no text or symbols present)

Line drawing of hands adjusting a mechanical component with a black arrow indicating the adjustment (no text or symbols present)

TECHNISCHE DATEN

Kopfhörer

https://www.beyerdynamic.com/service/garantie

SOMMAIRE

Pure electrical circuit lines without any symbols

Line drawing of a hand using a screwdriver to adjust the ear of an耳机 (no text or symbols present)

Line drawing of a game controller and headphones with attached audio cable (no text or symbols)

Line drawing of a hand holding a headset with a circular dial and directional arrows indicating rotation (no text or symbols)

REMPLACEMENT DES COUSSINETS

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

REMPLACEMENT DU REMBOURRAGE DE L'ARCEAU SERRE-TÊTE

Line drawing of a hand holding a device with a curved handle and arrow indicating rotation (no text or symbols)

Illustration of a person using a headset to adjust ear structure, showing a magnified inset with a downward arrow (no text or symbols)

Line drawing of hands operating a mechanical device with a black arrow indicating the handle (no text or symbols present)

CARACTÉRISTIQUES TECHNIQUES

Casque

https://www.beyerdynamic.com/service/warranty

ÍNDICE

Pure electrical circuit lines without any symbols

Line drawing of a hand using a screwdriver to adjust the ear of an耳机 (no text or symbols present)

Diagram showing two gaming hardware setups with labeled connectors and cable connections

Line drawing of a hand holding a headset with a circular dial and directional arrows indicating rotation (no text or symbols)

Illustration of a hand holding a medical device with a needle inserted, showing internal components and a rotation arrow (no text or symbols)

CAMBIO DE LA ALMOHADILLA DE LA DIADEMA

Line drawing of a hand holding a device with a curved handle and a circular head, showing a rotation arrow (no text or symbols)

Illustration of a person using a headset to interact with a gear, showing a magnified inset of the gear mechanism (no text or symbols present)

Line drawing of hands operating a mechanical device with a black arrow indicating the joint (no text or symbols present)

CARACTERÍSTICAS TÉCNICAS

Auriculares

https://www.beyerdynamic.com/service/warranty

CONTENUTO

Pure electrical circuit lines without any symbols

Line drawing of a hand using a screwdriver to adjust the ear of an耳机 (no text or symbols present)

Line drawing of a game controller and headphones connected to audio/video cables (no text or symbols)

Illustration of a hand holding a headset with a circular dial and directional arrows indicating rotation (no text or symbols)

Illustration of a hand using a medical or surgical tool to interact with a device (no text or symbols visible)

Line drawing of a hand holding a device with a curved handle and arrow indicating rotation (no text or symbols)

Illustration of a person using a headset to adjust head wiring, showing a magnified inset with a downward arrow (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

SPECIFICHE

Cuffie

https://www.beyerdynamic.com/service/warranty

GUIDA AL RICICLAGGIO

Pure electrical circuit lines without any symbols

Line drawing of a hand using a screwdriver to adjust the headband of an electronic device (no text or symbols present)

Line drawing of a game controller and headphones with attached audio cable (no text or symbols)

Sätta på headset

Line drawing of a hand holding a medical device with a circular button and arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

BYTA KUDDE FÖR HUVUDBYGEL

Line drawing of a hand holding a device with a curved handle and a circular head (no text or symbols)

Illustration of a person using a headset to interact with a magnified inset showing a hand holding a microphone (no text or symbols present)

Line drawing of hands adjusting a mechanical component with a black arrow indicating the turning point (no text or symbols present)

TEKNISKA DATA

Hörlurar

https://www.beyerdynamic.com/service/warranty

目次

安全上のご注意....39

バージョン 40

同梱付属品 40

付属品と交換部品 40

使用開始手順 40

接続ケーブルの接続……40

ヘッドセットをPCに接続 40

Pure electrical circuit lines without any symbols

Line drawing of a hand using a screwdriver to adjust the ear of an耳机 (no text or symbols present)

Line drawing of a game controller and headphones connected to audio/video cables (no text or symbols)

Diagram showing a hand holding a headset with labeled parts and directional arrows indicating rotation or movement.

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

ヘッド バンドクッション の 交換

Line drawing of a hand holding a device with a curved handle and a circular head (no text or symbols)

Illustration of a person using a headset to interact with a magnified inset showing a hand holding a microphone (no text or symbols present)

Line drawing of hands adjusting a mechanical component with a black arrow indicating the turning point (no text or symbols present)

技術データ

ヘッド ホン

https://www.beyerdynamic.com/service/warranty

目录

安全注意事项 45

版本....46

交付配件 46

配件和备件 46

调试 46

插入连接线 46

将头戴式耳机连接至 PC 46

将头戴式耳机连接至游戏机 47

佩戴头戴式耳机 47

调节头带 47

调设麦克风 47

线控操作装置 47

保养....47

更换耳垫 48

更换头箍垫 48

技术指标 49

服务....49

废弃处理 49

质保....49

Pure electrical circuit lines without any symbols

Line drawing of a hand using a screwdriver to adjust the headstock of an electronic headset (no text or symbols present)

Line drawing of a game controller and headphones with attached audio cable (no text or symbols)

佩戴头戴式耳机

Illustration of a hand holding a headset with a circular component and directional arrows indicating rotation (no text or symbols)

确保防喷罩完全包裹麦克风。

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

更换头箍垫

▶ 小心地打开按扣并取下头箍垫。

Line drawing of a hand holding a device with a curved handle and a circular head (no text or symbols)

Line drawing of a person using a headset to interact with a gear, showing a magnified inset highlighting a specific mechanical component (no text or symbols present)

Line drawing of hands operating a mechanical device with a tool, no text or symbols present

技术指标

耳机

For further distributors worldwide, please go to www.beyerdynamic.com

Non-contractual illustrations. Subject to change without notice.
