USER MANUAL DT 270 PRO BEYERDYNAMIC

SAFETY INSTRUCTIONS 3

APPLICATION....3

MAINTENANCE....3

HOW TO CONNECT THE AUDIO CABLE....4

HOW TO CONNECT THE USB-C CABLE....4

HOW TO CHANGE THE EAR PADS WECHSELN 5

HOW TO CHANGE THE HEADBAND PAD....5

VERSION....6

SUPPLIED ACCESSORIES 6

ACCESSORIES AND REPLACEMENT PARTS 6

SERVICE 6

DISPOSAL....6

TECHNICAL SPECIFICATIONS 7

WARRANTY 7

Thank you for purchasing the DT 270 PRO from beyerdynamic.

Please take some time and read this information carefully before using the product.

SAFETY INSTRUCTIONS

Risk of injury

We would like to point out that an excess of high volumes and long periods of listening may cause hearing damage. Therefore, use the lowest possible volume levels.

▶ If you suffer from tinnitus, do not use headphones, or reduce the volume.
According to regulations to protect employees against damages caused by noise and vibrations, please follow these instructions:

Sound pressure level	Period of listening
85 dB max. 8 hours
88 dB max. 4 hours
91 dB max. 2 hours
94 dB max. 1 hour
97 dB max. 30 minutes
100 dB max. 15 minutes

When connecting the headphones, please ensure that the volume is turned down to minimum. Adjust the volume after putting on the headphones.

Danger to life

Headphones drastically reduce perception of external sounds. Using headphones in road traffic can be potentially dangerous. The user's hearing must not be impaired to the extent that it causes road safety risks. Please also make sure that you do not use the headphones in traffic or within an area of potentially dangerous machines and tools.

Furthermore, avoid using the headphones in situations where hearing must not be affected, especially when crossing a railway crossing or at a construction site.

Liability / intended use

▶ Do not use the headphones for any application which is not described in this product information.
The company beyerdynamic GmbH & Co. KG accepts no liability for damage to the headphones or injury to persons caused by careless, improper or incorrect use of the headphones, or by use for purposes not specified by the manufacturer.

APPLICATION

The DT 270 PRO is a closed studio headphone, which is suitable for recording and monitoring in the studio as well as on the move.
The detachable cable can be connected to either the left or right ear cup.
The DT 270 PRO provides a balanced, detailed sound with clear highs, present mids and clean bass.
The soft velour ear pads and padded headband ensure a light, secure fit, even if worn for many hours at at time.
The connection cable is fitted with a gold-plated mini stereo jack plug (3.5 mm) with screw-on adapter (6.35 mm) and can be connected to all standard headphone outputs.
For direct connection to devices with a USB-C port, e.g. smartphones, an adapter cable with a USB-C plug and a 3.5 mm jack socket is supplied.

MAINTENANCE

For hygienic reasons, you should occasionally clean the ear pads and headband pad with a soft cloth moistened with water. Make sure that no water drops into the ear cups or transducers.
▶ If necessary, you can carefully remove the ear pads and clean them with mild soapy water.

Never use any solvent or aggressive cleaning agents! Also avoid cleaning agents containing alcohol or acids. Furthermore, the ear pads must be completely dry before they are re-attached to the headphones.

Never use a vacuum cleaner for cleaning the DT 270 PRO, as this may cause irreparable damage.

As ear pads are subject to natural wear and tear, they will need to be replaced from time to time. You can easily do this yourself. Refer also to the "How to change the ear pads" chapter.
▶ If other components must be replaced, please contact your local beyerdynamic representative.

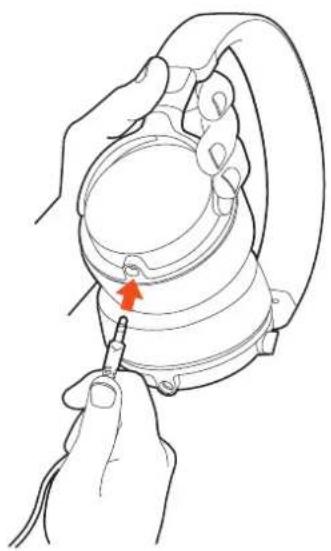

HOW TO CONNECT THE AUDIO CABLE

The connecting cable is fitted with a mini jack plug (3.5 mm) at the end that connects to the headphone.

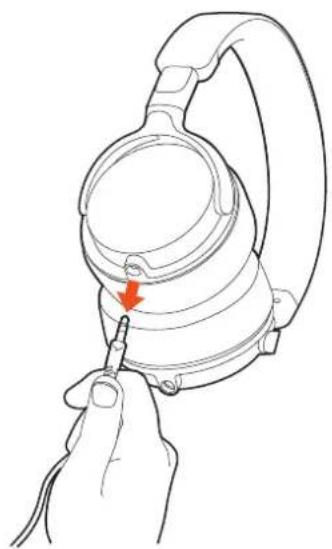

Connect the cable either to right or left ear cup.

Line drawing of hands adjusting a mechanical component with a red arrow indicating a step (no text or symbols present)

If you want to change the connecting cable, simply pull the cable away from the DT 270 PRO.

Line drawing of a hand inserting a component into a device (no text or symbols)

At the other end of the connecting cable is a gold-plated mini jack plug (3.5 mm) with a screw-on adapter (6.35 mm).

Connect the stereo jack plug of the cable to a headphone output only! If you connect the DT 270 PRO to any other jack socket, it could be damaged.

HOW TO CONNECT THE USB-C CABLE

The DT 270 PRO comes with a USB-C to mini jack (3.5 mm) adapter cable, allowing you to connect the DT 270 PRO directly to a mobile (e.g. smartphone) or stationary device via USB-C.
At first, unscrew the 6.35 mm jack adapter from the mini jack (3.5 mm) plug.

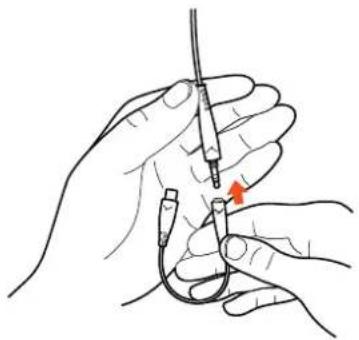

Then connect the mini jack (3.5 mm) plug to the jack socket of the USB-C cable.

Illustration of a hand holding a medical or surgical tool with a red arrow indicating a specific point (no text or symbols present)

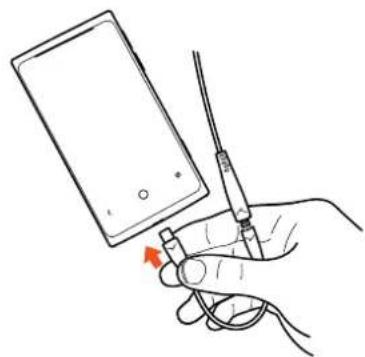

Then connect the USB-C cable to the USB-C port of a device, e.g. a smartphone.

Line drawing of a hand holding a smartphone with a cable inserted, showing a red arrow pointing to the screen (no text or symbols present)

HOW TO CHANGE THE EAR PADS WECHSELN

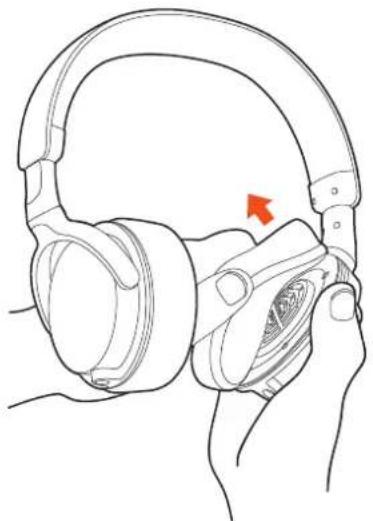

Carefully pull the ear pad away from the ear cup.

Line drawing of a person's head and ear with a red arrow pointing to the ear area (no text or symbols present)

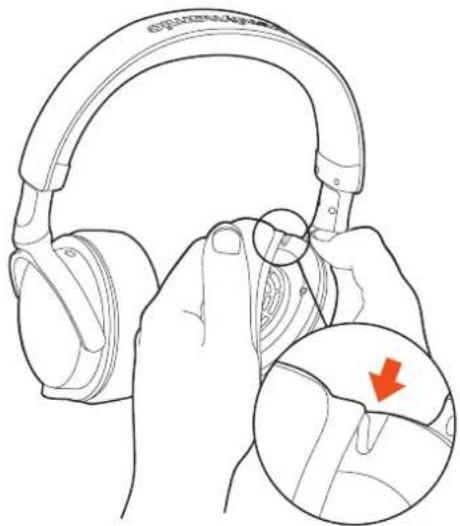

▶ Insert the plastic lip of the ear pad into the groove of the housing and turn the ear pad until it is fully attached.

Line drawing of hands holding an orange Sony headphones, with a magnified inset showing the ear area (no text or symbols)

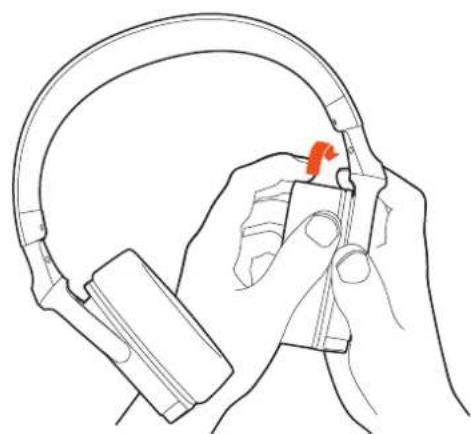

▶ Turn the attached ear pad a few times, as indicated by the arrow.

Line drawing of hands holding a hardcover with a small orange object inserted (no text or symbols)

HOW TO CHANGE THE HEADBAND PAD

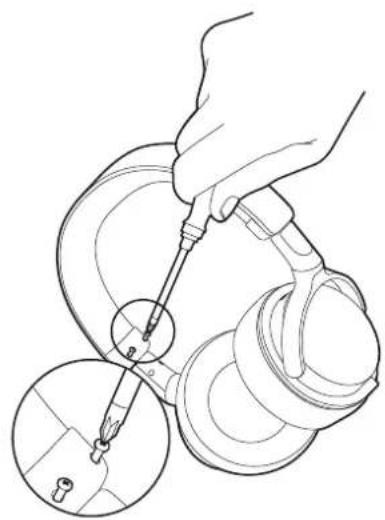

▶ Loosen the screws of the end pieces on both sides of the headphone using a cross-head screwdriver.

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

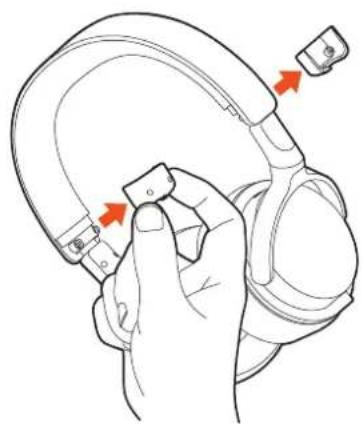

Remove the end pieces on both sides.

Line drawing of a hand holding a connector to a device, with red arrows indicating motion (no text or symbols)

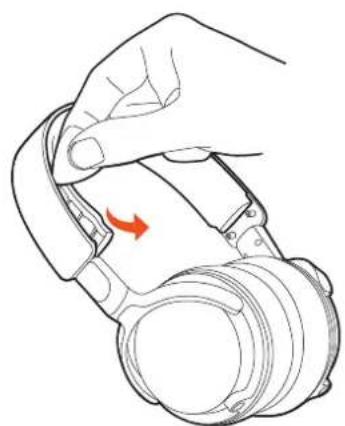

▶ Use a thin, blunt tool (e.g. a plectrum or plastic spatula) to carefully loosen the clips of the old headband pad. Start at one end of the headband. Once you have loosened a few clips, you can remove the remaining clips by hand.

Line drawing of a hand adjusting a camera lens with an orange arrow indicating rotation (no text or symbols)

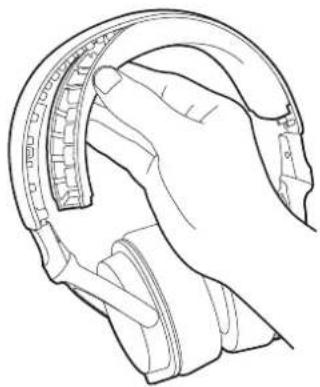

▶ Position the new pad along the headband and carefully press the clips until the pad is completely and securely attached.

Line drawing of a human head with a circular device attached, showing the blade and grip (no text or symbols)

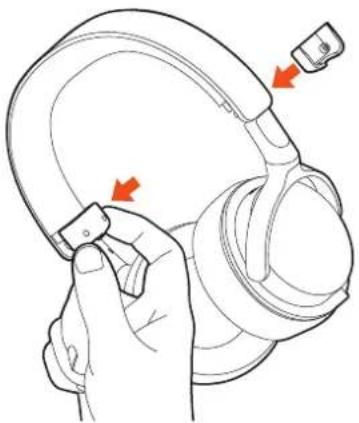

Put the end pieces back on both sides of the headphones and align them correctly.

Illustration of a hand holding a hard hat with a small clip, showing the head and neck adjustment (no text or symbols)

▶ Reattach the end pieces on the right and left hand side using the screws.

Line drawing of a hand using a pipette to measure a mechanical component, with an inset showing a magnified view of the component (no text or symbols present)

VERSION

DT 270 PRO

Dynamic studio headphones, closed, 45 Ω .... Order # 1002202

SUPPLIED ACCESSORIES

1x Coiled cable, 1.3 m, can be extended to 3 m
1 x 1/4" jack adapter (6.35 mm)
1x USB-C to mini jack (3.5 mm) adapter
1x Drawstring bag

ACCESSORIES AND REPLACEMENT PARTS

Accessories and replacement parts can be found on the internet at: https://www.beyerdynamic.com
If you have technical problems while using the DT 270 PRO or need further guidance, please visit our FAQ website at: https://support.beyerdynamic.com

SERVICE

▶ If you require service, please contact qualified service personnel or directly:

beyerdynamic service and logistics centre E-mail: [e-mail]

Dismantling the DT 270 PRO yourself will invalidate the guarantee.

DISPOSAL

This symbol on the product, in the operating instructions or on the packaging means that electrical and electronic devices must be disposed of separately from household waste at the end of their life cycle.
▶ Always dispose of used equipment in accordance with applicable regulations.

For sale within the EU only:

For the return of old equipment, there are free collection points or a free return to beyerdynamic, as well as other acceptance points for reuse. The addresses are available at the local city or municipal administration.
▶ Dealers for electronic equipment are generally obliged to take back waste electrical/electronic equipment free of charge. This obligation also applies to sales via remote communication.
For further information, please contact the local authorities or the dealer from whom the product was purchased.

TECHNICAL SPECIFICATIONS

Transducer Dynamic
Acoustic design Closed-back
Wearing type Over-ear
Frequency response 5 - 24,000 Hz
Nominal impedance 45 Ω
Sound pressure level @ 1mW / 500 Hz	96 dB SPL
Sound pressure level @ 1 V / 500 Hz	109 dB SPL
T.H.D. < 0.04 %
Maximum short-term power handling capacity	100 mW
Ambient noise attenuation 19 dBA
Nominal headband pressure	4.3 N
Weight (without connecting cable)	194 g
Length and type of cable 1.3 m / coiled cable, detachable, single-sided
Connection Gold-plated mini stereo
	jack plug (3.5 mm) and 1/4" screw-on adapter (6.35 mm), USB-C to 3.5 mm audio adapter

(all specifications acc. to EN 60 268-7)

WARRANTY

The company beyerdynamic GmbH & Co. KG offers a limited warranty of 2 years on the purchased beyerdynamic product. The exact warranty conditions can be found on our website at https://www.beyerdynamic.com/service/warranty

INHALT

OHRPOLSTER WECHSELN 11

KOPFPOLSTER WECHSELN....11

VERSION....12

LIEFERZUBEHÖR 12

Line drawing of hands adjusting a mechanical component with a red arrow indicating a detail (no text or symbols present)

Line drawing of a hand inserting a cable into a device component, with a red arrow indicating the cable's insertion point (no text or symbols present)

Illustration of hands holding a medical or surgical tool with a red arrow indicating a specific point (no text or symbols present)

Line drawing of a hand holding a smartphone with a cable inserted, showing a red arrow pointing to the screen (no text or symbols present)

OHRPOLSTER WECHSELN

Line drawing of a person's head and ear with a red arrow pointing to the ear area (no text or symbols present)

Line drawing of hands holding an orange Sony headphones with a magnified inset showing the ear and seat area (no text or symbols)

Line drawing of hands holding a microphone with a red clip, no text or symbols present

KOPFPOLSTER WECHSELN

Line drawing of a hand using a pipette to measure a mechanical component, with an inset showing magnified detail (no text or symbols)

Line drawing of a hand holding a device with red arrows indicating movement or change (no text or symbols present)

Hand holding a camera lens with a red arrow indicating rotation (no text or symbols)

Line drawing of a human head with a circular device attached, showing the blade and grip (no text or symbols)

Illustration of a hand holding a hard hat with a small clip, showing the head and neck (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

VERSION

DT 270 PRO

https://www.beyerdynamic.com/service/garantie

SOMMAIRE

CONSIGNES DE SÉCURITÉ ....15

UTILISATION ....15

ENTRETIEN ....15

BRANCHER LE CÂBLE AUDIO....16

BRANCHER LE CÂBLE USB-C....16

REMPLACEMENT DES COUSSINETS ....17

REMPLACEMENT DU BANDEAU DE L'ARCEAU SERRE-TÊTE....17

MODÈLE .....18

CONTENU DE L'EMBALLAGE ....18

ACCESSOIRES ET PIÈCES DE RECHANGE....18

SERVICE APRÈS-VENTE....18

MISE AU REBUT....18

DONNÉES TECHNIQUES ....19

GARANTIE....19

Line drawing of hands adjusting a mechanical component with a red arrow indicating a step (no text or symbols present)

Line drawing of a hand inserting a cable into a device component, with a red arrow indicating the cable's insertion point (no text or symbols present)

Illustration of hands holding a medical or surgical tool with a red arrow indicating a specific point (no text or symbols present)

Line drawing of a hand holding a smartphone with a pen inserted, showing a red arrow pointing to the screen (no text or symbols present)

REMPLACEMENT DES COUSSINETS

Line drawing of a person's head and ear with a red arrow pointing to the ear area (no text or symbols present)

Line drawing of hands holding an Apple headphones, with a magnified inset showing the ear and seat area (no text or symbols)

Line drawing of hands holding a hardcover with a small orange object inserted (no text or symbols)

REMPLACEMENT DU BANDEAU DE L'ARCEAU SERRE-TÊTE

Line drawing of a hand using a pipette to measure a mechanical component with a magnified inset (no text or symbols)

Illustration of a hand holding a hard hat with red arrows indicating adjustment or movement (no text or symbols present)

Hand holding a camera lens with a red arrow indicating rotation (no text or symbols)

Line drawing of a human head with a mechanical component inserted, showing no text or symbols

Illustration of a hand holding a hard hat with a small clip, showing the head and neck adjustment (no text or symbols)

Line drawing of a hand using a pipette to measure a mechanical component, with an inset showing magnified detail (no text or symbols)

MODÈLE

DT 270 PRO

Line drawing of hands adjusting a mechanical component with a red arrow indicating a step (no text or symbols present)

Line drawing of a hand inserting a cable into a device component, with a red arrow indicating the cable's insertion point (no text or symbols present)

Illustration of hands holding a medical or surgical tool with a red arrow indicating a specific point (no text or symbols present)

Line drawing of a hand holding a smartphone with a pen inserted, showing a red arrow pointing to the screen (no text or symbols present)

Line drawing of a person's head and ear with a red arrow pointing to the ear area (no text or symbols present)

Line drawing of hands holding an orange Sony headphones, with a magnified inset showing the ear area (no text or symbols)

Line drawing of hands holding a hardcover with a small orange object inserted (no text or symbols)

CAMBIAR LA ALMOHADILLA DE LA DIADEMA

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a hand holding a device with red arrows indicating movement or change (no text or symbols present)

Hand holding a camera lens with a red arrow indicating rotation (no text or symbols)

Line drawing of a human head with a circular device attached, showing mechanical components (no text or symbols)

Illustration of a hand holding a hard hat with a small clip, showing the head and neck (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

VERSIÓN

DT 270 PRO

https://www.beyerdynamic.com/service/garantie

CONTENUTO

AVVERTENZE PER LA SICUREZZA 27

USO 27

MANUTENZIONE....27

COLLEGARE UN CAVO AUDIO....28

COLLEGAMENTO DEL CAVO USB-C 28

ACCESSORI FORNITI....30

ACCESSORI E PARTI DI RICAMBIO....30

ASSISTENZA....30

SMALTIMENTO 30

SPECIFICHE ....31

GARANZIA ....31

GUIDA AL RICICLAGGIO....31

Line drawing of hands adjusting a mechanical component with a red arrow indicating a step (no text or symbols present)

Line drawing of a hand inserting a cable into a device component, with a red arrow indicating the cable's insertion point (no text or symbols present)

COLLEGAMENTO DEL CAVO USB-C

Illustration of a hand holding a medical or surgical tool with a red arrow indicating direction (no text or symbols present)

Line drawing of a hand holding a smartphone with a cable inserted, showing a red arrow pointing to the screen (no text or symbols present)

Line drawing of a person's head and ear with a red arrow pointing to the ear area (no text or symbols present)

Line drawing of hands holding an orange Sony headphones, with a magnified inset showing the ear area (no text or symbols)

Line drawing of hands holding a microphone with a red clip, no text or symbols present

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand holding a hard hat with red arrows indicating adjustment or movement (no text or symbols present)

Hand holding a camera lens with a red arrow indicating rotation (no text or symbols)

Line drawing of a human head with a circular device attached, showing no text or symbols

Illustration of a hand holding a hard hat with a small clip, showing the head and neck adjustment (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

VERSIONE

DT 270 PRO

https://www.beyerdynamic.com/service/garantie

GUIDA AL RICICLAGGIO

Line drawing of hands adjusting a mechanical component with a red arrow indicating a step (no text or symbols present)

Line drawing of a hand inserting a cable into a device component, with a red arrow indicating the cable's insertion point (no text or symbols present)

Illustration of hands holding a medical or surgical tool with a red arrow indicating a specific point (no text or symbols present)

Line drawing of a hand holding a smartphone with a cable inserted, showing a red arrow pointing to the screen (no text or symbols present)

BYTA ÖRONKUDDAR

Line drawing of a person's head wearing headphones, with a red arrow pointing to the ear area (no text or symbols present)

Line drawing of hands holding an orange Sony headphones, with a magnified inset showing the ear and seat area (no text or symbols)

Line drawing of hands holding a microphone and earbell (no text or symbols)

BYTA HUVUDBYGELKUDDE

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand holding a hard hat with red arrows indicating adjustment or movement (no text or symbols present)

Hand holding a camera lens with a red arrow indicating rotation (no text or symbols)

Line drawing of a human head with a circular device attached, showing no text or symbols

Illustration of a hand holding a hard hat with a small clip, showing the head and neck (no text or symbols)

Line drawing of a hand using a tool to inspect or install a mechanical component, with no visible text or symbols.

VERSION

DT 270 PRO

Line drawing of hands adjusting a mechanical component with a red arrow indicating a step (no text or symbols present)

Line drawing of a hand inserting a cable into a device component, with a red arrow indicating the cable's insertion point (no text or symbols present)

Illustration of hands holding a medical or surgical tool with a red arrow indicating a specific point (no text or symbols present)

Line drawing of a hand holding a smartphone with a pen inserted, showing a red arrow pointing to the screen (no text or symbols present)

Line drawing of a person's head and ear with a red arrow pointing to the ear area (no text or symbols present)

Line drawing of hands holding an orange Sony headphones, with a magnified inset showing the ear area (no text or symbols)

Line drawing of hands holding a hardcover with a small orange object inserted (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand holding a hard hat with red arrows indicating adjustment or movement (no text or symbols present)

Hand holding a camera lens with a red arrow indicating rotation (no text or symbols)

Line drawing of a human head with a circular device attached, showing mechanical components (no text or symbols)

Illustration of a hand holding a hard hat with a small clip, showing the head and neck (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up view of a small component (no text or symbols present)

WERSJA

DT 270 PRO

Line drawing of hands adjusting a mechanical component with a red arrow indicating a step (no text or symbols present)

Line drawing of a hand inserting a component into a device (no text or symbols)

Illustration of a hand holding a medical or surgical tool with a red arrow indicating a specific point (no text or symbols present)

Line drawing of a hand holding a smartphone with a cable inserted, showing a red arrow pointing to the screen (no text or symbols present)

イヤーパッドの交換

Line drawing of a person's head and ear with a red arrow pointing to the ear area (no text or symbols present)

Line drawing of hands holding an orange Sony headphones, with a magnified inset showing the ear and seat area (no text or symbols)

Line drawing of hands holding a hardcover with a small orange object inserted (no text or symbols)

ヘッドバンドクッションの交換

Line drawing of a hand using a tool to measure a mechanical component with circular parts (no text or symbols)

Line drawing of a hand holding a device with orange arrows indicating motion (no text or symbols)

Hand holding a camera lens with a red arrow indicating rotation (no text or symbols)

Line drawing of a human head with a circular device attached, showing the blade and grip (no text or symbols)

Illustration of a hand holding a hard hat with a small clip, showing the head and neck adjustment (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

バージョン

DT 270 PRO

ダイナミックスタジオヘッドホン、

https://www.beyerdynamic.com/service/garantie

目录

安全注意事项 51

应用 51

保养 51

连接音频线 52

连接 USB-C 数据线 52

更换耳垫....53

更换头箍垫 53

版本 54

交付配件....54

配件和备件 54

服务 54

废弃处理....54

技术指标 55

质保 55

Line drawing of hands adjusting a mechanical component with a red arrow indicating a step (no text or symbols present)

Line drawing of a hand inserting a cable into a device component, with a red arrow indicating the cable's insertion point (no text or symbols present)

Illustration of a hand holding a medical or surgical tool with a red arrow indicating a point of interest (no text or symbols present)

Line drawing of a hand holding a smartphone with a pen inserted, showing a red arrow pointing to the screen (no text or symbols present)

更换耳垫

从外壳轻轻拔下耳垫。

Line drawing of a person's head wearing headphones, showing ear and grip mechanism (no text or symbols)

Line drawing of hands holding an Apple headphones, with a magnified inset showing the ear and seat area (no text or symbols)

将安装的耳垫沿箭头方向转动数次。

Line drawing of hands holding a hard hat and installing a cable (no text or symbols)

更换头箍垫

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

取下两侧的端盖。

Illustration of a hand holding a hard hat with red arrows indicating adjustment or change (no text or symbols present)

Hand holding a camera lens with a red arrow indicating rotation (no text or symbols)

Line drawing of a human head with a mechanical component inserted, showing no text or symbols

将端盖重新安装到耳机两侧，并正确对齐。

Illustration of a hand holding a hard hat with a small clip, showing the head and neck (no text or symbols)

用螺栓将端盖重新固定在左右两侧。

Line drawing of a hand using a pipette to measure a mechanical component, with an inset showing magnified detail (no text or symbols)

版本

DT 270 PRO

录音室级动态耳机，

https://www.beyerdynamic.com/service/garantie

beyerdynamic GmbH & Co. KG

For further distributors worldwide, please go to www.beyerdynamic.com

Non-contractual illustrations. Subject to change without notice.
