USER MANUAL Ninja 2 i-Size COSATTO

clever stuff for happy babies

(EN) Spare part list diagram

58

(FR) Schéma de pieces détachées, (DE) Ersatzteillisteabbildung,
(IT) Diagramma della lista delle parti di ricambio,
(PT) Diagrama de lista de peças sobresselentes,
(RU) Cxema κ συμηκαίνι Σπρατει, (ZH) 备件清单图,
(ES) Diagrama de lista de piezas de repuesto

(EN) Instruction diagram 59-65

(FR) Schéma d'instructions, (DE) Anleitungsdiagramm,
(IT) Diagramma di istruzioni, (PT) Diagrama de instruções,
(RU) Cxema К Иструкции, (ZH) 说明图, (ES) Diagrama de instrucciones

(EN) Forward facig mode (100 - 150 cm) - ISOFIT option 66 - 93

(FR) Position face à la route (100 - 150 cm) - Option ISOFIT,
(DE) Vorwärtsrichtung (100 - 150 cm) - ISOFIT-Option,
(IT) Modalità rivolta in avanti (100 - 150 cm) - Opzione ISOFIT,
(PT) Modo virado para a fronte (100 - 150 cm) - Opcao ISOFIT,
(RU) Лицом по:xódy dBuxxeHHa (100 - 150 cm) - Onzua ISOFIT,
(ZH) 前向安装模式 (100 - 150公分) - ISOFIT 选择,
(ES) Modo en sentido de la marcha (100 - 150 cm) - Opcion ISOFIT

(EN) Forward facig mode (100 - 150 cm) - Belted option 94 - 121

(FR) Position face à la route (100 - 150 cm) - Mode ceinture,
(DE) Vorwärtsrichtung (100 - 150 cm) - Gegurtete Option,
(IT) Modalità rivolta in avanti (100 - 150 cm) - Opzione cinture di sicurezza,
(PT) Modo virado para a fronte (100 - 150 cm) - Opcao de cinto,
(RU) Лицом по*xоду движени (100 - 150 cm) - Варнат соштным
peMHem бezona nachostn,
(ZH) 前向安装模式 (100 - 150 公分) - 安全带选择,
(ES) Modo en sentido de la marcha (100 - 150 cm) - Opcion de cinturon

Important: Keep these instructions for future reference.

Important safety Information

The instruction manual should be kept safely with child car seat for its life period: There is a compartment at the side of the child car seat for storage of the instruction manual.

It is recommended to check that the child restraint is compatible with the intended vehicle at the time of purchase.

Please refer to the vehicle list, Cosatto fit checker app (http://cosat.to/fitchecker) or the vehicle fitting list section on the website (http://cosat.to/ninja2isizevl).

Seat positions in other vehicles may also be suitable to accept the child restraint. If in doubt, consult either Cosatto or the retailer.

Child age and weight:

The car seat is suitable for height between 100 and 150cm , up to maximum weight of 36kg .
- IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS.

Location:

• Refer to the vehicle list for information of where the child car seat base will fit in your vehicle.
• Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.
• If the vehicle seat backrest has a recline function, place the vehicle seat in the most upright position when using the child car seat.
• Do not use the child car seat in the home. It has not been designed for home use and should only be used in your car.

Safety - Please read carefully:

NEVER use this child car seat with its side facing the vehicle seat.
- Any rigid items and plastic parts of the child car seat must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of vehicle.
- If any load bearing points other than those described in the instructions are used, this can significantly reduce the protection factor of the child car seat.
- ALWAYS secure your child with the safety harness when using this child car seat.
- Never leave your child unattended.
- Do not attempt to dismantle, modify or add to any part of the child car seat or change the way your vehicle seat belts are made or used.
- After an accident the child car seat should be replaced and the vehicle seat belts. Although they may look undamaged, they may not protect your child as well as they should.
- Do not place anything such as a towel or cushion under the child car seat. This could affect the performance of the child restraint system in an accident.
- Any vehicle seat belt holding the child car seat to the vehicle should be tight, and that belt should not be twisted.
- Always make sure that the vehicle seat belt is correctly tensioned to ensure maximum protection for your child.
- Prevent vehicle seat belt from getting trapped between car doors or rubbing against sharp parts of the seat or body.
- If the vehicle belt becomes cut or frayed, replace it before travelling.
- Never use replacement parts other than those approved by Cosatto.
- Cosatto advise that child car seat should not be bought or sold second-hand. Many child car seat acquired this way have been found to be dangerous.
- NOTE: The child car seat can mark vehicle seat upholstery. Cosatto cannot be held responsible for damage or marking to vehicle seat upholstery.
- Security is only guaranteed if the child car seat is fitted in accordance with these instructions.
- Safely secure any luggage or other objects that might cause injuries to the occupant of the child car seat in the event of a collision.
- Failure to comply with the instructions would be dangerous, and will automatically void the warranty and exempt Cosatto from any liability.
- The harness buckle has been designed to be released quickly in an emergency. IT IS NOT CHILD PROOF. More inquisitive children may learn to undo the buckle. Children should be told never to play with the harness buckle or any other part of the child car seat.
- The lap vehicle seat belt must be worn in such a way as to properly secure the pelvis of the child.
- Never use the child car seat without its fabric cover because the fabric cover constitutes as an integral part of the child car seat performance. The fabric cover should not be replaced with any other than the ones recommended by Cosatto.
- Cover the child car seat if it is left in direct sun light for prolonged period as the child car seat base surfaces may get very hot. Check the child car seat surface before placing your child in the seat.

WARNING: To avoid risk of injury from burning, do not place hot beverage on drink holder.

• Drink holder - maximum weight 500g.

• Failure to comply with the instructions would be dangerous, and will automatically void the warranty and exempt Cosatto from any liability.

Notice:

1. (100 - 150cm) This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in "i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual.
2. Never use this child car seat on passenger seat fitted with an active airbag is installed.
3. If in doubt, consult either the child restraint manufacturer or retailer.

Care & Maintenance:

• Your child restraint system has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.
• Store your child restraint system in a dry, safe place.
• Storing a damp child restraint system will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing.
• Avoid leaving the child restraint system in sunlight for prolonged periods as this may cause fabrics to fade.
• Inspect the child restraint system regularly for signs of damage- stop using the product if damage is found.
• DO NOT take apart, or attempt to take apart the child restraint system when cleaning. It is unnecessary and dangerous to do so.
• Plastic and metal parts may be sponged clean with warm water and a mild detergent.
  Refer to the wash care on soft goods for cleaning instruction.
• Remove insert from seat cover/ seat liner prior to cleaning.
• Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.

Visual language Key:

XX	Refer to warning XX	XX	Repeat action x times	C	Press and hold
✓	Correct action		General action arrow		Check
X	Incorrect action		Lock	Cont.xx	Continue to step XX
CLICK!	Audible sound		Unlock		Repeat on other side

Replacement Parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists If you require any further assistance, please contact us at [e-mail]

S1: Headrest Fabric Cover S5: Headrest Side wing insert (set)

S2: Backrest Fabric Cover S6: Backrest Insert (set)

S3: Base Fabric Cover S7: ISOFIX guide (set)

S4: Headrest Centre Insert S8: Drink Holder

Fitting & Operation Information:

Please refer to the following diagrams:

Backrest 1- Preparation:

Connect the backrest section to the base section (a) and raise the backrest to the upright position (b).

Location 2- IMPORTANT: Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

WARNING: Your child car seat can only be installed forward facing using a three point lap and diagonal vehicle belt in the front or rear passenger seats of the car.

ISOFIX arm 3- Location:

The two ISOFIX low anchorage anchor points are usually located between the vehicle seat base and back (a).

Some vehicles have ISOFIX indicator near the ISOFIX low anchorage anchor points (b).

4-Fitting the ISOFIX guides (Optional):

The ISOFIX guides can help identify the vehicle ISOFIX anchor points and make installation easier. They can also help with the protection of your vehicle seat.

5-Fitting:

Press and hold ISOFIX arm adjustment buttons and extended the arms fully (a).

Engage the ISOFIX arms (b) and ensure that the ISOFIX arm security indicators are green (c).

Push the base back until it rests firmly against the vehicle seat backrest (d).

Removal is a reversal of this procedure.

7-Satisfactory headrest position:

Belted with ISOFIX arms only

8-Fitting:

Position the child car seat on the vehicle seat, forward facing (a).

Attach the ISOFIX arms to the anchor points (refer to step 5) (b).

Secure your child with vehicle belt (refer to step 9 - 10) (c).

Removal is a reversal of this procedure.

Vehicle belt 9- Place your child into the child car seat.

Pull the vehicle belt out and around the child (a) and fasten the buckle (b).

The lap vehicle belt should be threaded through lap vehicle belt guides (c) under the armrests.

Fit the diagonal vehicle belt through the headrest diagonal vehicle belt guide (d).

10-Tension the vehicle belt (a & b).

IMPORTANT: The position of the vehicle belt buckle can affect the stability of the child restraint system. In an accident this could stop the child restraint system from protecting your child as well as it should. After tightening the vehicle belt, if the buckle lies in the position marked (X) then try fitting the child restraint system in another seating position in your vehicle.

Removal is a reversal of this procedure.

Belted only 11-Fitting:

Position the child car seat on the vehicle seat, forward facing (a).

Retract the ISOFIX arms (refer to step 5) (b).

Secure your child with vehicle belt (refer to step 9 - 10) (c).

Removal is a reversal of this procedure.

Softgoods Removing:

12- Raise the headrest to its highest position (a, refer to step 6).

Unfasten the headrest adjustor strap (b) and poppers (c) at the rear of the headrest fabric cover.

Release the headrest fabric cover from the headrest diagonal vehicle belt guides (d) and remove the fabric cover.

13- Disconnect the backrest section from the base section (a).

Disconnect the elastic loops from the backrest section (b).

Disconnect the retaining straps from the base section (c).

Remove the backrest fabric cover and base fabric cover.

Reverse the procedures above to refit the softgoods.

Drink holder

14-Fitting:

Checklist:

• Have you check the compatibility of the child car seat with the intended vehicle?
• If applicable, is the air-bag de-activated?
• Is your child car seat correctly fitted to the vehicle seat?
• Have you check the safety indicators on ISOFIX arms?
• Is your child correctly secure in the child car seat?
• Is harness adequately tensioned and not twisted?

• For seating positions for other fitting options, please refer to the Cosatto fit checker app (http://cosat.to/fitchecker) or the vehicle fitting list section on the website (http://cosat.to/ninja2isizevl).

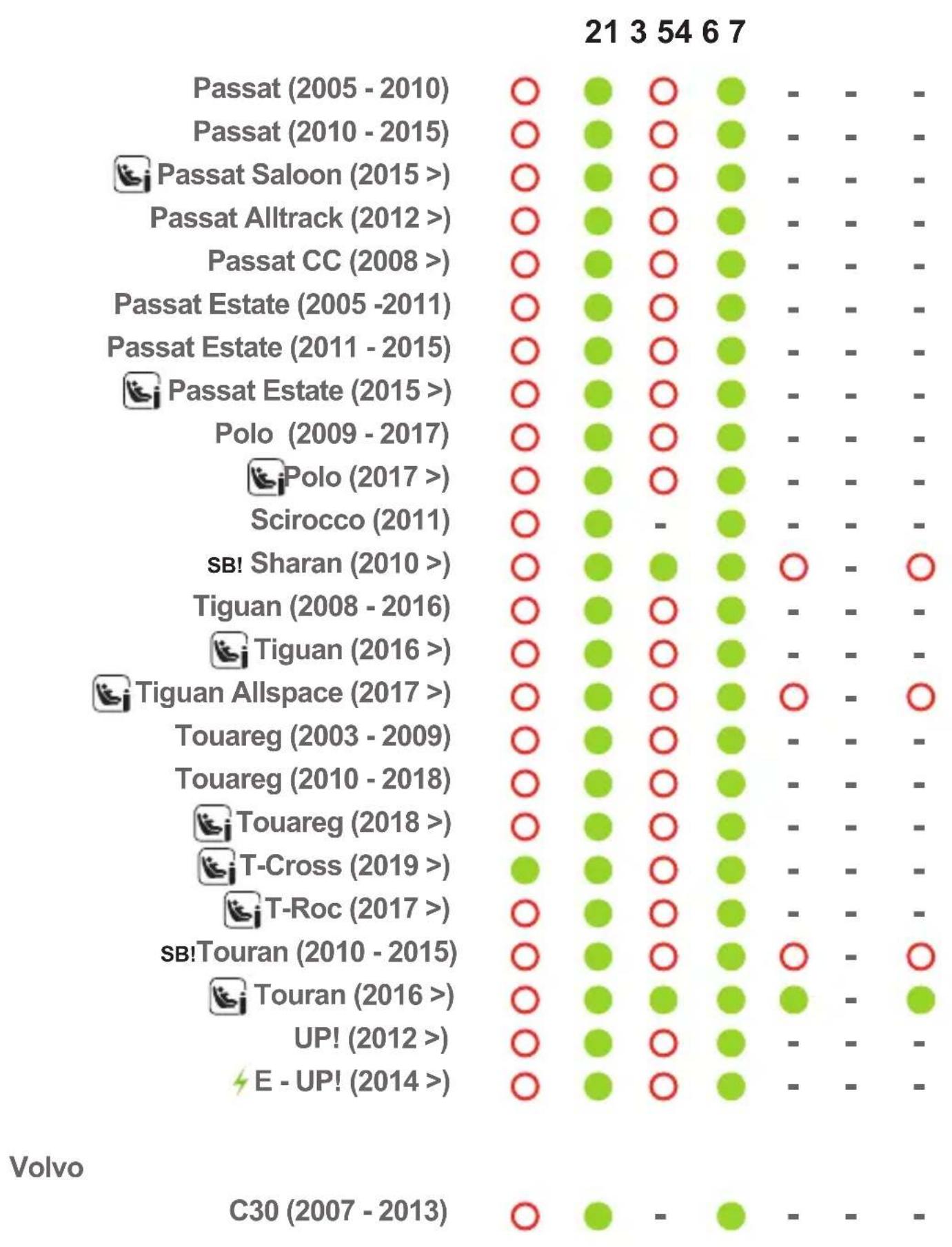

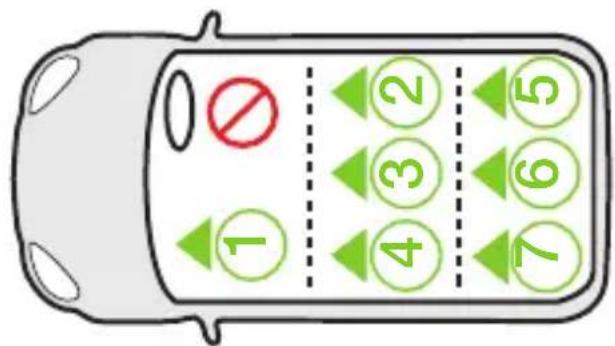

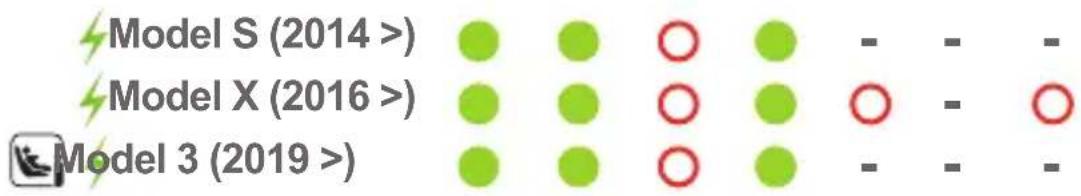

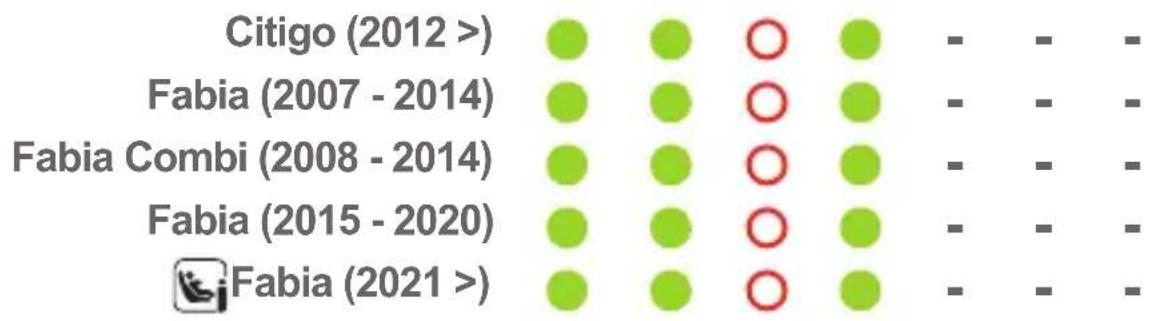

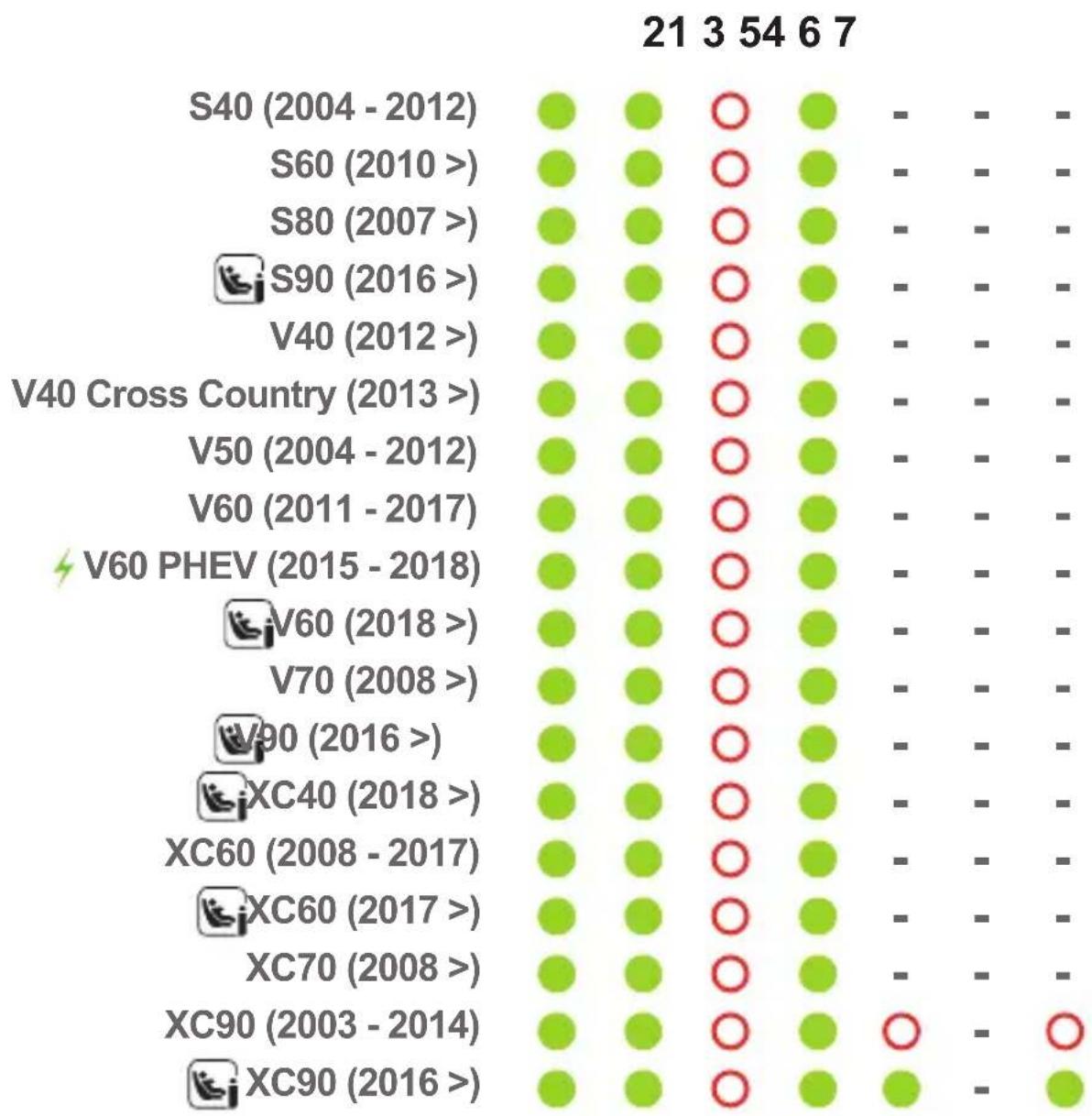

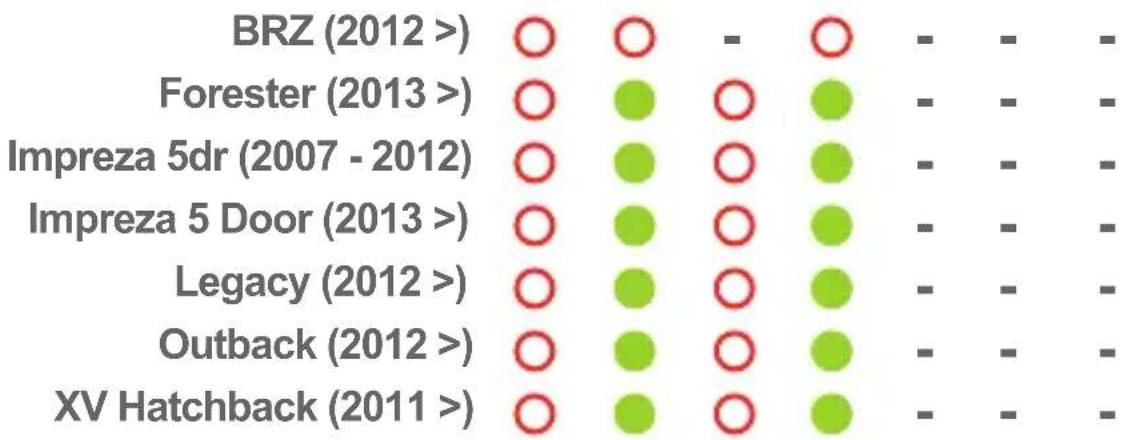

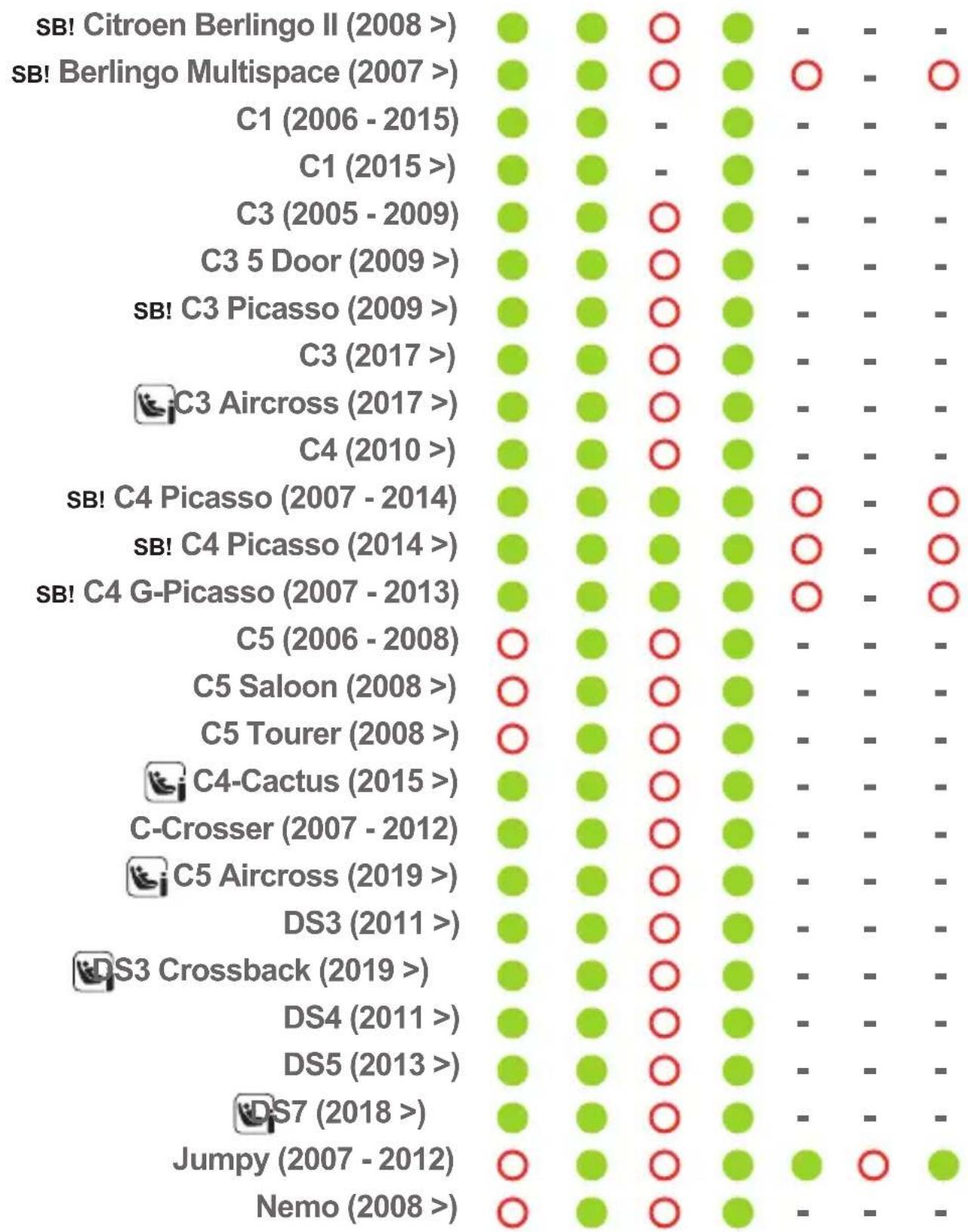

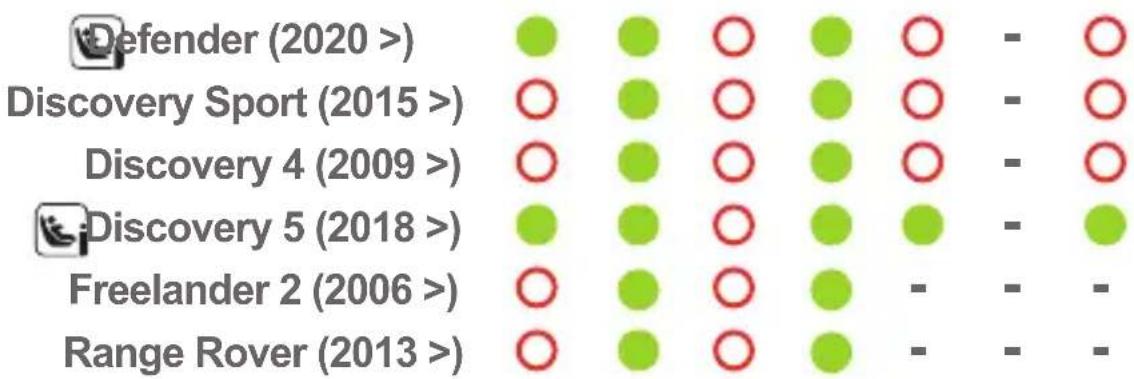

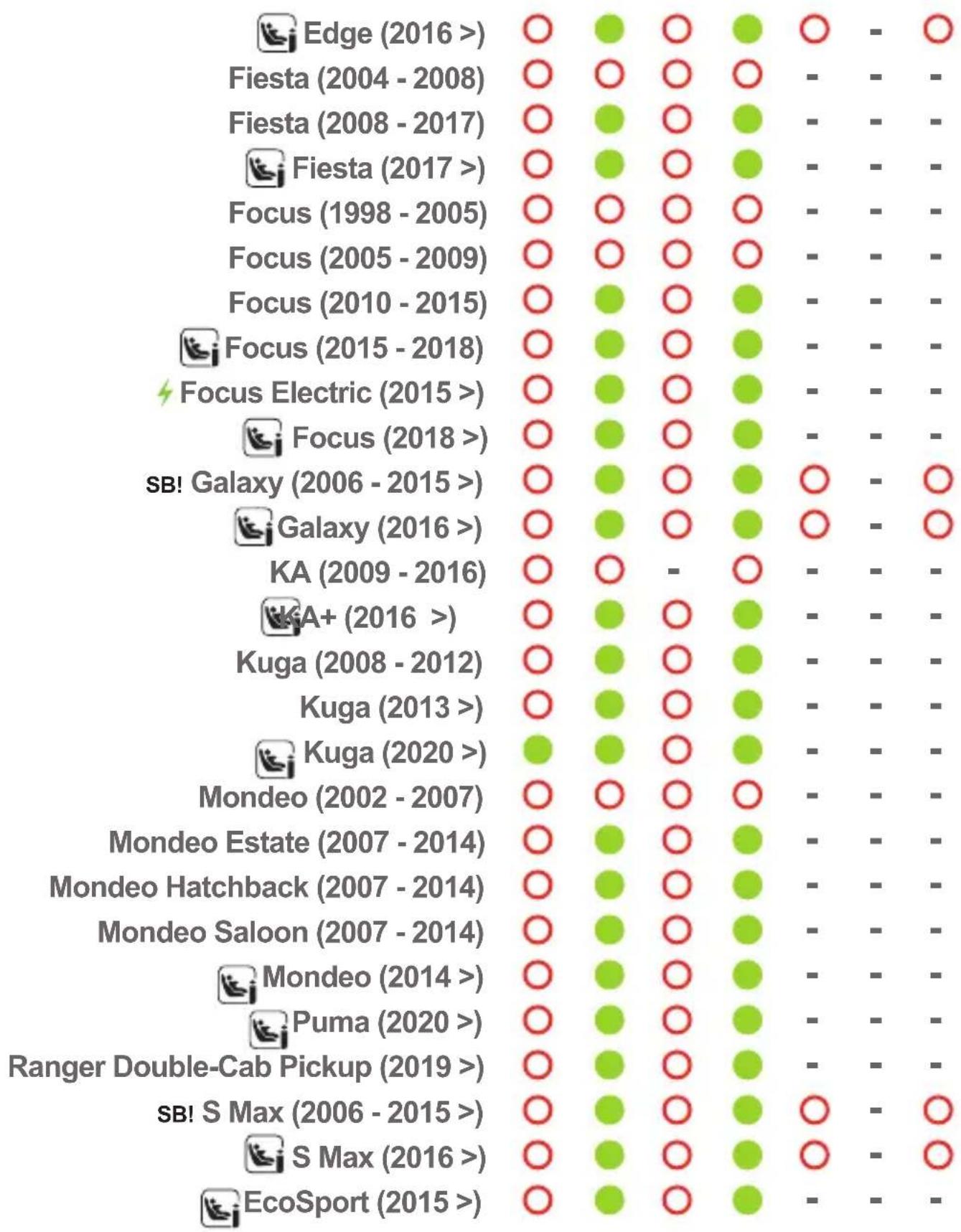

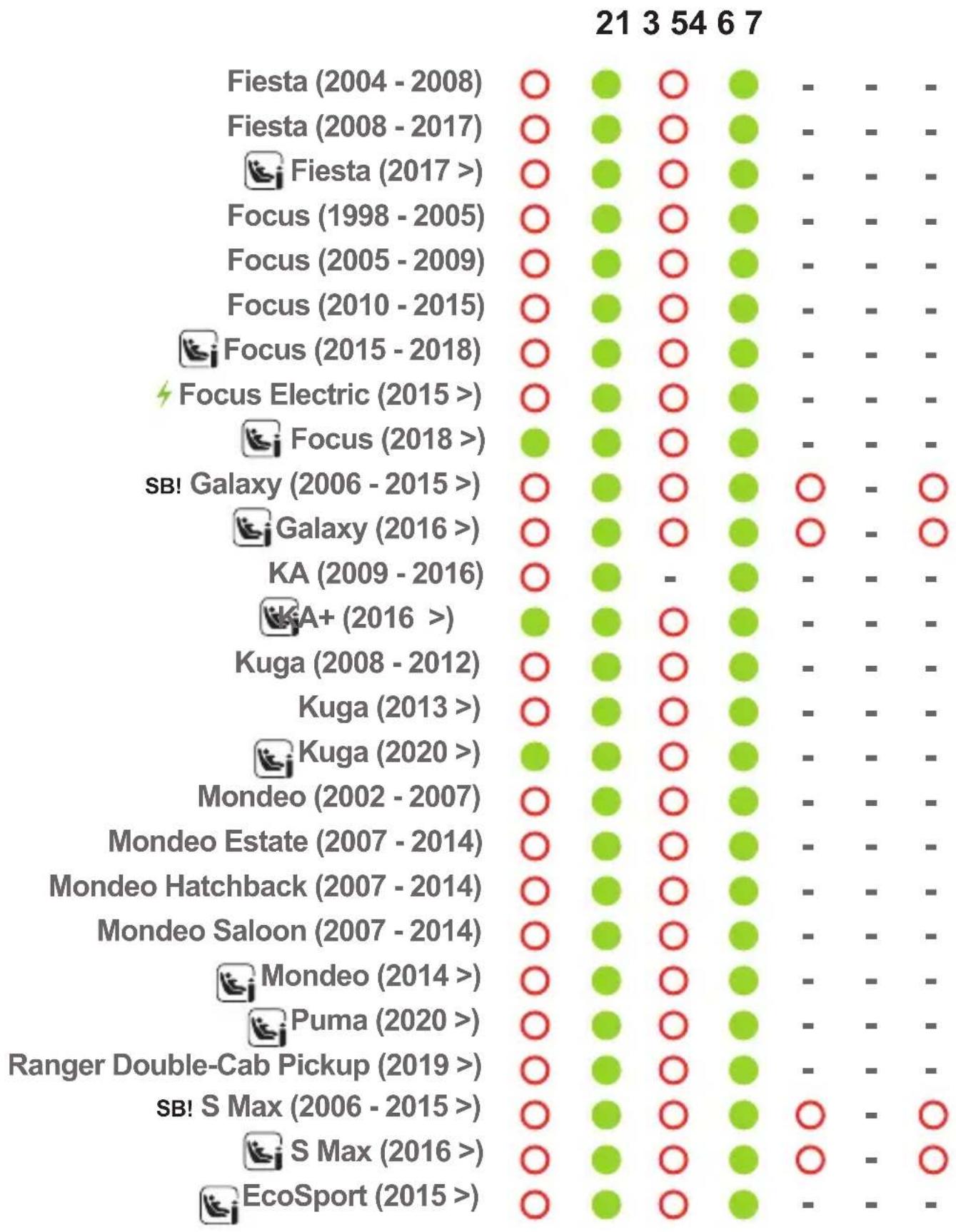

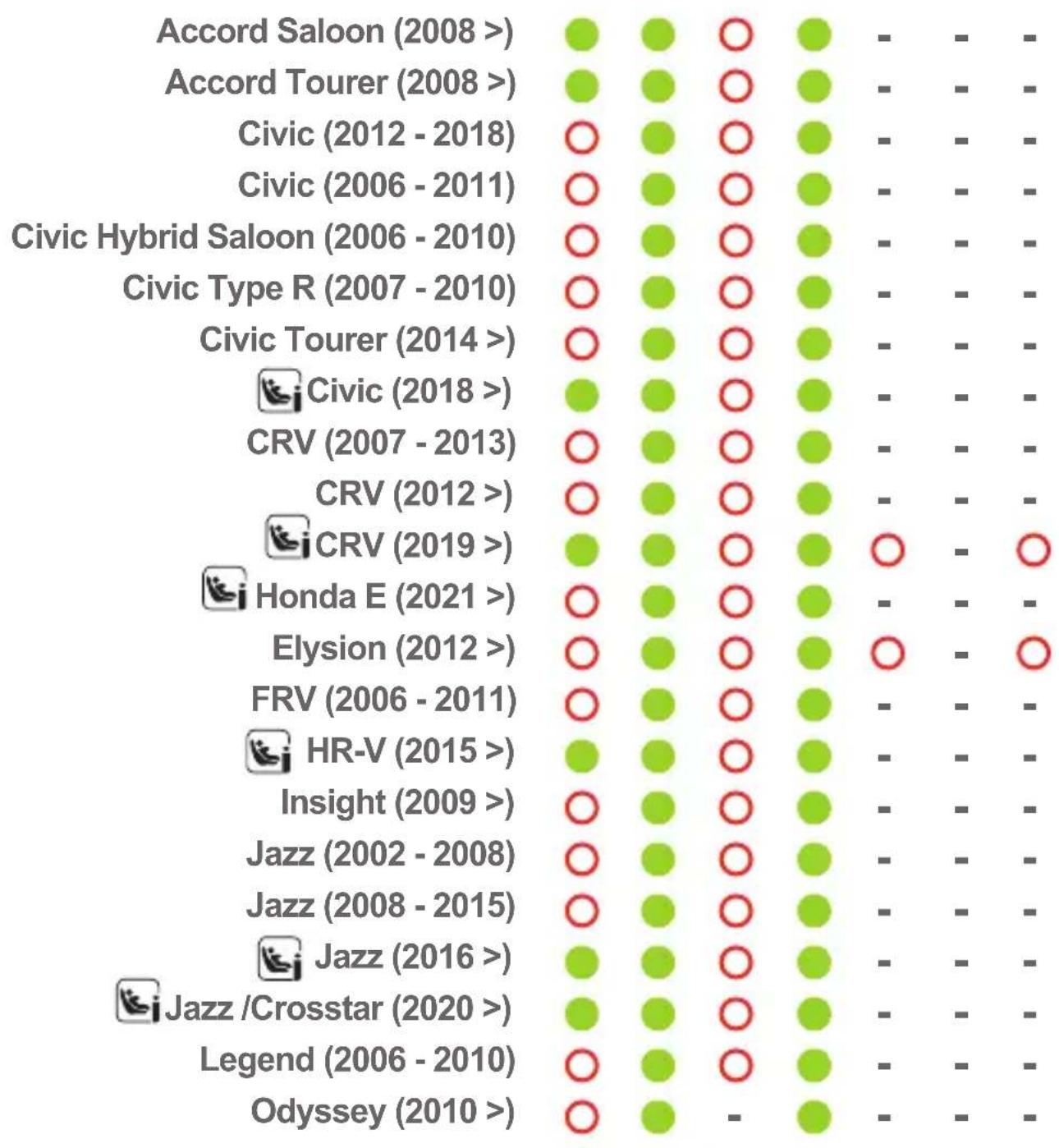

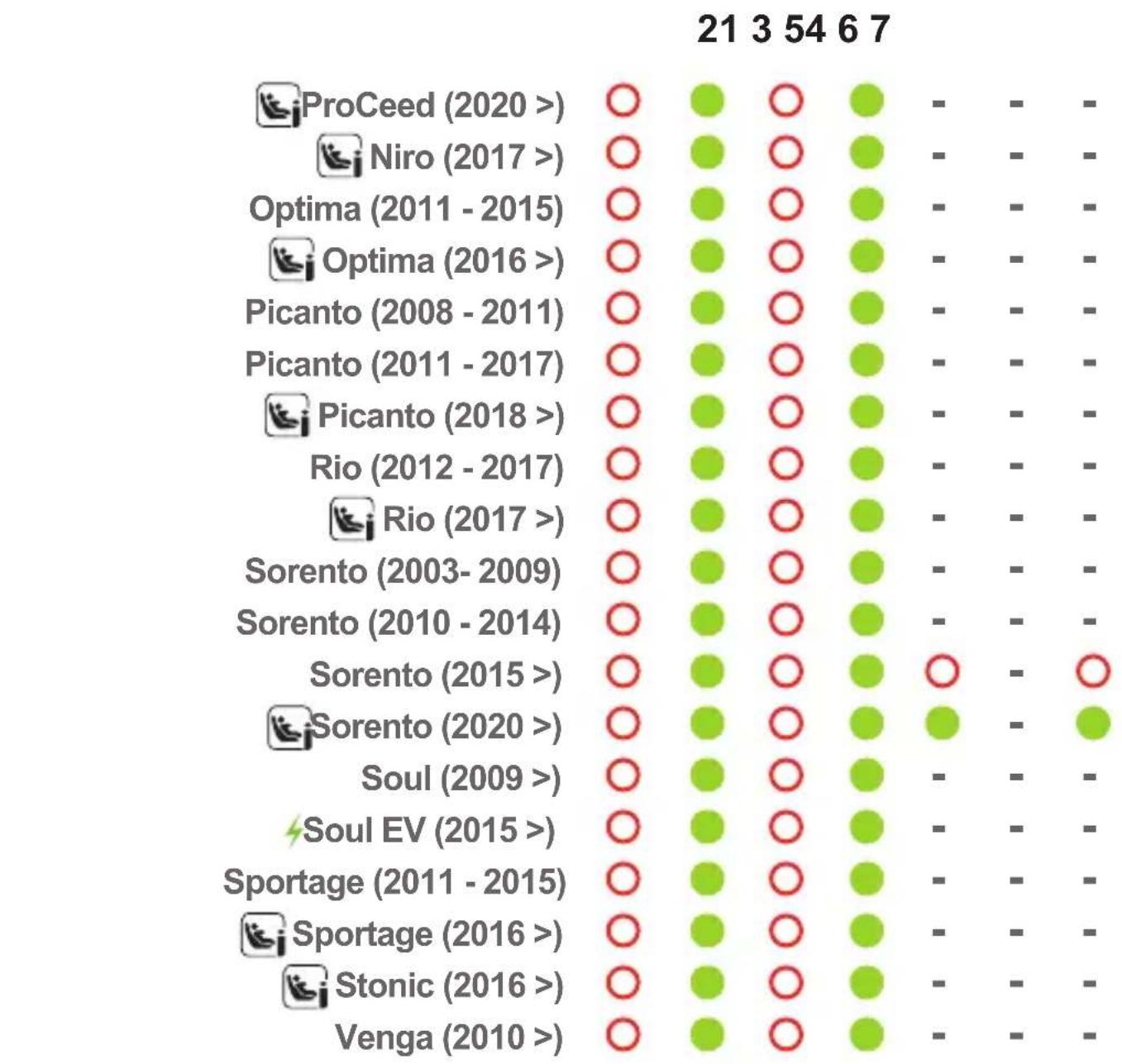

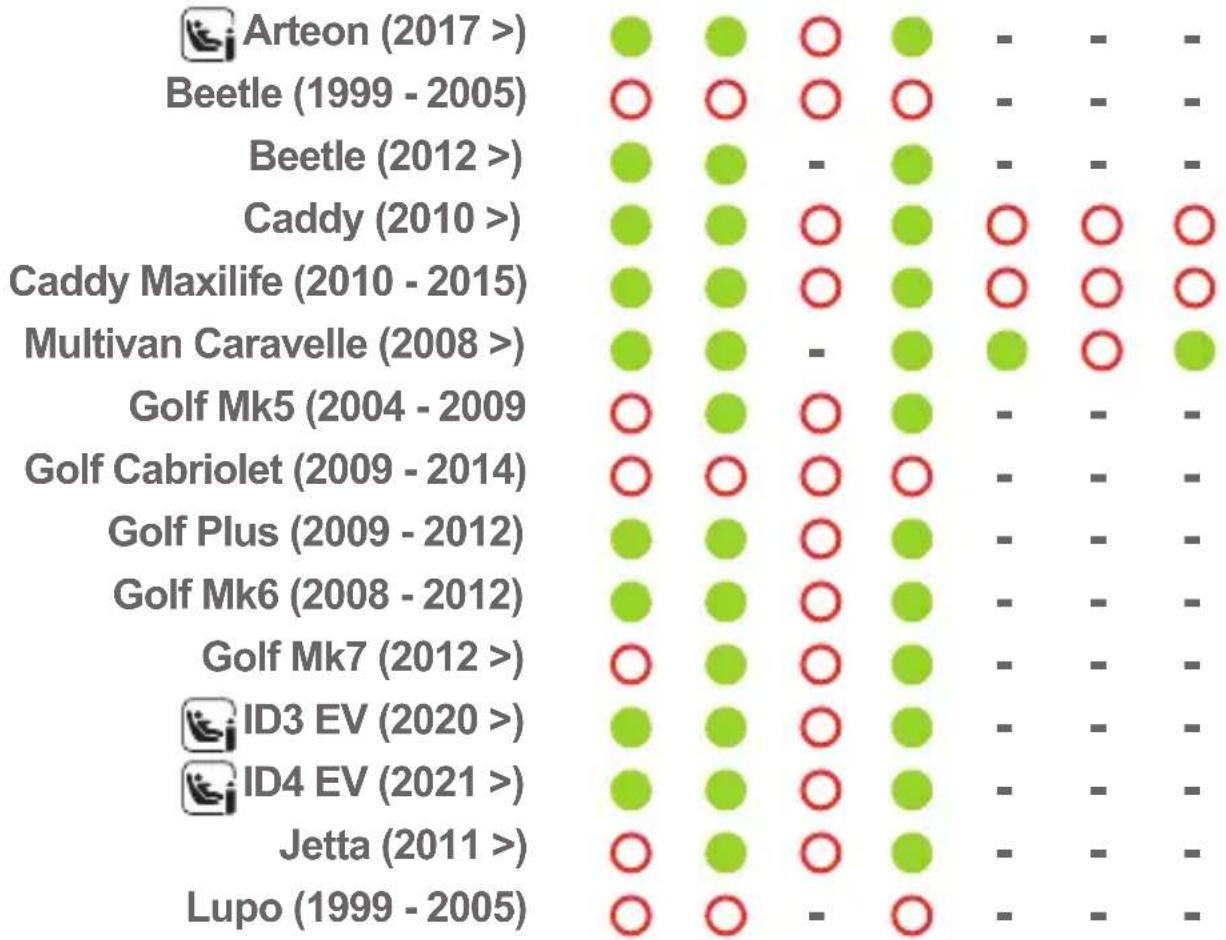

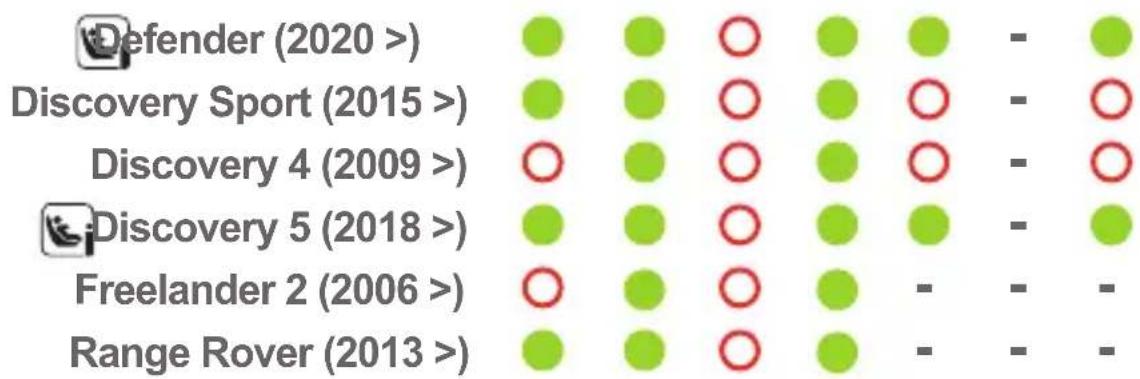

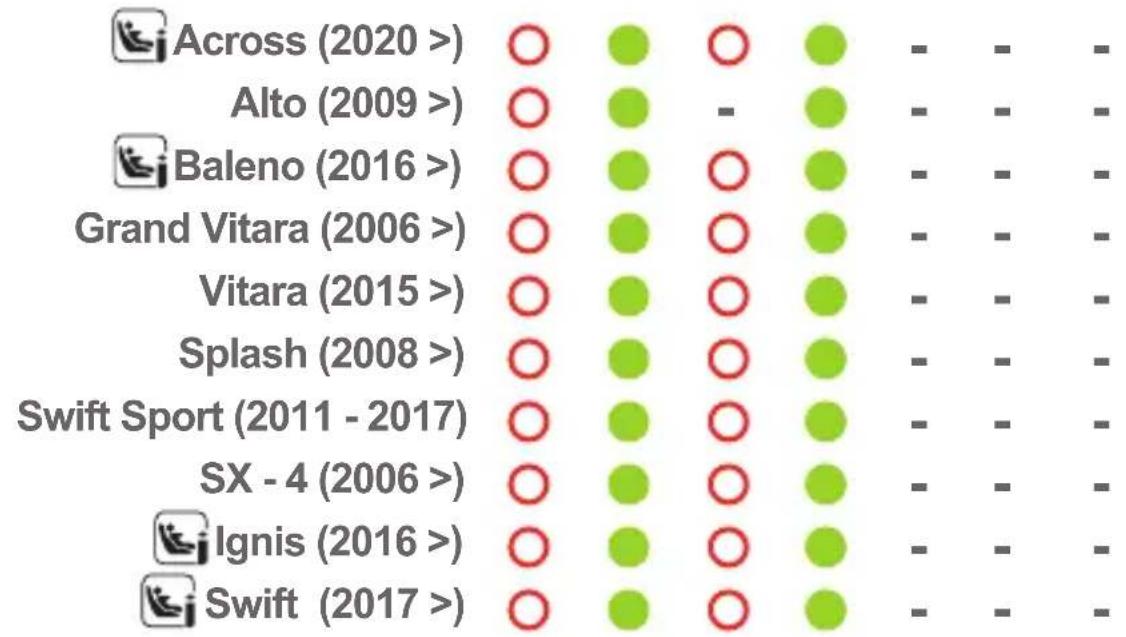

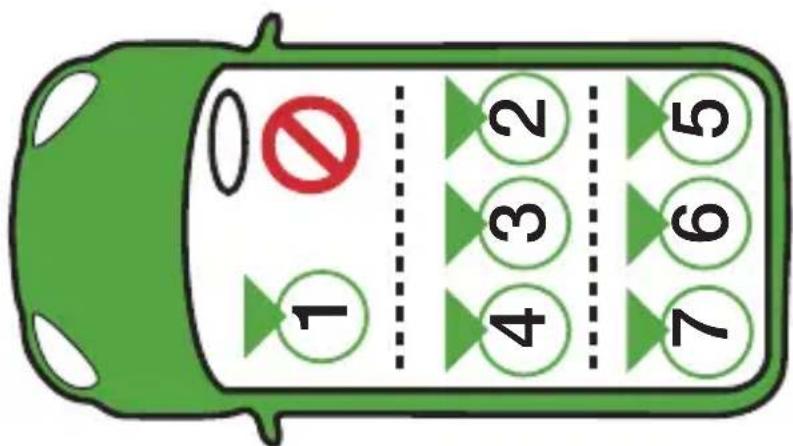

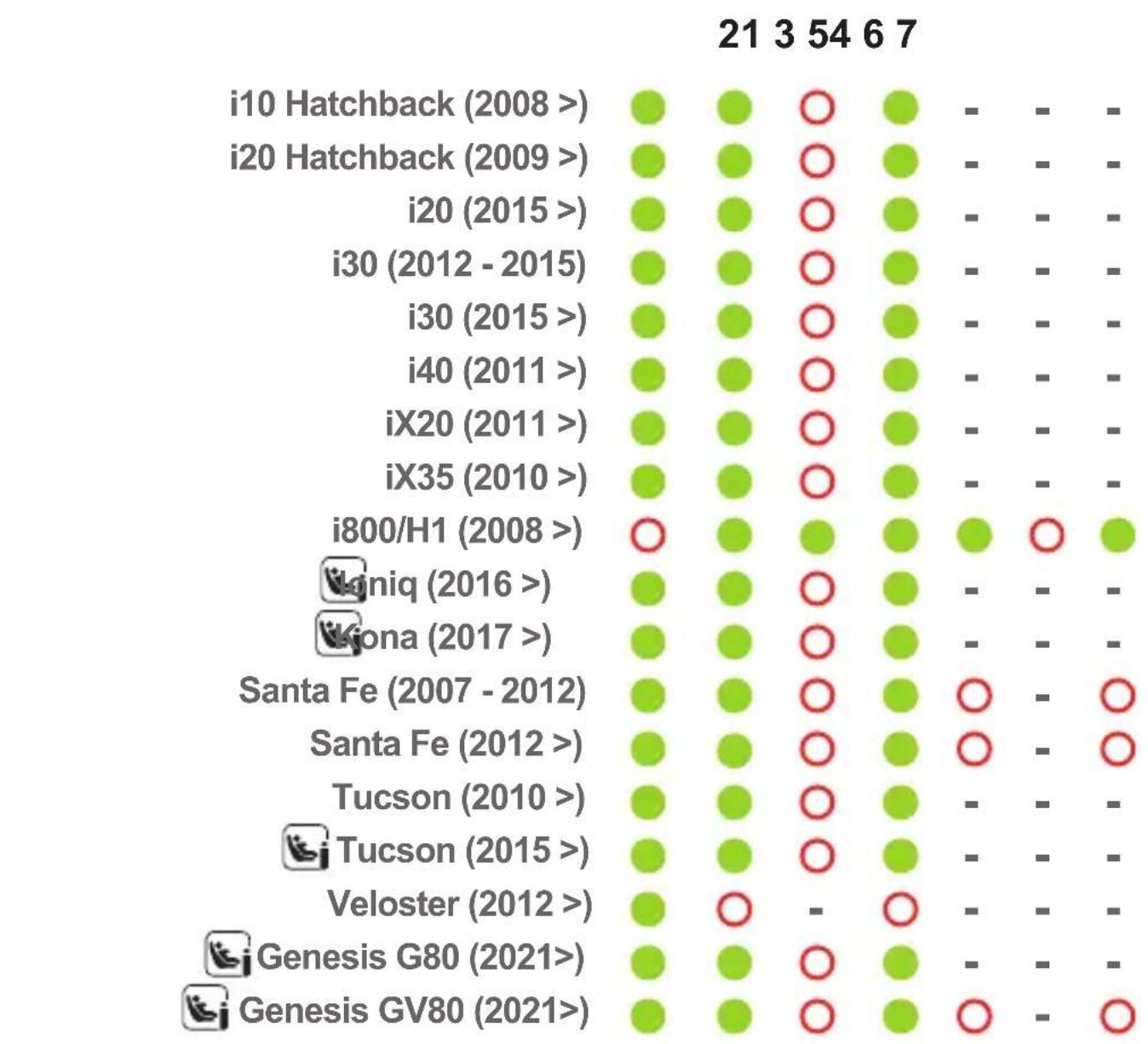

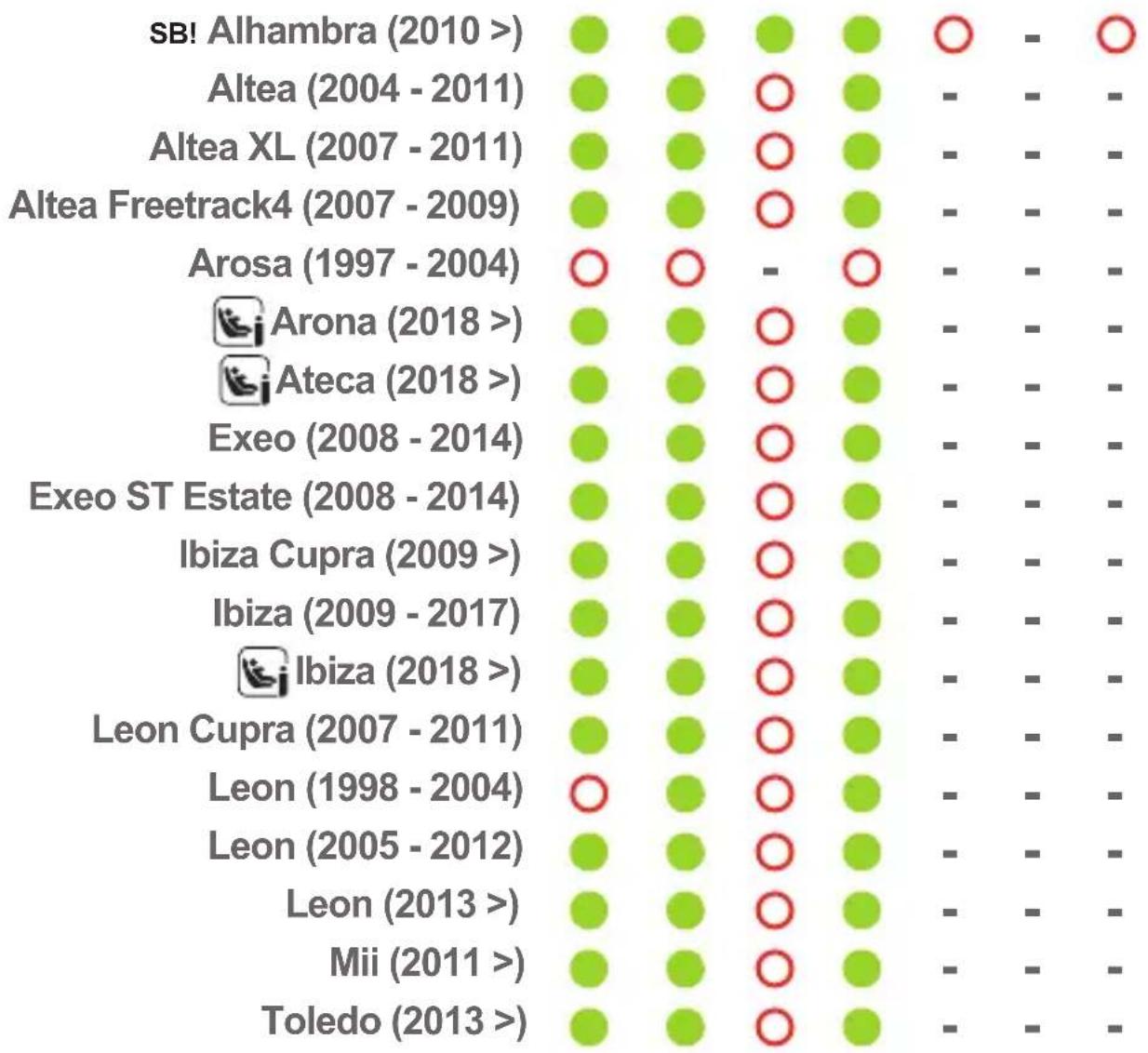

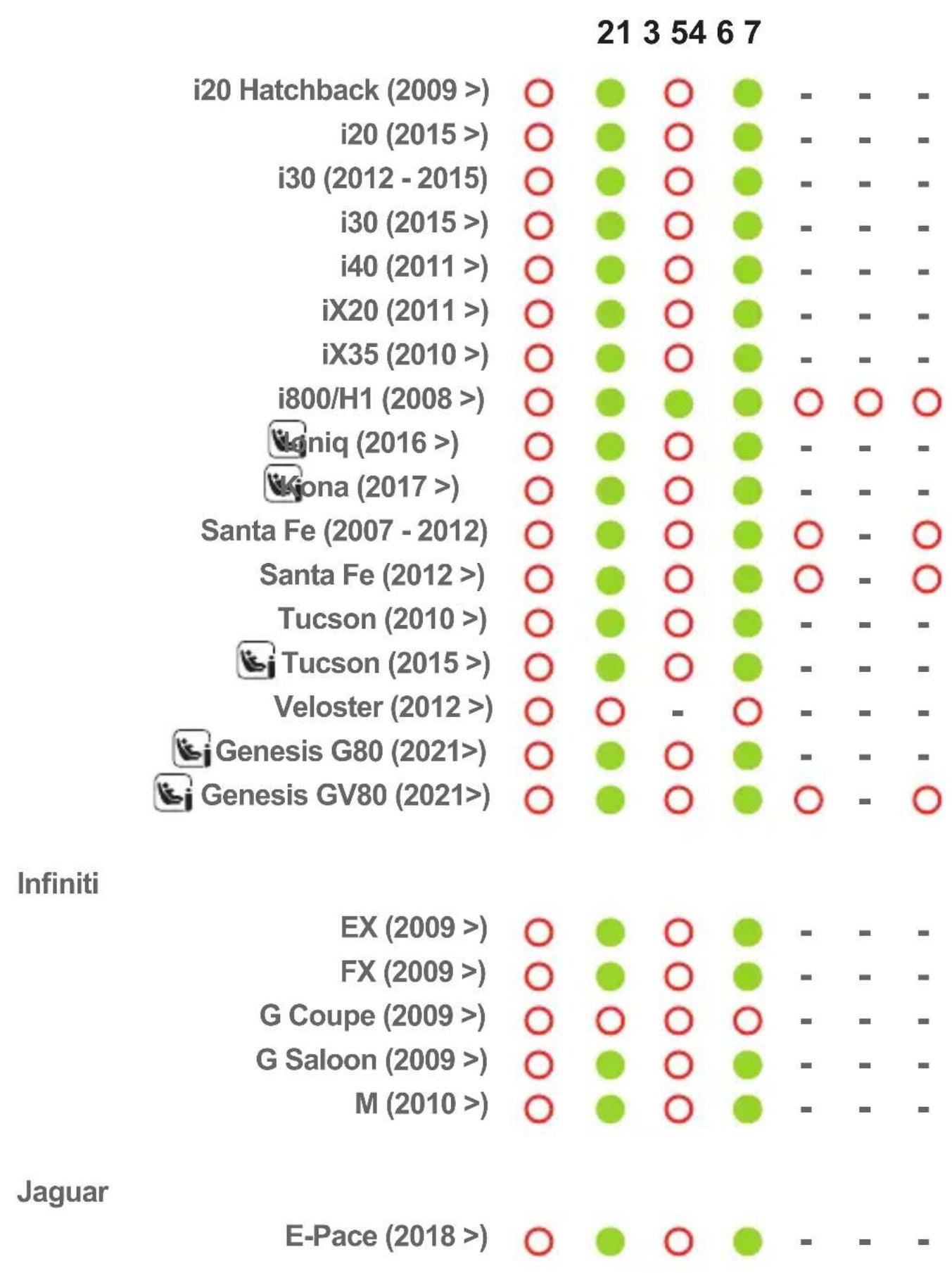

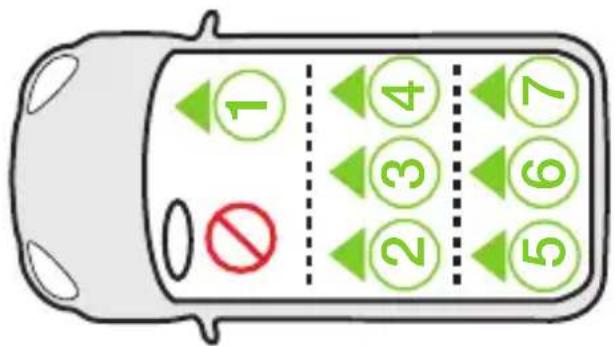

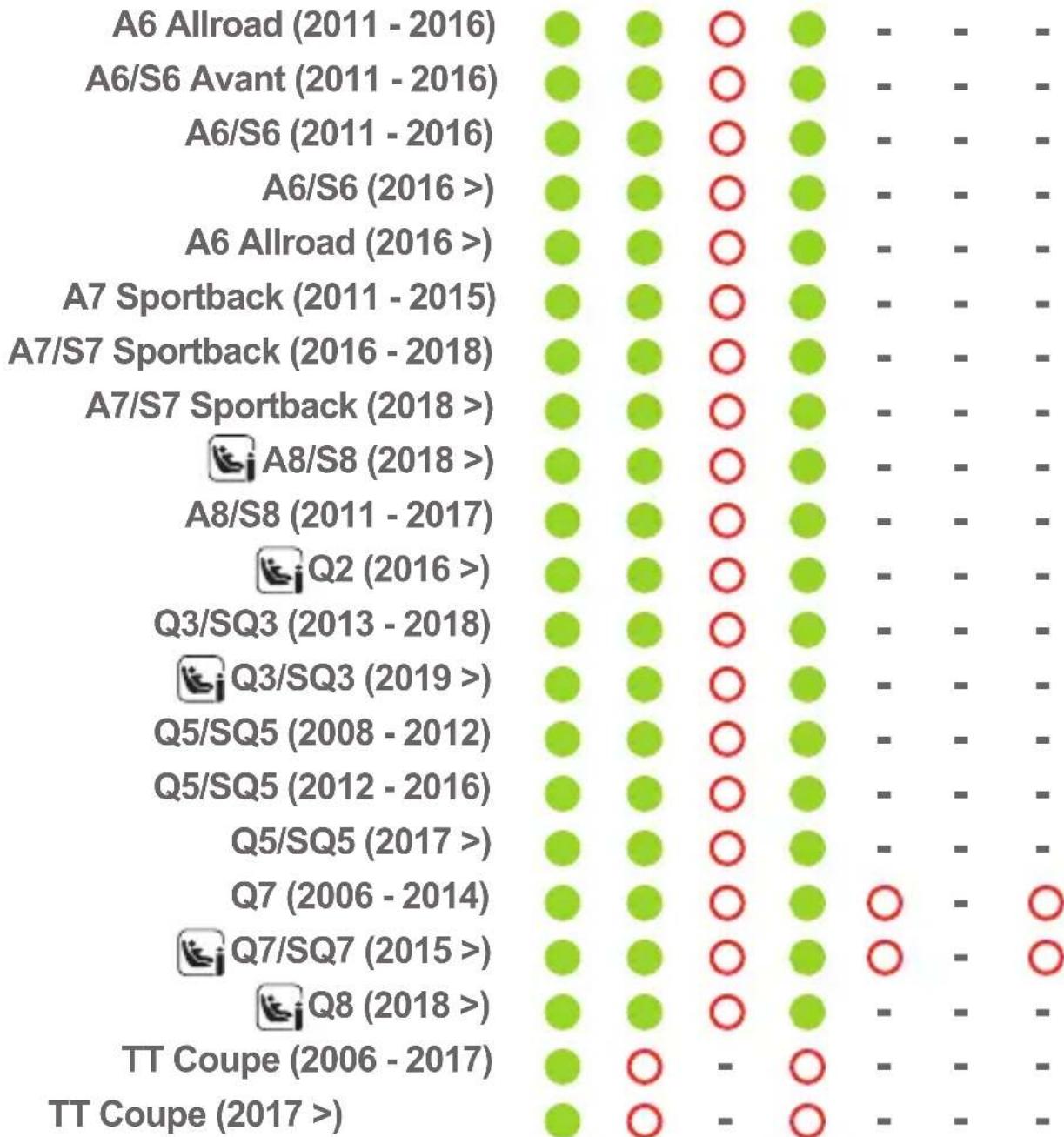

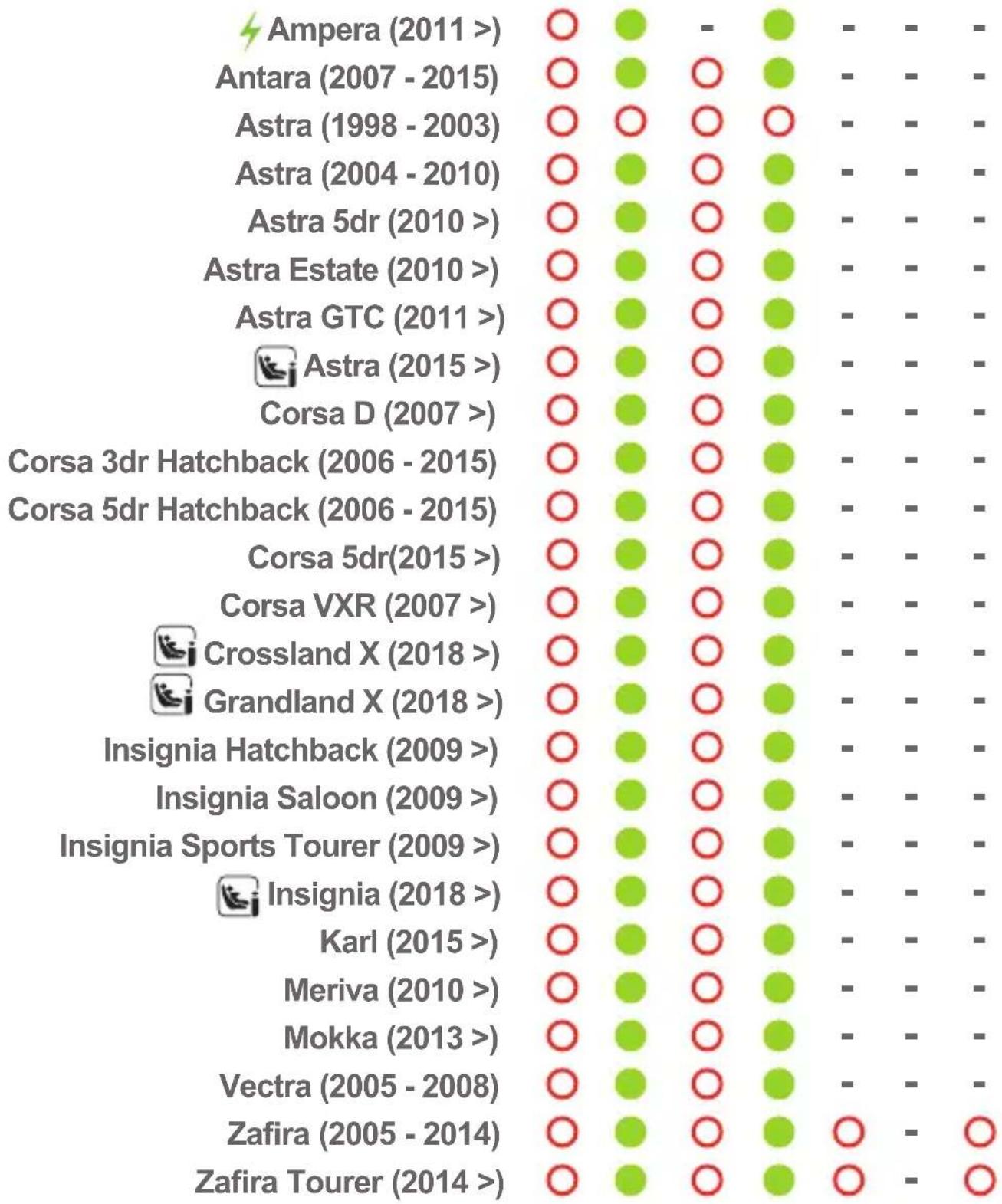

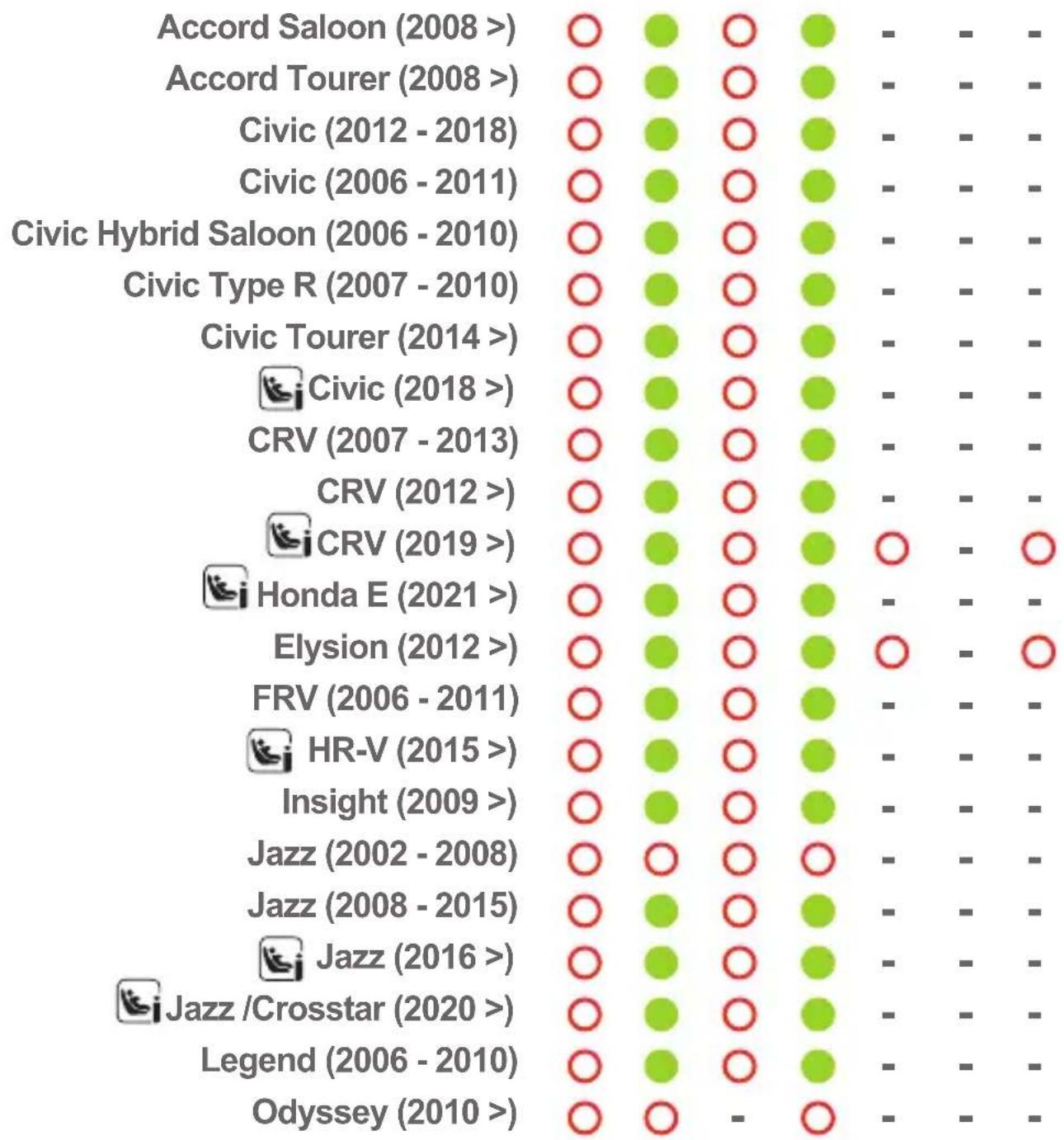

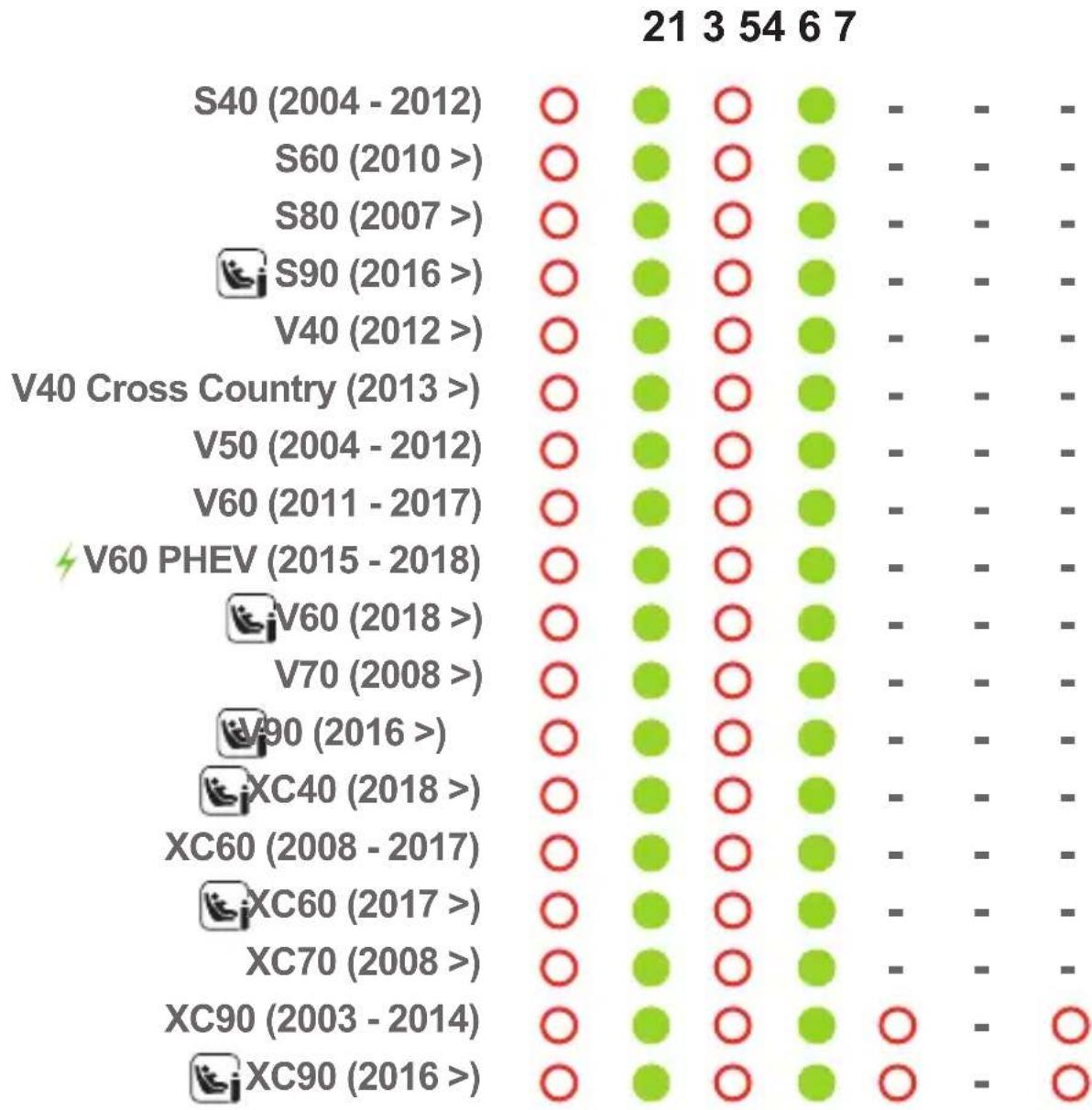

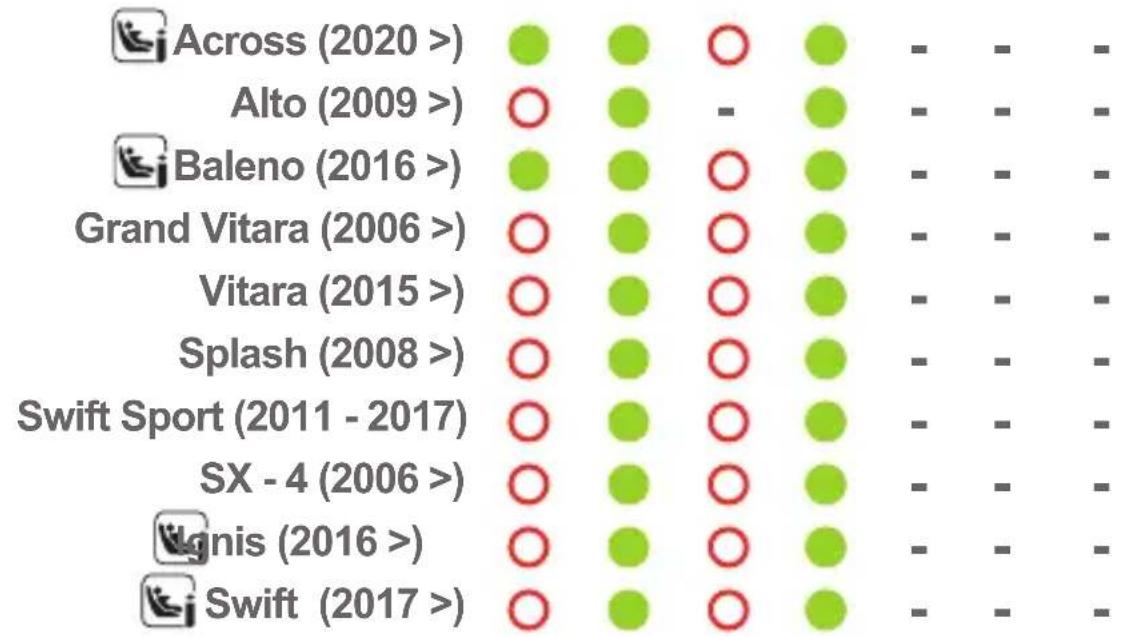

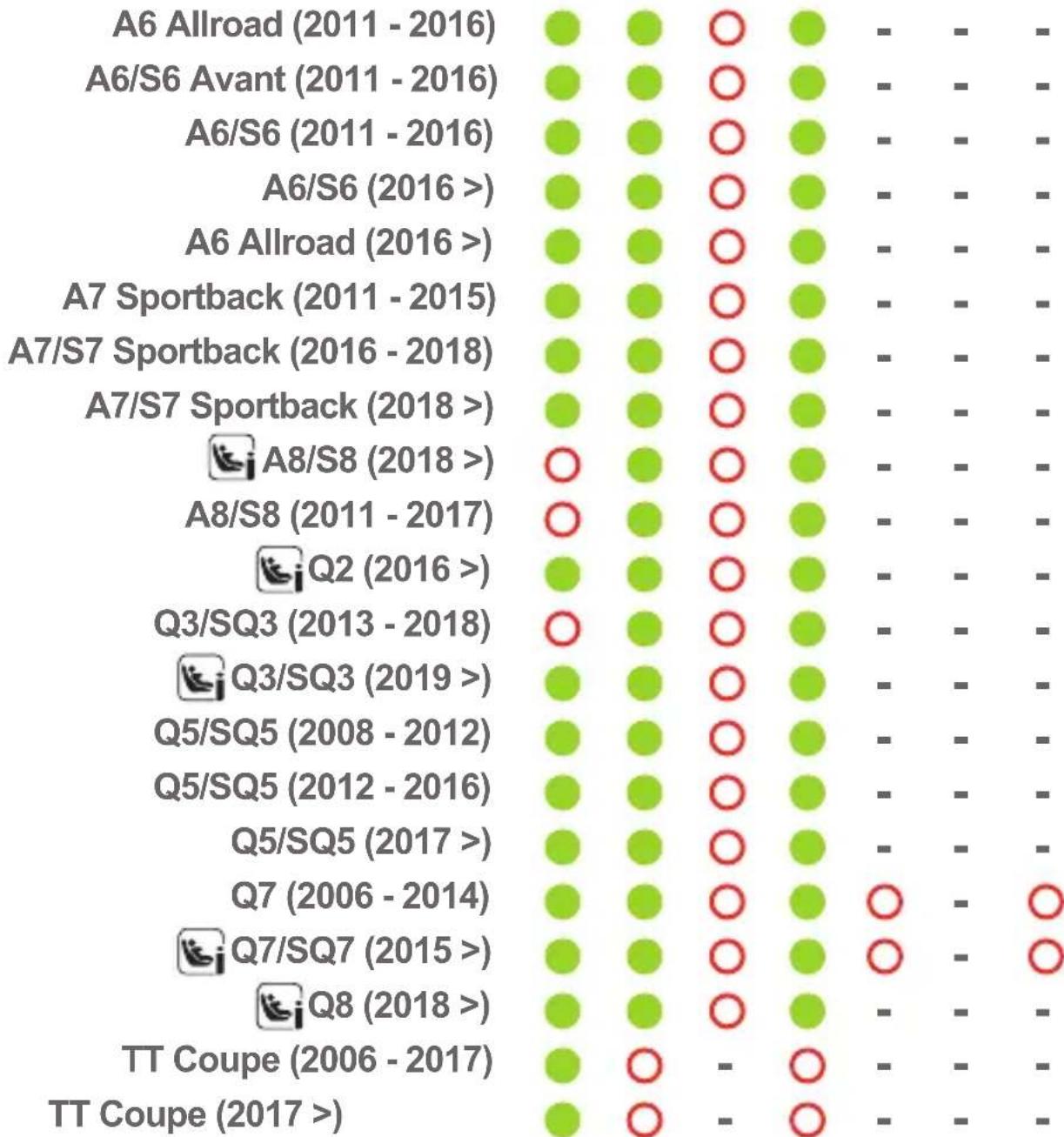

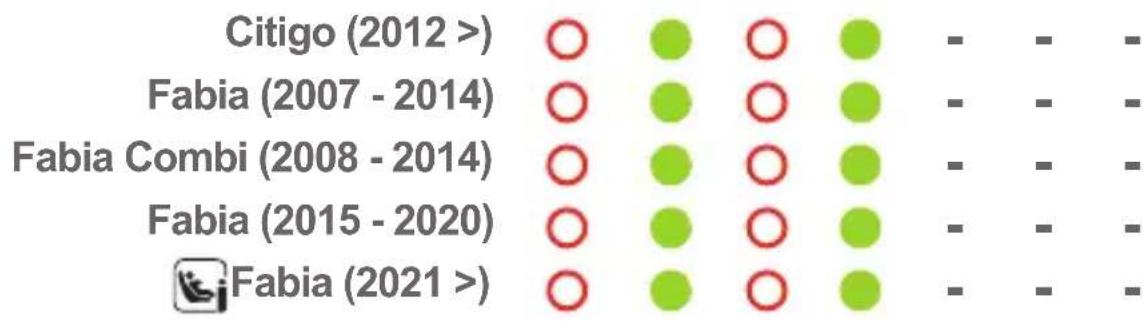

• The numbers in the vehicle diagram below correspond with the seat positions listed in the vehicle fitting list.

• If the child restraint can be fitted, the suitable seat position(s) is marked with
• If the child restraint cannot be fitted, the suitable seat position(s) is marked with

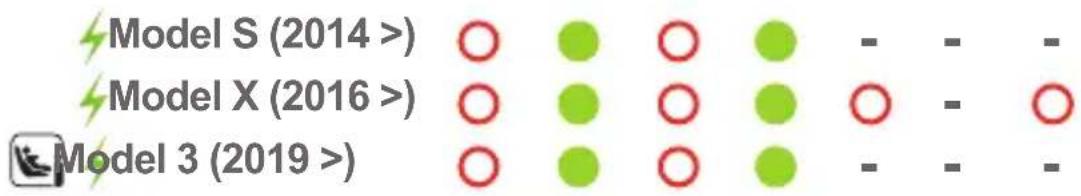

  Electric or hybrid vehicles are marked with
• i-Size vehicles are marked with
• Vehicles with under-floor storage compartment(s) is marked with SB! - Please consult the vehicle's handbook prior to fitting this child restraint in these vehicles.
• Vehicles with a cabin roof height which could restrict the child restraint from being installed forward facing are marked with!
• If your vehicle is not listed in this list or it is not marked with either a or then please refer to the vehicle's handbook or contact Cosatto or retailer for further information.
• Seat positions in other vehicles may also be suitable to accept the child restraint. If in doubt, consult either Cosatto or the retailer.

Prior to purchase the vehicle, check that it is equipped with the appropriate anchorages.

ALWAYS give priority to the rear vehicle seats.

DO NOT fit the child restraint onto a vehicle seat fitted with an airbag, unless it can be, and is deactivated. Death or serious injuries can be caused by an activated AIRBAG system.

• This vehicle fitting list was carefully prepared using scientific data collected from both vehicle and child restraint. Cosatto accepts no liability whatsoever with regards to any inaccuracies of the list, which is intended for guidance purposes only.
• It is recommended to check that the child restraint is compatible with the intended vehicle at the time of purchase.

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/service-centre/spares

CHIMITE TkaHeBbI qExoI cINHKn (a) n TkaHeBbI qExoI OCHOBaHnA (b).

YTo6bI yCTaHOBnTb MfKyo fypHnTypy Ha aBtOKpeCNo, BbINOJHnTe yKa3aHHbIe DeiCTBnB O6paTHOM nOpRKe.

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/stockists

Guiletta (2010 >)	○	●	○	●	-	-	-
Giulia (2017 >)	○	●	○	●	-	-	-
Mito (2009 >)	○	●	-	●	-	-	-
Stelvio (2017 >)	○	●	○	●	-	-	-

Audi

A1 (2011 - 2019)	○	○	○	-	-	-
A1 Sportback (2012 - 2019)	○	○	○	-	-	-
A1 (2019 >)	○	○	○	-	-	-
A3 Hatchback (2012 >)	○	○	○	-	-	-
A3 (1996 - 2003)	○	○	○	-	-	-
A3 (2004 - 2011)	○	○	○	-	-	-
A3/S3 (2012 >)	○	○	○	-	-	-
A3 e-Tron Sportback (2015 >)	○	○	○	-	-	-
A3 Saloon (2014 >)	○	○	○	-	-	-
A4 (2005 - 2008)	○	○	○	-	-	-
A4 (2016 >)	○	○	○	-	-	-
A4 Avant (2016 >)	○	○	○	-	-	-
A4 Allroad (2008 - 2016)	○	○	○	-	-	-
A4/S4 Avant (2008 - 2016)	○	○	○	-	-	-
A4/S4 Saloon (2008 - 2016)	○	○	○	-	-	-
A5/S5 Coupe (2016 >)	○	-	○	-	-	-
A5/S5 Coupe (2006 - 2016)	○	-	○	-	-	-
A5/S5 Sportback (2009 - 2016)	○	○	○	-	-	-
A5/S5 Sportback (2017 >)	○	○	○	-	-	-
Audi A5/S5 Cabriolet (2017 >)	○	-	○	-	-	-

2135467

Bentley

Continental GT (2003 - 2012)

Continental Flying Spur (2005-2012)

Continental GTC (2006 - 2012)

Mulsanne (2010 > )

2135467

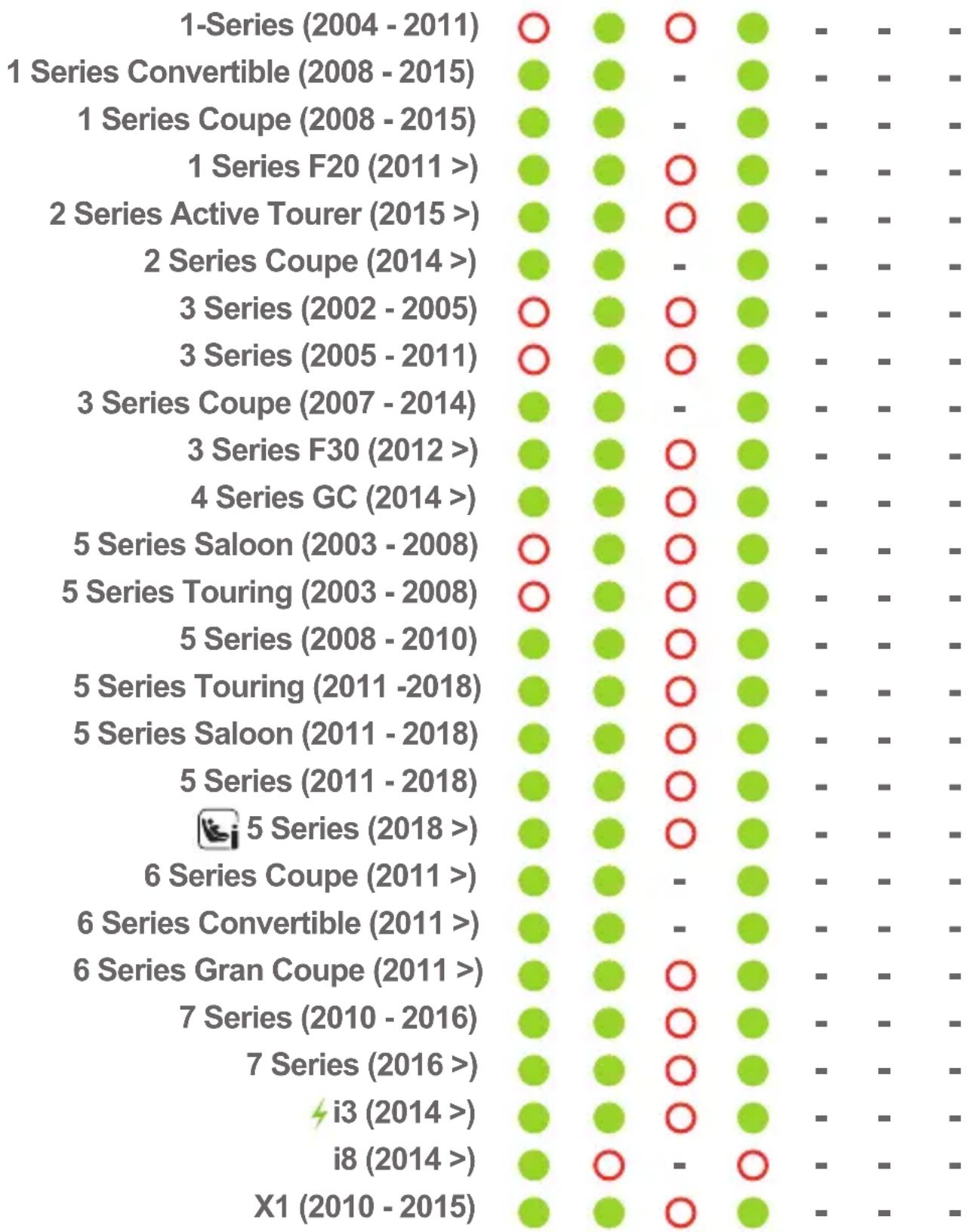

BMW

1-Series (2004 - 2011)	○	●	○	●	-	-	-
1 Series Convertible (2008 - 2015)	●	●	-	●	-	-	-
1 Series Coupe (2008 - 2015)	●	●	-	●	-	-	-
1 Series F20 (2011 >)	○	●	○	●	-	-	-
2 Series Active Tourer (2015 >)	●	●	○	●	-	-	-
2 Series Coupe (2014 >)	●	●	-	●	-	-	-
3 Series (2002 - 2005)	○	●	○	●	-	-	-
3 Series (2005 - 2011)	○	●	○	●	-	-	-
3 Series Coupe (2007 - 2014)	●	●	-	●	-	-	-
3 Series F30 (2012 >)	○	●	○	●	-	-	-
4 Series GC (2014 >)	○	●	○	●	-	-	-
5 Series Saloon (2003 - 2008)	○	●	○	●	-	-	-
5 Series Touring (2003 - 2008)	○	●	○	●	-	-	-
5 Series (2008 - 2010)	○	●	○	●	-	-	-
5 Series Touring (2011 -2018)	○	●	○	●	-	-	-
5 Series Saloon (2011 - 2018)	○	●	○	●	-	-	-
5 Series (2011 - 2018)	○	●	○	●	-	-	-
5 Series (2018 >)	○	●	○	●	-	-	-
6 Series Coupe (2011 >)	○	●	-	●	-	-	-
6 Series Convertible (2011 >)	○	●	-	●	-	-	-
6 Series Gran Coupe (2011 >)	○	●	○	●	-	-	-
7 Series (2010 - 2016)	○	●	○	●	-	-	-
7 Series (2016 >)	○	●	○	●	-	-	-
i3 (2014 >)	○	●	○	●	-	-	-
i8 (2014 >)	○	○	-	○	-	-	-
X1 (2010 - 2015)	○	●	○	●	-	-	-
X1 (2016 >)	○	○	○	○	-	-	-
X3 F25 (2011 - 2018)	○	○	○	○	-	-	-
X3 G01 (2018 >)	○	○	○	○	-	-	-
X4 (2014 >)	○	○	○	○	-	-	-
X5 (2007 - 2014)	○	○	○	○	○	-	○
X5 (2015 >)	○	○	○	○	○	-	○
X6 (2008 >)	○	○	○	○	-	-	-
X6 (2015 >)	○	○	○	○	-	-	-
3-GT (2013 >)	○	○	○	○	-	-	-
5-GT (2010 >)	○	○	○	○	-	-	-
Cadillac
BLS Saloon (2006 - 2011)	○	○	○	○	-	-	-
Chevrolet
Aveo (2012 >)	○	○	○	○	-	-	-
Captiva (2007 >)	○	○	○	○	○	-	○
Cruze (2009 >)	○	○	○	○	-	-	-
Spark (2012 >)	○	○	○	○	-	-	-
Volt (2011 >)	○	○	-	○	-	-	-
Orlando (2011 >)	○	○	○	○	○	-	○
Traxx (2013 >)	○	○	○	○	-	-	-
Chrysler
Grand Voyager (2008 >)	○	○	-	○	○	○	○
300 C (2012 >)	○	○	○	○	-	-	-
Delta (2011 >)	○	○	○	○	-	-	-
Ypsilon (2011 >)	○	○	○	○	-	-	-

2135467

Citroen

SB! Citroen Berlingo II (2008 >)	○	○	○	○	-	-	-
SB! Berlingo Multispace (2007 >)	○	○	○	○	○	-	○
C1 (2006 - 2015)	○	○	-	○	-	-	-
C1 (2015 >)	○	○	-	○	-	-	-
C3 (2005 - 2009)	○	○	○	○	-	-	-
C3 5 Door (2009 >)	○	○	○	○	-	-	-
SB! C3 Picasso (2009 >)	○	○	○	○	-	-	-
C3 (2017 >)	○	○	○	○	-	-	-
C3 Aircross (2017 >)	○	○	○	○	-	-	-
C4 (2010 >)	○	○	○	○	-	-	-
SB! C4 Picasso (2007 - 2014)	○	○	○	○	○	-	○
SB! C4 Picasso (2014 >)	○	○	○	○	○	-	○
SB! C4 G-Picasso (2007 - 2013)	○	○	○	○	○	-	○
C5 (2006 - 2008)	○	○	○	○	-	-	-
C5 Saloon (2008 >)	○	○	○	○	-	-	-
C5 Tourer (2008 >)	○	○	○	○	-	-	-
C4-Cactus (2015 >)	○	○	○	○	-	-	-
C-Crosser (2007 - 2012)	○	○	○	○	-	-	-
C5 Aircross (2019 >)	○	○	○	○	-	-	-
DS3 (2011 >)	○	○	○	○	-	-	-
DS3 Crossback (2019 >)	○	○	○	○	-	-	-
DS4 (2011 >)	○	○	○	○	-	-	-
DS5 (2013 >)	○	○	○	○	-	-	-
DS7 (2018 >)	○	○	○	○	-	-	-
Jumpy (2007 - 2012)	○	○	○	○	○	○	○
Nemo (2008 >)	○	○	○	○	-	-	-
Xsara (2000 - 2006)	○	○	○	○	-	-	-
Dacia
Duster (2012 >)	○	●	○	●	-	-	-
Logan MCV (2013 >)	○	●	○	●	-	-	-
Sandero (2013 >)	○	●	○	●	-	-	-
Fiat
124 Spider (2016 >)	●	-	-	-	-	-	-
500 (2008 >)	○	●	-	●	-	-	-
500 C (2009 >)	○	●	-	●	-	-	-
Abarth 500 (2009 >)	○	●	-	●	-	-	-
Bravo (2007 >)	○	●	○	●	-	-	-
500L (2013 >)	○	●	○	●	-	-	-
500X (2015 >)	○	●	○	●	-	-	-
Doblo (2010 >)	○	●	○	●	-	-	-
Panda (2012 >)	○	●	○	●	-	-	-
Grande Punto (2006 >)	○	●	○	●	-	-	-
Abarth Grande Punto (2008 - 2011)	○	●	○	●	-	-	-
Qubo (2008 >)	○	●	○	●	-	-	-
apo (2016 >)	○	●	○	●	-	-	-
Ford
B Max (2012 >)	○	●	○	●	-	-	-
SB! Focus C Max (2003 - 2010)	○	○	○	○	-	-	-
C Max (2010 -2012)	○	●	○	●	-	-	-
C Max (2013 >)	○	●	○	●	-	-	-

2135467

2135467

Honda

Hyundai

Getz (2005 - 2011) i10 Hatchback (2008 >)

21 3 54 6 7
F - Pace (2016 >)	○	●	○	●	-	-
F-Type Coupe (2014 >)	○	-	-	-	-	-
I - Pace (2018 >)	○	●	○	●	-	-
X-Type (2001 - 2010)	○	○	○	○	-	-
X-Type Estate (2004 - 2010)	○	○	○	○	-	-
XE (2015 >)	○	●	○	●	-	-
XF (2008 - 2014)	○	●	○	●	-	-
F (2015 >)	○	●	○	●	-	-
XF R (2009 - 2015)	○	●	○	●	-	-
XF Sportbrake (2013 >)	○	●	○	●	-	-
XJ (2010 >)	○	●	○	●	-	-
XK (2006 - 2016)	○	●	-	●	-	-
! XK Coupe (2006 - 2016)	○	○	-	○	-	-
XK Convertible (2006 - 2016)	○	○	-	○	-	-
Jeep
Grand Cherokee (2011 >)	○	●	○	●	-	-
Compass (2011 >)	○	●	○	●	-	-
Cherokee (2014 >)	○	●	○	●	-	-
Renegade (2015 >)	○	●	○	●	-	-
Wrangler 5dr (2007 >)	○	●	○	●	-	-
Kia
SB! Carens (2013 >)	○	●	○	●	○	-
Ceed Hatchback (2012 >)	○	●	○	●	-	-
Ceed/Xceed (2020 >)	○	●	○	●	-	-
EV6 (2022 >)	○	●	○	●	-	-

Land Rover

21 3 54 6 7
Range Rover (2002 - 2012)	○	○	○	○	-	-
Range Rover Sport (2005 - 2012)	○	○	○	○	-	-
Range Rover Sport (2013 >)	○	○	○	○	○	○
Range Rover Evoque 3dr (2011 >)	○	○	○	○	-	-
Range Rover Evoque 5dr (2011 >)	○	○	○	○	-	-
Range Rover Evoque (2019 >)	○	○	○	○	-	-
Range Rover Velar (2017 >)	○	○	○	○	-	-
Lancia
Thema (2012 >)	○	○	○	○	-	-
Voyager (2010 >)	○	○	○	○	○	○
Delta (2011 >)	○	○	○	○	-	-
Ypsilon (2012 >)	○	○	○	○	-	-
Lexus
CT (2011 >)	○	○	○	○	-	-
GS (2013 >)	○	○	○	○	-	-
GSh (2013 >)	○	○	○	○	-	-
IS Saloon (2005 - 2012)	○	○	○	○	-	-
NX (2014 >)	○	○	○	○	-	-
ES Hybrid (2019 >)	○	○	○	○	-	-
UX (2019 >)	○	○	○	○	-	-
RX (2010 - 2018)	○	○	○	○	-	-
RX (2018 >)	○	○	○	○	○	○
Mazda
X-3 (2015 >)	○	○	○	○	-	-
CX-5 (2011 >)	○	●	○	●	-	-
CX-7 (2007 - 2011)	○	●	○	●	-	-
Mazda 2 (2009 - 2015)	○	●	○	●	-	-
Mazda 2 (2015 >)	○	●	○	●	-	-
3 Hatchback (2009 - 2013)	○	●	○	●	-	-
3 Saloon (2009 - 2013)	○	●	○	●	-	-
3 Hatchback (2014 >)	○	●	○	●	-	-
5 (2005 - 2010)	○	●	○	●	-	-
6 Estate (2008 - 2012)	○	●	○	●	-	-
6 Hatchback (2007 - 2012)	○	●	○	●	-	-
6 Saloon (2007 - 2009)	○	●	○	●	-	-
6 (2013 - 2017)	○	●	○	●	-	-
6 (2018 >)	○	●	○	●	-	-
MX-5 (2015 >)	○	-	-	-	-	-
Mercedes-Benz
A Class (2005 - 2012)	○	●	○	●	-	-
A Class (2013 >)	○	●	○	●	-	-
A Class (2019 >)	○	●	○	●	-	-
A Class Saloon (2020 >)	○	●	○	●	-	-
B Class (2012 >)	○	●	○	●	-	-
B Class EV (2015 >)	○	●	○	●	-	-
C Class (2008 - 2015)	○	●	○	●	-	-
C Class Estate (2008 - 2015)	○	●	○	●	-	-
C Class Coupe (2011 >)	○	●	-	●	-	-
C Class (2015 >)	○	●	○	●	-	-
CLA (2013 >)	○	●	○	●	-	-

2135467

CLA (2020 >)

CLA Shooting Brake (2015 >)

CLS Shooting Brake (2012 >)

CLS Coupe (2011 >)

E Class (2006 - 2009)

E Class Saloon (2009 - 2012)

E Class Coupe (2009 >)

E Class (2013 - 2018)

E Class (2018 >)

EQA (2021 >)

EQC (2021 >)

GLA (2021 >)

GLA (2014 - 2020)

GLC (2016 >)

GLC Coupe (2019 >)

GL Class (2006 - 2012)

GL/GLS Class (2012>)

GLE (2015 - 2020)

GLE (2020 >)

M/ML Class (2005 - 2012)

M/ML Class (2012 >)

R Class (2006 - 2012)

S Class (2006 - 2013)

S Class (2015 >)

SL Class (2012 >)

SLK (2011 >)

V Class (2015 >)

2135467

MG Rover

25 / Streetwise (1999 - 2005)

GS (2016 >)

MG3 (2013 - 2015)

MG3 (2016 >)

MG6 (2011 - 2016)

MG5 EV (2020 >)

MG HS PHEV (2021 >)

MG ZS (2021 >)

ZR (2001 - 2005)

ZT (2003 - 2006)

O

0

0

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

0

0

O

O

0

0

O

Mini

Mini 3dr (1999 - 2006)

Mini (Cooper) Hatchback (2006-2014)

Mini (Cooper) Hatchback (2014 >)

Mini Coupe (2009 >)

Mini Countryman (2010 - 2017)

Mini Countryman (2017 >)

Mini Paceman (2013 >)

Mini 5dr (2015 >)

O

0

O

0

O

O

-

O

-

O

O

O

O

O

O

Mitsubishi

ASX (2010 >)

Colt (2007 - 2013)

Eclipse Cross (2019 >)

Lancer (2008 - 2011)

O

O

O

0

O

O

O

O

21 3 54 6 7
Lancer Sportback (2008 - 2011)	○	●	○	●	-	-
Lancer Ralliart (2009 - 2011)	○	●	○	●	-	-
Mirage (2014 >)	○	●	○	●	-	-
Outlander (2007 - 2013)	○	●	○	●	-	-
Outlander (2013 >)	○	●	○	●	-	-
Outlander PHEV (2015 >)	○	●	○	●	-	-
Shogun (2007 >)	○	●	○	●	-	-

Nissan

Juke (2010 >)	○	●	○	●	-	-	-
Leaf (2011 >)	○	●	○	●	-	-	-
Micra (2011 - 2016)	○	●	○	●	-	-	-
Micra (2017 >)	●	●	○	●	-	-	-
Murano (2016 >)	○	●	○	●	-	-	-
Note (2006 - 2013)	○	●	○	●	-	-	-
Note (2014 >)	○	●	○	●	-	-	-
Qashqai+2 (2008 - 2015)	○	●	○	●	○	-	○
Qashqai (2007 - 2013)	○	●	○	●	-	-	-
Qashqai (2014 >)	○	●	○	●	-	-	-
Quest MPV (2012 >)	○	●	-	●	○	-	○
Pulsar (2015 >)	○	●	○	●	-	-	-
X-Trail (2007 - 2015)	○	●	○	●	-	-	-
X-Trail (2015 >)	○	●	○	●	○	-	○

Opel

Adam (2013 >)	○	●	-	●	-	-	-
Agila (2008 >)	○	●	○	●	-	-	-

2135467

2135467

Peugeot

107 (2005 - 2014)	○	●	-	●	-	-	-
108 (2015 >)	○	●	-	●	-	-	-
206 3dr (2004 - 2009)	○	●	○	●	-	-	-
207 3dr (2006 - 2012)	○	●	○	●	-	-	-
207 5dr (2006 - 2012)	○	●	○	●	-	-	-
207 SW (2007 - 2012)	○	●	○	●	-	-	-
2008 (2013 >)	○	●	○	●	-	-	-
2008 (2020 >)	○	●	○	●	-	-	-
208 3dr (2013 >)	○	●	○	●	-	-	-
208 5dr (2013 >)	○	●	○	●	-	-	-
208 5dr (2020 >)	○	●	○	●	-	-	-
208 EV 5dr (2020 >)	○	●	○	●	-	-	-
307 (2001 - 2007)	○	●	○	●	-	-	-
307 Estate (2002 - 2007)	○	●	○	●	-	-	-
308 Hatchback (2007 - 2014)	○	●	○	●	-	-	-
308 SW (2008 - 2015)	○	●	○	●	-	-	-
308 SW (2015 >)	○	●	○	●	-	-	-
308 (2014 >)	○	●	○	●	-	-	-
SB! 3008 (2009 - 2016)	○	●	○	●	-	-	-
3008 (2017 >)	○	●	○	●	-	-	-
407 (2004 - 2011)	○	●	○	●	-	-	-
407 SW (2004 - 2011)	○	●	○	●	-	-	-
4007 (2007 - 2012)	○	●	○	●	-	-	-
508 (2011 >)	○	●	○	●	-	-	-
508 SW/RXH (2011 >)	○	●	○	●	-	-	-

21 3 54 6 7
508 (2019 >)	●	●	○	●	-	-
SB! 5008 (2011 - 2018)	○	●	○	●	○	-
SB! 5008 (2018 >)	○	●	○	●	○	-
Bipper (2008 >)	○	●	○	●	-	-
Expert Teepee (2007 - 2016)	○	●	○	●	○	○
Partner Combi (2004 - 2010)	○	●	○	●	-	-
Partner Teepee (2008 >)	○	●	○	●	-	-
RCZ (2011 >)	○	○	-	○	-	-
Traveller (2016 >)	○	●	○	●	●	●
Polestar Polesta(2020 >)	●	●	○	●	-	-
Porsche Cayenne (2011 - 2017)	○	●	○	●	-	-
Cayenne E-Hybrid (2015 >)	○	●	○	●	-	-
Cayenne (2017>)	○	●	○	●	-	-
Panamera (2011 >)	○	●	-	●	-	-
Panamera E-Hybrid (2015 >)	○	●	-	●	-	-
Renault Captur (2015 >)	●	●	○	●	-	-
Clio (2005 - 2012)	○	●	○	●	-	-
Clio Renault Sport (2006 - 2012)	○	●	○	●	-	-
Clio Sport Tourer (2007 - 2012)	○	●	○	●	-	-
Clio (2013 >)	●	●	○	●	-	-
Espace (2003 - 2012)	○	○	○	○	-	○
Grand Espace (2003 - 2012)	○	○	○	○	-	○
Kadjar (2015 >)	○	○	○	-	-	-
Koleos (2018 >)	○	○	○	-	-	-
Laguna (2008 - 2012)	○	○	○	-	-	-
Laguna Sport Tourer (2008 - 2012)	○	○	○	-	-	-
Megane (2007)	○	○	○	-	-	-
Megane Hatchback (2002 - 2009)	○	○	○	-	-	-
sB! Megane Hatchback (2008-16)	○	○	○	-	-	-
Megane Sport Tourer (2009 - 2016)	○	○	○	-	-	-
Megane (2016 >)	○	○	○	-	-	-
Modus (2004 - 2012)	○	○	○	-	-	-
Grand Modus (2008 - 2012)	○	○	○	-	-	-
sB! Scenic (2003 - 2009)	○	○	○	-	-	-
sB! Scenic (2009 - 2016)	○	○	○	○	-	○
Scenic (2017 >)	○	○	○	-	-	-
Twingo (2007 - 2014)	○	○	-	○	-	-
Twingo (2015 >)	○	○	-	○	-	-
Saab
9-3 (2002 - 2012)	○	○	○	-	-	-
9-3 Sport Wagon (2005 - 2012)	○	○	○	-	-	-
9-3 X (2009 - 2012)	○	○	○	-	-	-
9-5 Estate (2005 - 2010)	○	○	○	-	-	-
9-5 (2011-2012)	○	○	○	-	-	-

2135467

Seat

Skoda

21 3 54 6 7
Kamiq (2020 >)
Karoq (2018 >)
Kodiaq (2017 >)
Octavia (2004 - 2013)
Octavia (2013 - 2020)
Octavia (2020 >)
Rapid (2013 >)
Roomster (2006 >)
Scala (2020 >)
Superb Combi Estate (2008 >)
Superb (2008 - 2014 >)
Superb (2015 >)
Yeti (2009 - 2017)
Enyaq EV (2021>)
Smart
For Two Coupe (2007 >)		-	-	-	-	-
FourFour (2015 >)			-		-	-
Ssangyong
Actyon (2006 - 2011)
Korando (2011 >)
Musso Pickup (2016 >)
Rexton (2014 >)
Tivoli (2016 >)
Turismo (2014 >)

2135467

Suzuki

Subaru

Tesla

2135467

Toyota

Auris (2007 - 2012)	○	●	○	●	-	-	-
Auris (2013 >)	○	●	○	●	-	-	-
nsis Hatchback (2003 - 2011)	○	●	○	●	-	-	-
Avensis Tourer (2009 >)	○	●	○	●	-	-	-
Aygo (2005 - 2014)	○	●	-	●	-	-	-
Aygo (2014 - 2019)	○	●	-	●	-	-	-
Aygo (2019 >)	○	●	-	●	-	-	-
Aygo X (2021 >)	○	●	○	●	-	-	-
Corolla (2018 >)	○	●	○	●	-	-	-
C-HR (2017 >)	○	●	○	●	-	-	-
EZ MPV (2013 >)	○	●	○	●	-	-	-
GT86 (2012 >)	○	○	-	○	-	-	-
Highlander (2013 >)	○	●	○	●	-	-	-
Highlander (2021 >)	○	●	○	●	○	-	○
Land Cruiser (2003 - 2009)	○	●	○	●	-	-	-
Land Cruiser (2009 >)	○	●	○	●	-	-	-
Prius (2004 - 2010)	○	●	○	●	-	-	-
Prius (2010 >)	○	●	○	●	-	-	-
Prius PHEV (2015 >)	○	●	○	●	-	-	-
Prius Plus + (2012 >)	○	●	○	●	-	-	-
Prius 4 (2016 >)	○	●	○	●	-	-	-
Rav 4 MK3 (2006 - 2011)	○	●	○	●	-	-	-
RAV4 (2013 - 2019)	○	●	○	●	-	-	-
RAV4 Hybrid (2014 - 2019)	○	●	○	●	-	-	-
RAV4 (2019 >)	○	●	○	●	-	-	-

21 3 54 6 7
SB! Verso (2009 - 2012)	○	●	○	●	-	-
SB! Verso (2013 >)	○	●	○	●	-	-
Yaris (2008 - 2011)	○	●	○	●	-	-
Yaris (2011 - 2017)	○	●	○	●	-	-
Yaris (2019 >)	○	●	○	●	-	-
Yaris Cross (2021 >)	○	●	○	●	-	-
Adam (2013 >)	○	●	-	●	-	-
Agila (2008 >)	○	●	○	●	-	-
Ampera (2011)	○	●	-	●	-	-
Antara (2007 - 2015)	○	●	○	●	-	-
Astra (1998 - 2003)	○	○	○	○	-	-
Astra (2004 - 2010)	○	●	○	●	-	-
Astra 5dr (2010 >)	○	●	○	●	-	-
Astra Estate (2010 >)	○	●	○	●	-	-
Astra GTC (2011 >)	○	●	○	●	-	-
Astra (2015 >)	○	●	○	●	-	-
Corsa D (2007 >)	○	●	○	●	-	-
Hatchback (2006 - 2015)	○	●	○	●	-	-
Hatchback (2006 - 2015)	○	●	○	●	-	-
Corsa 5dr (2015 >)	○	●	○	●	-	-
Corsa VXR (2007 >)	○	●	○	●	-	-
Crossland X (2018 >)	○	●	○	●	-	-
Grandland X (2018 >)	○	●	○	●	-	-
gnia Hatchback (2009 >)	○	●	○	●	-	-

2135467

Insignia Saloon (2009 >)

Insignia Sports Tourer (2009 >)

Insignia (2018 >)

Meriva (2010 >)

Mokka (2013 >)

Vectra (2005 - 2008)

Viva (2015 >)

Zafira (2005 - 2014)

Zafira Tourer (2012 >)

Volkswagen

Arteon (2017 >)

Beetle (1999 - 2005)

Beetle (2012 >)

Caddy (2010 >)

Caddy Maxilife (2010 - 2015)

Multivan Caravelle (2008 >)

Golf Mk5 (2004 - 2009

Golf Cabriolet (2009 - 2014)

Golf Plus (2009 - 2012)

Golf Mk6 (2008 - 2012)

Golf Mk7 (2012 >)

ID3 EV (2020 >)

ID4 EV (2021 >)

Jetta (2011 >)

Lupo (1999 - 2005)

2135467

Alfa Romeo

Guiletta (2010 >)	⚪	⚪	⚪	⚪	-	-	-
Giulia (2017 >)	⚪	⚪	⚪	⚪	-	-	-
Mito (2009 >)	⚪	⚪	-	⚪	-	-	-
Stelvio (2017 >)	⚪	⚪	⚪	⚪	-	-	-

Audi

A1 (2011 - 2019)
A1 Sportback (2012 - 2019)
A1 (2019 >)
A3 Hatchback (2012 >)
A3 (1996 - 2003)
A3 (2004 - 2011)
A3/S3 (2012 >)
A3 e-Tron Sportback (2015 >)
A3 Saloon (2014 >)
A4 (2005 - 2008)
A4 (2016 >)
A4 Avant (2016 >)
A4 Allroad (2008 - 2016)
A4/S4 Avant (2008 - 2016)
A4/S4 Saloon (2008 - 2016)
A5/S5 Coupe (2016 >)
A5/S5 Coupe (2006 - 2016)
A5/S5 Sportback (2009 - 2016)
A5/S5 Sportback (2017 >)
Audi A5/S5 Cabriolet (2017 >)

2135467

Bentley

Continental GT (2003 - 2012)

Continental Flying Spur (2005-2012)

Continental GTC (2006 - 2012)

Mulsanne (2010 >)

2135467

BMW

X1 (2016 >)	●	●	○	●	-	-	-
X3 F25 (2011 - 2018)	●	●	○	●	-	-	-
X3 G01 (2018 >)	●	●	○	●	-	-	-
X4 (2014 >)	●	●	○	●	-	-	-
X5 (2007 - 2014)	●	●	○	●	○	-	○
X5 (2015 >)	●	●	○	●	○	-	○
X6 (2008 >)	●	●	○	●	-	-	-
X6 (2015 >)	●	●	○	●	-	-	-
3-GT (2013 >)	●	●	○	●	-	-	-
5-GT (2010 >)	●	●	○	●	-	-	-
Cadillac
BLS Saloon (2006 - 2011)	●	●	○	●	-	-	-
Chevrolet
Aveo (2012 >)	○	●	○	●	-	-	-
Captiva (2007 >)	●	●	○	●	○	-	○
Cruze (2009 >)	●	●	○	●	-	-	-
Spark (2012 >)	○	●	○	●	-	-	-
Volt (2011 >)	●	●	-	●	-	-	-
Orlando (2011 >)	●	●	○	●	○	-	○
Traxx (2013 >)	●	●	○	●	-	-	-
Chrysler
Grand Voyager (2008 >)	●	●	-	●	○	○	○
300 C (2012 >)	○	●	○	●	-	-	-
Delta (2011 >)	○	●	○	●	-	-	-
Ypsilon (2011 >)	○	●	○	●	-	-	-

2135467

Citroen

Xsara (2000 - 2006)	○	●	○	●	-	-	-
Dacia
Duster (2012 >)	●	●	○	●	-	-	-
Logan MCV (2013 >)	○	●	○	●	-	-	-
Sandero (2013 >)	○	●	○	●	-	-	-
Fiat
124 Spider (2016 >)	●	-	-	-	-	-	-
500 (2008 >)	○	●	-	●	-	-	-
500 C (2009 >)	○	●	-	●	-	-	-
Abarth 500 (2009 >)	○	●	-	●	-	-	-
Bravo (2007 >)	○	●	○	●	-	-	-
500L (2013 >)	●	●	○	●	-	-	-
500X (2015 >)	●	●	○	●	-	-	-
Doblo (2010 >)	●	●	○	●	-	-	-
Panda (2012 >)	○	●	○	●	-	-	-
Grande Punto (2006 >)	○	●	○	●	-	-	-
Abarth Grande Punto (2008 - 2011)	○	●	○	●	-	-	-
Qubo (2008 >)	○	●	○	●	-	-	-
jpo (2016 >)	○	●	○	●	-	-	-
Ford
B Max (2012 >)	●	●	○	●	-	-	-
SB! Focus C Max (2003 - 2010)	○	●	○	●	-	-	-
C Max (2010 -2012)	○	●	○	●	-	-	-
C Max (2013 >)	○	●	○	●	-	-	-
Edge (2016 >)	○	●	○	●	○	-	○

2135467

Honda

Hyundai

Getz (2005 - 2011)

Infiniti

Jaguar

21 3 54 6 7
F - Pace (2016 >)	○	●	○	●	-	-
F-Type Coupe (2014 >)	○	-	-	-	-	-
I - Pace (2018 >)	○	●	○	●	-	-
X-Type (2001 - 2010)	○	●	○	●	-	-
X-Type Estate (2004 - 2010)	○	●	○	●	-	-
XE (2015 >)	●	●	○	●	-	-
XF (2008 - 2014)	○	●	○	●	-	-
XF (2015 >)	●	●	○	●	-	-
XF R (2009 - 2015)	○	●	○	●	-	-
XF Sportbrake (2013 >)	○	●	○	●	-	-
XJ (2010 >)	○	●	○	●	-	-
XK (2006 - 2016)	○	●	-	●	-	-
! XK Coupe (2006 - 2016)	○	○	-	○	-	-
XK Convertible (2006 - 2016)	○	○	-	○	-	-

Jeep

Grand Cherokee (2011 >)	○	●	○	●	-	-	-
Compass (2011 >)	○	●	○	●	-	-	-
Cherokee (2014 >)	○	●	○	●	-	-	-
Renegade (2015 >)	●	●	○	●	-	-	-
Wrangler 5dr (2007 >)	○	●	○	●	-	-	-

Kia

SB! Carens (2013 >)	●	●	○	●	○	-	○
Ceed Hatchback (2012 >)	○	●	○	●	-	-	-
●Ceed/XCeed (2020 >)	●	●	○	●	-	-	-
●EV6 (2022 >)	●	●	○	●	-	-	-

Land Rover

21 3 54 6 7
Range Rover (2002 - 2012)
Range Rover Sport (2005 - 2012)
Range Rover Sport (2013 >)
Range Rover Evoque 3dr (2011 >)
Range Rover Evoque 5dr (2011 >)
Range Rover Evoque (2019 >)
Range Rover Velar (2017 >)
Lancia
Thema (2012 >)
Voyager (2010 >)
Delta (2011 >)
Ypsilonon (2012 >)
Lexus
CT (2011 >)
GS (2013 >)
GSh (2013 >)
IS Saloon (2005 - 2012)
NX (2014 >)
ES Hybrid (2019 >)
UX (2019 >)
RX (2010 - 2018)
RX (2018 >)
Mazda
CX-3 (2015 >)
CX-5 (2011 >)

21 3 54 6 7
CX-7 (2007 - 2011)	○	●	○	●	-
Mazda 2 (2009 - 2015)	○	●	○	●	-
Mazda 2 (2015 >)	●	●	○	●	-
3 Hatchback (2009 - 2013)	○	●	○	●	-
3 Saloon (2009 - 2013)	○	●	○	●	-
3 Hatchback (2014 >)	●	●	○	●	-
5 (2005 - 2010)	○	●	○	●	-
6 Estate (2008 - 2012)	○	●	○	●	-
6 Hatchback (2007 - 2012)	○	●	○	●	-
6 Saloon (2007 - 2009)	○	●	○	●	-
6 (2013 - 2017)	○	●	○	●	-
6 (2018 >)	●	●	○	●	-
MX-5 (2015 >)	●	-	-	-	-
Mercedes-Benz
A Class (2005 - 2012)	○	●	○	●	-
A Class (2013 >)	○	●	○	●	-
A Class (2019 >)	○	●	○	●	-
A Class Saloon (2020 >)	○	●	○	●	-
B Class (2012 >)	○	●	○	●	-
B Class EV (2015 >)	○	●	○	●	-
C Class (2008 - 2015)	○	●	○	●	-
C Class Estate (2008 - 2015)	○	●	○	●	-
C Class Coupe (2011 >)	○	●	-	●	-
C Class (2015 >)	○	●	○	●	-
CLA (2013 >)	○	●	○	●	-
CLA (2020 >)	○	●	○	●	-

2135467

CLA Shooting Brake (2015 >)

CLS Shooting Brake (2012 >)

CLS Coupe (2011 >)

E Class (2006 - 2009)

E Class Saloon (2009 - 2012)

E Class Coupe (2009 >)

E Class (2013 - 2018)

E Class (2018 >)

EQA (2021 >)

EQC (2021 >)

GLA (2021 >)

GLA (2014 - 2020)

GLC (2016 >)

GLC Coupe (2019 >)

GL Class (2006 - 2012)

GL/GLS Class (2012>)

GLE (2015 - 2020)

GLE (2020 >)

M/ML Class (2005 - 2012)

M/ML Class (2012 >)

R Class (2006 - 2012)

S Class (2006 - 2013)

S Class (2015 >)

SL Class (2012 >)

SLK (2011 >)

V Class (2015 >)

2135467

25 / Streetwise (1999 - 2005)

MG Rover

GS (2016 >)

MG3 (2013 - 2015)

MG3 (2016 >)

MG6 (2011 - 2016)

MG5 EV (2020 >)

MG HS PHEV (2021 >)

MG ZS (2021 >)

ZR (2001 - 2005)

ZT (2003 - 2006)

Mini

Mini 3dr (1999 - 2006)

Mini (Cooper) Hatchback (2006-2014)

Mini (Cooper) Hatchback (2014 >)

Mini Coupe (2009 >)

Mini Countryman (2010 - 2017)

Mini Countryman (2017 >)

Mini Paceman (2013 >)

Mini 5dr (2015 >)

ASX (2010 >)
Colt (2007 - 2013)
Eclipse Cross (2019 >)

Mitsubishi

107 (2005 - 2014)	●	●	-	●	-	-	-
108 (2015 >)	●	●	-	●	-	-	-
206 3dr (2004 - 2009)	●	●	○	●	-	-	-
207 3dr (2006 - 2012)	●	●	○	●	-	-	-
207 5dr (2006 - 2012)	●	●	○	●	-	-	-
207 SW (2007 - 2012)	●	●	○	●	-	-	-
2008 (2013 >)	●	●	○	●	-	-	-
2008 (2020 >)	●	●	○	●	-	-	-
208 3dr (2013 >)	●	●	○	●	-	-	-
208 5dr (2013 >)	●	●	○	●	-	-	-
208 5dr (2020 >)	●	●	○	●	-	-	-
208 EV 5dr (2020 >)	●	●	○	●	-	-	-
307 (2001 - 2007)	●	●	○	●	-	-	-
307 Estate (2002 - 2007)	●	●	○	●	-	-	-
308 Hatchback (2007 - 2014)	●	●	○	●	-	-	-
308 SW (2008 - 2015)	●	●	○	●	-	-	-
308 SW (2015 >)	●	●	○	●	-	-	-
308 (2014 >)	●	●	○	●	-	-	-
SB! 3008 (2009 - 2016)	●	●	○	●	-	-	-
3008 (2017 >)	●	●	○	●	-	-	-
407 (2004 - 2011)	●	●	○	●	-	-	-
407 SW (2004 - 2011)	●	●	○	●	-	-	-
4007 (2007 - 2012)	○	●	○	●	-	-	-
508 (2011 >)	●	●	○	●	-	-	-
508 SW/RXH (2011 >)	●	●	○	●	-	-	-

21 3 54 6 7
508 (2019 >)	●	●	○	●	-	-
SB! 5008 (2011 - 2018)	●	●	○	●	●	-
SB! 5008 (2018 >)	●	●	○	●	●	-
Bipper (2008 >)	○	●	○	●	-	-
Expert Teepee (2007 - 2016)	○	●	○	●	●	●
Partner Combi (2004 - 2010)	●	●	○	●	-	-
Partner Teepee (2008 >)	●	●	○	●	-	-
RCZ (2011 >)	●	○	-	○	-	-
Traveller (2016 >)	●	●	●	●	●	●
Polestar Polesta(2020 >)	●	●	○	●	-	-
Porsche Cayenne (2011 - 2017)	●	●	○	●	-	-
Cayenne E-Hybrid (2015 >)	●	●	○	●	-	-
Cayenne (2017>)	●	●	○	●	-	-
Panamera (2011 >)	●	●	-	●	-	-
Panamera E-Hybrid (2015 >)	●	●	-	●	-	-
Renault Captur (2015 >)	●	●	○	●	-	-
Clio (2005 - 2012)	●	●	○	●	-	-
Clio Renault Sport (2006 - 2012)	●	●	○	●	-	-
Clio Sport Tourer (2007 - 2012)	●	●	○	●	-	-
Clio (2013 >)	●	●	○	●	-	-
Espace (2003 - 2012)
Grand Espace (2003 - 2012)
Kadjar (2015 >)
Koleos (2018 >)
Laguna (2008 - 2012)
Laguna Sport Tourer (2008 - 2012)
Megane (2007)
Megane Hatchback (2002 - 2009)
SB! Megane Hatchback (2008-16)
Megane Sport Tourer (2009 - 2016)
Megane (2016 >)
Modus (2004 - 2012)
Grand Modus (2008 - 2012)
SB! Scenic (2003 - 2009)
SB! Scenic (2009 - 2016)
Scenic (2017 >)
Twingo (2007 - 2014)
Twingo (2015 >)

Saab

9-3 (2002 - 2012)	○	●	○	●	-	-	-
9-3 Sport Wagon (2005 - 2012)	○	●	○	●	-	-	-
9-3 X (2009 - 2012)	○	●	○	●	-	-	-
9-5 Estate (2005 - 2010)	○	●	○	●	-	-	-
9-5 (2011-2012)	●	●	○	●	-	-	-

2135467

Seat

Skoda

21 3 54 6 7
Kamiq (2020 >)			○		-	-
Karoq (2018 >)			○		-	-
Kodiaq (2017 >)			○		○	-
Octavia (2004 - 2013)			○		-	-
Octavia (2013 - 2020)			○		-	-
Octavia (2020 >)			○		-	-
Rapid (2013 >)			○		-	-
Roomster (2006 >)	○		○		-	-
Scala (2020 >)			○		-	-
Superb Combi Estate (2008 >)			○		-	-
Superb (2008 - 2014 >)			○		-	-
Superb (2015 >)			○		-	-
Yeti (2009 - 2017)			○		-	-
Enyaq EV (2021>)			○		-	-
Smart
For Two Coupe (2007 >)	○	-	-	-	-	-
FourFour (2015 >)	○		-		-	-
Ssangyong
Actyon (2006 - 2011)	○		○		-	-
Korando (2011 >)	○		○		-	-
Musso Pickup (2016 >)	○		○		-	-
Rexton (2014 >)	○		○		-	-
Tivoli (2016 >)	○		○		-	-
Turismo (2014 >)	○		○

2135467

Suzuki

Subaru
Tesla

2135467

Toyota

Auris (2007 - 2012)	○	○	○	-	-	-
Auris (2013 >)	○	○	○	-	-	-
nsis Hatchback (2003 - 2011)	○	○	○	-	-	-
Avensis Tourer (2009 >)	○	○	○	-	-	-
Aygo (2005 - 2014)	○	○	-	○	-	-
Aygo (2014 - 2019)	○	○	-	○	-	-
Aygo (2019 >)	○	○	-	○	-	-
Aygo X (2021 >)	○	○	-	○	-	-
Corolla (2018 >)	○	○	○	-	-	-
C-HR (2017 >)	○	○	○	-	-	-
EZ MPV (2013 >)	○	○	○	-	-	-
GT86 (2012 >)	○	○	-	○	-	-
Highlander (2013 >)	○	○	○	-	-	-
Highlander (2021 >)	○	○	○	-	-	-
Land Cruiser (2003 - 2009)	○	○	○	-	-	-
Land Cruiser (2009 >)	○	○	○	-	-	-
Prius (2004 - 2010)	○	○	○	-	-	-
Prius (2010 >)	○	○	○	-	-	-
Prius PHEV (2015 >)	○	○	○	-	-	-
Prius Plus + (2012 >)	○	○	○	-	-	-
Prius 4 (2016 >)	○	○	○	-	-	-
Rav 4 MK3 (2006 - 2011)	○	○	○	-	-	-
RAV4 (2013 - 2019)	○	○	○	-	-	-
RAV4 Hybrid (2014 - 2019)	○	○	○	-	-	-
RAV4 (2019 >)	○	○	○	-	-	-
21 3 54 6 7
SB! Verso (2009 - 2012)	○	●	○	●	-	-
SB! Verso (2013 >)	●	●	○	●	-	-
Yaris (2008 - 2011)	○	●	○	●	-	-
Yaris (2011 - 2017)	○	●	○	●	-	-
Yaris (2019 >)	●	●	○	●	-	-
Yaris Cross (2021 >)	●	●	○	●	-	-
Adam (2013 >)	●	●	-	●	-	-
Agila (2008 >)	●	●	○	●	-	-
Ampera (2011)	●	●	-	●	-	-
Antara (2007 - 2015)	●	●	○	●	-	-
Astra (1998 - 2003)	○	●	○	●	-	-
Astra (2004 - 2010)	○	●	○	●	-	-
Astra 5dr (2010 >)	●	●	○	●	-	-
Astra Estate (2010 >)	●	●	○	●	-	-
Astra GTC (2011 >)	●	●	○	●	-	-
Astra (2015 >)	●	●	○	●	-	-
Corsa D (2007 >)	○	●	○	●	-	-
Hatchback (2006 - 2015)	○	●	○	●	-	-
Hatchback (2006 - 2015)	○	●	○	●	-	-
Corsa 5dr (2015 >)	●	●	○	●	-	-
Corsa VXR (2007 >)	○	●	○	●	-	-
Crossland X (2018 >)	●	●	○	●	-	-
Grandland X (2018 >)	●	●	○	●	-	-
gnia Hatchback (2009 >)	○	●	○	●	-	-

2135467

Volkswagen

Right by your Side

Landline: Go freephone fabulous on 0800 014 9252*

Mobile: Ring 0333 323 1729 International: [phone]

*calls from BT landlines are free but calls from mobiles and other networks may vary.

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street, Farnworth, Bolton, Lancs, BL4 7EP, England.

All the design and trademarks contained herein are the property of Cosatto Limited. No part of this document may be reproduced without the permission of Cosatto Limited.

www.cosatto.com

(EN) Notice:

(100 - 150cm) This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in”i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual.

For compatibility of non i-Size vehicle, please refer to the fit checker app (http://cosat.to/fitchecker) or the compatibility list on the website (http://cosat.to/ninja2isizevl).

Never use this child restraint system in seating positions where an active frontal airbag is installed.

Important - Do not use forward facing before the child's age exceeds 15 months (refer to instructions).

If in doubt, consult either the child restraint manufacturer or retailer.
