USER MANUAL TKA8013, TKA8653 BOSCH

BOSCH coffee maker with clear glass and black handle, featuring digital display and control buttons (no visible text or symbols on main device)

TKA 80..

BOSCH

Illustration of a hand washing a water dispenser into a sink (no text or symbols)

b BOSCH

Illustration of a hand pressing down a cylindrical object with an arrow indicating rotation (no text or symbols present)

d 1x4

Illustration of a hand pouring liquid into a container using a ladle (no text or symbols visible)

click!

g ① auto

Illustration of a coffee maker with a steaming cup and a checkmark indicating it is checked (no text or symbols present)

BOSCH 1 2 3 4 5 6 10 11 12 13 7 8 9 11 auto off calc

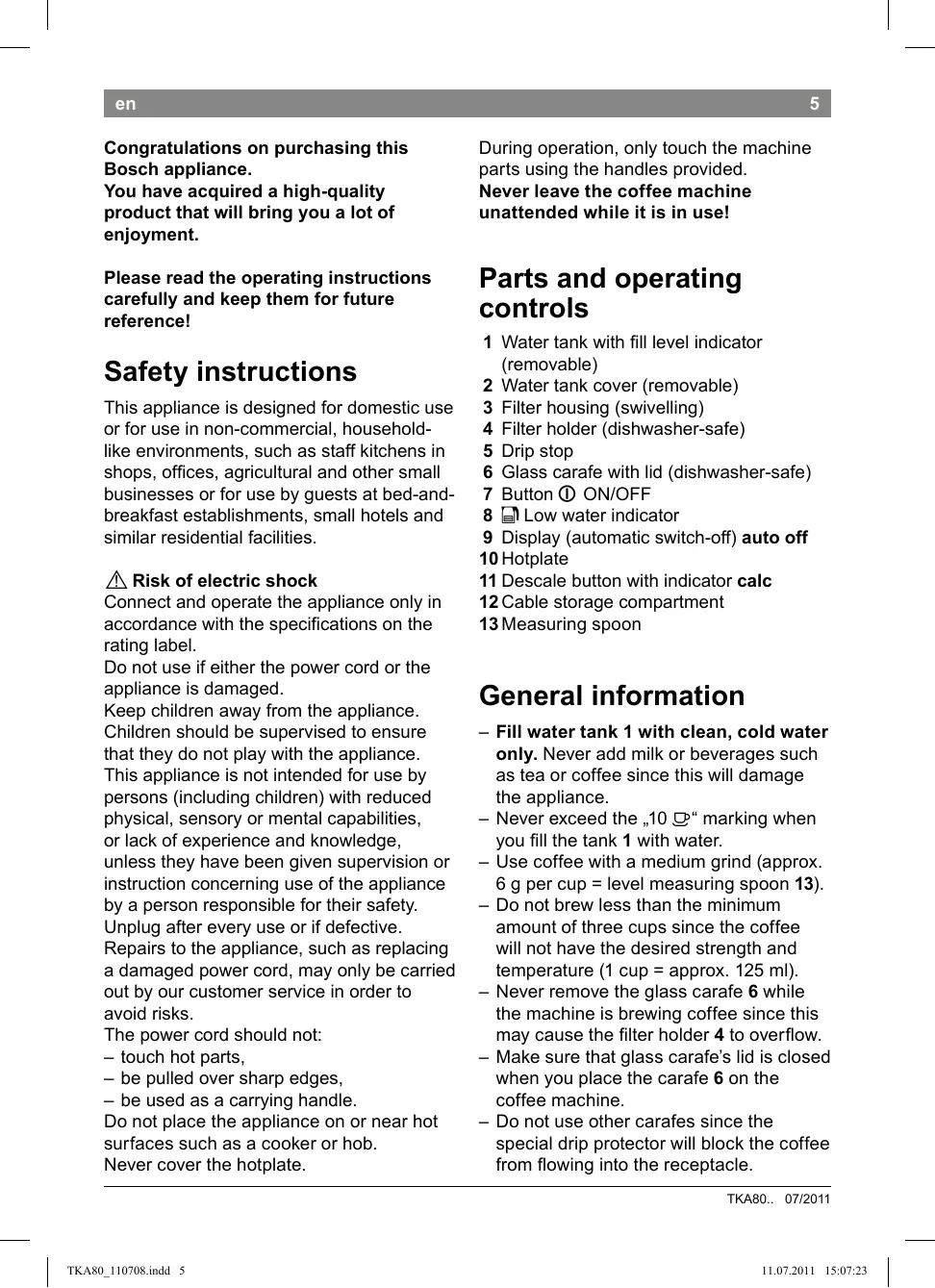

Congratulations on purchasing this Bosch appliance.

You have acquired a high-quality product that will bring you a lot of enjoyment.

Please read the operating instructions carefully and keep them for future reference!

Safety instructions

This appliance is designed for domestic use or for use in non-commercial, household-like environments, such as staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

⚠️ Risk of electric shock

Connect and operate the appliance only in accordance with the specifications on the rating label.

Do not use if either the power cord or the appliance is damaged.

Keep children away from the appliance. Children should be supervised to ensure that they do not play with the appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Unplug after every use or if defective. Repairs to the appliance, such as replacing a damaged power cord, may only be carried out by our customer service in order to avoid risks.

The power cord should not:

- touch hot parts,

– be pulled over sharp edges,

– be used as a carrying handle.

Do not place the appliance on or near hot surfaces such as a cooker or hob.

Never cover the hotplate.

During operation, only touch the machine parts using the handles provided.

Never leave the coffee machine unattended while it is in use!

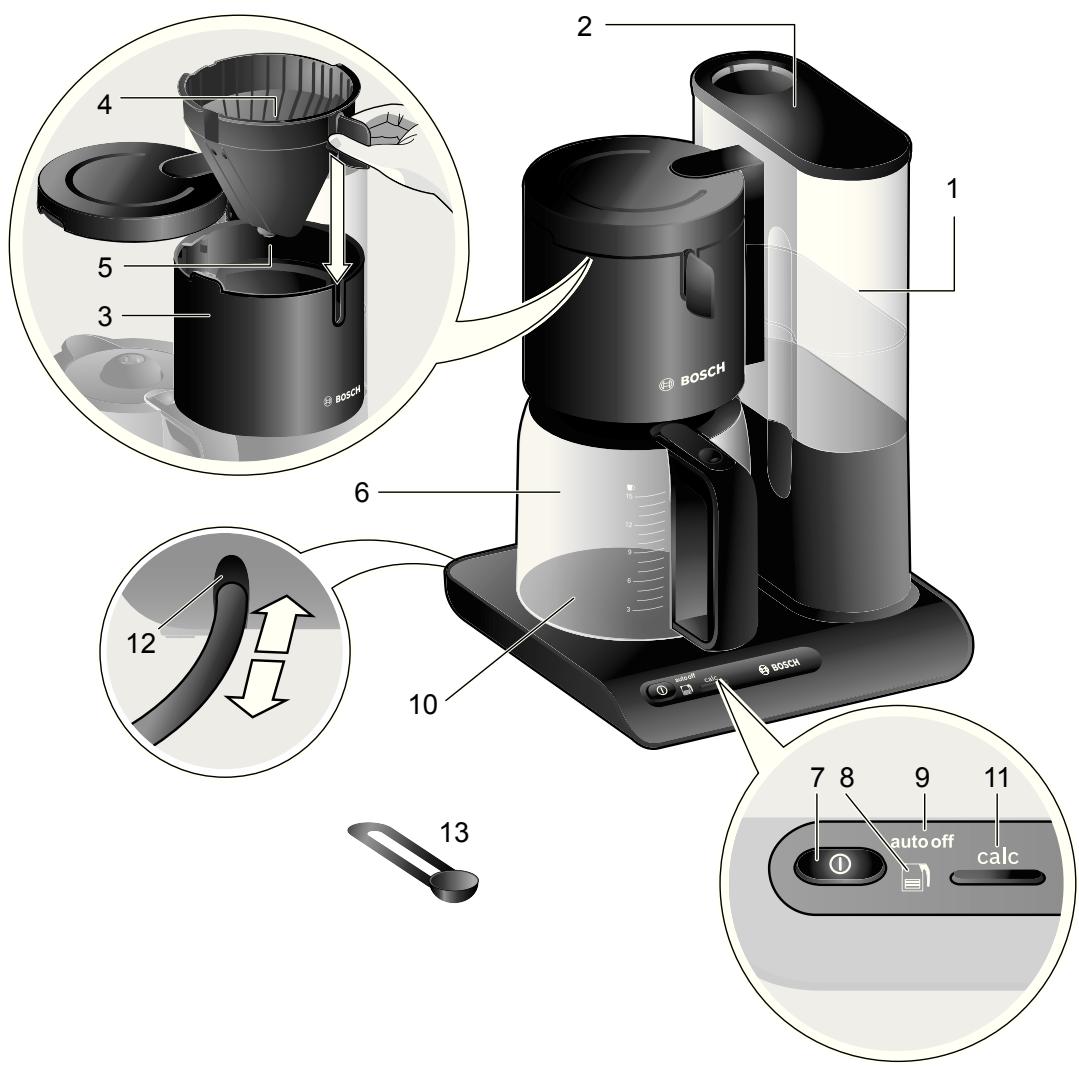

Parts and operating controls

1 Water tank with fill level indicator (removable)
2 Water tank cover (removable)
3 Filter housing (swivelling)
4 Filter holder (dishwasher-safe)
5 Drip stop
6 Glass carafe with lid (dishwasher-safe)
7 Button ① ON/OFF
8 📋 Low water indicator
9 Display (automatic switch-off) auto off
10 Hotplate
11 Descale button with indicator calc
12 Cable storage compartment
13 Measuring spoon

General information

• Fill water tank 1 with clean, cold water only. Never add milk or beverages such as tea or coffee since this will damage the appliance.
• Never exceed the „10 ☐“ marking when you fill the tank 1 with water.
• Use coffee with a medium grind (approx. 6 g per cup = level measuring spoon 13).
• Do not brew less than the minimum amount of three cups since the coffee will not have the desired strength and temperature (1 cup = approx. 125 ml).
• Never remove the glass carafe 6 while the machine is brewing coffee since this may cause the filter holder 4 to overflow.
• Make sure that glass carafe's lid is closed when you place the carafe 6 on the coffee machine.
• Do not use other carafes since the special drip protector will block the coffee from flowing into the receptacle.

- Some water accumulation on the filter holder 4 is normal; it does not indicate that the coffee machine is defective.

Before using for the first time

• Remove any stickers or film.
• Pull enough of the power cable out of the storage compartment 12 and plug in.
• To clean, fill water tank with 6 cups of water and replace it. Press the ON/OFF switch 7 ①; cleaning program starts.
• Repeat the cleaning process.

Note: You may notice a „new machine“ smell; this is normal. If this is the case, fill with a vinegar solution (1 cup of vinegar for 5 cups of water) and run the cleaning program. Next, rinse the machine twice with 6 cups of water.

- Clean the carafe thoroughly.

Brewing coffee

• Remove the water tank 1, fill it with water and replace it.
• Swivel out filter housing 3.
• Insert a 1x4 paper filter in the filter holder 4 and add the desired amount of coffee.
• Flip back the filter housing 3 until it engages.
• Place the glass carafe 6 with the lid closed under the filter housing 3.
• Press the ON/OFF switch 7 ① to start the brewing cycle. At the same time, the auto off function is activated; the display lights up.

Note: The machine has an auto off (power save) function, which switches it off after approximately two hours.

Important: When the brewing process is complete, wait a moment until all the coffee has run through the filter and into the carafe.

Let the machine cool down for five minutes before brewing a fresh pot.

Low water indicator

This coffee machine senses if the water volume in the water tank is low (less than approx. 4 cups).

If the water level is low, lights up and the machine automatically increases the brewing time. This ensures that the coffee retains its ideal flavour.

Coffee-making tips

Store ground coffee in a cool place; you can also freeze it.

Once a package of coffee has been opened, close it tightly to maintain its aroma.

How the coffee beans are roasted affects their taste and aroma.

Darker roast = more flavour

Lighter roast = more acidity

Cleaning

Never immerse the device in water or place it in the dishwasher!

Don't steam-clean the appliance.

Unplug the appliance before cleaning it.

– Clean all parts that came into contact with coffee after each use.
- Clean the coffee machine's exterior with a damp cloth; do not use strong or abrasive cleaning agents.
- Clean the water tank 1 under running water; don't use a firm brush.
- The glass carafe 6 and its lid are dishwasher-safe.

Descaling

This appliance is equipped with an automatic descaling indicator. If calc indicator lights up, the machine needs to be descaled.

Regular descaling

– makes your appliance last longer
- ensures proper function
– prevents excessive steam
– speeds up the brewing process
- saves energy

Descale the machine with a commercial descaling agent.

• Switch off the machine and allow it to cool.
• Place the glass carafe 6 with the lid closed on the coffee machine.
• Prepare the descaling solution according to the manufacturer's instructions and pour it into the water tank 1.

Warning: Do not fill with more than 6 cups.

• Switch the machine on using the ① ON/OFF button.
• Press and hold down the button descale 11 calc for at least 2 seconds. The descaling process starts.
• The program interrupts the process several times for a few minutes in order to let the descaling agent penetrate the deposits. The entire descaling process takes about 30 minutes.
• When the descaling process is complete, the display calc will no longer light up. Operate the machine twice using clean water, without coffee. Do not fill the tank with more than 6 cups of water.
• Thoroughly rinse all removable parts and the carafe.

Troubleshooting

The machine takes noticeably longer or switches itself off before the brewing process is complete.

→The machine needs descaling.

- Descale the machine as per the instructions. To start the descaling program, press and hold button 11 calc for at least two seconds.

Tip: If your water is very hard, descale the coffee machine more frequently than requested by the calc indicator.

The drip stop 5 leaks.

→ It needs to be cleaned.

- Clean drip stop 5 (in filter holder 4) under running water while cleaning it several times with your finger.

Disposal

This appliance is labelled in accordance with the European Directive 2002/96/EG relating to waste electrical and electronic equipment – WEEE. The directive provides the framework for the EU-wide take-back and disposal of end-of-life appliances. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Right of modification reserved.
