PARTYBTMIC3 - Microphone BIGBEN - Free user manual and instructions

USER MANUAL PARTYBTMIC3 BIGBEN

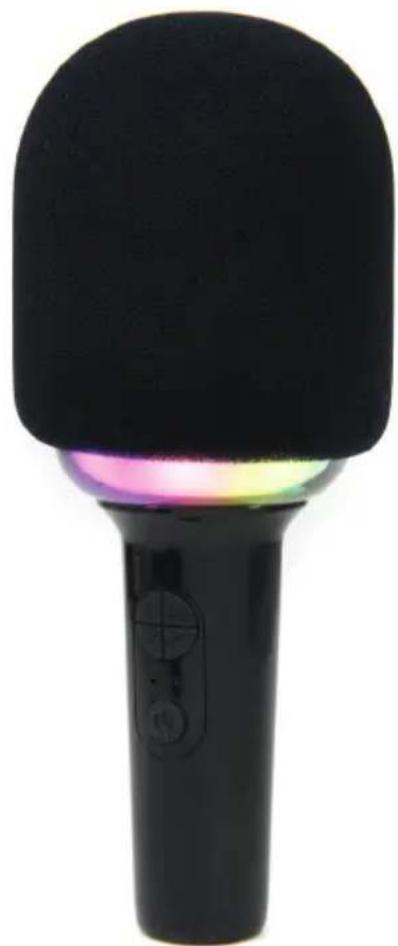

Black handheld microphone with glowing blue ambient light and control buttons (no text or symbols visible)

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Microphone with built-in light-up speaker

Black handheld microphone with glowing blue ambient light and control buttons (no text or symbols visible)

USER INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THE UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started 10

Safety warning and notice 10

Contents of the box 12

Description of parts 12

Operation

Operation in pairing mode 13

Technical specifications 14

Environmental protection 15

Additional information 15

Declaration of conformity 15

13 Warranty 15

Getting started

• Take the device out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the outside.

Safety warning and notice

You must read and understand all the instructions before using this device. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the device casing.
2. Never place this device on top of other electrical equipment.
3. Protect the power cable from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the device. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cable. Ensure you have completed all the other connections before connecting the mains plug.
4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all device repairs to qualified repairers. Repair is needed when the issues been damaged in any fashion, and in particular:

6. if the power cable is damaged;

7. in the event of a liquid spill or objects being inserted into the device;
8. if the device is exposed to rain or dampness;
9. if the device does not operate normally;

10. or if the device has been dropped or impacted.

11. The series panel is located on the bottom of the device.

12. Never block the air vents.
13. Make sure you have enough space for ventilation. Place the product on a stable surface.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or sources of heat, heaters, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this device. Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

17. Ensure that you always have easy access to the power cable, plug or adapter to disconnect this device from the mains if necessary.
18. Do not use this device near water. It must not be dripped on or splashed. Do not use this device in a damp or wet environment.
19. Disconnect this device in the event of a storm, or if you intend not to use it for a long period of time.
20. This device can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the device, and they understand the risks involved. Children must not play with the device or the power cable (risk of strangulation). Children must not clean or maintain the device without supervision.
21. This device must only be supplied with very low safety voltage as indicated on the device.
22. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
23. When in operation, the device must be at a minimum distance of 20 cm from the human body.
24. This device is for household use only; do not use outdoors.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages, inside the device, that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the device.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

Check and identify the contents of your box:

• Microphone
• User instructions
• USB-C charging cable

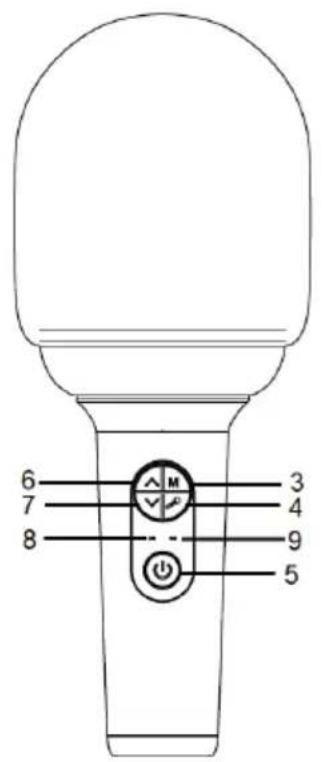

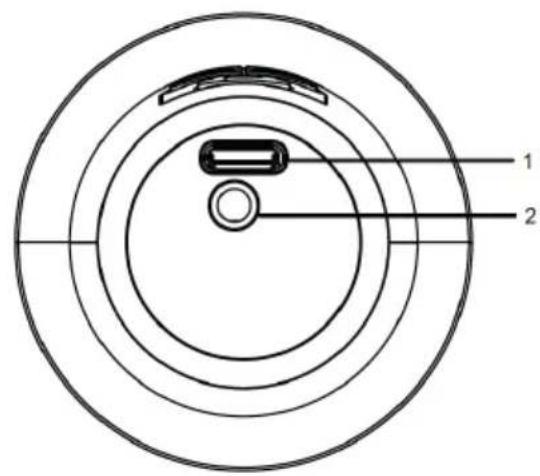

Description of parts

6 7 8 M 3 4 9 5

1 2

1. USB-C charging port
2. Headphone jack socket
3. Mode
4. Voice change
5. Power button
6. Increase volume
7. Reduce the volume
8. Charging indicator
9. Bluetooth indicator

Operation

Before using the device, you must charge it using the USB C charging cable. The charging indicator (8) is solid red while charging. It turns off once the device is fully charged.

1. Press and hold the button (5) for approximately 5 seconds to switch on the speaker, and you'll hear a sound signal when it's switched on.
2. The speaker will be in Bluetooth pairing mode, the Bluetooth indicator light (9) will flash quickly, find "PARTYBTMIC3" and then press to sign in. You'll hear a sound signal when the connection is established, and the indicator light (9) will stay lit in blue.
3. Briefly press the button (5) to play or pause the music.
4. Press and hold the "+" volume button (6) to increase the speaker's volume, and briefly press the button to increase the microphone's volume. Press twice to increase the ECHO effect.
5. Press and hold the "-" volume button (7) to decrease the speaker's volume, and briefly press the button to decrease the microphone's volume. Press twice to reduce the ECHO effect.
6. Briefly press the Mode button (3) to switch from microphone mode into Bluetooth mode.
7. Press and hold the button (3) to switch the lights on or off, and to switch to party light mode. 2 light modes in total.
8. Briefly press the voice button (4) to change the voice effects: Male voice / female voice / baby voice / monster voice / original voice
   Press twice to switch from the original music to the accompaniment.
9. Connect 3.5 mm headphones via the jack (2) to listen to the music.
10. Press and hold the button (5) for approximately 5 seconds to switch off the speaker, it will give off a sound signal when it's switched off.

Operation in pairing mode

1. Turn on both speakers (if they're connected to other devices, disconnect them first)
2. Press the button (5) on one of the speakers twice, and pairing mode will activate and connect automatically. You can now connect your phone remotely.
3. In pairing mode, press the power button (5) twice to deactivate pairing mode.

WARNING: Risk of hearing impairment

Set a low volume on the playback device before connecting the headphones to the sound source.

To prevent hearing damage, avoid excessive volume, particularly over extended periods or frequent use. Excessive volume can result in permanent hearing impairment.

Technical specifications

Type Specifications Type Specifications
Speaker φ52 mm	(5 W) Charging time approx. 4 hours
Peak power 5 W	Playback time		7 hours at 50% volume (lights on)8 hours at 50% volume (light off)
RMS power 5 W		Bluetooth version	5.0
Speaker resistance	4 Ω	Bluetooth frequency	2.40 - 2.80 GHz
Charging power supply	DC 5V / 1,000 mA	Speaker frequency	80Hz - 20kHz
S/B ratio ≥ 85 dB	Battery type Li-ion battery
Battery capacity 1	800 mAh	Transmission range	10 m
Battery power	3.7 V, 1,800 mAh, 6.66 Wh	Dimensions 210 mm * 87 mm
EIRP -1.2 dBm

N.B.: The maximum connection distance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid any interference with the connection.

If the buttons do not respond, press the ON/OFF button for 5 seconds to turn off the device. If the device does not turn off, just wait for it to turn off automatically.

The device may turn off in an environment with electrostatic discharge. The user must then recharge the battery and reset the device.

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorting and collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the device does not transmit audio output for a certain amount of time, it will automatically go into standby mode to save energy. It can then be switched back on using the power button
• If an incoming call is received while the PARTYBTMIC3 system is connected to your mobile phone during music playback, the music will immediately pause when you answer the call and start again once the call is finished (depending on the mobile phone, playback may sometimes stay paused after the end of the call).
• The word Bluetooth ^® , the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• All other products, services, corporate names, trademarks, trade names, and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the PARTYBTMIC3 electrical radio equipment is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu
