Party Mic - Microphone BIGBEN - Free user manual and instructions

USER MANUAL Party Mic BIGBEN

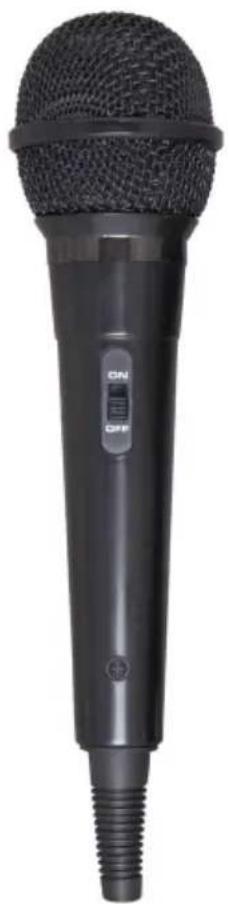

Black handheld microphone with textured body and threaded shaft (no visible text or symbols)

MODE D'EMPLOI

LISEZ COMPLÈTEMENT CE MANUEL D'UTILISATION AVANT D'UTILISER CET APPAREIL ET CONSERVEZ CE LIVRET POUR VOUS Y RÉFÉRER ULTÉRIEUREMENT.

Démarrage

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

PARTYMIC

Black handheld microphone with textured body and threaded shaft (no visible text or symbols)

OPERATING INSTRUCTIONS

READ THIS USER MANUAL IN FULL BEFORE USING THIS DEVICE AND KEEP THIS BOOKLET FOR FUTURE REFERENCE.

Getting started

• Take the device out of the box.
- Remove all packaging materials from the product.
- Place the packaging materials in the box or dispose of them safely according to the recycling instructions on the packaging of the device.

Warnings and safety instructions

You must read and understand all instructions before using this device. In the event of damage due to failure to follow the instructions, the warranty will not apply.

1. Never remove the casing from this device.
2. Never place this device on top of other electrical equipment.
3. Protect the power cord from being walked on or pinched, particularly at plugs, sockets and the point where they come out from the device. Check that the supply voltage corresponds to the voltage shown on the plate on the back of the device. When disconnecting the mains plug, always remove the plug from the socket. Never pull on the cord. Before plugging into the power outlet, make sure you have made all the other connections.

4. Use only equipment/accessories recommended by the manufacturer.

5. Leave all repairs to the device to qualified repairers. Repair is necessary when the device has been damaged in any way, including:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the device;
8. if the device is exposed to rain or humidity;
9. if the device does not operate normally;

10. or if the device has been dropped.

11. The type plate is located on the bottom of the device.

12. Never block the ventilation holes.
13. Make sure you have sufficient, stable space around the device for ventilation.
14. This device should be used in a temperate environment, away from direct sunlight, naked flames or heat, heaters, stoves or any other device (including amplifiers) that generate heat. Do not install it near heat sources.
15. The batteries (battery pack or batteries installed) must not be exposed to excessive heat, such as direct sunlight, fire, etc.

16. Unplug the device before cleaning it. Do not lubricate any part of this device. Clean it with a soft cloth. Do not use abrasives or aggressive cleaners.

17. Make sure you always have easy access to the power cord, plug or adapter, so that you can unplug this device from the mains outlet if necessary.

18. Do not use this device near a water point. It must not come into contact with drops or splashes. Do not use this device in a humid or wet environment.
19. Unplug this device during lightning storms or when unused for long periods of time.
20. This device can be used by children aged 8 years and over, as well as by people with reduced physical, sensory or mental capacities or a lack of experience and knowledge, provided they are supervised or have received instructions on how to use the device safely and understand the risks involved. Children must not play with the device or cord (risk of strangulation). Cleaning and user maintenance must not be carried out by children without supervision.
21. This device must only be supplied with very low safety voltage corresponding to the marking on the device.

Package contents

Check and identify the contents of the packaging:

• x1 PARTYMIC
  • x1 Instruction Manual

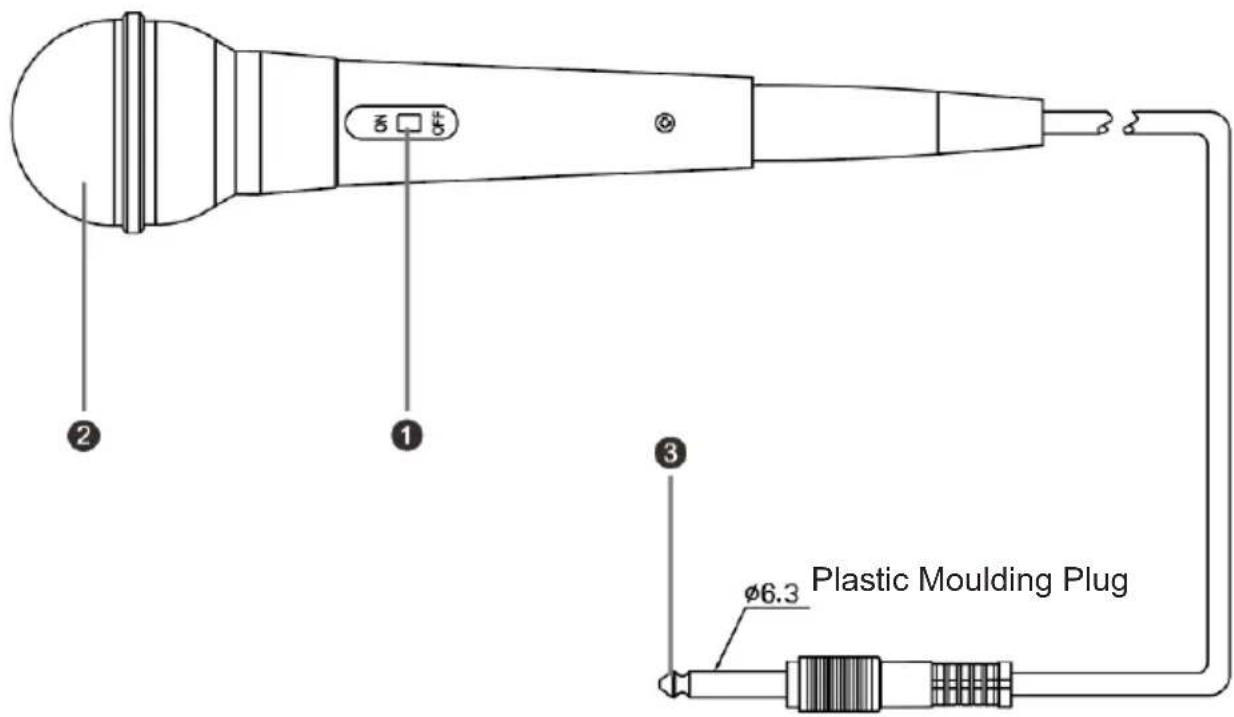

Description of parts

2 1 3 Ø6.3 Plastic Moulding Plug

1. Power ON/OFF Button
2. Sound receiver
3. 6.3mm MONO PLUG

Plugging in the connector in/out

1. To plug in: Align the jack connector with the jack socket on your audio device and push in until a click sound. is heard.
2. To plug out: Firmly hold the jack connector and pull from the socket. Do not pull using the cable.

Technical specifications

Dimensions 31 X	29 X 98 mm Sensitivity -7	3+2db at 1khz
Weight 108g		Operating temperature	-60°C ~ 70°C
Frequency response	60hz-14000hz Housing		Molded Plastic and Cast Metal
Impedance 5602±15% at 1khz
Directional characteristic	Uni-direction

Care for the environment

Your product is designed and manufactured with high-quality materials and components, which can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When this crossed-out wheeled bin symbol features on a product, it means that the product is covered by European Directive 2002/96/EC. Please inquire about the local separate collection system for electrical and electronic products. Please act according to local rules and do not throw away your old products with household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Declaration of conformity

- Bigben Interactive hereby declares that the radio equipment type PARTYMIC is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.bigben-interactive.co.uk/support/

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin,

CS90414 - 59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

BIGBEN PARTY

ES

PARTYMIC

Black handheld microphone with textured body and threaded shaft (no visible text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

BIGBEN PARTY

IT

PARTYMIC

Black handheld microphone with textured body and threaded shaft (no visible text or symbols)

ISTRUZIONI PER L'USO

LEGGERE IL PRESENTE MANUALE CON ATTENZIONE PRIMA DI METTERE IN FUNZIONE IL DISPOSITIVO E CONSERVARLO PER UNA CONSULTAZIONE FUTURA.

Avvio

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

BIGBEN PARTY

PT

PARTYMIC

Black handheld microphone with textured body and threaded shaft (no visible text or symbols)

MANUAL DE INSTRUÇÕES

LEIA ATENTAMENTE ESTE MANUAL DO UTILIZADOR ANTES DE TRABALHAR COM ESTE APARELHO E GUARDE-O PARA REFERÊNCIA FUTURA.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

PARTYMIC

Black handheld microphone with textured body and threaded shaft (no visible text or symbols)

BEDIENUNGSANLEITUNG

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

BIGBEN PARTY

NL

PARTYMIC

Black handheld microphone with textured body and threaded shaft (no visible text or symbols)

GEBRUIKSHANDLEIDING

LEES DEZE GEBRUIKSHANDLEIDING HELEMAAL DOOR VOORDAT U DIT TOESTEL GEBRUIKT EN BEWAAR DIT BOEKJE VOOR TOEKOMSTIG GEBRUIK.

Aan de slag

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

BIGBEN PARTY

PL

PARTYMIC

Black handheld microphone with textured body and threaded shaft (no visible text or symbols)

INSTRUKCJA OBSŁUGI

PRZED ROZPOCZĘCIEM KORZYSTANIA Z URZĄDZENIA NALEŻY W CAŁOŚCI PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ I ZACHOWAĆ JĄ DO WYKORZYSTANIA W PRZYSZŁOŚCI.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

BIGBEN PARTY

PARTYMIC

Black handheld microphone with textured body and threaded shaft (no visible text or symbols)

UPUTE ZA UPORABU

PROČITAJTE OVE UPUTE ZA UPORABU U CJELOSTI PRIJE KORIŠTENJA OVOG APARATA I SAČUVAJTE OVE UPUTE ZA BUDUĆE UPORABE.

Pokretanje 42		Ukopčati/iskopčati konektor	43
Upozorenja i sigurnosne upute 42		Tehničke karakteristike	43
Sadržaj pakiranja 43		Zaštita okoliša	44
Opis dijelova	43	Izjava o sukladnosti	44

Pokretanje

Izvadite uređaj iz kutije.

Uklonite sav materijal za pakiranje s proizvoda.

Stavite materijale za pakiranje u kutiju ili ih odložite na siguran način prema uputama za recikliranje naznačenim na pakiranju uređaja.

Upozorenja i sigurnosne upute

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu
