NESTKIDSCAT - Lighting BIGBEN - Free user manual and instructions

Product type	Alarm clock with night light and lullabies
Brand	Bigben
Model	NESTKIDSCAT
Dimensions (L x H x D)	123 x 130 x 115 mm
Weight	250 g (estimated)
Power supply	DC 5V 0.6A via USB-C; built-in rechargeable battery 1200 mAh
Display	12/24h digital clock with AM/PM indicators
Main functions	Alarm with sunrise effect, touch night light 3 levels, 6 sounds (3 lullabies + 3 white noises), sleep timer (15/30/60 min), volume control (1 to 16)
Speaker	1.25" (1W) x 1; RMS power 1 W
Lighting	3 LEDs, color temperature 4000K
Battery	Built-in rechargeable lithium-ion 1200 mAh
Battery life	Varies with use, not specified
Maintenance and cleaning	Use a soft dry cloth; do not use abrasive products
Safety	Do not expose to water or moisture; do not open; battery must not be ingested; use by children ≥8 years under supervision; small parts (choking hazard <3 years)
Spare parts and repairability	USB cable included; built-in battery (replacement by professional); repairs entrusted to a qualified technician
General information	2-year warranty; made in China; compliant with Directive 2014/53/EU; CE declaration available at bigben.fr

Frequently Asked Questions - NESTKIDSCAT BIGBEN

How to set the time on the NESTKIDSCAT alarm clock?

Press and hold the Clock button to enter setting mode. First select 12 or 24 hour format with the +/- buttons, then confirm with the Clock button. Then set the hours and minutes in the same way.

How to set the alarm?

Press and hold the Alarm button. The hours flash, adjust with +/- then confirm with the Alarm button. Do the same for minutes. The alarm is activated by briefly pressing the Alarm button.

How to use the night light?

Gently press the silicone animal (touch area) to turn on the light. Press again to adjust brightness (20%, 50%, 100%) and a third time to turn off.

How to listen to lullabies or white noises?

Briefly press the Music button to play/pause the last sound played. Press and hold the same button to go to the next sound. Volume is adjusted with the +/- buttons.

How to set the sleep timer?

When music is playing, briefly press the Timer button to choose 15, 30 or 60 minutes. The screen shows the duration. Press again to cancel the timer.

How to charge the device?

Connect the provided USB-A to USB-C cable to the device's USB-C port and to a USB-A power adapter (not included). The red indicator shows charging; it turns off when the battery is full.

What to do if the device does not turn on?

Check that the battery is charged or plug the device into the mains. Press and hold the + button to turn on. If the screen flashes slowly, the battery is low: recharge promptly.

Is the device waterproof or water resistant?

No, the device is not waterproof. It must not be exposed to water or moisture. Avoid any contact with liquids.

Can I use the device without plugging it into the mains?

Yes, the device operates on built-in battery. In battery mode, if the charge is low, the light and sound turn off automatically to save energy.

How to clean the alarm clock night light?

Unplug the device before cleaning. Use a soft dry cloth. Never use abrasive products, solvents or harsh cleaners.

USER MANUAL NESTKIDSCAT BIGBEN

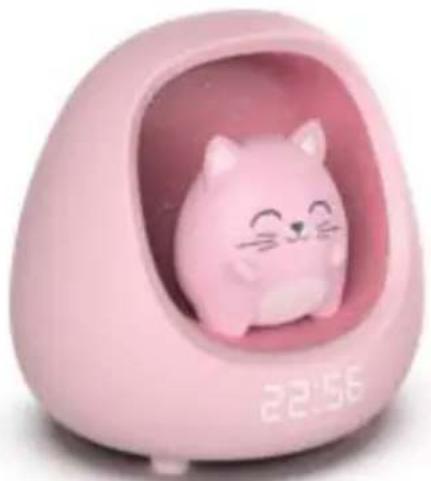

Pink plush cat figurine inside a rounded egg-shaped container, with no visible text or symbols on the cat's body.

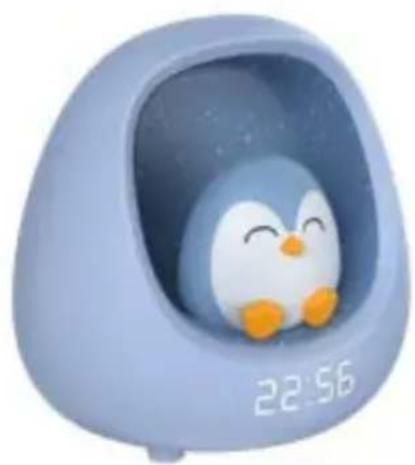

Illustration of a cute penguin inside a blue egg-shaped container with time and date markings (no text or symbols on the character itself)

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

Démarrage

Blue circular icon with white pictogram of a person handing over a box to a child (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Pink plush cat figurine inside a rounded egg-shaped container, with no visible text or symbols on the object itself.

Illustration of a cute penguin inside a blue egg-shaped container with time and date markings (no text or symbols on the character itself)

USER INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started 14

Safety warning and notice 14

What's in the box 15

Description of parts 16

To start 18

Use

18

Warning about batteries 20

Technical specifications of the device 21

Care for the environment 22

Additional information 22

Declaration of conformity 22

Warranty 23

Getting started

• Take the appliance out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.

3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the mains plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when the appliance has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.
13. Make sure you have enough space for ventilation. Place the product on a stable surface.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or heat, heating devices, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.
15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this appliance. Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

17. Ensure that you always have easy access to the power cord, plug or adapter to disconnect this appliance from the mains if necessary.

18. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.
19. Disconnect this appliance in the event of a storm or if you are not going to use it for a long period of time.
20. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.
21. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
22. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.

1. Warning: not suitable for children under 36 months, because of small parts.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages inside the device, that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the appliance.

Class II material
Direct current
Alternating current
For indoor use only

What's in the box

Check and identify the contents of the packaging:

• Alarm clock with nightlight
• USB-A to USB-C cable (150 cm length)
- Instruction booklet

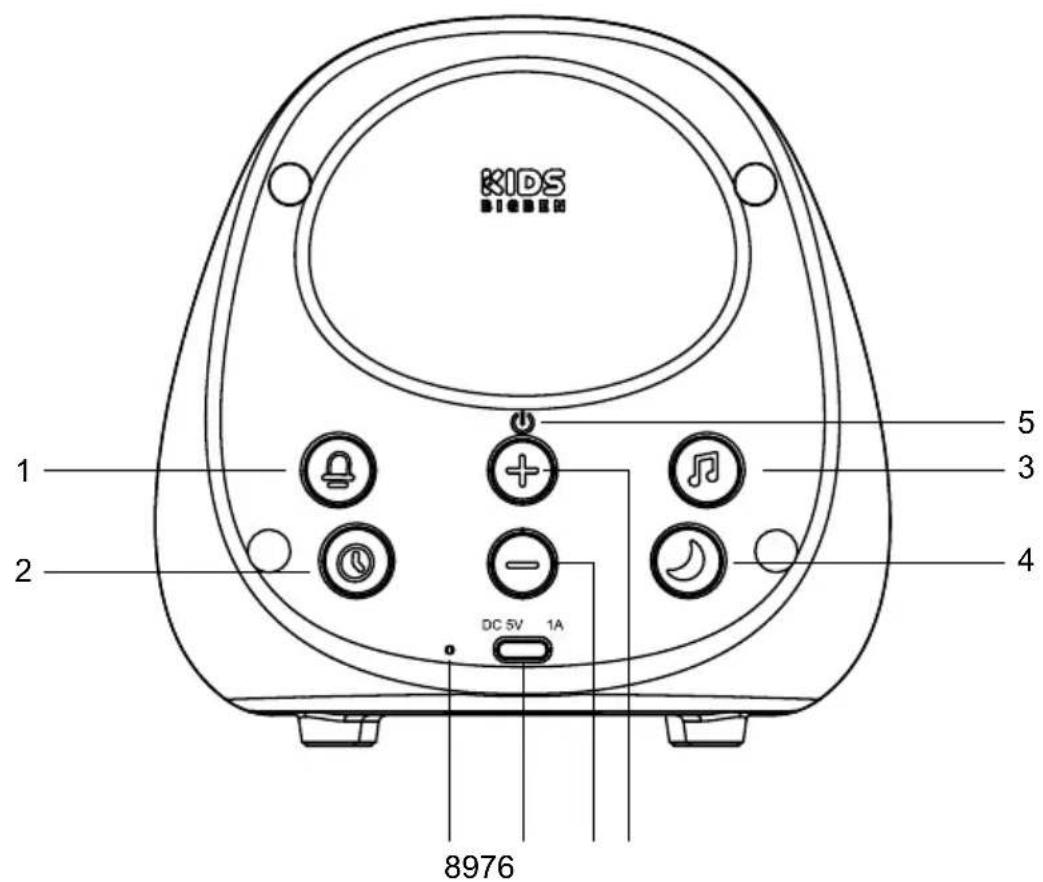

Description of parts

KIDS 1 2 DC 5V 1A 8976 5 3 4

1. Alarm button: Short press to turn on/off the alarm. Long press to set the alarm.
2. Clock button: Short press to dim the display. Long press to set the clock.
3. Music button: Short press to play/pause the last played sound. Long press to go to next preset sound.
4. Timer button: Short press to set 15, 30 or 60' timer ('15'/'30'/'60' are displayed).
5. Power ON/OFF symbol
6. • button: Long press to power ON and power OFF. Short press to increase the volume.
7. • button: Short press to decrease the volume.
8. Charging LED indicator: Solid red when charging, goes off when the battery is fully charged.
9. USB-C input (to plug the supplied USB cable)

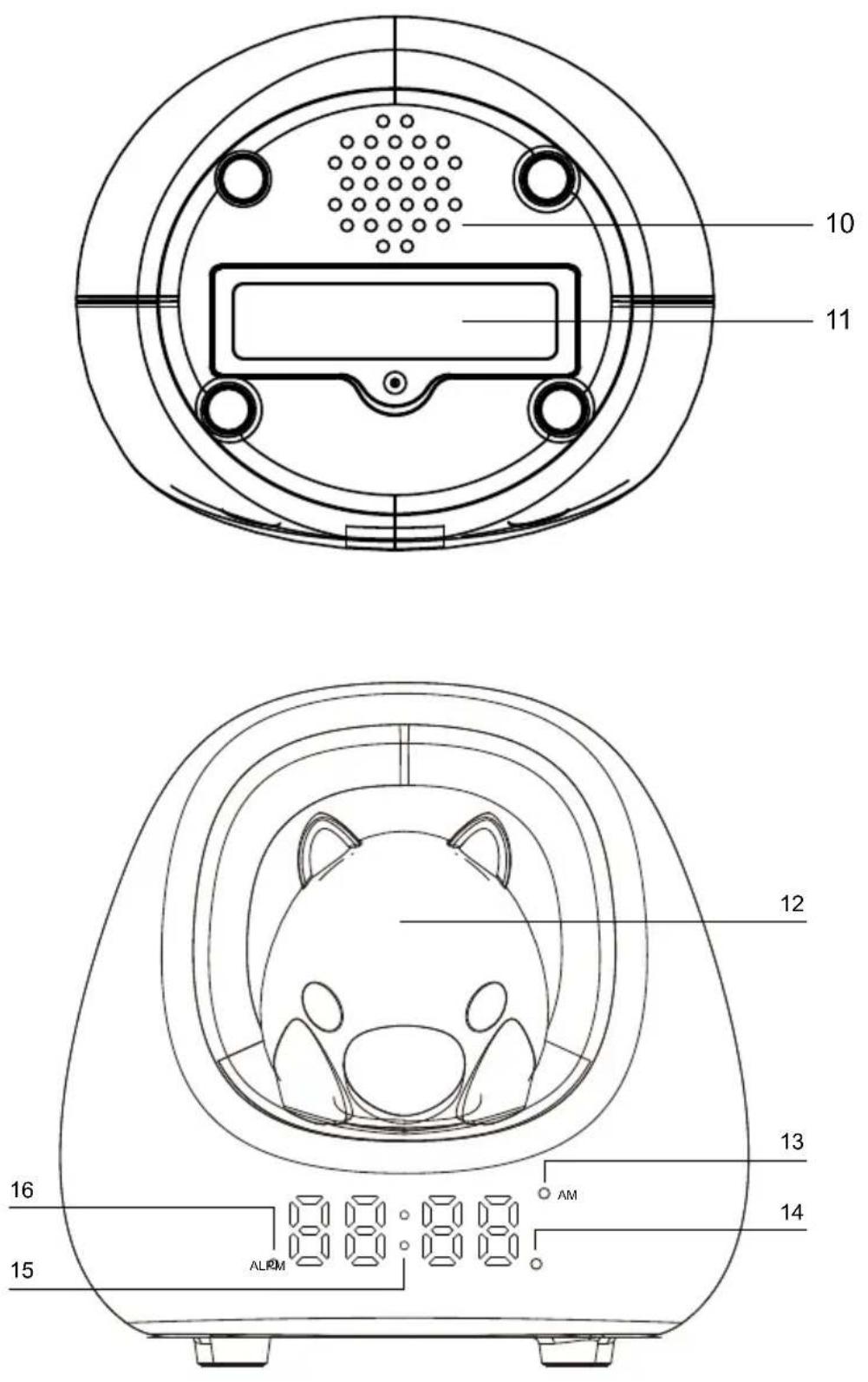

10. Speaker location
11. Battery location
12. Light control: Press the silicon animal with your index to turn 20/50/100%/off the light.
13. AM indicator
14. PM indicator
15. Front screen (clock display)
16. Alarm indicator

To start

Plug the USB-C connector of the provided USB cable into the USB-C input, then plug the other end of the cable to a USB-A wall socket OR to a USB adapter, then to the mains. The charging LED indicator switches on red (if not, reverse the USB-C connector in the USB-C input).

Long press + button to power ON the clock.

Use

CLOCK SETTING

Short press Clock button to dim the display: 20%/50%/100%/OFF.

Long press Clock button to enter the clock settings:

First select 12 or 24-hour mode by pressing +/-. An AM or PM LED will turn on next to the digits to show morning or afternoon if in 12-hour mode.

Press Clock button to confirm and go to hours setting: the hours will flash on the screen, use +/- button to adjust, then press the clock button to confirm and go to minutes.

The minutes will flash on the screen, repeat the same operation to set the minutes.

Clock time is now set!

ALARM SETTING

Long press Alarm button to enter the alarm settings: the hours flash on the screen, use + or - button to choose the desired alarm time then press alarm button to confirm the hour and go to minutes. Repeat the same operation for the minutes. The alarm time is now set!

Note: If the clock is in 12Hr mode, the AM/PM dot will also appear when you are setting the alarm time to indicate AM or PM status.

Short press Alarm button to activate/deactivate the alarm. When ON, the set alarm time gets displayed for a few seconds and a dot is displayed in 16 as indicator.

For a gentle wake-up, the light will come on at 20% and rise to 100% 5 minutes before the set alarm time to act as a sunrise feature.

When ringing, alarm will play crescendo for 3 minutes, unless it is manually switched off by pressing the alarm button.

NIGHTLIGHT

Gently press the animal with your index to turn on the light, tap again to adjust the brightness (from 20 to 100%) and once again to turn it off.

This nightlight offers 3 built-in lullabies and 3 white noises to soothe your child:

'Dreamy night'/'Sleepy time'/'Please go to sleep'/Heartbeat/Rainfall/Fan.

Short press Music button to play/pause the sound.

Long press Music button to go to next track.

Short press + or - button to adjust the volume to the desired level (1 - 16).

With the music ON, short press Timer button to start a timer at 15, 30 or 60 min, press once again to cancel ('no' is shortly displayed when off).

When the timer expires, the sound automatically turns off to preserve sleep.

Note: if the light was on before the timer was set, the light will stay on to be used as nightlight.

SAVE CLOCK FEATURE

This clock can also work on battery for use on the move.

If the clock is not powered on mains and the battery is running low, the light and sound will turn off to preserve the battery and the displayed time will slowly flash to warn you to quickly recharge/connect to mains before the clock turns off completely.

POWER OFF

If you decide to turn off the product completely (if you are not planning to use it for a long time), long press + button ('OFF' is shortly displayed).

Warning about batteries

This product contains one or more batteries.

• Use batteries correctly to prevent any injury or fire caused by a leak, overheating, explosion, erosion or other damage.
• Keep new and used batteries out of the reach of children or any vulnerable person. Stop using the device if the battery compartment does not close properly.
• Do not swallow batteries. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.
• The batteries (or battery pack) must not be exposed to excessive heat, such as sunlight, fire, etc.
• Do not heat batteries or dispose of them in fire or water.
• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.
• Do not disassemble the batteries.
• Cover the ends of the batteries with tape to prevent explosions and combustion when these are scrapped.
• Scrap batteries in an environmentally friendly way
• Do not dispose of batteries in ordinary household waste.
• Be sure to comply with the local regulations in force when scrapping batteries.

BATTERY WARNING

KEEP OUT OF REACH OF CHILDREN

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

Blue circular icon with white pictograms of a person handing a box to a child (no text or symbols)

Risk of fire or explosion if the battery is replaced by an incorrect type. Disposing of a battery into fire or a hot oven, or mechanically crushing or cutting a battery can result in explosion;

Leaving a battery in an extremely high temperature environment can result in explosion or the leakage of flammable liquid or gas;

A battery subjected to extremely low air pressure may result in explosion or the leakage of flammable liquid or gas.

Maximum operating ambient temperature of the product is 35^ C.

Please refer to the information on outside packaging for electrical and safety information before installing or operating the appliance.

Type Specifications	Type Specifications
Full range speaker	1.25" (1W )*1 Tweeter speaker	1.25" (1W )*1
Peak speaker 1W	RMS power 1W
Power consumption	0.05W Distortion < 5%
Power input DC 5V	0.6A	Speaker frequency	20Hz - 20KHz
Speaker impedance	8Ω Input NA
S/N ratio ≥80dB	Driver 1.25" 8Ohms speaker
Dimension	123x130x115mm

USB-A to USB-C cable (150 cm length)

Mono - Output power: 1W RMS

Lighting tone: 4000K - 3 x LEDs

6 built-in sounds: 3 lullabies and 3 white noises

Alarm clock with sunrise effect

7-segment display (white colour)

12/24-hour display with AM/PM indication (24-hour mode per default)

Built-in rechargeable battery: 1200 mAh

In an environment with electrostatic discharge, the device may turn off. The user must then recharge the battery and reset the device.

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorted collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the appliance does not transmit audio output for a certain amount of time, it will automatically go into standby mode to save energy. It can be switched back ON by using the POWER selector
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the NESTKIDS type radio equipment complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

SUPPORT

For any technical problem, please contact [e-mail]. Our Support Team is also available by chat via www.bigben-interactive.co.uk/support/ from Monday to Friday 9.00am till 6.00pm (GMT+1).

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396-466, Rue de la Voyette CRT2

59273 FRETIN - France

www.bigben.eu

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin,

CS90414 - 59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

Pink plush cat figurine inside a rounded egg-shaped container, with no visible text or symbols on the cat's body.

Illustration of a cute penguin inside a blue egg-shaped container with time and date markings (no text or symbols on the character itself)

Blue circular icon with white human and child silhouettes, no text or symbols present

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Pink plush cat figurine inside a rounded egg-shaped container, with no visible text or symbols on the object itself.

Illustration of a cute penguin inside a blue egg-shaped container with time and date markings (no text or symbols on the character itself)

ISTRUZIONI PER L'USO

LEGGERE IL PRESENTE MANUALE CON ATTENZIONE PRIMA DI METTERE IN FUNZIONE IL DISPOSITIVO E CONSERVARLO PER UNA CONSULTAZIONE FUTURA.

Come iniziare 38

TENERE FUORI DALLA PORTATA DEI BAMBINI

Blue circular icon with white pictogram showing a person handing a box to a child (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Pink plush cat figurine inside a rounded egg-shaped container, with no visible text or symbols on the object itself.

Cute cartoon penguin inside a light blue egg-shaped container with time display showing 22:56 (no text or symbols on the penguin itself)

Blue circular icon with white pictogram of a person handing a document to a child (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Pink plush cat figurine inside a rounded egg-shaped container, with no visible text or symbols on the object itself.

Illustration of a cute penguin inside a blue egg-shaped container with time and date markings (no text or symbols on the character itself)

BEDIENUNGSANLEITUNG

Blue circular icon with white human and child silhouettes, no text or symbols present

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

WEKKER MET NACHTLAMPJE

Pink plush cat figurine inside a rounded egg-shaped container, with no visible text or symbols on the object itself.

Illustration of a cartoon penguin inside a blue egg-shaped container with time and date markings (no text or symbols on the penguin itself)

GEBRUIKSAANWIJZING

ALVORENS DIT APPARAAT TE GEBRUIKEN, LEES DEZE INSTRUCTIES AANDACHTIG DOOR EN BEWAAR DEZE VOOR TOEKOMSTIGE RAADPLEGING.

Om te beginnen 74

Blue circular icon with white pictogram of a person handing a document to a child (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]
