USER MANUAL M 20 Ceramic Gourmet CASO

CASO® DESIGN

Original-Bedienungsanleitung | Instruction Manual | Mode d'emploi Istruzione d'uso | Manual del usuario | Gebruiksaanwijzing Руководство по эксплуатации | Bruksanvisning

Mikrowelle M 20 Ceramic Gourmet

Microwave M 20 Ceramic Gourmet

1.1 Information on this manual ....30

1.2 Warning notices....30

1.3 Limitation of liability 31

1.4 Copyright protection....31

2 Safety 31

2.1 Intended use 31

2.2 General Safety information....32

2.3 Sources of danger 34

2.3.1 Danger due to microwaves....34

2.3.2 Danger of burns....34

2.3.3 Danger of Fire 35

2.3.4 Danger of Explosion 36

2.3.5 Dangers due to electrical power 36

3 Commissioning....37

3.1 Packaging safety information....37

3.2 Delivery scope and transport inspection 37

3.3 Unpacking 37

3.4 Setup location requirements 38

3.4.1 Installation of the appliance 38

3.4.2 Avoiding radio interference....39

3.5 Electrical connection 39

4 Design and Function 40

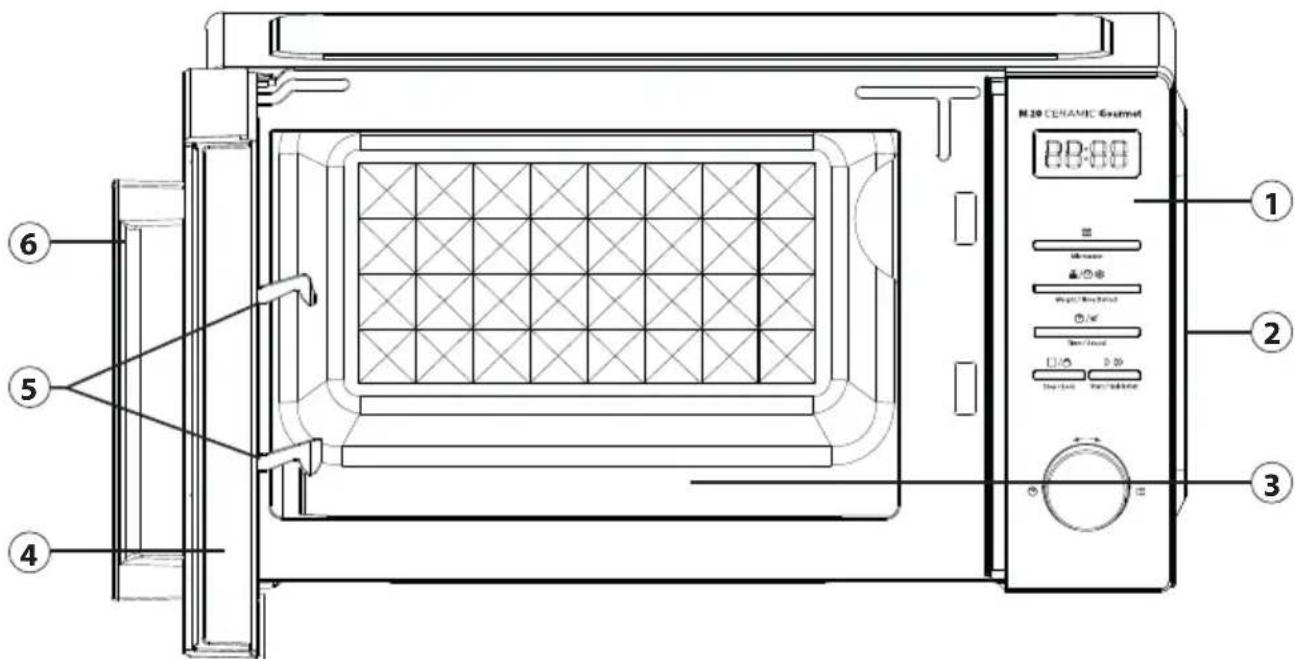

4.1 Overview....40

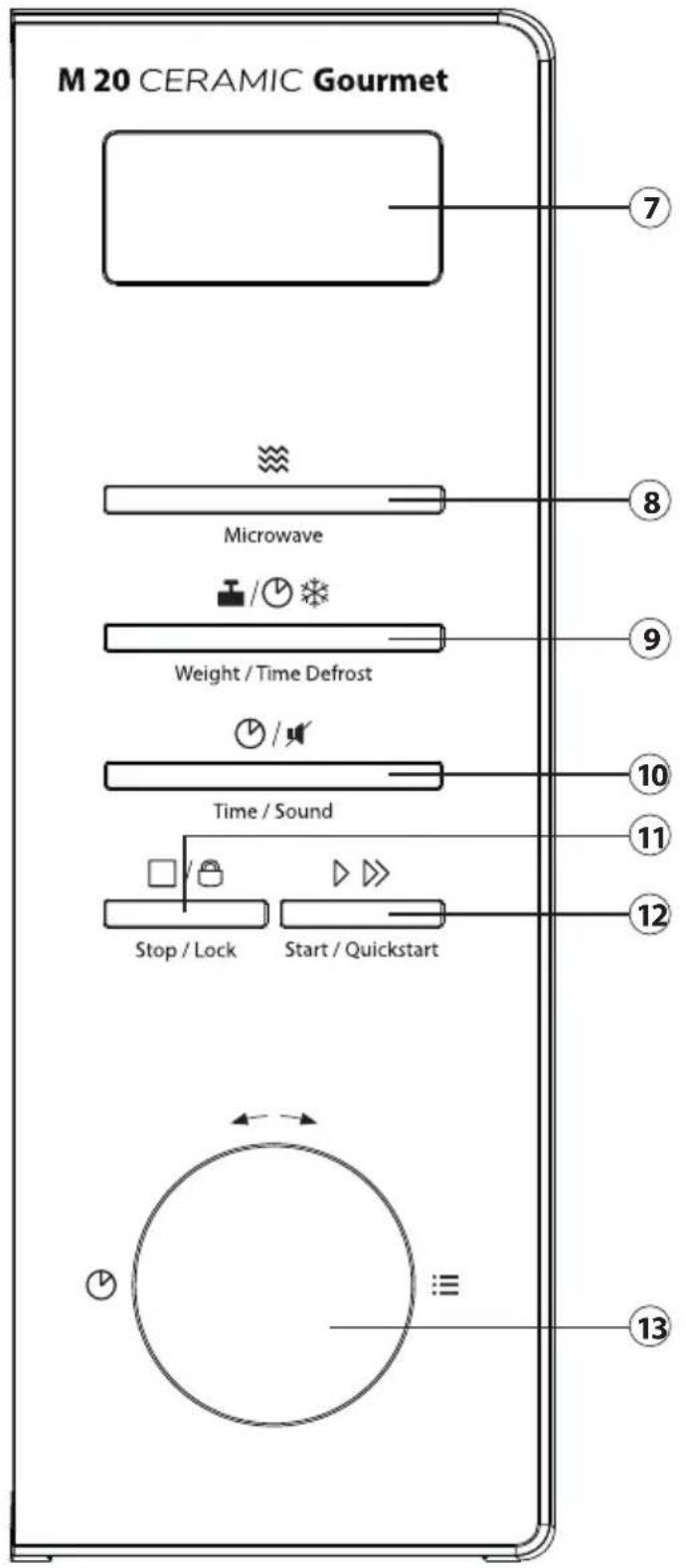

4.2 Control Panel....41

4.3 Warning notices on device 42

4.4 Door latch 42

4.5 Rating plate 42

5 Basics and basic settings 42

5.1 Principles of microwave cooking 42

5.2 Operating modes: 43

5.3 Information on microwave cookware 43

5.4 Opening / closing door 44

5.5 Setting the time....44

5.6 Setting the timer 44

5.7 Turning the button tones on/off 45

5.8 Child lock / button lock....45

6 Operation and Handing 45

6.1 Quick start 46

6.2 Microwave operation 46

6.3 Defrosting....47

6.3.1 Defrosting by weight 47

6.3.2 Defrosting according to time....47

6.4 Multi-step cooking....48

6.5 Automatic cooking programmes 48

7 Cleaning and Maintenance....49

7.1 Safety information....49

7.2 Cleaning....50

8 Troubleshooting....50

8.1 Safety notices....51

8.2 Troubleshooting table....51

9 Disposal of the Old Device....51

9.1 Disposal of the packaging 52

10 Guarantee 52

1General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your device will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

1.1 Information on this manual

This user's guide is part of the microwave CASO M 20 Ceramic Gourmet (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning, - Operation,
• Troubleshooting and/or • Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

1.2 Warningnotices

The following warning notices are used in the Operating Manual concerned here.

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

1.3 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifi cations of the device are not recommended and are not covered by the guaran- tee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

1.4 Copyright protection

This document is copyright protected.

CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

2Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

2.1 Intendeduse

This device is only intended for use in households in enclosed spaces for defrosting, warming up and cooking foods and beverages.

This appliance is intended to be used in household and similar applications, such as:

• in kitchens, for employees in shops, offices and other commercial areas,
• in farms,
• by customers in hotels, motels and other similar residential environments,
• in bed and breakfast establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

WARNING

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

2.2 General Safety information

PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device:

▶ READ IMPORTANT SAFETY INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE USE.
Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
This unit may be used by children as of 8 years old and anyone with reduced physical, sensory or mental capabilities or a lack of experience and knowledge if they are supervised or have been instructed in connection with the safe use of the appliance and the dangers resulting from it.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.
The device and its connecting cable must be kept away from children who are less than 8 years old.
Do not make any modifications to the appliance or the power cord. Only have repairs carried out by a specialist workshop, as appliances that have not been repaired properly endanger the user. Please also observe the enclosed warranty conditions.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

PLEASE NOTE

Use the appliance only as described in the user's guide to avoid possible injury from misuse.
▶ Do not operate the appliance unattended.
▶ Do not use the appliance:
- if the appliance itself or parts are damaged,
- if the power cord or plug is damaged,
- if the appliance has been dropped.
▶ Always unwind the power cord completely before use. When doing so, ensure the power cord is not damaged by sharp edges or hot objects.
▶ Pull the plug out of the socket:
- when you are not using the appliance,
- after each use,
• before cleaning the appliance or putting it away,
- if there is an obvious malfunction during operation,
• during a thunderstorm.
▶ Do not operate the unit with an external timer or a separate remote-control system.
▶ Do not operate the oven if it is empty. This could damage the device.
The device is not intended for drying, warming up or heating up living animals.
▶ Food thermometers are unsuitable to be used when the microwave is in operation.
▶ Only use the appliance with original accessories.
▶ Only use dishes that are suitable for use in microwave cooking appliances.
Clean the appliance and remove food residues regularly. Poor cleanliness of the appliance can lead to destruction of the surface, which in turn affects the duration of use and possibly leads to hazardous situations.

PLEASE NOTE

▶ Always heat food sufficiently to kill any germs that may be present in the food.
▶ Turn or stir food so that it is heated evenly.

2.3 Sources of danger

2.3.1 Danger due to microwaves

WARNING

Exposure to microwaves on the human body can result in injuries. Please observe the following safety notices in order not to expose yourself or others to microwaves.

▶ Never operate the device when the door is open. Having a faulty or manipulated safety switch results in the danger of exposing oneself directly to the microwaves.
▶ Never position any items between the front of the oven and the oven door and avoid any dirt deposits or cleaning material residues directly on the sealing areas of the device.
WARNING: If the door or door seals are damaged, do not operate the cooking appliance until it has been repaired by a person trained to do so.
WARNING: Do not carry out any maintenance or repair work that requires the removal of a cover that ensures protection against exposure to microwave energy. This is hazardous and must only be carried out by a person trained to do so.
▶ Do not use metal containers for food and beverages.

2.3.2 Danger of burns

WARNING

The culinary items being heated up in this device as well as the cookware that being used and the surface of the device can become very hot. Please observe the following safety notices in order not to burn or scald yourself or others.

WARNING

Do not use the oven for deep-frying. Hot oil can damage parts of the oven and the cookware and cause burns.
WARNING: The appliance and its touchable parts become hot during use. Take care to avoid touching the cooking chamber, food and accessories. Use oven mitts when inserting or removing hot food and when working in the hot cooking chamber.
Children younger than 8 years must be kept away unless they are supervised at all times.
▶ Do not cover or block any openings on the appliance.
▶ Always check the temperature of the food before eating. Wait a moment and stir the food or liquid until the heat is evenly distributed.
▶ Stir or shake the contents of baby bottles and jars of infant food to ensure even heat distribution.
- Check the temperature of baby and children's food before consumption to avoid burns.
▶ Heating beverages with microwaves can cause delayed boiling (boiling delay), so always handle the container with care.

2.3.3 Danger of Fire

WARNING

There is a danger of fi re due to the ignition of the content in the event the device is not used properly. Adhere to the following safety instructions in order to avoid a risk of fi re:

▶ Never use the device to store or dry fl ammable materials.
The appliance is only intended for heating food and beverages. Drying food or clothing and heating pads, slippers, sponges, damp rags and the like may cause injury, ignition or fire.
Supervise the heating of food in plastic or paper containers continuously as there is a possibility of ignition. Disposable plastic containers must have the properties listed under „Notes on microwave cookware“.

WARNING

If smoke is emitted, switch off or unplug the appliance and keep the door closed to smother any flames that may occur.
Do not cook/heat the food for too long. Switching on for too long will cause the food to dry out and possibly self-ignite. There is a risk of fire.
Do not heat pillows and similar items filled with grains, cherry pits or gel in the appliance. They may ignite even if they are removed from the appliance after heating. Fire hazard!
When preparing food with alcoholic beverages, be aware that alcohol evaporates at high temperatures and can ignite on hot surfaces. Never heat alcohol if it is not diluted. Fire hazard!

2.3.4 Danger of Explosion

WARNING

There is a danger of explosion due to excess pressure that is created in the event the device is not used properly. Observe the following safety notices to avoid dangers of an explosion:

Remove twisted wire closures on paper or plastic bags so that no excessive pressure can develop.
▶ WARNING: Do not heat liquids or other foods in sealed containers as they can easily explode.
Do not heat eggs with shells or whole hard-boiled eggs in the appliance as they may explode even after microwave heating is complete.

2.3.5 Dangers due to electrical power

DANGER

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

DANGER

If the power cord of this appliance is damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person in order to avoid hazards.
Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not touch the appliance or the mains plug with wet hands.
▶ Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.
The appliance is equipped with a special light bulb. It may only be replaced by an authorised specialist or by the customer service.

3Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

3.1 Packaging safety information

WARNING

Packaging materials may not be used for playing. There is a danger of suffocation.

3.2 Delivery scope and transport inspection

The device includes the following components:

- Microwave M 20 Ceramic Gourmet • Operating manual

PLEASE NOTE

Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage.
Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

3.3 Unpacking

To unpack the device, proceed as follows:

- Remove the device out of the carton and remove the packaging material.

- Check the appliance for possible damages (dents, damaged door etc.). Damaged appliances may not be used.

- Casing: Remove the protective film covering the outside surface of the appliance.

PLEASE NOTE

If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary.

3.4 Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal and heat-resistant surface with sufficient load-bearing capacity for the oven and the maximum weight of the expected food that is to be prepared in the oven.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• Ensure that the power cable does not hang down over a table or counter edge.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

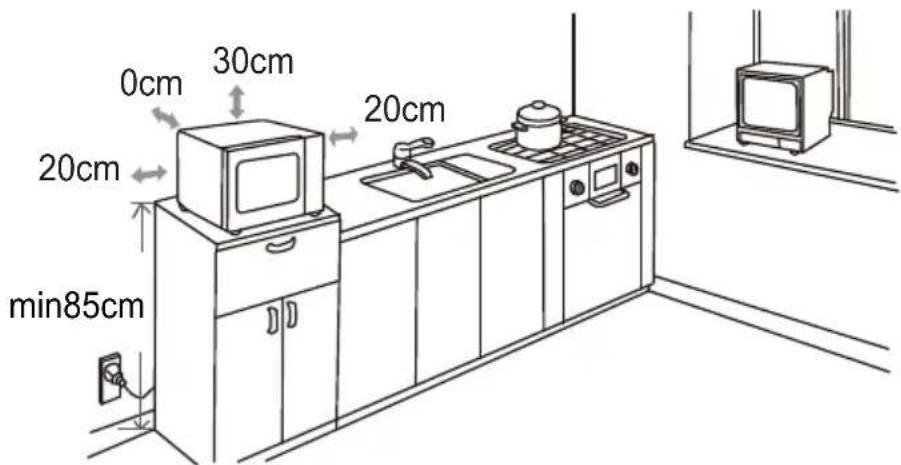

3.4.1 Installation of the appliance

• Select a level surface providing enough distance between the ventilation slots and walls or other units.
• The surface for placing the appliance must be at least 85 cm above the floor.
• The rear of the appliance must be facing a wall (0 cm distance). Above the appliance a clearance of 30 cm is needed, and on the sides at least 20 cm distance to other walls or units are needed.
• The left side of the device must be open.
• Do not remove the feet from the bottom of the appliance.
• Do not cover or obstruct any openings in the appliance.
  • Covering the ventilation slots may cause damage to the appliance.
• Place the microwave appliance as far away from radios of TVs to minimize any interference to radio and TV reception.

- Insert the power plug into a normal household outlet; check that voltage and frequency of the appliance (see appliance rating label) matches that of the household electrical supply.

0cm 30cm 20cm 20cm min85cm 20cm

3.4.2 Avoiding radio interference

The device can cause the occurrence of interference in radios, televisions or similar devices. Such faults can be rectified or reduced as a result of employing the following measures:

• Clean the door and the sealing surfaces of the device.
• Set the radio, the television, etc as far as possible away from the device.
• Connect the device to a different electrical outlet, so that various power circuits are used for the device and the receiver with the interference.
• Use a properly installed antenna for the receiver, to ensure good reception.

3.5 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch, separately from other electricity consumers,
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• This appliance must be electrically grounded. In case of a short circuit grounding will protect against electric shocks because the electrical current is diverted through the grounding lead. The appliance is fitted with an appropriate cable with a ground lead and a grounded safety plug. The plug must be inserted into a properly installed and grounded outlet.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

4 Design and Function

This chapter provides you with important information of the design and function of the device.

4.10Overview

M.20 CERAMIC Gourmet PP:88 ① ② ③ ④ ⑤ ⑥

① Control panel
② Ventilation slits
③ COSOTEK-Base plate

④ Door
⑤ Safety door lock
⑥ Grip

4.2 Control Panel

M 20 CERAMIC Gourmet 7 Microwave Weight / Time Defrost Time / Sound Stop / Lock Start / Quickstart 8 9 10 11 12 13

⑦ Display: Displays the time or the selected function/time
⑧ Microwave: For setting the desired microwave power (in %).
⑨ Weight / Time Defrost: For setting the defrost functions by weight or time
⑩ Time / Sound: For setting the timer & time or for switching the button sounds on/off.
⑪ Stop / Lock: For pausing/ stopping or ending a cooking programme & for activating/ deactivating the child safety lock
12 Start / Quickstart: To start the cooking programme, to set the quick start cooking programme and to extend the cooking time by 30 seconds.
13 Control knob: • Turn to set the selected function • Turn to the left to set the cooking time (P 100) • Turn to the right to select an automatic programme

4.3 Warning notices on device

ATTENTION

Danger due to hot surface!

There is a warning notice referring to dangers due to hot surfaces located on the back upper side of the housing. The surfaces of the device can become extremely hot.

Do not touch the hot surfaces of the device. Danger of burns!
▶ Do not set or lay any items on the device.

4.4Doorlatch

A safety switch is installed in the door latch of the device, which prevents the device from being operated when the door is open.

ATTENTION

Danger due to microwaves!

If this safety device is defective or if this safety device is bypassed, you can directly expose yourself and others to microwave radiation.

Do not operate the device if the safety switch is defective.
▶ Do not disable this safety device.

4.5 Ratingplate

The rating plate with the connection and performance data can be founded on the back of the device.

5 Basics and basic settings

This chapter provides you with important information and notes on the operation and basic settings of the appliance.

5.1 Principles of microwave cooking

• The power levels and time required for cooking / warming up food items depends on the starting time, the quantity and the type and consistency of the food, etc. Use the shortest indicated cooking time and extend the cooking procedure as necessary.
• Cover the food while it is cooking. Lids protect against spatters and also contribute towards cooking/warming up the food evenly.
• During warming, the food should be turned, rearranged or stirred repeatedly, in order for the temperature to be distributed evenly.
• Any existing germs in the food are only killed off if the temperature is sufficiently high enough (> 70°C) and if the time used is sufficiently long enough (> 10 min).

• Foods with a firm skin or shell, such as tomatoes, sausages, potatoes in the skin, eggplants must be pierced or punctured repeatedly so that any developing steam can escape and so that the food does not burst.

• Eggs without their shell may only be cooked in the microwave if the skin of the egg yoke has been pierced repeatedly first. Otherwise, the egg yoke can squirt out with excessive pressure after cooking.

• Rearrange layers of foods such as meat balls from top to the bottom and from the middle to the outside edge.

5.2 Operating modes:

The unit is to be operated in various operating modes. The following list shows the operating modes that are possible with the device:

Microwave

This operation mode is suitable for defrosting, heating and cooking.

◆ Automatic cooking programs

In this operating mode, you can choose from 8 different preset cooking programmes.

◆ Defrost

This operating mode is suitable for defrosting frozen food. Defrosting can be set by weight or by time.

5.3 Information on microwave cookware

The ideal material for microwave cookware is permeable for microwaves and allows the energy to penetrate the container and warm up the food.

PLEASE NOTE

Please observe the following tips when selecting the correct cookware:

Microwaves cannot penetrate metal. Therefore, you should not use utensils made of metal or cookware with metal trim.
For microwave cooking, do not use any products made from recycled paper, as they could contain tiny metal fragments, which could cause sparks and/or result in fire.
▶ Use round or oval instead of square or rectangular cookware, as otherwise the food could tend to overheat in the corners.
Do not use any aluminium foil when using the microwave.

The following table is intended as a basis for selecting the correct cookware:

Cookware Microwave

Heat-resistant glass dishes	√
Non heat-resistant glass dishes	×
Heat-resistant ceramic dishes	√
Microwave-resistant plastic container	√
Kitchen roll	√
Metal sheet	×
Metal rack	×
Metal container	×
Aluminium foil and container	×

5.4 Opening / closing door

Open door

Pull the door handle with a slight tug to open the door of the device. If the device is switched on, the current cooking programme will be interrupted.

PLEASE NOTE

Leave the door open for a moment before reaching into the cooking chamber, to allow the accumulated heat to escape.

◆ Close doors

Close the door until the door latch audibly locks in place. If a cooking programme in progress has been interrupted by opening the door, press the „Start/Quickstart“ button again to continue the cooking process.

5.5 Setting the time

You can set the time on the appliance in the 24-hour system. To do this, the appliance must be in standby mode.

1. Press the "Time/Sound" button twice.
2. Turn the control knob forwards or backwards to set the desired hour.
3. Press the "Time/Sound" button again to confirm this setting.
4. Turn the control knob forwards or backwards to set the desired minutes setting.
5. Confirm your setting by pressing the „Time/Sound“ button.

PLEASE NOTE

▶ You can display the time at any time during the cooking process. To do this, press the „Time/Sound“ button.

5.6 Setting the timer

You can set a kitchen timer on the appliance. To do this, the appliance must be in standby mode.

1. Press the "Time/Sound" button.
2. Turn the control knob forwards or backwards to set the desired timer time.
3. Press the „Start/Quickstart“ button to confirm your setting.
4. The timer time starts to count down.
5. When the timer time has elapsed, the appliance beeps 5 times.

PLEASE NOTE

The timer can be set as follows:
From 00:05-01:00 in 5-second increments
From 01:00-05:00 in 10-second increments
From 05:00-10:00 in 30-second increments
From 10:00-30:00 in 1-minute increments
From 30:00-95:00 in 5-minute increments

5.7 Turning the button tones on/off

You can turn the button tones on/off on the appliance. The beeps at the end of cooking are not affected. The appliance must be in standby mode for this setting.

Turn off the button sound: Press the „Time/Sound“ button for about three seconds. The button sounds are now switched off.

Turn on the button sound: Press the „Time/Sound“ button again for approx. three seconds. The button sounds are now switched on again.

5.8 Child lock / button lock

Use the child lock to prevent unsupervised operation of the appliance by, for example, children. To do this, the appliance must be in standby mode.

Activate the child lock / button lock:

Press the „Stop/Lock“ button for approx. three seconds. A signal tone sounds and the display shows ____ that the button lock has been activated.

Deactivating the child lock / button lock:

Press the „Stop/Lock“ button again for approx. three seconds. A signal tone sounds and the display ____ goes out.

6 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

WARNING

Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.
Do not operate the appliance when it is empty. The appliance may be damaged.

ATTENTION

The -bottom plate may be hot after cooking. Do not touch the bottom plate!

PLEASE NOTE

The fan may run to cool down the appliance.
Place your food in the appliance before starting the cooking process.

6.1 Quickstart

This function allows you to use the appliance with 100% microwave power in quick start mode. To do this, the appliance must be in standby mode.

1. Press the „Start/Quickstart“ button to set the cooking time in 30 second increments.
2. Each additional click of the „Start/Quickstart“ button extends the cooking time by 30 seconds.
3. The appliance starts cooking automatically immediately after the first button is pressed.
4. You can extend the cooking time by 30 seconds at any time by pressing the „Start/Quickstart“ button again.
5. When the cooking time has elapsed, the appliance beeps 5 times.

6.2 Microwave operation

The appliance must be in standby mode.

1. Press the „Microwave“ button to set the desired microwave power.
2. By pressing the „Microwave“ button, you can choose between P 100, P 80, P 50, P 30 and P 10. Alternatively, you can press the „Microwave“ button 1 time and then turn the control knob forwards or backwards to set the desired microwave power.
3. Press the „Start/Quickstart“ button.
4. Set the desired time by turning the control knob forwards or backwards accordingly. The maximum cooking time is 95 minutes.
5. Press the „Start/Quickstart“ button again to start the process.
6. When the cooking time has elapsed, the appliance beeps 5 times.

Number of times the "Microwave" button is pressed	1 x 2 x	3 x 4 x 5 x
Power in % 100 80 50 30 10
Power in watts 700 W 560 W 350 W 2	10 W 70 W
Display	P 100	P 80	P 50	P 30	P 10

Alternatively, you can operate the appliance at 100% microwave power by turning the control knob anticlockwise in standby mode. 95:00 appears in the display. Then turn the control knob forwards or backwards to set the desired cooking time. Start the cooking process with the „Start/Quickstart“ button.

PLEASE NOTE

You can display the set power level at any time during the cooking process. To do this, press the „Microwave“ button.
You can extend the cooking time by 30 seconds at any time during the cooking process by pressing the „Start/Quickstart“ button again.

6.3Defrosting

PLEASE NOTE

▶ Stop the appliance occasionally to remove any frozen food that has already defrosted.
If the frozen food is not completely defrosted after the estimated defrosting time, reprogram the appliance in 1-minute increments until the desired result is achieved.
When using plastic freezer containers, the defrosting process should initially only last until the frozen food can be removed from the container and placed in a microwave-safe container. Then you can continue the process until the food is completely defrosted.

6.3.1 Defrosting by weight

You can defrost your food by weight with the appliance. The appliance automatically selects the defrosting time and power level once the desired weight has been set. The appliance must be in standby mode.

1. Press the „Weight/Time Defrost“ button 1 time.
2. dEF1" appears in the display.
3. Select the weight of the food to be defrosted by turning the control knob backwards and forwards. You can choose between 100 g - 2000 g in increments of 100 g.
4. Press the „Start/Quickstart“ button to start the process.
5. When the defrosting time has elapsed, the appliance beeps 5 times.

6.3.2 Defrosting according to time

You can defrost your food with the appliance according to time. The appliance selects the power level automatically. The appliance must be in standby mode.

1. Press the „Weight/Time Defrost“ button twice.
2. dEF2" appears in the display.
3. Set the desired defrosting time by turning the control knob forwards or backwards accordingly. The maximum defrosting time is 95 minutes.
4. Press the „Start/Quickstart“ button to start the process.
5. When the defrosting time has elapsed, the appliance beeps 5 times.

PLEASE NOTE

You can extend the defrosting time by 30 seconds at any time during the process by pressing the „Start/Quickstart“ button again.

6.4 Multi-step cooking

You can start two cooking processes individually one after the other. For example, you can start a defrosting operation and a microwave operation or two microwave operations with different power levels in succession. To do this, the appliance must be in standby mode.

1. Select your desired microwave setting or your desired defrost setting as described above and set the desired time/weight.

2. Then press the corresponding button directly for the second operation. The microwave power or dEF1 or dEF2 appears in the display.

3. Set the desired power / weight / time.

4. Press the „Start/Quickstart“ button to start the multi-step cooking process.

5. After the first operation has finished, a beep sounds and the second operation starts automatically.

6. After the time of the second operation has elapsed, the appliance beeps 5 times.

PLEASE NOTE

If defrosting is used, it is always the first operation, even if it is set as the second one.
You cannot use a multi-step cooking process with an automatic programme or with the Quickstart function.
▶ You cannot start two defrosting operations in succession.

6.5 Automatic cooking programmes

You can choose from 8 different automatic cooking programmes. To do this, the appliance must be in standby mode.

1. Turn the control knob to the right to enter programme mode.
2. Turn the control knob forwards or backwards to select the desired programme (A-1 – A-8).
3. Confirm the selection by pressing the „Start/Quickstart“ button.
4. Turn the control knob forwards or backwards again to set the desired weight.
5. Press the „Start/Quickstart“ button to start the process.
6. When the cooking time has elapsed, the appliance beeps 5 times.

Prog.	Automatic programme	Display + preset cooking time Microwave power
A-1	Automaticreheat	20002:30	40005:00	60007:30	in gin min	P 100
A-2	Vegetables	20004:30	30006:30	40008:30	in gin min	P 100
A-3	Fish	25004:00	3505:00	4507:30	in gin min	P 80
A-4	Meat	25004:00	35005:30	45006:30	in gin min	P 100
A-5 Pasta 50		20:00	10023:00		in gin min	P 80
A-6 Potatoes 200		06:30	40011:00	60015:00	in gin min	P 100
A-7 Pizzareheat		20001:30	40003:00		in gin min	P 100
A-8 Soup 200		02:30	40004:30		in mlin min	P 80

PLEASE NOTE

For the pasta programme, add cool water before cooking. For 50 g, 450 ml water and for 100 g, 800 ml water.

7 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

7.1 Safetyinformation

ATTENTION

Please observe the safety instructions, before cleaning your device

The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.
The cooking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down.
Clean the hob after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.
Do not use any aggressive or abrasive cleaning agents or solvents.
Do not scrape off stubborn dirt with hard items.

7.2Cleaning

◆ Cooking chamber and inside of door

WARNING

▶ Always remove grease residues in the device, as these residues can otherwise ignite.

• Keep the cooking chamber of the oven clean. Wipe off any spattered or spilt food from the walls of the cooking chamber with a damp cloth. If the oven is excessively dirty, you can use a mild cleaning agent.
• Wipe the door, window and the door gaskets with a damp cloth, to remove any spatters and spilt food. Residues on the door gasket can mean that the door does not close properly any more, which will cause the microwaves to escape.
• Wipe off any steam, which has settled on the oven door, with a soft cloth. This may be the case if the device is used in an extremely damp environment and is normal.
• Smells can be removed from the oven by mixing a cup of water with the juice and the skin of a lemon, pouring this into a deep microwave-proof bowl and allowing it to cook in Microwave mode for five minutes. Then, dry off the oven thoroughly with a soft cloth.
• After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.

◆ Front of device and operating panel

Clean the front of the device and the operating panel with a soft, slightly damp cloth. Please bear in mind that the operating panel does not get wet. Use a soft, damp cloth for cleaning.

PLEASE NOTE

Leave the oven door open to prevent the device from being re-started accidentally.

◆ Exterior housing

Clean the exterior surfaces of the device with a damp cloth. Make sure that the control panel does not get wet.

- bottom plate K

Wipe the bottom of the device with a mild cleaning agent

8Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

8.1 Safetynotices

ATTENTION

Repairs of electrical appliances must be carried out by qualified person who are trained by the manufacturer.
Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

8.2 Troubleshootingtable

The table below will help you to locate and solve small problems.

Error Possible cause Action

The selected program will not start.	Device door is not closed Close	device door
	Power plug is not plugged in Plug in mains plug!
	Fuse is not activated Activate fuse
Food is not sufficiently defrosted, warmed up or cooked after preset time has elapsed.	Incorrectly selected time or power level	Re-set time and power level. Repeat process
The device functions but the cooking chamber lighting does not work.	Defective cooking chamber light	Have Service dept repair cooking chamber light
Abnormal noises can be heard during operation of microwave.	Food is covered with aluminium foil	Remove aluminium foil
	The cookware contains metal and sparks are being created within the cooking chamber	Observe information on cookware!

PLEASE NOTE

If you cannot solve the problem by carrying out the steps described above, our Customer Service will help you free of charge.
Clean the device before you send it to customer service.

9 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

PLEASE NOTE

Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.

9.1 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no long red to "Green Dot" recycling collection points for disposal.

10Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us.

Your legal guarantee claims as per Art. 437 ff . German Civil Code (BGB) will remain unaff ected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.

This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.

In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

Table des matières

1 Généralités....54

4.5Plaquesignalétique
