Product type	Free-standing microwave
Brand	CASO
Model	IMG23
Capacity	23 liters
Microwave power	800 W
Grill power	1000 W
Control type	Touch electronic
Number of power levels	5 levels
Main functions	Defrost, reheating, cooking, grill, combination
Automatic programs	8 preset programs
Timer	Up to 95 minutes
Dimensions (W x H x D)	45 x 26 x 33 cm
Interior dimensions (W x H x D)	30 x 20 x 32 cm
Weight	10.5 kg
Power supply	230 V, 50 Hz, 1200 W
Cable length	1.2 m
Opening type	Side-opening door with handle
Interior light	LED
Turntable	Yes, diameter 27 cm
Child lock	Yes
Auto shut-off	Yes, at end of cooking
Door safety	Double safety system
Body material	Brushed stainless steel
Cleaning	Easy-clean enamel interior
Spare parts available	Turntable, waveguide, bulb
Repairability index	6.5/10 (estimate)

Frequently Asked Questions - IMG23 CASO

How to program microwave cooking?

Select the desired power using the Power button, then adjust the time with the Time dial. Press Start to begin cooking.

Can metal containers be used?

No, metal containers or those with metal parts should not be used in the microwave, as they can cause sparks and damage the appliance. Use suitable containers made of glass, ceramic, or microwave-safe plastic.

How to clean the oven interior?

Unplug the appliance. Use a damp cloth with a little mild detergent. Do not use abrasive products. For stubborn stains, place a bowl of water with lemon and heat for 2 minutes to loosen residues.

What to do if the oven does not heat?

Check that the door is properly closed and the child lock is not activated. Ensure the fuse or circuit breaker has not tripped. If the problem persists, contact customer service.

How to use the grill function?

Place food on the provided metal grill. Select Grill mode and set the time. Monitor cooking to avoid burning food. The grill can be used alone or in combination with the microwave.

How to defrost food?

Use the automatic Defrost function by entering the food weight. The oven adjusts power and time. You can also defrost manually at 30% power.

What automatic programs are available?

The oven offers 8 automatic programs for common dishes: potatoes, pizza, beverages, vegetables, rice, fish, chicken, and reheating. Refer to the manual for recommended weights.

How to activate the child lock?

Press the Lock button for 3 seconds. A lock symbol appears on the display. To deactivate, repeat the operation.

Why isn't the turntable rotating?

Check that the turntable is correctly placed on the shaft and that food is not blocking its rotation. If the motor is defective, contact customer service.

Where to find spare parts?

Spare parts (turntable, waveguide, bulb) are available on the website www.caso.de or from authorized dealers. Use the model number IMG23 for search.

USER MANUAL IMG23 CASO

Modern microwave oven with open chamber and digital display (no visible text or symbols)

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Service-Hotline International:

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

Internet: www.caso-germany.de

4.14.1 "Kombination 1" 33

4.14.2 "Kombination 2" 33

8 Operating Manual....42

8.1 General....42

8.2 Information on this manual 42

8.3 Warning notices 42

8.4 Limitation of liability 43

8.5 Copyright protection....43

9 Safety 43

9.1 Intended use....43

9.2 General Safety information 44

9.3 Sources of danger....45

9.3.1 Danger due to microwaves 45

9.3.2 Danger of burns 45

9.3.3 Danger of fire 46

9.3.4 Danger of explosion....46

9.3.5 Dangers due to electrical power....47

10 Commissioning....47

10.1 Safety information....47

10.2 Delivery scope and transport inspection....47

10.3 Unpacking....48

10.4 Disposal of the packaging....48

10.5 Setup....48

10.5.1 Setup location requirements: 48

10.5.2 Avoiding radio interference 49

10.6 Assembling the accessories....49

10.6.1 Metal rack 49

10.7 Electrical connection....50

11 Design and Function....50

11.1 Complete overview ....51

11.2 Operating elements and displays....52

11.3 Sensor touch fields:....53

11.4 Signal tones....53

11.5 Safety equipment 53

11.5.1 Warning notices on device....53

11.5.2 Door latch....53

11.5.3 Child-proof lock....54

11.6 Rating plate....54

12 Operation and Handing....54

12.1 Principles of microwave cooking ....54

12.2 Operating modes: 55

12.3 Information on microwave cookware....55

12.4 Opening / closing door 56

12.5 Activation after selecting the programme ....56

12.6 Reset programmsetting....56

12.7 Quick start 56

12.8 Pause/Cancel....57

12.9 Setting the clock 57

12.10 Funktion +30sec 57

12.11 Timer....57

12.12 “Microwave” mode....58

12.13 “Grill” mode....58

12.14 “Microwave and Grill” mode....59

12.14.1 “Combination 1”....59

12.14.2 “Combination 2”....59

12.15 “Menu Cooking” mode....60

12.15.1 "Automatic defrost" mode....61

12.16 Multi-level cooking mode....62

12.17 Quick Menu....62

12.17.1 Sterilize 62

12.17.2 Neutralization of smells....62

12.17.3 Defrost 62

13 Cleaning and Maintenance....63

13.1 Safety information....63

13.2 Cleaning....64

14 Troubleshooting....64

14.1 Safety notices....64

14.2 Error code E-1 65

14.3 Causes and rectification of faults....65

15 Disposal of the Old Device....66

Pure diagram of a container with horizontal lines and a vertical arrow, no text or symbols present

2.10.1 Grillrost

Pure diagram of a rectangular container with horizontal lines and a vertical arrow, no text or symbols present.

HINWEIS

4.14.1 "Kombination 1"

4.14.2 "Kombination 2"

Original Operating Manual

Microwave and Grill IMG23 / IMG25

Modern microwave oven with open chamber and digital timer (no visible text or symbols)

Item No. 3346 / 3356

CE

8 Operating Manual

8.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your microwave will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

8.2 Information on this manual

These Operating Instructions are a component of the microwave (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

- Commissioning

- Operation

- Troubleshooting and/or

CleaningKeep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

8.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

8.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual

• Uses for non-intended purposes

- Improper repairs

- Technical alterations, modifications of the device

- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

8.5 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

9 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

9.1 Intended use

This device is only intended for use in households in enclosed spaces for

- Defrosting

- warming up

- cooking

- grilling

- reducing

foods and beverages. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG WARNING

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

9.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Read all these instructions before using the appliance.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ The device is not intended for drying, warming up or heating up living animals.
▶ Food thermometers are unsuitable to be used when the microwave is in operation.
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
▶ Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children without supervision.
This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose. for domestic purpose.
▶ The microwave oven is only used when it is freestanding.
▶ Warning: Do not install the oven over a range cooktop or other heat-producing appliance. If it is installed it could be damaged and the warranty would be void.
▶ The microwave oven may not be placed in a cabinet.

HINWEIS Please note

▶ The appliance shall be placed against a wall.
The appliance is not intended to be operated by means of an external timer or separate remote-control system.
The microwave oven is for household use only and not for commercial use.
▶ Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
The microwave oven is intended for defrosting, cooking and steaming of food only.

9.3 Sources of danger

9.3.1 Danger due to microwaves

▲WARNUNG Warning

Exposure to microwaves on the human body can result in injuries.

Please observe the following safety notices in order not to expose yourself or others to microwaves.

▶ Never operate the device when the door is open. Having a faulty or manipulated safety switch results in the danger of exposing oneself directly to the microwaves.
▶ Caution: It is dangerous to repair or maintain the appliance by anyone other than a specialist because under these circumstances the cover would have to be removed which ensures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
▶ Warning: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person

9.3.2 Danger of burns

▲WARNUNG Warning

The culinary items being heated up in this device as well as the cookware that being used and the surface of the device can become very hot.

Please observe the following safety notices in order not to burn or scald yourself or others.

▶ Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
▶ Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
▶ Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

▲WARNUNG

Warning

▶ Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
▶ The accessible surface may be hot during operation.
▶ The door or the outer surface may get hot when the appliance is operating.
The temperature of accessible surfaces may be high when the appliance is operating.
▶ Use gloves if you remove any heated food.
▶ Caution! Steam will escape, when opening lids or wrapping foil.

9.3.3 Danger of fire

⚠️WARNUNG

Warning

There is a danger of fire due to the ignition of the content in the event the device is not used properly.

Observe the following safety notices to avoid dangers of fire:

▶ Never use the device to store or dry flammable materials.
▶ Do not warm up any alcohol in an undiluted state.
▶ Do not operate the oven when empty.
▶ To reduce the risk of fire in the oven cavity:
▶ a) When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
▶ b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
▶ c) If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
▶ d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
▶ Utensils should be checked to ensure that they are suitable for use in microwave oven.
▶ Disposable containers made of plastic must have the properties shown under the heading "Notices on microwave cookware".
▶ If smoke emits, switch off or unplug the appliance and keep the door closed in order to stifle the smoke.

9.3.4 Danger of explosion

⚠️WARNUNG

Warning

There is a danger of explosion due to excess pressure that is created in the event the device is not used properly.

Observe the following safety notices to avoid dangers of an explosion:

▶ Warning: Liquid or other food must not be heated in sealed containers since they are liable to explode.

⚠️WARNUNG

Warning

▶ Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
▶ Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

9.3.5 Dangers due to electrical power

⚠GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
▶ Caution: It is dangerous to repair or maintain the appliance by anyone other than a specialist because under these circumstances the cover would have to be removed which ensures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service center.

10 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages.

10.1 Safety information

⚠️WARNUNG

WARNING

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

▶ Packaging materials may not be used for playing. There is a danger of suffocation.
▶ Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

10.2 Delivery scope and transport inspection

As a rule, the Microwave and grill IMG23/IMG25 is delivered with the following components:

• Microwave and grill IMG23/IMG25

- Metal rack

- Operating Manual

HINWEIS

Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

10.3 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.
• Remove the accessories located in the cooking chamber and remove the packaging material.

HINWEIS

Please note

▶ Please don't remove the protective film from the inside of the door (if equipped), since this makes the cleaning of the device easier.

10.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS

Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

10.5 Setup

10.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal and heat-resistant surface with sufficient load-bearing capacity for the oven and the maximum weight of the expected food that is to be prepared in the oven.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.
• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 20 cm above the oven, 10 cm around the back and 5 cm on both sides.

• Do not cover up any openings on the device and do not block these off.
• Do not remove the device's adjustable feet.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

10.5.2 Avoiding radio interference

The device can cause the occurrence of interference in radios, televisions or similar devices. Such faults can be rectified or reduced as a result of employing the following measures:

• Clean the door and the sealing surfaces of the device.
• Set the radio, the television, etc as far as possible away from the device.
• Connect the device to a different electrical outlet, so that various power circuits are used for the device and the receiver with the interference.
• Use a properly installed antenna for the receiver, to ensure good reception.

10.6 Assembling the accessories

10.6.1 Metal rack

- Place the metal rack into the device with the round spacer facing the direction of the inner rear wall. Check that the metal rack is placed correctly.

Pure diagram of a container with horizontal lines and a vertical arrow, no text or symbols present

▲VORSICHT Attention

▶ The rubber stoppers may not be removed from the metal rack.
▶ Only place the metal rack in the direction displayed in the diagram.

10.7 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ² . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

11 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

The energy output is more constant due to the device's inverter technology, the energy efficiency is higher due to this and the dishes are heated up more gently.

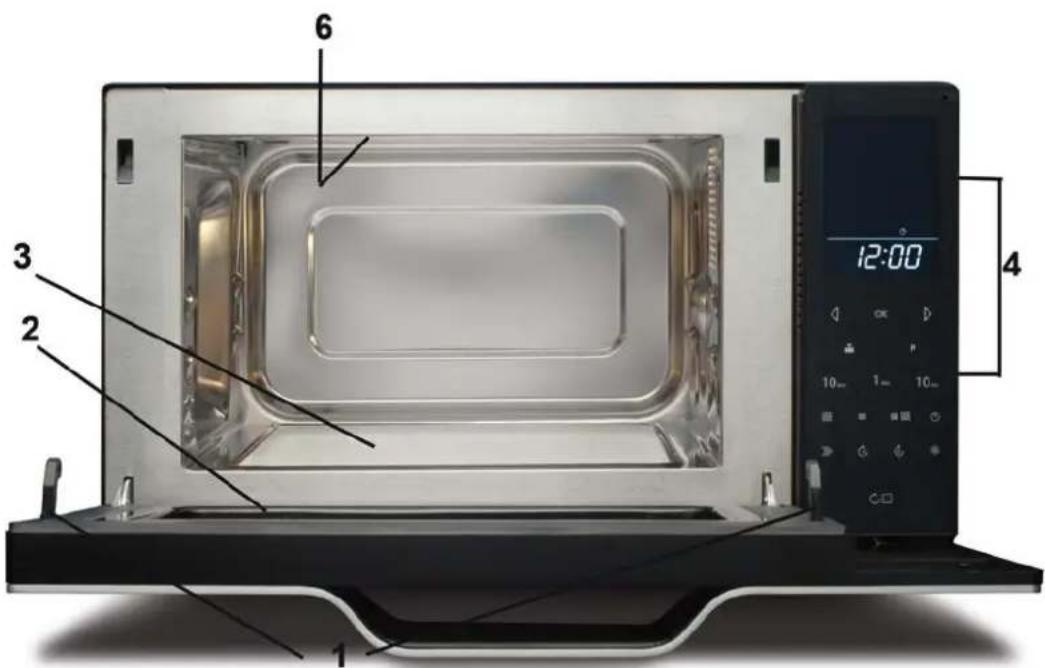

11.1 Complete overview

1 Protective door latch
2 Oven window
3 Base plate
4 Operating panel
5 Metal rack
6 Grill element

Pure diagram of a rectangular container with horizontal lines and a vertical arrow, no text or symbols present.

HINWEIS Please note

▶ The ventilator can continue running afterwards to cool down the device.

▲VORSICHT ATTENTION

The ceramic base plate can be hot following the cooking time. Do not touch the ceramic base plate!

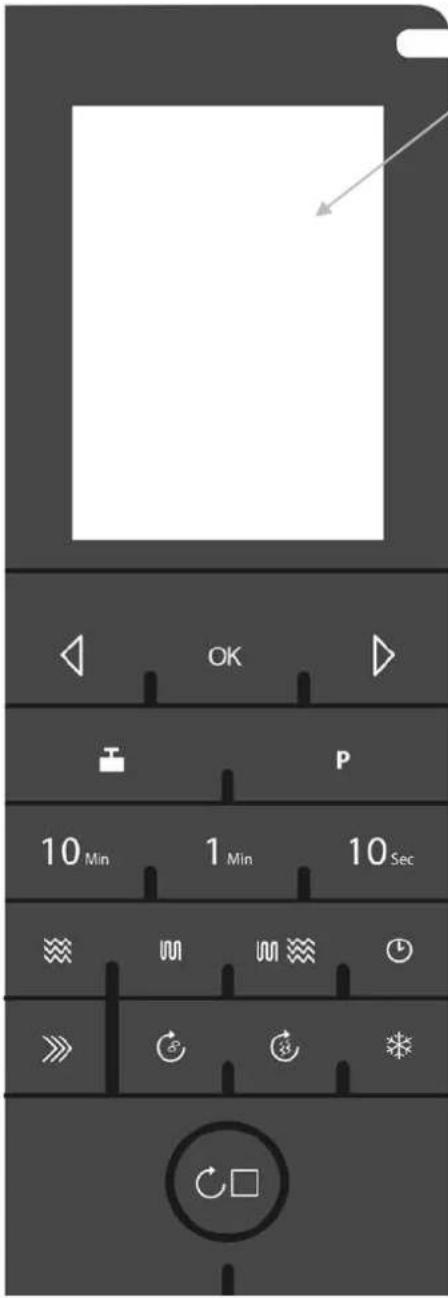

11.2 Operating elements and displays

Display panel: Cooking time, output, function display and actual time are displayed.

Automatic cooking

Press to select an automatic-cooking menu including auto defrost.

OK Confirms the automatic-cooking menu

weight adjust

Press to specify the food weight or the number of serving.

P Timer

Function for delayed cooking of food.

10 Min / 1 Min / 10 Sec

Press to set clock or cooking time.

Inverter Mikrowelle

Press to select the microwave power level.

Grill

Press to set a grill-gooking program.

Combi (1 and 2)

Press to cook with combined microwave and grill power.

Clock

Press to set the digital clock

(button without function)

Quick Menu:

Sterilize

Deodorize

Defrost

Reset

Clears all settings.

11.3 Sensor touch fields:

+30 sec

If the programming has already been performed you can extend this in 30 second intervals using this function.

Pause/Cancel

To pause and reset the settings.

Start/Quickstart

Press to set time and start the unit at full power.

Press to start a cooking program.

11.4 Signal tones

The device transmits the following signal sounds as an acoustic feedback signal:

• A quiet beep: The device has accepted the entry.
- Ring tone: The cooking time has ended.

11.5 Safety equipment

11.5.1 Warning notices on device

▲VORSICHT ATTENTION

Danger due to hot surface!

There is a warning notice referring to dangers due to hot surfaces located on the back upper side of the housing. The surfaces of the device can become extremely hot.

▶ Do not touch the hot surfaces of the device. Danger of burns!
▶ Do not set or lay any items on the device.

11.5.2 Door latch

A safety switch is installed in the door latch of the device, which prevents the device from being operated when the door is open.

▲VORSICHT ATTENTION

Danger due to microwaves!

If this safety device is defective or if this safety device is bypassed, you can directly expose yourself and others to microwave radiation.

▶ Do not operate the device if the safety switch is defective.
▶ Do not disable this safety device.

11.5.3 Child-proof lock

The child-proof lock prevents children from using the device without supervision.

- Activating the child-proof lock:

Press the Pause/Cancel button for three seconds until a signal tone is heard and the function display " lights up. In the locked state, all the buttons are disabled.

◆ De-activating the child-proof lock:

Press the Pause/Cancel button for three seconds until a signal tone is heard and the illumination on the function display goes out. In the locked state, all the buttons are disabled.

11.6 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

12 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

▲WARNUNG

WARNING

▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

12.1 Principles of microwave cooking

• The power levels and time required for cooking / warming up food items depends on the starting time, the quantity and the type and consistency of the food, etc. Use the shortest indicated cooking time and extend the cooking procedure as necessary.
• Arrange the food carefully. Position the thickest areas on the external edge of the bowl.
• Cover the food while it is cooking. Lids protect against spatters and also contribute towards cooking/warming up the food evenly.
• During warming, the food should be turned, rearranged or stirred repeatedly, in order for the temperature to be distributed evenly.
• Any existing germs in the food are only killed off if the temperature is sufficiently high enough ( >70°C ) and if the time used is sufficiently long enough ( >10\ m\ in ).
• Foods with a firm skin or shell, such as tomatoes, sausages, potatoes in the skin, eggplants must be pierced or punctured repeatedly so that any developing steam can escape and so that the food does not burst.
• Eggs without their shell may only be cooked in the microwave if the skin of the egg yoke has been pierced repeatedly first. Otherwise, the egg yoke can squirt out with excessive pressure after cooking.

- Rearrange layers of foods such as meat balls from top to the bottom and from the middle to the outside edge.

12.2 Operating modes:

The unit is to be operated in various operating modes. The following list shows the operating modes that are possible with the device:

◆ “Microwave” mode

This operating mode is suitable for the normal reheating of food.

◆ “Grill” mode

This operating mode is suitable for frying and browning food.

◆ “Microwave and Grill” mode

This operating mode is suitable for simultaneous microwave cooking and grilling.

Combination 1

In this operating mode, the device works in microwave mode for 30% of the cooking time and in grill mode for 70% of the cooking time.

Combination 2

In this operating mode, the microwave and grillfunction are working at the same time.

◆ “Menu Cooking” mode

In this operating mode, the cooking programme can be selected from 14 different menus.

• Automatic defrost

This mode is for the pre-programmed defrost by weight.

◆ Defrosting mode:

This mode is suitable for the defrosting of frozen food products. You can select between defrosting based on weight and defrosting based on time.

◆ “Multi-level cooking” mode

In this operating mode, you can programme up to 2 automatic cooking sequences.

12.3 Information on microwave cookware

The ideal material for microwave cookware is permeable for microwaves and allows the energy to penetrate the container and warm up the food.

Please observe the following tips when selecting the correct cookware:

Microwaves cannot penetrate metal. Therefore, you should not use utensils made of metal or cookware with metal trim.
For microwave cooking, do not use any products made from recycled paper, as they could contain tiny metal fragments, which could cause sparks and/or result in fire.
▶ Do not use any aluminium foil when using the microwave or combinations with the microwave (see following table).

The following table is intended as a basis for selecting the correct cookware:

Cookware	Micro-wave	Grill	Combination
Heat-resistant glass dishes	✓ ✓ ✓
Non heat-resistant glass dishes	× × ×
Heat-resistant ceramic dishes	✓	✓	✓
Microwave-resistant plastic container	✓ × ×
Kitchen roll	✓ × ×
Metal sheet	×	✓	×
Metal rack	× ✓ ×
Aluminium foil and container	× ✓ ×

12.4 Opening / closing door

Open door

Open the door of the device. If the device is switched on, the current cooking programme will be interrupted.

HINWEIS

Please note

▶ Leave the door open for a moment before reaching into the cooking chamber, to allow the accumulated heat to escape.

◆ Close doors

Close the door until the door latch audibly locks in place. If a current cooking programme was interrupted as a result of opening the door, the current cooking programme will be continued after pressing the button Start/Quickstart.

12.5 Activation after selecting the programme

After selecting the program, press the button Start/Quickstart to start the preset cooking programme.

12.6 Reset programmsetting

If needed, press

once to reset the settings of the device.

12.7 Quick start

Utilise this function to programme the oven for comfortable cooking at 100% microwave performance.

Press the Start/Quickstart button in quick sequence to set the cooking time (max 10 minutes). The oven starts automatically after 2 seconds.

12.8 Pause/Cancel

In order to interrupt an ongoing cooking programme, you can proceed as follows:

Press the Pause/Cancel button once. The cooking programme that is in use will be stopped.

Or:

Open the door of the device. The cooking programme that is in use will be stopped.

HINWEIS Please note

▶ To continue the interrupted cooking program, press the button Start/Quickstart after closing the door.

To terminate the interrupted program, press the button Pause/Cancel a second time.

You can terminate the interrupted program, with opened door, also by pressing

12.9 Setting the clock

To set the clock on the device, proceed as follows:

Press button

Choose to set the cloc, in 24 or 12-hour cycle by pressing.

Example: You want to set the oven clock time to 8:30.

Choose to set the cloc, in 24 or 12-hour cycle by pressing.

Press 10Min/1Min/10Sec, to enter „8:30“.

Press to confirm the setting.

12.10 Funktion +30sec

In microwave, grill and combination mode you can extend the cooking time with +30sec, with each pressing for 30 seconds.

You cannot use this function with quickstart and not with automatic cooking programmes.

12.11 Timer

You can programm the device so that the programm will start and later time (timer).

For example: Now the clock shows 11:10 and you want that the cooking will start at 11:30.

Enter a cooking program and press button P.

Setting the time

Touch 10Min/1Min/10Sec to set the time „11:30“

Close the door of the device. Press Start/Quickstart to confirm the settings.

HINWEIS

▶ When the programmed time is reached, the system will start the preset cooking program.
▶ After starting the timer function, you can press P to check the programmed time. With Pause/Cancel you can cancel the timer function.
▶ You cannot use the timer for quickstart and not for defrost.

12.12 "Microwave" mode

With microwave cooking, you can adapt the power level and cooking time.

The longest cooking time is 99 minutes and 50 seconds (99:50).

Example: You want to cook 5 minutes with 60 % power.

Setting the power level

Select the power level P-60 by pressing the button until you reach the level you require (see following table).

Setting the cooking time

Press 10Min/1Min/10Sec to enter cooking time, until the correct time „5:00“ is displayed.

Close the door of the device.

Starting the cooking programme

Press Start/Quickstart, to start the cooking programme.

◆ End of the cooking programme

Once the end of the cooking time is reached, a Ring tone will be emitted.

No. of button presses	Display	Power level		Application
1	P100	100 %900 Watt	High / cooking and broiling
2 P-80		80 %720 Watt
3	P-60	60 %540 Watt	Medium high / Cooking of small quantities
4	P-40	40 %360 Watt	Medium / simmering
5	P-20	20 %180 Watt	Medium low / Defrost
6	P-00 Low / Keeping warm

12.13 "Grill" mode

The “Grill” operating mode is especially suitable for thin slices of meat, steaks, chops, kebabs, sausage and chicken pieces. The longest cooking time is 99 minutes and 50 seconds (99:50).

Example: you want to program grill cooking for 5 minutes.

◆ Selecting the cooking programme

Select the cooking programme "Grill" by pressing the button once.

Setting the cooking time

Press 10Min/1Min/10Sec to enter cooking time, until the correct time „5:00“ is displayed.

Close the door of the device.

Starting the cooking programme

Press Start/Quickstart, to start the cooking programme.

◆ End of the cooking programme

Once the end of the cooking time is reached, a Ring tone will be emitted.

12.14 "Microwave and Grill" mode

This function allows you to employ combination microwave cooking and grilling with two different settings.

12.14.1 "Combination 1"

In this operating mode, the device works in microwave mode for 30% of the cooking time and in grill mode for 70% of the cooking time.

Example: You want to set combination 1 for 25 minutes.

◆ Selecting the cooking programme

Select the cooking programme "Combination 1" by pressing the button once.

Setting the cooking time

Press 10Min/1Min/10Sec to enter cooking time, until the correct time „25:00“ is displayed. Close the door of the device.

Starting the cooking programme

Press Start/Quickstart, to start the cooking programme.

◆ End of the cooking programme

Once the end of the cooking time is reached, a Ring tone will be emitted.

12.14.2 "Combination 2"

In this operating mode, the microwave and grillfunction are working at the same time.

◆ Selecting the cooking programme

Select the cooking programme “Combination 2” by pressing the button two times. The remaining operation is identical with the operating mode “Combination 1” described above.

12.15 "Menu Cooking" mode

In this operating mode, the cooking programme can be selected from 14 different menus. Please refer to the table for more detailed information.

- Selecting the menu

Press ◀◀, to choose the desired programm. Confirm with OK

Setting the quantity / weight

Select the quantity/weight you require by pressing the 📁 button until you reach the level you require (see following table). Close the door of the device.

Starting the cooking programme

Press Start/Quickstart, to start the cooking programme.

◆ End of the cooking programme

Once the end of the cooking time is reached, a Ring tone will be emitted.

Automatic menu			No, of button presses
Prog	Menü	Funktion	1 2 3 4	5 6 7
A-1	Reheating		200 g	300 g	400 g	500 g	600 g	700 g	800 g
A-2	Tee/hot drink		1(200 ml)	2(400 ml)	3(600 ml)
A-3	Soup		1(300 ml)	2(600 ml)	3(900 ml)
A-4	Porridge		1 (50 g)	2(100 g)	3(150 g)
A-5	Pizza reheating		150 g	300 g	450 g
A-6	Pasta		100 g	200 g	300 g
A-7	Popcorn		100 g
A-8	Grilled ham	UUI	1(100 g)	2(200 g)	3(300 g)	4(400 g)	5(500 g)
A-9	Grilled bacon	UON	1(100 g)	2(200 g)	3(300 g)
A-10	Grilled pork chops	[ZGTV]	1(200 g)	2(300 g)	3(400 g)	4(500 g)	5(600 g)
A-11	Grilled steak	[VD26]	1(200 g)	2(300 g)	3(400 g)	4(500 g)	5(600 g)
A-12	Grilled chicken pieces	[SGSG]	1(200 g)	2(300 g)	3(400 g)	4(500 g)	5(600 g)
A-13	Grilled fish		1(200 g)	2(300 g)	3(400 g)	4(500 g)	5(600 g)
A-14	Automatic defrost	[B38A]	See Automatic defrost

HINWEIS Please note

▶ The Pizza-programm is only for reheating of pizza.
▶ For Pasta add water before cooking.
▶ When cooking in grill or combination mode, you may need to turn the food after half the cooking time has elapsed to ensure it is evenly cooked.
▶ With menus (8-14), the device will stop during cooking, so that you can stir the food, so it will be evenly cooked.
After selecting the temperature, press the button Start/Quickstart.

12.15.1 "Automatic defrost" mode

You can gently defrost frozen food with the help of the "Automatic defrost" menu.

◆ Selecting the menu

Press ◀◀, to choose the desired programm A-14. Confirm with OK.

Setting the quantity / weight

Select the quantity/weight you require by pressing the button until the weight will be displayed (100g-1.800g). Close the door of the device.

Starting automatic defrost

After setting the defrost time, press the button Start/Quickstart, to start automatic defrosting.

HINWEIS Please note

▶ Stop the oven occasionally to remove the unthawed frozen food or to separate it. If the frozen food has not been defrosted at the end of the estimated defrosting time, proceed as follows:
▶ Programme the oven in 100g increments, until the frozen food is completely defrosted.

HINWEIS

Please note

▶ When using plastic containers out of the deep-freeze, the defrosting process should only last long enough to be able to remove the frozen food out of the container, after which it can be placed into a microwave-resistant container.

12.16 Multi-level cooking mode

You can programm 2 cooking sequences.

You can use the multi-level cooking mode only for microwave, grill and combination-function.

Example: You want to programm two microwave-levels.

1. Choose microwave power level with
2. Press 10Min/1Min/10Sec, to set the time.
3. Choose the second microwave power level with
4. Press 10Min/1Min/10Sec, to set the time.
5. Close the door of the device.
6. Press Start/Quickstart, to start the cooking programme.

12.17 Quick Menu

12.17.1 Sterilize

Press

Close the door of the device.Press Start/Quickstart, to start the programme.

12.17.2 Neutralization of smells

Press

Close the door of the device.

Press Start/Quickstart, to start the programme.

12.17.3 Defrost

You can choose between defrosting by weight and defrosting by time.

HINWEIS

▶ In the middle of the defrostingt time the system will stop, so that you can turn over the food
The programme stops once half of the defrosting period has been reached so you can turn over the food product and to ensure it is evenly defrosted.
▶ To continue the programm press Start/Quickstart.

Defrosting by weight

The oven allows you the defrosting of food based on the weight (100g -1800g) you entered.

1. Press

1. Press OK or 📋 to enter desired weight (100g - 1.800g).

2. Close the door of the device.

3. Press Start/Quickstart, to start the programme.

Defrosting by time

The longest defrosting time is 99 minutes and 50 seconds (99:50).

The device can quickly defrost food, based on the time you entered.

1. Press

1. Press 10Min/1Min/10Sec, to set the time.

2. Close the door of the device.

3. Press Start/Quickstart, to start the cooking programme.

13 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

13.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

The oven must be cleaned and food residues must be removed at regular intervals. If the oven is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
▶ Switch the oven off prior to cleaning it and unplug the plug from the wall power outlet.
The cooking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down.
▶ Clean the cooking chamber after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
▶ If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.

13.2 Cleaning

◆ Cooking chamber and inside of door

Keep the cooking chamber of the oven clean. Wipe off any spattered or spilt food from the walls of the cooking chamber with a damp cloth.

If the oven is excessively dirty, you can use a mild cleaning agent.

Wipe the door, window and the door gaskets with a damp cloth, to remove any spatters and spilt food. Residues on the door gasket can mean that the door does not close properly any more, which will cause the microwaves to escape.

Wipe off any steam, which has settled on the oven door, with a soft cloth. This may be the case if the device is used in an extremely damp environment and is normal.

Smells can be removed from the oven by mixing a cup of water with the juice and the skin of a lemon, pouring this into a deep microwave-proof bowl and allowing it to cook in Microwave mode for five minutes. Then, dry off the oven thoroughly with a soft cloth.

After cleaning the interior space, leave the oven door open until the interior of the device is completely dry. You can also eliminate the smells with the "Neutralization of smells" function.

◆ Front of device and operating panel

Clean the front of the device and the operating panel with a soft, slightly damp cloth.

Please bear in mind that the operating panel does not get wet. Use a soft, damp cloth for cleaning.

HINWEIS Please note

Leave the oven door open to prevent the device from being re-started accidentally.
◆ Exterior housing

Clean the exterior surfaces of the device with a damp cloth.

◆ Metal rack and base plate

The metal rack occasionally needs to be cleaned. Wash the metal rack in a warm soap solution.

Wipe the bottom of the oven with a mild cleaning agent. If the floor of the oven is excessively dirty, you can use a mild cleaning agent.

14 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

14.1 Safety notices

▲VORSICHT Attention

▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.

14.2 Error code E-1

Faulty microwave function:

The display shows E-1 and a beep is constantly repeated. Please contact customer service.

You can press Pause/Cancel to stop the beep.

▲VORSICHT ATTENTION

▶ Only use the device again once it has been inspected by customer service.

14.3 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults.

Error	Possible cause	Action
The selected program will not start.	Device door is not closed	Close device door
	Power plug is not plugged in Plug in mains plug!
	Fuse is not activated	Activate fuse
Food is not sufficiently defrosted, warmed up or cooked after preset time has elapsed.	Incorrectly selected time or power level	Re-set time and power level Repeat process
The device functions but the cooking chamber lighting does not work.	Defective cooking chamber light.	Have Service dept repair cooking chamber light.
Abnormal noises can be heard during operation of microwave.	Food is covered with aluminium foil	Remove aluminium foil
	The cookware contains metal and sparks are being created within the cooking chamber	Observe information on cookware!
The time in the display field is not correct.	Power failure Re-set time

▲VORSICHT Attention

▶ If you are unable to solve the problem with the steps shown above, please contact Customer Service.

15 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not

put your old device into the non-recyclable waste under any circumstances.

HINWEIS

Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  ▶ Ensure that your old device is stored safely away from children until it is taken away.

Modern microwave oven with open chamber and digital display showing 12:00 (no text or symbols on main subject)

Pure diagram of a rectangular container with horizontal lines and a vertical arrow, no text or symbols present.

Pure diagram of a rectangular container with horizontal lines and an upward arrow, no text or symbols present.

HINWEIS

Remarque

Front view of a microwave oven with open chamber and digital display (no visible text or symbols)

Articolo-N. 3346/3356

24 Istruzioni d'uso

24.1 In generale

Pure diagram of a rectangular container with horizontal lines and a vertical arrow, no text or symbols present.

Pure diagram of a rectangular container with horizontal lines and a vertical arrow, no text or symbols present.

HINWEIS INDICAZIONE

Modern kitchen oven with digital display showing 12:00, no visible text or symbols on the main device.

Ref. 3346/3356

Pure diagram of a rectangular container with horizontal lines and an upward-pointing arrow, no text or symbols present.

Pure diagram of a rectangular container with horizontal lines and a vertical arrow, no text or symbols present.

HINWEIS Nota

Modern microwave oven with open chamber and digital display showing 12:00 (no text or symbols on main subject)

Artikelnummer

3346/3356

Pure diagram of a rectangular container with horizontal lines and a vertical arrow, no text or symbols present.
