OBJ_DOKU-9733-001.fm Page 1 Thursday, November 29, 2007 9:33 AM OBJ_BUCH-573-001.book Page 2 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 3 Thursday, November 29, 2007 9:23 AM
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 4 Thursday, November 29, 2007 9:23 AM
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 5 Thursday, November 29, 2007 9:23 AM
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 6 Thursday, November 29, 2007 9:23 AM
* Not given on all machine versions
OBJ_BUCH-573-001.book Page 7 Thursday, November 29, 2007 9:23 AM
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 8 Thursday, November 29, 2007 9:23 AM
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 9 Thursday, November 29, 2007 9:23 AM
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 10 Thursday, November 29, 2007 9:23 AM
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 11 Thursday, November 29, 2007 9:23 AM
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 12 Thursday, November 29, 2007 9:23 AM
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 13 Thursday, November 29, 2007 9:23 AM
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 14 Thursday, November 29, 2007 9:23 AM
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 15 Thursday, November 29, 2007 9:23 AM Deutsch | 15
OBJ_BUCH-573-001.book Page 16 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 17 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 18 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 19 Thursday, November 29, 2007 9:23 AM Deutsch | 19
OBJ_BUCH-573-001.book Page 20 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 21 Thursday, November 29, 2007 9:23 AM Deutsch | 21
Geräusch-/Vibrationsinformation
Dr. Eckerhard Strötgen
Head of Product Certification
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 22 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 23 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 24 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 25 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 26 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 27 Thursday, November 29, 2007 9:23 AM Höhe x Breite [mm]
OBJ_BUCH-573-001.book Page 28 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 29 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 30 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 31 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 32 Thursday, November 29, 2007 9:23 AM

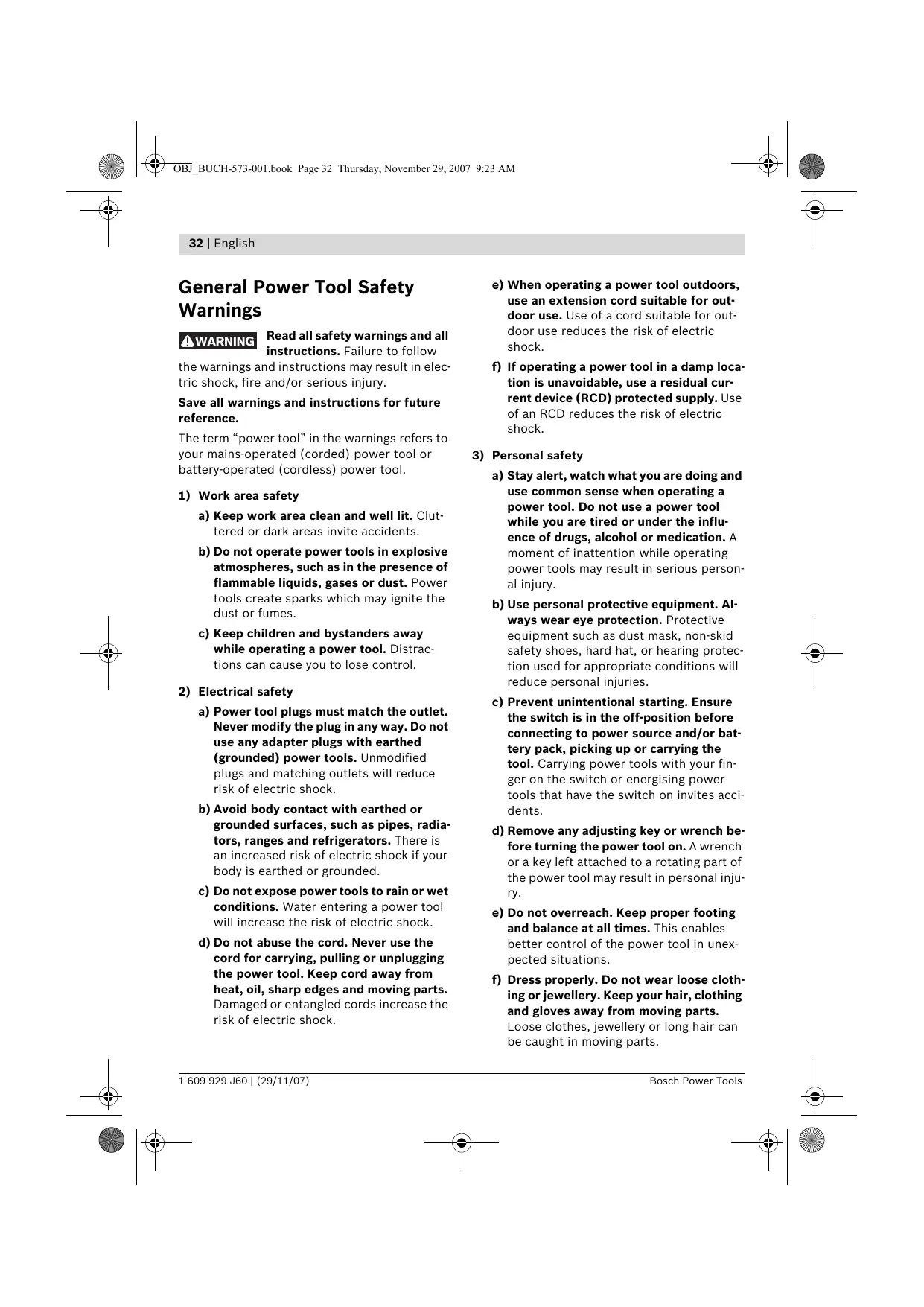

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. 1) Work area safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2) Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
1 609 929 J60 | (29/11/07)
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. Bosch Power Tools
OBJ_BUCH-573-001.book Page 33 Thursday, November 29, 2007 9:23 AM English | 33 g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Bosch Power Tools
Safety Warnings f Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. f Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode. f Never leave the machine before it has come to a complete stop. Cutting tools that are still running can cause injuries. f Never use the machine with a damaged cable. Do not touch the damaged cable and pull the mains plug when the cable is damaged while working. Damaged cables increase the risk of an electric shock. f Never make warning signs on the machine unrecognisable. f Never stand on the power tool. Serious injuries can occur when the power tool tips over or when inadvertently coming into contact with the saw blade. f Make sure that the guard operates properly and that it can move freely. Never lock the guard in place when opened. f Keep hands away from the cutting area while the machine is running. Danger of injury when coming in contact with the saw blade. f Never remove cutting remainders, wood chips, etc. from the sawing area while the machine is running. Always guide the tool arm back to the neutral position first and then switch the machine off.
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 34 Thursday, November 29, 2007 9:23 AM
34 | English f Guide the saw blade against the workpiece only when the machine is switched on. Otherwise there is damage of kickback, when the saw blade becomes wedged in the workpiece.
f Always use saw blades with correct size and shape (diamond versus round) of arbor holes. Saw blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
f Operate the power tool only when the work area to the workpiece is clear of any adjusting tools, wood chips, etc. Small pieces of wood or other objects that come in contact with the rotating saw blade can strike the operator with high speed.
f Do not use high speed steel (HSS) saw blades. Such saw blades can easily break.
f Always firmly clamp the piece to be worked. Do not saw workpieces that are too small to clamp. Otherwise, the clearance of your hand to the rotating saw blade is too small. f Operate the machine only for materials mentioned under “Intended Use”. Otherwise, the machine can be subject to overload. f Do not use dull, cracked, bent or damaged saw blades. Unsharpened or improperly set saw blades produce narrow kerf causing excessive friction, blade binding and kickback.
f Do not touch the saw blade after working before it has cooled. The saw blade becomes very hot while working. f Never operate the machine without the insert plate. Replace a defective insert plate.
Without flawless insert plates, injuries are possible from the saw blade. f Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself, not even from a distance. This power tool produces laser class 2 laser radiation according to EN 60825-1. Other persons could be blinded unintentionally. f Do not allow children unsupervised use of the power tool with laser. They could blind other people. f Do not replace the installed laser with another laser type. A laser that does not fit to this power tool could pose dangers for other persons.
The following symbols can be important for the operation of your power tool. Please memorise the symbols and their meanings. The correct interpretation of the symbols helps you operate the power tool better and more secure. Symbol
Meaning f Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself, not even from a distance.
This power tool produces laser class 2 laser radiation according to EN 60825-1. Other persons could be blinded unintentionally. Only for EC countries: Do not dispose of power tools into household waste! According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law, power tools that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 35 Thursday, November 29, 2007 9:23 AM English | 35
Meaning f Wear safety goggles.
f Wear hearing protection. Exposure to noise can cause hearing loss.
f Danger area! Keep hands, fingers or arms away from this area.
Observe the dimensions of the saw blade. The hole diameter must match the tool spindle without play. Do not use reducers or adapters.
Functional Description
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
The power tool is intended as a stationary machine for making straight lengthways and crossways cuts in wood. Horizontal mitre angles of – 45° to +45° as well as vertical bevel angles of 0° to 45° are possible. The machine is designed with sufficient capacity for sawing hard and softwood as well as press and particle board.
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 36 Thursday, November 29, 2007 9:23 AM
The numbering of the components shown refers to the representation of the power tool on the graphic pages.
32 Switch for light (“LED”)
33 Switch for marking of cutting line (“Laser”) 34 Allen key (size 2 mm)
1 Button for releasing the tool arm
35 Set screw for vertical laser positioning
37 Set screw for horizontal laser positioning
4 Retracting blade guard
39 Fastening kit for extension bar
8 Holes for quick-action clamp
42 Fastening kit for “base unit”*
44 Allen screw (size 6 mm) for mounting of saw blade
45 Clamping flange 46 Interior clamping flange
47 Wing nut for locking of the saw-table extension
48 Quick-clamping fixture
49 Quick-release button
16 Drill holes for extension bars
50 Locking knob of the quick-action clamp
17 Stop screw for 0° bevel angle (vertical)
51 Wing nut of the quick-action clamp
18 Stop screw for 45° bevel angle (vertical)
55 Lighting unit (Power Light)
56 Wing nut for locking of the length stop
57 Screws for insert plate
26 Clamping lever for various bevel angles
(vertical) 27 Transport safety-lock 28 Allen screws (6 mm) of the fence 29 Allen key (size 6 mm)/Phillips screwdriver 30 Battery compartment 31 On/Off switch
1 609 929 J60 | (29/11/07)
60 Screw for angle indicator (vertical)
61 Screw for angle indicator (horizontal) 62 Recessed grips 63 Laser lens cover *The accessories illustrated or described are not included as standard delivery.
OBJ_BUCH-573-001.book Page 37 Thursday, November 29, 2007 9:23 AM English | 37
Noise/Vibration Information
Rated power input Rated voltage Frequency No-load speed
650 nm, < 1mW Laser class
EPTA-Procedure 01/2003
/II Maximum workpiece dimensions, see page 43.
Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0,363 ohm. The values given are valid for nominal voltages [U] of 230/240 V. For lower voltage and models for specific countries, these values can vary. Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.
Dimension of suitable saw blades
Saw blade mounting hole
Measured values determined according to
EN 61029. Typically the A-weighted noise levels of the product are: Sound pressure level 91 dB(A); Sound power level 104 dB(A). Uncertainty K =3 dB. Wear hearing protection! The hand-arm acceleration is typically below 2.5 m/s2.
Declaration of Conformity
We declare under our sole responsibility that the product described under “Technical Data” is in conformity with the following standards or standardization documents: EN 61029, EN 60825-1 according to the provisions of the directives 2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EG (from Dec. 29, 2009 on). Technical file at: Robert Bosch GmbH, Dept. PT/ESC, D-70745 Leinfelden-Echterdingen Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
OBJ_BUCH-573-001.book Page 38 Thursday, November 29, 2007 9:23 AM
Mounting Individual Components
f Avoid unintentional starting of the machine. During assembly and for all work on the machine, the power plug must not be connected to the mains supply.
Please also observe the representation of the delivery scope at the beginning of the operating instructions. Before starting the operation of the machine for the first time, check if all parts listed below have been supplied: – Chop and mitre saw with premounted saw blade – Dust bag 20 – Locking knob 12 – Extension bar 6 (2x) – Fastening kit for extension bar 39 (2 U-profiles with screws) – Saw-table extension 5 – Length stop 38 – Quick-action clamp 48 – Allen key/Phillips screwdriver 29 – Batteries (3x, size AAA, 1,5 V) for machine versions with base unit: – Base unit 41 (16 Profiles, 4 end caps) – Fastening kit for base unit 42 (24 screws with nuts for assembly, 4 screws with nuts for fastening of the machine, 4 washers) Note: Check the power tool for possible damage. Before further use of the machine, check that all protective devices are fully functional. Any lightly damaged parts must be carefully checked to ensure flawless operation of the tool. All parts must be properly mounted and all conditions fulfilled that ensure faultless operation. Damaged protective devices and parts must be immediately replaced by an authorised service centre. 1 609 929 J60 | (29/11/07)
– Carefully remove all parts included in the delivery from their packaging.
– Remove all packaging material from the machine and the accessories provided. – For easier working when mounting the supplied product features, please observe that the machine is in the transport position. Additionally required tools (not in delivery scope): – Phillips screwdriver – Angle gauge – Box-end or open-end spanner (size 12 mm) for assembly of the base unit – Box-end or open-end spanner (size 10 mm) for basic adjustment of the bevel angles (vertical) Mounting the Saw Table Extension and the Length Stop (see figure A) The saw table extension 5 and the length stop 38 can be positioned left or right from the machine. – Mount the saw table extension and the length stop to the requested extension bar 6 as required and tighten the corresponding wing nut. Mounting the Extension Bars (see figure A) For mounting, use the extension-bar fastening kit 39. (2 U-profiles with screws) – Tilt the power tool in such a manner that the extension bars can be affixed to the bottom side of the saw-table casing. – Hold a U-profile over a casing fin 40 so that the drill holes of both parts are in alignment. – Insert an extension bar through the drill holes 16, the U-profile and the casing fins to the stop. – Tighten the screw of the U-profile to secure the extension bar. – Repeat the work steps for the second extension bar on the other side of the saw-table casing. Bosch Power Tools
OBJ_BUCH-573-001.book Page 39 Thursday, November 29, 2007 9:23 AM English | 39
Mounting the Locking Knob (see figure B) – Screw the locking knob 12 into the corresponding threaded hole below lever 11. f Always tighten the locking knob 12 firmly before sawing. Otherwise the saw blade can become wedged in the workpiece. Inserting the Batteries (see figure C) – Open the battery compartment 30. – Insert the batteries provided according to the specified polarity. – Close the battery compartment.
Stationary or Flexible Mounting f To ensure safe handling, the machine must be mounted on a level and stable surface
(e. g., workbench) prior to using. Mounting with Base Unit (see figures D1 – D2) For mounting, use the base-unit fastening kit 42. (24 screws with nuts for assembly, 4 screws with nuts for fastening of the machine, 4 washers)
Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.
– Use dust extraction whenever possible. – Provide for good ventilation of the working place. – It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked. Integrated Dust Extraction (see figure F) – Mount the dust bag 20 onto the sawdust ejector 25. During sawing, the dust bag must never come into contact with the movable machine parts. Always empty the dust bag in good time. External Dust Extraction For dust extraction, a vacuum hose (size Ø 36 mm) can also be connected to the dust ejector. The vacuum cleaner must be suitable for the material being worked.
– Screw the base unit 41 together. Tighten the screws firmly.
– Fasten the power tool to the supporting surface of the base unit. For this, use the mounting holes 15 of the power tool as well as the slots in the base unit.
Mounting without Base Unit
(see figures G1 – G4)
– Fasten the power tool with suitable screw fasteners to the working surface. The holes 15 serve for this purpose.
Dust/Chip Extraction
Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Bosch Power Tools
When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.
f When mounting the saw blade, wear protective gloves. Danger of injury when touching the saw blade.
Use only saw blades whose maximum permitted speed is higher than the no-load speed of the power tool. Use only saw blades that correspond with the characteristic data given in these operation instructions and that are tested and marked in accordance with EN 847-1.
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 40 Thursday, November 29, 2007 9:23 AM
Removing the Saw Blade – Bring the power tool into the working position. – Pull the transport safety-lock 27 all the way outward and turn it by 90°. Allow the transport safety-lock to engage in this position. The tool arm is now locked in the working position. – Turn the Allen screw 44 with the Allen key 29 provided while at the same time pressing the spindle lock 43 until it engages. – Hold the spindle lock 43 pressed and unscrew the Allen screw 44 in clockwise direction (left-hand thread!). – Remove the clamping flange 45. – Press button 1 and tilt back the retracting blade guard 4 to the stop. – Hold the retracting blade guard in this position and remove the saw blade 21. – Slowly guide the retracting blade guard downward again. Mounting the Saw Blade If required, clean all parts to be mounted prior to assembly. – Press button 1, tilt back the retracting blade guard 4 to the stop and hold it in this position. – Place the new saw blade onto the interior clamping flange 46.
Operation f Before any work on the machine itself, pull the mains plug.
(see figure H) The transport safety-lock 27 enables easier handling of the machine when transporting to various working locations. Releasing the Machine (Working Position) – Push the tool arm by the handle 2 down a little in order to relieve the transport safetylock 27. – Pull the transport safety-lock 27 all the way outward and turn it by 90°. Allow the transport safety-lock to engage in this position. – Guide the tool arm slowly upward. Securing the Machine (Transport Position) – To lock the saw table 14, tighten the locking knob 12. – Press button 1 and tilt down the tool arm by the handle 2. – Pull the transport safety-lock 27 all the way outward and turn it by 90°. Allow the transport safety-lock to engage in this position. The tool arm is now securely locked for transport.
f When mounting the saw blade, pay attention that the cutting direction of the teeth
(arrow direction on the saw blade) corresponds with the direction of the arrow on the blade guard!
Extending the Saw Table
– Slowly guide the retracting blade guard downward again.
– Place on the clamping flange 45 and the Allen screw 44. Press the spindle lock 43 until it engages and tighten the Allen screw turning in anticlockwise direction. – For working afterwards, the tool arm must be released again. For this, loosen the transport-safety lock 27 by pulling it outward and turning by 90°.
– Loosen the wing nut 47 and pull the saw table extension 5 on the extension bar outward to the distance required.
– Tighten the wing nut again.
1 609 929 J60 | (29/11/07)
Long workpieces must be underlaid or supported at their free end.
OBJ_BUCH-573-001.book Page 41 Thursday, November 29, 2007 9:23 AM English | 41
Clamping the Workpiece
Adjusting the Cutting Angle
To ensure optimum working safety, the workpiece must always be firmly clamped.
Do not saw workpieces that are too small to clamp.
To ensure precise cuts, the basic adjustment of the machine must be checked and adjusted as necessary after intensive use (see “Checking and Adjusting the Basic Adjustment”, page 44).
(see figure J1) – Insert the quick-action clamp 48 provided into one of the holes 8 intended for this purpose. – Press the workpiece firmly against the fence 7. – Press the quick-release button 49 and adapt the quick-action clamp to the workpiece. – Afterwards, turn the locking knob 50 in clockwise direction to clamp the workpiece. Horizontal Clamping (see figure J2) – Loosen wing nut 51 and pull the quick-action clamp apart. – Insert the now “reduced” quick-action clamp 48 into one of the holes 8 intended for this purpose. – Press the workpiece firmly against the saw table 14. – Press the quick-release button 49 and adapt the quick-action clamp to the workpiece. – Afterwards, turn the locking knob 50 in clockwise direction to clamp the workpiece. Loosening the Workpiece – To release the quick-action clamp, firstly turn the loosening knob 50 in anticlockwise direction. – Now press on the quick-release button 49 and pull the threaded rod away from the workpiece.
f Always tighten the locking knob 12 firmly before sawing. Otherwise the saw blade can become wedged in the workpiece.
Adjusting Horizontal Mitre Angles The horizontal mitre angle can be set in the range from 45° (left side) to 45° (right side). – Loosen the locking knob 12 in case it is tightened. – Fold the locking latch 52 upward until it engages under the threaded rod of the locking knob. (see figure K) This allows the saw table to move freely. – Turn the saw table 14 left or right by the locking knob until the angle indicator 53 indicates the requested mitre angle. – Tighten the locking knob 12 again. For quick and precise setting of often used mitre angles, detents 13 are provided on the saw table: (see figure L) Left
– Loosen the locking knob 12 in case it is tightened.
– Press lever 11 and turn the saw table 14 left or right to the requested detent. – Release the lever again. The lever must be felt to engage in the detent.
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 42 Thursday, November 29, 2007 9:23 AM
Adjusting Vertical Bevel Angles (see figure M) The vertical bevel angle can be set in the range from 0° to 45°. – Loosen the clamping lever 26. – Tilt the tool arm by the handle 2 until the angle indicator 54 indicates the desired bevel angle. – Hold the tool arm in this position and retighten the clamping handle 26.
General Sawing Instructions f For all cuts, it must first be ensured that the saw blade at no time can come in contact with the fence, screw clamps or other machine parts. Remove possibly mounted auxiliary stops or adjust them accordingly. Protect the saw blade against impact and shock. Do not subject the saw blade to lateral pressure.
For quick and precise setting of the standard angles 0° and 45° factory-set stop screws are provided.
Do not saw warped/bent workpieces. The workpiece must always have a straight edge to face against the fence.
– For this, tilt the tool arm by the handle 2 to the stop toward the right (0°) or to the stop toward the left (45°).
– Retighten the clamping lever 26 again.
Illuminating the Work Area (Power Light)
– For this, switch on the lighting unit 55 with the switch 32.
– For starting operation, pull the On/Off switch 31 in the direction of the handle 2. Note: For safety reasons, the On/Off switch 31 cannot be locked; it must remain pressed during the entire operation. The tool arm can be guided down only after pressing button 1. – For sawing, button 1 must be pressed in addition to pulling the On/Off switch. (see figure N) Switching Off – To switch off the machine, release the On/Off switch 31.
Provide for sufficient lighting of the direct working area.
Marking the Cutting Line
(see figure P) A laser beam indicates the cutting line of the saw blade. This allows for exact positioning of the workpiece for sawing, without having to open the retracting blade guard. – For this, switch the laser beam on with the switch 33. – Align the cutting mark on your workpiece with reference to the right-hand edge of the laser line. Before sawing, check if the cutting line is still indicated correctly (see “Adjusting the Laser”, page 44). The laser beam, as an example, can misadjust due to vibrations after intensive use. Hand Positioning (see figure Q) Keep hands, fingers and arms away from the rotating saw blade. Do not cross your arms when operating the tool arm.
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 43 Thursday, November 29, 2007 9:23 AM English | 43
Maximum Workpiece Dimensions Mitre/Bevel Angle
– Firmly clamp the workpiece as appropriate for its dimensions. – Adjust the requested horizontal and/or vertical mitre/bevel angle. – Switch on the machine. – Press button 1 and guide the tool arm slowly downward with handle 2. – Saw through the workpiece applying uniform feed. – Switch off the machine and wait until the saw blade has come to a complete stop. – Guide the tool arm slowly upward. Sawing Workpieces of the Same Length (see figure R) The length stop 38 can be used for easily sawing workpieces to the same length. – Loosen wing nut 56 and position the length stop to the requested distance to the saw blade. – Tighten the wing nut again. – Position the workpiece against the stop. Check again with the cutting line marked by the laser if the length stop is positioned correctly. – Now saw this and the additional workpieces to the same length in accordance with the work steps in Section “Cutting Off”.
When sawing curved or round workpieces, these must be especially secured against slipping. At the cutting line, no gap may exist between workpiece, fence and saw table.
Provide for special fixtures, if required. Replacing the Insert Plate (see figure S) The red insert plate 9 can become worn after long use of the power tool. Replace defective insert plates. – Bring the power tool into the working position. – Unscrew the screws 57 using the provided Phillips screwdriver and remove the old insert plate. – Insert the new insert plate and and screw all screws 57 in again.
Sawing Profile Strips/Mouldings (Floor and Ceiling Strips)
Profile strips/mouldings can be sawn in two different ways: – Placed against the fence – Lying flat on the saw table. Always make trial cuts with the mitre angle setting first on scrap wood.
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 44 Thursday, November 29, 2007 9:23 AM
Floor Strips/Mouldings The following table contains instructions for sawing floor strips/mouldings. Settings
Placed against the fence
Lying flat on the saw table
Floor strip/moulding
Bottom edge on saw table
Bottom edge on saw table
Upper edge against the fence
Bottom edge against the fence
The finished workpiece is located...
... to the left of the cut
... to the right of the cut
... to the left of the cut
... to the left of the cut
Positioning of workpiece
Bottom edge on saw table
Bottom edge on saw table
Bottom edge against the fence
Upper edge against the fence
The finished workpiece is located...
... to the right of the cut
... to the left of the cut
... to the right of the cut
... to the right of the cut
Positioning of workpiece
Checking and Adjusting the Basic Adjustment f Before any work on the machine itself, pull the mains plug.
To ensure precise cuts, the basic adjustment of the machine must be checked and adjusted as necessary after intensive use. A certain level of experience and appropriate specialty tools are required for this. A Bosch after-sales service station will handle this maintenance task quickly and reliably. Adjusting the Laser – Bring the power tool into the working position. – Turn the saw table 14 until it engages at 0°. – Remove the cover 58. (see figure T1)
1 609 929 J60 | (29/11/07)
Checking: (see figure T2)
– Draw a straight cutting line on the workpiece. – Press button 1 and guide the tool arm slowly downward with handle 2. – Align the workpiece in such a manner that the teeth of the saw blade are in alignment with the cutting line. – Hold the workpiece in this position and slowly guide the tool arm upward again. – Clamp the workpiece. – Switch the laser beam on with switch 33. The laser beam must be in alignment with the cutting line on the workpiece over the complete length, also when the tool arm is lowered.
OBJ_BUCH-573-001.book Page 45 Thursday, November 29, 2007 9:23 AM English | 45
Adjusting: (see figure T3) – Loosen the knurled screw 36. – Pull out the Allen key 34. – Turn the set screw 37 (horizontal laser positioning) and/or 35 (vertical laser positioning) with the Allen key 34 until the laser beam is flush with the cutting line on the workpiece over the complete length. – Carefully tighten the knurled screw again. Setting the Standard Bevel Angle 0° (Vertical)
Setting the Standard Bevel Angle 45°
(Vertical) – Bring the power tool into the working position. – Turn the saw table 14 until it engages at 0°. – Release the clamping lever 26 and tilt the tool arm leftward to the stop (45°) by the handle 2. Checking: (see figure V1) – Set an angle gauge to 45° and place it on the saw table 14.
– Bring the machine into the transport position.
– Turn the saw table 14 until it engages at 0°.
The leg of the angle gauge must be flush with the saw blade 21 over the complete length.
Checking: (see figure U1)
Adjusting: (see figure V2)
– Set an angle gauge to 90° and place it on the saw table 14.
– Loosen the lock nut of the stop screw 18 using a commercial box-end or open-end spanner (size 10 mm).
– Screw the stop screw in or out until the leg of the angle gauge is flush with the saw blade over the complete length. – Retighten the clamping lever 26 again. – Afterwards, retighten the lock nut of the stop screw 18 again.
The leg of the angle gauge must be flush with the saw blade 21 over the complete length.
Adjusting: (see figure U2) – Loosen the clamping lever 26. – Loosen the lock nut of the stop screw 17 using a commercial box-end or open-end spanner (size 10 mm). – Screw the stop screw in or out until the leg of the angle gauge is flush with the saw blade over the complete length. – Retighten the clamping lever 26 again. – Afterwards, retighten the lock nut of the stop screw 17 again. In case the angle indicator 54 is not in a line with the 0° mark of the scale 59 after the adjustment, loosen the screw 60 using a commercial Phillips screwdriver and align the angle indicator along the 0° mark.
In case the angle indicator 54 is not in a line with the 45° mark of the scale 59, firstly check the 0° setting for the bevel angle and the angle indicator again. Then repeat the adjustment of the 45° bevel angle.
Aligning the Fence – Bring the machine into the transport position. – Turn the saw table 14 until it engages at 0°. Checking: (see figure W1) – Set an angle gauge to 90° and place it on the saw table 14 between the fence 7 and the saw blade 21. The leg of the angle gauge must be flush with the fence over the complete length. Adjusting: (see figure W2) – Loosen all Allen screws 28 with the Allen key provided. – Turn the fence 7 until the angle gauge is flush over the complete length. – Retighten the screws again.
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 46 Thursday, November 29, 2007 9:23 AM
Aligning the Angle Indicator (Horizontally) (see figure X) – Bring the machine into the transport position. – Turn the saw table 14 until it engages at 0°.

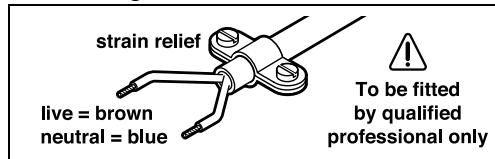

WARNING! Important instructions for connecting a new 3-pin plug to the 2-wire cable.
The wires in the cable are coloured according to the following code:
The centre line of the angle indicator 53 must be in line with the 0° mark of the scale 10. Adjusting: – Loosen the screw 61 using a commercial Phillips screwdriver and align the centre line of the angle indicator alongside the 0° mark. – Retighten the screw again.
(see figure Y) – Bring the machine into the transport position. – Remove the extension bars. – Carry the machine by the transport handle 22 or hold it by the recessed grips 62 on the sides of the saw table. f The power tool should always be carried by two persons in order to avoid back injuries. f When transporting the power tool, use only the transport devices and never use the protective devices.
Maintenance and Service
Do not connect the blue or brown wire to the earth terminal of the plug.
Important: If for any reason the moulded plug is removed from the cable of this power tool, it must be disposed of safely. Cleaning For safe and proper working, always keep the power tool and its ventilation slots clean. The retracting blade guard must always be able to move freely and retract automatically. Therefore, always keep the area around the retracting blade guard clean. Remove dust and chips after each working procedure by blowing out with compressed air or with a brush. Clean the roller 19 and the lighting and laser unit (55, 24) regularly. To clean the laser unit, pull the laser protection cap 63 outward and remove any dust using a brush. (see figure Z)
Maintenance and Cleaning
f Before any work on the machine itself, pull the mains plug.
Saw blades for wood and plate materials, panels and strips/mouldings
If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.
In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.
OBJ_BUCH-573-001.book Page 47 Thursday, November 29, 2007 9:23 AM English | 47
After-sales service and customer assistance
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under: www.bosch-pt.com Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories. Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ Tel. Service: +44 (0844) 736 0109 Fax: +44 (0844) 736 0146 E-Mail: SPT-Technical.de@de.bosch.com
The machine, accessories and packaging should be sorted for environmental-friendly recycling. The plastic components are labelled for categorized recycling. Only for EC countries: Do not dispose of power tools into household waste! According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner. Subject to change without notice.
Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: +353 (01) 4 66 67 00 Fax: +353 (01) 4 66 68 88 Australia, New Zealand and Pacific Islands Robert Bosch Australia Pty. Ltd. Power Tools Locked Bag 66 Clayton South VIC 3169 Customer Contact Center Inside Australia: Phone: +61 (01300) 307 044 Fax: + 61 (01300) 307 045 Inside New Zealand: Phone: +64 (0800) 543 353 Fax: +64 (0800) 428 570 Outside AU and NZ: Phone: +61 (03) 9541 5555 www.bosch.com.au
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 48 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 49 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 50 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 51 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 52 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 53 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 54 Thursday, November 29, 2007 9:23 AM
Dr. Eckerhard Strötgen
Head of Product Certification
/II Bosch Power Tools
OBJ_BUCH-573-001.book Page 55 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 56 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 57 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 58 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 59 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 60 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 61 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 62 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 63 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 64 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 65 Thursday, November 29, 2007 9:23 AM Español | 65
OBJ_BUCH-573-001.book Page 66 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 67 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 68 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 69 Thursday, November 29, 2007 9:23 AM Español | 69
OBJ_BUCH-573-001.book Page 70 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 71 Thursday, November 29, 2007 9:23 AM Español | 71
Dr. Eckerhard Strötgen
Head of Product Certification
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 72 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 73 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 74 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 75 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 76 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 77 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 78 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 79 Thursday, November 29, 2007 9:23 AM Español | 79
OBJ_BUCH-573-001.book Page 80 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 81 Thursday, November 29, 2007 9:23 AM Español | 81
OBJ_BUCH-573-001.book Page 82 Thursday, November 29, 2007 9:23 AM
Accesorios especiales
OBJ_BUCH-573-001.book Page 83 Thursday, November 29, 2007 9:23 AM Português | 83
OBJ_BUCH-573-001.book Page 84 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 85 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 86 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 87 Thursday, November 29, 2007 9:23 AM Português | 87
OBJ_BUCH-573-001.book Page 88 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 89 Thursday, November 29, 2007 9:23 AM Português | 89
Dr. Eckerhard Strötgen
Head of Product Certification
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 90 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 91 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 92 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 93 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 94 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 95 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 96 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 97 Thursday, November 29, 2007 9:23 AM Português | 97
OBJ_BUCH-573-001.book Page 98 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 99 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 100 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 101 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 102 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 103 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 104 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 105 Thursday, November 29, 2007 9:23 AM Italiano | 105
OBJ_BUCH-573-001.book Page 106 Thursday, November 29, 2007 9:23 AM
Dr. Eckerhard Strötgen
Head of Product Certification
OBJ_BUCH-573-001.book Page 107 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 108 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 109 Thursday, November 29, 2007 9:23 AM Italiano | 109
OBJ_BUCH-573-001.book Page 110 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 111 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 112 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 113 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 114 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 115 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 116 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 117 Thursday, November 29, 2007 9:23 AM Italiano | 117
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 118 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 119 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 120 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 121 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 122 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 123 Thursday, November 29, 2007 9:23 AM Nederlands | 123
OBJ_BUCH-573-001.book Page 124 Thursday, November 29, 2007 9:23 AM
Dr. Eckerhard Strötgen
Head of Product Certification
OBJ_BUCH-573-001.book Page 125 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 126 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 127 Thursday, November 29, 2007 9:23 AM Nederlands | 127
OBJ_BUCH-573-001.book Page 128 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 129 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 130 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 131 Thursday, November 29, 2007 9:23 AM Nederlands | 131
OBJ_BUCH-573-001.book Page 132 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 133 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 134 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 135 Thursday, November 29, 2007 9:23 AM Dansk | 135
OBJ_BUCH-573-001.book Page 136 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 137 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 138 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 139 Thursday, November 29, 2007 9:23 AM Dansk | 139
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 140 Thursday, November 29, 2007 9:23 AM Dr. Eckerhard Strötgen
Head of Product Certification
OBJ_BUCH-573-001.book Page 141 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 142 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 143 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 144 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 145 Thursday, November 29, 2007 9:23 AM Dansk | 145
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 146 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 147 Thursday, November 29, 2007 9:23 AM Dansk | 147
OBJ_BUCH-573-001.book Page 148 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_DOKU-10713-001.fm Page 149 Thursday, November 29, 2007 10:51 AM Dansk | 149
Plastdele er markeret for at garantere en rensorteret recycling.
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 150 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 151 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 152 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 153 Thursday, November 29, 2007 9:23 AM Svenska | 153
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 154 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 155 Thursday, November 29, 2007 9:23 AM Dr. Eckerhard Strötgen
Head of Product Certification
OBJ_BUCH-573-001.book Page 156 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 157 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 158 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 159 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 160 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 161 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 162 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 163 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 164 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 165 Thursday, November 29, 2007 9:23 AM Norsk | 165
OBJ_BUCH-573-001.book Page 166 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 167 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 168 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 169 Thursday, November 29, 2007 9:23 AM Norsk | 169
8 Boringer for hurtigspenntvingen
42 Festesett «understell»*
15 Boringer for montering
48 Hurtigspenntvinge
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 170 Thursday, November 29, 2007 9:23 AM
Tekniske underlag hos:
Robert Bosch GmbH, Dept. PT/ESC, D-70745 Leinfelden-Echterdingen Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
/II OBJ_BUCH-573-001.book Page 171 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 172 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 173 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 174 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 175 Thursday, November 29, 2007 9:23 AM Norsk | 175
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 176 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 177 Thursday, November 29, 2007 9:23 AM Norsk | 177
OBJ_BUCH-573-001.book Page 178 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 179 Thursday, November 29, 2007 9:23 AM Norsk | 179
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 180 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 181 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 182 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 183 Thursday, November 29, 2007 9:23 AM Suomi | 183
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 184 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 185 Thursday, November 29, 2007 9:23 AM Dr. Eckerhard Strötgen
Head of Product Certification
/II Bosch Power Tools
OBJ_BUCH-573-001.book Page 186 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 187 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 188 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 189 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 190 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 191 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 192 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 193 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 194 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 195 Thursday, November 29, 2007 9:23 AM Eλληνικά | 195
OBJ_BUCH-573-001.book Page 196 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 197 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 198 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 199 Thursday, November 29, 2007 9:23 AM Eλληνικά | 199
OBJ_BUCH-573-001.book Page 200 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 201 Thursday, November 29, 2007 9:23 AM Eλληνικά | 201
Τεχνικά χαρακτηριστικά
Dr. Eckerhard Strötgen
Head of Product Certification
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 202 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 203 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 204 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 205 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 206 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 207 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 208 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 209 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 210 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 211 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 212 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
OBJ_BUCH-573-001.book Page 213 Thursday, November 29, 2007 9:23 AM Türkçe | 213
OBJ_BUCH-573-001.book Page 214 Thursday, November 29, 2007 9:23 AM OBJ_BUCH-573-001.book Page 215 Thursday, November 29, 2007 9:23 AM Bosch Power Tools
1 609 929 J60 | (29/11/07)
OBJ_BUCH-573-001.book Page 216 Thursday, November 29, 2007 9:23 AM
OBJ_BUCH-573-001.book Page 217 Thursday, November 29, 2007 9:23 AM Türkçe | 217
OBJ_BUCH-573-001.book Page 218 Thursday, November 29, 2007 9:23 AM Dr. Eckerhard Strötgen
Head of Product Certification
