MKW-12 - Coffee machine MPM - Free user manual and instructions

USER MANUAL MKW-12 MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances.

RANSFER CAFE TRANSFER CAFE

XAOETIERA MATRCH

FILTER COFFIL MAKER

CAFFERIA DE TRASBORDO

CA + DI TRANSI + RI

FFLONTHETO KAVFFOZO

MACCHINA DA CAFFF VERSATA

RANS-FR CAFF

PART ETRAFUAS AUTOMATS

KO TILZI APPARAAT MET DROPPLLAAR

KAWARKA PR/FTF WOWA

TETRO DE CAFLA PRIN FICURARE

VAR NA FRI LYANIL

КАГОВАРКА

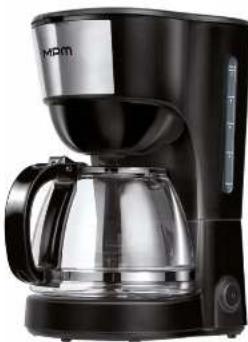

Black and silver coffee maker with a glass pitcher, no visible text or symbols

cz NAVOD K OBSLUZE 3

Labeled diagram of a coffee maker with parts shown in English and Chinese, including a coffee receiver, filter, and blender.

125 L glass jar

30-second anti-drip function

Automatic power off after 40 min.

Heat retaining plate

Removable nylon filter

Dishwasher safe jug, filter and handle

BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁNÍ

• Read carefully this manual before using the appliance.
• Do not immerse the appliance, its cord and plug in water or any other liquids!
  -Close supervision is necessary when using the appliance near children!
• Fill the container only with cold water.
  -Do not use the appliance if it is damaged, also if the power cord or plug is damaged - return the appliance for repair to an authorized service centre.
• To avoid the risk of damage, fire or injury, always use the attachments recommended by the manufacturer.
• Do not hang the power cord over sharp edges and do not allow the power cord to touch hot surfaces.
• Do not use the appliance outdoors.
• Before cleaning, pull out the plug from the outlet and allow the appliance to cool down completely.
• Never leave the plugged appliance unattended.
  -Do not exceed the maximum filling capacity indicated on the appliance.
• Do not switch on the appliance without water.
  -Do not place the appliance in vicinity of electric and gas cookers, burners, ovens, etc.
• Do not pour water into the container after switching on the appliance.
  -Do not touch the heating plate when the appliance in on and immediately after finishing its operation - this may result in severe burn.
  -Always unplug the appliance when it is not in use or before cleaning.
• After finishing operation the appliance should be unplugged!
• Do not use the appliance for the purposes different than it was designed for.
• This coffee maker is designed for domestic use only.
  -The appliance shall be plugged to an outlet with a protective earth pin.
  -This equipment may be used by children of at least 8 years of age and by persons of diminished physical and mental capacity

and persons with inexperience and lack of familiarity with the equipment, if supervision or instruction is provided on how to use the equipment safely so that the associated risks are understood. Cleaning and maintenance must not be carried out by children unless they are at least 8 years old and are supervised. Cleaning/maintenance must not be carried out by unsupervised children.

- Cleaning and user maintenance shall not be carried out by children without supervision.

- Store the appliance and its cord out of reach of children under 8 years of age.

- Children must not play with the device.

- The temperature of surfaces may be higher when the appliance is in use.

- Use the appliance on a flat and stable surface.

- Do not pull the plug by holding the power cord.

- Do not connect the power plug with wet hands.

-In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

- The working appliance must not be placed in a cupboard.

-Caution: in order to maintain the efficiency of the appliance and to prevent food contamination, clean the appliance regularly, as indicated in the section “CLEANING AND MAINTENANCE”.

-WARNING! Do not allow small children to play with the foil as there is a danger of suffocation!

DESCRIPTION OF THE APPLIANCE

1. Hinged lid
2. Water container
3. Water level indicator
4. Switch with indicator lamp

5. Removable filter, easy to clean

6. Container for filter and ground coffee, easy to open

7. Glass kettle with lid (1.25 l)
8. Heating plate

BEFORE USE

Before first use open the lid and pour water into the container (2), close the lid and switch on the appliance. To clean the appliance allow the water to flow through. Repeat this 2-3 times switching it off for about 5 minutes after complete filtering.

USING THE APPLIANCE

1. Open the upper lid (1) and pour necessary amount of water to the container (2), close the lid - the number of cups can be seen on the water level indicator. Scale on the water container allows to measure 2-10 big or 2-12 small cups.
2. Open the filter holder (6) and put solid filter (5).
3. Put the glass kettle with lid (7) on the heating plate (8). Make sure the kettle is properly positioned right below the coffee outlet and fill in ground coffee into the filter. One teaspoon (about 6–7 g) is enough to prepare a cup of medium coffee. Close the filter holder (6).
4. Plug in the appliance.
5. Switch on the appliance using the switch (4). Operation indicator lamp lights up and hot water starts flowing through the filter. When water stops flowing, the heating plate keeps coffee temperature in the kettle until the appliance is switched off. If the appliance is switched off manually, the auto-switch off function deactivates it in about 40 minutes.
6. Taking the kettle off the heating plate automatically closes special valve, which blocks coffee dripping on the plate.
7. Returning the kettle to the heating plate opens the valve and allows to filter through the remaining coffee.

NOTE! While brewing do not remove the kettle for more than 30 seconds - after this time filter may overflow.

NOTE! Do not use the appliance with an empty container!

CLEANING AND MAINTENANCE

1. Regularly remove residues from the appliance to considerably prolong its life and proper operation.
2. To descale the appliance use only special agents meant for this purpose.
3. Switch off the appliance and unplug it. Wipe all the the external surfaces using damp cloth. Coffee kettle can be washed in dishwasher.

NOTE! Using scouring sponges or dishcloths may damage the surface.

TECHNICAL DATA

Model	MKW-12
Power supply 220-240V	~ 50/60Hz
Power 600W
Off and standby mode available available
Power consumption in standby mode -
Power consumption in off mode < 0,5W
Power consumption in network standby mode	-
It automatically goes into standby mode after -
Automatically goes into shutdown mode after 38min.
Network standby mode, if the device has a connection function with the application	-
Length of mains cable 0,66m

CE

NOTE! MPM agd S.A. reserves its right to modify the technical data!

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health.

Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.
