ENGLISH

INTRODUCTION

This document contains information and safety regulations which are to be observed without fail for safe operation of the device IS170.2 (Model M170A01) under the described conditions. Non-observance of this information and instructions can have serious consequences and / or may violate regulations.

Please read the manual and these safety instructions before using the device. In case of any doubt, the German version shall apply.

The current EU-declaration of conformity, Certificate of Conformity, safety instructions and manuals can be found at www.isafe-mobile.com or requested from i.safe MOBILE GmbH.

> RESERVATION

The content of this document is presented as it currently exists. i.safe MOBILE GmbH does not provide any explicit or tacit guarantee for the accuracy or completeness of the content of this document, including, but not restricted to, the tacit guarantee of market suitability or fitness for a specific purpose unless applicable laws or court decisions make liability mandatory.

i.safe MOBILE GmbH reserves the right to make changes to this document or to withdraw it any time without prior notice. Changes, errors and misprints may not be used as a basis for any claim for damages. All rights reserved.

i.safe MOBILE GmbH cannot be held responsible for any data or other loss and direct or indirect damages caused by any improper use of this device.

EX-SPECIFICATIONS

The device IS170.2 is suitable for use in potentially explosive atmospheres classified as zones 2/22 in accordance with directives 2014/34/EU and 2014/53/EU, as well as the IECEx scheme.

EX-MARKINGS

» ATEX:

④ II 3G Ex ic IIC T4 Gc

II 3D Ex ic IIIB T135°C Dc

Certificate of Conformity:

EPS 20 ATEX 1 208 X

CE-designation: €€

»IECEx:

Ex ic IIC T4 Gc

Ex ic IIIB T135°C Dc

IECEx Certificate: IECEx EPS 20.0078X

» Temperature range:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

» Manufactured by:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

EU-DECLARATION OF CONFORMITY

The EU-declaration of conformity can be found at the end of this manual.

>FAULTS AND DAMAGES

If there is any reason to suspect that the safety of the device has been compromised, it must be withdrawn from use and removed from any ex-hazardous areas immediately. Measures must be taken to prevent any accidental restarting of the device. The safety of the device may be compromised, if, for example:

»Malfunctions occur.
» The housing of the device shows damage.
» The device has been subjected to excessive loads.
» The device has been stored improperly.
» Markings or labels on the device are illegible.

We recommend that a device displaying errors or in which an error is suspected be sent back to i.safe MOBILE GmbH to be checked.

EX-RELEVANT SAFETY REGULATIONS

Use of this device assumes that the operator observes the conventional safety regulations and has read and understood manual, safety instructions and certificate.

The following safety regulations must also be complied with:

» Inside ex-hazardous areas the covers of all interfaces must be closed. The battery has to be fixed securely.
» To ensure the IP-protection, it has to be ensured that the all gaskets are present and functional. There must be no large gap between the two halves of the housing and between the battery and housing.
» The device may only be charged outside ex-hazardous areas.
» The device may only be charged at temperatures between +5°C ... +35°C.
» Physical connections to other equipment are only allowed outside ex-hazardous areas.
» The device may not be exposed to any aggressive acids or alkalis.
» The device may only be used in zones 2 or 22.
» Only accessories approved by i.safe MOBILE GmbH may be used.

FURTHER SAFETY ADVISES

»Do not touch the screen of the device with sharp objects. Dust particles and nails may scratch the screen. Please maintain the screen clean. Remove dust on the screen with a soft cloth gently, and do not scratch the screen.
»Do not put the device in environments with excessive temperatures, as this could lead to heating of the battery, resulting in fire or explosion.
» Do not charge the device near any flammable or explosive substances.
» Charge the device under indoor conditions only.
» Do not charge the device in environments with much dust or humidity.
» Do not use the device in areas where regulations or legislatives prohibit the use.
» Do not expose the device or charger to strong magnetic fields, such as are emitted from induction ovens or microwaves.
»Do not attempt to open or repair the device. Improper repair or opening can lead to the destruction of the device, fire or explosion. Only authorized personnel are allowed to repair the device.

» Only use accessories approved by i.safe MOBILE GmbH.
» Power off the device in hospitals or other places where the use of mobile phones is prohibited. This device may affect proper work of medical equipment, such as pacemakers. Always keep a distance of at least 15 cm between the device and these devices.

» To prevent possible hearing damages, do not listen at high volume level for long periods. Fully understand user manual before use. Ensure your device at low volume levels or power off before you leaving.

» Observe all corresponding laws that are in force in the respective countries regarding the use of devices while operating a vehicle.

» Please power off the device and disconnect the charging cable before cleaning the device.

» Do not use any chemical cleaning agents to clean the device or the charger. Use a damp and anti-static soft cloth for cleaning.

» The product shall only be connected to a USB interface of version USB2.0.

» Do not discard old and abandoned lithium batteries into the trash, send them to designated waste disposal locations.

» The user alone is responsible for any and all damages and liabilities caused by malware downloaded when using the network or other data-exchange functions of the device. i.safe MOBILE GmbH cannot be held responsible for any of those claims.

WARNING

i.safe MOBILE GmbH will not assume any liability for damages caused by disregarding any of these advices or by any inappropriate use of the device.

MAINTENANCE/REPAIR

Please note any legal requirements for periodic inspection.

The device itself has no user-serviceable parts. It is recommended to perform inspections according to the safety regulations and advises. If there is a problem with the device, please contact your vendor or consult the service center. If your device is in need of repair, you can either contact the service center or your vendor.

BATTERY

The battery is not fully charged when the device is purchased, but it contains enough energy to power on the device. To obtain best battery performance and battery life, let the battery discharge completely before charging it completely for the first three charging cycles.

CAUTION

Risk of explosion if battery is replaced by an incorrect type. Dispose used batteries according to the instructions.

> INSTALLATION OF THE MICRO SIM CARD

The device features a micro SIM card slot. This is located in the battery compartment under the battery.

WARNING

Do only change the SIM card when the device is switched off. Do not try to insert or remove the SIM cards when any external power supply is connected.

INSTALLATION OF THE microSD CARD

The device features a microSD card slot (up to 128 GB). This is located in the battery compartment below the battery.

If you want to remove the microSD card, please make sure that the card is not in use by the device. To remove the microSD card follow the instructions given in →.

WARNING

Do only change the microSD card when the device is switched off. Do not try to insert or remove the microSD card when any external power supply is connected, otherwise the microSD card may be damaged.

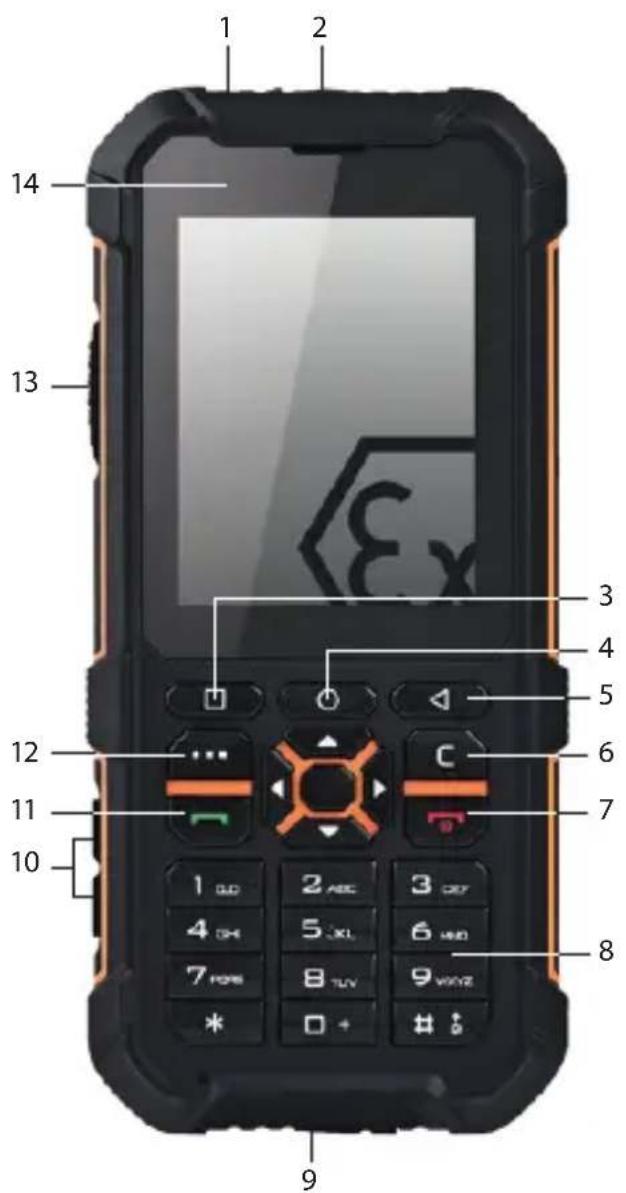

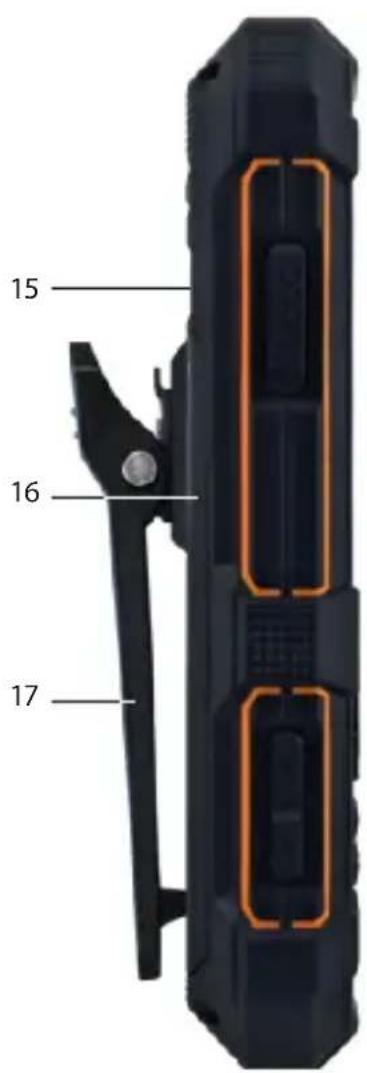

> BUTTONS AND SPECIAL FEATURES

(see illustration on page 2)

1> EARPHONE JACK: To connect an earphone.
2> TORCH: Use phone drop-down-menu to power ON/OFF the torch.
3> CURRENT APPLICATION: Long press to show all opened apps.
4) HOME BUTTON: To go back to the homescreen.
5) BACK BUTTON: Back to previous screen mask.
6) DELETE BUTTON: To delete characters entered incorrectly.
7) POWER BUTTON: Prolonged pressing to switch the telephone on and off; press briefly to end a call.

8>KEYPAD

9> USB-PORT: For charging the device and to connect to other devices with the delivered USB cable.

10> LOUDNESS CONTROL: Volume up/down.

11> ANSWER BUTTON

12> OPTIONAL BUTTON: Optional button used by different apps.

13) SIDE BUTTON LEFT: Optional button used by different apps.

14) NOTIFICATION LED: LEDs for charging and notification.

15>CAMERA

16> BATTERY COMPARTMENT

17>BELT CLIP

RECYCLING

The crossed-out wheeled-bin symbol on your product, battery, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies in the European Union. Do not dispose of these products as unsorted municipal waste. Always return your used electronic products, batteries, and packaging materials to de-

dicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials. More detailed information is available from the product retailer, local waste authorities, national producer responsibility organisations, or your local i.safe MOBILE GmbH representative.

> INFORMATION CONCERNING SAR CERTIFICATION (SPECIFIC ABSORBATION RATE)

The SAR limit of Europe is 2.0W/kg for the head and body, 4.0W/kg for the limbs. The device has been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.915W/kg and when correctly worn on the body is 1.304W/kg, limbs is 2.329W/kg.

This device was tested for typical body worn operations with the back of the handset kept 5mm from the body. The device complies with RF specifications when used at 5mm from the body. Belt clips, holsters and similar accessories used should not contain metallic components in the assembly. The use of accessories that do not satisfy these requirements may not comply with RF exposure requirements, and should be avoided.

TRADEMARKS

» i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the i.safe MOBILE GmbH.
» All other trademarks and copyrights are the properties of their respective owners.

DEUTSCH

EINFÜHRUNG

VEDLIKEHOLD / REPARASJON

Ta hensyn til eventuelle lovmessige direktiver i forbindelse med periodiske kontroller, som f.eks. driftssikkerhetsdirektivet (et direktiv som gjelder i Tyskland)!

» www.isafe-mobile.com/service

MAXIMUM OUTPUT POWER

Frequency bands Maximum output power (dBm)

GSM 900 32±2

DCS1800 30±2

WCDMA Band 1 23±2

WCDMA Band 8 23±2

FDD-LTE Band 1 22.5±1.5

FDD-LTE Band 3 22.5±1.5

FDD-LTE Band 7 22.5±1.5

FDD-LTE Band 8 22.5±1.5

FDD-LTE Band 20 22.5±1.5

TDD-LTE Band 40 22.5±1.5

BT 5.45

WiFi 15.81

GSM, WCDMA, LTE, BT, 2.4 GHz WiFi, GPS can be used in Europe without restriction.
