USER MANUAL IS910.2 i.safe Mobile

Safe MOBILE 9:49 QUICK START MANUAL SAFETY INSTRUCTIONS

IS910.2

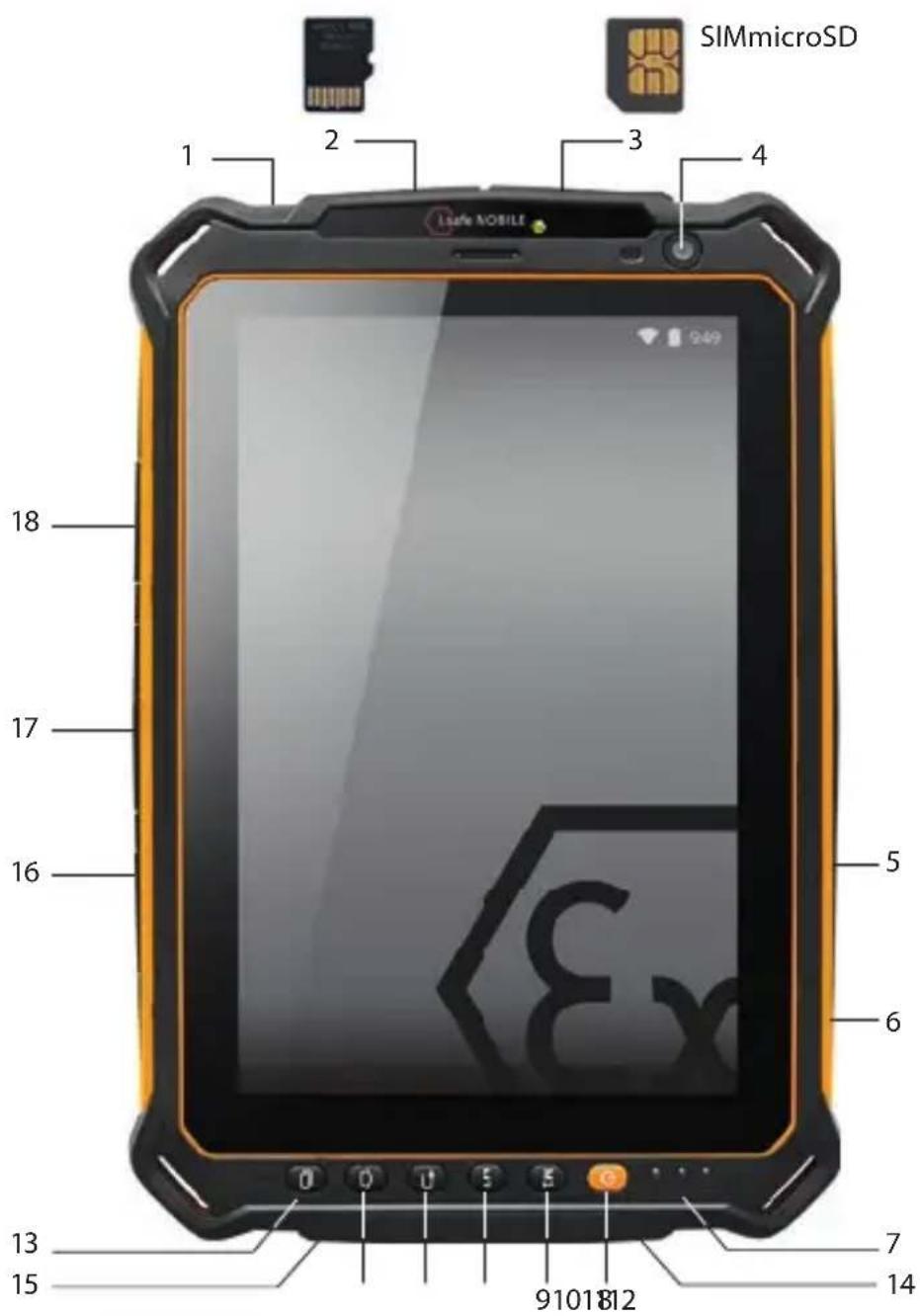

> KEYS AND SPECIAL FEATURES

SIMmicroSD 1 2 3 4 18 17 16 5 6 13 15 7 9101812 14

Document No. 1025MM01REV04

Version: 2018-06-06

(c) 2017 i.safe MOBILE GmbH

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

Tel. [phone]

[e-mail]

www.isafe-mobile.com Template:TEMPMM01REV10

CONTENTS

English....4

Deutsch....8

Česky 13

Dansk....18

Español 23

Suomi 28

Français....33

Magyar 38

Italiano 43

Nederlands 48

Norsk 53

Polski 58

Portuguesa 63

Русский....68

Svenska 74

ENGLISH

INTRODUCTION

This document contains information and safety regulations which are to be observed without fail for safe operation of the device IS910.2 under the described conditions. Non-observance of this information and instructions can have serious consequences and/or may violate regulations.

Please read the manual and these safety instructions before using the device. In case of any doubt, the German version shall apply.

The current EU-declaration of conformity, certificates, safety instructions and manuals can be found at www.isafe-mobile.com or requested from i.safe MOBILE GmbH.

> RESERVATION

The content of this document is presented as it currently exists. i.safe MOBILE GmbH does not provide any explicit or tacit guarantee for the accuracy or completeness of the content of this document, including, but not restricted to, the tacit guarantee of market suitability or fitness for a specific purpose unless applicable laws or court decisions make liability mandatory.

i.safe MOBILE GmbH reserves the right to make changes to this document or to withdraw it any time without prior notice. Changes, errors and misprints may not be used as a basis for any claim for damages. All rights reserved.

i.safe MOBILE GmbH cannot be held responsible for any data or other loss and direct or indirect damages caused by any improper use of this device.

EX-SPECIFICATIONS

The device IS910.2 is suitable for use in potentially explosive atmospheres classified (zone 2/22) in accordance with directives 2014/34/EU and 2014/53/EU, as well as the IECEx scheme.

EX-MARKINGS

»ATEX:

Ea II 3G Ex ic IIC T4 Gc IP64
① II 3D Ex ic IIIC T135°C Dc IP64

EU Type Examination Certificate:

EPS 17 ATEX 1 123 X

CE-designation: €

» Temperature range:

-20^ +60^

» Manufactured by:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

»IECEx:

Ex ic IIC T4 Gc IP64

Ex ic IIIC T135 °C Dc IP64

IECEx Certificate: IECEx EPS 17.0069X

EU-DECLARATION OF CONFORMITY

The EU-declaration of conformity can be found at the end of this manual.

>FAULTS AND DAMAGES

If there is any reason to suspect that the safety of the device has been compromised, it must

be withdrawn from use and removed from any ex-hazardous areas immediately. Measures must be taken to prevent any accidental restarting of the device. The safety of the device may be compromised, if, for example:

» Malfunctions occur.
» The housing of the device shows damage.
» The device has been subjected to excessive loads.
» The device has been stored improperly.
» Markings or labels on the device are illegible.

We recommend that a device displaying errors or in which an error is suspected be sent back to i.safe MOBILE GmbH to be checked.

EX-RELEVANT SAFETY REGULATIONS

Use of this device assumes that the operator observes the conventional safety regulations and has read and understood manual, safety instructions and certificate.

The following safety regulations must also be complied with:

» Inside ex-hazardous areas the covers of all interfaces must be closed.
» To ensure the IP-protection, it has to be ensured that all gaskets are present and functional. There must be no large gap between the two halves of the housing.
» The device may only be charged outside ex-hazardous areas using the appropriate charger or other equipment approved by i.safe MOBILE GmbH.
» For wired data connections please only use i.safe MOBILE GmbH approved accessories. The use of cables for data transfer is not permitted in explosion hazardous areas.
» The device may only be charged at ambient temperatures between +5°C ... +35°C.
» The device may not be exposed to any aggressive acids or alkalis.
» The device must not be taken into zones 0/20 or 1/21.
» Only accessories approved by i.safe MOBILE GmbH may be used.
» In case the device has a hand strap, it is not allowed to do the adjustment of the hand strap in ex-hazardous areas.

FURTHER SAFETY ADVISES

» Do not touch the screen of the device with sharp objects. Dust particles and nails may scratch the screen. Please maintain the screen clean. Remove dust on the screen with a soft cloth gently, and do not scratch the screen.
» Do not put the device in environments with excessive temperatures, as this could lead to heating of the battery, resulting in fire or explosion.
» Do not charge the device near any flammable or explosive substances.
» Charge the device under indoor conditions only.
» Do not charge the device in environments with much dust or humidity.
» The device may only be charged at ambient temperatures between +5°C ... +35°C.
» Do not use the device in areas where regulations or legislatives prohibit the use.
» Do not expose the device or charger to strong magnetic fields, such as are emitted from induction ovens or microwaves.
» Do not attempt to open or repair the device. Improper repair or opening can lead to the

destruction of the device, fire or explosion. Only authorized personnel are allowed to repair the device.

» Only use accessories approved by i.safe MOBILE GmbH.
»Power off the device in hospitals or other places where the use of mobile phones is prohibited. This device may affect proper work of medical equipment, such as pacemakers. Always keep a distance of at least 15 cm between the device and these devices.
»Observe all corresponding laws that are in force in the respective countries regarding the use of devices while operating a vehicle.
»Please power off the device and disconnect the charging cable before cleaning the device.
»Do not use any chemical cleaning agents to clean the device or the charger. Use a damp and anti-static soft cloth for cleaning.
»Do not discard old and abandoned lithium batteries into the trash, send them to designated waste disposal locations.
»The user alone is responsible for any and all damages and liabilities caused by malware downloaded when using the network or other data-exchange functions of the device. i.safe MOBILE GmbH cannot be held responsible for any of those claims.

WARNING

i.safe MOBILE GmbH will not assume any liability for damages caused by disregarding any of these advices or by any inappropriate use of the device.

MAINTENANCE/REPAIR

Please note any legal requirements for periodic inspection.

The device itself has no user-serviceable parts. It is recommended to perform inspections according to the safety regulations and advises. If there is a problem with the device, please contact your vendor or consult the service center. If your device is in need of repair, you can either contact the service center or your vendor.

BATTERY

The device may only be charged at ambient temperatures in a range from +5^ ... +35^ .

>INSTALLATION OF THE MICRO SIM CARD

The device features one slot for a micro SIM card. The slot for the micro SIM card is on the top of the device (see page 2).

WARNING

Do only change the SIM card when the device is switched off. Do not try to insert or remove the SIM cards when any external power supply is connected.

>CELL BROADCAST

The device supports cell broadcast.

>INSTALLATION OF THE microSD CARD

The device features a microSD card slot (up to 32GB). The slot for the microSD card is on the top of the device (see page 2).

If you want to remove the microSD card, please make sure that the card is not in use by the device.

To remove the microSD card follow the instructions given in →.

WARNING

Do only change the microSD card when the device is switched off. Do not try to insert or remove the microSD card when any external power supply is connected, otherwise the microSD card may be damage.

> KEYS AND SPECIAL FEATURES

(see illustration on page 2)

1) SOS KEY: Long press automatically selects an emergency number stored by you. This function can only be used in conjunction with an optionally available LWP app.

2> SD CARD SLOT: Use for microSD card.

3 > SIM CARD SLOT: Use for SIM card.

4> CAMERA: Front camera.

5> LOUDNESS CONTROL: Volume up.

6) LOUDNESS CONTROL: Volume down.

7) CONTROL LED: Control LEDs for power on, loading and flash.

8) POWER KEY: Long press to power ON/OFF the device. Short press to power ON/OFF the standby mode.

9 > FUNCTION KEY M1: Optional key used by different apps.

10> FUNCTION KEY M2: Optional key used by different apps.

11> BACK KEY: Back to previous screen mask.

12> HOME KEY: To go back to the homescreen.

13> CURRENT APPLICATION: Close all applications.

14> USB OTG: Connect external USB devices.

15> EARPHONE JACK: To connect an earphone.

16) MAGNETIC CHARGER PORT: To charge the device with the delivered magnetic USB cable.

17) DOCKING STATION: To connect to an external docking station (optional).

18> MICRO USB TYP C: To charge and to connect the device with the delivered USB cable.

> SETTING PASSWORD

In settings a password is required, use standard password "1234".

>IMPORTANTINFORMATION! FACTORY RESET/ACTIVATE OEM MODE

If you have set up a Google Account, it is important to proceed with the following steps before you make a factory reset. This ensures that all private data will be deleted on the device:

→ → tip seven times on (to activate the developer mode) → back to → → enable → enable back to → →

If you do not enable the OEM unlocking, the device will always ask you to sign in with the previously synced Google Account after the restart. In that case the device is unusable for other user.

RECYCLING

The crossed-out wheeled-bin symbol on your product, battery, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies in the European Union. Do not dispose of these products as unsorted municipal waste. Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials. More detailed information is available from the product retailer, local waste authorities, national producer responsibility organisations, or your local i.safe MOBILE GmbH representative.

> INFORMATION CONCERNING SAR CERTIFICATION (SPECIFIC ABSORBATION RATE)

Maximum SAR values for this model and the conditions under which these were determined: SAR (body - worn) 1.45 W/kg

TRADEMARKS

» i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the i.safe MOBILE GmbH.
» Google, Google Play and Android are trademarks of Google Inc.
» All other trademarks and copyrights are the properties of their respective owners.

DEUTSCH

EINFÜHRUNG

Laite tukee cell broadcast.

MIKRO-SD-KORTIN ASENNUS

PAINIKKEIDEN TOIMINNOT

VEDLIKEHOLD / REPARASJON

Ta hensyn til eventuelle lovmessige direktiver i forbindelse med periodiske kontroller, som f.eks. driftssikkerhetsdirektivet (et direktiv som gjelder i Tyskland)!

>PASSORD I INNSTILLINGENE

EU-DECLARATION OF CONFORMITY

i.safe MOBILE

EU – Declaration of Conformity

according to directive 2014/34/EU and 2014/53/EU

The company i.safe MOBILE GmbH declares under its sole responsibility that the product to which this declaration relates is in accordance with the provisions of the following data, directives and standards:

» www.isafe-mobile.com/service
