Product type	Industrial rugged tablet
Brand	i.safe Mobile
Model	IS930.RG
Intended use	Communication and Internet access in industrial environments
SOS button	Yes, for emergency call via dedicated app
Front camera	Yes
Expandable storage	MicroSD slot up to 512 GB
SIM card	Micro-SIM
Connectivity	USB-C, magnetic charging, headphone jack, docking station
Power supply	Universal power adapter with interchangeable plugs
Included accessories	USB-C cable, magnetic charging cable, power adapter, wrist strap, protective film, cleaning cloth
Operating system	Android (version includes Google Apps)
Programmable buttons	M1 and M2, assignable via Button App
Navigation buttons	Back, Home, Recent apps
Charging temperature	+5°C to +35°C
Storage temperature	+5°C to +35°C
Storage humidity	10% to 60%
Cleaning	Soft antistatic cloth, slightly damp
Recycling	Do not dispose of with household waste, use collection points
Warranty	Terms available at www.isafe-mobile.com
Safety	Do not open, repair exclusively by i.safe MOBILE

Frequently Asked Questions - IS930.RG i.safe Mobile

How to insert the SIM card?

Turn off the device. Open the IP cover of the SIM slot, insert the micro-SIM card into the slot, then close the cover. Do not charge the device during this operation.

How to insert a microSD card?

Turn off the device. Open the IP cover of the SD slot, insert the microSD card (max 512 GB) into the slot marked 'microSD', then close the cover. Do not charge the device during this operation.

How to charge the device?

Use the USB-C cable or the magnetic charging cable provided with the power adapter. Connect the cable to the device and the adapter to a socket. Charge only in a dry indoor environment, between +5°C and +35°C.

How to use the SOS button?

The SOS button sends an emergency call to a pre-registered number. This function requires a lone worker protection app. Press and hold the button to trigger the call.

Can I use the device in explosive areas?

No, the device is designed for use outside of explosion hazard areas. Never use it in these areas.

How to clean the screen and the device?

Turn off the device. Use a soft antistatic cloth slightly dampened. Do not use chemicals. Do not charge during cleaning.

Which accessories are compatible?

Use only accessories approved by i.safe MOBILE, available at www.isafe-mobile.com/en/products. The included USB-C cable is mandatory for connection.

What to do in case of malfunction?

Check the FAQ at www.isafe-mobile.com/en/support/service. If the problem persists, contact i.safe MOBILE repair service. Do not open the device yourself.

How to store the device?

Store the device between +5°C and +35°C with humidity from 10% to 60%. Avoid humid or dusty environments.

How to recycle the device?

Do not dispose of the device, batteries, or packaging with household waste. Take them to a dedicated collection point. Consult local authorities or the i.safe MOBILE website for more information.

USER MANUAL IS930.RG i.safe Mobile

www.isafe-mobile.com Template:TEMPMM01REV10

CONTENTS

English....4

Deutsch....14

Česky 24

Dansk....34

Español....44

Suomi....54

Français....64

Magyar 74

Italiano 84

Nederlands 94

Norsk 104

Polski 114

This Operating Manual complies with these standards:

IEC 60079, IEC 82079, ANSI Z535.6

IEC 60079, IEC 82079, ANSI Z535.6

ENGLISH

>READ AND UNDERSTAND THE INSTRUCTIONS

PROTECT YOUR LIFE AND READ THE OPERATING MANUAL

This Operating Manual is part of the device IS930.RG (model M93A01). This Operating Manual provides important information for safe use of the device.

» Before using the device, read this Operating Manual carefully and pay particular attention to the "Safety" section and the warnings highlighted with the warning symbol
» Also read the Safety Instructions before using the device. You can find these at www.isafe-mobile.com/en/support/downloads
» Make sure you have access to this Operating Manual when you need it. You can find the current Operating Manual at www.isafe-mobile.com/en/support/downloads
» Follow all instructions given on the device and on the packaging.
» Follow local safety regulations.

NTENDED USE

The IS930.RG is an Internet-capable communication device for industrial use.

Only use the device as described in this Operating Manual. Any other use is considered improper and can lead to death, severe injuries and damage to the device.

The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by improper use. The warranty expires in the event of improper use.

WARRANTY

You can find the warranty conditions at www.isafe-mobile.com/en/support/service

For any damage caused by computer viruses that you download while using the Internet functions responsibility is at your hand. There is no right of recourse against i.safe MOBILE GmbH.

EU/UK DECLARATION OF CONFORMITY

You will find the EU/UK declaration of conformity at www.isafe-mobile.com/en/support/downloads

FCC/IC STATEMENT

The FCC/IC declaration can be found at www.isafe-mobile.com/en/support/downloads

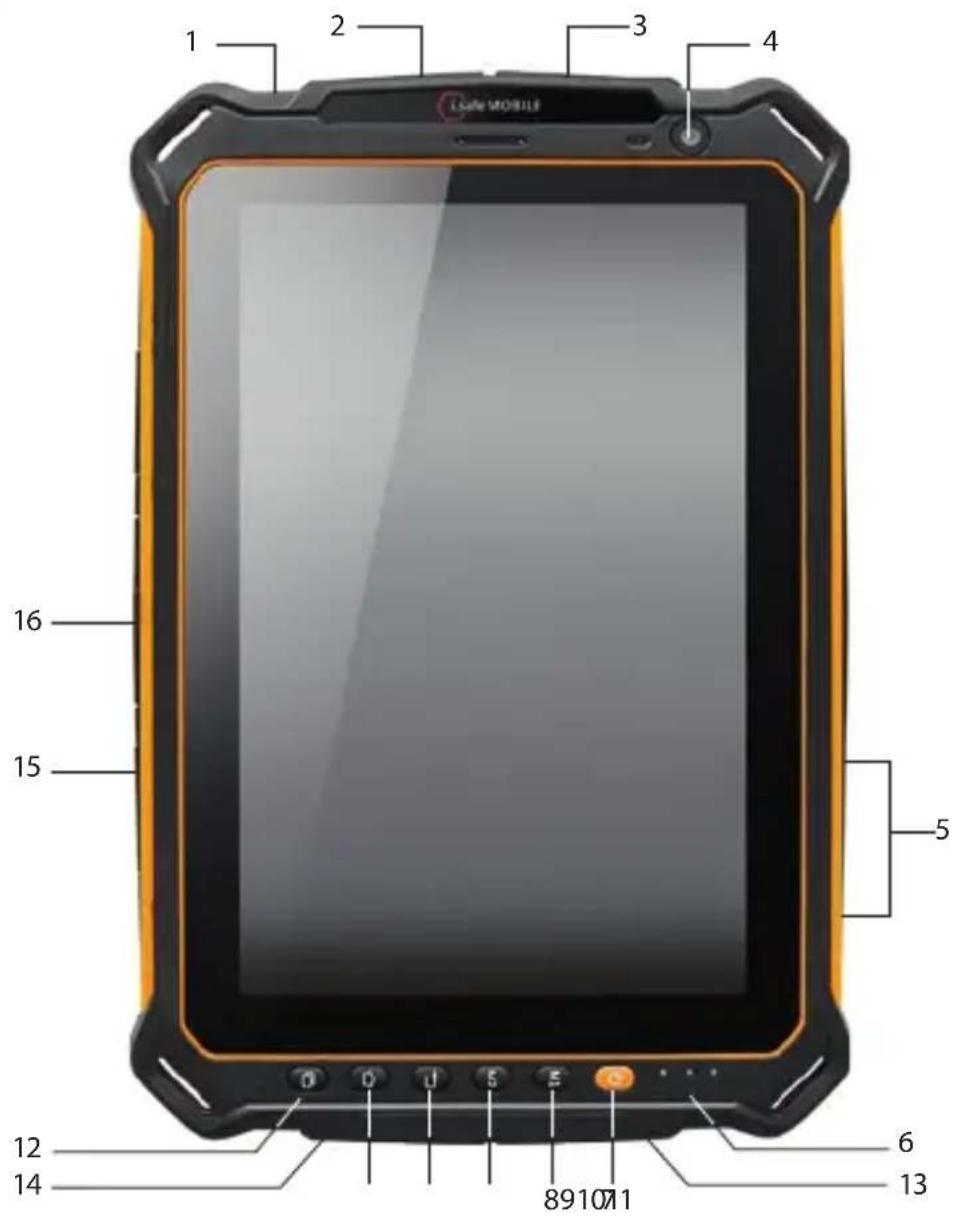

>DEVICE OVERVIEW/FUNCTIONS

1) SOS KEY: A long press of the SOS key sends an emergency call to a pre-saved emergency number (only in connection with a Lone Worker Protection app).
2> SD CARD SLOT: Use for microSD card.
3> SIM CARD SLOT: Use for micro-SIM card.
4) FRONT CAMERA
5> LOUDNESS CONTROL: Volume up/Volume down.
6) STATUS LED: Display for notifications and charging status.
7) POWER KEY: A long press switches the device on/off. A short press switches the standby mode on/off.
8) FUNCTION KEY M1: Optional function - function can be assigned via Button App (system integrated).
9) FUNCTION KEY M2: Optional function - function can be assigned via Button App (system integrated).
10> BACK KEY: Go to the previous screen.
11> HOME KEY: Switch to the main screen.
12) CURRENT APPLICATION: Shows all open applications.
13> USB INTERFACE: Connection for the USB-C Cable or for connection to other devices. Also see sections "Charging" and "Connecting approved accessories".
14> EARPHONE JACK
15> MAGNETIC CHARGER PORT: Connection for the Magnetic Charger Cable. Also see section "Charging".
16> DOCKING STATION: Interface for docking station IS-DS930.1 (optional accessory).

> SAFETY

Read the "Safety" section of this Operating Manual carefully before using the device. If you do not follow these instructions or do not understand them, this could lead to death, severe injuries and damage to the device.

USER

Only trained users who have read and understood this Operating Manual may use this device.

USE OUTSIDE OF EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

» Do not use the device in explosion hazardous areas.
» Make sure that no gap can be seen between the two halves of the device.
» Do not use the device in places where its use is prohibited.
» Turn off the device in clinics or other medical facilities.
» Always keep a safety distance of at least 15 cm between the device and a pacemaker or hearing aid. The device can affect the functioning of medical devices such as pacemakers and hearing aids.
» When using the device while driving a motor vehicle, be sure to comply with applicable national laws.
» Make sure you prevent the user errors described in the section entitled "Possible User Errors".
» Only charge the device as described in the "Charging" section.

CAUTION

When using earphones or headsets at the maximum volume setting, you can damage your hearing.

» First set the volume control on the device to 50 % of the maximum volume.

» Gradually adjust the volume.

NOTICE

Incorrect use can damage the device.

» Only use accessories approved by i.safe MOBILE, as described in the section on "Connecting approved accessories".
» Protect the device and the Power Adapter from strong electrical magnetic fields as for example those emitted by induction cookers or microwave ovens, for example.
» Do not touch the display with sharp objects.

POSSIBLE USER ERRORS

DANGER

Improper use can result in death or severe injuries! Follow the instructions below:

» Do not modify the device structurally.
» Do not expose the device to high temperatures.
» Do not expose the device to strong UV radiation.
» Do not expose the device to processes with high electrical charges.
» Do not expose the device to aggressive acids or bases.

>SCOPE OF DELIVERY

Your device packaging contains the following:

1 x IS930.RG

1 x Quick Start Manual
1 x Safety Instructions
1 x Display Protection Foil
1 x Handstrap
1 x USB-C Cable

1 x Magnetic Charger Cable
1 x Power Adapter universal (power supply unit and various country-specific adapters)
1 x Display cleaning cloth

CELL BROADCAST

The device supports cell broadcast. Cell broadcast is a cellular service for sending messages to all recipients within a cell.

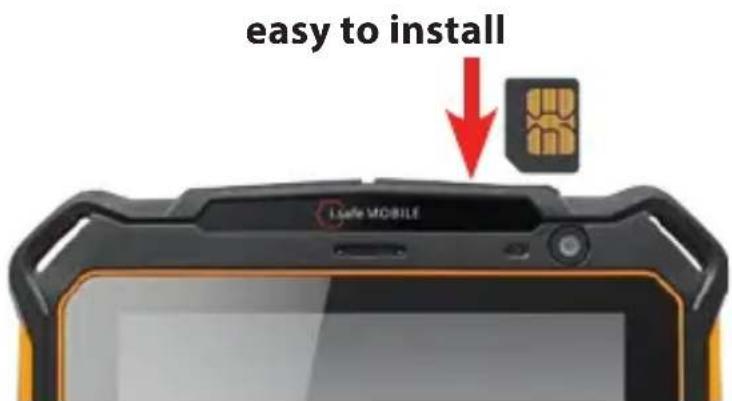

INSERT/REMOVE SIM CARD

NOTICE

Proceeding incorrectly when inserting/removing the SIM card can damage the device and the SIM card. Switch off the device before inserting or removing a SIM card. Do not charge the device while inserting or removing a SIM card.

» Open the IP-plug for SIM.

» Insert the SIM card into the slot.

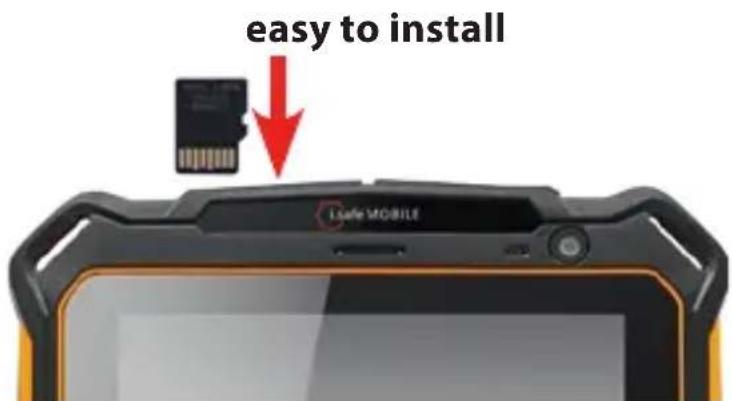

Proceeding incorrectly when inserting/removing the microSD card can damage the device and the microSD card. Switch off the device before inserting or removing a microSD card. Do not charge the device while inserting or removing a microSD card.

» Open the IP-plug for microSD.

» Insert the microSD card into the slot provided. The device has a slot for a microSD card up to 512 GB. The slot is marked "microSD".

Improper use can result in death or severe injuries! Do not charge the device in the vicinity of flammable substances.

NOTICE

Incorrect charging can cause damage to the device. Please note the following when charging:

» Only charge the device at ambient temperatures between +5 °C to +35 °C (+41 °F to +95 °F).
» Charge the device under dry indoor conditions only.
» Do not charge the device in environments dusty or humid.

Your device package contains a power supply unit, various country-specific adapters, an USB-C Cable and an Magnetic Charger Cable.

» Connect the adapter suitable for your country to the power supply unit.
» Connect the USB-C Cable or the Magnetic Charger Cable to the power supply unit.
» Connect the USB-C Cable to the USB interface of the device, or connect the Magnetic Charger Cable to the magnetic charging port on the device.

> SWITCHING ON/OFF

» Press and hold the on/off key for about 3 seconds.
» Enter the device or SIM PIN when the input dialog for the device or SIM PIN appears after switching on.
» Select the menu item if the power off menu appears when switching off.

>USING THE DEVICE

» When turning on the device for the first time, follow the instructions on the screen.

Further information on operating the device can be found at www.isafe-mobile.com/en/support/service under the menu item "FAQ".

Detailed information on operating the Android operating system can be found at: https://support.google.com/android

> CONNECTING APPROVED ACCESSORIES

» Only connect accessories approved by i.safe MOBILE to the device. Accessories approved by i.safe MOBILE can be found at www.isafe-mobile.com/en/products

Approved accessories can be connected to the USB interface.

USB INTERFACE

The USB interface is used for charging and data transfer.

»Connect approved accessories or other devices to the USB interface only by using the USB-C Cable.

POSSIBLE DEVICE PROBLEMS

You can find information on possible device problems and how to rectify them at www.isafe-mobile.com/en/support/service under the menu item "FAQ". If you have any further questions, please contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

MAINTENANCE/REPAIR

The device itself has no serviceable parts.

WARNING

Incorrect repairs present a risk of explosion or fire, which can result in death or severe injuries! Do not open the device or carry out any repairs yourself.

» Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service if the device is not working normally, if the device needs to be repaired or if a replacement part is required.

RETURN SHIPMENT

Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

DISTRIBUTION PARTNER

You can find the specialist distribution partner responsible for your country at www.isafe-mobile.com/en/contact

CLEANING

NOTICE

Incorrect cleaning can cause damage to the device. Please note the following when cleaning:

» Turn off the device before cleaning.

» Do not charge the device while cleaning.

» Do not use chemical agents for cleaning.

» Clean the device and the Power Adapter with a soft, moistened antistatic cloth.

» Clean the display screen regularly with a soft, antistatic cloth.

>STORAGE

NOTICE

Incorrect storage can cause damage to the device. Store the device at ambient temperatures between +5 °C to +35 °C (+41 °F to +95 °F) and a humidity between 10 % to 60 %.

RECYCLING

NOTICE

Incorrect disposal of electronic products, batteries and packaging material puts the environment at risk. Please note the following when disposing of items:

» DO NOT throw away batteries with household waste.

» Always dispose electronic products, batteries and packaging material at the appropriate collection points. This way, you prevent uncontrolled waste disposal and promote the recycling of material resources.

You can obtain further information from regional waste disposal companies, state authorities or the i.safe MOBILE service centre responsible for your country or region at www.isafe-mobile.com/en/support/service

TRADEMARKS

i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the i.safe MOBILE GmbH.

EEA Version: Comes with the Google™ app and Google Chrome™ Google and Google Play are trademarks of Google LLC.

All other trademarks and copyrights are the properties of their respective owners.

DEUTSCH

www.isafe-mobile.com/en/support/downloads

PROHLÁŠENÍ FCC/IC

Prohlášení FCC/IC najdete na webu www.isafe-mobile.com/en/support/downloads

PŘEHLED O ZAŘÍZENÍ/FUNKCÍCH

www.isafe-mobile.com/en/support/downloads

FCC-/IC-LAUSUNTO

www.isafe-mobile.com/en/support/downloads

LAITTEEN YLEISKUVA JA TOIMINNOT

https://support.google.com/android

HYVÄKSYTTYJEN LISÄLAITTEIDEN LIITTÄMINEN

DÉCLARATION DE CONFORMITÉ UE/UK

MISE EN MARCHE/ARRÊT

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

DICHIARAZIONE FCC/IC

www.isafe-mobile.com/en/support/downloads

PANORAMICA/FUNZIONI DEL DISPOSITIVO

USO FUORI DALLE AREE A RISCHIO DI ESPLOSIONE

PERICOLO

www.isafe-mobile.com/en/support/downloads

FCC/IC UTTALELSE

FCC/IC-erklæringen finner du på www.isafe-mobile.com/en/support/downloads

ENHETSOVERSIKT/FUNKSJONER

1) SOS-TAST: Et langt trykk på SOS-tasten sender et nødandrop til en forhåndslagret nødnummer (kun i forbindelse med en Lone Worker Protection-app).
2> SD-SPOR: Spor for et microSD-lagringskort
3> SIM-SPOR: Spor for et micro-SIM-kort
4> FRONTKAMERA
5> LYDSTYRKEREGULERING: Høyere/Lavere.
6) STATUS-LED: Skjerm for meldinger og ladestatus.
7) AV-/PÅTAST: Et langt trykk slår enheten på/av. Et kort trykk kobler beredskapsmodusen på/av.
8> FUNKSJONSTAST M1: Valgfri funksjon - funksjon kan tilordnes via Button App (systemintegrert).
9) FUNKSJONSTAST M2: Valgfri funksjon - funksjon kan tilordnes via Button App (systemintegrert).
10> TILBAKETAST: Gå til forrige skjerm.
11> HJEMTAST: Bytt til hovedskjermen.
12> AKTUELLE APPLIKASJONER: Viser alle åpne applikasjoner.
13) USB-GRENSESNITT: Tilkobling for USB-C-kabel eller for tilkobling til andre enheter. Se også avsnittene "Lading" og „Tilkobling av godkjent tilbehør“.
14) HODETELEFONTILKOBLING
15) MEGNETLADER-TILKOBLING: Tilkobling for magnetisk laderkabel. Se også avsnittet "Lading".
16) DOCKINGSTASJON: Grensesnitt for dockingstasjon IS-DS930.1 (valgfritt tilbehør).

SIKKERHET

Close-up of a Liafé MOBILE tablet device with a red arrow pointing to its top panel (no text or symbols on the device itself)

https://support.google.com/android

TILKOBLING AV GODKJENT TILBEH∅R

VEDLIKEHOLD/REPARASJON

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

ЗАЯВЛЕНИЕ FCC / IC

www.isafe-mobile.com/en/support/downloads

Close-up of a LiRife MOBILE tablet device with a small card and red arrow indicating compression (no text or symbols on the device itself)

www.isafe-mobile.com/cn/support/downloads

www.isafe-mobile.com/en/support/downloads

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

FOR FURTHER QUESTIONS PLEASE CONTACT OUR SERVICE CENTRE:

» i.safe MOBILE GmbH, i_Park Tauberfranken 10, 97922 Lauda-Koenigshofen, Germany

» [e-mail]

» https://support.isafe-mobile.com

Nighttime exterior view of a large industrial chemical plant with illuminated towers and piping (no visible text or signage)

WWW.ISAFE-MOBILE.COM
