Carbonator Pro - Other kitchen appliances AARKE - Free user manual and instructions

Product type	Water carbonating machine
Brand	Aarke
Model	Carbonator Pro
Machine height	510 mm
Machine width	170 mm
Machine depth	290 mm
Machine weight	3740 g
Glass bottle (height)	230 mm
Bottle (diameter)	90 mm
Bottle (weight)	690 g
Bottle capacity	800 ml (max fill 700 ml)
Bottle material	Glass, dishwasher safe
Gas type	CO₂
Compatible cylinder (diameter)	60 mm
Compatible cylinder (weight)	425 g
Operating temperature	1 °C to 40 °C
Functions	Water carbonation with audible signal
Power supply	None (manual operation with CO₂ cylinder)
Machine cleaning	Microfiber cloth, clear water, mild soap (avoid abrasive products)
Safety	Only carbonate water; use only the supplied bottle; do not freeze the bottle
Included items	Fill line, welcome folder with cleaning cloth

Frequently Asked Questions - Carbonator Pro AARKE

Why is little or no gas released when I press the carbonation button?

Make sure to press the button fully (without force). Check that the gas cylinder is properly screwed in (try tightening it a bit more). Listen for any hissing sound. If the cylinder is empty, replace it.

What should I do if the water is not carbonated despite gas passing through?

Hold the carbonation button until you hear a buzzing sound, then release. Do not release before the audible signal.

How do I replace the gas cylinder gasket?

A spare gasket is located under the base of the machine, under a sticker labeled 'Extra Gasket'. Remove the sticker, place the new gasket on the cylinder, then screw it on. After removing the cylinder, the gasket stays in place.

Why does the gas cylinder freeze inside the machine?

This may indicate a leak between the cylinder and the machine. Try tightening the cylinder more firmly. If the problem persists, check and replace the cylinder gasket.

How do I clean the water carbonating machine?

Use the provided cloth or a clean microfiber cloth. For the matte finish, use a soft cloth and clear water. For stainless steel, add mild soap if needed. Avoid harsh and abrasive detergents.

Can I carbonate beverages other than water?

No, only carbonate water. Other beverages may damage the machine or pose a safety risk.

How do I empty the drip tray?

Use a clean cloth to absorb the water. To avoid it filling up, do not exceed the bottle's fill line.

Which bottle should I use?

Use only the glass bottle provided with the Carbonator Pro. Other bottles may damage the machine or cause hazards.

Are the gas cylinders standard?

Yes, the machine is compatible with any standard CO₂ cylinder with dimensions of 60 mm diameter and 425 g weight, used by major brands of sparkling water machines.

What should I do if the cover does not click into the base?

Try pressing harder on the cover until it clicks. If the problem persists, contact support at [e-mail].

USER MANUAL Carbonator Pro AARKE

Next level home carbonation.

At Aarke we are always looking for ways to refine your everyday routine.

With your new Carbonator Pro you will experience uniquely smooth and simple home carbonation thanks to masterful engineering and our passion for detail. You have chosen an environmentally-friendly alternative to store-bought sparkling water – a wise decision!

Your Carbonator has been crafted in the highest quality materials, designed and tested from the inside out for optimum safety and performance. Please keep in mind however, that any product involving the use of gas and pressure systems should be handled with care and used only as intended. Be sure to read the safety section of this guide carefully before use.

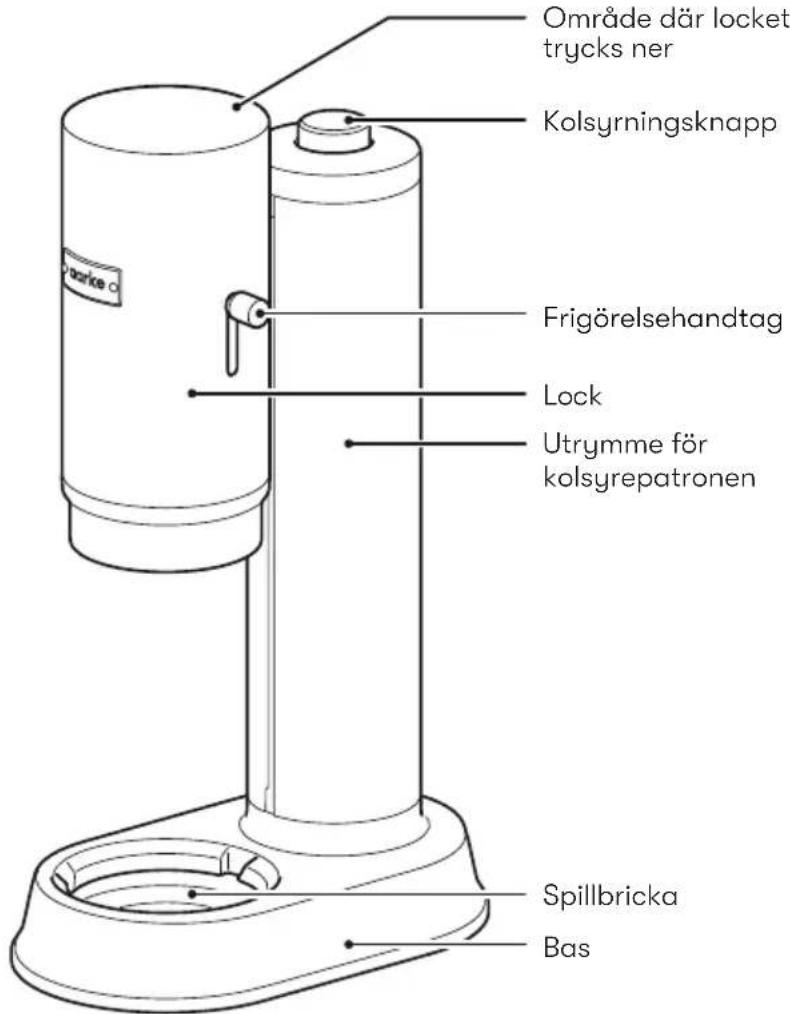

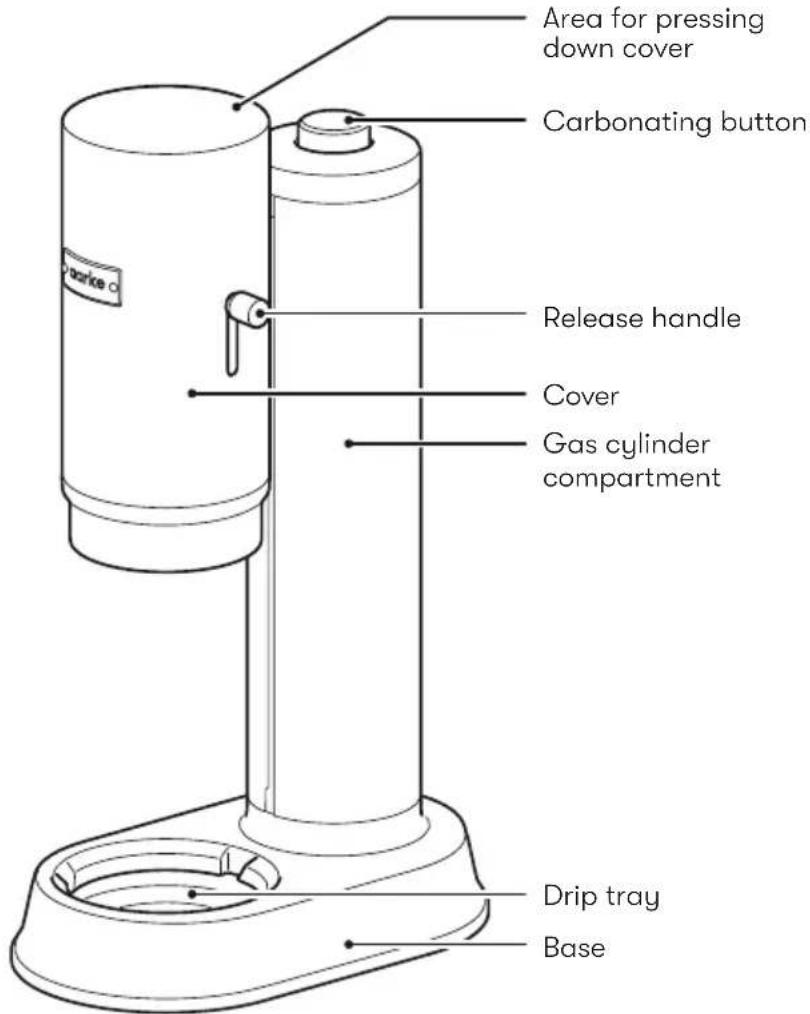

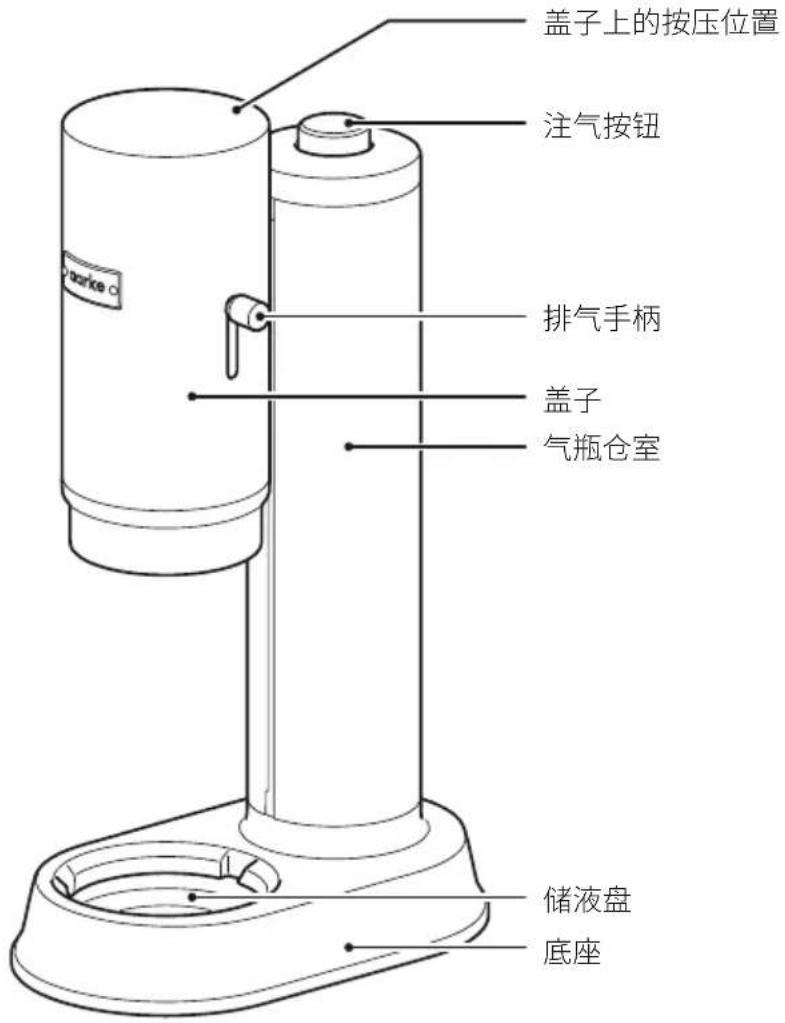

Items and components

Items included

Glass bottle

Simple line drawing of a closed book with a black star-shaped cover on the front page (no text or symbols)

Welcome folder with cleaning cloth

Carbonator Pro

Technical specifications

Glass bottle

Height	230 mm
Diameter	90 mm
Weight	690 g
Volume	800 ml(700 up

Carbonator Pro

Height 510 mm

Width 170 mm

Depth 290 mm

Weight 3740 g

The bottle is dishwasher safe

General safety

Only carbonate water, don't carbonate other beverages

1-40°C

34-104°F

Simple line drawing of a bottle with a cross mark, no text or symbols present

Only use the Carbonator Pro glass water bottle when carbonating

Keep your Carbonator at a temperature of 1-40°C

Never carbonate with a damaged bottle

• Always use the Carbonator in an upright position.
- Keep the Carbonator away from children.
- Never attempt to carbonate an empty bottle.
- Never put the glass bottle in the freezer.
- Only use the Carbonator Pro glass water bottle when carbonating. Other bottles can damage the machine and lead to safety risks.
- Transport the Carbonator without the gas cylinder installed.
- See "Approved gas cylinders" on page 10 section for "Other advice".

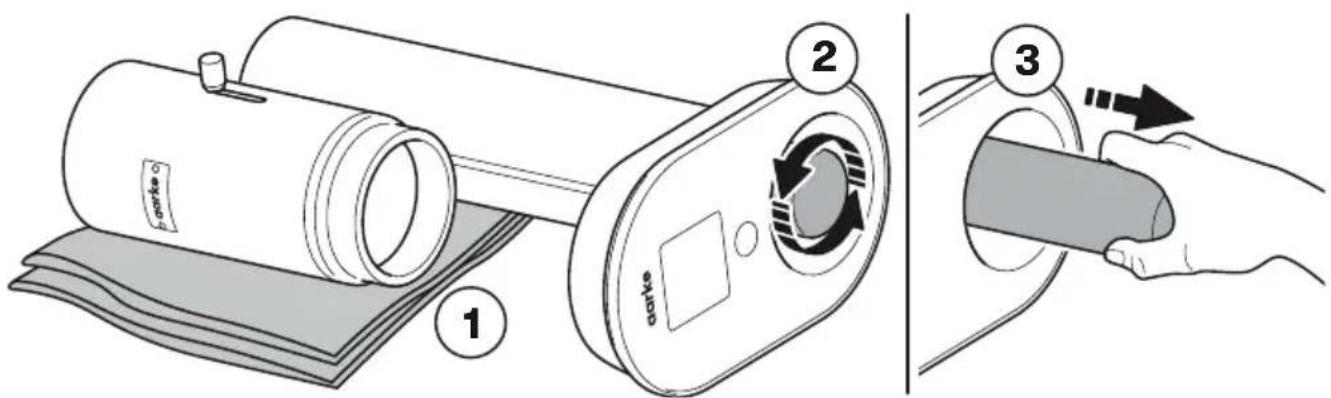

Gas cylinder replacement

1. Use a soft cloth to protect your Carbonator when you lay it on its side. If there is no gas cylinder in the Carbonator, go to step 4.
2. Unscrew the gas cylinder counterclockwise.
3. Remove the gas cylinder.

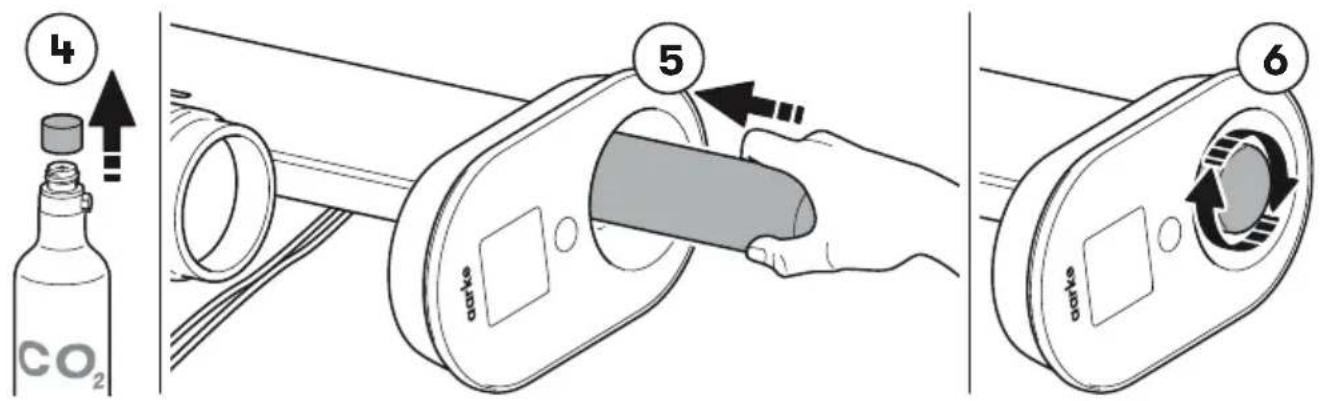

1. Remove the plastic cover and stopper of the new gas cylinder.
2. Insert the gas cylinder into the bottom of the Carbonator.
3. When you feel it reach the top, screw the cylinder clockwise until it attaches.

The carbonation process

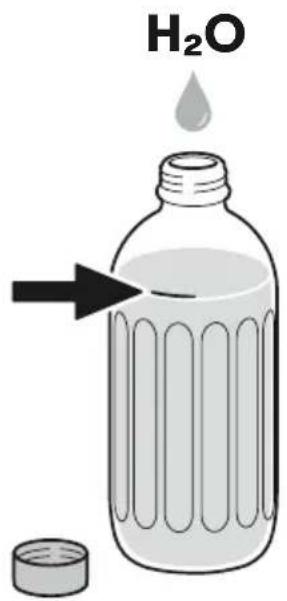

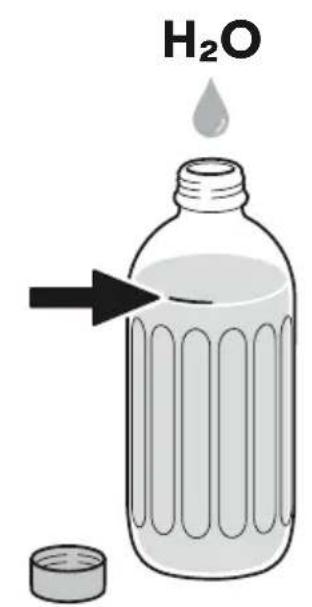

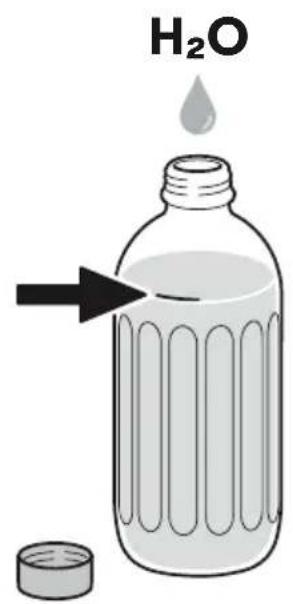

Fill the bottle up to the filling line.

Illustration of a hand operating a laboratory distillation or gas collection machine with a labeled component (no text or symbols on the device itself)

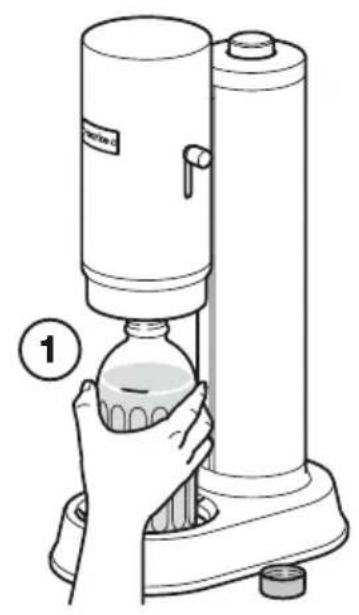

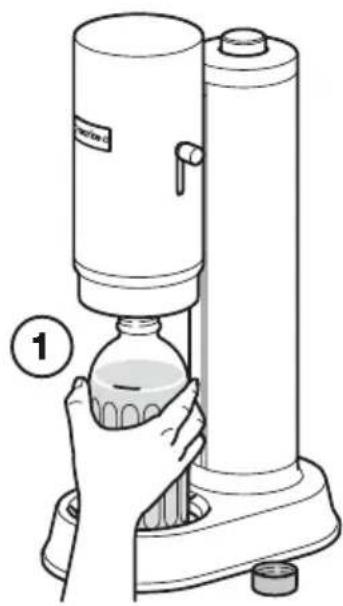

1. Place the bottle in the base.

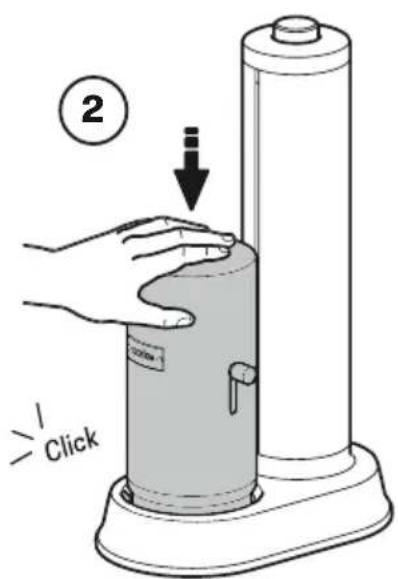

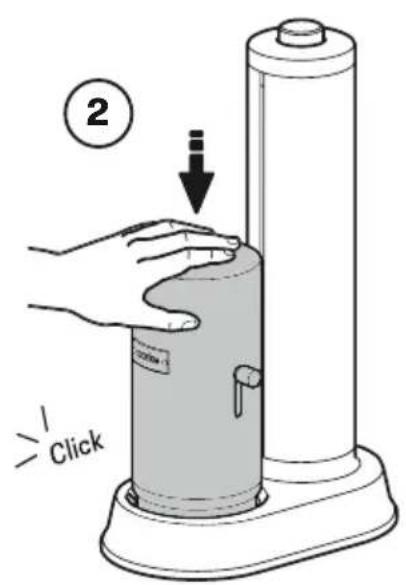

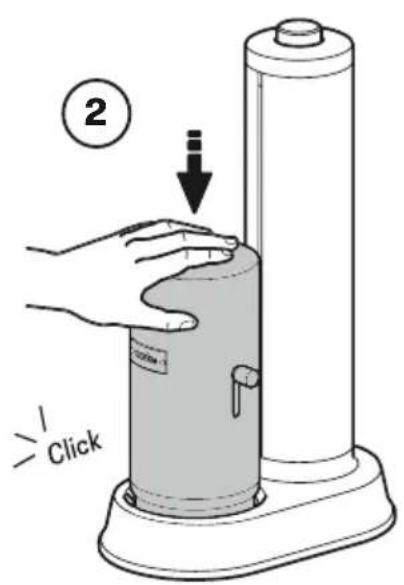

1. Press down the cover until it clicks.

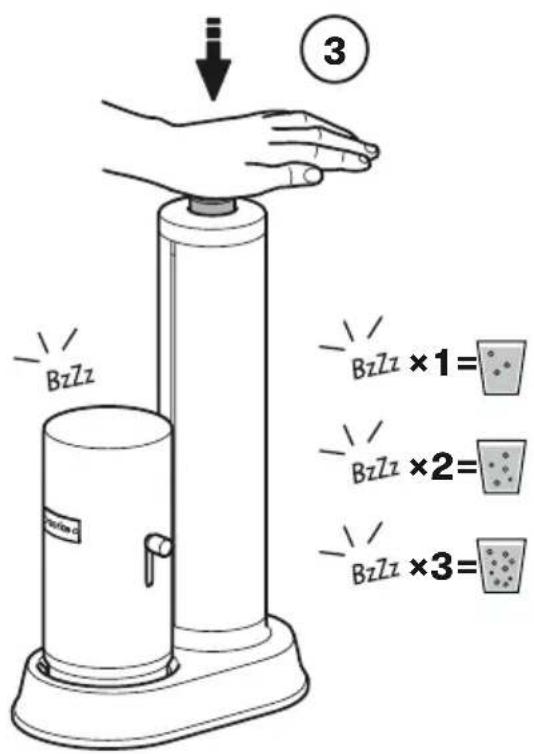

1. Carbonate the water by pressing the Carbonator button until you hear a buzzing sound.

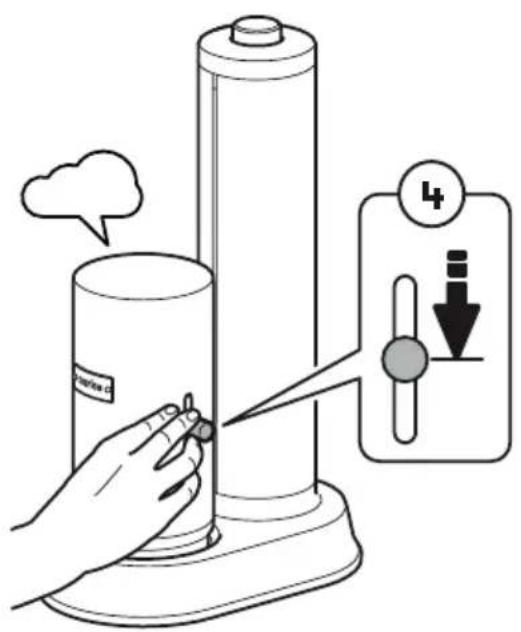

1. Press down the handle halfway to release the remaining pressure.

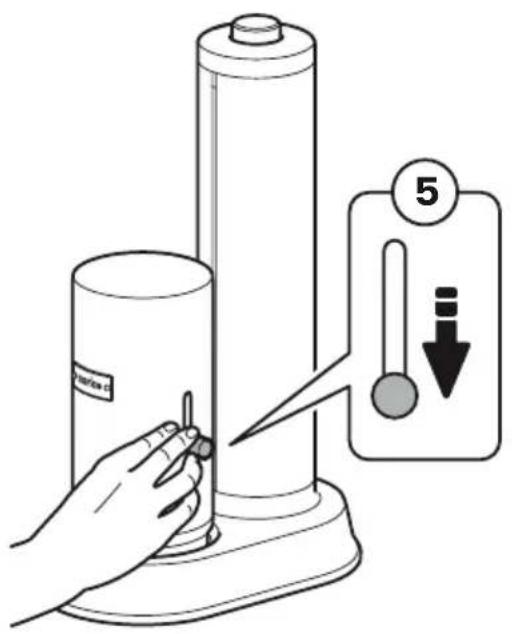

1. Continue to press the handle all the way down to raise the cover.

Illustration of a hand holding a small bottle next to a tall stand mixer (no text or symbols present)

Simple line drawing of a plastic bottle with a cap and side grooves (no text or symbols)

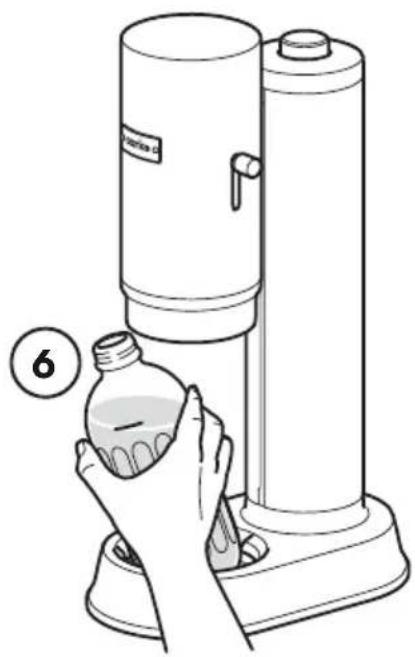

1. Enjoy your sparkling water!

Other advice

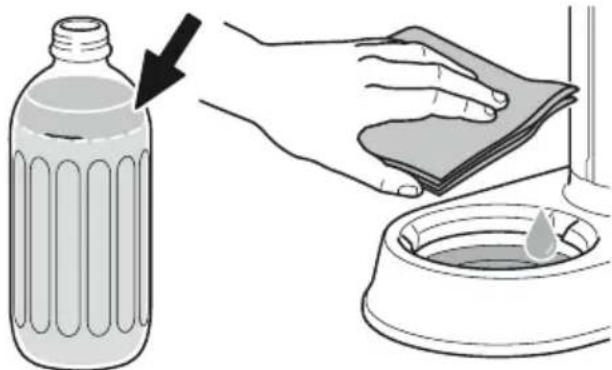

Water in the drip tray

If the bottle is overfilled, excess water will be collected in the drip tray. This is not wrong, but to avoid this, be sure to only fill up the bottle to the filling line. To empty the drip tray use a clean dishcloth.

Illustration showing a hand cleaning a plastic bottle with a cloth, next to a water droplet on a sink (no text or symbols)

Clean the bottle

The bottle is durable enough to be washed in the dishwasher, but we recommend washing it by hand to prolong its look. Before first time use, make sure to wash the bottle with lukewarm water and mild detergent.

Clean the Carbonator

To prolong the look and performance of your Carbonator, use the included cloth or a clean microfiber cloth to clean the Carbonator.

For Carbonators with a matte finish, we recommend a soft cloth and clean water. For Carbonators in stainless steel, we recommend a microfiber cloth moisturized with clean water and mild soap if needed. Avoid strong detergents and abrasive household cleaners, this applies to all Carbonators.

Avoid bacteria and odor by keeping the bottle clean and storing it with the cap off.

Use cold water

For more efficient use of the CO_2 it's recommended to carbonate refrigerator cold water

Protect your countertop

In some conditions water from condensation can arise on the CO_2 canister. Make sure to regularly wipe your countertop under your Carbonator Pro, to protect the surface.

Recycling

The Carbonator and its associated items are designed and manufactured with high quality materials and components which can be recycled and reused. Seperate and recycle the parts according to local regulations.

Approved gas cylinders

The Carbonator is compatible with standard gas cylinders approved for use with sparkling water machines from all major brands. Other gas cylinders may seem to work, but could damage the machine or cause a safety risk. Make sure to use gas cylinders with the following measure and weight:

CO _2 gas cylinder

∅ 60 mm

Weight 425 g

Troubleshooting guide

Problem Solutions
1. When I push the Carbonator button, very little or no gas comes out.	Make sure you're pushing the Carbonator button all the way down (without forcing it).Try screwing the gas cylinder in a bit tighter and try again (some older cylinders need a little extra tightening).Listen for a leaking sound when you push the Carbonator button – if you hear one, refer to problem #3.Check to see if the gas cylinder is empty.
2. Gas is flowing into the bottle when I push the Carbonator button, but the water isn't carbonated.	Make sure you're pressing the Carbonator button until you hear a buzzing sound, then release. Be sure to not release until you hear the buzzing sound!
3. I hear a leaking sound when I push the Carbonator button and very little gas is flowing into the bottle.	Try screwing the cylinder in a bit tighter.There may be an issue with the cylinder gasket. See “Cylinder gasket troubleshooting”.
4. The cover is hard to push down.	Try to press further back on the cover.
5. The gas cylinder is freezing inside the machine during use.	There may be a leak between the cylinder and the machine.Try screwing the gas cylinder in a bit tighter. If it doesn't work, see “Cylinder gasket troubleshooting”.
6. Water appears in the drip tray after carbonating with a new gas cylinder.	Water in the drip tray is normal. However be sure to not fill the bottle over the filling line. Wipe away excess water with a sponge.
7. The cover doesn't fasten in the base when I press it.	Try pressing harder on the cover.

If the suggested solutions above is not working

contact us at [e-mail]

Cylinder gasket troubleshooting

The rubber gasket inside the Carbonator's cylinder compartment is an important seal between the cylinder and the machine. If the gasket is missing, damaged, or misplaced, the machine will not work as intended. Symptoms of this could be:

• A leaking sound from the cylinder compartment when pressing the Carbonator button.
  • Water droplets in the cylinder compartment or a frozen cylinder.
  • The cylinder quickly runs out of gas.
• The cylinder is leaking gas when screwed into the machine, even when the button isn't being pushed.

Checking the gasket

1. Lay the Carbonator on its side and unscrew the cylinder.
2. Look into the cylinder compartment. Check if there is a black ring around the brass pin. If not, continue to "Replacing the gasket".
3. If there is a black ring that is damaged or placed incorrectly, remove it and continue to "Replacing the gasket".

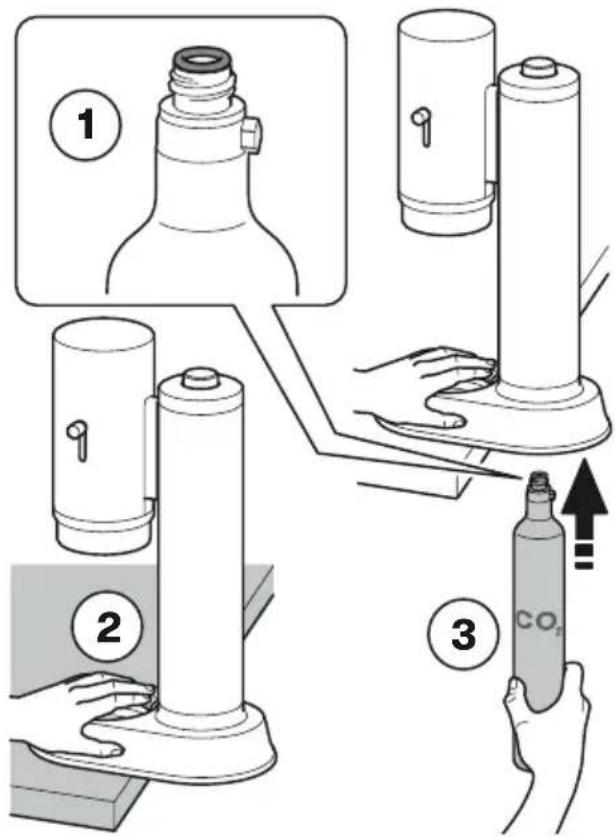

Replacing the gasket

There is an extra gasket stored under the base of the machine, underneath a sticker labeled "Extra Gasket." Remove the sticker and take out the extra gasket.

1. Place the new gasket on the gas cylinder.
2. Drag the Carbonator over the side of the table.
3. Insert the cylinder and screw it in place. When the cylinder is removed the gasket will remain in place.

Customer support

If you experience a problem with your machine, please do the following:

1. Check the "Troubleshooting guide"

Please read through the troubleshooting guide and attempt the suggested solutions.

2. Contact us at [e-mail]

If the troubleshooting guide doesn't help, please contact us at [e-mail]. We'll answer within two business days. Our customer service department is based in Sweden, and can communicate in English and Nordic languages. For support in other languages, your request will be forwarded to your local distributor.

Scan the QR-code for more information and Frequently asked questions
