USER MANUAL Purifier AARKE

For usage of Purifier in USA and Canada see separate User Guide

Making water better.

You have just invested in a modern take on water filtration made almost entirely out of stainless steel and glass. No plastic filters, no plastic pitcher – time to say goodbye to disposable and hello to durable. Now that you've said it, please continue reading:

Your new Aarke Purifier is easy to use, easy to clean, more friendly to our planet and designed to elevate any dinner table. A combination of function and elegance. Alongside the Purifier, we offer filter granules produced in collaboration with BWT, one of the world's leading water technology companies. All in all, you get perfectly filtered, pure-tasting water in combination with health benefits. And a filter pitcher for the ages.

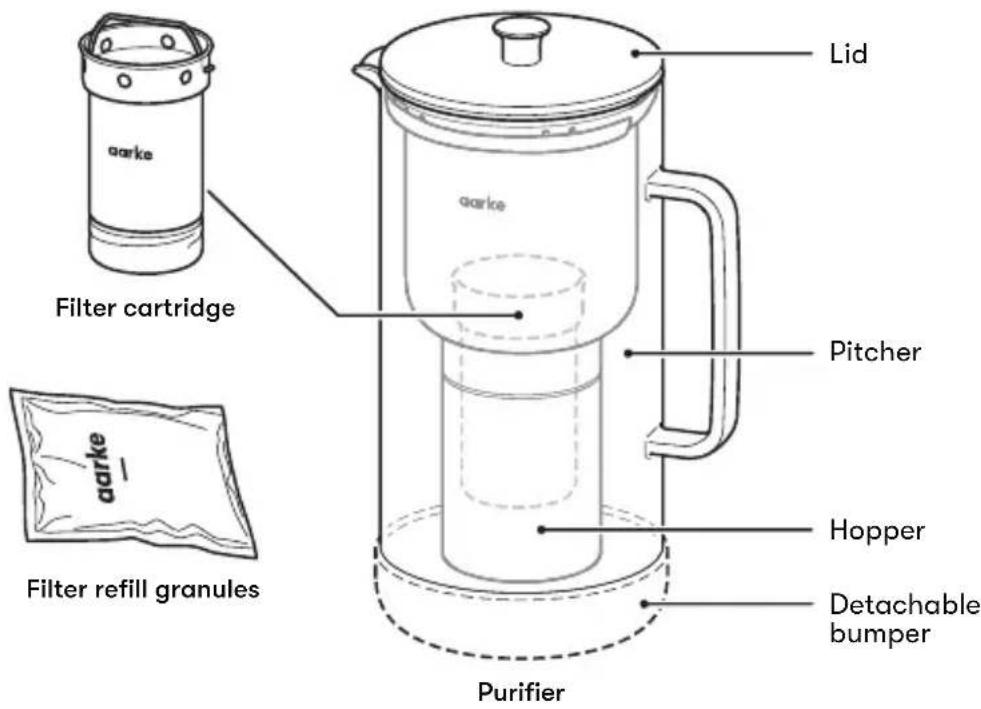

Items and components

Included items

Filter cartridge aarke LiD aarke Pitcher Filter refill granules Hopper Detachable bumper Purifier

Technical specifications

Purifier

Height ≈ 275 mm

Pitcher ∅ ≈ 120 mm

Weight ≈ 1100 g

Filter capacity ≈ 1.18 L / 5 cups

Total volume ≈ 2.4 L / 10 cups

How to use

Clean the Purifier prior to the first use or when changing the used granules. Use mild soapy water and rinse troughly with warm water. Do not use abrasive cleaning agents or scrubbing sponges.

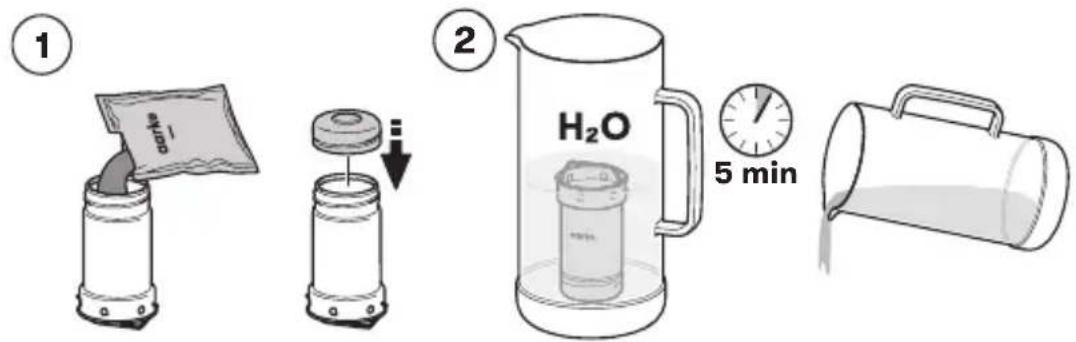

Diagram illustrating a water filtration process with labeled steps and a 5-minute time measurement.

1. Add the filter granules to the filter cartridge. Close the filter cartridge lid.
2. Place the filter cartridge in tap water for 5 minutes. Discard the water.

③ H₂O ④ ×1

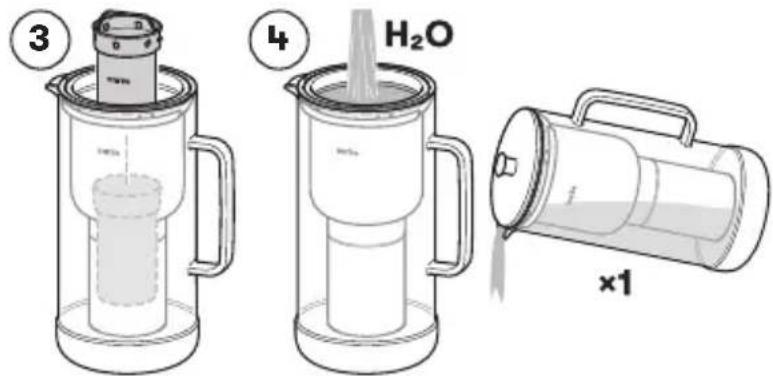

1. Place the filter cartridge in the hopper.
2. Fill the hopper with cold tap water. Rinse out once. Make sure that there is no granules in the water.

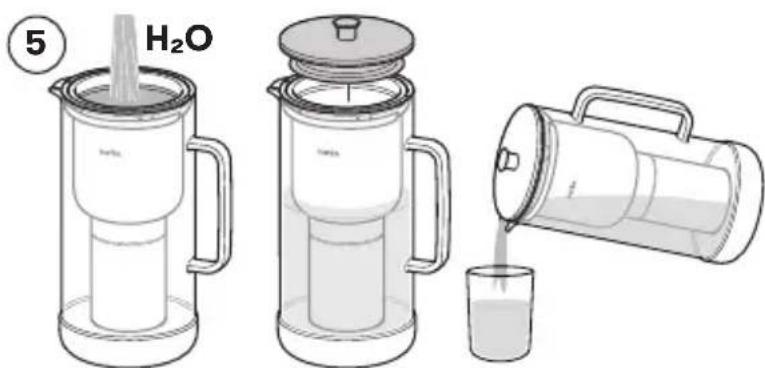

⑤ H₂O H₂O

1. Enjoy!

Maintenance and Recycling

Change the granules

The granules can be used for 4 weeks or for 120 liters of filtered water. Thereafter the granules are to be replaced. The granules should be disposed in the household waste. Wash the filter cartridge before you fill it with new granules. For best quality of water, store the Purifier in the fridge.

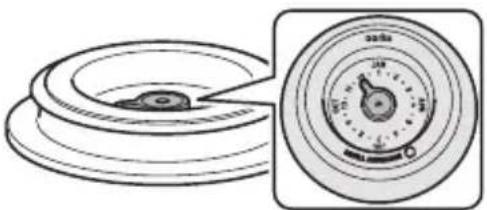

Refill reminder

The granules must be replaced after 4 weeks. Use the refill reminder in the lid to keep track of when the granules was last replaced. Optimal water is only guaranteed if the granules are changed regularly.

Diagram showing a circular device with internal components and a magnified view of its interior (no text or symbols)

Cleaning

Clean the Purifier at least once a week. All parts can be washed in the dishwasher.

<60°

For 100% product safety, We recommend that you boil the filter <60° cartridge once a week for hygienic reasons. Put the filter cartridge, including the granules, in boiling water for 3 minutes. Let it cool. Place the filter cartridge in the hopper and fill with water. Rinse once.

Lime residues

Lime residues can be removed with limescale removal agents. Do not use steel wool.

Store the Filter refill granules

• The Filter refill granules should always be kept in the original packing foil until the granules are to be changed. Don't open before use.
• The Filter refill granules are to be stored in a cool, dry place and may not be exposed to direct sunlight.

Recycling

The Purifier and its associated items are designed and manufactured with high quality materials and components which can be recycled and reused. Seperate the parts of the Purifier, including the packaging, and recycle them according to local regulations.

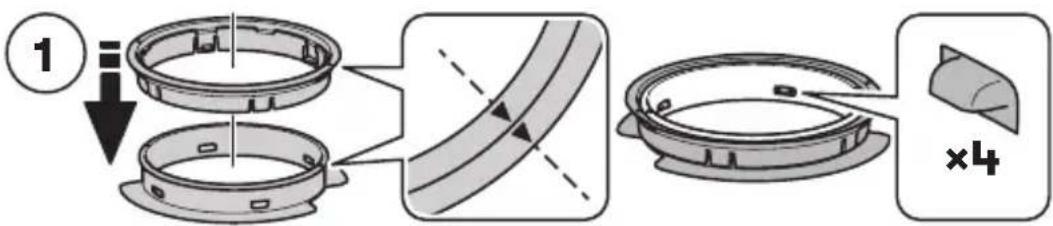

Detailed design


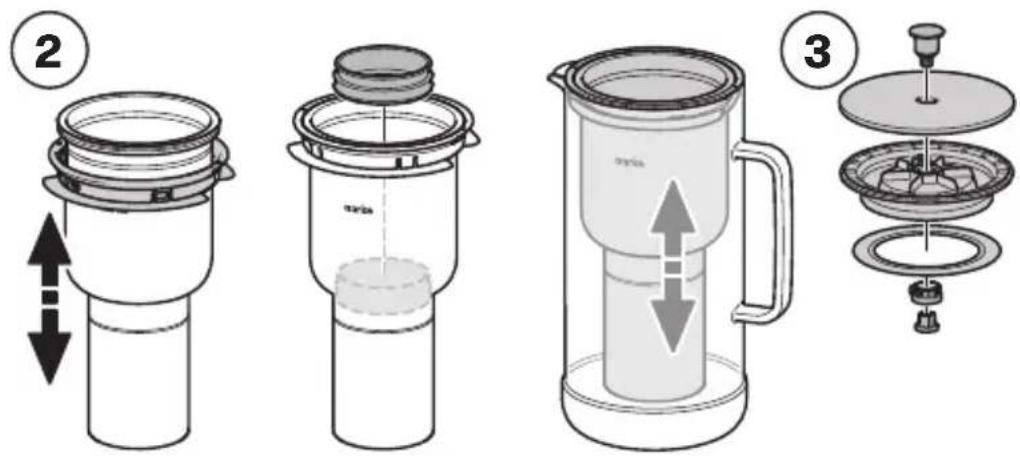

Diagram showing three stages of a coffee maker with labeled parts and directional arrows indicating movement.

Safety guidelines

- This product may only be used with cold water fulfilling the legal requirements on drinking water quality.

- The water filter is unsuitable for production of drinking water, e.g. the filter may not be used for treatment of contaminated water.

- The filtered water is intended for short-term use. It may not be exposed to direct sunlight, is to be stored in a cool place and not longer than 24 hours. If the filtered water is kept longer than 24 hours in the Purifier, evaporation of water may cause white marks in the jug. Removed these through cleaning.

• After filtering 3 liters continuously, make a 15-minute pause.

- Permanent water contact to the filter cartridge is not particularly necessary in order to guarantee long-term operation of the filter cartridge. The filter cartridge continues to function, even if it s taken out of the water for some time.

- If, officially, you are requested to boil the tap water due to contamination, this applies to Aarkes filtered water. When the authorities classify the tap water again as harmless, the filter granules must be changed and the Purifier must be cleaned.

- For certain groups, e.g. people with limited immune defence and for preparation of baby food, the filtered water is to be boiled.

- Do not eat the granules.

- For hygienic reasons, the filter granules contain small quantities of silver that may be given off to the water. It is harmless and in compliance with the World Health Organization recommendations for potable water.

• The filter granules should be replaced after 4 weeks of use.

• In order to guarantee the drinkability of the treated water and to maintain the improvements as declared by the manufacturer, this product requires regular maintenance.

- If the use is interrupted, keep the Purifier and the filter cartridge in the fridge. In case of interruption of use for more than 2 days, pour out the water and refill.

• After a downtime of more than 2 weeks, replace the filter granules.

• Glass product, handle with care.

- Keep the product away from children.

• To prevent bacterial growth. Always place the lid facing up.

- The service life of the filter granules varies according to the location where it is used, as the quality of the water is not the same everywhere. The capacity of the filter granules depends on the hardness of the water. The harder the water, the earlier the filter granules will be exhausted.

Customer support

FAQ and troubleshooting

Do you have a problem with your Purifier? Scan the QR code or go to support at aarke.com.

Customer support

QR code image containing encoded data, no visible human-readable text

If the troubleshooting guide doesn't help, please contact us at [e-mail].

Diagram illustrating a chemical experiment setup with two steps: adding a buffer into a beaker and adding water in a beaker, followed by a 5-minute time measurement.

⑤ H₂O H₂O

1. Savourez!

FR

Diagram showing a circular component with internal structure and its top view (no text or symbols)

Nettoyage

Diagram showing concentric circles with dashed lines indicating light rays, labeled "<60°" below (no text or symbols within the diagram itself)

Diagram showing three stages of a kitchen mixer with labeled parts and directional arrows indicating movement.

FR

QR code image containing encoded data, no visible human-readable text

FR

Diagram illustrating a water filtration process with labeled steps and a 5-minute time measurement.

⑤ H₂O H₂O

Diagram showing a circular component with internal structure and a magnified view of its internal dial (no text or symbols)

Reinigung

Diagram showing light rays reflecting off a surface with concentric circles and a 60-degree angle label (no text or symbols beyond the angle marker)

QR code image containing encoded data, no visible human-readable text

Kundenservice

Diagram illustrating a water filtration process with labeled steps and a 5-minute time measurement.

ES

⑤ H₂O H₂O

1. ¡A disfrutar!

Diagram showing a circular device with internal components and a magnified view of its top dial (no text or symbols present)

Limpieza

Diagram showing concentric circles with radiating lines and a label indicating <60° (no text or symbols within the diagram itself)

Diagram showing three stages of a coffee maker with labeled parts and directional arrows indicating movement.

QR code image containing encoded data, no visible human-readable text

⑤ H₂O H₂O

1. Pronti!

Diagram showing a circular component with internal structure and a magnified view of its top circular dial (no text or symbols)

Pulizia

Diagram showing concentric circles with arrows indicating direction, labeled '<60°' below (no text or symbols within the diagram itself)

QR code image containing encoded data, no visible human-readable text

IT

Diagram illustrating a chemical experiment with two steps: adding a buffer into a beaker and adding water in a beaker, followed by a 5-minute measurement.

⑤ H₂O H₂O

1. Njut!

Diagram showing a circular dial with measurement scale and a separate view of the dial (no text or symbols)

Rengöring

Diagram showing concentric circles with arrows indicating direction, labeled '<60°' below (no text or symbols within the diagram itself)

Diagram showing three stages of a blender with labeled parts and directional arrows indicating movement or assembly.

Säkerhetsriktlinjer

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a chemical experiment setup with two steps: adding a buffer into a beaker and adding water in a beaker, followed by a 5-minute measurement.

⑤ H₂O H₂O

1. Nauti!

Diagram of a mechanical component with a circular dial and a separate view showing internal structure (no text or symbols)

Puhdistaminen

Diagram showing concentric circles with arrows indicating direction, labeled '<60°' below (no text or symbols within the diagram itself)

Diagram showing three stages of a coffee maker with labeled parts and directional arrows indicating movement or assembly.

Turvallisuusohjeet

QR code image containing encoded data, no visible human-readable text

Asiakaspalvelu

Diagram illustrating a water filtration process with labeled steps and a 5-minute measurement of water.

⑤ H₂O H₂O

1. Smacznego!

Diagram showing a circular component with internal structure and its top view, no text or symbols present.

Czyszczenie

Diagram showing concentric circles with arrows indicating direction, labeled <60° below (no text or symbols within the diagram itself)

Diagram showing three stages of a coffee maker with labeled parts and directional arrows indicating movement or assembly.

PL

QR code image containing encoded data, no visible human-readable text

Wsparcie klienta

Diagram illustrating a chemical experiment with two steps: adding water into a blender and adding H2O solution, followed by a 5-minute time measurement.

⑤ H₂O H₂O

1. Geniet!

Diagram of a mechanical component with a circular dial and a separate view showing internal structure (no text or symbols)

Schoonmaak

Diagram showing concentric circles with arrows indicating direction, labeled '<60°' below (no text or symbols within the diagram itself)

Diagram showing three stages of a coffee maker with labeled parts and directional arrows indicating movement.

NL

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a water filtration process with labeled steps and a 5-minute measurement of water.

⑤ H₂O H₂O

1. おいしい 水 をお 楽しみください。

メンテナンスとリサイクル

顆粒の交換

Diagram showing a circular component with internal structure and its top view (no text or symbols)

お手入れ

Diagram showing three stages of a coffee maker with labeled parts and directional arrows indicating movement.

安全ガイドライン

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a water filtration process with labeled steps and a 5-minute time measurement.

⑤ H₂O H₂O

1. 깨끗한 물을 즐기시면 됩니다!

KO

유지관리 및 재활용

입자 교환

Diagram showing a circular component with internal structure and a magnified view of its interior (no text or symbols)

청소

People are being the most of 3 members and they have to be able to get up. In addition, they will not be able to get out. 채우십시오.1회 햇귀 내십시오.

석회 잔류물

Diagram showing three stages of a coffee maker with labeled parts and directional arrows indicating movement.

KO

안전 지침

QR code image containing encoded data, no visible human-readable text

⑤ H₂O H₂O

1. 现在可以享用了！

ZH

维护与回收

更换颗粒

Diagram of a mechanical component with a circular dial and a separate view showing internal components (no text or labels)

清洁

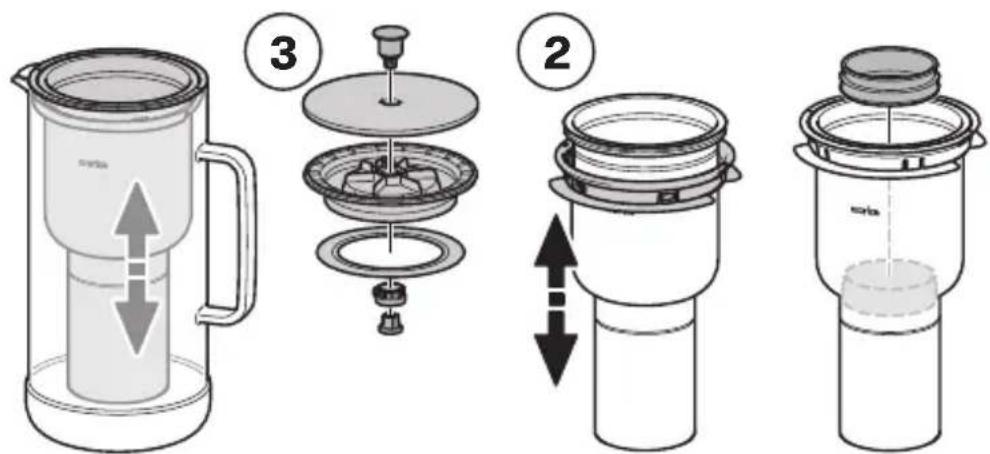

Diagram showing three stages of a coffee maker with labeled parts and directional arrows indicating movement or assembly.

安全指导原则

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Diagram showing three stages of a coffee maker's internal structure, labeled with arrows indicating movement or assembly.

إرشادات السلامة

② H₂O 5 ①

⑤ H₂O H₂O

1. استمتع بكل رشفة!

Diagram of a mechanical component with a circular dial and its side view (no text or symbols)

Diagram showing concentric circles with dashed lines indicating light rays, labeled '<60°' below (no text or symbols within the diagram itself)
