Carbonator II - Sodastream AARKE - Free user manual and instructions

Type	Sparkling water maker
Brand	Aarke
Model	Carbonator II
Height	414 mm
Width	153 mm
Depth	258 mm
Weight	1450 g
Material	Polished stainless steel or lacquered steel
Water bottle volume	0.8 L (up to filling line)
Water bottle height	265 mm
Water bottle diameter	85.5 mm
Water bottle weight	209 g
CO2 cylinder compatibility	Standard gas cylinders (425 g, 60 mm diameter)
Carbonation method	Manual lever
Adjustable carbonation	Yes, by repeating the process
Warranty	2 years
Included accessories	Water bottle, user manual
Cleaning	Microfiber cloth and water; mild soap if needed
Bottle cleaning	Lukewarm water with mild detergent; do not wash in dishwasher
Spill tray cleaning	Remove water with a dishcloth
Safety	Carbonate only plain water; keep away from heat; use only Aarke bottles
Country of origin	Sweden (Aarke AB, Stockholm)
Customer support	[e-mail]
Gasket replacement	Extra gasket located under the foot

Frequently Asked Questions - Carbonator II AARKE

How do I attach the gas cylinder?

Lay the carbonator on its side with the lever up. Insert the cylinder through the bottom hole and screw clockwise until fastened. Do not overtighten.

What type of water can I carbonate?

Only plain, cold water. Never carbonate flavored liquids, juice, milk, wine, or add fruit slices, ice, or syrups before carbonating.

Why is there water in the spill tray?

Water in the spill tray is usually caused by overfilling the bottle. Ensure the water level does not exceed the filling line.

How do I clean the sparkling water maker?

Use a microfiber cloth and water. For polished steel, mild soap can be used. For lacquered versions, use a soft cloth or sponge. Avoid abrasive cleaners.

Can I use water bottles from other brands?

No. Only use Aarke water bottles. Bottles from other brands may damage the machine and cause safety risks.

How do I adjust the carbonation level?

Repeat the carbonation process for more bubbles. For less gas consumption, lift the lever halfway between cycles to release the pressure without wasting CO2.

What if no gas comes out when I push the lever?

Check if the cylinder is empty or not screwed in tightly. Ensure you push the lever all the way down until you hear a buzz. If still no gas, contact support.

How do I replace the cylinder gasket?

Remove the sticker labeled 'Extra gasket' under the foot. Unscrew the back screw, lift the upper part, replace the old gasket with the new one, and reassemble. See detailed instructions online.

Can I carbonate juice or wine?

No. Carbonating anything other than plain water can cause valves to malfunction and create a safety hazard.

How do I contact customer support?

Email [e-mail]. Responses within 24 hours on weekdays. Support is available in English and Nordic languages.

USER MANUAL Carbonator II AARKE

Line drawing of a fire extinguisher with a vertical cylinder and handle, mounted on a stand (no text or symbols)

Congratulations to your new sparkling water maker from Aarke.

A few minutes spent on reading this book will enable you to get the very best out of this excellent soda maker. Carbonating water at home is convenient, affordable and environmentally friendly. The other advantage with a carbonator over bottled mineral water is that you can choose your own level of carbonation. You will soon get to know your carbonator and learn how you should operate it to get the perfect level of carbonation. Some people like a real carbonation bite and some want a milder effervescent taste.

The Aarke sparkling water maker is carefully crafted in the finest materials, designed and tested for best possible quality and safety. However, products that include gas and high pressures should always be handled with care. It is, therefore, important that the product is used as intended. Please read through the safety section of this book carefully before using it.

Welcome to Aarke!

User guide English

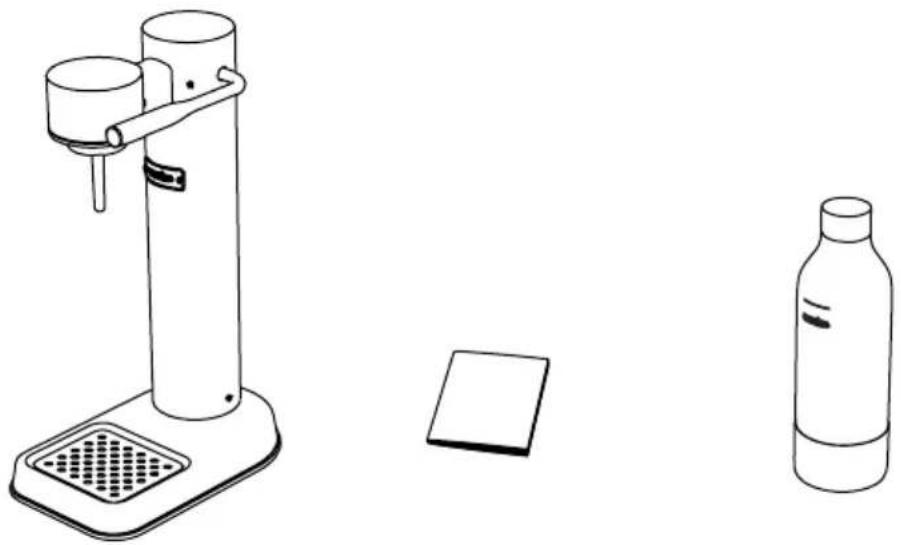

INCLUDED IN THE BOX

Line drawings of a desktop kitchen stand, a flatboard, and a water bottle (no text or symbols)

Sparkling water maker Water bottleThis book

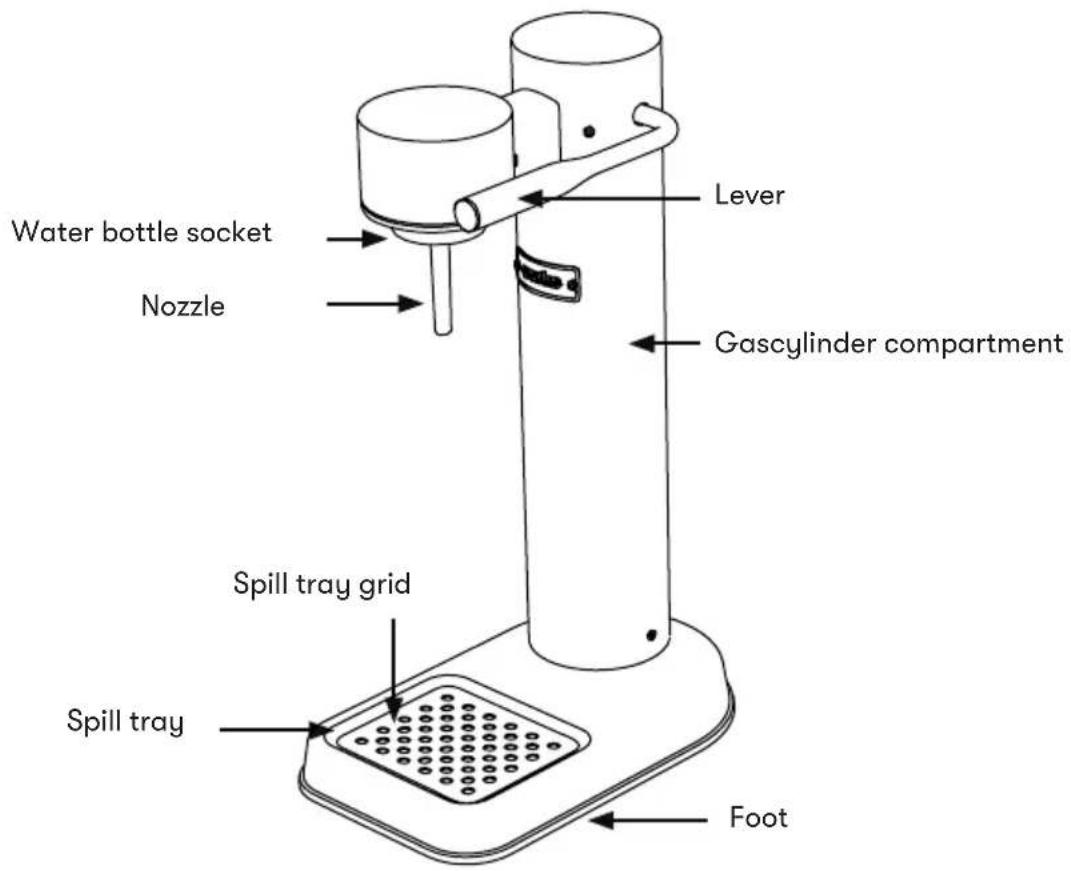

PRODUCT COMPONENTS

User guide English

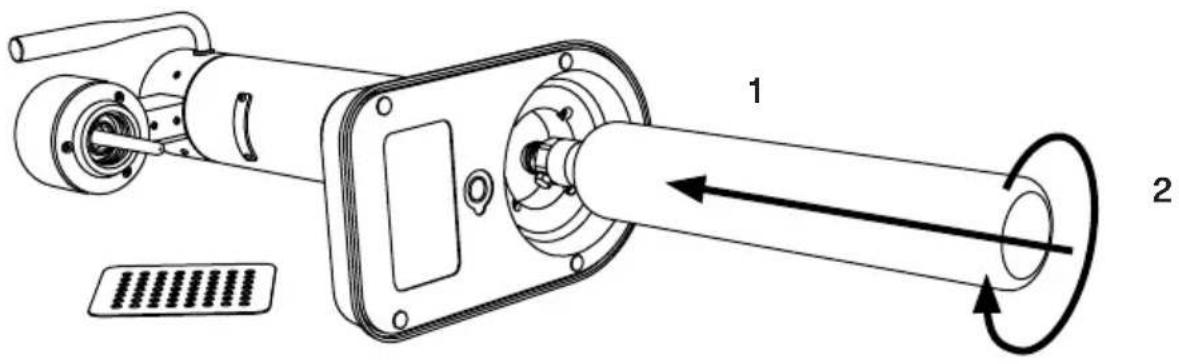

ATTACHING THE GAS CYLINDER

Remove the spill tray grid and then carefully lay the carbonator down on the side with the lever upwards.

Unscrew the plastic sealing from the cylinder top. Carefully insert the gas cylinder through the hole at the bottom. Don't drop the cylinder into the hole. When you feel that it reaches the bottom, begin screwing the cylinder clockwise until it is fastened. Don't screw too hard since this might break the threads holding the gas cylinder in place.

When you need to replace the gas cylinder, lay the carbonator down on the side with the lever pointing up and unscrew it counterclockwise and then carefully pull it out of the compartment.

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

THE CARBONATION PROCESS

1. Fill the water bottle

Rinse the water bottle with luke warm water before you use it for the first time. Fill the water bottle with cold, clean water up to the marked filling line. If you fill too much you will get a lot of water in the spill tray during carbonation.

3. Carbonate the water

Pull the lever downwards until you hear a sound from the valve.

Simple line drawing of a laboratory apparatus with a rotating vial and upward arrow (no text or symbols)

2. Attach the water bottle

Screw the water bottle into the water bottle socket. Screw counterclockwise if viewed from above. Don't screw extremely hard - just make sure the water bottle sits properly.

4. Ventilate the bottle

Release the lever back to horizontal position. The remaining pressure in the water bottle will be released with a puff sound. Then unscrew the water bottle.

DEGREE OF CARBONATION

With the Aarke Sparkling water maker you can easily learn how to adjust the degree of carbonation, or, how much bubbles you want. The level of carbonation depends on many factors such as the temperature of the water and the amount of gas in the gas cylinder.

How would you like your soda water?

You will add more carbonation to the water by repeating the carbonating process. The process will consume less gas if you only lift the lever half-ways (enough to quiet the buzzing sound but before relieving the pressure from the bottle) between the carbonation cycles.

KEEPING YOUR SPARKLING WATER MAKER BEAUTIFUL AND CLEAN

Polished steel version

This carbonator is made of polished stainless steel. Stainless steel gets its lustre from the chrome and its stainless quality from the nickel. Adhering to the maintenance tips will ensure that you enjoy (the look of) your Aarke Carbonator for a long time. To clean your carbonator we recommend using a micro fibre cloth and water. If needed you could use some mild soap. Do not use strong detergents or cleanser with abrasive substance.

Lacquered version

The lacquered Aarke Carbonators are made of polished stainless steel that have been industrially painted in various colours and finishes. To clean your glossy lacquered Aarke Carbonator we recommend using a micro fibre cloth and water. If needed you could use some mild soap. To clean you matte lacquered Aarke Carbonator we recommend using a soft cloth or sponge and water. If needed you could use some mild soap. Never use strong detergents or cleanser with abrasive substance.

User guide English

RINSING THE WATER BOTTLE

To clean the Aarke water bottle use clean lukewarm water with a mild detergent. If using a dishwasher brush, make sure the brush is intended to be used for cleaning plastic bottles and do not leave any scratches. Do not use solvents, strong detergents or cleanser with abrasive substances.

Never wash the Aarke water bottles in a dishwasher. The Aarke water bottles can withstand a maximum temperature of 40 degrees Celsius.

Line drawing of a bottle labeled 'aarke' with a brush and a small container nearby (no text or symbols on the main objects)

EMPTYING THE SPILL TRAY

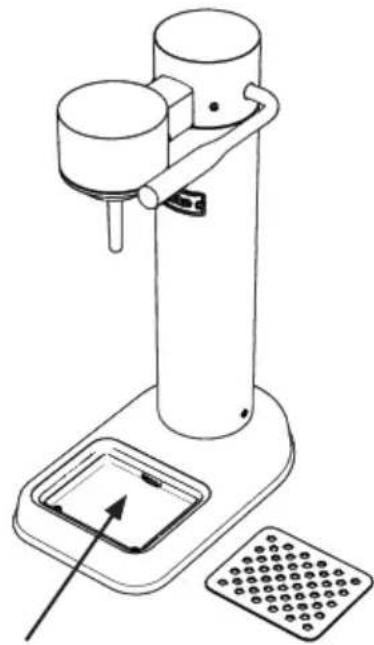

Why is there water in the spill tray?

Water that flushes through the machine during the carbonating process ends up in the spill tray. This is often a result of too much water in the water bottle. Make sure the water is not filled above the filling line.

Line drawing of a laboratory instrument with a baseplate and two cylindrical components, no text or symbols present.

Remove the water with a dish-cloth.

SAFETY GUIDELINES

Never carbonate anything other than plain water

When carbonating, a small amount of liquid could bubble up through the valves. If the water contains sugar or other compounds the valves could start malfunction and the product could potentially be dangerous to use. Never add fruit slices, ice and flavours in the water bottle. Use a pitcher or mix it directly in your glass. Rinse the water bottle carefully before filling it with water.

or herbs in the water bottle before carbonating.

Don't put flavours or syrup into the water bottle before carbonating.

Don't carbonate wine. Don't put fruits, veg

Simple line drawing of a rectangular container with a straw inserted (no text or symbols)

Don't carbonate juice or milk.

Three overlapping squares with dots, no text or symbols present

Don't put ice in the water bottle before carbonating.

Line drawing of a plastic bottle with cap and side handles (no text or symbols)

Don't give new life to old flat soda.

User guide English

Never clean the water bottle in the dishwasher

The water bottle is designed to withstand pressures up to double the working pressure of the carbonator. However, this ability is quickly destroyed if the bottle is exposed to heat above 40 degrees Celsius. Most dishwashers operate at very high temperatures so therefore never put the bottle in the dishwasher.

Symbolic diagram with a black 'X' over a grid of circles and dashed lines, no readable text or labels

Keep the sparkling water maker away from potential sources of heat

Due to the laws of physics, the pressure in the gas cylinder depends on the outside temperature. The Aarke sparkling water maker is optimized for using the gas cylinder at room temperature. If the cylinder gets too hot, it could be dangerous to use the machine.

Simple line drawing of a solar panel and thermometer inside a circular frame (no text or symbols)

Don't place the sparkling water maker in a sunny window.

Simple line drawing of a heat exchanger with steam rising (no text or symbols)

Don't place the sparkling water maker close to a hot radiator.

Simple line drawing of a flame inside a prohibition symbol (no text or numbers)

Don't place the sparkling water maker close to an open flame.

Simple line drawing of a sun and palm tree inside a circular frame (no text or symbols)

Don't use the sparkling water maker in extreme hot conditions.

User guide English

Do not transport the sparkling water maker with the gas cylinder attached

Always unscrew the gas cylinder during transport.

Do not use the water bottle after the expiry date

After the bottle has expired, the plastic may have weakened a little bit and for safety reasons the water bottle should be replaced with a new one.

DO NOT USE WATER BOTTLES FROM OTHER BRANDS. THIS CAN DAMAGE THE MACHINE AND LEAD TO A SAFETY RISK.

More advices on the water bottle

Never use a bottle that has been deformed, miscolored or scratched.

Never put the bottle in the freezer.

Keep bacterias and bad smell away by always keeping the bottle clean and storing it without the cap being screwed on.

User guide English

Never inject gas into an empty water bottle

Using an empty water bottle may lead to a higher pressure in the water bottle which could result in a safety risk.

Simple line drawing of a laboratory distillation setup with a round-bottom flask and heated tube (no text or labels)

Keep the sparkling water maker away from children

Children are way too creative to use this product.

Simple line drawing of two figures interacting with a water level test stand (no text or symbols)

Always use your sparkling water maker in an upright position

If used in other ways than standing in an upright position, dangerous levels of CO2 could accumulate in the water bottle during carbonation.

Technical line drawings of two mechanical devices, one with a handle and the other without a prohibition symbol (no text or labels)

User guide English

WARRANTY

The Aarke sparkling water maker is designed to meet and exceed your expectations in terms of quality and safety. Great care has been taken to ensure that it was delivered to you in a perfect working condition. However, if your carbonator malfunctions within 2 (two) years (or according to specific country laws) from date of purchase, and we determine the problem is due to faulty workmanship or materials, Aarke will repair or replace the product free of charge.

This warranty is invalid if product is damaged due to:

• An accident taking place after purchase.
• Abuse and misuse according to this book.
• Modification, or repair made by anyone except an authorized Aarke Service Centre.
• Damages caused by the use of water bottles other than those provided by Aarke.
• Damages caused by the use of faulty gas cylinder.

CUSTOMER SUPPORT

If you have problems with your machine, please go through the following steps:

1. Check the troubleshooting guide

Please check the troubleshooting guide on the next page and try the suggested solutions.

2. Contact us at [e-mail]

If the troubleshoot guide did not help, please contact us at [e-mail]. We will answer within 24 hours on weekdays. The customer service department is based in Sweden and can communicate in English and the Nordic languages. If you write in other languages your request will be forwarded to your local distributor.

TROUBLESHOOTING GUIDE

Problem: Suggested solutions

1. There comes no gas or too little gas when pushing down the lever.	- Check that the cylinder is not empty- Try screwing the cylinder a little harder and try again. Some old cylinders requires this.- Make sure you are pushing the lever all the way down (without forcing it)- If you hear a leaking sound from the machine when you push down the lever, please check under problem 3.- If nothing of this helped, please write an email to [e-mail] and describe your problem.
2. Gas is flowing into the bottle when pushing down the lever, but the water is not getting carbonated.	- Make sure you are holding the lever down until you hear a buzz from the valve. Then release it. Don’t release it before you hear the buzz sound. If this doesn’t help you, please write an email to [e-mail] and describe your problem.
3. There is a leaking sound when pushing down the lever and very little gas is flowing into the water bottle.	- Try screwing the cylinder a bit harder- It may be something wrong with the cylinder gasket. Please see instructions for trouble shooting and replacing the gasket below.
4. There are drops of water inside the cylinder compartment	- Try screwing the cylinder a bit harder.- It may be something wrong with the cylinder gasket. Please see instructions for trouble shooting and replacing the gasket below.
5. Gas starts leaking out when screwing the cylinder into the machine, even though the lever is not being pushed down.	- There may be something wrong with the cylinder gasket. Please see instructions for trouble shooting and replacing the rubber gasket below.
6. Cylinder freezes inside the machine when in use.	- It may be due to a leak between the cylinder and the machine. Try screwing the cylinder a bit harder.- It may be something wrong with the cylinder gasket. Please see instructions for trouble shooting and replacing the rubber gasket below.

CYLINDER GASKET TROUBLESHOOTING AND REPLACEMENT

The rubber gasket inside the cylinder holder is a very important seal between the cylinder and the machine. If this is missing, damaged or misplaced, the machine will not work properly. Possible symptoms of a faulty or missing cylinder gasket could be:

1. Leaking sound from the cylinder compartment when pushing down the handle
2. Water drops in the cylinder compartment or freezing of the cylinder
3. Gas cylinder is running empty quickly
4. Gas cylinder is leaking gas when it is screwed into the machine, even though the lever is horizontal.

Checking status of gasket

Unscrew the cylinder. Turn the Aarke machine up side down. Look into cylinder compartment. Look if there is a black gasket (a black ring) around the brass pin and that it seems to be in place correctly.

Replacing gasket

(See aarke.com for an illustrated instruction.)

1. The extra gasket is placed under the foot below the sticker with the text "Extra gasket". Remove the sticker and take out the rubber gasket.
2. Make sure that the CO2 cylinder is not installed in the machine. A few inches below the black splitline there is a screw at the back of the machine. Unscrew it.
3. Grab the upper part of the machine and lift it out from the body.
4. Turn the upper part up side down and look into it. If needed, take out the old gasket with a tweezer / nipper or a small screwdriver.
5. Put the new gasket into the circular hole and push it in place all around the hole.
6. Put the upper part back on the main body. Make sure you put it back straight and in the right direction. Screw the screw at the back of the machine. Done!

TECHNICAL SPECIFICATIONS

Line drawing of a mechanical lever or lift with a cylindrical component inserted into the shaft (no text or symbols)

Simple line drawing of a bottle with cap and bottom base (no text or symbols)

SPARKLING WATER MAKER WATER BOTTLE

Height: 414 mm

Width: 153 mm

Depth: 258 mm

Weight: ≈1450 g

Height: 265 mm

Diameter: 85,5 mm

Weight: 209 g

Volume: ≈ 0,8 l

(up to the filling line)

∅ 60 mm

425 g

Compatible with standard gas cylinders approved for use with carbonators from all major brands worldwide*. Other gas cylinders might seem to work but could damage the machine or cause safety risk.

*Except Australia and New Zealand

AARKE AB

ERSTAGATAN 24

116 36 STOCKHOLM

SWEDEN

WWW.AARKE.COM
