USER MANUAL ColoRado 1QS Chauvet

Technical line drawing of a mechanical device with circular components and mounting base (no text or symbols)

About This Guide

The COLORado 1QS Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT open this product. It contains no user-serviceable parts.
  • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

• Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
  • Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.

• Locations that are prone to flooding or being buried in snow.
  • Other areas where the product will be subject to extreme radiation or caustic substances.

• USE a safety cable when mounting this product overhead.

• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
• The minimum startup temperature is -4^ (-20°C). Do not start the product at lower temperatures.
  • The minimum ambient temperature is -22^ ( -30^ ). Do not operate the product at lower temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• COLORado 1QS
• Seetronic Powerkon IP65 power cord

• Gel Frame

• Omega Bracket

• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

You can link up to 21 COLORado 1QS products at 120 V, 34 products at 208 V, or 37 products at 230 V. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• When using this product in an outdoor IP65-type environment, be sure to use IP65 (or higher) rated power cables and secure unused ports with attached IP65 covers.

DMX Linking

The COLORado 1QS will work with a DMX controller using a 5-pin serial or hard-wired connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The COLORado 1QS uses a 5-pin DMX or hard-wired connection for its DMX personalities: HSIC, SSP, TOUR, TR16, and STD.Y. See the User Manual for information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The COLORado 1QS uses the DMX data connection for its Master/Slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The COLORado 1QS supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

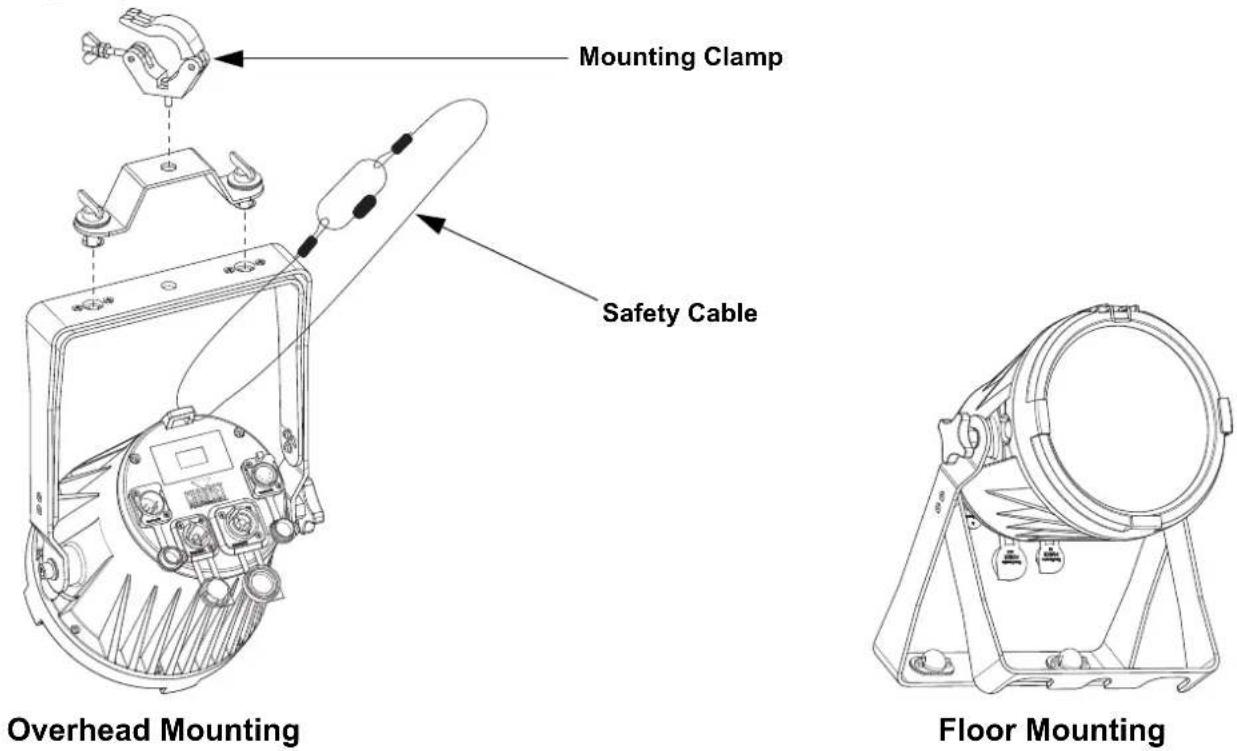

Mounting Diagram

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Passcode

After being prompted, enter the following passcode by pressing: , , , , .

This passcode cannot be changed and must be used whenever prompted.

Menu Map

Main Level Programming Levels Description
STATIC	RED RED 000-255				Combines red, green, blue, and white to make a custom color
	GREEN GREEN 000-255
	BLUE BLUE 000-255
	WHITE		WHITE 000-255
	STROBE		STROBE 0-25		Sets the strobe frequency (0-25 Hz)
ADDRESS	1-506*				Selects DMX address (*highest channel restricted to personality chosen)
AUTO PROGRAM	AUTO1-10		SPEED 0-255		Selects automatic programs and program speed
	PROGRAM1-10
RUN MODE	DMX				DMX mode (Master)
	SLAVE				Slave mode
PERSONALITY	HSIC				7-channel: dimmer, 16-bit hue, saturation, color temperature, strobe, dimmer speed
	SSP				7-channel: dimmer, RGBW, strobe, dimmer speed
	TOUR				10-channel: dimmer, RGBW, color macros, strobe, auto programs and speed, dimmer speed
	TR16				15-channel: 16-bit dimmer, 16-bit RGBW, color macros, strobe, auto programs and speed, dimmer speed
	STD.Y				15-channel: 16-bit dimmer, 16-bit RGBW, color macros, strobe, auto programs and speed, dimmer speed
EDIT	PROGRAM 01-10	SCENE 01-30	RED	0-255	Combines red, green, blue, and white to make a custom color
			GREEN	0-255
			BLUE	0-255
			WHITE 0-255
			STROBE	0-25 Sets	the strobe frequency (0-25 Hz)
			TIME	0-255	Sets the step duration (short to long)
			FADE	0-255*	Sets the fade speed (slow to fast) (*range determined by TIME setting)
SETTING	UPLOAD	****(Enter Passcode)		SEND	Uploads custom programs to other COLORado 1QS products
	RESET	****(Enter Passcode)			Resets the product to factory default settings
	DIMMER	OFF			Linear dimmer
		DIM1-4			Dimming speeds DIM1 (fast) to DIM4 (slow)
	DMX ERROR	SAVE			Continues last command upon loss of DMX
		BLACK			Blacks out product upon loss of DMX
SETTING (cont.)	PWM	600Hz	X FINE Y FINE	+/-200 Sets the PWM frequency
		1200Hz
		2000Hz
		2400Hz
		6000Hz
		18000Hz
		25000Hz
	FULL POWER CCT	WARM WHITE			Sets the color temperature when LED output is 100%
		NEUTRAL WHITE
		COOL WHITE
		NORMAL Manual color tem			perature
	XY OFFSET	HIDE			Shows or hides XY settings in PWM menu options
		SHOW
KEY	ON				Locks display (passcode is,,),()
	OFF
CALIB.C	****(Enter Passcode)	WHITE-01-13	X FINE	+/-200 Modifies the preset color temperatures
			Y FINE
INFO	VERSION V	Shows current firmware version
	RDM	UID ____ Shows product UID
		LABEL COLORado 1 QS Shows RDM label

DMX Values
STD.Y (15 Channels)

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Fine dimmer(when Ch. 13 is 000 ⇔ 140)	000 ⇔ 255	Fine control (16-bit)
	Step Duration(when Ch. 13 is 141 ⇔ 255)	000 ⇔ 255	Custom program step duration, short to long
3	Red(when Ch. 13 is 000 ⇔ 140)	000 ⇔ 255	0–100%
	Fade Speed(when Ch. 13 is 141 ⇔ 255)	000 ⇔ 255	Custom program fade speed, slow to fast
4	Fine red	000 ⇔ 255	Fine control (16-bit)
5	G r e e	n	000 ⇔ 255 0–100%
6	Fine green	000 ⇔ 255	Fine control (16-bit)
7	B l u e	000 ⇔ 255 0–100%
8	Fine blue	000 ⇔ 255	Fine control (16-bit)
9	White	000 ⇔ 255	0–100%
10	Fine white	000 ⇔ 255	Fine control (16-bit)
11	Color Macro	000 ⇔ 010	No function
		011 ⇔ 030	Red: 100% Green: 0–100% Blue: 0% White: 0%
		031 ⇔ 050	Red: 100–0% Green: 100% Blue: 0% White: 0%
		051 ⇔ 070	Red: 0% Green: 100% Blue: 0–100% White: 0%
		071 ⇔ 090	Red: 0% Green: 100–0% Blue: 100% White: 0%
		091 ⇔ 110	Red: 0–100% Green: 0% Blue: 100% White: 0%
		111 ⇔ 130	Red: 100% Green: 0% Blue: 100–0% White: 0%
		131 ⇔ 150	Red: 100% Green: 0–100% Blue: 0–100% White: 0%
		151 ⇔ 170	Red: 100–0% Green: 100–0% Blue: 100% White: 0%
		171 ⇔ 195	Red: 100% Green: 100% Blue: 100% White: 100%
		196 ⇔ 200	White 1
		201 ⇔ 205	White 2
		206 ⇔ 210	White 3
		211 ⇔ 215	White 4
		216 ⇔ 220	White 5
		221 ⇔ 225	White 6
		226 ⇔ 230	White 7
		231 ⇔ 235	White 8
		236 ⇔ 240	White 9
		241 ⇔ 245	White 10
		246 ⇔ 250	White 11
		251 ⇔ 255	White 12
12	Strobe	000 ⇔ 009	No function
		010 ⇔ 099	Strobe, slow to fast
		100 ⇔ 109	No function
		110 ⇔ 179	Lightning effect, slow to fast
		180 ⇔ 189	No function
		190 ⇔ 255	Random strobe, slow to fast
13 Automatic Programs		000 ⇔ 040 No function041 ⇔ 050 Automatic program 1051 ⇔ 060 Automatic program 2061 ⇔ 070 Automatic program 3071 ⇔ 080 Automatic program 4081 ⇔ 090 Automatic program 5091 ⇔ 100 Automatic program 6101 ⇔ 110 Automatic program 7111 ⇔ 120 Automatic program 8121 ⇔ 130 Automatic program 9131 ⇔ 140 Automatic program 10141 ⇔ 150 Custom automatic program 1151 ⇔ 160 Custom automatic program 2161 ⇔ 170 Custom automatic program 3171 ⇔ 180 Custom automatic program 4181 ⇔ 190 Custom automatic program 5191 ⇔ 200 Custom automatic program 6201 ⇔ 210 Custom automatic program 7211 ⇔ 220 Custom automatic program 8221 ⇔ 230 Custom automatic program 9231 ⇔ 255 Custom automatic program 10
14	Program Speed	000 ⇔ 255 Automatic program speed, slow to fast
15 Dimmer Speed		000 ⇔ 009 Preset dimmer speed from display menu010 ⇔ 029 Dimmer speed mode off030 ⇔ 069 Dimmer speed mode 1 (fastest)070 ⇔ 129 Dimmer speed mode 2130 ⇔ 189 Dimmer speed mode 3190 ⇔ 255 Dimmer speed mode 4 (slowest)

TR16 (15 Channels)

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Fine dimmer(when Ch. 13 is 000 ⇔ 140)	000 ⇔ 255	Fine control (16-bit)
	Step Duration(when Ch. 13 is 141 ⇔ 255)	000 ⇔ 255	Custom program step duration, short to long
3	Red(when Ch. 13 is 000 ⇔ 140)	000 ⇔ 255	0–100%
	Fade Speed(when Ch. 13 is 141 ⇔ 255)	000 ⇔ 255	Custom program fade speed, slow to fast
4	Fine red	000 ⇔ 255	Fine control (16-bit)
5	G r e e	n	000 ⇔ 255 0–100%
6	Fine green	000 ⇔ 255	Fine control (16-bit)
7	B l u e	000 ⇔ 255 0–100%
8	Fine blue	000 ⇔ 255	Fine control (16-bit)
9	White	000 ⇔ 255	0–100%
10	Fine white	000 ⇔ 255	Fine control (16-bit)
11	Color Macro	000 ⇔ 010	No function
		011 ⇔ 030	Red: 100%	Green: 0–100%	Blue: 0%	White: 0%
		031 ⇔ 050	Red: 100–0%	Green: 100%	Blue: 0%	White: 0%
		051 ⇔ 070	Red: 0%	Green: 100%	Blue: 0–100%	White: 0%
		071 ⇔ 090	Red: 0%	Green: 100–0%	Blue: 100%	White: 0%
		091 ⇔ 110	Red: 0–100%	Green: 0%	Blue: 100%	White: 0%
		111 ⇔ 130	Red: 100%	Green: 0%	Blue: 100–0%	White: 0%
		131 ⇔ 150	Red: 100%	Green: 0–100%	Blue: 0–100%	White: 0%
		151 ⇔ 170	Red: 100–0%	Green: 100–0%	Blue: 100%	White: 0%
		171 ⇔ 195	Red: 100%	Green: 100%	Blue: 100%	White: 100%
		196 ⇔ 200	White 1
		201 ⇔ 205	White 2
		206 ⇔ 210	White 3
		211 ⇔ 215	White 4
		216 ⇔ 220	White 5
		221 ⇔ 225	White 6
		226 ⇔ 230	White 7
		231 ⇔ 235	White 8
		236 ⇔ 240	White 9
		241 ⇔ 245	White 10
		246 ⇔ 250	White 11
		251 ⇔ 255	White 12
12	Strobe	000 ⇔ 009	No function
		010 ⇔ 099	Strobe, slow to fast
		100 ⇔ 109	No function
		110 ⇔ 179	Lightning effect, slow to fast
		180 ⇔ 189	No function
		190 ⇔ 255	Random strobe, slow to fast

Channel Function Value Percent/Setting
13 Automatic Programs		000 ⇔ 040 No function041 ⇔ 050 Automatic program 1051 ⇔ 060 Automatic program 2061 ⇔ 070 Automatic program 3071 ⇔ 080 Automatic program 4081 ⇔ 090 Automatic program 5091 ⇔ 100 Automatic program 6101 ⇔ 110 Automatic program 7111 ⇔ 120 Automatic program 8121 ⇔ 130 Automatic program 9131 ⇔ 140 Automatic program 10141 ⇔ 150 Custom automatic program 1151 ⇔ 160 Custom automatic program 2161 ⇔ 170 Custom automatic program 3171 ⇔ 180 Custom automatic program 4181 ⇔ 190 Custom automatic program 5191 ⇔ 200 Custom automatic program 6201 ⇔ 210 Custom automatic program 7211 ⇔ 220 Custom automatic program 8221 ⇔ 230 Custom automatic program 9231 ⇔ 255 Custom automatic program 10
14	Program Speed	000 ⇔ 255	Automatic program speed, slow to fast
15 Dimmer Speed		000 ⇔ 009 Preset dimmer speed from display menu010 ⇔ 029 Dimmer speed mode off030 ⇔ 069 Dimmer speed mode 1 (fastest)070 ⇔ 129 Dimmer speed mode 2130 ⇔ 189 Dimmer speed mode 3190 ⇔ 255 Dimmer speed mode 4 (slowest)

TOUR (10 Channels)

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Red(when Ch. 8 is 000 ⇔ 140)	000 ⇔ 255	0–100%
	Step Duration(when Ch. 8 is 141 ⇔ 255)	000 ⇔ 255	Custom program step duration, short to long
3	Green(when Ch. 8 is 000 ⇔ 140)	000 ⇔ 255	0–100%
	Fade Speed(when Ch. 8 is 141 ⇔ 255)	000 ⇔ 255	Custom program fade speed, slow to fast
4	B I u e	000 ⇔ 255 0–100%
5	White	000 ⇔ 255	0–100%
Channel	Function	Value	Percent/Setting
6 Color	Macro	000 ⇔ 010 No function011 ⇔ 030 Red: 100% Green: 0–100% Blue: 0% White: 0%031 ⇔ 050 Red: 100–0% Green: 100% Blue: 0% White: 0%051 ⇔ 070 Red: 0% Green: 100% Blue: 0–100% White: 0%071 ⇔ 090 Red: 0% Green: 100–0% Blue: 100% White: 0%091 ⇔ 110 Red: 0–100% Green: 0% Blue: 100% White: 0%111 ⇔ 130 Red: 100% Green: 0% Blue: 100–0% White: 0%131 ⇔ 150 Red: 100% Green: 0–100% Blue: 0–100% White: 0%151 ⇔ 170 Red: 100–0% Green: 100–0% Blue: 100% White: 0%171 ⇔ 195 Red: 100% Green: 100% Blue: 100% White: 100%196 ⇔ 200 White 1201 ⇔ 205 White 2206 ⇔ 210 White 3211 ⇔ 215 White 4216 ⇔ 220 White 5221 ⇔ 225 White 6226 ⇔ 230 White 7231 ⇔ 235 White 8236 ⇔ 240 White 9241 ⇔ 245 White 10246 ⇔ 250 White 11251 ⇔ 255 White 12
7	Strobe	000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast
8 Automatic Programs		000 ⇔ 040 No function041 ⇔ 050 Automatic program 1051 ⇔ 060 Automatic program 2061 ⇔ 070 Automatic program 3071 ⇔ 080 Automatic program 4081 ⇔ 090 Automatic program 5091 ⇔ 100 Automatic program 6101 ⇔ 110 Automatic program 7111 ⇔ 120 Automatic program 8121 ⇔ 130 Automatic program 9131 ⇔ 140 Automatic program 10141 ⇔ 150 Custom automatic program 1151 ⇔ 160 Custom automatic program 2161 ⇔ 170 Custom automatic program 3171 ⇔ 180 Custom automatic program 4181 ⇔ 190 Custom automatic program 5191 ⇔ 200 Custom automatic program 6201 ⇔ 210 Custom automatic program 7211 ⇔ 220 Custom automatic program 8221 ⇔ 230 Custom automatic program 9231 ⇔ 255 Custom automatic program 10
9	Program Speed	000 ⇔ 255 Automatic program speed, slow to fast
10 Dimmer Speed		000 ⇔ 009 Preset dimmer speed from display menu010 ⇔ 029 Dimmer speed mode off030 ⇔ 069 Dimmer speed mode 1 (fastest)070 ⇔ 129 Dimmer speed mode 2130 ⇔ 189 Dimmer speed mode 3190 ⇔ 255 Dimmer speed mode 4 (slowest)

SSP (7 Channels)

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	R	e	d		000 ⇔ 255 0–100%
3	G	r	e	e	n	000 ⇔ 255 0–100%
4	B	l	u	e	000 ⇔ 255 0–100%
5	W	h	i	t	e	000 ⇔ 255 0–100%
6	S	t	r	o	000 ⇔ 009	No function
					010 ⇔ 099	Strobe, slow to fast
					100 ⇔ 109	No function
					110 ⇔ 179	Lightning effect, slow to fast
					180 ⇔ 189	No function
					190 ⇔ 255	Random strobe, slow to fast
7 Dimmer Speed					000 ⇔ 009	Preset dimmer speed from display menu
					010 ⇔ 029	Dimmer speed mode off
					030 ⇔ 069	Dimmer speed mode 1 (fastest)
					070 ⇔ 129	Dimmer speed mode 2
					130 ⇔ 189	Dimmer speed mode 3
					190 ⇔ 255	Dimmer speed mode 4 (slowest)

HSIC (7 Channels)

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	H u e	000 ⇔ 255 0–100%
3	Fine hue	000 ⇔ 255	Fine control (16-bit)
4 Saturation 000 ⇔ 255 0–100%
5 Color Temperature		000 ⇔ 010	No function
		011 ⇔ 030	White 1
		031 ⇔ 050	White 2
		051 ⇔ 070	White 3
		071 ⇔ 090	White 4
		091 ⇔ 110	White 5
		111 ⇔ 130	White 6
		131 ⇔ 150	White 7
		151 ⇔ 170	White 8
		171 ⇔ 190	White 9
		191 ⇔ 210	White 10
		211 ⇔ 230	White 11
		231 ⇔ 255	White 12
6	S t r o	000 ⇔ 009	No function
		010 ⇔ 099	Strobe, slow to fast
		100 ⇔ 109	No function
		110 ⇔ 179	Lightning effect, slow to fast
		180 ⇔ 189	No function
		190 ⇔ 255	Random strobe, slow to fast
7 Dimmer Speed		000 ⇔ 009	Preset dimmer speed from display menu
		010 ⇔ 029	Dimmer speed mode off
		030 ⇔ 069	Dimmer speed mode 1 (fastest)
		070 ⇔ 129	Dimmer speed mode 2
		130 ⇔ 189	Dimmer speed mode 3
		190 ⇔ 255	Dimmer speed mode 4 (slowest)

Acerca de Esta Guía

Technical line drawing of a mechanical device with mounting base and circular component (no text or symbols)

Montaje en el Suelo

Technical line drawing of a mechanical device labeled 'Montage au Sol' (no other text or symbols)

RDM (Remote Device Management)

Technical line drawing of a mechanical device with mounting bracket and circular component (no text or symbols)

Oberflächenmontage

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

®

UL 1573

CSA C22.2 No. 166

E113093

RoHS
