USER MANUAL ÉPIX Drive 2000 IP Chauvet
The ÉPIX Drive 2000 IP Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and control values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
- DO NOT open this product. It contains no user-serviceable parts.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
- CAUTION: This product's housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power. - USE a safety cable when mounting this product overhead.
- DO NOT submerge this product (IP65). Temporary outdoor operation is fine.
- When using this product in an outdoor environment, use IP65 (or higher) rated power and data cables. Be sure to secure unused power and data ports with attached IP65 covers.
- DO NOT operate this product if the housing, ports, or cables appear damaged.
- DO NOT connect this product to a dimmer or rheostat.
- ONLY connect this product to a grounded and protected circuit.
- In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
Contact
Outside the US, UK, Ireland, Benelux, France, Germany, or Mexico contact your distributor to request support or return a product. Visit www.chauvetprofessional.com for contact information.
What is Included
• ÉPIX Drive 2000 IP
• Seetronic Powerkon IP65 Power Cord
• Omega Bracket with Mounting Hardware
• 2 Rack Ears and Screws
- Quick Reference Guide

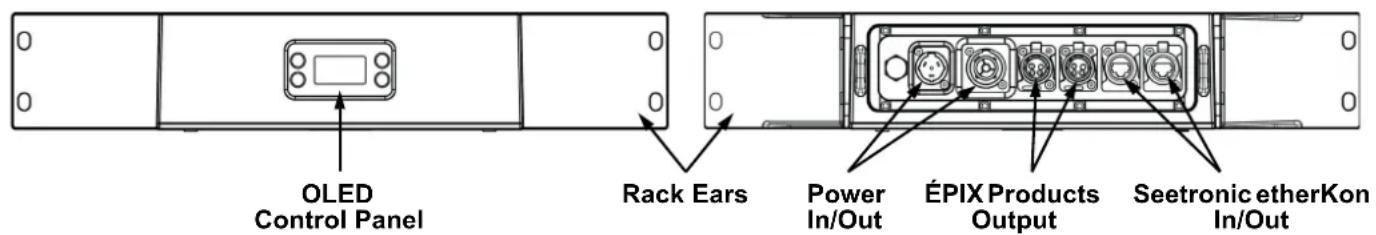

Product Overview
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
You can link up to 3 ÉPIX Drive 2000 IP products at 120 V, 4 products at 108 V, or 5 products at 230 V. Never exceed this number. Power linking cords can be purchased separately.
AC Plug
| Connection | Wire (U.S.) | Wire (Europe) | Screw Color |
| AC Live Black Brown Yellow/Brass | |||
| AC Neutral White Blue Silver | |||
| AC Ground Green/Yellow Green/Yellow | Green | ||
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Signal Connections
The ÉPIX Drive 2000 IP can link to a controller or controller software using an ethernet connection. If using other Art-Net™, sACN, or Kling-Net-compatible products with the ÉPIX Drive 2000 IP, they can all be controlled individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.
Control Personalities
The ÉPIX Drive 2000 IP uses Art-Net™ an sACN for its control personalities:
| Personality | Channels | Description |
| Pixel | 300 per ÉPIX Strip IP | Complete pixel control |
| 7-CH-Drive | 7 Dimmer, auto programs, and strobe | |
| 8-CH-fixture | 8 per product | Dimmer, auto programs, strobe, and dimmer speed |
| 5-Section | 15 per ÉPIX Strip IP | Controls LED output in 5 groups of 20 LEDs |
| 10-Section | 30 per ÉPIX Strip IP | Controls LED output in 10 groups of 10 LEDs |
| 25-Section | 75 per ÉPIX Strip IP | Controls LED output in 25 groups of 4 LEDs |
| 50-Section | 150 per ÉPIX Strip IP | Controls LED output in 50 groups of 2 LEDs |
Art-Net™ Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP that transfers large amount of DMX512 data using an etherCON RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.
This product is not designed to respond to controllers sending in Broadcast mode via Art-Net™. For best results, use Unicast mode. For information about which control protocol your controller uses, please contact the manufacturer of your controller.
sACN Connection
Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network. ACN is maintained by the Professional Lighting and Sound Association (PLASA).
Kling-Net Connection
Kling-Net is a network protocol that allows auto configuration of display devices using an etherCON RJ45 Ethernet connection. Refer to the ArKaos software manual for detailed instructions on programming this product.
For smooth-running operation, ArKaos Kling-Net requires a gigabit (1000 Mbps) Ethernet card and network router.

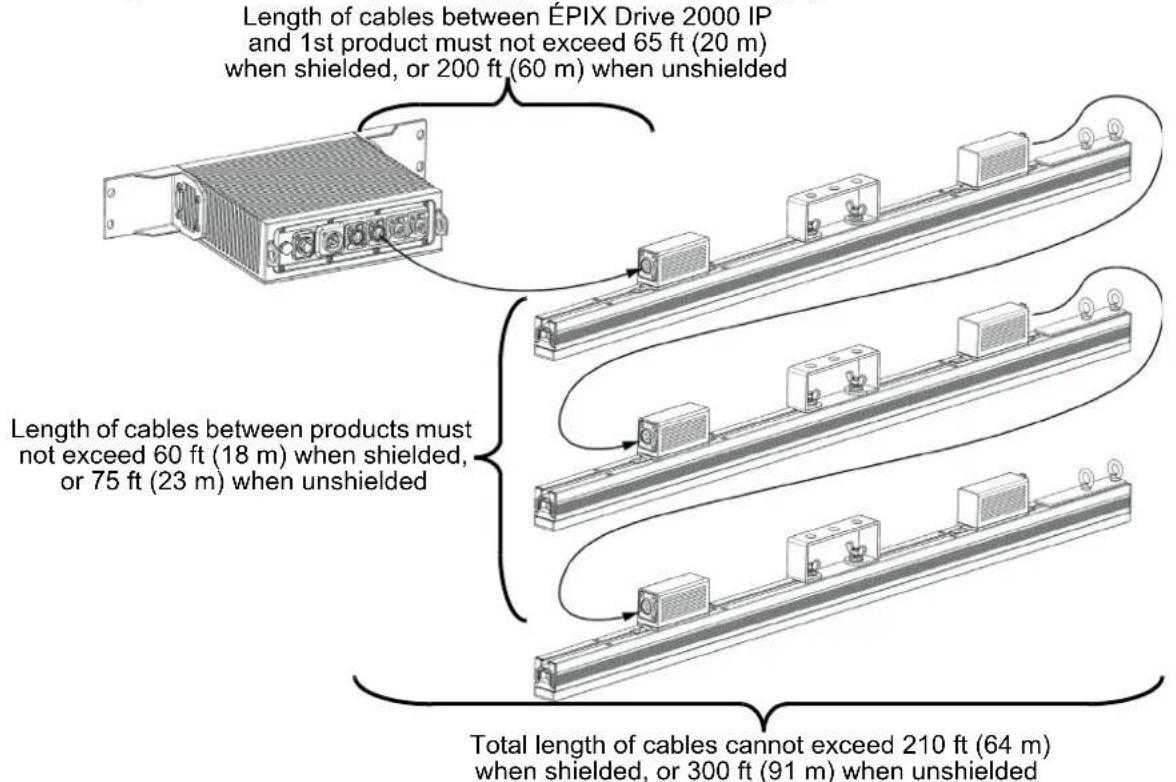

Connecting ÉPIX Products
The ÉPIX Drive 2000 IP is the power supply for the ÉPIX IP and ÉPIX Tour series of products. Each product must be daisy-chained together in series. This power supply is capable of powering up to 2000 LEDs in the various configurations.
1 = Power + (12 AWG or larger)
2 = Data + (18–24 AWG)
3 = Data - (18-24 AWG)
4 = Power - (12 AWG or larger)
The ÉPIX Drive 2000 IP can support various ÉPIX products daisy chained in the various configurations, up to a total of 2000 LEDs (up to 1000 LEDs per port).
Example configurations for each port include:
• 10 ÉPIX Strip IP products
• 20 ÉPIX Strip IP 50 products
• 18 ÉPIX Strip Tour products
• 36 ÉPIX Strip Tour 50 products
• 6 ÉPIX Bar Tour products
• 5 ÉPIX Strip IP products and 9 ÉPIX Strip Tour products
• 5 ÉPIX Strip IP products and 3 ÉPIX Bar Tour products
- 5 ÉPIX Strip IP products, 3 ÉPIX Strip Tour products, and 2 ÉPIX Bar Tour products Make sure the total length of the connecting shielded 4-pin XLR cables does not exceed 210 ft (64 m). Using unshielded cables will increase the maximum cable lengths to 300 ft (91 m) shown in the diagram above. Download the User Manual from www.chauvetprofessional.com for more details.
NOTE: Do not combine the ÉPIX Strip IP with the ÉPIX Strip Tour or ÉPIX Bar Tour on the same output of the ÉPIX Drive 2000 IP if any personality other than Pixel is selected.
Standard 4-pin XLR "Scroller Cables" are typically shielded.
Use ONLY IP65 4-pin XLR cables with the ÉPIX Drive 2000 IP. For our CHAUVET Professional line of IP65 4-pin XLR cables, go to https://www.chauvetprofessional.com/accessories.
Mounting
Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products. The rack mount ears are not shipped connected to the product.

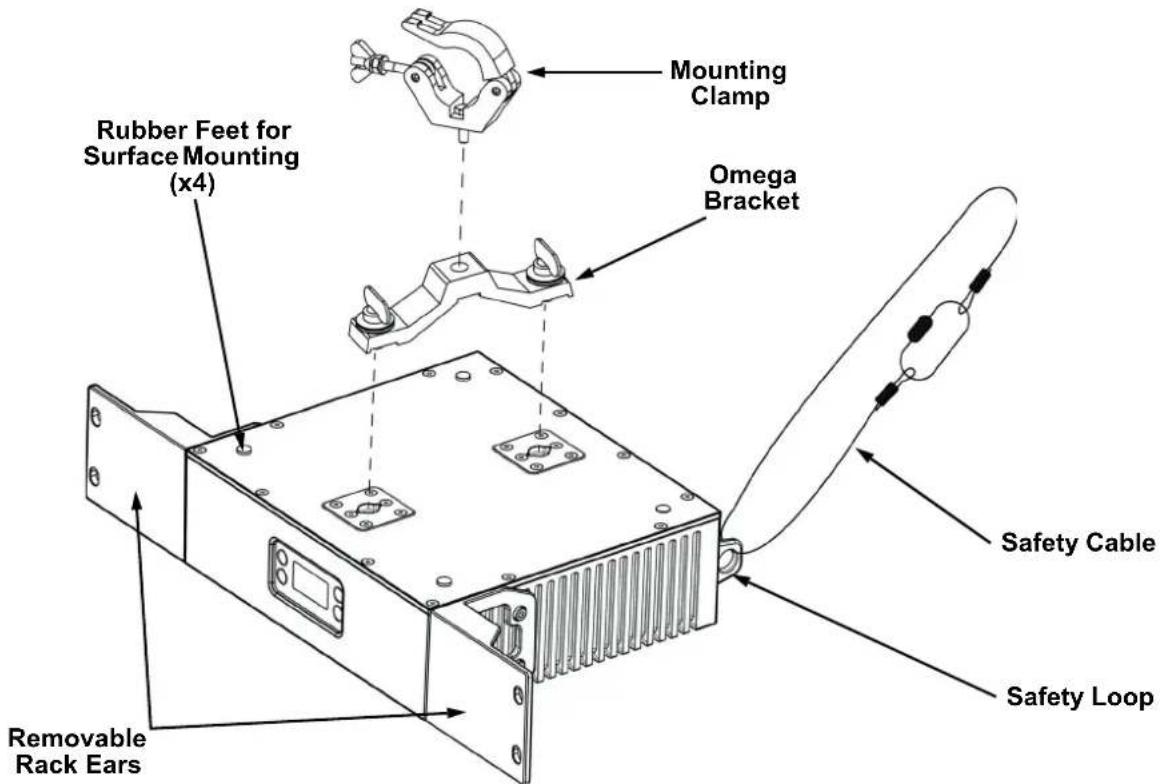

Mounting Diagram
Chauvet recommends using the following guidelines when mounting this product:
- Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.
- Make sure that the structure or surface onto which you are mounting the product can support the product's weight (see the User Manual).
- When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging point, such as an elevated platform or a truss.
- When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
- When mounting the product on the floor, make sure that the product and cables are away from people and vehicles.
Control Panel Description
| Button Function | |
| Exits from the current menu or function or navigates downwards through the Main Level list | |
| Enables the currently displayed menu or sets the currently selected value into the selected function | |
| Navigates upwards through the menu list or increases the numeric value when in a function | |
| Navigates downwards through the menu list or decreases the numeric value when in a function | |
Menu Map
| Main Level Programming Levels Description | ||||
| Auto Address | No | Automatically finds and addresses the products | ||
| Yes | ||||
| View Linked Fixtures | Port A | 1._.-18._.Displays | the connected products | |
| Port B | ||||
| LED Output | Off Turns off all LED output | |||
| Red Red LEDs at full | ||||
| Green Green LEDs at full | ||||
| Blue Blue LEDs at full | ||||
| White All LEDs at full | ||||
| Fade Color fade program | ||||
| Scroll Color scroll program | ||||
| Protocol | Port A | Art-Net | Selects the protocol for each port and determines what other menu options are available | |
| Kling-Net_ | _ | |||
| sACN | ||||
| Port B | Art-Net | |||
| Kling-Net_ | _ | |||
| sACN | ||||
| Display Inverse | No | Rotates display 180° | ||
| Yes | ||||
| Factory Reset | No | Resets the product to factory defaults | ||
| Yes | ||||
| Port A (Art-NetTM and sACN only) | Personality | Pixel | Sets control personality for Port A (see Control Personalities) | |
| 7-CH-Drive | ||||
| 8-CH-fixture | ||||
| 5-Section | ||||
| 10-Section | ||||
| 25-Section | ||||
| 50-Section | ||||
| Universe | 000-246 (Art-NetTM)001-247 (sACN) | Sets the lowest of the 6 consecutive universes to which Port A is assigned | ||
| IP Address IP | Address #1-6 | 1-126.0-255.0-255.0-255 | Sets the IP addresses for Port ANote: all addresses must be unique | |
| DMX Address | 001-____ | Sets the starting address for Port A (highest channel determined by Personality) | ||
| Port B (Art-NetTM and sACN only) | Personality | Pixel | Sets control personality for Port B (see Control Personalities) | |
| 7-CH-Drive | ||||
| 8-CH-fixture | ||||
| 5-Section | ||||
| 10-Section | ||||
| 25-Section | ||||
| 50-Section | ||||
| Universe | 000-246 (Art-NetTM)001-246 (sACN) | Sets the lowest of the 6 consecutive universes to which Port B is assigned | ||
| IP Address IP | Address #1-6 | 1-126.0-255.0-255.0-255 | Sets the IP addresses for Port BNote: all addresses must be unique | |
| DMX Address | 001-____ | Sets the starting address for Port B (highest channel determined by Personality) | ||
| Screen Lock | No | Locks ScreenPasscode: UP, DOWN, UP, DOWN, RIGHT | ||
| Yes | ||||
| Software Version | Port A:----V____Port B:----V____ | Displays the current software version | ||
Control Values
Pixel Mode (300 Channels per ÉPIX Strip IP)
| Channel Function Value Percent/Setting | ||||||
| 1 | R | e | d | 1 000 | 255 0-100% | |
| 2 | G | r | e | e n | 1 2550-100% | |
| 3 | B | l | u | e 1 | 000 255 0-100% | |
| 4 | R | e | d | 2 000 | 255 0-100% | |
| 5 | G | r | e | e n | 2 2550-100% | |
| 6 | B | l | u | e 2 | 000 255 0-100% | |
| 7 | R | e | d | 3 000 | 255 0-100% | |
| 8 | G | r | e | e n | 3 2550-100% | |
| 9 | B | l | u | e 3 | 000 255 0-100% | |
| 10 Red 4 000 | 255 0-100% | |||||
| 11 Green 4 000 | 255 0-100% | |||||
| 12 Blue 4 000 | 255 0-100% | |||||
| 13 Red 5 000 | 255 0-100% | |||||
| 14 Green 5 000 | 255 0-100% | |||||
| 15 Blue 5 000 | 255 0-100% | |||||
| 16 Red 6 000 | 255 0-100% | |||||
| 17 Green 6 000 | 255 0-100% | |||||
| 18 Blue 6 000 | 255 0-100% | |||||
| 19 Red 7 000 | 255 0-100% | |||||
| 20 Green 7 000 | 255 0-100% | |||||
| 21 Blue 7 000 | 255 0-100% | |||||
| 22 Red 8 000 | 255 0-100% | |||||
| 23 Green 8 000 | 255 0-100% | |||||
| 24 Blue 8 000 | 255 0-100% | |||||
| 25 Red 9 000 | 255 0-100% | |||||
| 26 Green 9 000 | 255 0-100% | |||||
| 27 Blue 9 000 | 255 0-100% | |||||
| 28 Red 10 000 | 255 0-100% | |||||
| 29 Green 10 | 000 | 255 0-100% | ||||
| 30 Blue 10 | 000 | 255 0-100% | ||||
| 31 Red 11 | 000 | 255 0-100% | ||||
| 32 Green 11 | 000 | 255 0-100% | ||||
| 33 Blue 11 | 000 | 255 0-100% | ||||
| 34 Red 12 000 | 255 0-100% | |||||
| 35 Green 12 | 000 | 255 0-100% | ||||
| 36 Blue 12 | 000 | 255 0-100% | ||||
| 37 Red 13 000 | 255 0-100% | |||||
| 38 Green 13 | 000 | 255 0-100% | ||||
| 39 Blue 13 | 000 | 255 0-100% | ||||
| 40 Red 14 000 | 255 0-100% | |||||
| 41 Green 14 | 000 | 255 0-100% | ||||
| 42 Blue 14 | 000 | 255 0-100% | ||||
| 43 Red 15 000 | 255 0-100% | |||||
| 44 Green 15 | 000 | 255 0-100% | ||||
| 45 Blue 15 | 000 | 255 0-100% | ||||
| 46 Red 16 000 | 255 0-100% | |||||
| 47 Green 16 | 000 | 255 0-100% | ||||
| 48 Blue 16 | 000 | 255 0-100% | ||||
| 49 Red 17 000 | 255 0-100% | |||||
| 50 Green 17 | 000 | 255 0-100% | ||||
| 51 Blue 17 | 000 | 255 0-100% | ||||
| 52 Red 18 000 | 255 0-100% | |||||
| 53 Green 18 | 000 | 255 0-100% | ||||
| 54 Blue 18 | 000 | 255 0-100% | ||||
| Channel | Function | Value | Percent/Setting | |||
| 55 Red | 19 000 | 255 0–100% | ||||
| 56 Green | 19 000 | 255 0–100% | ||||
| 57 Blue | 19 000 | 255 0–100% | ||||
| 58 Red | 20 000 | 255 0–100% | ||||
| 59 Green | 20 000 | 255 0–100% | ||||
| 60 Blue | 20 000 | 255 0–100% | ||||
| 61 Red | 21 000 | 255 0–100% | ||||
| 62 Green | 21 000 | 255 0–100% | ||||
| 63 Blue | 21 000 | 255 0–100% | ||||
| 64 Red | 22 000 | 255 0–100% | ||||
| 65 Green | 22 000 | 255 0–100% | ||||
| 66 Blue | 22 000 | 255 0–100% | ||||
| 67 Red | 23 000 | 255 0–100% | ||||
| 68 Green | 23 000 | 255 0–100% | ||||
| 69 Blue | 23 000 | 255 0–100% | ||||
| 70 Red | 24 000 | 255 0–100% | ||||
| 71 Green | 24 000 | 255 0–100% | ||||
| 72 Blue | 24 000 | 255 0–100% | ||||
| 73 Red | 25 000 | 255 0–100% | ||||
| 74 Green | 25 000 | 255 0–100% | ||||
| 75 Blue | 25 000 | 255 0–100% | ||||
| 76 Red | 26 000 | 255 0–100% | ||||
| 77 Green | 26 000 | 255 0–100% | ||||
| 78 Blue | 26 000 | 255 0–100% | ||||
| 79 Red | 27 000 | 255 0–100% | ||||
| 80 Green | 27 000 | 255 0–100% | ||||
| 81 Blue | 27 000 | 255 0–100% | ||||
| 82 Red | 28 000 | 255 0–100% | ||||
| 83 Green | 28 000 | 255 0–100% | ||||
| 84 Blue | 28 000 | 255 0–100% | ||||
| 85 Red | 29 000 | 255 0–100% | ||||
| 86 Green | 29 000 | 255 0–100% | ||||
| 87 Blue | 29 000 | 255 0–100% | ||||
| 88 Red | 30 000 | 255 0–100% | ||||
| 89 Green | 30 000 | 255 0–100% | ||||
| 90 Blue | 30 000 | 255 0–100% | ||||
| 91 Red | 31 000 | 255 0–100% | ||||
| 92 Green | 31 000 | 255 0–100% | ||||
| 93 Blue | 31 000 | 255 0–100% | ||||
| 94 Red | 32 000 | 255 0–100% | ||||
| 95 Green | 32 000 | 255 0–100% | ||||
| 96 Blue | 32 000 | 255 0–100% | ||||
| 97 Red | 33 000 | 255 0–100% | ||||
| 98 Green | 33 000 | 255 0–100% | ||||
| 99 Blue | 33 000 | 255 0–100% | ||||
| 100 Red | 34 000 | 255 0–100% | ||||
| 101 Green | 34 000 | 255 0–100% | ||||
| 102 Blue | 34 000 | 255 0–100% | ||||
| 103 Red | 35 000 | 255 0–100% | ||||
| 104 Green | 35 000 | 255 0–100% | ||||
| 105 Blue | 35 000 | 255 0–100% | ||||
| 106 Red | 36 000 | 255 0–100% | ||||
| 107 Green | 36 000 | 255 0–100% | ||||
| 108 Blue | 36 000 | 255 0–100% | ||||
| 109 Red | 37 000 | 255 0–100% | ||||
| 110 Green | 37 000 | 255 0–100% | ||||
| 111 Blue | 37 000 | 255 0–100% | ||||
| Channel Function Value Percent/Setting | ||
| 112 Red 38 000 ⇔ 255 0–100% | ||
| 113 Green 38 000 | ⇔ 255 0–100% | |
| 114 Blue 38 000 | ⇔ 255 0–100% | |
| 115 Red 39 000 | ⇔ 255 0–100% | |
| 116 Green 39 000 | ⇔ 255 0–100% | |
| 117 Blue 39 000 | ⇔ 255 0–100% | |
| 118 Red 40 000 | ⇔ 255 0–100% | |
| 119 Green 40 000 | ⇔ 255 0–100% | |
| 120 Blue 40 000 | ⇔ 255 0–100% | |
| 121 Red 41 000 | ⇔ 255 0–100% | |
| 122 Green 41 000 | ⇔ 255 0–100% | |
| 123 Blue 41 000 | ⇔ 255 0–100% | |
| 124 Red 42 000 | ⇔ 255 0–100% | |
| 125 Green 42 000 | ⇔ 255 0–100% | |
| 126 Blue 42 000 | ⇔ 255 0–100% | |
| 127 Red 43 000 | ⇔ 255 0–100% | |
| 128 Green 43 000 | ⇔ 255 0–100% | |
| 129 Blue 43 000 | ⇔ 255 0–100% | |
| 130 Red 44 000 | ⇔ 255 0–100% | |
| 131 Green 44 000 | ⇔ 255 0–100% | |
| 132 Blue 44 000 | ⇔ 255 0–100% | |
| 133 Red 45 000 | ⇔ 255 0–100% | |
| 134 Green 45 000 | ⇔ 255 0–100% | |
| 135 Blue 45 000 | ⇔ 255 0–100% | |
| 136 Red 46 000 | ⇔ 255 0–100% | |
| 137 Green 46 000 | ⇔ 255 0–100% | |
| 138 Blue 46 000 | ⇔ 255 0–100% | |
| 139 Red 47 000 | ⇔ 255 0–100% | |
| 140 Green 47 000 | ⇔ 255 0–100% | |
| 141 Blue 47 000 | ⇔ 255 0–100% | |
| 142 Red 48 000 | ⇔ 255 0–100% | |
| 143 Green 48 000 | ⇔ 255 0–100% | |
| 144 Blue 48 000 | ⇔ 255 0–100% | |
| 145 Red 49 000 | ⇔ 255 0–100% | |
| 146 Green 49 000 | ⇔ 255 0–100% | |
| 147 Blue 49 000 | ⇔ 255 0–100% | |
| 148 Red 50 000 | ⇔ 255 0–100% | |
| 149 Green 50 000 | ⇔ 255 0–100% | |
| 150 Blue 50 000 | ⇔ 255 0–100% | |
| 151 Red 51 000 | ⇔ 255 0–100% | |
| 152 Green 51 000 | ⇔ 255 0–100% | |
| 153 Blue 51 000 | ⇔ 255 0–100% | |
| 154 Red 52 000 | ⇔ 255 0–100% | |
| 155 Green 52 000 | ⇔ 255 0–100% | |
| 156 Blue 52 000 | ⇔ 255 0–100% | |
| 157 Red 53 000 | ⇔ 255 0–100% | |
| 158 Green 53 000 | ⇔ 255 0–100% | |
| 159 Blue 53 000 | ⇔ 255 0–100% | |
| 160 Red 54 000 | ⇔ 255 0–100% | |
| 161 Green 54 000 | ⇔ 255 0–100% | |
| 162 Blue 54 000 | ⇔ 255 0–100% | |
| 163 Red 55 000 | ⇔ 255 0–100% | |
| 164 Green 55 000 | ⇔ 255 0–100% | |
| 165 Blue 55 000 | ⇔ 255 0–100% | |
| 166 Red 56 000 | ⇔ 255 0–100% | |
| 167 Green 56 000 | ⇔ 255 0–100% | |
| 168 Blue 56 000 | ⇔ 255 0–100% | |
| 169 Red 57 000 | 255 0-100% | |
| 170 Green 57 000 | 255 0-100% | |
| 171 Blue 57 000 | 255 0-100% | |
| 172 Red 58 000 | 255 0-100% | |
| 173 Green 58 000 | 255 0-100% | |
| 174 Blue 58 000 | 255 0-100% | |
| 175 Red 59 000 | 255 0-100% | |
| 176 Green 59 000 | 255 0-100% | |
| 177 Blue 59 000 | 255 0-100% | |
| 178 Red 60 000 | 255 0-100% | |
| 179 Green 60 000 | 255 0-100% | |
| 180 Blue 60 000 | 255 0-100% | |
| 181 Red 61 000 | 255 0-100% | |
| 182 Green 61 000 | 255 0-100% | |
| 183 Blue 61 000 | 255 0-100% | |
| 184 Red 62 000 | 255 0-100% | |
| 185 Green 62 000 | 255 0-100% | |
| 186 Blue 62 000 | 255 0-100% | |
| 187 Red 63 000 | 255 0-100% | |
| 188 Green 63 000 | 255 0-100% | |
| 189 Blue 63 000 | 255 0-100% | |
| 190 Red 64 000 | 255 0-100% | |
| 191 Green 64 000 | 255 0-100% | |
| 192 Blue 64 000 | 255 0-100% | |
| 193 Red 65 000 | 255 0-100% | |
| 194 Green 65 000 | 255 0-100% | |
| 195 Blue 65 000 | 255 0-100% | |
| 196 Red 66 000 | 255 0-100% | |
| 197 Green 66 000 | 255 0-100% | |
| 198 Blue 66 000 | 255 0-100% | |
| 199 Red 67 000 | 255 0-100% | |
| 200 Green 67 000 | 255 0-100% | |
| 201 Blue 67 000 | 255 0-100% | |
| 202 Red 68 000 | 255 0-100% | |
| 203 Green 68 000 | 255 0-100% | |
| 204 Blue 68 000 | 255 0-100% | |
| 205 Red 69 000 | 255 0-100% | |
| 206 Green 69 000 | 255 0-100% | |
| 207 Blue 69 000 | 255 0-100% | |
| 208 Red 70 000 | 255 0-100% | |
| 209 Green 70 000 | 255 0-100% | |
| 210 Blue 70 000 | 255 0-100% | |
| 211 Red 71 000 | 255 0-100% | |
| 212 Green 71 000 | 255 0-100% | |
| 213 Blue 71 000 | 255 0-100% | |
| 214 Red 72 000 | 255 0-100% | |
| 215 Green 72 000 | 255 0-100% | |
| 216 Blue 72 000 | 255 0-100% | |
| 217 Red 73 000 | 255 0-100% | |
| 218 Green 73 000 | 255 0-100% | |
| 219 Blue 73 000 | 255 0-100% | |
| 220 Red 74 000 | 255 0-100% | |
| 221 Green 74 000 | 255 0-100% | |
| 222 Blue 74 000 | 255 0-100% | |
| 223 Red 75 000 | 255 0-100% | |
| 224 Green 75 000 | 255 0-100% | |
| 225 Blue 75 000 | 255 0-100% | |
| 226 Red 76 000 ⇔ 255 0–100% | ||
| 227 Green 76 000 | ⇔ 255 0–100% | |
| 228 Blue 76 000 | ⇔ 255 0–100% | |
| 229 Red 77 000 | ⇔ 255 0–100% | |
| 230 Green 77 000 | ⇔ 255 0–100% | |
| 231 Blue 77 000 | ⇔ 255 0–100% | |
| 232 Red 78 000 | ⇔ 255 0–100% | |
| 233 Green 78 000 | ⇔ 255 0–100% | |
| 234 Blue 78 000 | ⇔ 255 0–100% | |
| 235 Red 79 000 | ⇔ 255 0–100% | |
| 236 Green 79 000 | ⇔ 255 0–100% | |
| 237 Blue 79 000 | ⇔ 255 0–100% | |
| 238 Red 80 000 | ⇔ 255 0–100% | |
| 239 Green 80 000 | ⇔ 255 0–100% | |
| 240 Blue 80 000 | ⇔ 255 0–100% | |
| 241 Red 81 000 | ⇔ 255 0–100% | |
| 242 Green 81 000 | ⇔ 255 0–100% | |
| 243 Blue 81 000 | ⇔ 255 0–100% | |
| 244 Red 82 000 | ⇔ 255 0–100% | |
| 245 Green 82 000 | ⇔ 255 0–100% | |
| 246 Blue 82 000 | ⇔ 255 0–100% | |
| 247 Red 83 000 | ⇔ 255 0–100% | |
| 248 Green 83 000 | ⇔ 255 0–100% | |
| 249 Blue 83 000 | ⇔ 255 0–100% | |
| 250 Red 84 000 | ⇔ 255 0–100% | |
| 251 Green 84 000 | ⇔ 255 0–100% | |
| 252 Blue 84 000 | ⇔ 255 0–100% | |
| 253 Red 85 000 | ⇔ 255 0–100% | |
| 254 Green 85 000 | ⇔ 255 0–100% | |
| 255 Blue 85 000 | ⇔ 255 0–100% | |
| 256 Red 86 000 | ⇔ 255 0–100% | |
| 257 Green 86 000 | ⇔ 255 0–100% | |
| 258 Blue 86 000 | ⇔ 255 0–100% | |
| 259 Red 87 000 | ⇔ 255 0–100% | |
| 260 Green 87 000 | ⇔ 255 0–100% | |
| 261 Blue 87 000 | ⇔ 255 0–100% | |
| 262 Red 88 000 | ⇔ 255 0–100% | |
| 263 Green 88 000 | ⇔ 255 0–100% | |
| 264 Blue 88 000 | ⇔ 255 0–100% | |
| 265 Red 89 000 | ⇔ 255 0–100% | |
| 266 Green 89 000 | ⇔ 255 0–100% | |
| 267 Blue 89 000 | ⇔ 255 0–100% | |
| 268 Red 90 000 | ⇔ 255 0–100% | |
| 269 Green 90 000 | ⇔ 255 0–100% | |
| 270 Blue 90 000 | ⇔ 255 0–100% | |
| 271 Red 91 000 | ⇔ 255 0–100% | |
| 272 Green 91 000 | ⇔ 255 0–100% | |
| 273 Blue 91 000 | ⇔ 255 0–100% | |
| 274 Red 92 000 | ⇔ 255 0–100% | |
| 275 Green 92 000 | ⇔ 255 0–100% | |
| 276 Blue 92 000 | ⇔ 255 0–100% | |
| 277 Red 93 000 | ⇔ 255 0–100% | |
| 278 Green 93 000 | ⇔ 255 0–100% | |
| 279 Blue 93 000 | ⇔ 255 0–100% | |
| 280 Red 94 000 | ⇔ 255 0–100% | |
| 281 Green 94 000 | ⇔ 255 0–100% | |
| 282 Blue 94 000 | ⇔ 255 0–100% | |
| 283 Red 95 000 ⇔ 255 0–100% | ||
| 284 Green 95 000 | ⇔ 255 0–100% | |
| 285 Blue 95 000 | ⇔ 255 0–100% | |
| 286 Red 96 000 | ⇔ 255 0–100% | |
| 287 Green 96 000 | ⇔ 255 0–100% | |
| 288 Blue 96 000 | ⇔ 255 0–100% | |
| 289 Red 97 000 | ⇔ 255 0–100% | |
| 290 Green 97 000 | ⇔ 255 0–100% | |
| 291 Blue 97 000 | ⇔ 255 0–100% | |
| 292 Red 98 000 | ⇔ 255 0–100% | |
| 293 Green 98 000 | ⇔ 255 0–100% | |
| 294 Blue 98 000 | ⇔ 255 0–100% | |
| 295 Red 99 000 | ⇔ 255 0–100% | |
| 296 Green 99 000 | ⇔ 255 0–100% | |
| 297 Blue 99 000 | ⇔ 255 0–100% | |
| 298 Red 100 000 | ⇔ 255 0–100% | |
| 299 Green 100 000 | ⇔ 255 0–100% | |
| 300 Blue 100 000 | ⇔ 255 0–100% | |
7-CH-Drive Mode
| Channel Function Value Percent/Setting | |||||||
| 1 | D | i | m | m | e | r ⇔ 255 0–100% | |
| 2 | R | e | d | 000 | ⇔ 255 0–100% | ||
| 3 | G | r | e | e | n | ⇔ 255 0–100% 000 | |
| 4 | B | l | u | e | ⇔ 255 0–100% | ||
| 5 | Auto Program | 000 ⇔ 010 No function | |||||
| 011 ⇔ 024 Auto program 1 | |||||||
| 025 ⇔ 038 Auto program 2 | |||||||
| 039 ⇔ 051 Auto program 3 | |||||||
| 052 ⇔ 065 Auto program 4 | |||||||
| 066 ⇔ 078 Auto program 5 | |||||||
| 079 ⇔ 092 Auto program 6 | |||||||
| 093 ⇔ 105 Auto program 7 | |||||||
| 106 ⇔ 119 Auto program 8 | |||||||
| 120 ⇔ 133 Auto program 9 | |||||||
| 134 ⇔ 146 Auto program 10 | |||||||
| 147 ⇔ 160 Auto program 11 | |||||||
| 161 ⇔ 173 Auto program 12 | |||||||
| 174 ⇔ 187 Auto program 13 | |||||||
| 188 ⇔ 200 Auto program 14 | |||||||
| 201 ⇔ 214 Auto program 15 | |||||||
| 215 ⇔ 227 Auto program 16 | |||||||
| 228 ⇔ 241 Auto program 17 | |||||||
| 242 ⇔ 255 All programs (Auto programs 1–17) | |||||||
| 6 | S | p | e | e | d | ⇔ 255 0–100% 000 | |
| 7 | Strobe | 000 ⇔ 010 No function | |||||
| 011 ⇔ 255 Strobe, slow to fast | |||||||
8-CH-fixture Mode (8 Channels per Product)
| Channel Function Value Percent/Setting | ||||||
| 1 Dimmer 000 | 255 0–100% | |||||
| 2 | R | e | d | 000 | 255 0–100% | |
| 3 | G | r | e | e n | 255 0–100% | |
| 4 | B | l | u | e | 000 255 0–100% | |
| 5 Auto Program | 000 010 No function | |||||
| 011 024 Auto program 1 | ||||||
| 025 038 Auto program 2 | ||||||
| 039 051 Auto program 3 | ||||||
| 052 065 Auto program 4 | ||||||
| 066 078 Auto program 5 | ||||||
| 079 092 Auto program 6 | ||||||
| 093 105 Auto program 7 | ||||||
| 106 119 Auto program 8 | ||||||
| 120 133 Auto program 9 | ||||||
| 134 146 Auto program 10 | ||||||
| 147 160 Auto program 11 | ||||||
| 161 173 Auto program 12 | ||||||
| 174 187 Auto program 13 | ||||||
| 188 200 Auto program 14 | ||||||
| 201 214 Auto program 15 | ||||||
| 215 227 Auto program 16 | ||||||
| 228 241 Auto program 17 | ||||||
| 242 255 All programs (Auto programs 1–17) | ||||||
| 6 | S | p | e | e d | 266 0–100% | |
| 7 Strobe | 000 010 No function | |||||
| 011 255 Strobe, slow to fast | ||||||
| 8 Dimmer Speed Mode | 000 101 Linear dimmer | |||||
| 102 152 Fast dimmer | ||||||
| 153 203 Medium dimmer | ||||||
| 204 255 Slow dimmer | ||||||
5-Section Mode (15 Channels per ÉPIX Strip IP)
| Channel Function Value Percent/Setting | ||||
| 1 Red | 1-20 000 | 255 0-100% | ||
| 2 Green | 1-20 000 | 255 0-100% | ||
| 3 Blue | 1-20 | 000 | 255 0-100% | |
| 4 Red | 21-40 | 000 | 255 0-100% | |
| 5 Green | 21-40 | 000 | 255 0-100% | |
| 6 Blue | 21-40 | 000 | 255 0-100% | |
| 7 Red | 41-60 | 000 | 255 0-100% | |
| 8 Green | 41-60 | 000 | 255 0-100% | |
| 9 Blue | 41-60 | 000 | 255 0-100% | |
| 10 | Red 61-80 | 000 255 0-100% | ||
| 11 | Green 61-80 | 000 255 0-100% | ||
| 12 | Blue 61-80 | 000 255 0-100% | ||
| 13 | Red 81-100 | 000 255 0-100% | ||
| 14 | Green 81-100 | 000 255 0-100% | ||
| 15 | Blue 81-100 | 000 255 0-100% | ||
10-Section Mode (30 Channels per ÉPIX Strip IP)
| Channel Function Value Percent/Setting | |||||
| 1 Red | 1-10 000 | 255 0-100% | |||
| 2 Green | 1-10 000 | 255 0-100% | |||
| 3 Blue | 1-10 000 | 255 0-100% | |||
| 4 | R e d 1 1 | - 255 0-100% | 000 | ||
| 5 Green | 11-20 000 | 255 0-100% | |||
| 6 Blue | 11-20 | 000 | 255 0-100% | ||
| 7 Red | 21-30 | 000 | 255 0-100% | ||
| 8 Green | 21-30 | 000 | 255 0-100% | ||
| 9 Blue | 21-30 | 000 | 255 0-100% | ||
| 10 | Red 31-40 | 000 255 0-100% | |||
| 11 | Green 31-40 | 000 255 0-100% | |||
| 12 | Blue 31-40 | 000 255 0-100% | |||
| 13 | Red 41-50 | 000 255 0-100% | |||
| 14 | Green 41-50 | 000 255 0-100% | |||
| 15 | Blue 41-50 | 000 255 0-100% | |||
| 16 | Red 51-60 | 000 255 0-100% | |||
| 17 | Green 51-60 | 000 255 0-100% | |||
| 18 | Blue 51-60 | 000 255 0-100% | |||
| 19 | Red 61-70 | 000 255 0-100% | |||
| 20 | Green 61-70 | 000 255 0-100% | |||
| 21 | Blue 61-70 | 000 255 0-100% | |||
| 22 | Red 71-80 | 000 255 0-100% | |||
| 23 | Green 71-80 | 000 255 0-100% | |||
| 24 | Blue 71-80 | 000 255 0-100% | |||
| 25 | Red 81-90 | 000 255 0-100% | |||
| 26 | Green 81-90 | 000 255 0-100% | |||
| 27 | Blue 81-90 | 000 255 0-100% | |||
| 28 | Red 91-100 | 000 255 0-100% | |||
| 29 | Green 91-100 | 000 255 0-100% | |||
| 30 | Blue 91-100 | 000 255 0-100% | |||
25-Section Mode (75 Channels per ÉPIX Strip IP)
| Channel Function Value Percent/Setting | ||||||
| 1 | R e d 1 - | 4 ⇔ 255 0-100% | 000 | |||
| 2 Green 1-4 | 000 | ⇔ 255 0-100% | ||||
| 3 Blue | 1-4 | 000 | ⇔ 255 0-100% | |||
| 4 | R e d 5 - | 8 ⇔ 255 0-100% | 000 | |||
| 5 Green 5-8 | 000 | ⇔ 255 0-100% | ||||
| 6 Blue | 5-8 | 000 | ⇔ 255 0-100% | |||
| 7 Red | 9-12 000 | ⇔ 255 0-100% | ||||
| 8 Green | 9-12 000 | ⇔ 255 0-100% | ||||
| 9 Blue | 9-12 000 | ⇔ 255 0-100% | ||||
| 10 | Red 13-16 | 000 ⇔ 255 0-100% | ||||
| 11 | Green 13-16 | 000 ⇔ 255 0-100% | ||||
| 12 | Blue 13-16 | 000 ⇔ 255 0-100% | ||||
| 13 | Red 17-20 | 000 ⇔ 255 0-100% | ||||
| 14 | Green 17-20 | 000 ⇔ 255 0-100% | ||||
| 15 | Blue 17-20 | 000 ⇔ 255 0-100% | ||||
| 16 | Red 21-24 | 000 ⇔ 255 0-100% | ||||
| 17 | Green 21-24 | 000 ⇔ 255 0-100% | ||||
| 18 | Blue 21-24 | 000 ⇔ 255 0-100% | ||||
| 19 | Red 25-28 | 000 ⇔ 255 0-100% | ||||
| 20 | Green 25-28 | 000 ⇔ 255 0-100% | ||||
| 21 | Blue 25-28 | 000 ⇔ 255 0-100% | ||||
| Channel Function Value Percent/Setting | ||
| 22 Red 29–32 000 ⇔ 255 0–100% | ||
| 23 Green 29–32 000 | ⇔ 255 0–100% | |
| 24 Blue 29–32 000 | ⇔ 255 0–100% | |
| 25 Red 33–36 000 | ⇔ 255 0–100% | |
| 26 Green 33–36 000 | ⇔ 255 0–100% | |
| 27 Blue 33–36 000 | ⇔ 255 0–100% | |
| 28 Red 37–40 000 | ⇔ 255 0–100% | |
| 29 Green 37–40 000 | ⇔ 255 0–100% | |
| 30 Blue 37–40 000 | ⇔ 255 0–100% | |
| 31 Red 41–44 000 | ⇔ 255 0–100% | |
| 32 Green 41–44 000 | ⇔ 255 0–100% | |
| 33 Blue 41–44 000 | ⇔ 255 0–100% | |
| 34 Red 45–48 000 | ⇔ 255 0–100% | |
| 35 Green 45–48 000 | ⇔ 255 0–100% | |
| 36 Blue 45–48 000 | ⇔ 255 0–100% | |
| 37 Red 49–52 000 | ⇔ 255 0–100% | |
| 38 Green 49–52 000 | ⇔ 255 0–100% | |
| 39 Blue 49–52 000 | ⇔ 255 0–100% | |
| 40 Red 53–56 000 | ⇔ 255 0–100% | |
| 41 Green 53–56 000 | ⇔ 255 0–100% | |
| 42 Blue 53–56 000 | ⇔ 255 0–100% | |
| 43 Red 57–60 000 | ⇔ 255 0–100% | |
| 44 Green 57–60 000 | ⇔ 255 0–100% | |
| 45 Blue 57–60 000 | ⇔ 255 0–100% | |
| 46 Red 61–64 000 | ⇔ 255 0–100% | |
| 47 Green 61–64 000 | ⇔ 255 0–100% | |
| 48 Blue 61–64 000 | ⇔ 255 0–100% | |
| 49 Red 65–68 000 | ⇔ 255 0–100% | |
| 50 Green 65–68 000 | ⇔ 255 0–100% | |
| 51 Blue 65–68 000 | ⇔ 255 0–100% | |
| 52 Red 69–72 000 | ⇔ 255 0–100% | |
| 53 Green 69–72 000 | ⇔ 255 0–100% | |
| 54 Blue 69–72 000 | ⇔ 255 0–100% | |
| 55 Red 73–76 000 | ⇔ 255 0–100% | |
| 56 Green 73–76 000 | ⇔ 255 0–100% | |
| 57 Blue 73–76 000 | ⇔ 255 0–100% | |
| 58 Red 77–80 000 | ⇔ 255 0–100% | |
| 59 Green 77–80 000 | ⇔ 255 0–100% | |
| 60 Blue 77–80 000 | ⇔ 255 0–100% | |
| 61 Red 81–84 000 | ⇔ 255 0–100% | |
| 62 Green 81–84 000 | ⇔ 255 0–100% | |
| 63 Blue 81–84 000 | ⇔ 255 0–100% | |
| 64 Red 85–88 000 | ⇔ 255 0–100% | |
| 65 Green 85–88 000 | ⇔ 255 0–100% | |
| 66 Blue 85–88 000 | ⇔ 255 0–100% | |
| 67 Red 89–92 000 | ⇔ 255 0–100% | |
| 68 Green 89–92 000 | ⇔ 255 0–100% | |
| 69 Blue 89–92 000 | ⇔ 255 0–100% | |
| 70 Red 93–96 000 | ⇔ 255 0–100% | |
| 71 Green 93–96 000 | ⇔ 255 0–100% | |
| 72 Blue 93–96 000 | ⇔ 255 0–100% | |
| 73 Red 97–100 000 | ⇔ 255 0–100% | |
| 74 Green 97–100 000 | ⇔ 255 0–100% | |
| 75 Blue 97–100 000 | ⇔ 255 0–100% | |
50-Section Mode (150 Channels per ÉPIX Strip IP)
| Channel Function Value Percent/Setting | |||||
| 1 | R e d 1 - | 2 ⇔ 2500-100% | |||
| 2 Green 1-2 000 | ⇔ 255 0-100% | ||||
| 3 Blue 1-2 000 | ⇔ 255 0-100% | ||||
| 4 | R e d 3 - | 4 ⇔ 2500-100% | |||
| 5 Green 3-4 000 | ⇔ 255 0-100% | ||||
| 6 Blue 3-4 000 | ⇔ 255 0-100% | ||||
| 7 | R e d 5 - | 6 ⇔ 2500-100% | |||
| 8 Green 5-6 000 | ⇔ 255 0-100% | ||||
| 9 Blue 5-6 000 | ⇔ 255 0-100% | ||||
| 10 Red 7-8 000 | ⇔ 255 0-100% | ||||
| 11 | Green 7-8 000 | ⇔ 255 0-100% | |||
| 12 Blue 7-8 000 | ⇔ 255 0-100% | ||||
| 13 Red 9-10 | 000 | ⇔ 255 0-100% | |||
| 14 Green 9-10 | 000 | ⇔ 255 0-100% | |||
| 15 Blue 9-10 | 000 | ⇔ 255 0-100% | |||
| 16 Red 11-12 | 000 | ⇔ 255 0-100% | |||
| 17 Green 11-12 | 000 | ⇔ 255 0-100% | |||
| 18 Blue 11-12 | 000 | ⇔ 255 0-100% | |||
| 19 Red 13-14 | 000 | ⇔ 255 0-100% | |||
| 20 Green 13-14 | 000 | ⇔ 255 0-100% | |||
| 21 Blue 13-14 | 000 | ⇔ 255 0-100% | |||
| 22 Red 15-16 | 000 | ⇔ 255 0-100% | |||
| 23 Green 15-16 | 000 | ⇔ 255 0-100% | |||
| 24 Blue 15-16 | 000 | ⇔ 255 0-100% | |||
| 25 Red 17-18 | 000 | ⇔ 255 0-100% | |||
| 26 Green 17-18 | 000 | ⇔ 255 0-100% | |||
| 27 Blue 17-18 | 000 | ⇔ 255 0-100% | |||
| 28 Red 19-20 | 000 | ⇔ 255 0-100% | |||
| 29 Green 19-20 | 000 | ⇔ 255 0-100% | |||
| 30 Blue 19-20 | 000 | ⇔ 255 0-100% | |||
| 31 Red 21-22 | 000 | ⇔ 255 0-100% | |||
| 32 Green 21-22 | 000 | ⇔ 255 0-100% | |||
| 33 Blue 21-22 | 000 | ⇔ 255 0-100% | |||
| 34 Red 23-24 | 000 | ⇔ 255 0-100% | |||
| 35 Green 23-24 | 000 | ⇔ 255 0-100% | |||
| 36 Blue 23-24 | 000 | ⇔ 255 0-100% | |||
| 37 Red 25-26 | 000 | ⇔ 255 0-100% | |||
| 38 Green 25-26 | 000 | ⇔ 255 0-100% | |||
| 39 Blue 25-26 | 000 | ⇔ 255 0-100% | |||
| 40 Red 27-28 | 000 | ⇔ 255 0-100% | |||
| 41 Green 27-28 | 000 | ⇔ 255 0-100% | |||
| 42 Blue 27-28 | 000 | ⇔ 255 0-100% | |||
| 43 Red 29-30 | 000 | ⇔ 255 0-100% | |||
| 44 Green 29-30 | 000 | ⇔ 255 0-100% | |||
| 45 Blue 29-30 | 000 | ⇔ 255 0-100% | |||
| 46 Red 31-32 | 000 | ⇔ 255 0-100% | |||
| 47 Green 31-32 | 000 | ⇔ 255 0-100% | |||
| 48 Blue 31-32 | 000 | ⇔ 255 0-100% | |||
| 49 Red 33-34 | 000 | ⇔ 255 0-100% | |||
| 50 Green 33-34 | 000 | ⇔ 255 0-100% | |||
| 51 Blue 33-34 | 000 | ⇔ 255 0-100% | |||
| 52 Red 35-36 | 000 | ⇔ 255 0-100% | |||
| 53 Green 35-36 | 000 | ⇔ 255 0-100% | |||
| 54 Blue 35-36 | 000 | ⇔ 255 0-100% | |||
| 55 Red 37-38 | 000 | ⇔ 255 0-100% | |||
| 56 Green 37-38 | 000 | ⇔ 255 0-100% | |||
| 57 Blue 37-38 | 000 | ⇔ 255 0-100% | |||
| Channel Function Value Percent/Setting | |||||
| 58 Red 39-40 000 ⇔ 255 0-100% | |||||
| 59 Green 39-40 000 | ⇔ 255 0-100% | ||||
| 60 Blue 39-40 000 | ⇔ 255 0-100% | ||||
| 61 Red 41-42 000 | ⇔ 255 0-100% | ||||
| 62 Green 41-42 000 | ⇔ 255 0-100% | ||||
| 63 Blue 41-42 000 | ⇔ 255 0-100% | ||||
| 64 Red 43-44 000 | ⇔ 255 0-100% | ||||
| 65 Green 43-44 000 | ⇔ 255 0-100% | ||||
| 66 Blue 43-44 000 | ⇔ 255 0-100% | ||||
| 67 Red 45-46 000 | ⇔ 255 0-100% | ||||
| 68 Green 45-46 000 | ⇔ 255 0-100% | ||||
| 69 Blue 45-46 000 | ⇔ 255 0-100% | ||||
| 70 Red 47-48 000 | ⇔ 255 0-100% | ||||
| 71 Green 47-48 000 | ⇔ 255 0-100% | ||||
| 72 Blue 47-48 000 | ⇔ 255 0-100% | ||||
| 73 Red 49-50 000 | ⇔ 255 0-100% | ||||
| 74 Green 49-50 000 | ⇔ 255 0-100% | ||||
| 75 Blue 49-50 000 | ⇔ 255 0-100% | ||||
| 76 Red 51-52 000 | ⇔ 255 0-100% | ||||
| 77 Green 51-52 000 | ⇔ 255 0-100% | ||||
| 78 Blue 51-52 000 | ⇔ 255 0-100% | ||||
| 79 Red 53-54 000 | ⇔ 255 0-100% | ||||
| 80 Green 53-54 000 | ⇔ 255 0-100% | ||||
| 81 Blue 53-54 000 | ⇔ 255 0-100% | ||||
| 82 Red 55-56 000 | ⇔ 255 0-100% | ||||
| 83 Green 55-56 000 | ⇔ 255 0-100% | ||||
| 84 Blue 55-56 000 | ⇔ 255 0-100% | ||||
| 85 Red 57-58 000 | ⇔ 255 0-100% | ||||
| 86 Green 57-58 000 | ⇔ 255 0-100% | ||||
| 87 Blue 57-58 000 | ⇔ 255 0-100% | ||||
| 88 Red 59-60 000 | ⇔ 255 0-100% | ||||
| 89 Green 59-60 000 | ⇔ 255 0-100% | ||||
| 90 Blue 59-60 000 | ⇔ 255 0-100% | ||||
| 91 Red 61-62 000 | ⇔ 255 0-100% | ||||
| 92 Green 61-62 000 | ⇔ 255 0-100% | ||||
| 93 Blue 61-62 000 | ⇔ 255 0-100% | ||||
| 94 Red 63-64 000 | ⇔ 255 0-100% | ||||
| 95 Green 63-64 000 | ⇔ 255 0-100% | ||||
| 96 Blue 63-64 000 | ⇔ 255 0-100% | ||||
| 97 Red 65-66 000 | ⇔ 255 0-100% | ||||
| 98 Green 65-66 000 | ⇔ 255 0-100% | ||||
| 99 Blue 65-66 000 | ⇔ 255 0-100% | ||||
| 100 Red 67-68 000 | ⇔ 255 0-100% | ||||
| 101 Green 67-68 000 | ⇔ 255 0-100% | ||||
| 102 Blue 67-68 000 | ⇔ 255 0-100% | ||||
| 103 Red 69-70 000 | ⇔ 255 0-100% | ||||
| 104 Green 69-70 000 | ⇔ 255 0-100% | ||||
| 105 Blue 69-70 000 | ⇔ 255 0-100% | ||||
| 106 Red 71-72 000 | ⇔ 255 0-100% | ||||
| 107 Green 71-72 000 | ⇔ 255 0-100% | ||||
| 108 Blue 71-72 000 | ⇔ 255 0-100% | ||||
| 109 Red 73-74 000 | ⇔ 255 0-100% | ||||
| 110 Green 73-74 000 | ⇔ 255 0-100% | ||||
| 111 Blue 73-74 000 | ⇔ 255 0-100% | ||||
| 112 Red 75-76 000 | ⇔ 255 0-100% | ||||
| 113 Green 75-76 000 | ⇔ 255 0-100% | ||||
| 114 Blue 75-76 000 | ⇔ 255 0-100% | ||||
| 115 Red 77–78 000 | 255 0–100% | ||||
| 116 Green 77–78 000 | 255 0–100% | ||||
| 117 Blue 77–78 000 | 255 0–100% | ||||
| 118 Red 79–80 000 | 255 0–100% | ||||
| 119 Green 79–80 000 | 255 0–100% | ||||
| 120 Blue 79–80 000 | 255 0–100% | ||||
| 121 Red 81–82 000 | 255 0–100% | ||||
| 122 Green 81–82 000 | 255 0–100% | ||||
| 123 Blue 81–82 000 | 255 0–100% | ||||
| 124 Red 83–84 000 | 255 0–100% | ||||
| 125 Green 83–84 000 | 255 0–100% | ||||
| 126 Blue 83–84 000 | 255 0–100% | ||||
| 127 Red 85–86 000 | 255 0–100% | ||||
| 128 Green 85–86 000 | 255 0–100% | ||||
| 129 Blue 85–86 000 | 255 0–100% | ||||
| 130 Red 87–88 000 | 255 0–100% | ||||
| 131 Green 87–88 000 | 255 0–100% | ||||
| 132 Blue 87–88 000 | 255 0–100% | ||||
| 133 Red 89–90 000 | 255 0–100% | ||||
| 134 Green 89–90 000 | 255 0–100% | ||||
| 135 Blue 89–90 000 | 255 0–100% | ||||
| 136 Red 91–92 000 | 255 0–100% | ||||
| 137 Green 91–92 000 | 255 0–100% | ||||
| 138 Blue 91–92 000 | 255 0–100% | ||||
| 139 Red 93–94 000 | 255 0–100% | ||||
| 140 Green 93–94 000 | 255 0–100% | ||||
| 141 Blue 93–94 000 | 255 0–100% | ||||
| 142 Red 95–96 000 | 255 0–100% | ||||
| 143 Green 95–96 000 | 255 0–100% | ||||
| 144 Blue 95–96 000 | 255 0–100% | ||||
| 145 Red 97–98 000 | 255 0–100% | ||||
| 146 Green 97–98 000 | 255 0–100% | ||||
| 147 Blue 97–98 000 | 255 0–100% | ||||
| 148 Red 99–100 000 | 255 0–100% | ||||
| 149 Green 99–100 000 | 255 0–100% | ||||
| 150 Blue 99–100 000 | 255 0–100% | ||||
Acerca de esta Guía
1 = Vermogen + (12 AWG of groter)
2 = Gegevens + (18-24 AWG)
3 = Gegevens - (18-24 AWG)
4 = Vermogens - (12 AWG of groter)
General Information Technical Support
Chauvet World Headquarters
Address: 5200 NW 108th Ave. Voice: (844) 393-7575
Sunrise, FL 33351 Fax: (954) 756-8015
Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com
Fax: (954) 929-5560
Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com
Chauvet Europe Ltd
Address: Unit 1C Email: UKtech@chauvetlighting.eu
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu
NG16 6NT
Voice: +44 (0) 1773 511115
Fax: +44 (0) 1773 511110
Chauvet Europe BVBA
Address: Stokstraat 18 Email: BNLtech@chauvetlighting.eu
9770 Kruishoutem
Belgium Website: www.chauvetprofessional.eu
Voice: +32 9 388 93 97
Chauvet France
Address: 3, Rue Ampère
91380 Chilly-Mazarin
Email: FRtech@chauvetlighting.fr
France Website: www.chauvetprofessional.eu
Voice: +33 1 78 85 33 59
Chauvet Germany
(Entrance by Calle 2)
Email: servicio@chauvet.com.mx
Zona Industrial Lerma Website: www.chauvetprofessional.mx
Outside the U.S., U.K., Ireland, France, Germany, Benelux, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details.
ETHERNET
UL 8750
© CSA 22.2 No. 250.13
us E113093
RoHS
