USER MANUAL COLORado 2-Quad Zoom Chauvet

The Colorado 2 Quad Zoom Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
  To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
  DO NOT look at the light source when the product is on.
• CAUTION: This product's housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

• Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).

• Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.
• Locations that are prone to flooding or being buried in snow.
• Other areas where the product will be subject to extreme radiation or caustic substances.

• When using this product in an outdoor, IP65 type environment, be sure to use IP65 (or higher) rated power/data cables, secure unused ports with attached IP65 covers, and secure the display plate to the control panel.

• USE a safety cable when mounting this product overhead.

• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
  DO NOT operate this product if the housing, lenses, or cables appear damaged.
  DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
  The maximum ambient temperature is 113^ (45^) . Do not operate this product at higher temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a product. From inside the U.S., UK, Ireland, Mexico, or Benelux, use the information in Contact Us at the end of this QRG.

What is Included

Colorado 2 Quad Zoom
Seetronic Powerkon IP65 power cord
- Gel frame holder (9 in/229 mm accessories)
Gel frame
Warranty Card
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100-240 VAC, 50/60 Hz.

Power Linking

You can link up to 7 Colorado 2 Quad Zoom products at 120 VAC or 14 at 230 VAC. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• When using this product in an outdoor IP65 type environment, be sure to use IP65 (or higher) rated power cables and secure unused ports with attached IP65 covers.

DMX Linking

The Colorado 2 Quad Zoom will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Colorado 2 Quad Zoom uses a 3- or 5-pin DMX data connection for its DMX personalities: TOUR, TR16, ARC.1, AR1.D, ARC.2, AR2.D, STD.Y, AR2.S, AR2.Z, and HSV. See the User Manual for information about connecting and configuring the product for DMX operation.

For optimum control of the 16-bit dimming channels in the TR16 and STD.Y personalities, be sure that both dimming curves in SETTING > DIMMER are set to OFF

Master/Slave Connection

The Colorado 2 Quad Zoom uses the DMX data connection for its Master/Slave mode. See the User Manual for information about connecting and configuring the product for master/slave operation.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

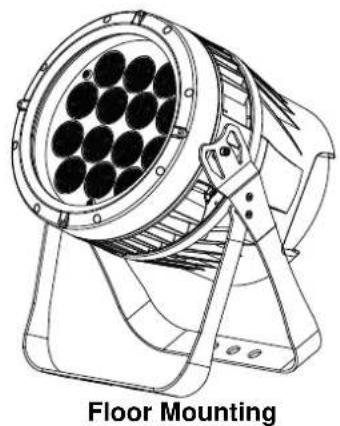

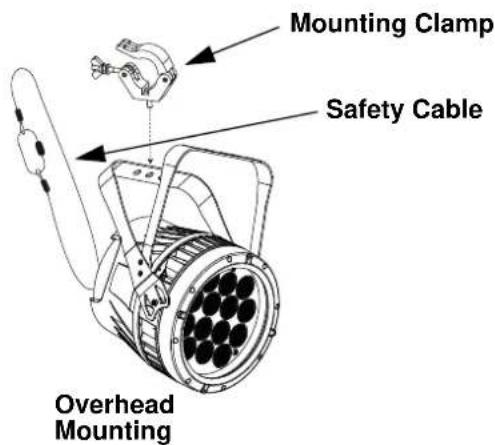

Product Mounting Diagram

Control Panel Description

Button Function
<MENU>	Exits from the current menu or function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>	Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list or decreases the numeric value when in a function

Passcode

After being prompted, enter the following passcode by pressing:

,,,,

This passcode cannot be changed and must be used whenever prompted.

Menu Map

Main Level Programming Levels Description
STAT	R.		0-255	Combines red, green, blue, and white to make a custom color (0-100%)
	G.
	B.
	W.
	Z. Changes the		beam angle (zoom)
	S. 0-20			Selects the strobe frequency (0-20 Hz)
AUTO	AT. 1-10			Selects automatic programs and auto program speed
	PR 1-10 Selects customizable programs
RUN	DMX			Receives DMX signals from the DMX controller
	SLAVE Receives DMX signals from the master
DMX D. 001	-512 Sets the DMX starting address
PERS	TR16			17-channel: 16-bit RGBW and dimmer; strobe, color macro, auto/custom, dimmer speed, auto speed, zoom, zoom reset
	STD.Y			17-channel: 16-bit RGBW and dimmer; strobe, color macro, auto/custom, dimmer speed, auto speed, zoom, zoom reset
	TOUR			12-channel: RGBW, dimmer, strobe, color macro, auto/custom, dimmer speed, auto speed, zoom, zoom reset
	AR2.Z			7-channel: RGBW, dimmer, zoom, zoom reset
	AR2.S 6-channel: RGBW, dimmer, strobe
	AR2.D 5-channel: RGBW, dimmer
	ARC.2 4-channel: RGBW
	AR1.D 4-channel: RGB, dimmer
	ARC.1 3-channel: RGB control
	HSV. 3-channel: HSV control
EDIT PR. 1-10 SC.01-30	10 SC.01-30		R.	0-255
			G.
			B.
			W.
			Z.
			S.	0-20
			T.	0-255
			F.

Main Level	Programming Levels						Description
SET	UPLD			****(Enter Passcode)			Uploads custom programs to other Colorado 2 Quad Zoom
	REST Resets the fixture to factory defaults
	COLR			OFF RGB set to 255 = max. output			255 = max. output
				RGBW RGB set to 255 = balanced white
				UC. Universal color balance
	DIM			OFFDIM1			Selects dimming profiles from fast (DIM1) to slow (DIM4) or OFF
				DIM2
				DIM3
				DIM4
	CURV			OFF No dimmer
				CV1			Dimmer curves fast (CV1) to slow (CV3)
				CV2
				CV3
	DERR			SAVE			Continues with last command upon loss of DMX control
				BLAC Blacks out			Fixture upon loss of DMX
	ZOOM			BASE			Sets default zoom position (full movement)
				POS1 Sets position 1 setting for zoom limit
				POS2 Sets position 2 setting for zoom limit
CAL	*****(Enter Passcode)	CAL	WT	WH01-11	R.	000-255	Modifies the color macros used in the TOUR,STD.Y, and TR16 personalities
					G.
					B.
					W.
			RGBW	RGB.W	R.		Defines the color temperature used when COLOR is set to RGBW
					G.
					B.
			ZOOM		POS.1		Sets the min/max position of the zoom function
					POS.2
KEY	OFFON						Sets to key lock (Passcode mode)

DMX Values

TR16 Channel Function Value Percent/Setting

1 Dimmer 000 ≈ 255 0-100%
2 Fine Dimmer 000 ≈ 255			Fine control (16-bit) (Step Duration if Custom 1-10 in CH. 13 is active)
3 Red 000 ≈ 255			0-100% (Fade Duration if Custom 1-10 in CH. 13 is active)
4	Fine Red	000 ≈ 255	Fine control (16-bit)
5 Green	000	255 0-100%
6	Fine Green	000 ≈ 255	Fine control (16-bit)
7 Blue	000	255 0-100%
8	Fine Blue	000 ≈ 255	Fine control (16-bit)
9 White	000	255 0-100%
10	Fine White	000 ≈ 255	Fine control (16-bit)

TR16

Channel Function Value Percent/Setting
11	Color Macro + White Balance	000 ⇌ 010	No function
		011 ⇌ 030	R:100% G:0-100% B:0
		031 ⇌ 050	R:100%-0 G:100% B:0
		051 ⇌ 070	R:0 G:100% B:0-100%
		071 ⇌ 090	R:0 G:100%-0 B:100%
		091 ⇌ 110	R:0-100% G:0 B:100%
		111 ⇌ 130	R:100% G:0 B:100%-0
		131 ⇌ 150	R:100% G:0-100% B:0-100%
		151 ⇌ 170	R:100%-0 G:100%-0 B:100%
		171 ⇌ 200	RGBW:100%
		201 ⇌ 205	White 1
		206 ⇌ 210	White 2
		211 ⇌ 215	White 3
		216 ⇌ 220	White 4
		221 ⇌ 225	White 5
		226 ⇌ 230	White 6
		231 ⇌ 235	White 7
		236 ⇌ 240	White 8
		241 ⇌ 245	White 9
		246 ⇌ 251	White 10
		251 ⇌ 255	White 11
12 Strobe		000 ⇌ 009	No function
		010 ⇌ 255	0-20 Hz
13 Programs		000 ⇌ 040	No function
		041 ⇌ 050	Auto 1
		051 ⇌ 060	Auto 2
		061 ⇌ 070	Auto 3
		071 ⇌ 080	Auto 4
		081 ⇌ 090	Auto 5
		091 ⇌ 100	Auto 6
		101 ⇌ 110	Auto 7
		111 ⇌ 120	Auto 8
		121 ⇌ 130	Auto 9
		131 ⇌ 140	Auto 10
		141 ⇌ 150	Custom 1
		151 ⇌ 160	Custom 2
		161 ⇌ 170	Custom 3
		171 ⇌ 180	Custom 4
		181 ⇌ 190	Custom 5
		191 ⇌ 200	Custom 6
		201 ⇌ 210	Custom 7
		211 ⇌ 220	Custom 8
		221 ⇌ 230	Custom 9
		231 ⇌ 255	Custom 10
14	Auto Speed	000 ⇌ 255	0-100% (only when using Auto 1-10 in CH. 13)
15 Dimmer Speed		000 ⇌ 009	Preset dimmer speed from display menu
		010 ⇌ 029	Linear dimmer
		030 ⇌ 069	Nonlinear dimming curve 1 (fastest)
		070 ⇌ 129	Nonlinear dimming curve 2
		130 ⇌ 189	Nonlinear dimming curve 3
		190 ⇌ 255	Nonlinear dimming curve 4 (slowest)
16 Zoom	000 ⇌ 255 0-100%
17	Zoom Control	000 ⇌ 200	No function
		201 ⇌ 220	Zoom reset
		221 ⇌ 255	No function

STD.Y Channel Function Value Percent/Setting

	1 Dimmer	000	255 0-100%
	2 Fine Dimmer	000	255	Fine control (16-bit) (Step Duration if Custom 1-10 in CH. 13 is active)
	3 Red	000	255	0-100% (Fade Duration if Custom 1-10 in CH. 13 is active)

STD.Y

Channel	Function	Value	Percent/Setting
4 Fine Red 000 ≈ 255 Fine control (16-bit)
5 Green 000 ≈ 255 0-100%
6 Fine Green 000 ≈ 255 Fine control (16-bit)
7 Blue 000 ≈ 255 0-100%
8 Fine Blue 000 ≈ 255 Fine control (16-bit)
9 White 000 ≈ 255 0-100%
10 Fine White 000 ≈ 255 Fine control (16-bit)
11	Color Macro + White Balance	000 ≈ 010	No function
		011 ≈ 030	R:100% G:0-100% B:0
		031 ≈ 050	R:100%-0 G:100% B:0
		051 ≈ 070	R:0 G:100% B:0-100%
		071 ≈ 090	R:0 G:100%-0 B:100%
		091 ≈ 110	R:0-100% G:0 B:100%
		111 ≈ 130	R:100% G:0 B:100%-0
		131 ≈ 150	R:100% G:0-100% B:0-100%
		151 ≈ 170	R:100%-0 G:100%-0 B:100%
		171 ≈ 200	RGBW:100%
		201 ≈ 205	White 1
		206 ≈ 210	White 2
		211 ≈ 215	White 3
		216 ≈ 220	White 4
		221 ≈ 225	White 5
		226 ≈ 230	White 6
		231 ≈ 235	White 7
		236 ≈ 240	White 8
		241 ≈ 245	White 9
		246 ≈ 251	White 10
		251 ≈ 255	White 11
12 Strobe		000 ≈ 009	No function
		010 ≈ 255	0-20 Hz
13 Programs		000 ≈ 040	No function
		041 ≈ 050	Auto 1
		051 ≈ 060	Auto 2
		061 ≈ 070	Auto 3
		071 ≈ 080	Auto 4
		081 ≈ 090	Auto 5
		091 ≈ 100	Auto 6
		101 ≈ 110	Auto 7
		111 ≈ 120	Auto 8
		121 ≈ 130	Auto 9
		131 ≈ 140	Auto 10
		141 ≈ 150	Custom 1
		151 ≈ 160	Custom 2
		161 ≈ 170	Custom 3
		171 ≈ 180	Custom 4
		181 ≈ 190	Custom 5
		191 ≈ 200	Custom 6
		201 ≈ 210	Custom 7
		211 ≈ 220	Custom 8
		221 ≈ 230	Custom 9
		231 ≈ 255	Custom 10
14	Auto Speed	000 ≈ 255	0-100% (only when using Auto 1-10 in CH. 13)
15 Dimmer Speed		000 ≈ 009	Preset dimmer speed from display menu
		010 ≈ 029	Linear dimmer
		030 ≈ 069	Nonlinear dimming curve 1 (fastest)
		070 ≈ 129	Nonlinear dimming curve 2
		130 ≈ 189	Nonlinear dimming curve 3
		190 ≈ 255	Nonlinear dimming curve 4 (slowest)
16 Zoom	000 ≈ 255 0-100%
17	Zoom Control	000 ≈ 200	No function
		201 ≈ 220	Zoom reset
		221 ≈ 255	No function

TOUR Channel Function		Value Percent/Setting
	1 Dimmer 000		↔255 0-100%
	2 Red 000		↔255	0-100% (Step Duration if Custom 1-10 in CH. 8 is active)
	3 Green 000		↔255	0-100% (Fade Duration if Custom 1-10 in CH. 8 is active)
	4 Blue 000		↔255 0-100%
	5 White 000	↔255 0-100%
	6	Color Macro + White Balance	000	No function
			011	R:100% G:0-100% B:0
			031	R:100%-0 G:100% B:0
			051	R:0 G:100% B:0-100%
			071	R:0 G:100%-0 B:100%
			091	R:0-100% G:0 B:100%
			111	R:100% G:0 B:100%-0
			131	R:100% G:0-100% B:0-100%
			151	R:100%-0 G:100%-0 B:100%
			171	RGBW:100%
			201	White 1
			206	White 2
			211	White 3
			216	White 4
			221	White 5
			226	White 6
			231	White 7
			236	White 8
			241	White 9
			246	White 10
			251	White 11
	7 Strobe		000	No function
			010	0-20 Hz
	8 Programs		000	No function
			041	Auto 1
			051	Auto 2
			061	Auto 3
			071	Auto 4
			081	Auto 5
			091	Auto 6
			101	Auto 7
			111	Auto 8
			121	Auto 9
			131	Auto 10
			141	Custom 1
			151	Custom 2
			161	Custom 3
			171	Custom 4
			181	Custom 5
			191	Custom 6
			201	Custom 7
			211	Custom 8
			221	Custom 9
			231	Custom 10
	9	Auto Speed	000	0-100% (only when using Auto 1-10 in CH. 8)
	10	Dimmer Speed	000	Preset dimmer speed from display menu
			010	Linear dimmer
			030	Nonlinear dimming curve 1 (fastest)
			070	Nonlinear dimming curve 2
			130	Nonlinear dimming curve 3
			190	Nonlinear dimming curve 4 (slowest)
	11	Zoom	000	No function
	12	Zoom Control	000	No function

AR2.Z Channel Function Value Percent/Setting

1 Dimmer 000 ⇌ 255 0-100%
2 Red 000 ⇌ 255 0-100%
3 Green 000 ⇌ 255 0-100%
4 Blue 000 ⇌ 255 0-100%
5 White 000 ⇌ 255 0-100%
6 Zoom 000 ⇌ 255 0-100%
7	Zoom Control	000 ⇌ 200 201 ⇌ 220 221 ⇌ 255

AR2.S Channel Function Value Percent/Setting

1 Dimmer 000 ⇌ 255 0-100%
2 Red 000 ⇌ 255 0-100%
3 Green 000 ⇌ 255 0-100%
4 Blue 000 ⇌ 255 0-100%
5 White 000 ⇌ 255 0-100%
6 Strobe		000 ⇌ 009 010 ⇌ 255	No function 0-20 Hz

AR2.D Channel Function Value Percent/Setting

1 Dimmer 000 ⇌ 255 0-100%

2 Red 000 ⇌ 255 0-100%

3 Green 000 ⇌ 255 0-100%

4 Blue 000 ⇌ 255 0-100%

5 White 000 ⇌ 255 0-100%

ARC.2 Channel Function Value Percent/Setting

1 Red 000 ⇌ 255 0-100%

2 Green 000 ⇌ 255 0-100%

3 Blue 000 ⇌ 255 0-100%

4 White 000 ⇌ 255 0-100%

AR1.D Channel Function Value Percent/Setting

1 Dimmer 000 ≈ 255 0-100%
2 Red 000 ≈ 255 0-100%
3 Green 000 ≈ 255 0-100%
4 Blue 000 ≈ 255 0-100%

ARC.1 Channel Function Value Percent/Setting

1 Red 000 ⇌ 255 0-100%

2 Green 000 ⇌ 255 0-100%

3 Blue 000 ⇌ 255 0-100%

HSV Channel Function Value Percent/Setting

1 Hue	000	255 0-100%
2 Saturation	000	255 0-100%
3 Value	000	255 0-100%

Acerca deEsta Guía

Avant de monter cet apparéil, lisez et assimilez les Consignes de Sécurité. Use at least one mounting point per product.
Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

General Information Technical Support

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone]

Fax: [phone]

Toll Free: [phone]

Email:[e-mail]

Website

www.chauvetlighting.com

EUROPE

General Information Technical Support

General Information Technical Support

Address: Unit 1C

Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK

NG16 6NT

Voice: [phone]

Fax: [phone]

Website

www.chauvetlighting.co.uk

MEXICO

General Information Technical Support

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record.

UL 1573

CSAC22.2No.166

E113093
