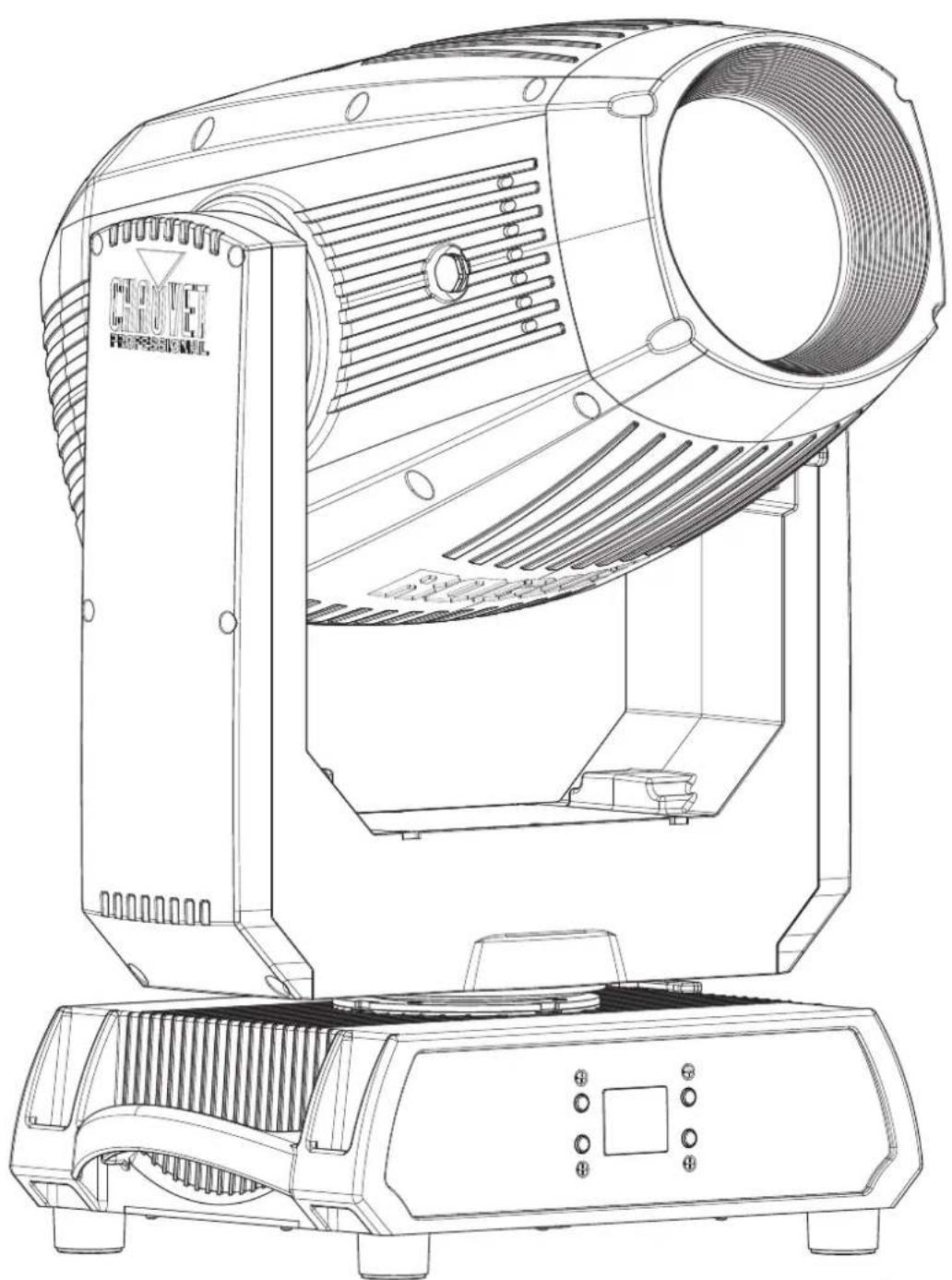

USER MANUAL Rogue Outcast 3 Spot Chauvet

Quick Reference Guide

English EN

Espanol ES

François FR

Deutsch DE

Nederlands NL

Model ID: ROGUEOUTCAST3SPOT

About This Guide

The Rogue Outcast 3 Spot Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTY. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 16.4 ft (5 m) is not expected.
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- The luminaire is intended for professional use only.
- DO NOT open this product. It contains no user-serviceable parts.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- DO NOT look at the light source when the product is on.
- CAUTION: This product's housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
DO NOT leave any flammable material within 20~cm of this product while operating or connected to power.
- CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
- USE a safety cable when mounting this product overhead.
- DO NOT submerge this product (IP65). Regular outdoor operation is fine.
- Not for permanent outdoor installation in locations with extreme environmental conditions.
- DO NOT operate this product if the housing, lenses, or cables appear damaged.
- DO NOT connect this product to a dimmer or rheostat.
- ONLY connect this product to a grounded and protected circuit.
- ONLY use the hanging/mounting bracket to carry this product.
- In the event of a serious operating problem, stop using immediately.
The maximum ambient temperature is 113^ (45^) . Do not operate this product at higher temperatures.
- The minimum startup temperature is -4^ (-20^) . Do not start the product at lower temperatures.
The minimum ambient temperature is -22^ (-30^) . Do not operate the product at lower temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Rogue Outcast 3 Spot

• 2 omega brackets with mounting hardware

Seetronic Powerkon IP65 power cord

• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100-240 VAC, 50 / 60Hz

Power Linking

It is possible to link up to 2 Rogue Outcast 3 Spot products at 100 V, 3 products at 120 V, 5 products at 208 V, 6 products at 230 V, or 6 products at 240 V. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect the product from power.
2. Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Rogue Outcast 3 Spot will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Rogue Outcast 3 Spot uses a 5-pin DMX data connection for its DMX personalities: 20CH and 25CH. See the User Manual for information about connecting and configuring the product for DMX operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Rogue Outcast 3 Spot supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least 2 mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.

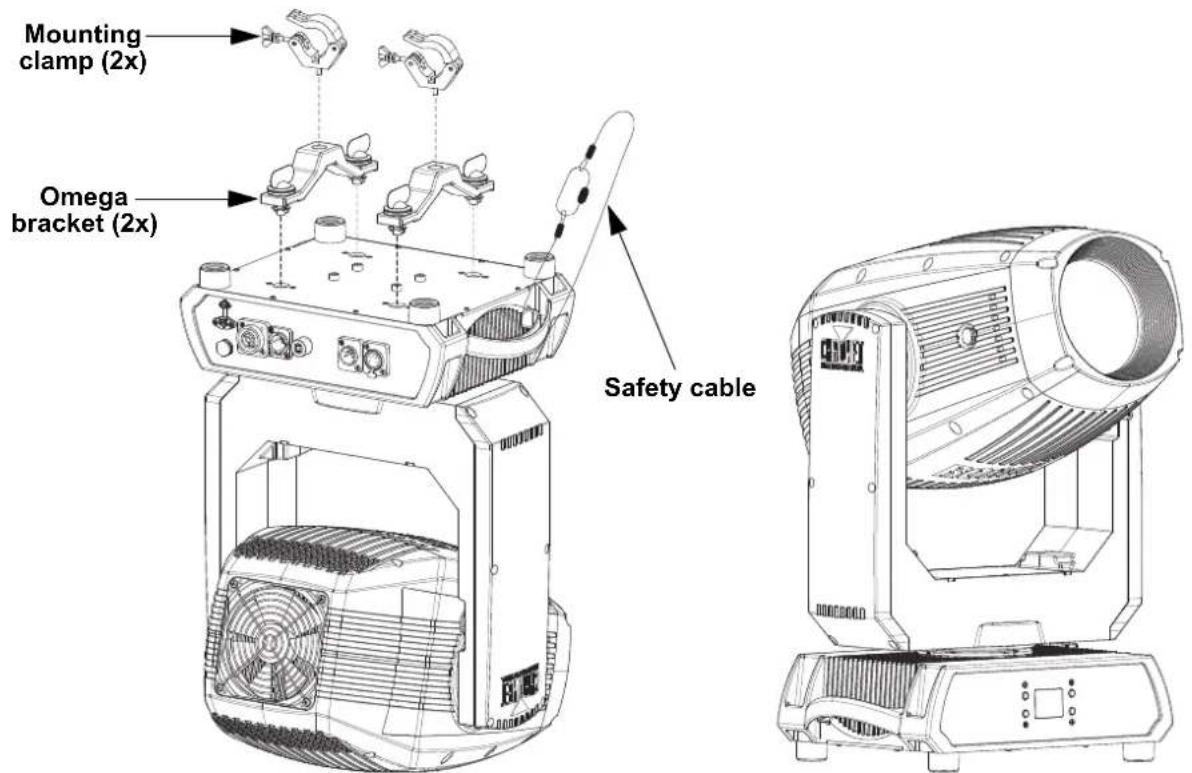

Mounting Diagram

Overhead mounting Surface mounting

Control Panel Description

Button Function

<MENU>Exists from the current menu or function

<ENTER>Enables the currently displayed menu or sets the currently selected value into the selected function

<UP>Navigates upwards through the menu list or increases the numeric value when in a function

<DOWN>Navigates downwards through the menu list or decreases the numeric value when in a function

Refer to the Rogue Outcast 3 Spot product page on www.chauvetprofessional.com for the latest menu map.

Menu Map

Main Level Programming Levels Description
Address 001-512 Sets the starting address
Run Mode	DMX	20CH		Selects the DMX personality
		25CH
	Auto Test Auto test all functions
	Manual Test	PanPan FineTiltTilt FineP/T SpeedDimmerDimmer FineShutterVirtual ShakingColor1Color2Gobo2GoboGobo RotateGobo IndexGobo2FocusFocus FineAuto FocusZoomZoom FinePrismPrism RotateIrisFrostSpecial Function	0-255	Manually control and test all settings through the control panel
Setup	Pan Reverse	NO Normal pan
		YES Reversed pan
	Tilt Reverse	NO Normal tilt
		YES Reversed tilt
	Screen Reverse	NO Normal screen ddisplay
		YES Inverted screendisplay
		AUTO Automatic srown orientation
	Pan Angle	540 540° pan range
		360 360° pan range
		180 180° pan range
	Tilt Angle	270 270° tilt range
		180 180° tilt range
		090 90° tilt range
	BL.O.P/T Move	NO		Enable/disable blackout while panning/tilting
		YES
Main Level	Programming Levels			Description
Setup(cont.)	BL.O.ColorMove	NO		Enable/disable blackout while color wheel is moving
		YES
	BL.O.GoboMove	NO		Enable/disable blackout while gobo wheels are moving
		YES
	Backlight Timer	30S Display turns off		after 30 seconds
		1M Display turns off		after 1 minute
		5M Display turns off		after 5 minutes
		ON Display stays on
	Swap XY	NO Do not swap pan		and tilt
		YES Pan controls tilt,		tilt controls pan
	Loss of Data	Hold Holds last signal		received
		Close Blacks out fixture
	Fans	Auto Fan speed set by		product temperature
		ECO Quiet mode
		Full Fan speed set on		high
	Dimmer Curve	Linear		Set the dimmer curve
		Square
		I Squa
		SCurve
		Linear2
	PWM Option	600Hz		Sets the PWM frequency
		1200Hz
		2000Hz
		4000Hz
		6000Hz
		15000Hz
	USB Update	NO		Update firmware via USB C
		YES
	Reset	Pan/Tilt	NO YES	Reset individual functions or all functions from start-up
		Prism
		Color/Iris
		Gobo/Gobo2
		Frost
		All
	Factory Set	NO		Reset to factory default settings
		YES
Sys Info	Ver V Shows firmware version
	Running Mode	Shows current running mode
	DMX Address	Shows current DMX address
	Temperature	Shows the product temperature in °C
	Fixture Hours	Shows time product has been on
	LED Hours	Shows time LED has been on
	UID	Shows UID information
	_Fan_(x3)	Shows speeds of fans
	Base Fan1	Shows speed of base fan

DMX Values

20CH	25CH	Function Value Percent/Setting
1	1	P a n		000 ⇌ 255 0-100%
2	2	Fine pan		000 ⇌ 255 Fine control (16-bit)
3	3	T i l t		000 ⇌ 255 0-100%
4	4	Fine tilt		000 ⇌ 255 Fine control (16-bit)
5	5	Pan/tilt speed		000 ⇌ 255 Fast to slow
6	6	Dimmer		000 ⇌ 255 0-100%
-	7	Fine dimmer		000 ⇌ 255 Fine control (16-bit)
7	8	S t r o		000 ⇌ 003 Off 004 ⇌ 007 On 008 ⇌ 076 Synchronized strobe, slow to fast 077 ⇌ 145 Pulse strobe, slow to fast 146 ⇌ 215 Random strobe, slow to fast 216 ⇌ 255 On
8 9	Virtual	shaking		000 ⇌ 001 No function 002 ⇌ 128 Shaking effect, slow to fast 129 ⇌ 255 Fade effect, slow to fast
9	10	Color wheel 1		000 ⇌ 006 Open 007 ⇌ 013 Yellow 014 ⇌ 020 Light blue 021 ⇌ 027 Green 028 ⇌ 034 Red 034 ⇌ 041 Magenta 042 ⇌ 048 Dark blue 049 ⇌ 059 Orange 060 ⇌ 187 Color wheel indexing 188 ⇌ 219 Color scroll, fast to slow 220 ⇌ 223 Stop 224 ⇌ 255 Reverse color scroll, slow to fast
10	11	Color wheel 2		000 ⇌ 006 Open 007 ⇌ 013 CTO 3200K 014 ⇌ 020 CTO 5600K 021 ⇌ 027 Green 028 ⇌ 034 UV 034 ⇌ 041 Orange 042 ⇌ 048 Pink 049 ⇌ 059 Light blue 060 ⇌ 187 Color wheel indexing 188 ⇌ 219 Color scroll, fast to slow 220 ⇌ 223 Stop 224 ⇌ 255 Reverse color scroll, slow to fast
20CH	25CH	Function		Value	Percent/Setting
11 12		Gobo wheel 1(see Gobo Wheels)		001 ⇌ 007008 ⇌ 015016 ⇌ 023024 ⇌ 031032 ⇌ 039040 ⇌ 047048 ⇌ 055056 ⇌ 063064 ⇌ 071072 ⇌ 079080 ⇌ 087088 ⇌ 095096 ⇌ 103104 ⇌ 111112 ⇌ 119120 ⇌ 127128 ⇌ 191192 ⇌ 255	OpenGobo 1Gobo 2Gobo 3Gobo 4Gobo 5Gobo 6Gobo 7Gobo 7 shaking, slow to fastGobo 6 shaking, slow to fastGobo 5 shaking, slow to fastGobo 4 shaking, slow to fastGobo 3 shaking, slow to fastGobo 2 shaking, slow to fastGobo 1 shaking, slow to fastOpenGobo scroll, slow to fastReverse gobo scroll, slow to fast
12 13	Gobo	wheel 1 rotate		000 ⇌ 063064 ⇌ 145146 ⇌ 149150 ⇌ 231232 ⇌ 255	Gobo indexRotation, fast to slowStopReverse rotation, slow to fastAlternating clockwise/counterclockwise rotation, short to long
-	14	Fine gobo rotation		000 ⇌ 255	Fine control (16-bit)
13 15		Gobo wheel 2(see Gobo Wheels)		000 ⇌ 005006 ⇌ 011012 ⇌ 017018 ⇌ 023024 ⇌ 029030 ⇌ 035036 ⇌ 041042 ⇌ 047048 ⇌ 053054 ⇌ 063064 ⇌ 069070 ⇌ 075076 ⇌ 081082 ⇌ 087088 ⇌ 093094 ⇌ 099100 ⇌ 105106 ⇌ 111112 ⇌ 117118 ⇌ 127128 ⇌ 191192 ⇌ 255	Gobo 9 shaking, slow to fastGobo 8 shaking, slow to fastGobo 7 shaking, slow to fastGobo 6 shaking, slow to fastGobo 5 shaking, slow to fastGobo 4 shaking, slow to fastGobo 3 shaking, slow to fastGobo 2 shaking, slow to fastGobo 1 shaking, slow to fastOpenGobo scroll, slow to fastReverse gobo scroll, slow to fast
-	17	Fine focus		000 ⇌ 255	Fine control (16-bit)
- 18	Auto focus			000 ⇌ 010	No function
			011 ⇌ 030	0-5 meters
			031 ⇌ 050	6 meters
			051 ⇌ 070	7 meters
			071 ⇌ 090	8 meters
			091 ⇌ 110	9 meters
			111 ⇌ 130	10 meters
			131 ⇌ 150	12.5 meters
			151 ⇌ 170	15 meters
			171 ⇌ 190	17.5 meters
			191 ⇌ 210	20-60 meters
			211 ⇌ 255	Auto detect distance
15 19	Zoom	000 ⇌ 255 0-100%
-	20	Zoom fine		000 ⇌ 255	Fine control (16-bit)
16 21	Prism			000 ⇌ 004	No function
			005 ⇌ 255	Prism insert
17 22	Prism	rotate		000 ⇌ 127	Prism index
			128 ⇌ 189	Clockwise rotation, fast to slow
			190 ⇌ 193	Stop
			194 ⇌ 255	Counterclockwise rotation, slow to fast
18 23	Iris			000 ⇌ 063	Big to small
			064 ⇌ 127	Auto change, slow to fast
			128 ⇌ 191	Slow open, fast close, slow to fast
			192 ⇌ 255	Fast open, slow close, slow to fast
19 24	Frost	000 ⇌ 255 0-100%
20CH	25CH	Function Value Percent/Setting
20 25	Control(3 second hold)		000 ⇌ 007008 ⇌ 015016 ⇌ 023024 ⇌ 031032 ⇌ 039040 ⇌ 047048 ⇌ 055056 ⇌ 095096 ⇌ 103104 ⇌ 111112 ⇌ 119120 ⇌ 127128 ⇌ 135136 ⇌ 143144 ⇌ 151152 ⇌ 159160 ⇌ 167168 ⇌ 175176 ⇌ 183184 ⇌ 191192 ⇌ 199200 ⇌ 215216 ⇌ 255	No functionBlackout during pan/tiltBlackout while color wheels are movingBlackout while gobo wheels are movingBlackout during pan/tilt/color wheelBlackout during pan/tilt/gobo wheelsBlackout during pan/tilt/color wheel/gobo wheelsNo functionPan resetTilt resetColor wheels resetGobo wheels resetNo functionPrism resetNo functionAll resetIris resetFrost resetZoom resetFan ECOFan FullFan AutoNo function

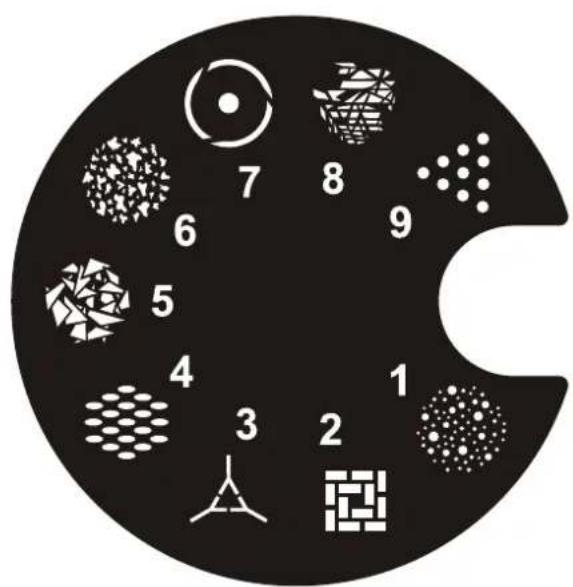

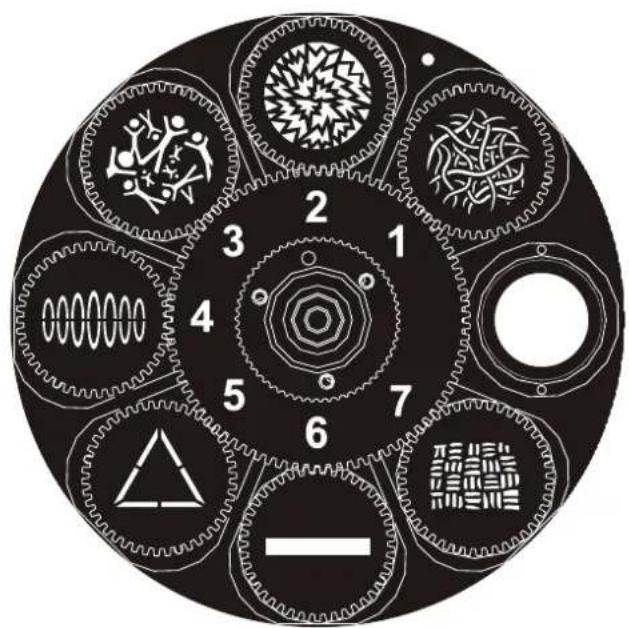

Gobo wheel 1 Gobo wheel 2

Acerca deEsta Guía

RDM (Remote Device Management)

Intentionally Left Blank Page

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

Address: Bruno-Burgel-Str. 11

28759 Bremen

Germany Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Mexico

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Lerma, Edo. de Mexico, CP 52000

Voice: [phone]

Email: [e-mail]

Email: [e-mail]

Email:增值服务@chauvet.com.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U. K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.
