USER MANUAL DO159A DOMO

White and dark gray industrial air purifier with digital display (no visible text or symbols)

DO159A

Handleiding Air cooler
Mode d'emploi Air cooler
Gebrauchsanleitung Air cooler
Instruction booklet Air cooler
Manual de instrucciones Refrigerador de aire
Istruzioni per l'uso Raffrescatore d'aria
Návod k použití Mobilní ochlazovač
Návod na použitie Mobilný ochladzovač

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Technical illustration of a mechanical component with threaded body and clamping mechanism (no text or symbols)

Diagram of a cylindrical device with internal components and hands operating it, showing motion direction (no text or symbols)

Technical line drawing of a cylindrical mechanical device with internal mesh structure and directional arrow (no text or symbols)

Close-up of hands installing a small black component on a white industrial fan (no text or symbols visible)

Three-panel image showing a device with fan, battery pack, and computer monitor, illustrating internal components and assembly (no text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Technical illustration of a mechanical component with threaded shaft and attached bracket (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Technical line drawing of a cylindrical mechanical device with internal structure and directional arrow (no text or symbols)

Close-up of hands installing or adjusting a white electronic device component (no visible text or symbols)

Three-step diagram showing a device with fan, battery pack, and control panel (no text or symbols)

Prohibition sign with a trash bin crossed out and a black rectangle below, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

SWING: SCHWENKTASTE SWING

Technical line drawing of a mechanical component with threaded shaft and base (no text or symbols)

Diagram of a cylindrical device with internal components and a hand pouring liquid into it, showing fluid flow direction (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal layered structure and a hand holding a handle (no text or symbols)

Close-up of hands installing or adjusting a white appliance component with arrows indicating motion (no text or symbols visible)

Three-panel image showing a device with internal components and a close-up of its interior, no visible text or symbols.

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
• In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

· All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- The appliance may not be used with an extension lead or a multiple socket.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

· Do not use or store this appliance outdoors.

· Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

· To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

• Do not insert any objects into the fan, as this may cause electric shock, injuries or damage to the appliance. Do not block or tamper with the fan when it is operating.
• Do not use this fan in any wet or humid areas. Do not place the fan too close to a bath tub or any other water container.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

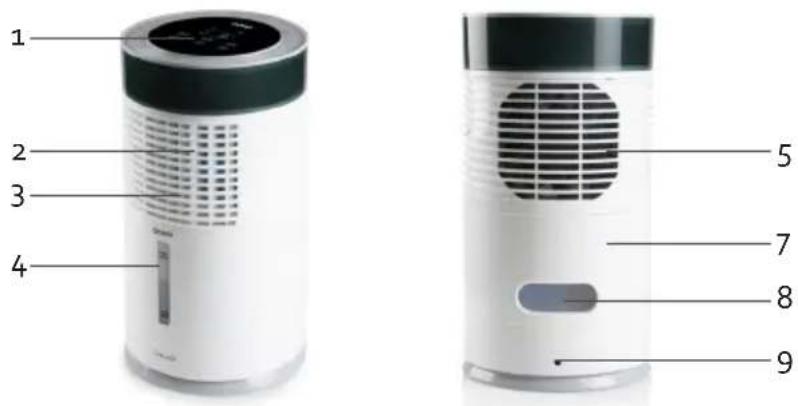

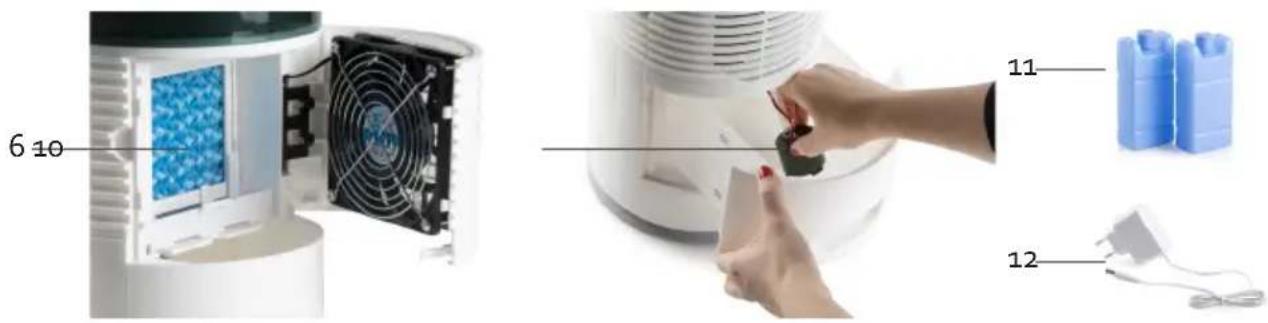

PARTS

1. Control panel
2. Air outlet
3. Vertical air vent
4. Water level indication
5. Air inlet with filter/fan
6. Honeycomb water filter
7. Water tank
8. Handle water tank
9. Adapter connection point
10. Water pump in water reservoir
11. Refrigerating elements
12. Adapter

1 2 3 4 5 7 8 9

6 10 11 12

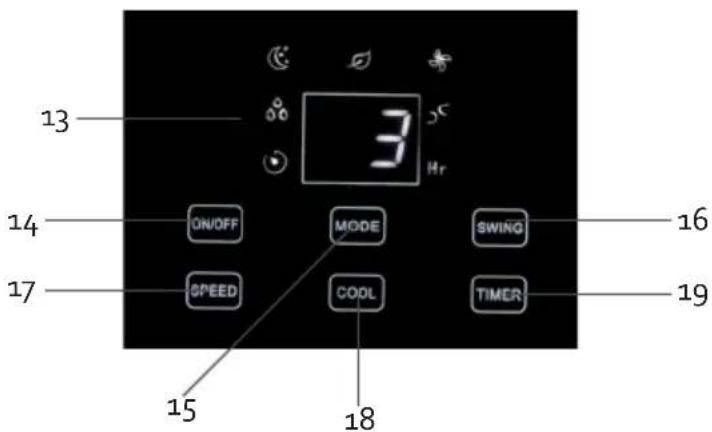

CONTROL PANEL

1. Display
2. ON/OFF: On/Off button
3. MODE: Mode knob (Ventilation, Natural, Sleep mode)
4. SWING: Oscillation button 80°
5. SPEED: Speed setting for fan (1-6)
6. COOL: Button for humidifier/cooler
7. TIMER: Timer button (1-8 h)

13 3 Hr 14 ON/OFF MODE SWING 16 17 SPEED COOL TIMER 19 15 18

BEFORE THE FIRST USE

• Carefully remove the device from the packaging. Remove any promotional stickers.
• Clean the outside of the device with a soft damp cloth.

USE

Insert the plug into a power socket and insert the other end of the adapter into the connection point of the air cooler. A beep indicates that the device is in standby mode. You can control the fan from the control panel. Each time a button is pressed, the device emits an audible signal. The desired setting appears on the display.

ON/OFF: ON/OFF BUTTON ON/OFF

Press this button to turn the device on or off. The latest configuration will be applied automatically when the device is turned back on.

This button allows you to configure three functions: ventilation, natural and sleep mode.

Ventilation

Press the button once to activate ventilation. A symbol appears on the display to indicate that this setting is activated. This setting allows for 6 speed configurations. Each press of the speed settings button will increase the speed. The selected speed appears on the display. The fan will maintain a constant speed in accordance with the speed configuration.

Natural

Press the mode knob twice to activate the natural mode. A symbol appears on the display to indicate that this mode is activated. It is not possible to select a speed in this function, the display shows '1'. The fan simulates a natural breeze.

Sleep mode

Press the mode knob three times to activate sleep mode. A symbol appears on the display to indicate that this mode is activated. It is not possible to select a speed in this function, the display shows '1'. The fan distributes a constant light breeze.

SWING: OSCILLATION BUTTON SWING

Press the oscillation button to rotate the vertical air vent left to right in order to distribute the air. The associated symbol appears on the display. Press this button again to deactivate the function.

The air cooler can also be used as a humidifier. This is recommended if the air in your home is very dry. Press the humidifier/cooler button to activate this function. The associated symbol appears on the display. The water pump transports water to the honeycomb water filter in order to generate a cool air flow. Press this button again to deactivate the function. Make sure the water reservoir contains water before activating this function. In order to do this, follow the steps below.

1. Place the 2 refrigerating elements with water in the freezer until completely frozen. Attention: never open the refrigerating elements to prevent potential damage.

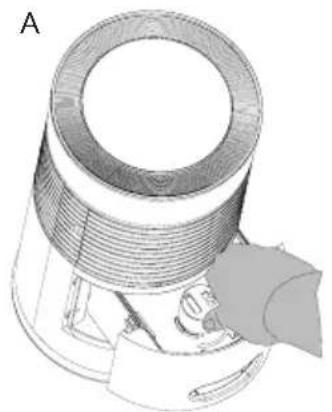

2. Make sure the water pump is attached to the unit correctly (A).

3. Place 1 or 2 cooling elements in the water reservoir. The water temperature will remain around 6^ C lower than room temperature for around 4 hours, ensuring a chilled air flow. The 2 refrigerating elements are reusable. Alternatively, add ice cubes instead of the refrigerating elements, they will have a chilling effect as well.

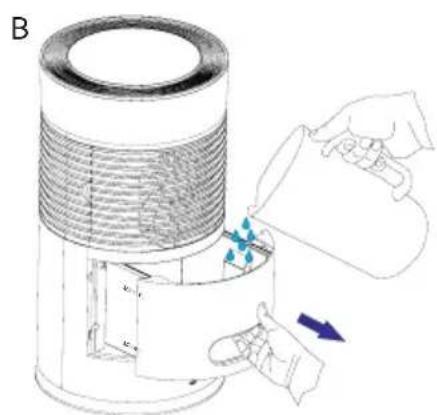

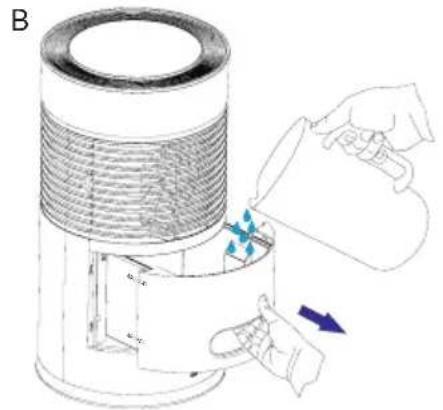

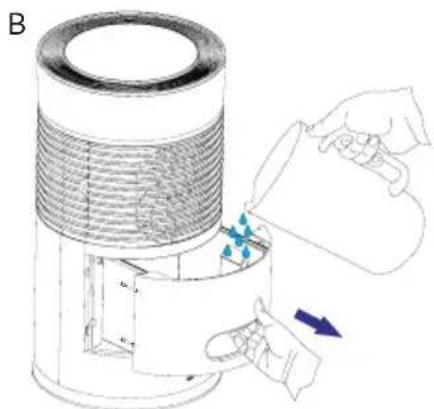

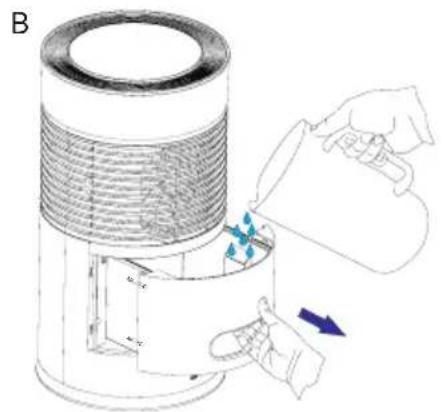

4. Fill the water reservoir with clean water (B). When filling the water reservoir, make sure the water is between the minimum and maximum levels (see level indicator on side of water reservoir) for the unit to work properly.

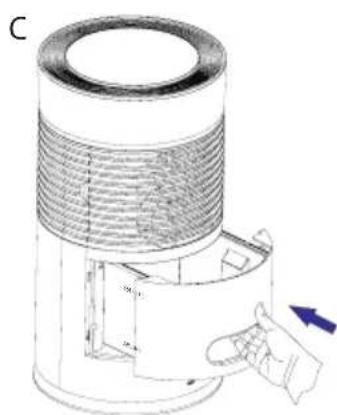

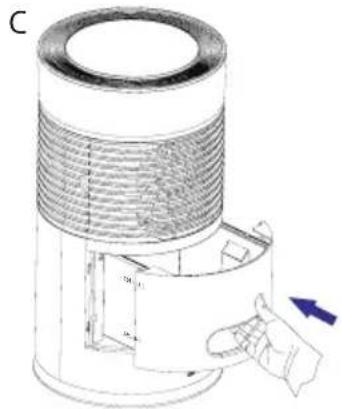

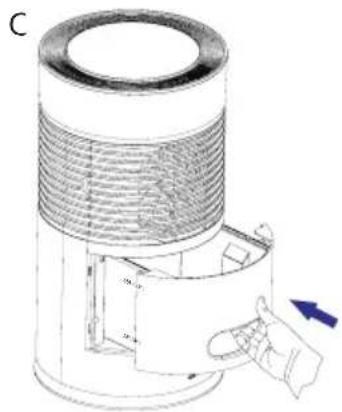

5. Close the water reservoir (C).

Technical illustration of a mechanical component with threaded body and internal structure (no text or symbols)

Diagram of a cylindrical device with internal layered structure and hands operating it, showing motion arrows (no text or symbols)

Technical line drawing of a cylindrical device with internal mesh structure and a hand holding a component (no text or symbols)

1. The water level can be checked during use via the water level indicator on the front of the unit.

TIMER: TIMER

You can set the timer between 1 and 8 hours. Press the timer button. The associated symbol appears on the display. Each press of the button increases the timer by one hour. Once the configured time has passed, the device will deactivate automatically.

DELAYED START

The unit can be pre-set to start after a maximum of 8 hours. To do this, follow the steps below:

1. Press and hold the timer button for a few seconds when the unit is in standby mode.

2. The symbol for the timer will light up. Set the desired time (max. 8 hours).

3. Set the desired settings.

4. The unit will start after the pre-set time has elapsed and will use the chosen settings.

CLEANING AND MAINTENANCE

- Remove the plug from the socket before cleaning the appliance.

- For optimal and hygienic use, clean the water reservoir once a week. To do this, follow the steps below:

1. Remove the water reservoir from the unit. Do this by gently pressing the two sides of the

reservoir when it no longer slides out. Loosen the water pump by turning it a quarter turn clockwise. The reservoir can now be removed and cleaned thoroughly.

1. Clean using mild detergent and water. Empty the water reservoir, dry it off and return it to the unit.

2. Make sure the water pump is attached correctly and there is water in the reservoir before using the unit again.

Close-up of hands installing or adjusting a small black object on an air conditioner fan (no text or symbols visible)

· Clean the outside of the device with a soft damp cloth.
· Never use chemical, abrasive, or corrosive cleaning products.
- Remove the water from the water reservoir before storing the unit.

- Clean the honeycomb filter once a week if the environment is prone to dirt and dust. For best possible use, replace the honeycomb filter every 3-6 months. To do this, follow the steps below:

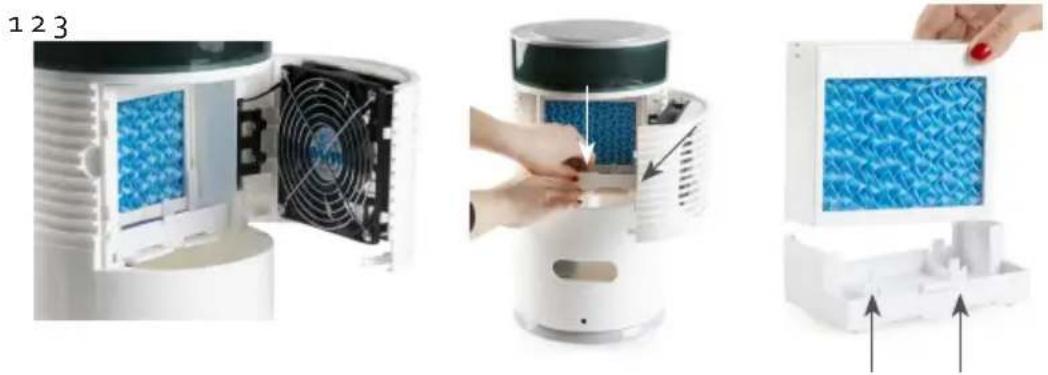

1. Open the air inlet with filter/fan.
2. To remove the honeycomb filter holder from the unit, first press the lock down and pull the filter towards you.
3. Take the honeycomb filter from the holder by pushing out the two locks at the back and removing the filter from the holder in an upward motion.

Three-step diagram showing a device with fan, battery, and control panel being processed (no text or symbols)

1. Wash the filter in slightly soapy water, using a soft cloth. Rinse the filter thoroughly to remove all soap residue. Allow the filter to dry for at least 4 hours,
2. then place the honeycomb filter back into the holder and slide both into the unit.
3. Close the air inlet.

SPECIFICATIONS ADAPTOR

Published information Value and precision Unit
Linea 2000 BV – Dompel 9 – 2200 Herentals – Belgium	-	-
Model number HCX1202-1200800E -
Supply voltage 100-240 V
Power frequency	50-60	Hz
Output voltage	12,0	V
Output current	0,8	A
Output power	9,6	W
Average active efficiency	35	%
Efficiency at low load	50	%
Non-loaded energy consumption	0,30	W

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed out by a diagonal line, with a blank rectangular base below.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Technical illustration of a mechanical component with threaded body and internal structure (no text or symbols)

B

Technical line drawing of a cylindrical device with internal components and a hand inserting a component (no text or symbols)

Close-up of hands installing or adjusting a small component on a white appliance (no visible text or symbols)

Three-step diagram showing a device with fan, battery pack, and computer monitor, no text or symbols present.

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Interior view of a device showing internal components including a fan and a blue grid pattern (no text or symbols visible)

Close-up of hands cleaning a white air purifier with labeled parts (11 and 12), alongside two blue plastic containers (no text or symbols on main subject)

PANNELLO DI CONTROLLO

Technical line drawing of a mechanical component with threaded body and clamped parts (no text or symbols)

Diagram of a cylindrical device with internal layered structure and hands operating it, showing motion arrows (no text or symbols)

Technical line drawing of a cylindrical mechanical device with internal components and a hand holding a tool (no text or symbols)

Close-up of hands installing a small component on a white air conditioner fan (no text or symbols visible)

Three-step diagram showing a device's internal structure, fan installation, and screen display (no text or symbols)

Prohibition sign with a trash bin crossed out and a blank rectangular base

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a mechanical component with threaded body and attached pipe (no text or symbols)

Diagram of a cylindrical device with internal structure and hands operating it, showing motion direction (no text or symbols)

Technical line drawing of a cylindrical mechanical device with internal components and a hand interacting with it (no text or symbols)

Close-up of hands installing or adjusting a white air conditioner cover with arrows indicating process (no text or symbols visible)

Three-step diagram showing a device with fan, battery, and computer monitor components (no text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a mechanical component with threaded body and attached bracket (no text or symbols)

Diagram of a cylindrical device with internal structure and hands operating it, showing motion direction (no text or symbols)

Technical line drawing of a cylindrical mechanical device with internal structure and directional arrow (no text or symbols)

Close-up of hands installing or adjusting a white air conditioner cover with arrows indicating components (no text or symbols visible)

Three-step diagram showing a device with fan, battery pack, and screen assembly (no text or symbols)

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

QR code image containing encoded data, no visible human-readable text
