USER MANUAL DO160A DOMO

White modular air conditioner unit with black ventilation slots and wheels, no visible text or symbols on the device itself.

NL Handleiding Air cooler

EN Instruction booklet Air cooler

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Diagram showing four steps of a mechanical clamp or clip assembly with numbered labels 1 to 4.

Front view of a medical or laboratory device with a red circle highlighting a small object, no visible text or symbols on the device itself.

White plastic medical device with fluid bag and mechanical components (no visible text or symbols)

Close-up of a white mechanical device with a black component inserted, showing internal tubing and mounting holes (no visible text or symbols)

Close-up of a black electronic device with a glossy surface and a small rectangular component (no visible text or symbols)

Close-up of a white plastic medical device with a red circle highlighting a small object inside (no visible text or symbols)

Close-up of a white mechanical component with a red circle highlighting a small black object (no visible text or symbols)

REINIGING HONINGRAATFILTER

White industrial air purifier unit with blue ventilation grilles, displayed outdoors (no text or symbols visible)

PROBLEMEN EN OPLOSSINGEN

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Diagram showing four steps of a mechanical assembly or clamp operation, labeled 1 to 4 with directional arrows indicating movement.

BOUTON MARCHE/ARRÊT ON/OFF

Close-up of a medical device with a white container and a red circle highlighting a small object, no visible text or symbols.

White plastic medical device with a coiled tube and tubing, no visible text or symbols

Close-up of a white robotic arm with a black sensor module and white tubing (no visible text or symbols)

Réservoir à glaçons

Close-up of a black electronic device with a glossy surface and a small rectangular component (no visible text or symbols)

Close-up of a white plastic washing machine with a red circle highlighting a small component (no visible text or symbols)

Close-up of a mechanical device with a red circular annotation highlighting a component (no visible text or symbols)

NETTOYAGE DU FILTRE EN NID D'ABEILLE

Diagram of a server rack with labeled components and a magnified inset showing a 1.0x magnification (no readable text or symbols)

White industrial air purifier unit with blue vented cover, displayed outdoors (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a horizontal line and a black rectangle below it.

Diagram showing four-step assembly steps of a device with labeled parts and directional arrows indicating connection or movement.

Interior view of a medical or laboratory device with a highlighted component (no visible text or symbols)

Close-up of a medical device with transparent plastic container and attached tubing (no visible text or symbols)

Close-up of a white robotic arm with a black control box and white tubing (no visible text or symbols)

Eiswürfelbehälter

Close-up of a black electronic device with a glossy surface and a small rectangular component (no visible text or symbols)

Close-up of a white medical device with a red circle highlighting a small object, no visible text or symbols.

Close-up of a white mechanical device with a red circular annotation highlighting a component (no visible text or symbols)

White industrial air purifier unit with blue ventilation slots and wheels, no visible text or symbols

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

- Do not insert any objects into the fan, as this may cause electric shock, injuries or damage to the appliance. Do not block or tamper with the fan when it is operating.

- Do not use this fan in any wet or humid areas. Do not place the fan too close to a bath tub or any other water container.

- Do not allow the area around the appliance to become damp or wet. If dampness occurs, reduce the setting of the appliance. If the setting cannot be reduced, use the appliance intermittently. Ensure that absorbent materials, such as carpets, curtains, or tablecloths, do not become damp. Be aware that high humidity levels may encourage the growth of biological organisms in the environment.

- Under extreme circumstances, there could be leakage of the battery.

• If the liquid from the battery comes into contact with the skin, remove all contaminated clothing and immediately wash the skin profusely with soap and water or take a shower. Contact a physician immediately if you continue to feel a burning sensation.
• If the liquid comes into contact with the eyes, rinse abundantly with water for at least 15 minutes until the irritation subsides and contact a doctor immediately.
• When inhaling any fumes that were released, immediately move into the fresh air and take a deep breath in and out.

Contact a doctor immediately if you experience shortness of breath, dizziness, or headaches.

- If a battery or the liquid from a battery is swallowed, seek medical assistance immediately. Try not to induce vomiting and do not eat or drink anything.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

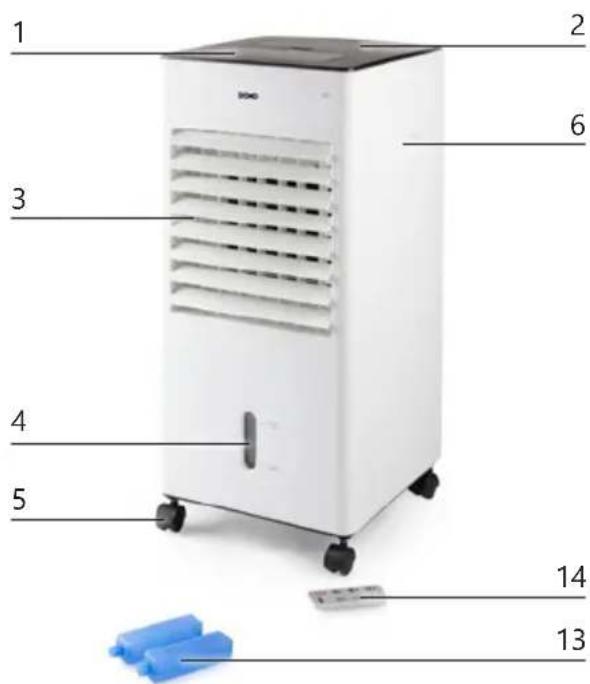

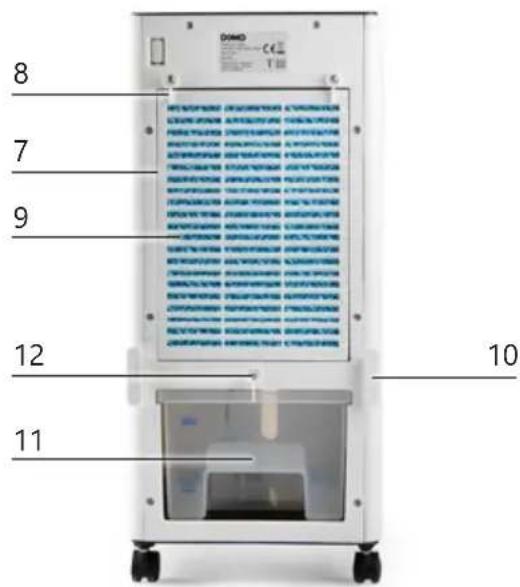

PARTS

1. Control panel with display
2. Ice cube container
3. Ventilation grille
4. Water level indicator
5. Wheels
6. Handle
7. Grille
8. Grille lock
9. Honeycomb water filter
10. Cord storage
11. Water tank
12. Water tank lock
13. Cooling elements
14. Remote control

1 2 3 4 5 6 13 14

8 7 9 12 10 11

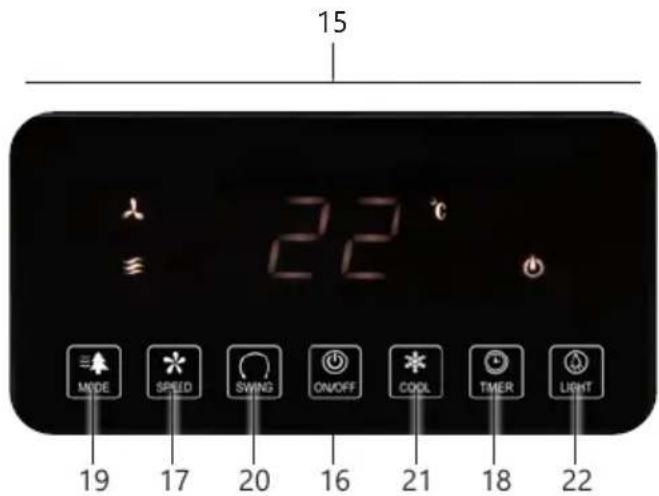

CONTROL PANEL / REMOTE CONTROL

1. LED display
2. ON/OFF: Power button
3. SPEED: Speed setting
4. TIMER: Timer
5. MODE: Mode
6. SWING: Oscillation
7. COOL: Humidifier
8. LIGHT: Display light

15 22 °C MODE SPEED SWING ON/OFF COOL TIMER LIGHT 19 17 20 16 21 18 22

DOMO 16 17 18 19 20 21 22 TIMER SPEED SWING BOX LIGHT COOL

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Clean the outside of the device with a soft damp cloth.

Attention: The ice cube container is only for placing ice cubes. This is not a storage compartment.

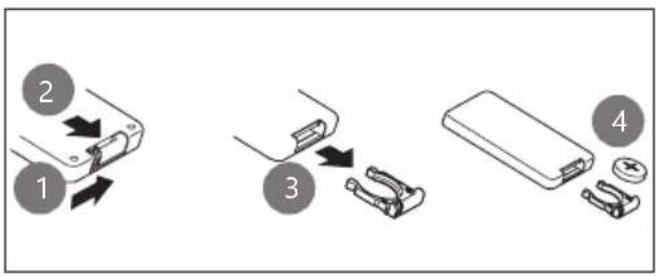

REMOTE CONTROL

Before using the appliance with the remote control, a coin cell battery (CR2025) must be placed in the remote control. Follow the instructions below.

Diagram showing four steps of a device grip or clamp operation: opening, connecting, locking, and disassembly.

• The battery CR2025 is included.
• The remote control has a range of 5 metres.

- Remove the battery insulation strip from the remote control battery holder.

Remove the battery from the remote, when you won't use it for a longer period of time. (more than two months)

⚠️Recycle used batteries correctly.

USE

Plug the power cord into a socket. A beep indicates that the device is in standby mode. You can control the fan from the control panel or with the remote control. Each time a button is pressed, the device emits an audible signal. The desired setting appears on the display. You can adjust the airflow direction by tilting the ventilation grille up or down.

Always keep the ventilation grille open when using the appliance; do not use the appliance with the grille closed.

Press this button to turn the device on or off. The latest configuration will be applied automatically when the device is turned back on.

The air cooler has three speeds:

• Low
• Medium
  • High

Press this button step-by-step to change the speed.

You can set the timer for a minimum of 1 hour and a maximum of 12 hours. Press this button repeatedly to adjust the timer as desired. After the selected time has elapsed, the appliance will switch off automatically.

To cancel the automatic shutdown, keep pressing this button until "00" appears again on the display.

With this button, you can set three functions: normal, natural, and sleep.

Normal

The fan will operate at a constant speed, which is the selected speed.

Natural

The fan will automatically change speed randomly to create a natural airflow. It will alternate between different speeds to imitate a natural and comfortable breeze. Even in natural mode, you can choose a high, medium, or low speed cycle.

Sleep

In sleep mode, a breeze is also imitated (as in natural mode), but its intensity will decrease every half hour. It is best to combine sleep mode with the timer function so that the appliance switches off after the set time.

Press the oscillation button to rotate the vertical air vent left to right in order to distribute the air. The associated symbol appears on the display. Press this button again to deactivate the function.

HUMIDIFIER

The air cooler can also be used as a humidifier. This is recommended when the air in the house is very dry. Additionally, this function ensures that the air distributed by the appliance is extra fresh. The water pump circulates water over the honeycomb filter to generate a cool airflow.

The water in the water tank must always be between the MIN and MAX markings when using this function.
Do not tilt the appliance when it contains water and handle it carefully when moving.
⚠️ If you switch off the appliance by pressing the ON/OFF button while the humidification function is active, the fan will continue to run for 5 minutes to dry the honeycomb filter.

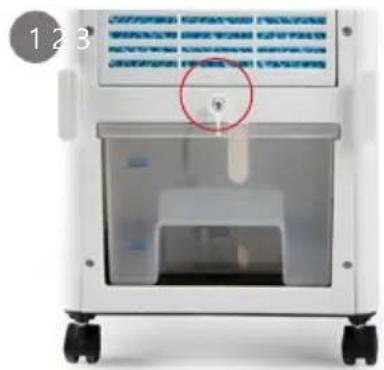

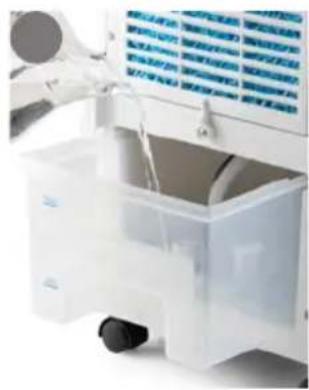

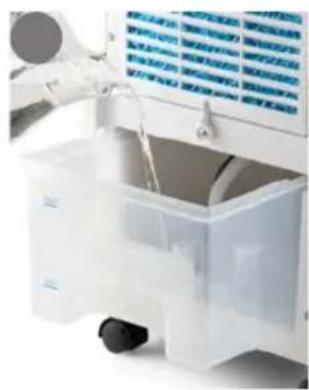

Filling the water tank

Switch off the appliance before filling the water tank (and optionally the ice cube container). Once the water tank is filled, you can turn the appliance back on using the ON/OFF button and then press the COOL button to activate the humidification function.

1. Turn the water tank lock to the side.
2. Slide the water tank out of the appliance. Fill the water tank with clean water, making sure not to exceed the maximum level.
3. Ensure the water pump is correctly installed in the appliance.
4. Close the water tank.

Front view of a medical or laboratory equipment unit with a red circle highlighting a small object, no visible text or symbols.

Close-up of a medical device with transparent container and tubing (no visible text or symbols)

Close-up of a white robotic arm with a black sensor module and white cable (no visible text or symbols)

Ice cube container

The appliance is equipped with a separate ice cube container. Ice cubes also provide a cooling effect. Open the lid and place the ice cubes in the designated container. Close the lid.

You can also pour water through this container so you don't need to remove the water tank to fill it. The water flows directly into the water tank.

Close-up of a black electronic device with a glossy surface and a partially visible screen (no text or symbols)

Make sure the water level is between the MIN and MAX markings.

Using cooling elements

- To keep the water temperature as low as possible for longer, you can use the supplied cooling elements. Place them in the freezer for several hours until completely frozen before use.

⚠ Attention: Never open the cooling elements to avoid damage.

- Place 1 or 2 cooling elements in the water tank.

⚠ Attention: Do not exceed the maximum water level when adding cooling elements.

• You can check the airflow temperature on the display; if it is high (e.g., >20 °C), refreeze the cooling elements.
• During use, you can check the water level via the indicator at the front of the appliance.

DISPLAY LIGHT

When using the appliance at night, you can choose to turn off the display lighting using this button.

CLEANING AND MAINTENANCE

• Remove the plug from the socket before cleaning the appliance.
• Clean the outside of the device with a soft damp cloth.
• Regularly vacuum the air vent at the front to remove dust. Or wipe clean with a damp cloth.
• Remove the water from the water reservoir before storing the unit.

CLEANING THE WATER TANK

For optimal and hygienic use, clean the water reservoir once a week. To do this, follow the steps below:

1. Turn the water tank lock to the side so you can slide the water tank out of the appliance.
2. Turn the water pump lock to the side to release it.

3. Now you can remove the water tank completely and clean it thoroughly with mild detergent and warm water.

4. Empty the water reservoir, dry it off and return it to the unit.

⚠️ Make sure the water pump is attached correctly and there is water in the reservoir before using the unit again.

Close-up of a white plastic appliance with a red circle highlighting a small component, no visible text or symbols.

Close-up of a mechanical component with a red circular annotation highlighting a small black part (no visible text or symbols)

Clean the honeycomb filter once a week if the environment is prone to dirt and dust. For best possible use, replace the honeycomb filter every 3-6 months. To do this, follow the steps below:

1. Turn the lock to the side to release the grille. The grille can be cleaned with water and a soft brush. Allow it to dry completely before reinstalling.

2. Wash the filter in slightly soapy water, using a soft cloth. Rinse the filter thoroughly to remove all soap residue. Allow the filter to dry for at least 4 hours.

3. Place the honeycomb filter back into the appliance, reattach the grille, and secure it with the lock.

⚠️Do not immerse unit, cord, or plug in water or other liquid.

Diagram of a device panel with labeled components and highlighted regions, showing internal structure and text content.

Exterior view of a white industrial air purifier unit with blue ventilation cover (no text or symbols visible)

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The appliance does not work. • Is the plug properly inserted into the socket?• Check the socket or the fuses in the fuse box.
No cold air comes out of the appliance. • Check if the ventilation grille is open; you need to open it manually.• Check if there is cold water in the water tank, between the MIN and MAX markings.• Check if the COOL function is activated; you can view the settings on the LED display.• Check in the ice cube container if water is being pumped upwards.• Check the air temperature; if it is high (e.g., >20°C), add the frozen cooling elements. Replace warm water with fresh tap water if necessary.• Set the speed to a higher level using the speed setting.
The remote control does not work. • Check if the button cell is correctly placed and if the plastic isolation strip has been removed.• Check if the button cell needs to be replaced.

SPECIFICATIONS

Model DO160A
Voltage 220-240 V~ 50-60 Hz
Power 65 W
Energy consumption in standby mode 0.1 W

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

Remove the battery from the appliance before disposal as described in this manual. Recycle the battery in accordance with local laws and regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Diagram showing four steps of a mechanical clamp or clip assembly with numbered labels 1 to 4.

Medical device with a white container and a red circle highlighting a small object, labeled '1 2 3' in the corner (no readable text or symbols on the device itself)

White plastic medical device with a transparent container and tubing, no visible text or symbols

Close-up of a white robotic arm with a black control box and white tubing (no visible text or symbols)

Close-up of a black electronic device with a glossy surface and a small metallic component (no visible text or symbols)

Close-up of a white plastic appliance with a red circle highlighting a component, no visible text or symbols.

Close-up of a robotic arm with a red circular annotation highlighting a mechanical component (no text or symbols visible)

LIMPIEZA DEL FILTRO TIPO PANAL

White industrial air purifier unit with blue ventilation cover, displayed outdoors (no visible text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Diagram showing four steps of a device grip or clamp operation: pin, clamping, and packaging.

Close-up of a white medical or laboratory equipment box with tubing and wheels (no visible text or symbols)

Close-up of a white mechanical device with a black component inserted, no visible text or symbols

Close-up of a black electronic device with a glossy surface and a small rectangular component (no visible text or symbols)

Close-up of a white plastic container with a red circle highlighting a small object, no visible text or symbols.

Close-up of a mechanical device with a red circular annotation highlighting a component (no visible text or symbols)

PULIZIA DEL FILTRO A NIDO D'APE

Technical diagram showing a device with labeled components and a magnified view of internal structure

White industrial air purifier unit with blue vented cover, displayed outdoors (no visible text or symbols)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Diagram showing four steps of a device or connector assembly with numbered labels 1 to 4 indicating sequence.

Front view of a medical or laboratory device with a red circle highlighting a small object, no visible text or symbols on the device itself.

Close-up of a medical device with transparent plastic container and attached tubing (no visible text or symbols)

Close-up of a white mechanical device with a black component inserted, showing internal tubing and mounting brackets (no visible text or symbols)

Close-up of a black electronic device with a glossy surface and a small rectangular component (no visible text or symbols)

White laboratory equipment with a red circle highlighting a component, no visible text or symbols

Close-up of a white mechanical device with a red circular annotation highlighting a component (no visible text or symbols)

ČIŠTĚNÍ PLÁSTOVÉHO FILTRU

Exterior view of a white industrial air purifier unit with blue ventilation grilles and wheels (no text or symbols visible)

PROBLÉMY A ŘEŠENÍ

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Diagram showing four steps of a device grip or clamp operation: opening, connecting, locking, and holding a clip.

Front view of a medical or laboratory device with a red circle highlighting a small object, no visible text or symbols on the device itself.

Close-up of a medical device with transparent plastic container and attached tubing (no visible text or symbols)

Close-up of a white robotic arm with a black mechanical component inserted (no visible text or symbols)

Nádoba na kocky l'adu

Close-up of a black electronic device with a glossy surface and a small rectangular component (no visible text or symbols)

Close-up of a white plastic waste bin with a red circle highlighting a small object inside (no visible text or symbols)

Close-up of a mechanical device with a red circle highlighting a component (no visible text or symbols)

ČISTENIE PLÁSTOVÉHO FILTRA

White industrial air purifier unit with blue ventilation cover, displayed outdoors (no visible text or symbols)

PROBLÉMY A RIEŠENIA

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
