Product Type	Monoblock Portable Air Conditioner
Brand	Domo
Model	DO261A
Power Supply	220-240 V ~ 50/60 Hz
Operating Modes	Automatic, Cooling, Dehumidification, Fan
Temperature Range	15 °C to 31 °C
Fan Speed	High, Low
Timer	1 to 24 hours
Sleep Function	Yes (cooling mode only)
Remote Control	Yes, with battery (max. range 7 m)
Air Filter	Washable with soapy water, clean every 2 weeks
Drainage	Water collection tank with manual drain
Error Codes	E2 (ambient sensor), E3 (evaporation sensor), E4 (tank full)
Safety	Automatic shutdown if temperature >43 °C or <15 °C in cooling, restart after 3 minutes
Warranty	2 years
Recycling	Complies with WEEE directive, do not dispose with household waste
Provided Accessories	Air exhaust hose, adapters, remote control

Frequently Asked Questions - DO261A DOMO

What to do if my air conditioner does not turn on?

Check that the plug is properly inserted into a power outlet. Check the fuse on the electrical panel. Make sure the remote control batteries are not dead. Always wait three minutes before restarting the device after a stop.

How to clean the air filter?

Unplug the device. Turn the filter unlock button half a turn upward (counterclockwise). Remove the filter and wash it with warm soapy water. Dry it completely before reinstalling. In a dusty environment, clean it every two weeks.

What does error code E4 on the display mean?

Error code E4 indicates that the water collection tank is full. Empty it by opening the drain outlet at the bottom of the device and placing a container underneath. Replace the plug after draining. If the problem persists, contact an authorized repair person.

How to empty the water collection tank?

Place a container under the drain outlet at the bottom of the device. Remove the rubber plug and let the water drain. Replace the plug securely after draining.

Can I use an extension cord with this air conditioner?

No, the use of an extension cord or adapter is not recommended. Plug the device directly into a grounded power outlet (220-240 V).

What minimum distance should I leave around the device?

Leave at least 60 cm between the wall and the air outlet. Ensure that air inlets and outlets are not obstructed.

How to install the air exhaust hose?

Pull both ends of the hose to extend it. Screw one end into the rectangular adapter and the other into the round adapter. Insert the rectangular adapter into the back of the air conditioner and place the round adapter into a window, door, or wall opening.

My air conditioner runs but does not cool, what should I do?

Check that no windows or doors are open. Ensure air inlets and outlets are not blocked. Turn off any heating. Lower the selected temperature. Clean the air filter if it is dirty.

How to use the timer?

When the device is running, press the timer button to set an automatic shut-off. When the device is off, press to set an automatic start. Adjust the duration (1 to 24 hours) with the + or - buttons.

How to activate sleep mode?

Sleep mode is only available in cooling mode. Press the sleep button on the remote control. The fan switches to low speed and the temperature increases by 1 °C after 1 hour, then by 2 °C after 2 hours. The device automatically stops after 6 hours.

USER MANUAL DO261A DOMO

White Domo air purifier device with black wheels and ventilation grille (no visible text or symbols)

DO-261A

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase.

Type nr. Apparaat

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.

LEVERING EN UITPAKKEN

Stand by toets

Timertoets

Slaap toets

Exploded view diagram of a mechanical assembly showing components like screw, nut, and housing (no text or labels)

Touche veille

Touche minuterie

Touche sommeil

Touche vitesse

Touche menu

Illustration of a smartphone with a circular button and a square base (no text or symbols)

Standby-Taste

Timertaste

Schlafmodus

FERNBEDIENUNG

White rectangular electronic device with a small circular component attached to its side (no text or symbols visible)

DELIVERY AND UNPACKING

This manual provides you with useful information for the installation and maintenance of your appliance. A properly installed and maintained air conditioner guarantees you many years of problem-free use.

When you remove the appliance from the box, check thoroughly for transport damages. If there are any damages, get in touch with your supplier immediately. Each appliance is thoroughly checked before leaving the factory.

Important! After unpacking, you must place the appliance in an upright position for a minimum of 2 hours to allow it to rest before using it. Failure to comply with this procedure can damage your appliance. If you do not want warm air to blow into the room you must fit the pipe so that the air outlet pipe is fitted to blow outdoors.

SAFETY REGULATIONS

This appliance has been designed for use with a voltage of 220V-240V. Do not use multiple sockets or extension cables/leads.

Always switch the appliance off and remove the plug from the socket before carrying out maintenance. Never place the appliance in a horizontal position. This can damage the compressor. Use the appliance only in an upright position, on a flat surface.

Preferably, two or more persons should move the appliance.

When you have switched the appliance off, allow it to rest for 3 to 4 minutes before you switch it back on. Always let a qualified person carry out repairs.

Place the plug in an earthed plug socket. Do not remove the earthing. Do not use extension lead and adapter.

This appliance is suitable for domestic use and similar areas such as:

• Kitchen corner for personnel in shops, offices and similar professional places
• Farms
• Hotel and motel rooms and other places with a residential character.
• Guest rooms or similar

Take Care: the appliance should never be used with an external timer or separate remote control. Children or people with any disability or mental impairment should not use this appliance. Also people with limited experience or insufficient knowledge are not permitted to use this appliance unless they have received the necessary instructions for use or are otherwise being supervised by people ensuring their safety. Make sure that children cannot play with the appliance.

PRECAUTIONS

It's best to place your air conditioner next to a window, door or sliding window.

Place it on a flat surface.

Allow 60cm between the wall and the air outlet.

Fix one end of the air outlet pipe to the air outlet on the appliance and lead the other end out through a window, door or hole in the wall.

Make sure that the air inlet and outlet do not become blocked.

In order to prevent interference, install the appliance at least 1 metre away from TV's

or radios.

Keep appliance out of direct sunlight to avoid discolouration of casing. The appliance should not lean more than 35^ , do not place upside down during transport.

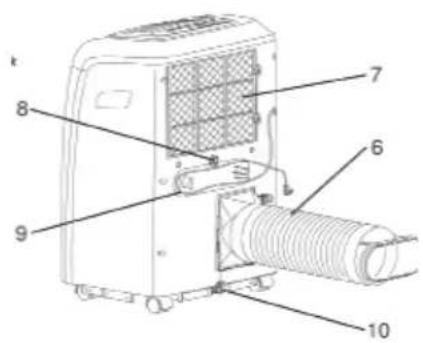

PARTS

1. Control panel
2. Cold air outlet
3. Infrared receptor
4. Remote control
5. Transport handles
6. Air outlet pipe
7. Air inlet
8. Additional drainage
9. Mains supply
10. Main drainage

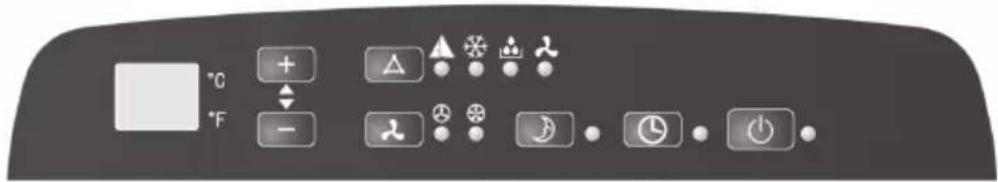

Stand-by button

Speed button

Timer/Temperature up button

Timer button

Mode button

Timer/Temperature down button

Sleep button

low, high Fan speed

Automatic, Cool,

Dehumidify and Fan mode

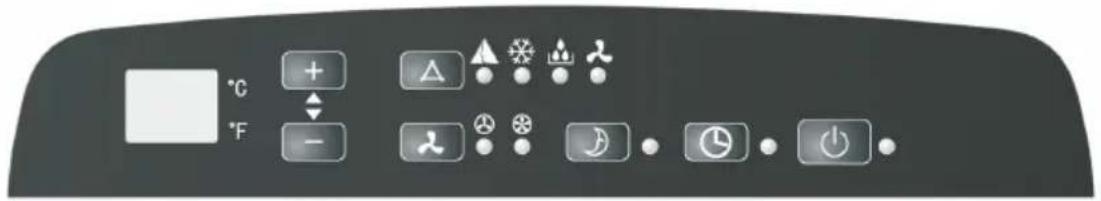

CONTROL PANEL

Plug into mains socket, the appliance will produce a single acoustic signal.

Press the standby button ⏻; the appliance is now switched on. The display shows the room temperature, the appliance will work in automatic mode.

Select Mode

Press on the menu button to choose the mode from the menu below: → ↘ → ↙

Adjust Temperature

The temperature can be set between 15^ C and 31^ C with an interval of 1^ C.

Press once on the + or - button to increase or decrease the temperature by 1^ C.

Adjust Ventilation Speed

Press on the ventilation button to adjust the ventilation speed from the menu

below:

Standby

If you press on the standby button a second time the appliance will produce a single acoustic signal then switch off.

MODES

Automatic Mode

If the function has been selected, the sensor will automatically adjust to the correct mode: or .

If room temperature is higher or equal to 24^ C the appliance will automatically select the cooling function ✦

If the temperature is lower than 24^ C the appliance will automatically switch to adjust to the correct ventilation speed ♦

Dehumidifier Mode

The top ventilator operates at low speed and the rate cannot be adjusted.

The compressor and the bottom ventilator will stop after 8 minutes and switch on again after 6 minutes.

The appliance runs in continuous dehumidifier mode and adjusting the temperature will have no effect.

Cooling Mode

If the room temperature is higher than the selected temperature the compressor will switch on.

If the room temperature is lower than the selected temperature the compressor will switch off and the top ventilator will operate according to the selected temperature.

Ventilator Mode

The top ventilator operates at the selected speed and the compressor and bottom ventilator are switched off.

Adjusting the temperature in this setting will have no effect.

Timer Function Ⓤ

Press on the ‘Timer’ button in order to select the function ‘automatic off’ if the appliance is running. Press on the ‘Time’ button in order to select the function ‘automatic on’ if the appliance is running. The timing can be adjusted from 1 to 24 hours. Press on the ▲ button or the ▼ button in order to increase or decrease the time duration by 1 hour.

Sleep Settings

The sleep setting function is only applicable when the appliance is set to the cooling

mode (high speed ventilation)

To activate sleep settings, press on sleep function button making sure appliance is already set to the Cooling (down) Mode.

The top ventilator will switch automatically to low speed. After one hour the selected temperature will increase by 1^ C, and by 2^ C after two hours. After six hours the appliance will automatically switch off.

The control panel has a memory function that stores the mode last used. This memory function remains active for as long as the appliance remains on standby (with the exception of mode).

REMOTE CONTROL

1. ⏻ button. For switching the appliance on and off.
2. button. Use this to select the desired function.
3. button. Select the desired ventilation speed
4. ▲ button. For increasing the temperature or adjusting timer.
5. ▼ button. For decreasing the temperature or adjusting timer.
6. button. Activate of deactivate the sleep setting.
7. button. Activate or deactivate the automatic timer function.

Placing Battery in the Remote Control

Slide the cover to open at back. Place a batterie in the correct position in the remote control. Slide the cover back into place. Make sure the positive and negative markers correspond with the markings on the remote control. If you are not going to use the remote control for an extended period remove the batterie. Always dispose of used batteries in a responsible manner, give them to a processing firm or waste processing company. Point the remote control towards the infrared receptor in your appliance. The remote control has a maximum range of 7 metres.

White rectangular electronic device with a small circular component and a square base (no text or symbols visible)

INSTALLING THE AIR OUTLET PIPE

1. Air pipe
2. Appliance connection adaptor
3. Wall fitting for outlet pipe

4. Remote control

Pull the air outlet pipe apart by pulling on both ends.

Screw the air outlet pipe to the square-shaped appliance connector.

Screw the other end of the air outlet pipe into the round wall connection fitting.

Connect the square appliance connector to the air conditioner

AUTOMATIC SAFETY FUNCTION

The automatic safety function can switch the appliance off if any of the following takes place:

Cooling Indoor temperature rises above 43°C

Dehumidify Room temperature is below 15°C

If your appliance is set to Cool or Dehumidify and the window remains open for a considerable length of time and the relative atmospheric humidity is above 80%, liquid may run out of the water outlet.

Applicability of the Safety Function

If the appliance is restarted immediately after it is switched off the automatic safety function will not allow the appliance to work immediately. Always wait for 3 minutes before restarting the appliance. If you remove the plug from the socket, the appliance rests itself to the original settings. The ‘Timer on’ and ‘Timer off’ settings must be readjusted.

DRAINAGE

The appliance has a receptacle (container) for collecting water for recycling.

MAINTENANCE

Switch the appliance off before you remove the plug from the socket. Clean the appliance with a soft, dry cloth. If the appliance is very dirty use lukewarm water (colder than 40^ C) to clean it. Never use volatile or abrasive cleaning products. Never spray water onto the outside casing.

Cleaning the Air Filter

Switch the appliance off and unscrew the air filter's locking system by a half turn upwards. This is located at the back of the appliance. To remove the air filter, press upwards. Wash the filter in a mixture of soap and lukewarm water and allow it to dry carefully before putting it back into place. If the appliance is located/placed in a very dusty place it should be cleaned every two weeks.

Not Using the Appliance for an Extended Period

Remove the rubber plug from the drainage openings to remove remaining water.

Allow the ventilator to run own its own for another day in order to make sure the appliance is thoroughly dry inside and to prevent mould forming.

Switch the appliance off and remove the plug from the electric socket. Remove the batteries from the remote control. Clean the air filter, dry it and then put it back.

Disconnect the air pipe and carefully close the opening.

ERROR MESSAGES

The appliance does not click on The		The appliance is not plugged in properly to the socket.
		The fuse in the fuse box is blown
		The batteries in the remote control have run out
		Always wait for steeds 3 minutes before you restart the appliance
The appliance works only for a short while		The selected temperature is approaching the room temperature
		Select a lower temperature or wait until the appliance automatically switches on again
		The air outlet is blocked
The appliance works but does not cool off/down in COOLING mode	A window or door is open
	There is a heater or heating element switched on
	The air filter is dirty
	Air or inlet/outlet is blocked

DO-261A

	The selected temperature is too high
Water is leaking from the appliance when you move it	Empty the water collection container
	Place the appliance on a flat horizontal surface
Code E4 is visible on the display	Empty the collection container
	If this is a regular occurrence, contact a recognised fitter/repair service point
Code E2 The room temperature	sensoris broken and needs to be replaced
Code E3 The evaporation sensor	is broken and needs to be replaced
