The VQ full range products utilize a unique driver technology to radiate a coherent single point source for superior dispersion control when coupled to our single hom. This advanced design aligns the acoustical centres of the transducers providing a single coherent wavefront emanating from the throat.

The driver uses two concentric annular ring diaphragm. The larger of the two has a 3.5" voice coil and reproduces frequencies from 400 Hz to 7 kHz. Another major advantage here is that there is no crossover anywhere near the vocal region ensuring the most natural and phase coherent reproduction at this critical area. The 2nd HF diaphragm takes over at 7 kHz to 22 kHz by way of a passive or an active crossover. The external casting features extensive bestsinking ensuring good heat transfer for high power handling and very low power compression.

Connectors/Cabling

Input Connector Panels

Note: The VQ 60 and VQ 100 are configured as standard for Si-Amp operation.

Tri-Amp operation is possible using the Barrier strip input terminals.

The VQ DF is configured as standard for single amp operation. BI-Amp operation is possible using the Barrier strip input terminals.

The VQ MB is configured for single amp operation.

VQ 60 / 100 VQ DF

LF MF HF - + - + - + TANNOY LINK WIRES REQUIRED FOR PASSIVE OPERATION VQ 60 MF/HF - +

TANNOY MF HF LINK WIFES REQUIRED FOR RASSIVE OPERATION VQ 64DF MF HF + - +

VQMB

TANNOY LF V0 MB

The VQ 60, VQ 100 and VQ DF are fitted with 4-pole Neutrik Speakon' connectors and barrier strip for fixed installations.

Speakon Connections -

Speakon has the following advantages over E^ and XLR type connectors:

All terminations are solderless; this makes life easier at the time of installation or when field servicing is required. Contacts will accept 6 sq. mm wire with an outside diameter of up to 15 mm and a current rating of 30 Amps. The pins of the 2 Speaker sockets identified input/output on the rear of the input panel are parallelled within the enclosure to facilitate the connection to additional VQ loudspeakers (except the VQ MR). Tanmoy has adopted the standard professional audio voting convention for the VQ product.

VQ 60 and VQ 100

LF Negative (2) LF Positive (+1)

MEH Positex (+28)

(3) 14. 2023年1月1日

VQ OF Speakon

No connections on pins 1 and 1

MF+F Position (1st)

MF/HF Negative (var

VQ MB Speakon

LF Negative | ve) LF Positive (ve)

An connection to piez 2+ and 2-

Barrier Strip Connections

The barrier strip accommodates bare wire, tinned leads or spade connectors. The barrier strips are specifically designed for utilization in fixed/permanent installations. The V0 60 and V0 100 are configured for bi-amp operation; by removing the 4 link wires between the two barrier strips on the termination panel tri-amp operation is possible. The V0 DF is configured for single amp operation; by removing the 4 link wires between the two barrier strips on the termination panel bi-amp operation is possible.

'VQ 60,100 BI-amp - Connect LF amplifier to LF +/- on top row of barrier strip.

Connect MF/HF amplifier to MF/HF -/- on bottom row of barrier strip.

VQ 60/100 Tri-amp - Connect LF amplifier to LF 17 on top row of barrier strip.

Connect MF amplifier to MF +/- on top row of barrier strip.

Connect HF amplifier to HF -1/- on top row of barrier strip.

VQ DF Single Amp - Connect MF/HF amplifier to MF/HF 1/2 on bottom row of barrier strip.

'QDF BI-amp - Connect MF amplifier to MF -/- on top row of barrier strip.

Connect HF amplifier to HF -/- on top row of barrier strip.

VO MB - Connect amplifier to LF +/- terminals.

Note that looping out to additional loudspeakers will have the effect of reducing the load on the amplifier. Broad loading amplifiers too low. If the amplifier is rated for 4 chms minimum, don't give it a 2 ohm load. Even when the amplifier is rated down to 2 chms remember that in order to keep up with the power the circuit will have much higher current than before and the wiring will have to handle it. Not only will the wiring losses grow but the clamping factor of the system will be degraded. It might be better to run separate cables from the amp to the speakers or divide the load across two amplifier channels.

Cable choice consists mainly of selecting the correct cross sectional area in relation to the cable length and the load impedance. A small cross sectional area would increase the cables series resistance, inducing power loss, and response variations [damping factor].

Connectors should be solved with a minimum of 2.5 sq. mm (12 quape) cable. This will be perfectly satisfactory under normal conditions. In the case of very long cable runs the wire size should exceed this. The following table shows the change in resistance, sensitivity loss and damping factor due to the effects of cable diameter and length for two nominal impedance loads (4 ohms & 8 ohms). Use this table to determine a suitable cable diameter for the length of run you require. For resultant damping factor, values greater than 20 are generally considered adequate for high quality sound reinforcement systems.

Cable Run		Diameter of conductor		Cable Resistance	Mire Less(dB) Damping Factor*
m	ft	mm	avg	ohm	John Load	John Load	John Load		John Load
5.16	1.5 mm		15	0.10	0.2	0.1	40	✓	30	✓
		2.5 mm	10	0.04	0.1	0	108	✓	216	✓
		4 mm	6	0.01	0	0	255	✓	310	✓
		6 mm	3	0.01	0	0	494	✓	384	✓
10.33	1.5 mm		15	0.20	0.4	0.2	19	X	41	✓
		2.5 mm	10	0.07	0.2	0.1	55	✓	111	✓
		4 mm	6	0.03	0.1	0	136	✓	272	✓
		6 mm	3	0.01	0	0	282	✓	563	✓
25.82	1.5 mm		15	0.49	1	0.5	8	X	16	✓
		2.5 mm	10	0.18	0.4	0.2	23	✓	45	✓
		4 mm	6	0.07	0.1	0.1	57	✓	114	✓
		6 mm	3	0.03	0.1	0	123	✓	256	✓
50.164	1.5 mm		15	0.90	1.9	1	4	X	8	X
		2.5 mm	10	0.35	0.7	0.4	11	X	23	✓
		4 mm	6	0.14	0.3	0.1	29	✓	58	✓
		6 mm	3	0.06	0.1	0.1	64	✓	127	✓
100	328	1.5 mm	15	1.95	3.5	1.9	2	X	4	X
		2.5 mm	10	0.70	1.4	0.7	6	X	11	X
		4 mm	6	0.27	0.6	0.3	15	X	29	✓
		6 mm	3	0.12	0.3	0.1	32	✓	65	✓

*The resulting damping factor figures are derived using a good quality professional amplifier

Polarity Checking

It is most important to check the polarity of the wiring before the speaker system is flown. A simple method of doing this without a pulse-based polarity checker for LF units is as follows: Connect two wires to the +ve and -ve terminals of a PP3 battery. Apply the wire which is connected to the -ve terminal of the battery to the speaker cable leg which you believe to be connected to pin 1+ of the speaker connector and likewise the -ve leg of the battery to pin 1-.

If you have wired it correctly the LF drive unit will move forward, indicating the wiring is correct. All that remains now is to connect the +ve speaker lead to the +ve terminal on the amplifier and the -ve lead to the -ve terminal on the amplifier. If however the LF driver moves backwards, the input connections need to be inverted.

There are also commercially available polarity checkers that can be used (livePAL™, NTI™). If you are commissioning a system using a spectrum analyzer such as SMAART™, SYSTUME™, CLIO™, MLSSA™ by checking the impulse response for the first positive swing. Be sure that EQ and crossover filtering has been removed before checking.

If problems are encountered, inspect the cable wiring in the first instance. If you are using amplifiers from more than one manufacturer, check the polarity at the amplifiers as well as the loudspeakers.

Amplification & Power Handling

As with all professional loudspeaker systems, the power handling is a function of voice coil thermal capacity. Care should be taken to avoid ninning the amplifier into clip (clipping is the end result of overdriving any amplifier). Damage to the loudspeaker will be sustained if the amplifier is driven into clip for any extended period of time. Headroom of at least 3dB should be allowed. When evaluating an amplifier, it is important to take into account its behavior under low impedance load conditions. A loudspeaker system is highly reactive and with transient signals it can require more current than the nominal impedance would indicate.

Generally a higher power amplifier running free of distortion will do less damage to the loudspeaker than a lower power amplifier continually clipping. It is also worth remembering that a high powered amplifier running at less than 90% of output power generally sounds a lot better than a lower power amplifier running at 100%. An amplifier with insufficient drive capability will not allow the full performance or the loudspeaker to be realized.

It is important when using different manufacturers amplifiers in a single installation that the have very closely matched gains, the variation should be less than +/- 0.5 dB. This precaution is important to the overall system balance when only a single active crossover is being used with multiple cabinets; it is therefore recommended that the same amplifiers be used throughout.

On the specifications pages you will find the VQ loudspeakers power handling capacity quoted in three categories:

Average (RMS), Programme, & Peak

We recommend using the programme power listed in the loudspeaker specifications to choose the correct amplifier. To realize the VO loudspeakers full potential, the amplifiers rated continuous power should be equal to the loudspeakers programme power at its nominal impedance.

VQ Series Recommended Amplifier Power
VQ60/100	Power Requirement
Low Frequency	2002 W into 4 ohms
Parastar KIF-NF	400 V into 8 ohms
Mid Frequency	400 V into 8 ohms
High Frequency	250 V into 8 ohms
VQ DF
Parastar KIF-NF	400 V into 8 ohms
Mid Frequency	400 V into 8 ohms
High Frequency	250 V into 8 ohms
VQ MB	2010 V into 4 ohms

Loudspeaker Management Systems

Tammy VQ series loudspeakers are designed to be used with an electronic signal processor which provides crossover, equalization, delay and dynamic functions. We strongly recommend Lab Gruppen PLM+ or D Series with factory presets from LAKE load library. LAKE LM25/44 DSP using the same factory presets from LAKE load library supplied with Lab Gruppen C series or FP+ series using models with appropriate output power for the VQ cabinets selected is also recommended. Lab Gruppen CAFE software provides a comprehensive solution for selecting the best possible combination of PLM+ or D series products to all Tammy loudspeaker products, allowing users to have precise technical data of power delivery, power draw, thermal output, cable infrastructure requirements and BOM calculation. For more information about LAKE and Lab Gruppen products, please go to www.lakeprocessing.com or www.labgruppen.com.

Rigging & Suspension

The VQ hardware covered in this guide has been designed to offer quick, simple, and secure solutions for mounting specific VQ loudspeakers. This hardware has been designed and manufactured with a high safety load factor for its specific role. To ensure the safest possible use of the hardware covered in this guide, it must be assembled in strict accordance with the instructions specified. The information in these manuals relating to the assembly and the safe use of these accessories must be understood and followed.

The installation of VQ loudspeakers using the dedicated hardware should only ever be carried out by fully qualified installers, in accordance with all the required safety codes and standards that are applied at the place of installation.

WARNING: As the legal requirements for flying change from country to country, please consult your local safety standards office before installing any product. We also recommend that you thoroughly check any laws and bylaws prior to commencing work.

VQ hardware has been designed for use with VQ series loudspeakers only, and is not designed or intended for use with any other Tannoy Commercial products, or any other devices from other manufacturers. Using Tannoy Professional hardware for any purpose other than that indicated in this guide is considered to be Improper use. Such use can be very dangerous as overarching, modifying, assembling. In anyway other than that clearly stated in the manual, or damaging the VQ hardware will compromise safety. The component parts of any VQ hardware device must only be assembled using the accessory kits supplied and in strict compliance with the user manual. The use of other accessories or non-approved methods of assembly may result in an unsafe hardware system by reducing the load safety factor. Welding, or any other method of permanently fixing hardware components together or to the integral fixing points in the cabinet should never be used.

Whenever a VQ loudspeaker is fixed to a surface using a VQ hardware device, the installer must ensure that the surface is capable of safety and securely supporting the load. The hardware employed must be safely, securely, and in accordance with the manual, attached both to the loudspeaker and also to the surface in question, using only the fixing holes provided as standard and covered in the manual. Secure fixings to the building structure are still. Seek help from architects, structural engineers or other specialists if in any doubt.

All loudspeakers flown must, be provided with an independent, correctly rated and securely attached secondary safety—in addition to the principle hardware device. This secondary safety must prevent the loudspeaker from dropping more than 150 mm (6") should the principle hardware device fail.

WARNING: Do not under any circumstances use a loudspeaker's handles to support the weight of the loudspeaker except for their intended use: hand carrying. The handles are not rated to support the load of the loudspeaker for temporary or permanent installation.

The VQ range of loudspeakers is intended to be suspended or ground-stacked. This section details how to physically configure VQ flyware and arrays. The following are the recommended methods for most situations. Specific situations may require other methods. It is the user's responsibility to determine the viability and safety for alternate methods and implement them accordingly.

Flying A Single VQ Cabinet Using Eyebolts

The simplest method of flying a single VQ cabinet is with a pair of M10 shoulder eyebolts on the top, using a third eyebolt on the rear of the cabinet to tilt the cabinet.

YEB FORGED EYEBOLT

VO loudspeakers can be flown with high quality VEB M10 eyebolts with collar to BS4278:1964. The loudspeakers are equipped with internal steel braces, which also double as the flying points, and accept VEB M10 eyebolts.

To install the VEB M10 eyebolts remove the original M10 counter sunk screws from the locations you wish to install the VEB M10 eyebolts. Then replace these counter sunk M10 screws with the VEB M10 eyebolts. The M10 insert on the rear of the cabinet also accepts a VEB M10 eyebolt and should be used for tilling the loudspeaker to the desired angle.

IMPORTANT: It is imperative for safety reasons that a minimum of two eyebolts linked to two independently fixed straps are used per cabinet. Never suspend one enclosure from the other using eyebolts.

Never attempt to use formed eyebolts i.e. formed from a steel rod and bent into an eye.

Flying a single VQ cabinet in a landscape orientation using EBS forged Eyebolts

3D diagram of a rectangular container with four circular components and vertical supports (no text or symbols)

3D diagram of a rectangular structure with hanging weights and supports (no text or symbols)

VQ Flying Bracket (Single Point Hang Flying Bracket)

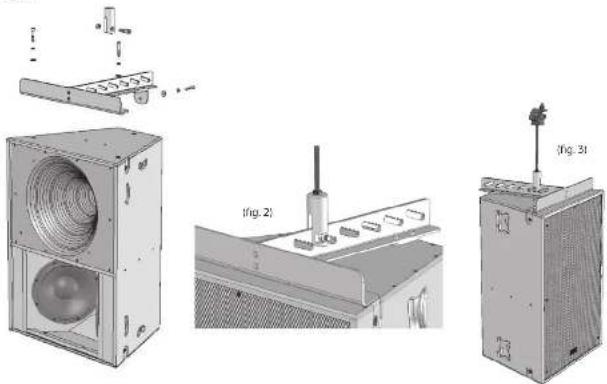

For safe, flexible and simple flying, the V0 Flying bracket is designed to suspend the V0 cabinet from a single pivot point. This allows precise adjustment of aiming angles with the cabinet in situ. The flown V0 loudspeaker must be provided with an independent, correctly rated and securely attached secondary safety – in addition to the principle hardware device. This secondary safety must prevent the loudspeaker from dropping more than 150mm (6") should the principle hardware device fail. Note: All findings should be thread-backed and torqued to 25.4m.

Technical diagram of a mechanical assembly with numbered components and mounting holes

Item No.	Description Quantity
1	M10 Plain Washer 3
2	M10 Spring Washer 3
3	Screw M10 x 50mm 3
4	Bracket Flyng - W0 1

The rod end is used in conjunction with the VQ flying bracket. Two types of rod end are available. One is designed to accept 12 " UKC threaded rod, and the other accepts 12 mm threaded rod. (Threaded rod supplied by user).

3D mechanical component diagram showing a cylindrical part with three labeled parts (1, 2, 3), no text or symbols present.

Item No. Description Quantity
1 Rod Ln2 - VC * UNC or 12mm 3
2	Screw M12 of5 Cap Head	3
3	M12 Myloc Nut	2

Remove the front two countersunk M10 screws located on the top of the cabinet and the top M10 countersunk screw on the top rear of the cabinet. Assemble the flying bracket as shown. (See fig. 1)

IMPORTANT: Only the screws, fasteners, shake proof and plain washers supplied should be used to assemble the V0 flying bracket. Note: All fixings should be thread-locked and torqued to 25 Nm.

When fixed in position the rod end can be moved along any of the five serrated edges within each slot to fine tune the loudspeakers tilt angle. (See fig. 2) Threaded rod used should be no more than 300mm ("2") in length. The user is responsible for supplying the correct threaded rod. The minimum specifications for the threaded rod are:

USA Grade B7 (1438 lbs, 650 kgs for ½" and based on a safety factor of 10:1)

Metric - Grade 10.9 [1459 lbs, 660 kgs for 12 mm rod based on a safety factor 10:1]

Use the appropriate nuts to lock the rod end to the threaded rod (supplied by user). Use a Nyloc nut at the top of the threaded rod to secure the pole clamp (supplied by user).

The threaded rod can be attached to a suitably rated Uni-Strut accessory.

Always use Nylon nuts to secure the threaded rod to the pole clamp or Uni-Strut.

The rigging of a flown sound system may be dangerous unless undertaken by qualified personnel with the required experience and certification to perform the necessary tasks.

Fixing of hanging points in a roof should always be carried out by a professional rigger and in accordance with the local rules of the venue.

A maximum of VQ 50 + VQ MB + VQ DF (350 lbs, 160 kg) can be flown from a single threaded rod. This combination carries a safety factor of 8:1. (See Fig. 3)

(6p.1)

Technical illustration of three views of a mechanical device with exploded and assembled views (no text or symbols)

VQ Link Plate

The VQ link plate is used to join a VQ DF or VQ MB to a VQ 60 or VQ 100 cabinet. Three link plates are used to connect each cabinet. The Link plates are supplied as standard with each VQ DF and VQ MB.

Remove the M10 countersunk screws as shown in the diagram opposite. Use the same screws to fix the link plate in place. The link plate will sit flush in the cabinet indentations. Two longer M10 bolts are supplied with the link plates. These bolts should be used to fix the near link plate in position.

Note: All fixings should be thread-locked and torqued to 25 Nm

LINK PLATE

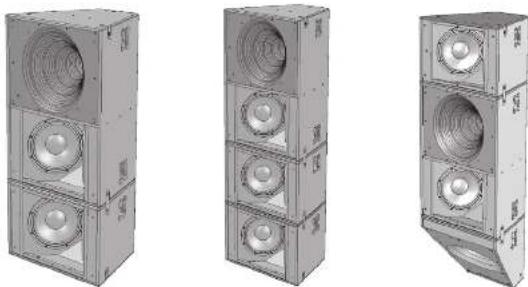

Using The VQ MB For Additional Pattern Control

The VQ link plate is used to join a VQ DF or VQ MB to a VQ 60 or VQ 100 cabinet. Three link plates are used to connect each cabinet. The Link plates are supplied as standard with each VQ DF and VQ MB.

Remove the M10 countersunk screws as shown in the diagram opposite. Use the same screws to fix the link plate in place. The link plate will sit flush in the cabinet indentations. Two longer M10 bolts are supplied with the link plates. These bolts should be used to fix the rear link plate in position.

Three views of a multi-tiered industrial air conditioner unit with speaker holes and ventilation grilles (no text or symbols visible)

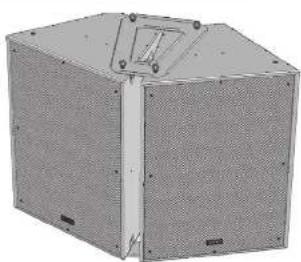

Arraying VQ 60

A single VQ 100 can produce more power and clarity over its 100 degree beamwidth area than many arrayed solutions using multiple cabinets, a great advantage when considering your building aesthetics. A VQ 100 is not designed to be arrayed.

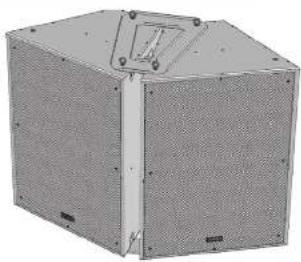

Two VQ 60s can be arrayed to produce a well defined horizontal coverage angle of 120 degrees.

The VQ array plate is designed to optimally array two VQ 60 cabinets. To fit the plate, set the boxes on the ground with the rear edge of the cabinets touching. Remove the two M10 countersunk bolts and replace with either the M10 screw or the supplied eyebrows. Locate the four M10 eyebrows from the fixings kit supplied and insert these through the array plate into the rigging points in the cabinet. These will be used to pick up the array. Repeat the same procedure at the bottom of the cabinets, use the M10 screw. If flying in a landscape orientation the M10 screw can be used on both array plates.

Note: All fixings should be thread-locked and torqued to 25 Nm

Two independent pick-up points are recommended for suspending the array. The main pickup points are the two rear eyelelts. The two front eyelelts may be used as safety points.

Technical diagram of a mechanical assembly with numbered components for identification

Item No.	Description Quantity
1	M10 Plain Washer 8
2	M10 Spring Washer 8
3	Screw M10 x 50 mm 8
4	Eyebolt M10.4
5	Array Bracket 2

3D rendering of a rectangular industrial or mechanical housing with mounting holes and a central vertical component (no visible text or symbols)

3D rendering of a modular electronic device with circular and rectangular components (no text or symbols visible)

Introducción

No connections on pins

1 and

MFAHF Positive (1 wt)

ME/HE Negative (w)

VQ MB Speakon

Connections

LF Negative (w)

LF Positive (Ive)

No connections on pin

24 and 2-

Two technical diagrams of a rectangular device with circular components suspended by vertical rods (no text or symbols)

26 WQ Series Quick Start Guide 27

Technical diagram of a mechanical assembly with numbered components and mounting holes

1 Arandela plana M10	3
2	Arandela de resorte M10	3
3 Tomillo M10 x 50 mm	3
4	Soporte volator - V0	1

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3.

Technical illustration of three views of an industrial fan or fan assembly with labeled components (no text or symbols present)

28 VQ Series Quick Star Guide 29

Placa de enlace VQ

Technical illustration of a mechanical device with fan and housing components (no visible text or symbols)

3D rendering of a multi-tiered industrial air conditioner unit with two speakers and ventilation grilles (no text or symbols visible)

Arreglo de VQ 60

Technical diagram of a mechanical assembly with numbered components for identification

Exterior view of a gray industrial or mechanical housing unit with ventilation grilles and mounting holes (no visible text or symbols)

3D rendering of a mechanical housing with circular components and mounting brackets (no text or symbols)

Introduction

No connections on pins

113631

MF+F Positive (1 sec)

MF/HF Negative (vol

VQ MB Speakon

2.2.1.3.2.4

LF Negative | -u)

LF Positive (vol

No connections are yes

21 and 2

VQ Series Recommended Amplifier Power
VQ60/100	Power Requirement
Low Frequency	2002 W into 4 ohms
Parastar KIF-NF	400 V into 8 ohms
Mid Frequency	400 V into 8 ohms
High Frequency	250 V into 8 ohms
VQ DF
Parastar KIF-NF	400 V into 8 ohms
Mid Frequency	400 V into 8 ohms
High Frequency	250 V into 8 ohms
VQ MB	2010 V into 4 ohms

3D diagram of a rectangular container with four circular components and hanging rods (no text or symbols)

3D diagram of a rectangular concrete block with hanging ropes and rings (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and mounting holes

3D mechanical component diagram showing a cylindrical part with three labeled parts (1, 2, 3), no text or symbols present.

Technical illustration of three views of a mechanical device with exploded and assembled views (no text or symbols)

Technical illustration of a mechanical device with a fan and base mount (no visible text or symbols)

Three views of a multi-tiered industrial air conditioner unit with speaker holes and ventilation grilles (no text or symbols visible)

Arraying VQ 60

Technical diagram of a mechanical assembly with numbered components for identification

3D rendering of a rectangular industrial or mechanical housing with mounting holes and a central triangular component (no text or symbols visible)

3D rendering of a modular electronic device with circular and rectangular components (no text or symbols visible)

Einführung

VQ 60 and VQ 100 Speakon Connections
LF Negative (ref) LF Positive (ref)
ME/HE Practice (+on) ME/HE Nucleation (-on)

VQ DF Speakon Connections
No connections on pins 1 and 1
MF/HF Positive (1 wt) MF/HF Negative (1 wt)

VQ MIB Speakon Connections
LF Negative (ve) LF Positive (ive)
No connections on pins 2+ and 3-

Two technical diagrams showing a rectangular device with internal components suspended by strings, mounted on a base plate (no text or symbols present)

VQ Flying Bracket (Single Point Hang Flying Bracket)

Technical diagram of a mechanical assembly with numbered components and labeled parts

3D mechanical component diagram showing a cylindrical part with three labeled parts (1, 2, 3), no text or symbols present.

3D rendering of a rectangular industrial enclosure with a circular vent and side panel (no text or symbols visible)

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

Technical illustration of a mechanical device with fan and housing components (no visible text or symbols)

3D rendering of a multi-tiered industrial air conditioner unit with two speakers and ventilation grilles (no text or symbols visible)

Arraying VQ 60

Technical diagram of a mechanical assembly with numbered components for identification

3D rendering of a rectangular industrial or mechanical housing with a central mounting bracket and side panels (no visible text or symbols)

3D rendering of a mechanical housing with circular components and mounting brackets (no text or symbols visible)

Introdução

Speakon Connections -

VQ 60 and VQ 100
Speakon Connections

LF Nogurt (vs)

L=Positive+Prel

[Non-Text]

MIL-100024(→28)

M1703 Nespalisa [-xv]

VQ OF Speakon
Connections

No connections on pins 1 and 1

MF+F Positive (1 sec)

MF/HE Negative (vs

VQ MB Speakon
Connections
[Non-Text]
审议《关于修订
LF Negative | w) LF Positive | v

No connections are yes

21 and 2

3D diagram of a rectangular container with four circular components and hanging rods (no text or symbols)

Simple 3D diagram of a rectangular structure with vertical supports and horizontal lines, no text or symbols present.

VQ Flying Bracket (Single Point Hang Flying Bracket)

Technical diagram of a mechanical assembly with numbered components and mounting holes

3D mechanical component diagram showing a cylindrical part with three labeled parts (1, 2, 3), no text or symbols present.

Technical illustration of three views of a mechanical device with exploded and assembled views (no text or symbols)

Placa de ligação VQ

Technical illustration of a mechanical device with internal components and mounting brackets (no text or symbols)

3D rendering of a multi-tiered industrial air conditioner unit with two speakers and ventilation grilles (no text or symbols visible)

Arraying VQ 60

Technical diagram of a mechanical assembly with numbered components for identification

3D rendering of a rectangular industrial or mechanical housing with internal components and mounting holes (no visible text or symbols)

3D rendering of a modular electronic device with circular and rectangular components (no text or symbols visible)

Introduzione

Two technical diagrams showing a rectangular device with circular components suspended by strings, mounted on a base plate (no text or symbols present)

VQ Flying Bracket (Single Point Hang Flying Bracket)

Technical diagram of a mechanical assembly with numbered components and mounting holes

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3.

Technical illustration of a mechanical device with exploded and assembled views (no text or symbols)

Piastra VQ Link

Technical illustration of a speaker chamber with fan blades and ventilation ducts (no text or symbols)

3D rendering of a multi-tiered industrial air conditioner unit with two speakers and ventilation ducts (no text or symbols visible)

Arraying VQ 60

Technical diagram of a mechanical assembly with numbered components for identification

3D rendering of a rectangular industrial or mechanical component with mounting holes and internal structure (no visible text or symbols)

3D rendering of a modular electronic device with two central compartments and mounting holes (no text or symbols visible)

Invoering

VQ 60 and VQ 100 Speakon Connections

LF Negative (vs. LF Positive level

MCFI Positior (→vs) MCFI Negalisis (→vs)

VQ OF Speakon Connections

No connections on pins 1 and 1

MF/HF Positive (1 sec) MF/HF Negative (sec)

VQ MI Speakon Connections

LF Negative | v0 LF Positive (v0)

An equilibrium of pre-21 and 2

3D diagram of a rectangular enclosure with four circular components suspended by vertical lines (no text or symbols)

3D diagram of a rectangular structure with hanging rods and a flat base, no text or symbols present

VQ Flying Bracket (Single Point Hang Flying Bracket)

Technical diagram of a mechanical assembly with numbered components and mounting holes

3D mechanical component diagram showing a cylindrical housing with three labeled parts (no text or symbols present)

Technical illustration of three views of a mechanical device with labeled components (no text or symbols present)

VQ-verbindingsplaat

Three views of a multi-tiered industrial air conditioner unit with visible vented lights and cooling fins (no text or symbols)

Arraying VQ 60

Technical diagram of a mechanical assembly with numbered components for identification

Item nr. Opuschrijing Aantal staks
1 M10 gewone sluiding 8
2 M10 rewarming 8
3 Schneuf M10 x 50 mm 8
4 Dogbout M10-1
5	Array brugel	2

3D rendering of a rectangular industrial or mechanical component with internal structure and mounting holes (no visible text or symbols)

3D technical illustration of a modular electronic device with circular components and mounting brackets (no text or symbols)

Introduktion

Speakon Connections -

VQ 60 and VQ 100 Speakon Connections

LF Negative (1-6) LF Positive (1-6)

MF/HF Positive (+ve) MF/HL Negative (-ve)

VQ DF Speakon Connections

No connections on pins 1+ and 1-

MCHP Archive (-29) MCHNegative (-48)

VQ MB Speakon Connections

1. Negative (−24) LF Positive (1 vs)

No connections on pins 2+ and 3-

Two technical diagrams of a rectangular device with circular components suspended by vertical rods (no text or symbols)

VQ Flying Bracket (Single Point Hang Flying Bracket)

Technical diagram of a mechanical assembly with numbered components and mounting holes

Volumener. Bestrooming Reventor
1 M10 vanlig bricka 3
2 M10 fjäderbidsa 3
3	Skurv M10 x 50 mm	3
4	Bracket Flying VQ	1

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3.

Vornummer, Deskrivning Kvantitet
1 Rod End	VQ _ UNK eller 12mm 3
2 Stmu NY	2x45 tokluvand 3
3 M12 Ny	oc-muster 3

Technical illustration of three views (Fig. 1, 2, 3) showing mechanical components with no visible text or symbols.

VQ-länkplatta

Technical illustration of a mechanical device with fan and housing components (no visible text or symbols)

3D rendering of a multi-tiered industrial speaker unit with two speakers and ventilation grilles (no visible text or labels)

Arraying VQ 60

Technical diagram of a mechanical assembly with numbered components for identification

Vanuammor. Böckström Kuantitet
1 M10 vanlig bidosa 8
2 M10 fallebricka 8
3 Skrow M10 x 50 mm 8
4 Eyebock M10 4
5 Artrastfarze 2

Exterior view of a gray industrial enclosure or storage unit with a central mounting bracket (no visible text or symbols)

3D rendering of a modular electronic device with circular and rectangular components (no text or symbols visible)

Wprowadzenie

VQ OF Speakon
2.2.1.2.2017
No connections on pins 1 and 1
MF+F Positive (1 sec)
MF/HF Negative (vol

VQ MB Speakon
2.2.1.2.2
LF Negative | ve) LF Positive (ve)
An connection to piez 2+ and 2-

3D diagram of a rectangular container with internal components and hanging rods (no text or symbols)

Simple 3D diagram of a rectangular structure with vertical supports and horizontal bars, no text or symbols present.

VQ Flying Bracket (Single Point Hang Flying Bracket)

Technical diagram of a metal bracket assembly with numbered parts and mounting holes

3D mechanical component diagram showing a cylindrical part with three labeled parts (1, 2, 3), no text or symbols present.

Technical line drawings of industrial equipment components, showing exploded and assembled views (no text or symbols)

Płyta łącząca VQ

Three identical 3D rendering of a multi-tiered industrial enclosure with speaker dividers and ventilation grilles (no text or symbols visible)

Tablica VQ 60

Technical diagram of a mechanical assembly with numbered components for identification

3D rendering of a rectangular industrial or mechanical housing with mounting holes and a central vertical slot (no text or symbols visible)

3D rendering of a modular electronic device with circular components and mounting brackets (no text or symbols visible)

Specifications

System
Frequency response ( 3 dB) 115 Hz - 23 kHz	115 Hz - 23 MHz 400 Hz - 23 kHz
Frequency range 1-10 dB/90 Hz - 27 kHz	90 Hz - 27 kHz 350 Hz - 27 kHz
Sensitivity (1 W ± 1 ml 111 dB/115 dB/111 dB)
Dimension ( 6 dB)	100 degrees conical	50 degrees conical	80 x 50 degrees
Driver components	LF - 2 x 300 mm (12" low frequency transducers, some horn loaded	LF - 2 x 300 mm (12" low frequency transducers, semi-bare loaded)	K/A
	MT/HT dual concentric compression driver loaded into single PSW waveguide	MT/HT dual concentric compression driver loaded into single PSW waveguide	MT/HT dual concentric compression driver loaded into single PSW waveguide
Crossover	kPa	Ramp - 450 Hz (active), 7 kHz (pioneer)Triump - 450 Hz, 7 kHz (active)	Single simplified - 2 kHz (passive)Bi-amp - 7 kHz (active)
Directivity factor (Ω)	8.5	11.2	15.3
Directivity index (Ω)	9.3	13.3	11.2
Maximum SP	135 dB averaged, 141 peak	135 dB averaged, 144 dB peak	134 dB averaged, 140 peak
Power handling
LF @ 4Ω	1000 V cont, 2000 V peak	1000 V cont, 2000 V peak	94
MT @ 8Ω	200 V cont, 420 V peak	200 V cont, 400 V peak	200 V cont, 400 V peak
HT @ 8Ω	90 V cont, 100 V peak	90 V cont, 130 V peak	90 V cont, 180 V peak
Passive MT/NF @ 8Ω	200 V cont, 420 V peak	200 V cont, 400 V peak	200 V cont, 400 V peak
Nominal impedance	LF - 4Ω, MT - 8Ω, HT - 8Ω	LF - 4Ω, MT - 8Ω, HT - 8Ω	MT - 8Ω, HT - 8Ω
Excluence
Construction	18 mm (0.2") birch wood, internally traced
G grille	Powder coated perforated steel grille
Finish	Textured black or white paint
Connectors	Butter step and spoolon connector
Fittings	5x recessed carrying handles, 12x 1/10 flying inserts		2x recessed carrying handles, 12x 1/10 flying inserts
Dimensions	925 x 694 x 515 mm(36.4 x 23.5 x 20.3")	925 x 694 x 515 mm(36.4 x 23.5 x 20.3")	500 x 694 x 515 mm(19.7 x 23.5 x 20.3")
Weight	60 kg (143 lb)	37 kg (169 lb)	250 kg (39.4 lb)

VQ 61DF
VQ64MH
VQMB

System
Frequency response [ 3 dB]	400 Hz - 23 kHz	400 Hz - 23 kHz	115 Hz - 500 Hz
Frequency range (-10 dB)	350 Hz - 27 kHz	350 Hz - 27 kHz	90 Hz - 600 Hz
Sensitivity (1 V @ 1 m), 114dB 115 dB 105 dB
Dispersed (-1 dB)	60 x 40 degrees	60 x 40 degrees	N/A
Driver components	N/A	N/A	LF - 2 x 300 mm ("2") low frequency transistors, semi- from loaded
	NF/HF dual concentric compression driver loaded into single PSW waveguide	NF/HF dual concentric compression driver loaded into single PSW waveguide	N/A
Crossover	Single amplifier - 7 kHz (passive) Bi-amp - 7 kHz (active)	Single amplifies - 7 kHz (passive) Bi-amp - 7 kHz (active)	N/A
Directivity factor (Q)	16.3	21.3	N/A
Directivity index (Q)	12.9	13.3	N/A
Maximum SPI	137 dB averaged, 143 peak	134 dB averaged, 144 peak	135 dB averaged, 141 peak
Power handling
LF @ 4.0	N/A	N/A	1020 V cont, 2000 V peak
MF @ 8.0	200 V cont, 400 V peak	200 V cont, 400 V peak	N/A
HF @ 8.0	90 W cont, 180 W peak	90 W cont, 180 W peak	N/A
Passive NF/HF @ 8.0	200 V cont, 400 V peak	200 V cont, 400 V peak	N/A
Nominal impedance	MF 8.0, HF 8.0	HF 8.0, HF 8.0	LF - 4.0
Endosure
Construction	18 mm (0.71" in birch plywood, internally based)
Smile	Powder coated perforated steel grllc
Finish	Tecured black or white paint
Connectors	Barrier strip and speaker connector
Fittings	2 x recessed carrying handles, 12 x M10 flying inserts
Dimensions	500 x 654 x 515 mm (15.7 x 27.3 x 20.3")	510 x 694 x 515 mm (25.1 x 27.3 x 20.3")	415 x 654 x 515 mm (37.1 x 27.3 x 20.3")
Weight	29.5 kg (64.9 lbs)	45.5 kg (100.1 lbs)	37 kg (81.6 lbs)

Other important information

Important information

Informations importantes

Herby, Music Tribe declares that this product is in compliance with Directive

2011/65/Ell and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation

\$19/2012 REACH SNC and Directive 1907/2006;EC, and this passive product is not

applicable to EMC Directive 2014/30/EU, LV Directive 2014/35/EU.

Full text of EU DoC is available at https://community.music.nbc.com?

EU Representative: Music Tribe Brands DK A/S

Address: Ib Spanq Ulsens Gade 17, DK - 8200 Aarhus N, Denmark

EN
