USER MANUAL PG 8575 SEVERIN

Line drawing of a microwave oven with control panel and lid (no text or symbols)

Art.-No. PG 8575

DE GB FR NL ES IT

MANUAL Tutorial www.severin.com

3 Pizzaofen

A B C E D F G H

Simple geometric pattern of a diamond shape filled with a grid, enclosed in a rounded square border (no text or symbols)

Frittierkorb

Pure geometric shape with diagonal lines inside a rounded square (no text or symbols)

Rost

Simple line drawing of a diamond-shaped frame with no text or symbols

Krümelblech

Simple line drawing of a frying pan (no text or symbols)

Pizzaheber (optional)

Diagram of a printer internal structure with an arrow indicating the open lid area (no text or symbols present)

Klassik-Programme

17:00 17:00230 MAX 165 High Temperature Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Current Power Circuit

00:00 High Temperature Warm Pressure Thermal Heat Cool Flow Power Flow Moistler Heat 100% COLD AIR KEY TIPS RESET START / STOP

07:30_360° High Temperature Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply

Temperature 15:00 High Temperature Sound Balance Air Air Condition Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear Cable Balance Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition Air Condition

FILL In High Temperature Warm/Continuous Cold/Continuous Warm/Continuous Cool/Continuous Moderate/Continuous Low/Continuous High/Continuous SPEED / 1000V SPEED / 1000V SPEED / 1000V SPEED / 1000V SPEED / 1000V SPEED / 1000V SPEED / 1000V SPEED / 1000V SPEED / 1000V SPEED / 1000V SPEED / 1000

Vorsicht!

General information....19

Relevant documents.... 19

Warning notices 19

2 Scope of supply 20

3 Pizza oven 21

4 Accessory 22

5 Display and control panel 23

Indicators....23

Control buttons....23

Classic programs 24

High-temperature programs....24

6 Before the first use....25

Unpacking 25

Cleaning....25

Installation....25

First use....25

7 Operation....26

Preparing....26

High-temperature programs....27

After the end of the program....29

8 Cleaning....29

9 Recommendations....30

10 FAQ....31

11 Disposal....32

12 Technical Data....32

1 About this manual

General information

These instructions are an integral part of the appliance.

Read them carefully before setting up, installing and using the appliance and keep them for future reference.

▶ Pass them on to any subsequent owner or user of the product.

The appliance must only be used by those familiar with the instructions below.

Relevant documents

• Quick start guide
• Safety manual (Safety)
• Warranty declaration (Warranty)

Warning notices

Signal word

Type, source and consequences of the hazard

▶ Measures to avoid the hazard.

Signal word Description

Danger Imminently	hazardous situation which, if not avoided, will result in death or serious injury.
Warning Potentially	hazardous situation which, if not avoided, could result in death or serious injury.
Caution Potentially	hazardous situation which, if not avoided, could result in minor injury.
Note Potentially hazardous situation which, if not avoided, can result in property damage.

1 2 3 4 5 6 7 8 9 10 QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART GUIDE QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea QUICKSTART Guinea

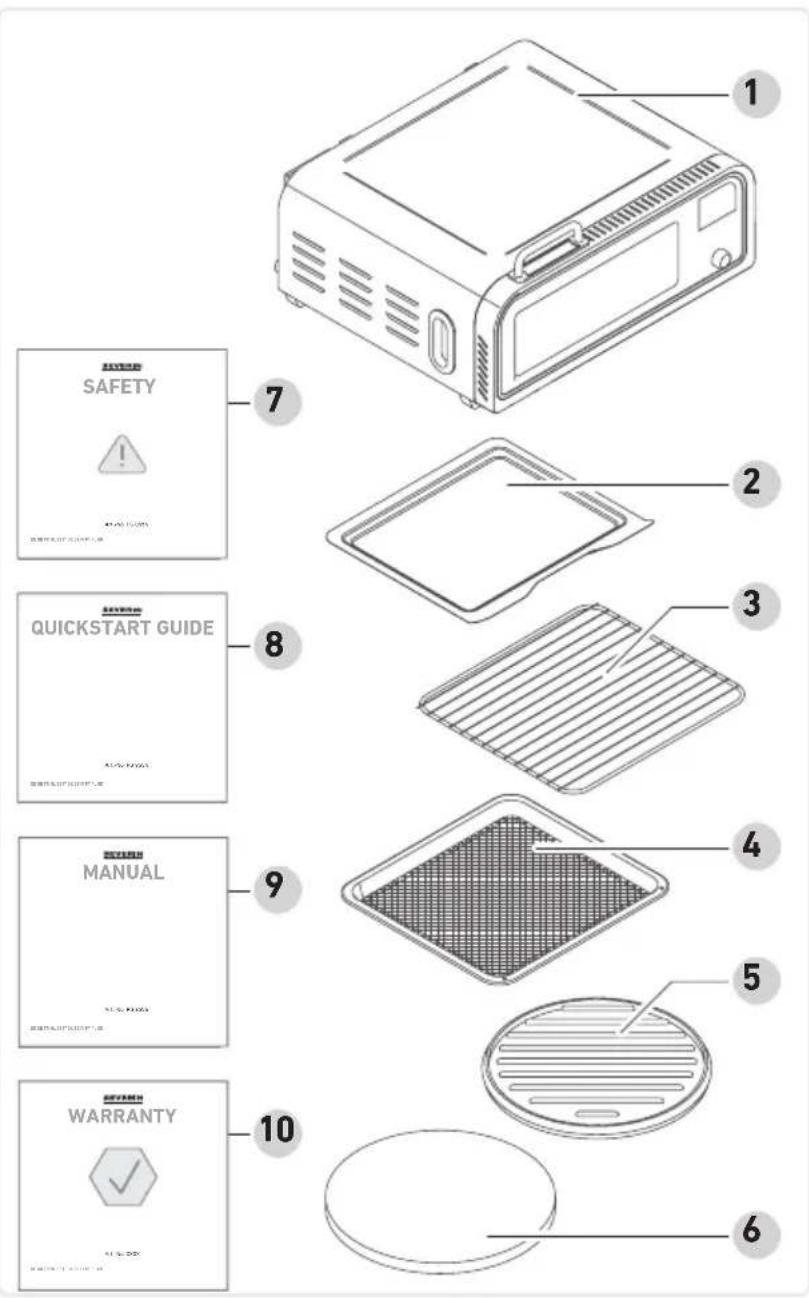

2 Scope of supply

1 Pizza oven
2 Crumb tray
3 Grille
4 Frying basket
5 Cast iron plate (with non-stick coating)
6 Pizza stone
7 Safety instructions
8 Quick start guide
9 Instruction manual
10 Warranty declaration

MANUAL Tutorial www.severin.com

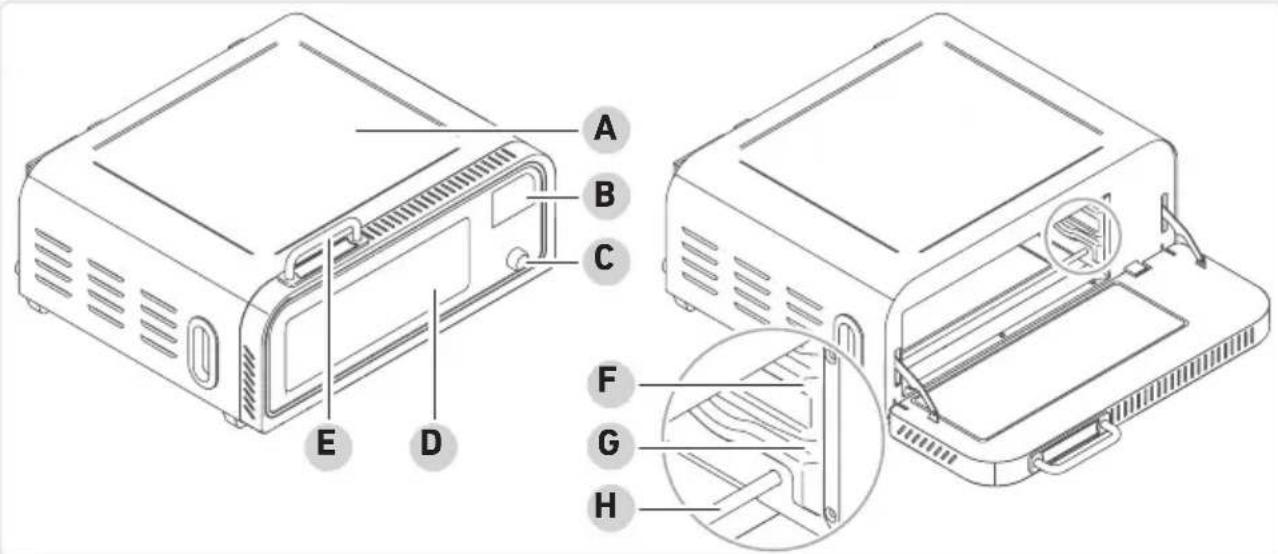

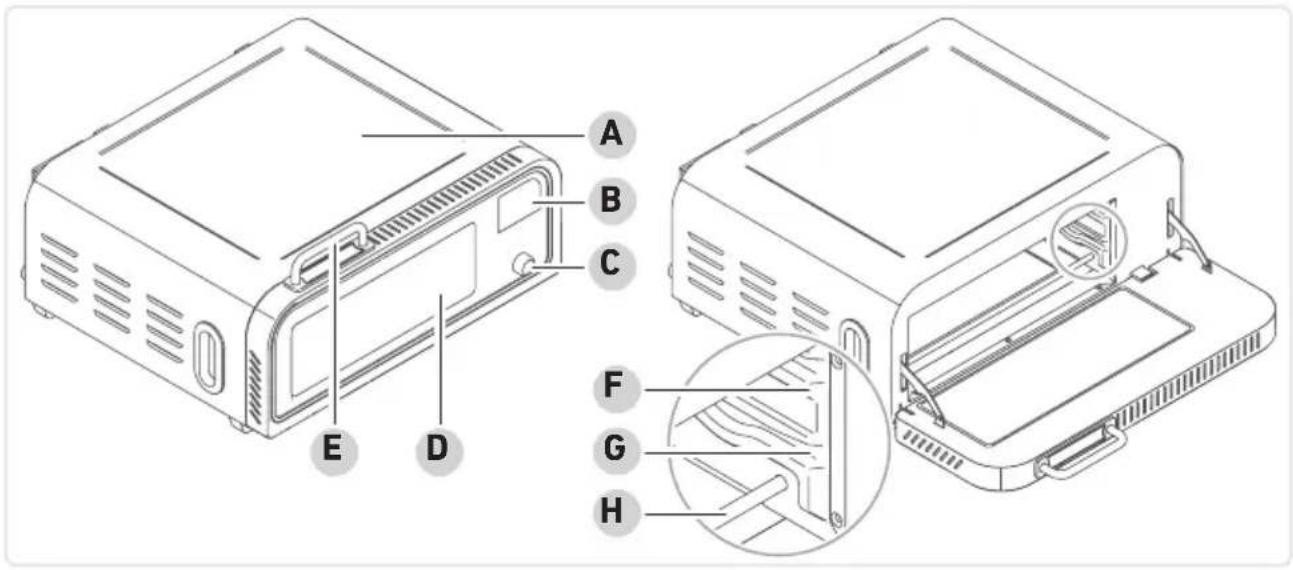

3 Pizza oven

A B C E D F G H

A Pizza oven
B Display and control panel
C Control knob
D Viewing glass
E Handle
F Upper shelf
G Lower shelf
H Heating rod

4 Accessory

Simple geometric diagram of a diamond-shaped frame with a grid pattern inside (no text or symbols)

Frying basket

It serves as a base for foods to be fried.

Always slide the frying basket into the upper shelf.

Pure geometric shape with diagonal lines inside a rounded square (no text or symbols)

Grille

Ideal for baguettes and bread rolls, as a base for cast iron plate, pizza stone and cake tin.

Slide the grille with the bracket first and then place the bracket on top.

Cast iron plate (with non-stick coating)

It is suitable for baking pizzas, bagels or toasts (smooth side), for grilling steaks (ribbed side), etc.

Pizza stone

It serves for preparing fresh pizza.

Simple geometric shape: a diamond outline with rounded corners, no text or symbols present.

Crumb tray

It is intended for collecting crumbs.

Place the crumb tray with curvature to the front.

Simple line drawing of a frying pan (no text or symbols)

Pizza peel (optional)

It is used to take pizza out of the oven.

The pizza peel can be ordered separately (e.g. 8195).

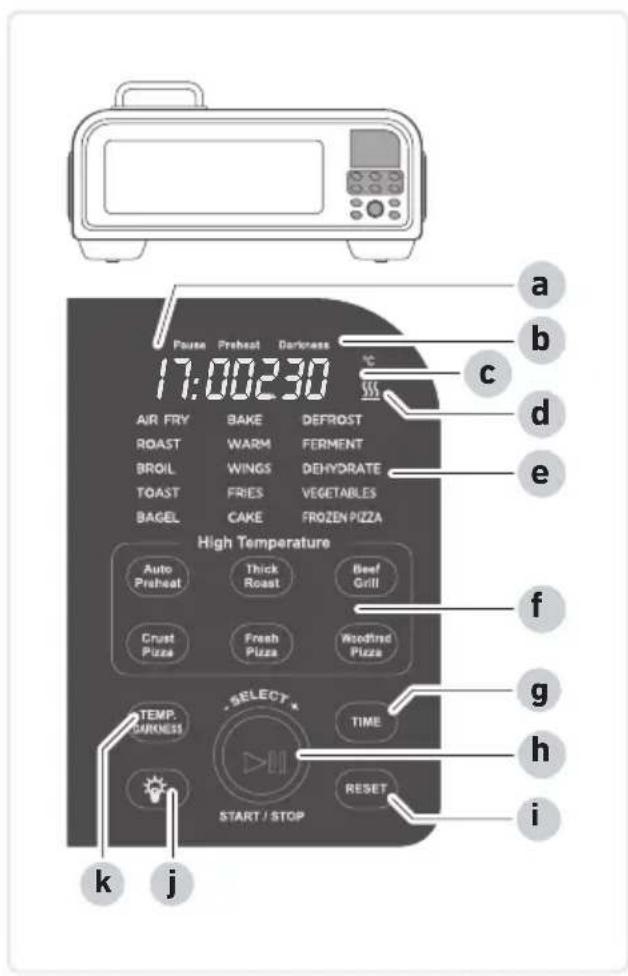

5 Display and control panel

17:00230 a b c d e High Temperature Air Fry BAKE DEFROST ROAST WARM FERMENT BROIL WINGS DEHYDRATE TOAST FRIES VEGETABLES BAGEL CAKE FROZEN PIZZA Auto Preheat Thick Roast Beef Grill Crust Pizza Fresh Pizza Woodford Pizza TEMP. DARKNESS SELECT TIME START / STOP RESET k j g h i

Indicators

a Time display in minutes and hours
b Pause, preheat, browning level (for toasts and bagels)
c Temperature display in °C
d Heat icon (indicates that the appliance is hot)

Control buttons

e Classic programs
f High-temperature programs
g Set time
h Control knob (start/stop and selection)
i Reset settings / switch standby on and off
j Turn light on and off
k Set temperature and browning level

Classic programs

AIR FRY Hot air frying with little or no oil

ROAST Cooking, frying, roasting (casserole, gratin, frying pan)

BROIL Grilling, scalloping (steak, fish)

TOAST Double-sided toasting with 6 browning levels

BAGEL One-sided toasting with 6 browning levels

BAKE Baking (biscuits, etc.)

WARM Keep warm

DEFROST Quick defrosting

FERMENT Fermentation

DEHYDRATE Dry

FROZEN PIZZA Frozen pizza or pizza with a thick topping

FRIES/CHIPS Chips (frozen or fresh / max. 400 g)

VEGETABLES Vegetables

WINGS Chicken wings (chicken pieces)

CAKE Baking (muffins, small cakes, etc.)

High-temperature programs

Auto Preheat Preheat
Thick Roast Grilling and cooking meat up to 6 cm thick
Beef / Grill Grilling and cooking meat up to 2 cm thick
Crust Pizza	Frozen pizza with raised edge
Fresh Pizza	(Handmade) fresh pizza without raised edge
Wood fired Pizza	(Handmade) fresh pizza with raised edge

Unpacking

▶ Remove all parts from the packaging.
Remove all packaging material, protective film and stickers.
! Never remove the rating labels; they must always remain on the appliance.
▶ Check the scope of delivery for completeness and damage.

Cleaning

▶ Clean all accessories as specified in Chapter 8 Cleaning.

Installation

Place the appliance on a flat, heat-resistant surface.
▶ Do not cover the appliance or place anything on it.
▶ Operate the appliance in a well-ventilated place.

▶ The appliance must only be connected to a properly installed earthed socket.

First use

Caution!

Risk of injury from slight build-up of smoke. Inhaling smoke can cause damage to your health.

▶ Open the windows or doors.

▶ Put the crumb tray and accessories (without the pizza stone) into the appliance.

▶ Plug the appliance into the socket.

The control panel indicators light up.

▶ Turn the control knob and select the "AIR FRY" program.
▶ Press the control knob again to start the program.
▶ Let the program run through to the end.
▶ Allow the appliance to cool down.

7 Operation

Preparing

▶ Set up the appliance in a suitable place, see page 25 installation.

Caution!

Damage to the appliance due to soiling. Damage to the base due to lack of heat protection at the bottom.

▶ Never use the appliance without the crumb tray in place.

Diagram of a microwave oven with an open lid and internal tray, showing no text or symbols

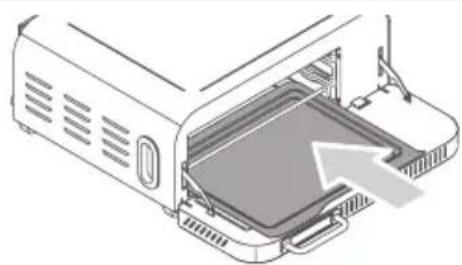

▶ Insert the crumb tray.
▶ Plug the appliance into the socket.

The control panel indicators light up.

Classic programs

▶ Place the accessory with food in the cooking chamber.
▶ Turn the control knob.

The programs light up.

▶ Turn the control knob until the desired program flashes.
▶ Confirm your selection with the control knob.

The program starts.

AIR POWER BEANS COMPRESSOR DRAGON HARDEN POMEGRANATE DRAGON PRESS MOUNTED BASELINE CABLE TOLERER HIGH TEMPERATURE OFF-LOCK ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFOUR ON/OFCF/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUN/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUM/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUS/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/OSRUSA/ High Temperature

17:00 17:00230 AM FREE High Temperature OFF/TEMP ON/OFF ON/OFF ON/OFF OFF/TEMP ON/OFF OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/TEMP OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/ Temp OFF/Temp

When using the pizza stone: Preheat the stone for 15 minutes in the "AIR FRY" program.

Then, bake the pizza in the "Frozen pizza" program.

Time and temperature can be adjusted during cooking.

Press; the temperature indicator flashes. Adjust the temperature with the control knob.

Press the control knob to confirm.

Press the time indicator flashes. Adjust the time with the control knob. Press the control knob to confirm.

The appliance beeps at the end of the program.

High-temperature programs

These programs work in 2 stages:

• Preheat
• Cooking

00:00 High Temperature Warm/Hot Water Thermal/Heat Cold/Free Power/Power Moistier/Moistier 100kV/Control AIR Key Turb RESET

07:30_360 ° High Temperature Clean Cranial Clean Roof Roof Clean Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof

15:00 High Temperature Sonic Control Sonic Control Sonic Control Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cyclic Pulse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cycliculse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse Cyclic pulse

FILL In High Temperature Temp Control Control Panel Temp 2.0k Control Panel Temperature Control Control Panel Temp Control Control Panel TEMP RESET START / STOP

Caution!

There is a risk of injury due to smoke development. High cooking temperatures can exceed the smoke point of food, resulting in heavy smoke development.

Inhaling smoke can cause damage to your health.

▶ Do not grease or oil accessories.

Place the selected accessory in the cooking chamber.
! Do not put food into the cooking chamber during preheating.

▶ Press the desired program once or twice on the display.

The selected program flashes.

The high-temperature programs have a fixed temperature. The time can be changed. The time display in the pizza programs alternates between 07:30 and 7' (diameter of the pizza in inches). If you increase the time, the diameter value increases automatically.

Examples of pizza diameters: 7' = 18 cm , 10' = 25 cm , 12' = 30 cm

The time display in the Beef / Grill program alternates between the degree display and 50 (cooking level).

Examples of cooking levels: 30 = Rare, 50 = Medium Rare, 70 = Medium, >70 = Well Done If you increase the time, the cooking level increases automatically.

The appliance will beep after about 1 minute. After the beeps, turn the food for an optimal cooking result.

▶ Press the control knob to confirm the selection.

Preheating starts automatically.

When preheating is complete, the appliance emits short beeps, and the display shows "FILL in/Open". The preheat icon goes out.

Failure to start a program within 30 minutes of preheating automatically restarts preheating in order to keep the temperature high.

▶ Open the door and pull the accessory out with the oven glove.
▶ Place the food on the accessory.
▶ Push the accessory with food back into the cooking chamber.
▶ Close the door.

Closing the door automatically starts the selected program and the countdown timer.

The timer will pause if you open the door while the program is running. The display shows PAUSE.

The program resumes once the door is closed again.

You can adjust the time during the program. To do so, press and adjust the time with the control knob. The appliance beeps at the end of the program. The display shows "END".

After the end of the program

Caution!

Risk of injury from burns.

▶ Only remove the accessories and hot containers using the oven glove.

▶ Open the door. Remove the food and accessories from the oven with the oven glove.
- Place the baking tray, other accessories or hot containers on a heat-resistant surface. - Close the oven door.

When the food is cooked, the appliance cools down (you will hear the fan making noise).

Do not pull out the power plug until the fan stops making noise.

8 Cleaning

The frying basket, grille and cast iron plate are dishwasher safe; all other parts of the appliance are not!

1. Always pull out the power plug before attempting any cleaning. Allow the appliance and accessories to cool down.
2. Clean the appliance and accessories after each use.

Caution!

Risk of injury from electric shock and damage to the appliance.

Damage to the pizza stone.

Do not immerse the appliance or pizza stone in water.
▶ Do not clean the pizza stone with detergents.
▶ Do not clean the pizza stone in a dishwasher.

1. Remove the crumb tray for cleaning. Remove crumbs. Remove large amounts of fat with a paper towel. Use mild rinse water for cleaning.

2. Use a wooden scraper to remove any food residues from the pizza stone. Any discolouration is normal and cannot be avoided. Rinse the pizza stone with water if necessary.
   ! The stone must be completely dry before next use.

3. Clean the remaining accessories with mild rinse water.
   ! Do not use harsh or abrasive cleaning agents or oven spray.

4. Clean the housing inside and outside with a slightly damp cloth.
5. Dry all parts and store them in a clean, dry place.

9 Recommendations

• The time and temperature values of the preset programs are reference values. Adjust the time and temperature depending on the food or how browned you want it to be. When using the high-temperature programs, you can only change the time.
  • Always check the food in the oven during cooking to avoid over-browning.
• Always preheat the pizza stone (Auto Preheat for 15 minutes). The cast iron plate requires no preheating.
• When making chips from fresh potatoes, soak the potato slices in cold water for at least 30 minutes before cooking. The water helps rinse off a little starch, resulting in a crispier chip.

Warning!

Risk of injury from operating a faulty appliance. Operating a faulty appliance can lead to electric shock.

▶ Never use a faulty appliance.
▶ Do not attempt to repair the appliance yourself.
▶ Contact our customer service in the event of a defect.

Before contacting our customer service, check the table below to see if you can rectify the problem yourself.

Question / Possible cause Solution problem

The appliance is not responding.	No power. Connect the appliance to the power supply. Check the mains outlet used.
Smoke builds up in the cooking chamber during preheating.	The heating elements are factory-treated with a care product that evaporates during initial preheating.	If smoke develops only during initial preheating, this is absolutely normal.The care product that evaporates is non-toxic and harmless. Nevertheless, ensure adequate ventilation during initial heating and clean the inside of the appliance after preheating.
Some foods burn, others are undercooked.	Food is not in the middle of the cooking chamber.	Place food centrally in the cooking chamber.
	Time and/or temperature not correctly selected.	Select the optimal time and temperature for each preparation.

11 Disposal

Appliances marked with this symbol must be disposed of separately from household waste. These appliances contain valuable raw materials that can be recycled. Proper disposal of these items protects the environment and public health. Your local authority or retailer can provide detailed information on proper disposal.

12 Technical Data

Article number PG 8575
Power 2,000 W
Voltage/Frequency 220-240 V~/50-60 Hz
Capacity 18 litres
Temperature range 40 - 400 °C
Net weight 8.87 kg

Contenu

A B C E D F G H

Simple geometric pattern of a diamond shape filled with a grid, enclosed in a rounded square border (no text or symbols)

Pure geometric shape with diagonal lines inside a rounded square (no text or symbols)

Simple line drawing of a diamond-shaped frame with no text or symbols

Simple line drawing of a frying pan (no text or symbols)

Panier à friture

Diagram of a printer internal structure with an arrow indicating the open lid area (no text or symbols present)

AIR NET BALANCE SPRING VEGET HORN POMEGRAN DRAGON AVOCATION SHORT FRESH MOZZARELLA GREEN HIGH TEMPERATURE OFF-LOCK ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOOFP ON/OOFOPPS ON/OGNOSIPTS ON/OGNOSIPTS ON/OGNOSIPTS ON/OGNOSIPTS ON/OGNOSIPTS ON/OGNOSIPTS ON/OGNOSIPTS ON/OGNOSIPTS ON/OGNOSIPTS ON/OGNOSIPTS ON/OGNOSIPTS ON/OGNOSIPT S10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

17:00 17:00230 MAX TIME High Temperature Sens Filter Tens Filter Tens Rate Down Filter Down Rate Down Rate Up Filter Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate

00:00 High Temperature Soft Balance Deep Balance Soft Low Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close High: OFFICE OK! RESET

07:30_360 °C High Temperature Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control Power Supply Control

15:00 High Temperature Electric (kcal) Cathode (kPa) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) Dialysis (kA) OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE OFFICE FFOUST - OFFICE

FILL In High Temperature Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close) Close (Close)

Attention!

1 2 3 4 5 6 7 8 9 10 SAVESH SAFETY QUICKSTART GUIDE MANUAL WARRANTY

2 De levering omvat

MANUAL Tutorial www.severin.com

3 Pizzaoven

A B C E D F G H

A Pizzaoven
B Display en bedieningspaneel
C Bedieningsknop
D Venster
E Handgreep
F Bovenste rek
G Onderste rek
H Verwarmingsstaaf

4 Accessoires

Simple geometric diagram of a diamond-shaped frame with a grid pattern inside (no text or symbols)

Frituurkorf

Pure geometric shape with diagonal lines inside a rounded square (no text or symbols)

Rooster

Simple geometric shape: a diamond outline with rounded corners and a central blank space (no text or symbols)

Kruimellade

Simple line drawing of a frying pan (no text or symbols)

Pizzaschep (optioneel)

om de pizza's eruit te halen.

Diagram of a microwave oven with an open lid and internal structure, showing no text or symbols

AIR NET BEACH HARDEN POMEGRAN DRAGON FROZEN KONKINI TOMATO SWEET AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCATION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOCUTION AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-sections AVOC-section of AVOC-sections

17:00 17:00230 MAX TIME High Temperature Sens Filter Tens Filter Tens Rate Down Filter Down Rate Down Rate Up Filter Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate Up Rate

00:00 High Temperature Low Pressure High Pressure Low Pressure Medium Pressure High Pressure Medium Pressure High Pressure START / STOP

07:30_360 ° High Temperature Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control 11

15:00 High Temperature Electric/Thermal Cock/Box Duty Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roaf Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roof Box Roft Box Roft Box Roft Box Roft Box Roft Box Roft Box Roft Box Roft Box Roft Box Roft Box Roft Box Roft Box Roft Box

FILL In High Temperature Warm (°C) Cool (°C) Hot (°C) Cold (°C) Warm (°C) Cool (°C) Warm (°C) Warm (°C) Warm (°C) Warm (°C) Warm (°C) Warm (°C) Warm (°C) Warm (°C) Warm (°C) Warm (°C) Warm (°C) Warm (°C) Warm (°C) Warm (°C)

Voorzichtig!

1 2 3 4 5 6 7 8 9 10 SAVESH SAFETY QUICKSTART GUIDE MANUAL WARRANTY

2 Material

MANUAL Tutorial www.severin.com

3 Horno para pizza

A B C E D F G H

Simple geometric pattern of a diamond shape filled with a grid, enclosed in a rounded square border (no text or symbols)

Cesta para freír

Pure geometric shape with diagonal lines inside a rounded square (no text or symbols)

Rejilla

Simple line drawing of a diamond-shaped frame with no text or symbols

Bandeja para migas

Simple line drawing of a frying pan (no text or symbols)

Diagram of a printer internal structure with an arrow indicating the open lid area (no text or symbols present)

07:30 - 360 °C High Temperature Facts Control Cable Order Order Order Screw Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close High Temp 1200V 120V 120V 120V

15:00 High Temperature Color: Normal Clean Smooth Seal Blue Cock White Thick Light Smoothed Blue TEMP. SALADY TWO R30000 - 87500

FILL In High Temperature Temp (MHz) Cock (GHz) Sine (L/s) Cass (Pa)- Dissipation (W/m) Discharge (V/Hz) TEMP (dB) RMS RESET TIME / STOP

¡Precaución!

MANUAL Tutorial www.severin.com

3 Forno per pizza

A B C E D F G H

Simple geometric pattern of a diamond shape filled with a grid, enclosed in a rounded square border (no text or symbols)

Pure geometric shape with diagonal lines inside a rounded square (no text or symbols)

Griglia

Simple line drawing of a diamond-shaped frame with rounded corners (no text or symbols)

Simple line drawing of a frying pan (no text or symbols)

Diagram of a microwave oven with an open lid and handle, showing internal components (no text or symbols)

ABC TINY BRIDGE DRILL TOMATO BASIL BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE

17:00 17:00230 High Temperature Start Window Take Window Close Window Close Press Close Press Close Press TOMS START STOP 11 OK START

00:00 High Temperature Warm/Heat Cool/Heat Cold/Flat Power/Power Pressure/Pressure 100kV/100W AIR KEY TOK RESET START / STOP

07:30_360 °C High Temperature Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control Power Control

Pulsed 15:00 High Temperature Electric/Thermal Control Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel

FILL In High Temperature Warm (°C) 1200 Cold (°C) 1200 Severe (°C) 1200 Moderate (°C) 1200 Severe (°C) 1200 Warm (°C) 1200 Severe (°C) 1200 Warm (°C) 1200 Severe (°C) 1200 Warm (°C) 1200 Severe (°C) 1200 Warm (°C) 1200 Severe (°C) 1200 Warm (°C) 12 Severe (°C) 12 Severe (°C) 12 Severe (°C) 12 Severe (°C) 12 Severe (°C) 12 Severe (°C) 12 Severe (°C) 12 Severe (°C) 12 Severe (°C) 12 Severe (°C) 12 Sevate - Warm SEVER - Warm

Attenzione!

www.severin.com/socials

SEVERIN

Model specifications are subject to change.
