USER MANUAL FG19 Duronic

Creative Consumer Products

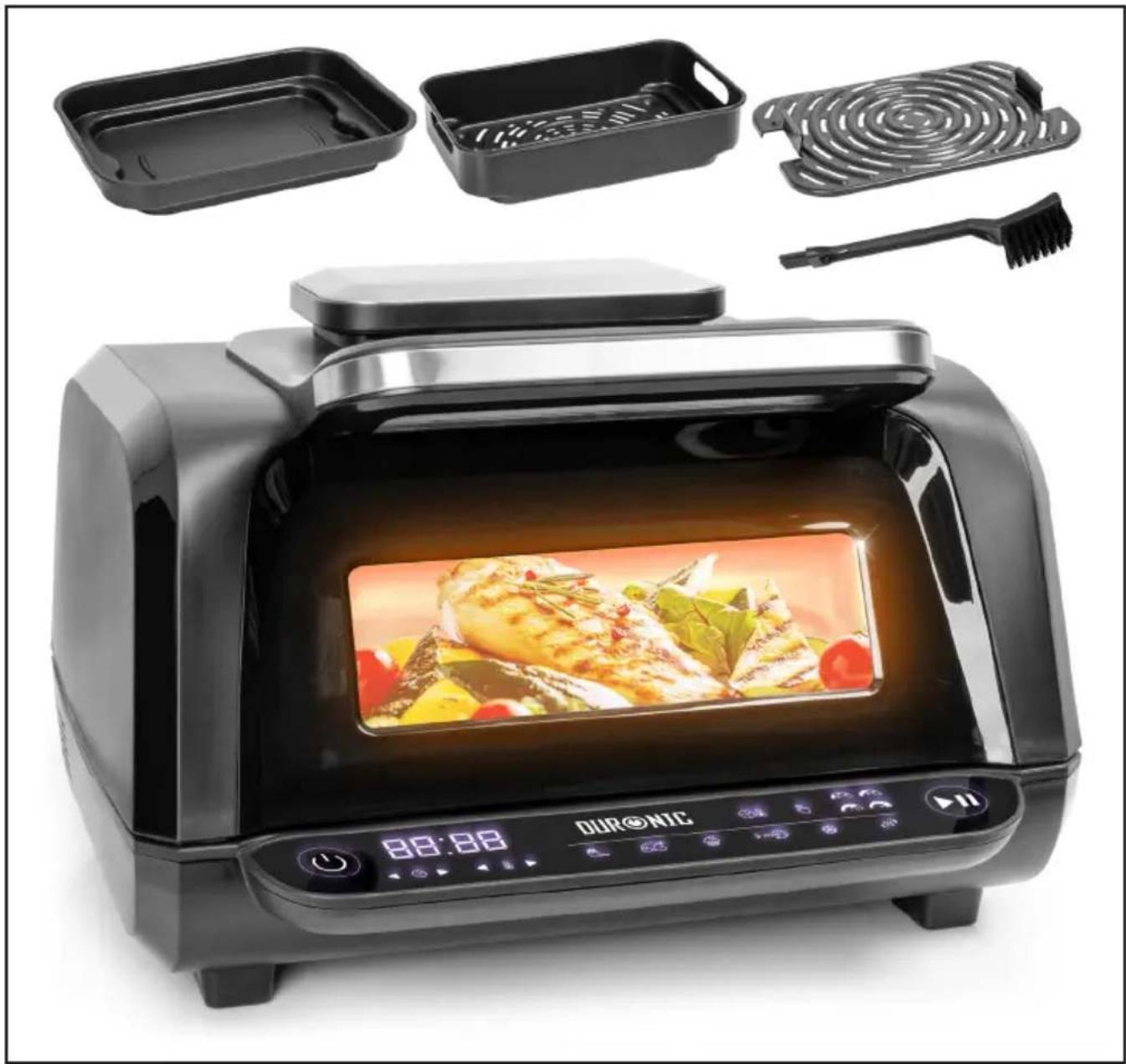

Black DURONIC 2008 electric toaster with digital display and various kitchen utensils (no text or symbols visible)

FG19

Air Fryer Grill

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Contents

English Manual 3

Features and Specifications

Product Code Dimensions Cable Length Unit Weight
FG19	39.7x42x27cm15.6x16.5x10.6in		85cm33.5in	6.6kg
Temperature Range Timer Range Power Voltage
50 - 230°C 1 - 120min 1900W				220-240V50-60Hz

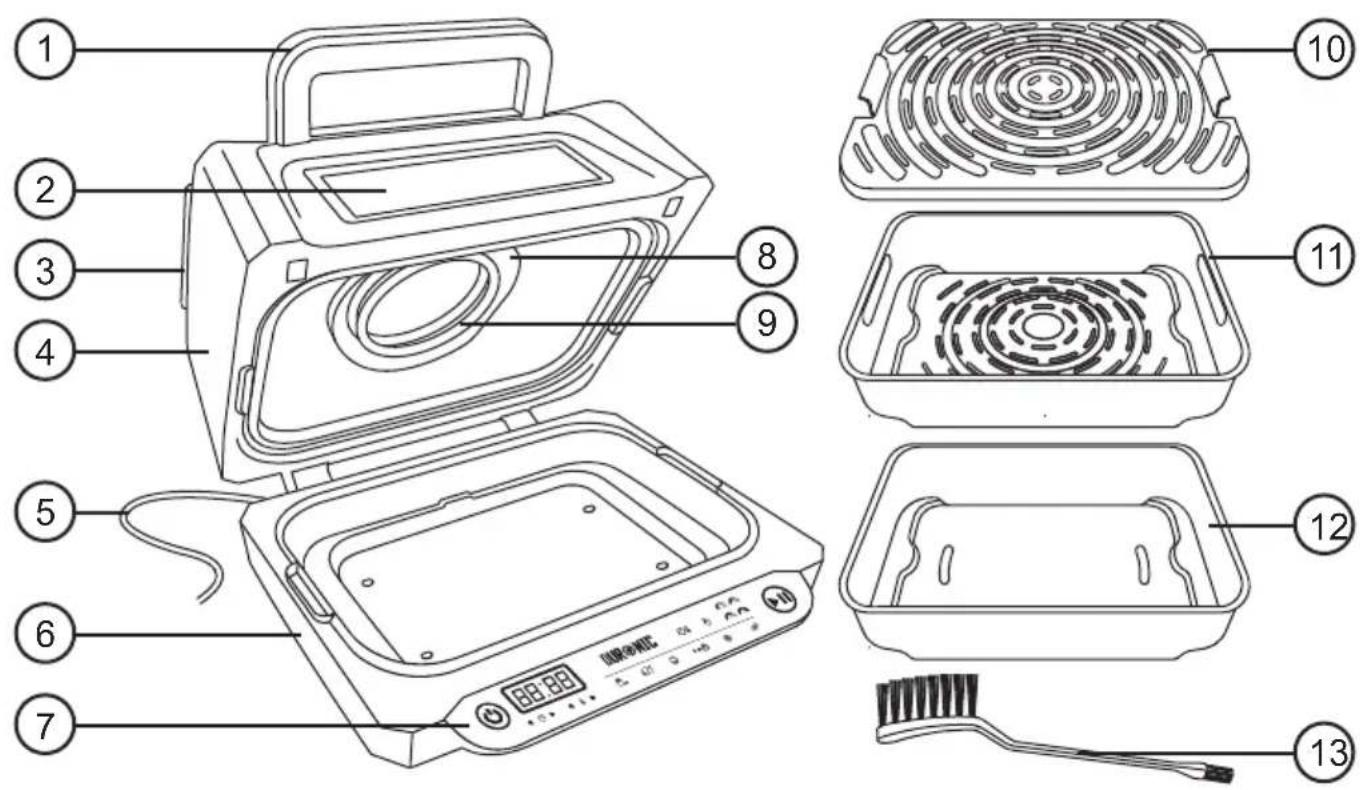

Components

Exploded diagram of a microwave oven with numbered parts for identification and assembly reference.

1. Handle
2. Window
3. Vent
4. Hood
5. Power Cable
6. Main Unit

7. Control Panel

8. Splash Guard

9. Heating Coils and Fan
10. Grill Plate
11. Inner Basket
12. Outer Tray
13. Cleaning Brush

DURONIC

Control Panel Buttons

A B C D E F 88:88 DURONIC 5 min I

A. Power Button
B. LED Display
C. Manual Mode Button
D. Quick Select Button
E. Quick Select Modes

F. Start / Pause Button
G. Time Buttons
H. Temperature Buttons
I. Preset Modes

Quick Select Modes

Time: 20min (1 - 30min)
Low Medium	High Max
150°C 175°C	205°C 230°C

Preset Modes

Icon	Setting	Time	Temperature
	Air Fry	18min(1 - 60min)	200°C(100 - 230°C)
	Roast	20min(1 - 240min)	200°C(100 - 220°C)
	Bake	25min(1 - 120min)	160°C(50 - 205°C)
	Fast Cook	5min(1 - 120min)	200°C(50 - 210°C)
	Defrost	15min(1 - 60min)	90°C(50 - 150°C)
	Reheat	15min(1 - 30min)	150°C(50 - 230°C)

DURONIC

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

• This appliance is for indoor/household use only. Do not use outdoors.

- This appliance is not designed for commercial or industrial use; it is for household use only.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

- Children should be closely supervised at all times to ensure that they do not play with the appliance.

- Only use the appliance out of the reach of children because it gets very hot and will contain hot food.

- Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by a professional technician.

- Never try to replace the parts and repair the unit by yourself. Do not modify the appliance in any way that is not described in the instructions for use. The appliance contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.

- If an extension lead/cable is needed to reach the appliance to a mains power socket that is too far away out of reach of the appliance's accompanying cable, please ensure that:

- the marked electrical rating of the extension lead is at least as great as the electrical rating of the appliance.

- the extension lead is of the grounded type.

- no other appliance is plugged into the same extension lead.

- the extension cable is safely positioned to avoid it being pulled on by children or animals or being tripped over.

DURONIC

Safety Information (Continued)

• Always operate the appliance on a dry, smooth, even and stable surface. Do not place the air fryer grill on or next to a hot surface.

- Position the appliance and its power cable to the rear of the work surface, well out of reach of children.

- Do not cover the vent openings while the appliance is operating.

- Leave at least 10cm free space at the back and sides and 10cm free space above the appliance; do not place anything on top of the appliance.

- Disconnect the mains plug from the power socket if you are going to be absent for long periods.

- Never disconnect the plug by pulling on the power cable.

- Unplug from the mains plug outlet when not in use and before cleaning.

- This appliance is not intended to be operated using an external timer or separate remote-control system.

- Do not let the power cable hang over the edge of the table or counter, or touch hot surfaces.

- Do not use the appliance for anything other than cooking or warming up food.

- Do not operate the air fryer grill with wet hands.

- To clean, wipe the main unit with a well-wrung wet cloth. Do not submerge it in water or other liquids. The cooking trays can be cleaned by hand with warm water and soap, or alternatively, cleaned in the dishwasher.

- Do not fill the trays or the bottom of the grill with oil as this may cause a fire hazard.

- Do not touch the inside of the appliance while it is operating or straight after use. Use the handle to open the grill only.

- Keep the metal heating element free from grease or debris.

- Cooking should only be done in the removable trays provided.

DURONIC

Safety Information (Continued)

- Do not add water or ingredients without the Outer Tray in place.

- Before inserting the trays into the main unit, ensure the inside of the unit is clean and dry by wiping with a soft cloth.

- Ensure the hood is closed completely before operating the appliance.

- During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and the air outlet openings.

- Be careful of hot steam and hot air when you open the grill.

- The surface below the appliance may become hot during use. Always use this appliance on a heatproof surface.

- The trays become extremely hot during the cooking process. Avoid physical contact with them while removing from the appliance.

• After removing the trays from the main unit, place them on a heat-resistant surface.

- If you see dark smoke coming out of the appliance unplug it immediately and wait for the smoke emission to stop before you remove the drawers from the appliance.

- Let the appliance cool down for about 30 minutes before you handle or clean it.

• After cooking, ensure that any burnt remnants are removed and the inner trays are cleaned.

- Do not clean any part of this appliance with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating the risk of electric shock. It can also scratch the surface of the appliance or drawers and cause damage.

- Never leave the appliance unattended during operation.

DURONIC

Before First Use

1. Remove all of the packaging materials. Check that there are no parts missing. Some stickers, such as the mode guide, are to be permanently kept on the unit.
2. Clean the outside of the main unit by wiping it with a wet well-wrung sponge or cloth.
3. Clean the trays with warm water and dishwashing liquid. Dry thoroughly.
4. Position the main unit on a dry level heat-proof surface away from other sources of heat.
5. Plug in the power cable into the nearest wall socket. DO NOT let the cable hang over the edges of worktops or touch hot surfaces.
6. Do not put anything on top of the appliance or covering the air outlets or inlets; this will disrupt the airflow and can affect the air-frying result.

How to Use

• Wash all components before use and make sure they have been thoroughly cleaned and dried.
  • Make sure the air fryer grill is on a flat, stable, heat-proof surface and then plug in to the mains.
• Place the outer tray inside the main unit. Always cook with the outer tray inside the unit.
• Put the inner basket or grill plate inside the outer tray, or use the outer tray alone as a roasting tin.
• Fill with your food. If you want to cook chips, vegetables or fish fingers, use the inner basket. If you want to grill chicken or fish, place the grill plate inside the outer tray instead and put your ingredients on top of that.
• Pull the cover down and press the power button.
• Follow the instructions for 'Manual Select', 'Quick Select', or '6 Preset Modes'.

DURONIC

How to Use (continued)

Manual Select

To manually choose the time and temperature settings;

• Press the manual button on the control panel. The button will flash when selected.
• Use the Temperature +/- buttons and Time +/- buttons on the control panel to increase or decrease each of them to the desired setting.
• Press the Start/Pause button to start cooking. The light inside the airfryer will turn on.
• When the timer ends the air fryer will make a beep 3 times and the word 'END' will appear. The grill will then enter 'warm mode' until the grill is opened.
  • The air fryer will beep a few times before turning off.

Quick Select

There are four pre-set temperatures (150°C, 175°C, 205°C, 230°C)

• Press the Quick Select touch button.
• Pressing the button repeatedly will switch between the temperatures until you reach your desired temperature. You can view the temperature on the display.
• Press the Start/Pause button to start cooking for 20 minutes. The light inside the airfryer will turn on.
• When the timer ends the air fryer will make a beep 3 times and the word 'END' will appear. The grill will then enter 'warm mode' until the grill is opened.
  • The air fryer will beep a few times before turning off.

DURONIC

How to Use (continued)

6 Preset Modes

5 min

There are 6 pre-set modes that have the temperature and time already selected in accordance to what it is cooking; air fry, roast, bake, fast cook, defrost and reheat. The temperature and timing can still be edited after selecting them to suit your preferences and needs. (Refer to ‘Control Panel Buttons’ page)

• Press one of the preset buttons on the control panel. The button will flash when selected.
• To manually choose the time and temperature settings, use the Temperature +/- buttons and Time +/- buttons on the control panel to increase or decrease each of them to the desired setting.
• Press the Start/Pause button to start cooking. The light inside the airfryer will turn on.
• When the timer ends the air fryer will make a beep 3 times and the word 'END' will appear. The grill will then enter 'warm mode' until the grill is opened.
  • The air fryer will beep a few times before turning off.

Pausing when cooking

Depending on the type of food you are cooking, you may need to flip, turn, or shake the contents of the grill to ensure the food is cooked evenly. Press the Start/Pause button to pause cooking. Be careful of hot steam when opening the hood.

Please Note: If the grill is opened whilst it is cooking the food, the fan and heat will automatically turn off. When the lid is shut again, cooking will resume. For your safety we advise to still use the Start/Pause button.

DURONIC

How to Use (continued)

CAUTION:

• Be careful when opening the hood.
• Do not use the grill without the outer tray.
• Do not fill the air fryer grill with oil.
• Do not overfill the trays. Leave some clearance space above and around the food so that the hot air can circulate properly. In addition to this, overfilling may cause personal injury, property damage or affect the safe use of the appliance.
  • Always ensure the hood is closed properly before operating.
• The inside and trays become extremely hot during the cooking process. Avoid physical contact while removing the plates from the appliance.
  • Always use the handle to open the appliance. Do not touch the drawer body or inner tray during cooking. Leave to cool down for 30 minutes before attempting to touch or clean these parts.
• ALWAYS place trays on a heat-resistant surface after removing from the unit.
• Use utensils to touch or move the hot food. Ensure to use silicone or wooden utensils that will not scratch the trays.

DURONIC

Cleaning and Maintenance

Clean the appliance after every use.

The trays and the inside of the unit have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

1. Unplug the appliance from the wall socket and let the appliance cool down. Remove the drawers to let the air fryer grill cool down more quickly.

2. Wipe the outside of the appliance with a moist cloth. Then wipe again with a dry cloth.

3. Clean the trays with hot water, washing-up liquid and a non-abrasive sponge. Alternatively, the trays are all dishwasher-safe.

If there is stubborn dirt stuck to the trays, fill a basin with hot water and some washing up liquid. Put the tray into the basin and leave to soak for approximately 10 minutes. Use the cleaning brush to help remove the stubborn dirt.

CAUTION:

DO NOT immerse the main unit in water or any other liquid. Do not clean the main unit in a dishwasher. The main unit is to be wiped clean only according to the above instructions.

1. If needed, clean the splash guard with the cleaning brush to remove any food residue. Be careful not to damage any of the parts.

2. Ensure that every part is dried completely before re-assembling and using the air fryer grill.

Troubleshooting

Problem Probable Cause Solution
The air fryer does not work	The appliance is not plugged into the mains.	Put the mains plug in an earthed wall socket.
	You have not set the timer.	Press the Timer button +/- buttons to the required preparation time, then press the Start/Pause button to switch on the appliance.
Food is not fully cooked	The amount of the ingredients in the tray is too much.	Put smaller batches of ingredients in the tray. Smaller batches are fried more evenly.
	The set temperature is too low.	Press the Temperature +/- buttons to adjust the temperature.
	The preparation/cooking time is too short.	Press the Timer button +/- buttons to adjust the length of cooking time.
The ingredients are fried unevenly in the air fryer	Certain types of food need to be shaken or turned halfway through the cooking time.	Ingredients that lie on the top of or across each other (e.g. fries) need to be shaken halfway through the cooking time. Other foods such as sausages may require turning or flipping.
Fried foods are not crispy when they come out of the air fryer	You use a type of food meant to be prepared in a traditional deep fryer, for example chips, chicken wings, nuggets etc.	Use oven-ready foods or lightly brush some oil onto the freshly prepared food for a crispier result.

Troubleshooting (continued)

Problem Probable Cause Solution
White smoke comes out of the appliance	You are preparing greasy ingredients.	When frying greasy ingredients ensure that you do not cook at temperatures over 180°C.
	The tray still contains greasy residues from the previous use.	White smoke can be caused by grease heating up in the tray and air fryer grill. Make sure you clean the tray and air fryer grill properly after each use.
Fresh potato fries are fried unevenly in the air fryer.	You did not soak the potato fries properly before you fried them.	Soak the fries in a bowl of water for at least 30 minutes; take them out and dry them with kitchen paper.
	You did not use the right potato type.	Use fresh potatoes to ensure that the fries stay firm during frying.
Fresh potato fries are not crispy when they come out of the air fryer.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you toss them in a light coat of oil.
		Cut the potato into thinner sticks for a crispier result.
		Add slightly more oil for a crispier result.
Why do some ingredients move or blow around when air frying?	Occasionally, the fan from the air fryer will blow lightweight foods around.	Use toothpicks to secure loose lightweight food, like the top slice on a sandwich.

Cooking Charts

Note: these settings are a general guide. Ingredients differ in size, shape and brand, so you may need to adjust cooking times and temperatures accordingly. Always check food is cooked through thoroughly before consuming.

FROZEN FOODS
Ingredient Quantity	Oil Temperature			Time (mins)
Breaded chicken steaks 3	steaks None 200°C 18-21
Chicken nuggets 340g	None 200°C 10-13
Breaded fish fillets 6 fillets	None 200°C 14-16
Fish fingers 6-8 fish	fingers None 200°C 10-13
French fries 450g	None 200°C 18-22
Gyoza dumplings 300g	1 tbsp	200°C 12-14
Hash browns	450g None 180°C	8-10
Mozzarella sticks	300g None 190°C	8-10
Mini pizzas 2 pizzas	None 200°C 12-15
Scampi	390-450g	None	200°C	9-11
Sweet potato fries	450g None 200°C	20-22
Croquet potatoes 450g	None 190°C 18-22
Onion Rings	285g None 190°C	13-16

VEGETABLES
Ingredient Quantity Preparation	Oil Temperature			Time (mins)
Asparagus 1 bunch	Whole, stems trimmed	2 tsp 200°C	8-12
Beets 6-7 small Whole None 200°C 30-35
Bell peppers	3 small or 2 large	Whole None	200°C 10-15
Broccoli 1 head		Cut in 1-inch florets	1 tbsp 200°C	8-10
Brussels sprouts	450g	Cut in half, stem removed	1 tbsp 200°C	15-20
Butternut squash	680g	Cut in 1-2-inch pieces	1 tbsp 200°C	20-25
Carrots	450g	Peeled, cut in 1/2-inch pieces	1 tbsp 200°C	13-16
Cauliflower	1 head	Cut in 1-inch florets	2 tbsp 200°C	17-20
Corn on the cob	2 ears, cut in half	Husks removed	1 tbsp 200°C	12-15
Green beans	1 bag (12oz)	Trimmed 1 tbsp	200°C	8-10
Kale (for chips)	680g	Torn in pieces, stem removed	None 200°C	7-9
Mushrooms 225g		Cut in quarters	1 tbsp 200°C	7-9
Ingredient Quantity Preparation		Oil Temperature			Time (mins)
White Potatoes	680g	Cut in 1-inch wedges	1 tbsp 200°C		20-22
	450g	Hand-cut fries*, thin			20-24
	450g	Hand-cut chips*, thick			19-24
	3 whole (170-225g)	Pierced with fork 3 times			30-35
Sweet Potatoes	680g	Cut in 1-inch chunks	1 tbsp	200°C	15-20
	3 whole (170-225g)	Pierced with fork 3 times	None		36-42
Courgette 450g		Cut in 1-inch chunks	1 tbsp 200°C 15-18

FISH AND SEAFOOD
Ingredient Quantity Preparation	Oil Temperature			Time (mins)
Crab cakes	2 cakes(170-225g each)	None	Brushed with oil	200°C 5-10
Lobster tails	4 tails(85-115g each)	Whole None	200°C 5-8
Salmon fillets	3 fillets(115g each)	None	Brushed with oil	200°C 7-12
Prawns 450g		Whole, peeled,tails on	1 tbsp 200°C 7-10
PORK
Ingredient Quantity Preparation		Oil Temperature			Time (mins)
Pork chops	2 chops (280-340g each)	Bone in or boneless	None 170°C 7-10
Pork tenderloins	450g None		Brushed with oil	200°C 15-17
Sausages	6 sausages None		Brushed with oil	190°C 15-20

POULTRY
Ingredient Quantity	Quantity Preparation	Oil Temperature			Time (mins)
Chicken breasts	2 breasts Bone in		Brushed with oil	200°C	25-30
	4 breasts Boneless 22-24
Chicken thighs	2 thighs Bone in		Brushed with oil	200°C	22-28
	4 thighs Boneless 18-22
Chicken wings/ drumsticks	900g None	1 tbsp 200°C 18-22

BEEF
Ingredient Quantity Preparation	Oil Temperature			Time (mins)
Burgers	2 quarter-pound patties, 80% lean	1/2 inch thick	Brushed with oil	200°C 8-10
Steaks	2 steaks (225g each)	Whole	Brushed with oil	200°C 8-10

Dehydration Charts

FRUIT AND VEGETABLES
Ingredient Preparation Temperature			Time (hours)
Apples	Cored, cut in 1/8-inch slices, rinsed in lemon water, patted dry	60°C 7-8
Asparagus Cut in 1-inch pieces, blanched 60°C 6-8
Aubergine	Peeled, cut in 1/4-inch slices, blanched	60°C 6-8
Bananas Peeled, cut in 3/8-inch slices 60°C 8-10
Beetroot Peeled, cut in 1/8-inch slices 60°C 6-8
Fresh herbs Rinsed, patted dry, stems removed 60°C 4
Ginger root Peeled, cut in 3/8-inch slices 60°C 6
Mangoes Peeled, cut in 3/8-inch slices, pit removed 60°C 6-8
Mushrooms	Cleaned with soft brush (do not wash)	60°C 6-8
Pineapple Peeled, cut in 3/8-1/2-inch slices	60°C 6-8
Strawberries	Cut in half or in 1/2-inch slices 60°C 6-8
Tomatoes	Cut in 3/8-inch slices or grated; steam if planning to rehydrate	60°C 6-8

MEAT, POULTRY
Ingredient Preparation Temperature			Time (hours)
Beef jerky	Cut in 1/4-inch slices, marinated overnight	70°C 5-7
Chicken jerky	Cut in 1/4-inch slices, marinated overnight	70°C 5-7
Turkey jerky	Cut in 1/4-inch slices, marinated overnight	70°C 5-7

Exploded diagram of a microwave oven with numbered parts for identification and assembly reference.

Exploded diagram of a microwave oven with numbered parts for identification and assembly reference.

Exploded diagram of a microwave oven with numbered parts for identification and assembly reference.

Exploded diagram of a microwave oven with numbered parts for identification and assembly reference.

Exploded diagram of a microwave oven with numbered parts for identification and assembly reference.

Exploded diagram of a microwave oven with numbered parts for identification and assembly reference.

Exploded diagram of a digital kitchen appliance with numbered parts for identification and assembly reference.

Probleem	Waarschijnlijke Oorzaak	Oplossing
White smoke comes out of the appliance	You are preparing greasy ingredients.	When frying greasy ingredients ensure that you do not cook at temperatures over 180°C.
	The tray still contains greasy residues from the previous use.	White smoke can be caused by grease heating up in the tray and air fryer grill. Make sure you clean the tray and air fryer grill properly after each use.
Fresh potato fries are fried unevenly in the air fryer.	You did not soak the potato fries properly before you fried them.	Soak the fries in a bowl of water for at least 30 minutes; take them out and dry them with kitchen paper.
	You did not use the right potato type.	Use fresh potatoes to ensure that the fries stay firm during frying.
Fresh potato fries are not crispy when they come out of the air fryer.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you toss them in a light coat of oil.
		Cut the potato into thinner sticks for a crispier result.
		Add slightly more oil for a crispier result.
Why do some ingredients move or blow around when air frying?	Occasionally, the fan from the air fryer will blow lightweight foods around.	Use toothpicks to secure loose lightweight food, like the top slice on a sandwich.

Kookaanwijzingen

Exploded diagram of a portable electric stove with numbered parts for identification and assembly reference.

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).
