Warning. If the ceramic glass breaks or cracks, immediately unplug the stovetop to avoid electric shocks.
This appliance is not designed to work with an external timer (not built into the appliance) or a separate remote control system.
Do not steam clean this device.
Warning. The device and its accessible parts may heat up during operation. Avoid touching the heating elements. Children younger than 8 years old must stay away from the hob unless they are permanently supervised.
This device may solely be used by children 8 years old or older, people with impaired physical, sensory or mental abilities, or those who lack experience and knowledge, ONLY

when supervised or if they have been given adequate instruction on the use of the device and understand the dangers its use involves. User cleaning and maintenance may not be done by unsupervised children.
Children must not play with the device.
Warning. It is dangerous to cook with fat or oil without being present, as these may catch fire. NEVER try to extinguish a fire with water! In this event disconnect the device and cover the flames with a lid, a plate or a blanket.
Do not store any object on the cooking areas of the induction hob. Prevent possible fire hazards.
The induction generator complies with current EU legislation We however recommend that anyone fitted with a device such

as a pacemaker should refer to their physician, or if in doubt abstain from using the induction areas.

Metal object such as knives, forks, spoons and lids may not be placed on the surface of the hob as they may overheat.
After use always disconnect the hot plate, do not simply remove the pot or pan. Otherwise a malfunction may occur if inadvertently another pot or pan is placed on it within the detection period. Prevent possible accidents!
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
WARNING: Use only stovetop protectors designed by appliance manufacturer or indicated by the manufacturer in the instructions for use

EN

as adequate or stovetop protectors incorporated into the device. The use of inadequate protectors can cause accidents.

It is necessary to allow the appliance disconnection after installation. Disconnection devices must be incorporated to the fixed electrical installation, according to the installation regulations.

Installation

Installation with cutlery drawer

If you wish to install furniture or a cutlery drawer under the hob, a sepa-ration board must be fitted between the two. Accidental contact with the hot surface of the device's housing is thus prevented.

The board must be fitted 18mm beneath the under part of the stovetop.

Electrical connection

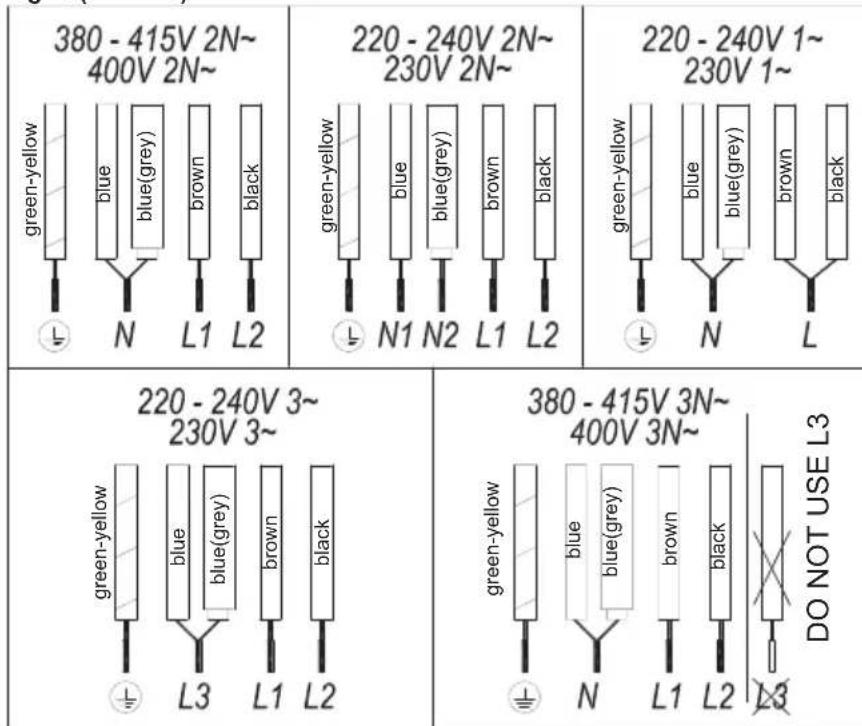

Before you connect the stovetop to the mains, check that the voltage and frequency match those specified on the stovetop nameplate, which is underneath it, and on the Guarantee Sheet, or if applicable on the technical data sheet, which you must keep together with this manual throughout the product's service life.

Ensure that the inlet cable does not come into contact with the induction top housing or the oven housing, if it is installed in the same unit.

Warning:

The electrical connection must be properly grounded, following current legislation, otherwise the induction hob may malfunction.
Unusually high power surges can damage the control system (like with any electrical appliance).
It is advised to refrain from using the induction hob during the pyrolytic cleaning function in the case of pyrolytic ovens, due to the high temperature that this type of device attains.
Only the TEKA official technical service can handle or repair the appliance, including replacement of the power cable.
Before disconnecting the hob form the mains, we recommend switching off the cutoff switch and waiting for approximately 23 seconds before disconnecting from the mains. This time is required to allow for the complete discharge of the electronic circuitry and thus preclude the possibility of electric shock from the cable terminals.

Keep the Guarantee

Certificate or the technical data sheet together with the instructions manual throughout the product's service life. These contain important technical information.

About induction

Advantages

With an induction hob, the heat is Fig.4 transmitted directly to the pan.

This has a number of advantages:
-Saves time.
-Saves energy.
-Easy to clean as if the food comes into contact with the glass plate, it does not burn easily.
-Improved energy control. The energy

is transferred to the pan as soon as the power controls are pressed. In addition, as soon as the pan is removed from the cooking zone, the power supply stops. It is not necessary to switch the power off first.

Pans

Only ferromagnetic pans are suitable for use with an induction hob.

There are several types:

-cast iron, enameled steel, and stainless steel pans specifically for use with induction hobs.

We do not recommend the use of diffuser plates or materials such as fine steel, aluminum, glass, copper, or clay.

Each cooking zone has a minimum pan detection time. This depends on the material and the ferromagnetic diameter of the base of the pan. Therefore it is essential to use the cooking zone that best matches the diameter of the base of the pan to be used.

If the pan is not detected on the selected cooking zone, try using the next smallest zone.

When the Flex Zone is used as a single cooking zone, larger pans suitable for this type of zone can be used (see fig. 3).

Fig. 3

Some pans without a complete ferromagnetic base are sold as suitable for induction (see fig.4). In these pans, only the ferromagnetic base is heated. Consequently the heat is not evenly distributed across the base of the pan. This may mean that the nonferromagnetic part of the base of the pan does not reach the right cooking temperature.

Other pans, with aluminum inserts

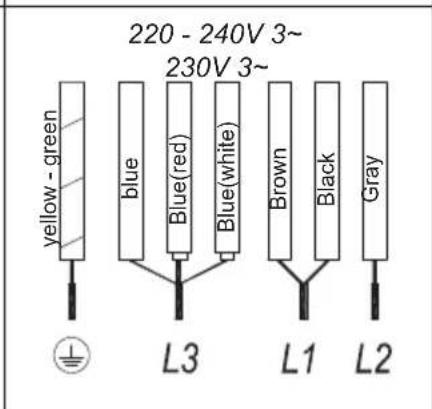

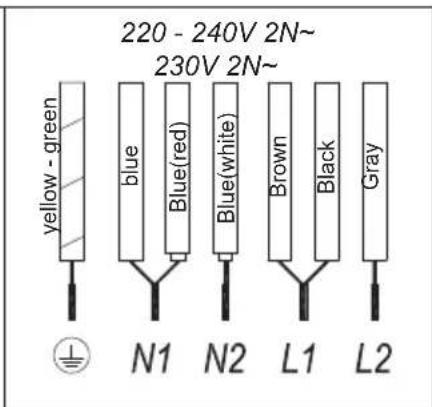

Fig.2a (5 WIRES)

In the cooking zones closest to the control panel, always keep the vessels within the cooking marks indicated on the glass surface and use vessels of the same or smaller diameter to these. This will help to prevent overheating in the control zone.

Use the rear cooking zones for intensive use of the appliance. This will help to prevent overheating of the control panel.

Do not allow the vessels to invade the control panel zone, especially during cooking.

Use and Maintenance

User instructions of the Touch Control

in the base have a smaller area of ferromagnetic material (see fig.5). In this case, it may be difficult or even impossible to detect the pan. In addition, the power supplied may be lower and, consequently, the pan will not heat up correctly.

pans with a thin base, as these may heat up quickly without allowing time for the automatic disconnection function of the cooker to come into operation.

HANDLING ELEMENTS (fig.1)

(1) General on/off sensor.
(2) Cursor slider for controlling power.
③ Power and/or residual heat indicator*.
④ Decimal dot of power and/of residual heat indicator.

Influence of the base of the pans

The type of base used on the pan may affect the uniformity and results of the cooking. Pans with a stainless steel "sandwich" base use materials that assist the uniform distribution and diffusion of the heat, resulting in savings in time and energy

The base of the pan must be completely flat, thus ensuring a uniform power supply (see fig.6).

Never heat empty pans, or use

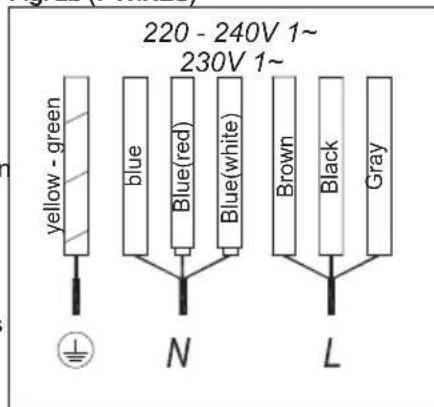

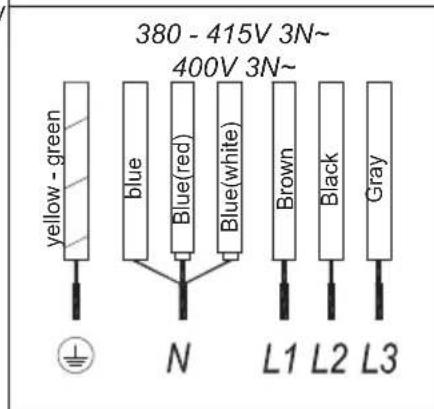

Fig. 2b (7 WIRES)

EN

5 Direct access to "Power" function.
Activation sensor for "Block" or "Stop&Go" functions.
⑦ Pilot indicator light "Block" function activated*.
8 Wi-Fi connection activation sensor.
9 Indicator light for "Wi-Fi" connection activated.
10 "Minus" sensor for timer.
11 "Plus" sensor for timer.
12 Timer indicator.
13 Decimal dot of the timer.*

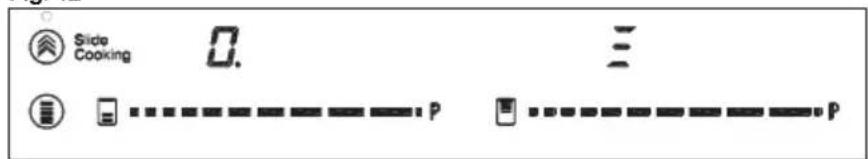

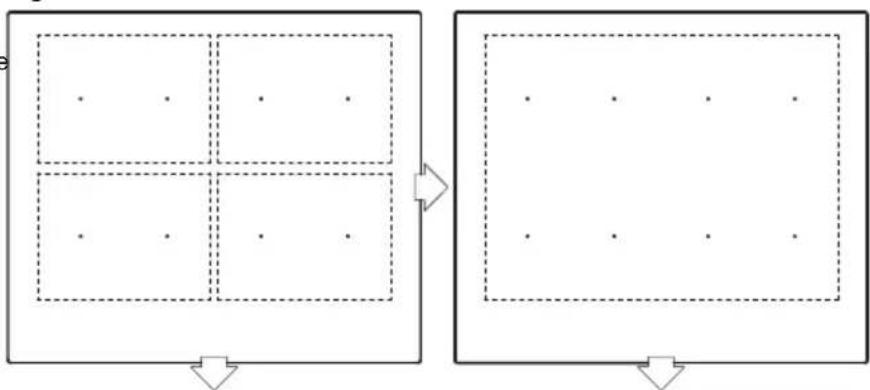

Sensor for activation of the "Flex
Zone I" and "Full Flex" functions.
15 Activation sensor for "Flex Zone II" activated* (depending on model).
16 Activation sensor for "Chef" functions.
Pilot indicator light "Keep Warm" function activated.
18 Pilot indicator light" Melting" function activated.
Pilot indicator light "Simmering" function activated.
20 Pilot indicator light "Quick Boiling" function activated.
21 Pilot indicator light "Grilling" function activated.
22 Pilot indicator light "Pan Frying" function activated.
23 Pilot indicator light "Deep Frying" function activated.
24 Pilot indicator light "Poaching" function activated*
25 Pilot indicator light "Confit" function activated*
26 Pilot indicator light "Rice Cooking" function;

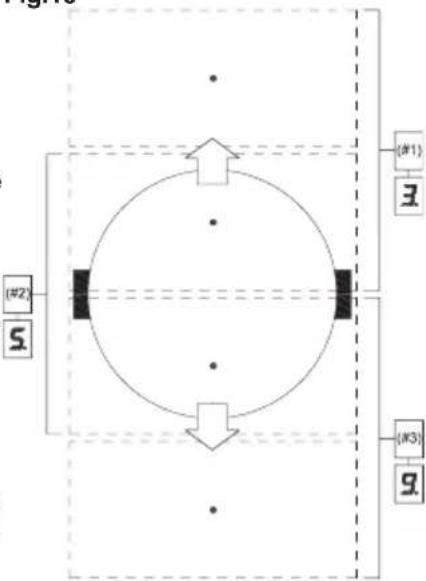

② 7 Activation sensor for "Slide Cooking" (depending on model).
28 Pilot indicator light "Slide Cooking" function activated; (depending on model).

• Only visible while running.

The manoeuvres are done by means of the touch keys. You do not need to exert force on the desired touch key, you only need to touch it with your fingertip to activate the required function

Each action is verified by a beep.

Use the cursor slider (2) to adjust power levels (0 - 9) by sliding your finger over it. Sliding towards the right increases the value, whereas sliding towards the left decreases it.

It's also possible to directly select a

power level by placing your finger directly on a desired point of the cursor slider (2)

In order to select a plate on these models, directly touch the cursor slider (2).

SWITCHING ON THE DEVICE

1 Touch the On touch key (1) for at least one second. The touch control will become active, a beep will be heard and the indicators (3) will light up displaying a " -". If any cooking area is hot, the related indicator will flash an H.

If you do not take any action in the next 10 seconds the touch control will switch off automatically.

When the touch control is activated, you can disconnect it at any time by touching the touch button (1), even if it has been locked (lock function activated). The touch button (1) always has priority to disconnect the touch control.

ACTIVATING PLATES

Once the Touch Control is activated with sensor), any plate can be turned on by following these steps:

1 Slide the finger or touch in any position of one of the cursors "slider" (2). The zone has been selected and simultaneously the power level will be set between 0 and 9. That power value will be shown on the corresponding power indicator and its decimal dot (4) will keep light up during 10 seconds.
2 Use the cursor slider (2) to choose a new cooking level between 0 and 9.

As long as the plate is selected, in other words, with the decimal (4) dot light up, its power level can be modified.

TURNING OFF A PLATE

Using the touch slider key (2) lower the power to level 0. The hotplate will switch off.

When a hot plate is switched off an H will appear in its power indicator (3), if the glass surface of the related cooking area

is hot and there is a risk of burns. When the temperature drops, the indicator (3) switches off (if the hob is disconnected), or otherwise a "-" will light up if the hob is still connected.

TURING ALL PLATES OFF

All plates can be simultaneously disconnected by using the general on/off sensor (1). All plate indicators (3) will turn off. If the heating zone turned off is hot, its indicator shows an H..

CONNECTIVITY Functions

This hob model features Wi-Fi connectivity, allowing certain remote actions from the Teka Home APP.

The new Teka Home system allows access to its compatible appliances through the APP available for both Android and iOS. Teka Home is available both in Google Play and App Store and you can search there or access them directly by scanning the QR codes we include below:

Once you have downloaded the app and before starting any process, you will need to create a user account. To do so, open the Teka Home App and

press the enter button that appears on the screen. Teka facilitates the creation of the account by allowing the linking of Google or Facebook, or by generating an account with an email and a password. To do the latter, click "Register now" under the login button and follow the instructions for creating an account. At the end of the process, you will be able to log in to the application and access the home screen.

ERROR MANAGEMENT

In the event of a problem related to the Wi-Fi connection, an error code will be shown on the display (12) in the format 'EX', where X will be a value whose description can be found in Table 1. Pressing the Wi-Fi button in the presence of an error removes the information from the display.

sliders on the hob when you see the display flash.

HOOD-HOB AUTOMATION

If you also have a hood with Teka connectivity, you can synchronise the operation of both of them through the Teka Home App, allowing the extraction power to be automated depending on the status of your hob. To do so, enter Teka Home's App, check that both your extractor hood and your hob are accessible, access the control screen in one of them and enable this functionality which appears at the bottom of the screen.

Attention!

Teka Home connected products operate in the 2.4 GHz Wi-Fi band under 802.11 b/g/n standard. Make sure it is active on your router.

CONNECTION CONFIGURATION

Access the Teka Home APP with your user account and click on the ^+ icon at the bottom right. Follow the steps indicated and consult the help available in case of doubt. With the hob on, press and hold the button (8) for 5 seconds when the APP prompts you. You will see an animation on the display (12) and for the next 5 minutes the hob will be ready to receive the necessary configuration parameters from the APP.

WI-FI ACTIVATION/DEACTIVATION

Once the connection has been configured at home, the hob can be connected or disconnected at will by pressing the Wi-Fi button (8). The operation is confirmed with a beep and during the activation and connection process the LED (9) associated with the Wi-Fi button flashes. When the hob is switched off, the Wi-Fi connection stops after a few seconds and will automatically return to its previous state when it is switched on again. During this reconnection process, you will see the LED (9) flash until it finally becomes fixed.

CONNECTION STATUS

The LED (9) on the Wi-Fi button informs you about the connection status at all times. It stays on if the connection has been successfully established and goes out when the hob is not connected. In the event of an error situation, a rapid flashing will be shown together with an error code on the display (12).

Due to existing safety regulations, it is not possible to cook remotely (non-presential) using the Teka Home application. A detailed display showing the current status of the hob is included in the APP. In addition, access to the configuration of some of its general parameters is simplified.

The status can be monitored remotely from the APP, enabling the visualization of all parameters that define its status, such as cooking power or activated CHEF function, timers or FLEX configuration.

By tapping on each cooking zone within the APP, you can obtain additional information if you are using a special function.

SETTING THE MAXIMUM POWER LIMIT

The maximum total power consumed by the hob can be limited from the APP

To do this, go to the monitoring screen of your hob. Click on the icon in the top

right corner Then tap on settings and select the desired maximum power value. Apply the changes and confirm by tapping on any of the sliders on the hob when you see the display flash.

BEEP SETTINGS

The beep that accompanies each action can be activated or deactivated from the APP (Not applicable for all functions).

To do this go to the monitoring screen of your hob. Click on the icon in the top right corner. Then click on configuration and activate or deactivate the buzzer function. Apply the changes and confirm by tapping on any of the

Even if you activate this automatic mode, you will always have the option of operating the hood manually, being able to modify its operation from the control panel at any time.

Pan detector

Make sure that the bottom of the vessel, covers one or more of the references (on the surface of the hob; (see fig.7 and table 2).

Induction cooking zones have a built-in pan detector. This way, the plate will stop working if there is no pan present or if the pan is not suitable.

The power indicator (3) will show a symbol to designate "there is no pan U if, while the zone is on, no pan is detected or the pan is not suitable

If a pan is taken off the zone while it is running, the plate will automatically stop supplying energy and it will show the symbol for "there is no pan". When a pan is once again placed on the cooking zone, energy supply will resume at the same power level previously selected.

The time for pan detection are 30 seconds. If a pan is not placed within this time period, or the pan is unsuitable, the cooking zone shuts off.

When finished, turn off the cooking zone by using the touch controls. Otherwise an undesired operation could occur if a pan is

Table 1 - Complete list of possible errors associated with Teka Home

ERROR DESCRIPTION POSSIBLE SOLUTION
1	Failure in the communications management system	Retry the operation in a few minutes. If the problem persists, try restarting the product by turning off the power for a few seconds and try again.
2	Wi-Fi network password entered is incorrect	Restart the setup process by pressing the Wi-Fi button for 5 seconds and complete the process from the APP. Make sure that the password is correct and remember that it is case sensitive.
3	Too many devices connected to your Wi-Fi network	Disconnect some of the devices connected to your Wi-Fi network. If the problem persists, restart your router. If this does not solve the problem, contact your Internet service provider.
4	Wi-Fi network not detected	Check that your hob is within seven metres of your home router and that there are no major obstacles that could degrade the signal quality. If your network credentials have changed, it is necessary to reconfigure the appliance by pressing the Wi-Fi button for 5 seconds and completing the process from the APP with the 'reconnect' option.
5,6,7	Error in the configuration process of your connected hob	Restart the configuration process by pressing the Wi-Fi button for 5 seconds and completing the process from the APP.
8	Wi-Fi configuration not found on the hob	The hob does not have settings for connection to its Wi-Fi network. Press and hold the Wi-Fi button for 5 seconds to start the configuration and complete the process from the APP.
9	Error registering the device in the cloud	Retry the operation in a few minutes. If the problem persists, try restarting the product by turning off the power for a few seconds and then perform the configuration again. Contact the SAT if the above instructions do not solve the problem.
B	Communications hardware error	Retry the operation in a few minutes. If the problem persists, try restarting the product by turning off the power for a few seconds and then perform the configuration again. Contact the SAT if the above instructions do not solve the problem.
A,C	Communication error	Check that another device within your Wi-Fi network is connected to the internet. If the other device does not work, restart your router or contact your Internet provider. In case the other device works, try restarting the hob by turning off the power for a few seconds and then perform the configuration again.
D	Sudden disconnection from your Wi-Fi network	Restart your router. In case the problem is not resolved, contact your Internet provider.

accidentally placed on the cooking zone during the 30 seconds. Avoid possible accidents!

Fig.7

Block Function

With the Block Function, you can block the other sensors, except for the on/off sensor (1), in order to avoid undesired operations. This function is useful as a childproof safety.

To activate this function, touch sensor (6) for at least one second. Once you have done so, the pilot (7) turns on indicating that the control panel is blocked. To deactivate the function, simply touch sensor (6) again.

If the on/off sensor 1) is used to turn off the appliance while the block function is activated, it won't be possible to turn the cooktop on again until it unblocks.

will display "On".

Stop&Go Function

This function puts the cooking process on pause. The timer will also be paused if it is activated.

Activating the Stop&Go function.

Touch the Stop &Go sensor (6). The power indicators will show the symbol to indicate cooking has been paused.

Deactivating the Stop&Go function

Touch Stop&Go sensor (6) again. The cooking is resumed under the same power and timer settings that were established before the pause.

Power Function

This function supplies "extra" power to the plate, above the nominal value. Said power depends on the size of the plate, with the possibility of reaching the maximum value permitted by the generator.

Slide the finger above the corresponding cursor slider (2) until the power indicator (3) shows "9" and keep the finger pressed for

one second, or touch directly on "P" and keep pressed the finger for one second.

2 The power level indicator (3) will show the symbol P, and the plate will start to supply extra power.

The Power function has a maximum duration specified in Table 2. After this time, the power level will automatically adjust to 9. A beep sounds.

Deactivation of Power Function, before its working time passes, can be done either by means of touching cursor "slider" modifying its power level or repeating step 3.

Timer Function (countdown clock)

This function facilitates cooking given that you don't have to be present: You can set a timer for a plate, and it will turn off once the desired time is up.

For these models, you can simultaneously program each plate for durations ranging from 1 to 99 minutes. Setting a timer on a plate.

Once the power level is set on the desired zone, and while the decimal dot of the zone keeps on, the zone will be able to be timed.

Silencer of the beep

When the hob is on, if one presses the touch key (+11) and the locking touch key (6) simultaneously for three seconds, the beep that accompanies each action will be deactivated. The time indicator (12) will display "OF".

This deactivation will not be applied to all the functions, as for example the beep for on/off, the ending of the timer or the locking/unlocking of the touch keys always remain activated.

To once again activate all the beeps that accompany each action, again simultaneously press the touch key (+) (11) and the locking touch key (+) for three seconds. The time indicator (12)

Table 2

1 Touch sensor (10) or (11) Timer Indicator (12) will show "00" and corresponding zone indicator (3) will show the symbol blinking alternately with its current power level.
2 Immediately afterwards set a cooking time between 1 and 99 minutes, using the sensors (10) o (1). With the first one the value will start at 60, whereas with the second it will start at 01. By keeping sensors (10) o (11) pressed, the value will be restored to 00. When there is less than one minute left, the clock will begin to count down in seconds.

1. When the timer indicator (12) stops flashing, it will start to count down the time automatically. The indicator (3) relating to the timed hotplate will alternately display the selected power level and the symbol

Once the selected cooking time has elapsed, the heating zone being timed is turned off and the clock emits a series of beeps for several seconds. To turn off the audible signal, touch any sensor. The timer indicator (12) will display a flashing 00 beside of the decimal dot (4) of the selected zone. If the heating zone turned off is hot, its power indicator (3) will display alternately the H symbol and a "-".

If you wish to time another hotplate at the same time, repeat steps 1 to 3.

If one or more zones are already timed, the timer indicator (12) will show by default the shortest remaining time to finish, showing a "t" on the related zone. Rest of timed zones will show on their corresponding indicator zones the decimal dot blinking. When cursor "slider" of another timed zone is pressed, the timer will show the remaining time of that zone for a few seconds and its indicator will show its power level and the "t" alternately.

Changing the programmed time.

For modifying programmed time, cursor is changed, the power limiter will "slider" (2) of timed zone has to be calculate the total power the hob is pressed. Then it will be possible to readgenerating. If you have reached the total

and modify the time.

Through sensors (10) and (11), you can modify the programmed time.

Disconnecting the clock

If you wish to stop the clock before the programmed time is up, this can be done at any time by simply adjusting its value to - .

1 Select the desired plate.
2 Adjust the value of the clock to "00" by using the sensor (10). The clock is cancelled. This can also be done more quickly by pushing the "sensors (10) and (11) at the same time.

power limit, the touch control will not allow you to increase the power level of that hotplate. The hob will beep and the power indicator (3) will blink at the level that cannot be exceeded. If you wish to exceed that value, you must lower the power of the other hotplates. Sometimes it will not be enough to lower another by a single level as this depends on the power of each hotplate and the level it is set at. It is possible that to raise the level of a hotplate that of several smaller ones must be turned down.

If you use the quick switch-on at maximum power function and the said value is above the value set by the limit, the hotplate will be set to the maximum possible level. The hob will beep and the said power value will blink twice on the indicator (3).

Power Management Function

This model is equipped with a power limiting function (Power Management). This function allows the total power generated by the hob to be set to different values selected by the user. To do this, for the first minute after having connected the hob to the power supply, it is possible to access the power limiting menu.

Special functions: CHEF

These functions have pre-allocated power levels to make cooking easier, obtaining excellent results. As the temperature of the pan is controlled continuously by sensors. When the target temperature for the function has been reached, it is automatically maintained without needing to change the power level.

1 Press the 11) touch key for three seconds. The letter PL will appear on the timer indicator (12)

The Chef functions operate correctly with pans with the same ferromagnetic area on the base of the pan as the area of the cooking zone. In addition, for high temperature functions (above 100^ ), pans must have a flat, even base (preferably "sandwich" type) as shown in figure 8.

2 Press the locking touch key. The different power values to which the hob can be limited will appear and these can be changed using the (+) (11) and (10) sensors.

Fig. 8

3 Once the value has been selected, once again press the locking touch key (6). The hob will be limited to the chosen power value.

To ensure the correct operation of these functions, it is important that the pan and the cooking zone are not hot at the start of the process.

If you want to change the value again, you must unplug the hob and plug it in again after a few seconds. Thus you will again be able to enter the power limiting menu.

Further information about suitable pans (saucepans, frying pans, grills, etc.) is given on the Teka web page.

These functions require that the bottom of the vessel used covers the two (of the cooking zone; (see fig.9).

Fig.9

The Touch Control has special features that help the user to cook through the CHEF sensor (16).

To activate a special feature on a zone:

1 First it should be selected; and then, the decimal point (4) will be active on the power indicator (3).

2 Now click on the CHEF sensor (16). The sequentially successive presses will go over all the Cooking functions available in each zone one by one. These functions will show the activation with the corresponding leds (17), (18), (19), (20), (21), (22), (23), (24), (25) and (26).

If you want to cancel a special active function at any time, you should touch the "slider" cursor sensor (2) of the related zone to select it. The decimal point (4) of the power indicator (3) will light up. Then, touch again the "slider" (2) cursor in the position "0".

KEEP WARM FUNCTION

This function sets an automatic power control suitable for keeping the cooked food hot.

To activate it, select the plate, and press on the CHEF sensor (16) until the led (17) located on the icon lights up. Once the function is activated, the symbol will appear on the power indicator (3).

You can override the function at any time

by turning off the plate, by changing the power level or by choosing a different special function.

-WITHOUT CAP.

MELTING FUNCTION

This function sets an automatic power control suitable for maintaining a low temperature in the cooking zone. Ideal for defrosting food or for slowly melting other food types as chocolate, butter, etc.

To activate it, select the plate, and press on the CHEF sensor (16) until the led (18) located on the icon lights up. Once the function is activated, the symbol will appear on the power indicator (3).

• Filled to over half its capacity at room temperature water (never use warmed or hot water).

Failure to comply with these conditions will distort the proper control of boiling.

WARNING: do not use this feature for a different cooking purpose other than boiling water. Never use oil, it may lead to overheat and generate a flame.

Activation of the function

To activate the function, select the plate,

You can override the function at any time and press the CHEF sensor (16) by turning off the plate, by changing the until the led (20) located on the icon power level or by choosing a different lights up. special function.

Once the feature is activated, on the power indicator (3); a moving segment will appear, indicating that the cooking is under system's control.

When the system detects that it is about to start boiling, a first beep will be heard. Take this opportunity to prepare your food for boiling or baking as desired.

After 30 seconds, a second beep will be heard; if you have not already done so, it's time to pour the food in the pan.

SIMMERING FUNCTION

This function sets an automatic power control suitable for keeping simmering. After the food is boiled, enable the plate by selecting it, and press the CHEF sensor (16) until the led (19) located on the icon lights up. Once the function is activated, the symbol R will appear on the power indicator (3).

You can override the function at any time by turning off the plate, by changing the power level or by choosing a different special function.

QUICK BOILING FUNCTION (depending on the model)

This function enables the automatic boiling control, which is a great help for cooking pasta, rice, eggs, boil some food, etc. It is available only in zones where the symbol appears.

Conditions of the container

For a proper operation of the Quick Boiling function, you need to use a container that meets the following preconditions:

Bottom size as close as possible to the diameter of the plate.

After the second beep, the system will activate the timer and stopwatch for you so that you can control how long the food is to be boiled and the symbol R will appear on the power indicator (3).

30 seconds after activating the stopwatch, a third beep will sound to warn that from that moment on, the system will decrease the power supplied in order to maintain a gentle and continuous boil. The timer will remain active until the end of cooking.

If desired, you can disable the timer and set a time for the countdown and automatic shutdown of the plate (see section Timer Function).

Deactivation of the function

You can override the function at any time by turning off the plate, by changing the power level or by choosing a different

EN

special function.

of oil.

(16), until the led (24) above the

GRILLING FUNCTION

This function sets an automatic power control suitable for cooking on the grill.

To activate it, select the plate, and press on the CHEF sensor (16), until the led (21) located on the icon lights up. Once the function is activated, on the power indicator (3) a moving segment will appear indicating that the cooking is in the preheating phase of the vessel. Once this phase is finished, the sign will appear on the power indicator (3) and a beep will be heard, indicating to the user that he must add the food.

To activate it, select the plate, and pres on the CHEF sensor (16), until the led (23) located on the icon lights up. Once the function is activated, on the power indicator (3) a moving segment will appear indicating that the cooking is in the preheating phase of the vessel. Once this phase is finished, the sign will appear on the power indicator (3) and a beep will be heard, indicating to the user that he must add the food.

You can override the function at any time by turning off the plate by changing the power level or by choosing a different special function.

Icon lights up. Once the function is activated, a moving segment will appear on the power indicator (3), indicating that the system is in the preheating phase of the container. Once this phase is finished, a will appear on the power indicator (3) and an acoustic signal will sound indicating that the user must add food.

You can override the function at any time by turning off the hob, modifying the power level, or choosing a different special function.

CONFIT FUNCTION (depending on the model)

You can override the function at any time by turning off the plate by changing the power level or by choosing a different special function.

POACHING FUNCTION

This function sets an automatic power control suitable for frying food at medium temperature. Ideal for frying potatoes, in the preparation of the Spanish omelette

This function sets an automatic power control suitable for confit.

To activate it, select the plate, and press on the CHEF sensor (16), until the led (25) located on the icon lights up. Once the function is activated, on the power indicator (3) a moving segment

PAN FRYING FUNCTION

This function sets an automatic power control suitable for frying with little oil or sauteing.

To activate it, select the hob, and successively press the CHEF sensor

To activate it, select the plate, and press on the CHEF sensor (16), until the led (22) located on the icon lights up. Once the function is activated, on the power indicator (3) a moving segment will appear indicating that the cooking is in the preheating phase of the vessel. Once this phase is finished, the sign will appear on the power indicator (3) and a beep will be heard, indicating to the user that he must add the food.

You can override the function at any time by turning off the plate by changing the power level or by choosing a different special function.

DEEP FRYING FUNCTION

This function sets an automatic power control suitable for frying with plenty

Fig. 10

Fig. 11

Fig. 13

will appear indicating that the cooking is in the preheating phase of the vessel.

Once this phase is finished, the sign will appear on the power indicator (3) and a beep will be heard, indicating to the user that he must be add the food.

You can override the function at any time by turning off the plate by changing the power level or by choosing a different special function.

RICE FUNCTION (depending on the model)

This function establishes an automatic power function suitable for cooking boiled rice. Place pan with water and rice on base and switch on the function.

zones will light up and the value "0" will be shown on its power indicator (3).

The clock timer indicator (12) will show three segments indicating the flexible zone selected. The power display (3) for the other connected zone will display three segments (see fig. 11). You will have a few seconds to perform the next operation, otherwise the function will be disabled automatically. You can assign the power by touching the activated slider cursor (2).

To disable this function, you should touch the slider cursor (2) in the position "0".

bigger vessels.

To activate this function, press the

sensor 15). By doing so, the decimal point (4) of one of the linked zones will light up and the value "0" will be shown on its power indicator (3). The power display (3) for the other connected zone will display three segments (see fig. 12). You will have a few seconds to perform the next operation, otherwise the function will be disabled automatically. You can assign the power by touching the activated slider cursor (2).

Flex Zone II Function (depending on the model)

To disable this function, you should touch the slider cursor (2) in the position "0".

To activate it, select the plate, and press

on the CHEF sensor (16), until the led (26) located on the icon lights up. After switching on the function, the letter "R is displayed on the power indicator (3). This indicates to the user that the cooking process has started. At the end of the process an acoustic signal is heard, the plate switches off and the timer display (12) is activated. This indicates to the user the length of time the cooker has been in rest mode.

You can override the function at any time by turning off the plate by changing the power level or by choosing a different special function.

Flex Zone I Function

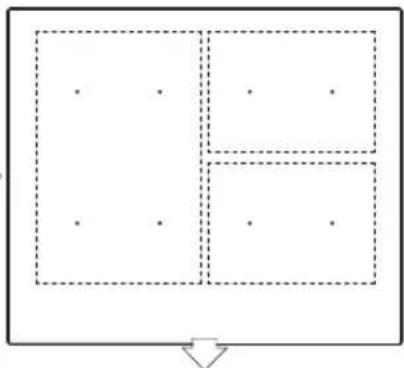

With this function it is possible to use two vertical cooking zones at the same time, both with respect to selecting a power level and to switching on the timer function. This function allows you to increase the cooking zone dimension and to use bigger vessels; (see fig.10).

To activate this function, press the sensor (4). You can choose the desired flexible zone by pressing this sensor successively. By doing so, the decimal point (4) of one of the linked

With this function it is possible to use two vertical cooking zones at the same time.

This function allows you to increase the cooking zone dimension and to use

Full Flex Function

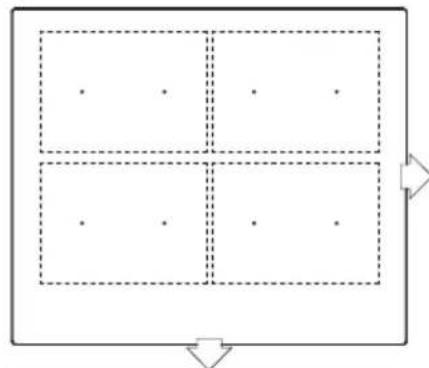

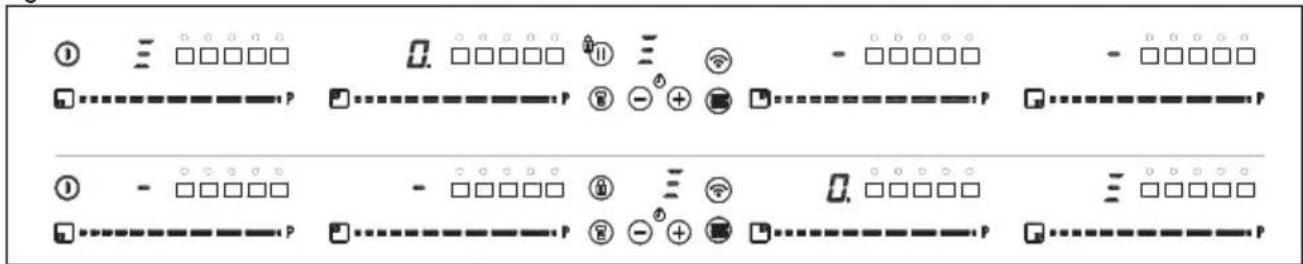

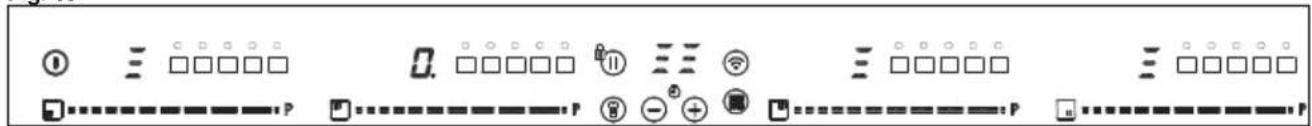

Through this function is possible to enable four cooking zones work

Fig. 12
Fig. 14

EN

together, and to select a power level and to activate the timer function for all zones. This function allows you to increase the cooking zone dimension and to use bigger vessels; (ver fig.14).

To activate this function, press the sensor 14).By doing so, the decimal point (4) of one of the linked zones will light up and the value "0" will be shown on its power indicator (3).The clock timer indicator (12) will show six segments indicating the flexible zone selected. The power display (3) for the other connected zones will display three segments see fig.13.You will have a few seconds to perform the next operation; otherwise the function will be disabled automatically. You can assign the power by touching the activated slider cursor (2).

To disable this function, you should touch the slider cursor (2) in the position "0".

Slide Cooking Function (depending on the model)

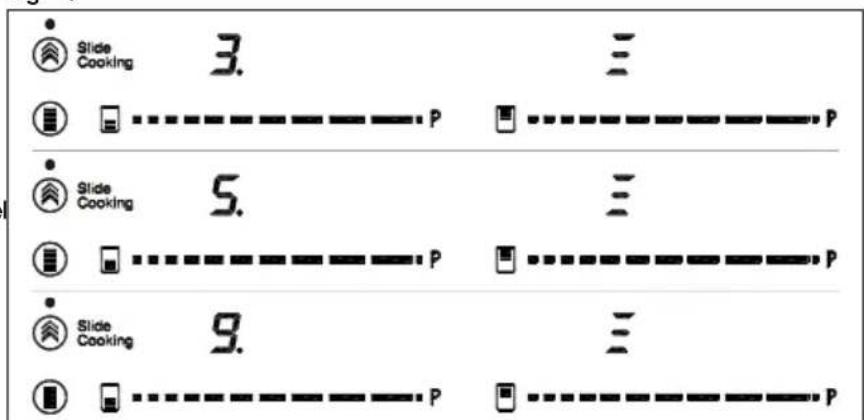

This function allows to divide the flexible zone into three areas (see fig.15) and activates a predefined power configuration. It will allow slide the vessel from one area to another, to cook with the power assigned to each zone.

To activate this function, press the sensor

so, the led (28) located above said icon and the decimal point (4) of one of the linked zones turn on, also showing the value "5" on its power indicator (3), which corresponds to zone # 2. The power indicator (3) of the other linked zone will show three segments (see fig. 15 and 16). You have a few seconds to place the vessel in this area, otherwise the function is automatically deactivated.

Once the vessel is placed, the power level will appear automatically in the power indicators (3): for zone #1, the power level is 3, for zone #2 the power level is 5 and for zone #3 the power level is 9 (see fig.15).

To deactivate this function, you must touch the "slider" cursor (2) in the position "0".

Fig.15

Fig. 16

Safety switch off function

If due to an error one or several heating zones do not switch off, the appliance will be automatically disconnected after a set amount of time (see table 3).

Table 3

Selected power level	MAXIMUN OPERATING TIME (in hours)
0	0
1	8
2	5
3	5
4	4
5	3
6	3
7	2
8 1,5
9 1,5
P	10 minutes, readjusts to level 9

When the "safety switch off" function has been triggered, a 0is displayed if the glass surface temperature is not

dangerous for the user or an H if there is a burn risk.

Warning:

Keep the control panel of the heating areas clean and dry at all times.

In the event of operating problems or incidents not mentioned in this manual, disconnect the appliance and contact the TEKA technical service.

Suggestions and recommendations

• Use pots or pans with thick, completely flat bottoms.
• Do not slide pots and pans over the glass because they could scratch it.
• Although the glass can take knocks from large pots and pans without sharp edges, try not to knock it.
• To avoid damaging the ceramic glass surface, do not drag pots and pans over the glass and keep the undersides of them clean and in good condition.
• Recommended diameters of the pot bottom (see "Technical Data Sheet" supplied with the product).

Try not to spill sugar or products containing sugar on the glass as while the surface is hot these could damage it.

Cleaning and maintenance

To keep the appliance in good condition,

clean it using suitable products and implements once it has cooled down. This will make the job easier and avoid the build-up of dirt. Never use harsh cleaning products or tools that could scratch the surface, or steam-operated equipment.

Light dirt not stuck to the surface can be cleaned using a damp cloth and a gentle detergent or warm soapy water. However, for deeper stains or grease use a special cleaner for ceramic hot plates and follow the instructions on the bottle. Dirt that is firmly stuck due to being burned repeatedly can be removed using a scraper with a blade.

Slight tinges of colour are caused by pots and pans with dry grease residue underneath or due to grease between the glass and the pot during cooking. These can be removed using a nickel scouser with water or a special cleaner for ceramic hot plates. Plastic objects, sugar or food containing a lot of sugar that have melted onto the surface must be removed immediately using a scraper.

Metallic sheens are caused by dragging metal pots and pans over the glass. These can be removed by cleaning thoroughly using a special cleaner for ceramic glass hot plates, although you may need to repeat the cleaning process several times.

Warning:

A pot or pan may become stuck to the glass due to a product having melted between them. Do not try to lift the pot while the heating zone is cold! This could break the glass.

Do not step on the glass or lean on it as it could break and cause injury. Do not use the glass as a surface for placing objects.

TEKA INDUSTRIAL S.A. reserves the right to make changes to its manuals that it deems necessary or useful, without affecting the product's essential features.

Environmental considerations

The symbol on the product or its packaging means that this product cannot be treated like ordinary household This product must be taken to

a recycling collection point for electrical and electronic appliances. By ensuring that this product is disposed of correctly, you will avoid harming the environment and public health, which could happen if this product is not handled properly. For more detailed information about recycling this product, please contact your local authority, household waste service or the store where you pur-chased the product.

The packaging materials used are environmentally friendly and can be recycled completely. Plastic components are marked >PE < , > LD < , EPS < etc. Dispose of packaging materials, like household waste, in your local container.

Fulfillment with Energy Efficiency of the appliance: -Appliance has been tested according to standard EN 60350-2 and the obtained value, in Wh/Kg, is available in the appliance's rating plate.

Following advices will help you to save energy anytime you cook:

• Use the correct lid for each pot whenever is possible. Cooking without lid uses more energy.
• Use pans with flat bases and appropriate base diameters in order to match size of the cooking zone. Pan manufacturers usually provide top diameter of the pot that is always larger than base diameter.
• When water is used for cooking, use little quantities in order to preserve vitamins and minerals of vegetables and set the minimum power level that allows maintaining the cooking. High power level is unnecessary and a waste of energy.
• Use small pots with small quantities of food.

If something does not work

Before calling the technical service, perform the verifications described below.

The appliance does not work: Ensure that the power cable is plugged in.

The induction zones do not produce heat:

The container is not appropriate (it does not have a ferromagnetic bottom or is too small). Check that the bottom of the container attracts a magnet, or use a larger container.

A humming is heard when starting to cook in the induction zones:

With containers which are not very thick or not of one piece, the humming results from the transmission of energy directly to the bottom of the container. The humming is not a defect, but if you wish to avoid it anyway, reduce the power level slightly or use a container with a thicker bottom, and/or of one piece.

The touch control does not light up or, despite lighting, does not respond: No heating zone has been selected. Be sure to select a heating zone before operating it.

There is humidity on the sensors, and/or your fingers are wet. Keep the touch control surface and/or your fingers clean and dry. The locking function is activated. Unlock the controls.

The sound of a fan is heard while cooking, which continues even after cooking has ended: The induction zones have a fan to keep the electronics cool. This only operates when the electronic circuits get hot. It stops again when the circuits cool whether the hob is turned on or not.

The symbol will appear on the power indicator of a hotplate:

The induction system does not find a pot or pan on a hotplate or it is of an unsuited type.

The hotplate will switch off and the message C81 or C82 will appear on the indicators:

Excessive temperature in the electronics or on the glass. Wait for a while for the electronics to cool down or remove the pot or pan so that the glass can cool.

The appliance switches off and the message C90 appears on the power indicators (3):

The touch control detects on/off (1) sensor is covered and doesn't allow switching on the cooktop. Remove the possible objects or liquids keeping the touch control surface, clean and dry until the message disappears.

DE

RECOMMANDATIONS IMPORTANTES:

KEEP WARM FONKSIYONU

FUNCTION, KEEP WARM" (PASTRARE LA CALD)

ACCENSIONEL DISPOSITIVO

HET APPARAAT INSCHAKELEN

Country Subsidiary Address City Phone

AustriaKüppersbusch Austria	Eitnergasse, 13	1231 Wien	[phone]
BelgiumKüppersbusch Belgium S.P.R.L.	Doomveld Industrie, Asse 3, No. 11 - Boite 7	1731 Zellik	[phone]
BulgariaTeka Bulgaria EOOD	Blvd. "Tsarigradsko Shosse" 135	1784 Sofia	[phone]
ChileTeka Chile S.A.	Avd El Retiro Parque los Maitenes, 1237. Parque Enea	Pudahuel, Santiago de Chile	+ 56 24 386 000
ChlnaTeka International Trading (Shanghai) Co. Ltd.	No.1506, Shengyuan Henghua Bldg. No.200 Wending Rd.	Xuhui, Dist. 200030 Shanghai	[phone]
Czech RepublicTeka CZ S.R.O.	V Holesovickách, 593	182 00 Praha 8 - Liben	[phone]
EcuadorTeka Ecuador S.A.	Parque Ind. California 2, Via a Daule Km 12	Guayaquil	[phone]
FranceTeka France	30 rue Maubec 33000	Bordeaux	+ 05 57 80 60 03
GreeceTeka Hellas A.E.	Thesi Roupaki - Aspropyrgos	193 00 Athens	[phone]
HungaryTeka Magyarország Zrt.	Terv u. 92	9200 Mosonmagyaróvár	[phone]
IndonesiaPT Teka Buana	Jalan Menteng Raya, Kantor Taman A9 Unit A3	12950 Jakarta	[phone]
MalaysiaTeka Kuchentechnik (Malaysia) Sdn Bhd	10 Jalan Kartunis U1/47, Temasya Park, Off Glenmarie	40150 Shah Alam, Selangor Darul Ehsan	[phone]
MexicoTeka Mexicana S.A. de C.V.	Blvd Manuel A. Camacho 126, Piso 3 Col. Chapultepec	11000 Mexico D.F.	[phone]
MoroccoTeka Maroc S.A.	73, Bd. Slimane, Depôt 33, Route de Ain Sebaa	Casablanca	[phone]
PeruTeka Kuchentechnik Perú S.A.	Av. El Polo 670 local A 201, CC El polo, Surco	Lima	[phone]
PolandTeka Polska Sp. ZO.O.	ul. 3-go Maja 8 / A2	05-800 Pruszkow	[phone]
PortugalTeka Portugal S.A.	Estrada da Mota - Apdo 533	3834-909 Ilhavo, Aveiro	[phone]
RomaniaS.C. Teka Kuchentechnik Romania S.R.L.	Sevastopol str., no 24, 5th floor, of. 15	010992 Bucharest Sector 1	[phone]
Russia/PoccyaTeka Rus LLC/000 "Teka Pyc"	Neverovskogo 9, Office 417, 121170, Moscow, Russia	121087 Рожец, Рожва	[phone]
SingaporeTeka Singapore PTE Ltd	Clemenceau Avenue, 83, 01-33/34 UE Square	239920 Singapore	[phone]
SpainTeka Industrial, S.A.	C/ Cajo,17	39011 Santander	[phone]
ThailandTeka (Thailand) Co. Ltd.	364/8 Sri-Ayuttaya Road, Phayathai, Ratchatavee	10400 Bangkok	[phone]
TurkeyTeka Teknik Muffak Aletleri Sanayi Ve Tic A.S.	Levent Mah. Comert Sk. Yapi Kredi Bloklari Sit. C Blok Apt. No.1 C/32	34330 Besiktas, Istanbul	[phone]
UkraineTeka Ukraine LLC	86-e, Bozhenko Str .2nd floor,4th entrance	03150 Kyiv	[phone]
United Arab EmiratesTeka Middle East Fze	Building LOB 16, Office 417	P.O. Box 18251 Dubai	[phone]
United Arab EmiratesTeka Kuchentechnik U.A.E LLC	Bin Khedia Centre	P.O. Box 35142 Dubai	[phone]
VenezuelaTeka Andina S.A.	Ctra. Petare-Santa Lucia, km 3 (El Limoncito)	1070 Caracas	[phone]
VietnamTEKA Vietnam Co., Ltd.	803, FI 8th, Daiminh Convention Center, 77, Hoang Van	Thai, Tan Phu Ward, District 7, Ho Chi Minh	[phone]
