Product Type	Bidirectional Ethernet Media Converter WDM (Fast Ethernet)
Model	510530
Brand	Intellinet
Category	Audio/Video Converter (Ethernet over Fiber)
Copper Connectivity	1x RJ45 (UTP) 10/100 Mbps, auto-negotiation
Fiber Connectivity	1x simplex fiber optic port (WDM, 1310 nm TX, 1550 nm RX)
Max Fiber Distance	Up to 20 km (depending on fiber type)
Max Copper Distance	100 m (Cat5e or higher)
Power	External power adapter (5 V DC, not included in manual)
Power Consumption	Approximately 2 W
LED Indicators	PWR (power), 1000M (1000 Mbps link), Link/Activity (TP and fiber), FDX/COL (full duplex/collisions), SD (optical signal detection)
Operating Temperature	0 °C to 50 °C
Operating Humidity	10% to 90% (non-condensing)
Dimensions	Approximately 95 x 70 x 25 mm
Weight	Approximately 150 g (without adapter)
Housing Material	Metal
Compatibility	Ethernet IEEE 802.3u, Fast Ethernet 100BASE-TX and 100BASE-FX
Topology	Point-to-point (requires a pair of converters)
Fiber Transmission Mode	Bidirectional (WDM) over simplex fiber
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use solvents or abrasive products.
Safety	Unplug before cleaning. Use only the supplied adapter. Follow WEEE directives.
Spare Parts and Repairability	No spare parts available. In case of failure, contact customer service.
General Information	Limited warranty: see intellinetnetwork.com/warranty. Compliant with directives 2014/53/EU, 2004/108/EC, and 2006/95/EC.

Frequently Asked Questions - 510530 Intellinet

How to connect the Intellinet 510530 converter to my network?

Connect the RJ45 port of the converter to an Ethernet port on your switch or router using a Cat5e or higher cable. Then, connect the fiber optic port to another compatible converter (e.g., model 510547) via a simplex fiber cable.

What type of fiber cable to use with the 510530?

The 510530 uses a simplex fiber optic cable (single strand). It operates in WDM (Wavelength Division Multiplexing): it transmits at 1310 nm and receives at 1550 nm (or vice versa depending on the paired model).

Can I use the 510530 with another converter model?

Yes, to work in bidirectional WDM, the 510530 must be paired with a compatible model such as the 510547 (Fast Ethernet) or 545075 (Gigabit), depending on the desired speed.

What is the maximum distance supported by the 510530?

The maximum distance depends on the fiber type: up to 20 km with single-mode fiber (SM) and up to 2 km with multimode fiber (MM). Use fiber suitable for your needs.

What do the LEDs on the converter mean?

The indicators are: PWR (power), 1000M (1000 Mbps link), Link/Act (green for active link, blinking for activity), FDX/COL (full duplex or collisions), and SD (optical signal detection).

How to configure the converter?

No configuration is needed: the converter is plug-and-play. It automatically detects the speed and duplex of the copper network. Simply connect the power and cables.

Does the 510530 support Gigabit Ethernet?

No, the 510530 is a Fast Ethernet model (10/100 Mbps). For Gigabit, use model 545068 or 545075 as per the manual.

Can I use a duplex fiber cable (two strands) with this converter?

No, the fiber port of the 510530 is designed for a simplex cable. Using a duplex cable would require an adapter or a different converter type.

What to do if the 'Link/Act' LED does not light up?

First, check that the power is connected (PWR LED on). Then, ensure the copper and fiber cables are properly connected and both converters are powered on. Test with another cable or port.

How to maintain the converter?

Unplug the power before any cleaning. Clean the housing with a soft, dry cloth. Avoid chemicals. Keep the fiber ports clean using an appropriate cleaning kit.

USER MANUAL 510530 Intellinet

WDM Bi-Directional Ethernet Media Converter English

Thank you for purchasing the Intellinet WDM Bi-Directional Single Mode Media Converter. Media converters connect two Ethernet networks over a longer distance using fiber optic cable.

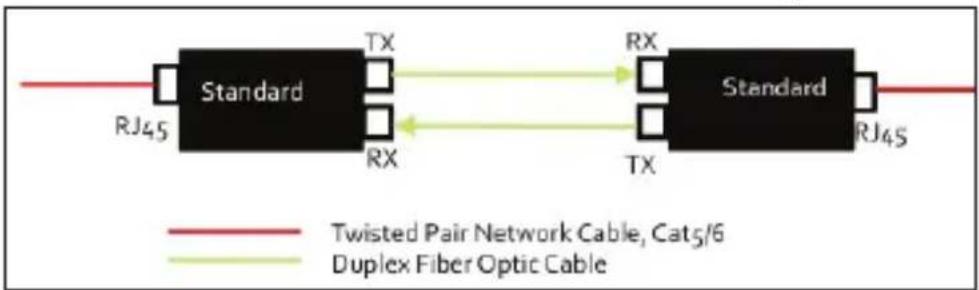

WDM BI-DIRECTIONAL VERSUS STANDARD MEDIA CONVERTER Standard Media Converter

To create a connection between two media converters you need two fiber cables, referred to as a fiber duplex cable.
    note right of A: Twisted Pair Network Cable, Cat5/6
    note right of B: Duplex Fiber Optic Cable

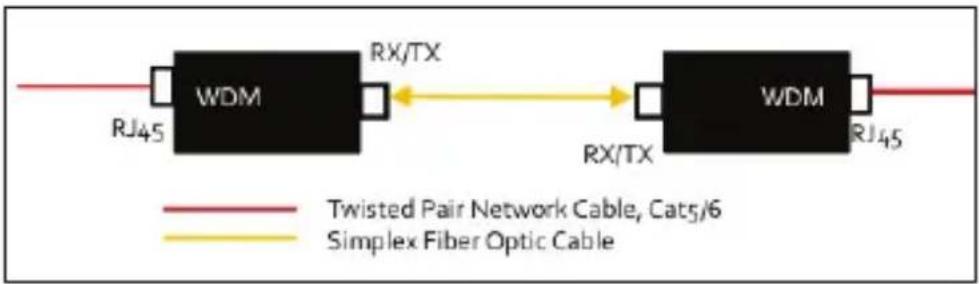

WDM Bi-Directional Converter

One fiber cable between both media converters is sufficient in order to create a connection. The signal travels both ways.

WDM RJ45 RX/TX RW/TX WDM RW/TX RW/TX Twisted Pair Network Cable, Cat5/6 Simplex Fiber Optic Cable
    note right of B "Duplex Fiber Optic Cable"

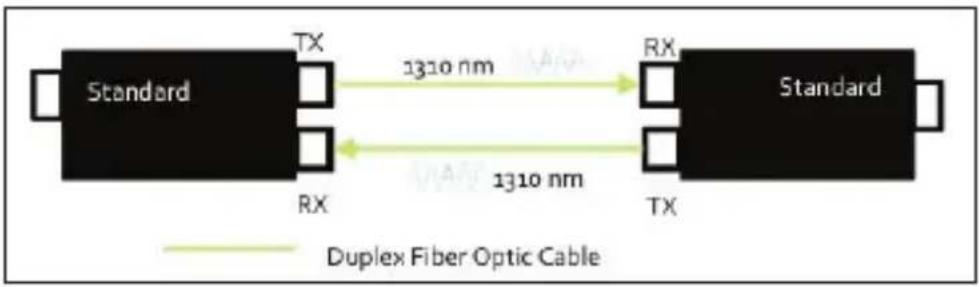

WDM RX/TX 1550 nm RX/TX 1310 nm WDM Simplex Fiber Optic Cable, carrying two signals with different wave lengths on one cable. Because of the difference in wavelength, there is no interference.

MODELS

- Fast Ethernet WDM Bi-Directional Single Mode Media Converter (510547)

10/100Base-TX to 100Base-FX (SC) Single-Mode, 20 km (12.4 mi.), WDM (RX1550/TX1310)

- Fast Ethernet WDM Bi-Directional Single Mode Media Converter (510530)

10/100Base-TX to 100Base-FX (SC) Single-Mode, 20 km (12.4 mi.), WDM (RX1310/TX1550)

• Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter (545068)

10/100/1000Base-TX to 1000Base-LX (SC) Single-Mode, 20 km (12.4 mi.), WDM (RX1550/TX1310)

• Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter (545075)

10/100/1000Base-TX to 1000Base-LX (SC) Single-Mode, 20 km (12.4 mi.), WDM (RX1310/TX1550)

CONNECTIONS

Twisted Pair - RJ45

Connect the UTP port of the media converter to an RJ45 port on the network; e.g., to an Ethernet switch. Cat5e or better cabling is recommended.

Fiber Optic

As shown above, one fiber optic cable needs to be connected between two WDM media converters. As a rule, these media converters must be used in pairs. Model 510547 connects to model 510530 (Fast Ethernet), and model 545068 connects to 545075 (Gigabit Ethernet).

POWER

Plug the power adapter into the 5 V DC input jack on the media converter, then connect it to a regular power outlet. Only use the included power adapter or one with matching specifications (output of 5 V DC, at least 1 A).

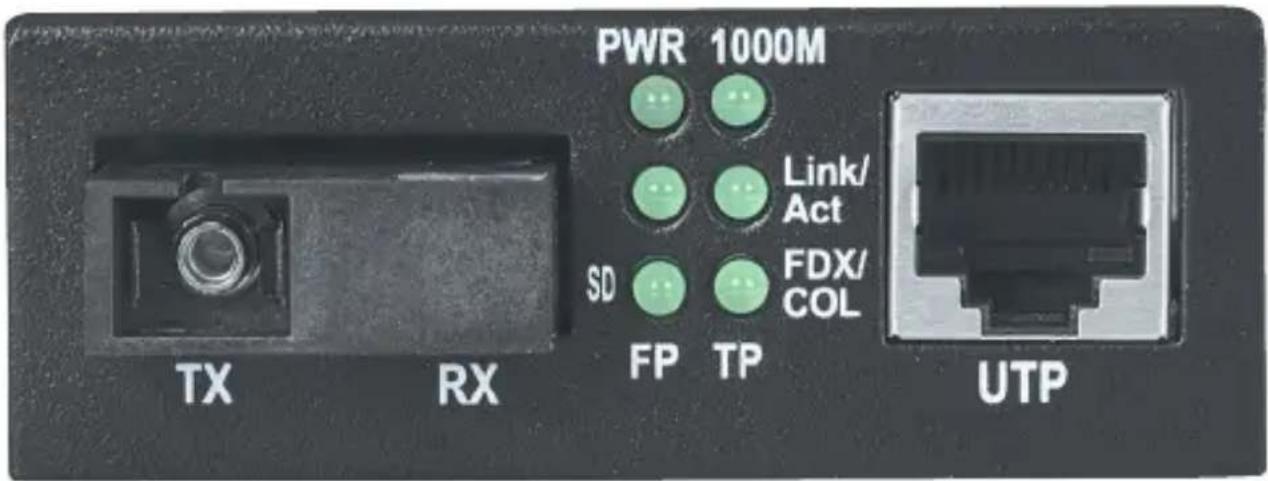

PWR 1000M Link/ Act SD FDX/ COL FP TP UTP TX RX

LEDS

PWR – The power adapter is connected when lit.

1000M – 1000 Mbps link on the twisted pair connection when lit.

Link/Act (TP = RJ45; FP = Fiber) – Active link when lit; data traffic when flashing; no active network link when unlit.

FDX/COL (for TP/RJ45) – Full duplex connection when lit; data collisions when flashing; half duplex when unlit.

SD (for FP/Fiber) – Fiber optic signal is detected when lit; no signal when unlit.

For specifications, go to intellinetnetwork.com.

Bidirektionaler WDM Ethernet Medienkonverter Deutsch
    linkStyle 0 stroke:#ff0000,stroke-width:2px
    linkStyle 1 stroke:#ff0000,stroke-width:2px
    linkStyle 2 stroke:#ff0000,stroke-width:2px
    linkStyle 3 stroke:#ff0000,stroke-width:2px
    linkStyle 4 stroke:#ff0000,stroke-width:2px
    linkStyle 5 stroke:#ff0000,stroke-width:2px
    linkStyle 6 stroke:#ff0000,stroke-width:2px
    linkStyle 7 stroke:#ff0000,stroke-width:2px
    linkStyle 8 stroke:#ff0000,stroke-width:2px
    linkStyle 9 stroke:#ff0000,stroke-width:2px
    linkStyle 10 stroke:#ff0000,stroke-width:2px
    linkStyle 11 stroke:#ff0000,stroke-width:2px
    linkStyle 12 stroke:#ff0000,stroke-width:2px
    linkStyle 13 stroke:#ff0000,stroke-width:2px
    linkStyle 14 stroke:#ff0000,stroke-width:2px
    linkStyle 15 stroke:#ff0000,stroke-width:2px
    linkStyle 16 stroke:#ff0000,stroke-width:2px
    linkStyle 17 stroke:#ff0000,stroke-width:2px
    linkStyle 18 stroke:#ff0000,stroke-width:2px
    linkStyle 19 stroke:#ff0000,stroke-width:2px
    linkStyle 20 stroke:#ff0000,stroke-width:2px
    linkStyle 21 stroke:#ff0000,stroke-width:2px
    linkStyle 22 stroke:#ff0000,stroke-width:2px
    linkStyle 23 stroke:#ff0000,stroke-width:2px
    linkStyle 24 stroke:#ff0000,stroke-width:2px
    linkStyle 25 stroke:#ff0000,stroke-width:2px
    linkStyle 26 stroke:#ff0000,stroke-width:2px
    linkStyle 27 stroke:#ff0000,stroke-width:2px
    linkStyle 28 stroke:#ff0000,stroke-width:2px
    linkStyle 29 stroke:#ff0000,stroke-width:2px
    linkStyle 30 stroke:#ff0000,stroke-width:2px
    linkStyle 31 stroke:#ff0000,stroke-width:2px
    linkStyle 32 stroke:#ff0000,stroke-width:2px
    linkStyle 33 stroke:#ff0000,stroke-width:2px
    linkStyle 34 stroke:#ff0000,stroke-width:2px
    linkStyle 35 stroke:#ff0000,stroke-width:2px
    linkStyle 36 stroke:#ff0000,stroke-width:2px
    linkStyle 37 stroke:#ff0000,stroke-width:2px
    linkStyle 38 stroke:#ff0000,stroke-width:2px
    linkStyle 39 stroke:#ff0000,stroke-width:2px
    linkStyle 40 stroke:#ff0000,stroke-width:2px
    linkStyle 41 stroke:#ff0000,stroke-width:2px
    linkStyle 42 stroke:#ff0000,stroke-width:2px
    linkStyle 43 stroke:#ff0000,stroke-width:2px
    linkStyle 44 stroke:#ff0000,stroke-width:2px
    linkStyle 45 stroke:#ff0000,stroke-width:2px
    linkStyle 46 stroke:#ff0000,stroke-width:2px
    linkStyle 47 stroke:#ff0000,stroke-width:2px
    linkStyle 48 stroke:#ff0000,stroke-width:2px
    linkStyle 49 stroke:#ff0000,stroke-width:2px
    linkStyle 50 stroke:#ff0000,stroke-width:2px

Bidirektionaler WDM Medienkonverter

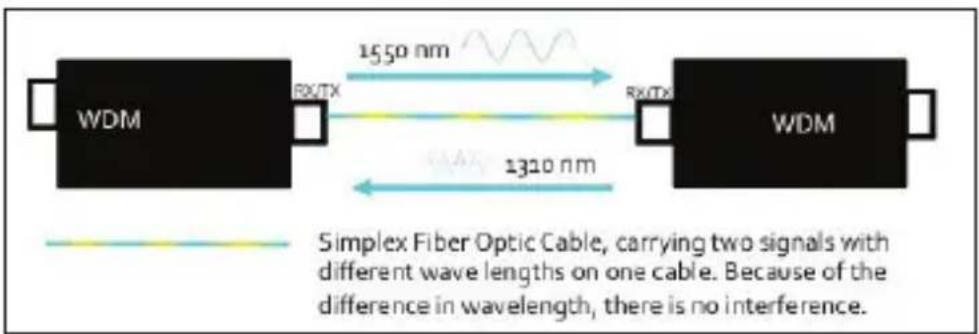

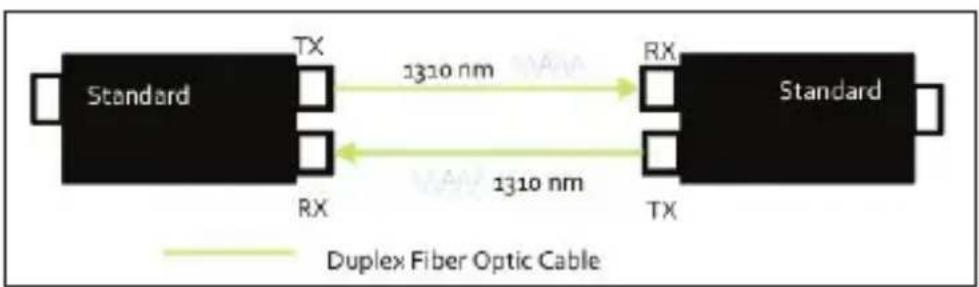

WDM RX/TX RW45 RW/TX WDM RW45 Twisted Pair Network Cable, Cats/6 Simplex Fiber Optic Cable
    note right of A: "Duplex Fiber Optic Cable"

WDM RX/TX 1550 nm RX/TX 1310 nm WDM Simplex Fiber Optic Cable, carrying two signals with different wave lengths on one cable. Because of the difference in wavelength, there is no interference.

MODELLE

• Fast Ethernet WDM bidirektionaler Single Mode Medienkonverter (510547)
  10/100Base-TX auf 100Base-FX (SC) Single Mode, 20 km, WDM (RX1550/TX1310)
• Fast Ethernet WDM bidirektionaler Single Mode Medienkonverter (510530)
  10/100Base-TX auf 100Base-FX (SC) Single-Mode, 20 km, WDM (RX1310/TX1550)
• Gigabit Ethernet WDM bidirektionaler Single Mode Medienkonverter (545068)
  10/100/1000Base-TX auf 1000Base-LX (SC) Single-Mode, 20 km, WDM (RX1550/TX1310)
• Gigabit Ethernet WDM bidirektionaler Single Mode Medienkonverter (545075)
  10/100/1000Base-TX auf 1000Base-LX (SC) Single-Mode, 20 km, WDM (RX1310/TX1550)

ANSCHLÜSSE

Twisted Pair - RJ45

PWR 1000M Link/ Act SD FDX/ COL FP TP UTP TX RX

LEDS

PWR 1000M Link/ Act SD FDX/ COL FP TP UTP TX RX

LEDS

WDM RX/TX 1550 nm RX/TX 1310 nm WDM Simplex Fiber Optic Cable, carrying two signals with different wave lengths on one cable. Because of the difference in wavelength, there is no interference.

MODÈLES

- Convertisseur de support Fast Ethernet WDM bidirectionnel monomode (510547)

10/100Base-TX vers 100Base-FX (SC) monomode, 20 km, WDM (RX1550/TX1310)

- Convertisseur de support Fast Ethernet WDM bidirectionnel monomode (510530)

10/100Base-TX vers 100Base-FX (SC) monomode, 20 km, WDM (RX1310/TX1550)

- Convertisseur de support Gigabit Ethernet WDM bidirectionnel monomode (545068)

10/100/1000Base-TX vers 1000Base-LX (SC) monomode, 20 km, WDM (RX1550/TX1310)

- Convertisseur de support Gigabit Ethernet WDM bidirectionnel monomode (545075)

10/100/1000Base-TX vers 1000Base-LX (SC) monomode, 20 km, WDM (RX1310/TX1550)

CONNEXIONS

Paires torsadées – RJ45

PWR 1000M Link/ Act SD FDX/ COL FP TP UTP TX RX

DELS

PWR 1000M Link/ Act SD FDX/ COL FP TP UTP TX RX

DIODY

PWR 1000M Link/ Act SD FDX/ COL FP TP UTP TX RX

LED

Disposal of Electric and Electronic Equipment per European Union Directive: 2012/19/EU

ENGLISH This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. If your equipment contains easily removable batteries or accumulators, dispose of these separately according to your local requirements. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, contact your local city office, your household waste disposal service or the shop where you purchased this product. In countries outside of the EU: If you wish to discard this product, contact your local authorities and ask for the correct manner of disposal.

ENGLISH: For warranty information, go to intellinetnetwork.com/warranty.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from the receiver.
• Consult the dealer or an experienced radio/TV technician for help.

CE (RE / EMC / LVD)

ENGLISH: This device complies with the requirements of directives 2014/53/EU and/or 2004/108/EC & 2006/95/EC. The Declaration of Conformity for this product is available at:

CE FC RoHS

North & South America

IC Intracom Americas 550 Commerce Blvd. Oldsmar, FL 34677

USA

Asia & Africa

IC Intracom Asia 4-F, No. 77, Sec. 1, Xintai 5th Rd.

Xizhi Dist., New Taipei City 221, Taiwan

Europe

IC Intracom Europe Löhbacher Str. 7 D-58553

Halver, Germany

INTELLINET®

NETWORK SOLUTIONS
