508315 - Audio/video converter Intellinet - Free user manual and instructions

Brand	Intellinet
Model	508315
Product Type	Media Converter (Ethernet to Fiber Optic)
Copper Interface	1 RJ45 port 10/100/1000 Mbps, max distance 100 m
Fiber Interface	1 ST multimode port 1000Base-SX, max distance 550 m
Fiber Type	Multimode, ST connector
Transmission Mode	Full-duplex and half-duplex with auto-negotiation
Power Supply	Power adapter 5 V DC, 1 A minimum, input 90-265 V AC, 50/60 Hz
Power Consumption	Approx. 5 W
Dimensions (approx.)	94 x 70 x 26 mm
Weight (approx.)	200 g
LED Indicators	PWR, 1000M, LINK/ACT (TP and FP), FDX/COL (TP), SD (FP)
DIP Switch	Position 1: LFP (Link Fault Pass-through); Position 2: Cut-through/Store-and-forward switching
Housing Material	Metal
Operating Temperature	0 °C to 50 °C
Operating Humidity	20% to 80% (non-condensing)
Maintenance and Cleaning	Disconnect the device before cleaning. Use a dry, soft cloth.
Safety	Use only the provided adapter. Do not expose to moisture.
Spare Parts and Repairability	Power adapter available as an option. No user-serviceable parts.
Standards and Certifications	CE (Directives 2014/30/EU and 2014/35/EU), WEEE (2012/19/EU)

Frequently Asked Questions - 508315 Intellinet

What is the Intellinet 508315 media converter?

The Intellinet 508315 is a media converter that allows you to connect a copper Ethernet network (RJ45) to a multimode fiber optic (ST) to extend the connection distance up to 550 m.

How to connect the converter?

Connect an Ethernet Cat5e or higher cable from the converter's RJ45 port to a switch or router. For fiber, connect the two ST ports with two fiber cables: TX of converter 1 to RX of converter 2, and RX of 1 to TX of 2.

What is the maximum distance with fiber?

With multimode fiber and the 1000Base-SX standard, the maximum distance is 550 meters.

What does the LINK/ACT indicator mean?

The LINK/ACT LED (for RJ45 or fiber) is solid when a link is active, and blinks during data transfer. If off, no link is detected.

Can I use the converter with single-mode fiber?

No, this model is designed for multimode fiber with ST connector. Use of single-mode fiber is not supported.

How to configure the DIP switch?

The DIP switch has 4 positions: position 1 enables/disables Link Fault Pass-through (LFP), position 2 selects cut-through or store-and-forward mode, and positions 3 and 4 are not used.

Does the converter support Power over Ethernet (PoE)?

No, this converter does not support PoE. It requires an external power supply via the included power adapter (5 V DC, 1 A).

What Ethernet cables do you recommend?

It is recommended to use Cat5e or higher cable for optimal performance up to 100 m.

What to do if the PWR LED does not light up?

Check that the power adapter is properly connected and the wall outlet is powered. If the problem persists, try another compatible adapter (5 V DC, 1 A).

Where can I download the full manual?

The full manual is available for free download in PDF format on the website notice-facile.com for the Intellinet 508315 model.

USER MANUAL 508315 Intellinet

Gigabit Ethernet Media Converter Instructions

Models 508315 (IMC-MMSTG550M)

Important: Read before use. • Important: Leer antes de usar.

For additional benefits:

Scan to register your product warranty

or go to: register.intellinet-network.com/r/508315

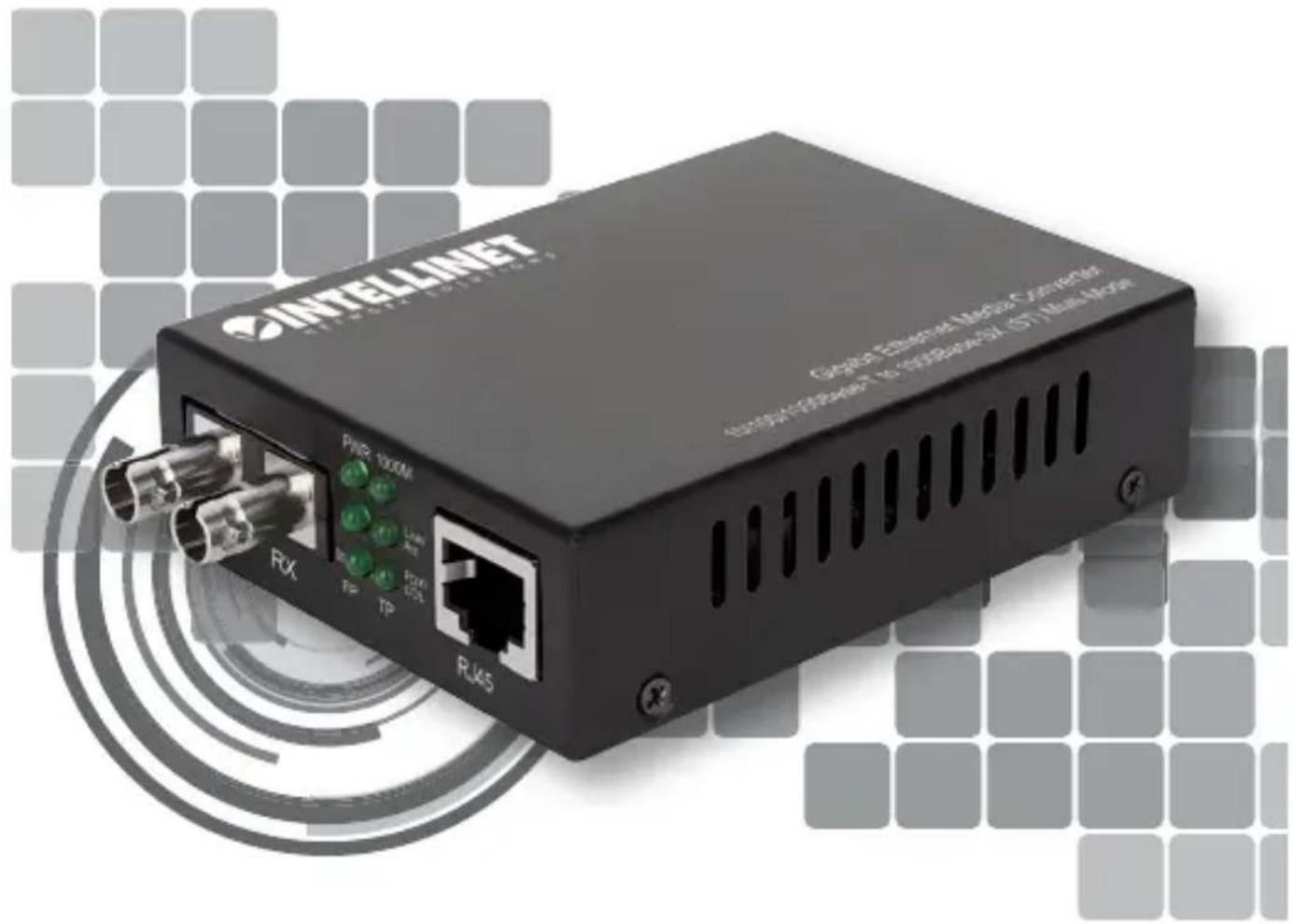

Media converters connect two Ethernet networks over a longer distance using fiber optic cable.

For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/508315 or scan the QR code on the cover.

Features

• One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
• One 1000Base-SX fiber ST multi-mode port supporting

a maximum distance of 550m (1,800 ft.)

Supports full-duplex and half-duplex modes with autonegotiation

Connections

Twisted Pair - RJ45

Connect the UTP port of the media converter to an RJ45 port on the network (e.g., to an Ethernet switch). Cat5e or better cabling is recommended.

Fiber Optic

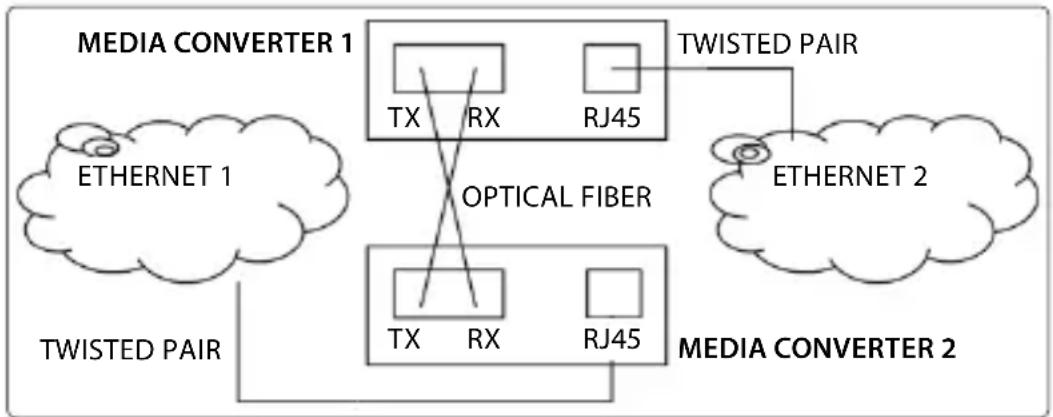

As shown above, two fiber optic cables need to be connected between two ideally identical media converters. Make a connection from Media Converter 1 TX to Media Converter 2 RX, and from Media Converter 1 RX to Media Converter 2 TX. Maximum length and fiber cable specification depend on the model. (See Models.)

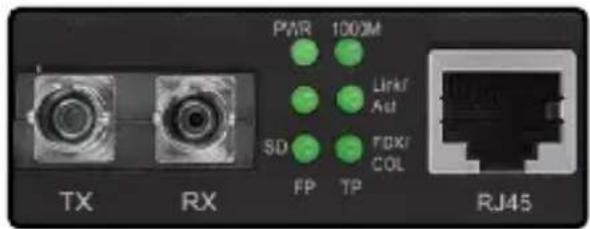

Front panel

LED Description
PWR The power adapter is connected when lit.
1000M	1000 Mbps link on the twisted pair connection when lit.
LINK/ACT (TP = RJ45; FP = FIBER)	- Active link when lit; - Data traffic when flashing; - No active network link when unlit.
FDX/COL (FOR TP/RJ45)	- Full duplex connection when lit; - Data collisions when flashing; - Half duplex when unlit.
SD (FOR FP/FIBER)	- Fiber optic signal is detected when lit; - No signal when unlit.

Rear Panel

Power

Plug the power adapter into the 5 V DC input jack on the media converter, then connect it to a regular power outlet. Only use the included power adapter or one with matching specifications (output of 5 V DC, at least 1 A).

DIP Switch

Switch Position Description
1	On Link	Fault Pass-through (LFP) on
	Off LFP	off
2	On Cut-through switching
	Off Store	e-and-forward switching
3 & 4 Blank
