Thank you for choosing a BEARWARE product. Please read the following user manual carefully so as to get the most from the product that you have purchased. Before using the product, first check if the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Weather station
• Power adapter
• User manual

2. Technical data

Power supply	Main unit: 2x 1.5V AAA batteries or alternatively 1x DC 5V, 2A microUSB power adapterSensor: 2x 1.5V AAA batteries
Output • 1x USB type A 5V; 1.1A
Temperature range	Main unit: 0°C to 50°CSensor: -20°C to +60°C
Transmission power (EIRP) < 4mW
Frequency range of the outdoor sensor	433.92MHz
Protection class IPX4
Features	DCF signalDate displayWeekday displayAlarm function (alarm)Indoor and outdoor temperatureOutdoor sensorTemperature displayHumidity displayWeather forecast pictogramSnooze function12/24-hours displayMoon phases display

3. Additional information about this device

Do not use this device if it is damaged. Do not expose the base station to moisture or direct sunlight.

Before using the product, ensure that the available supply voltage corresponds to the operating voltage indicated on the specification plate.

Before using for the first time, make sure that no cables are damaged.

The device must be connected to an easily accessible socket so that it can be disconnected in case of an emergency.

This product is suitable only for use with the supplied mains adapter.

It is intended only for private use and not for medical purposes or for public information.

If necessary, remove the protective film from the display.

Caution!

Keep the batteries and the device out of reach of children. Batteries contain harmful acids. Weak batteries should be replaced as soon as possible to prevent leakage! Never use new and old batteries or batteries of different types together. Never throw batteries into a fire and do not short-circuit them. Do not charge or disassemble the batteries under any circumstances. There is a risk of explosion!

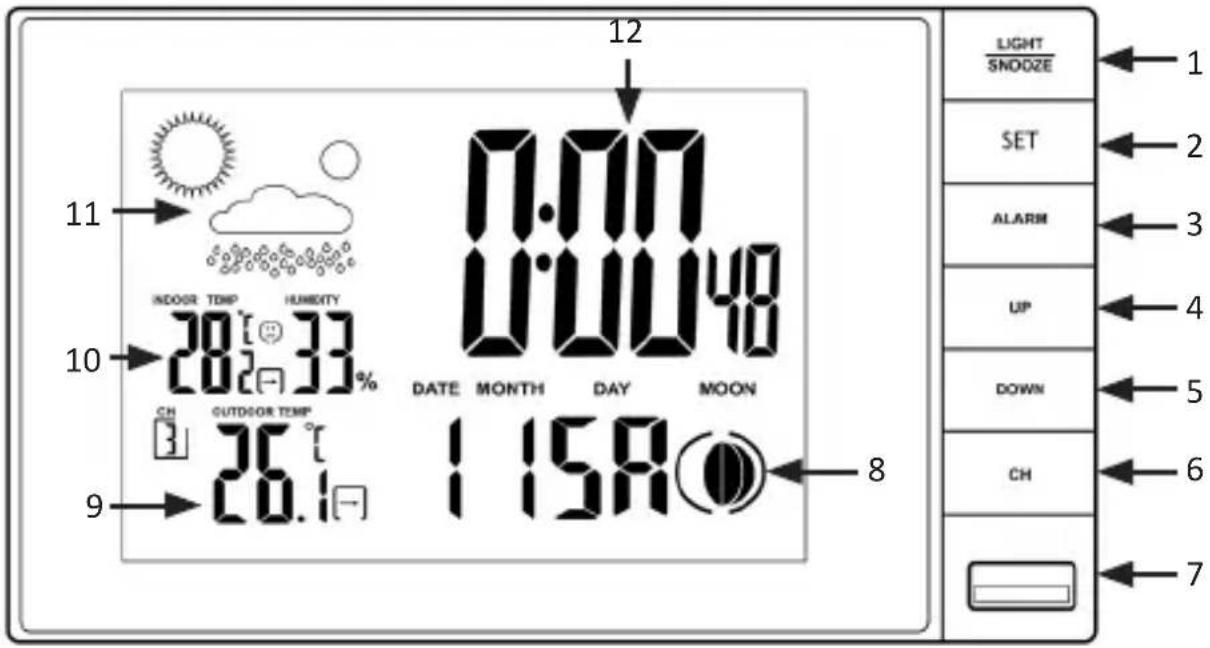

4. Product details

12 0:00 0:00:48 INDOOR TEMP HUMIDITY 28°33% 202°33% 10 CH OUTDOOR TEMP 26° 20.1° 9 11 12 LIGHT SNODZE SET ALARM UP DOWN CH 8 1 2 3 4 5 6 7

No. Description
1 LIGHT / SNOOZE Button
2 SET - Button
3 ALARM - Button
4 UP - Button
5 DOWN - Button
6 CH - Button
7 USB Output
8 Date display and current moon phase
9 Outside temperature
10 Indoor temperature + humidity
11 Weather Forecast Pictogram
12 Time display

Blank rectangular device with three horizontal lines and dotted bottom markers (no text or symbols)

Diagram of a smartphone front panel with labeled buttons and a stylus icon (no text or symbols)

wall-mounted suspension

battery com- partment cover

Stand

5. Commissioning

Take the product out of the package and remove all the packaging material. Open the battery compartment of the outdoor sensor and insert two 1.5V AAA batteries. Then open the battery compartment on the back of the main unit and insert two 1.5V AAA batteries. Alternatively, you can use the supplied 5V/2A microUSB mains adapter for operation. For this purpose, plug the mains adapter into a properly installed socket and then connect it to the microUSB connector on the back of the main unit.

Note: If you want to use the device with batteries, then the backlight is not permanently switched on. The backlight of the display is continuously switched on only when operated with the enclosed power adapter.

The weather station then attempts to establish connection with the outdoor sensor. Make sure that both devices are within each other's range. The connection symbol " " flashes in the "Outdoor temperature display" of the main unit. If the main unit cannot establish a connection with the outdoor sensor within 3 minutes, then it stops searching. The connection icon stops flashing and the temperature display shows "-._°C" and "-._%" on the display.

In most cases, the connection cannot be established due to specific factors such as reinforced walls or a too great distance between the sensor and the main unit. In this case, position the sensor and the main unit closer to each other.

To restart scanning, press and hold the "CH" button on the main unit for 3 seconds until the connection symbol in the display starts flashing again.

6. DCF signal

The DCF signal is a time signal which is sent out by one of the most accurate clocks in the world. It is located near Frankfurt am Main. Under ideal conditions, your weather station can receive this signal from a distance of up to 1500 km.

If the weather station has detected the signal, then it will display the current Central European Time and the current date. The DCF symbol "F" is then shown in the display.

Activate the search by pressing the "DOWN" button for about 3 seconds until the DCF symbol is shown in the display. During the search process, the backlight goes off. The backlight can be turned on again with the help of the "Snooze/Light" button. Alternatively, you have the option of setting the time manually. Additional information in this regard is given in the "Basic Settings" section.

Please note that during the DCF signal search, no operation on the device is possible except for the lighting. The DCF search can be ended prematurely by pressing the “Down” button again.

7. Display

0:00 0:00 48

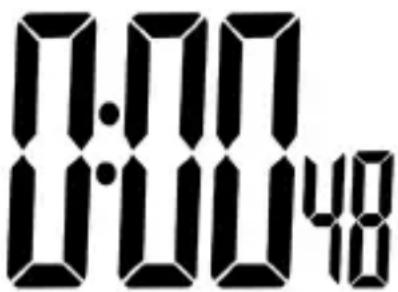

Time display:

The time can be displayed in a 12-hour or 24-hour format.

For this, press the "UP" button.

DATE MONTH DAY 1158

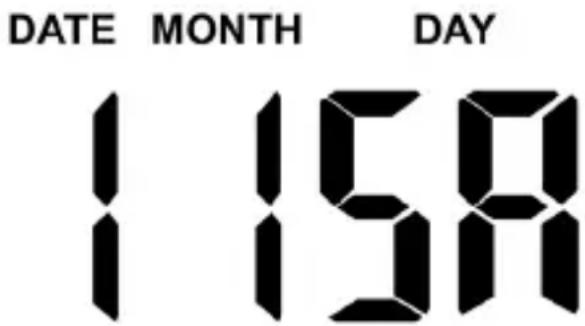

Date and day:

The weather station comes with a date and day display. Press the "UP" button for about 3 seconds to switch between the week and year display. More information in given in the "Basic Settings" section.

Silhouette of a person emitting signal waves (no text or symbols)

DCF symbol:

The radio tower symbol indicates successful reception of the DCF signal. The weather station synchronises the time every night. The symbol begins flashing during synchronisation. If the time has been successfully received, then the symbol glows continuously until the next synchronisation.

MOON

Phases of the moon:

The current phase of the moon is shown in the display of the weather station as follows:

The part of the moon, which is not lit, is shown dark in the display.

Temperature or humidity trend:

The trend display changes every hour, increasing or decreasing, according to changes in the air pressure, temperature and humidity during the measurement period.

Simple weather icons showing sun, cloud, and raindrops (no text or symbols)

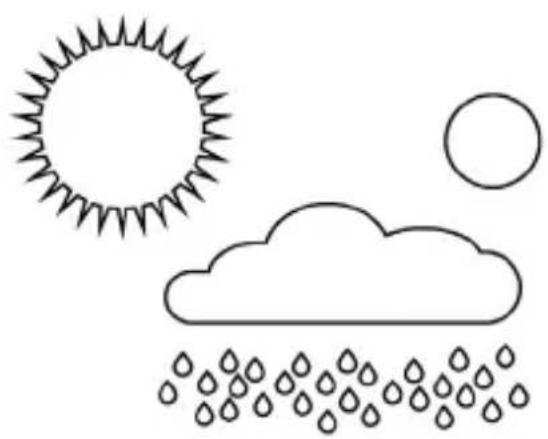

Weather forecast:

The weather station calculates a weather forecast for about 12 hours, which is based on the air pressure trend. This forecast cannot be compared to one generated by satellites or high performance computers. The forecast shows only an approximation of the current trend.

Indoor temperature display:

INDOOR TEMP 28.5°C 28.5°C

The temperature unit can be changed between °C and °F. To do this, press the "Down" button on the front of the weather station.

The indoor temperature is measured by the base station and is shown up to one tenth of a degree. The configured temperature unit is shown to the right of the measured value. If the reading is below the minimum value (0 °C / 32 °F), the display shows "LL.L". If the value is more than the maximum value are (50°C / 122°F), the display shows "HH.H".

Humidity:

HUMIDITY 33%

This display shows the current air humidity experienced by the weather station.

Indoor climate assessment:

Simple line drawing of a sad face with two dots for eyes and a straight line for a mouth (no text or symbols)

DRY

The indoor climate is assessed based on the humidity and the temperature.

DRY Room humidity less than 40%

Simple line drawing of a smiling face with two dots for eyes and a curved line for mouth (no text or symbols)

COM

COMFORT Room humidity is between 40% and 70%. The temperature is between 20 °C and 25.9 °C.

Simple line drawing of a sad face emoji with two dots for eyes and a curved mouth (no text or symbols)

WET

WET Humidity more than 70%

If the temperature is not between 20-25.9 °C and the room humidity is in the range of 40-70%, no symbol appears on the display.

Low battery:

Simple line drawing of a battery with two ports (no text or symbols)

If the battery symbol appears, then the inserted batteries are empty and should be replaced with new batteries. This applies to the outdoor sensor (battery indicator in "Outdoor Temp" range) as well as to the base station (battery indicator in "Indoor Temp" range).

OUTDOOR TEMP 26.1°

Outdoor temperature display:

The outdoor temperature is measured by the outdoor sensor and shown up to one tenth of a degree. The configured temperature unit is shown to the right of the measured value. The temperature unit can be changed between °C and °F. Press the "Down" button on the front of the weather station.

Channel display

CH 3

The weather station receives the signal of the outdoor sensor automatically after all settings have been configured. You can switch between the different channels using the "CH" button. Press and hold the "CH" button to start the search for the outdoor sensor. The channels of the outdoor sensor can be selected directly on the sensor using a toggle switch. Select the desired channel on the outdoor sensor and start the search on the base station on the corresponding channel.

8. Basic Settings

Press and hold the "SET" button for about 3 seconds to configure the basic settings. With the "UP" and "DOWN" buttons, you can change the values accordingly.

By briefly pressing the "SET" button during basic settings, you can confirm entry and proceed to the next option. In this way, you can change and customise the following settings in the sequence mentioned below:

• Year
• Month
  • Day
• Language setting - You can set the language in which the days of the week appear on the display by using the following shortcuts and change the values with the "UP" and "DOWN" buttons: GE (German), DA (Danish), ES (Spanish), NE (Dutch), FR (French), IT (Italian), EN (English)
  • Hour
• Minute
• Time zone - Note: If you set the time zone, for example, to +01 and the weather station is actuated using the DCF-signal, then the clock displays one hour later than the DCF-signal.

8.1 Weather forecast function

The weather station calculates a weather forecast based on changes in the air pressure. Since data regarding changes in air pressure is not available when the device is switched on for the first time, the weather forecast at this time is random. The weather station will be able to calculate a forecast only after a couple of days.

It has 4 different weather forecasts (sunny, slightly cloudy, cloudy and rainy).

Important notice! If you use the device in an air-conditioned room, the weather forecast may not be the same since the air conditioning system falsifies the result.

8.2 Alarm setting

Setting the alarm

Press and hold the "ALARM" button for about 3 seconds to access the alarm settings. The alarm time is now displayed instead of the time. The value to be set now flashes. You can make the desired settings using the "UP" and "DOWN" buttons. Confirm your entries with "ALARM" button.

If you do not perform any action within 8 seconds, the weather station automatically switches back to the time and saves the settings made.

Turning the alarm on and off

Press the "ALARM" button. An alarm icon is subsequently displayed next to the time. This means that the alarm is enabled. Re-press the "ALARM" button to disable the alarm again. The icon disappears from the display once the alarm is deactivated.

Switching off the alarm\snooze function

When the alarm is activated at the configured time, the backlight also turns on automatically. The alarm is active for 2 minutes before it turns off automatically.

Press the "SNOOZE/LIGHT" button to cancel the alarm. If a snooze symbol is shown on the display, this means that the snooze function is activated and the alarm will go off again in 5 minutes.

Press any button to switch off the alarm.

Caution!

9. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions.

Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without prior notification.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

12. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer:

The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries mean the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery must not be disposed of in household waste.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303394/20180830FZ010 complies with the fundamental requirements and all other relevant stipulations of the guideline 2014/53/EC. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, http://downloads.ganzeinfach.de/search/model/303394
