USER MANUAL AD 1199 ADLER

White and gold portable electronic device with a textured back panel and handle (no visible text or symbols)

AD 1199

(GB) user manual - 3 (DE) bedienungsanweisung - 6
(FR) mode d'emploi - 10 (ES) manual de uso - 12
(PT) manual de serviço - 15 (LT) naudojimo instrukcija - 118
(LV) lietošanas instrukcija - 21 (EST) kasutusjuhend - 23
(HU) felhasználói kézikönyv - 29 (BS) upute za rad - 27
(RO) Instructiunea de deservire - 25 (CZ) návod k obsluze - 38
(RU) инструкция обслуживания - 45 (GR) обнүίες хрήσεως - 35
(MK) упатство за корисникот - 32 (NL) handleiding - 40
(SL) navodila za uporabo - 43 (FI) manwal ng pagtuturo - 450
(PL) instrukcja obsługi - 81 (IT) istruzioni operative - 65
(HR) upute za uporabu - 48 (SV) instruktionsbok - 52
(DK) brugsanvisning - 60 (UA) інструкція з експлуатації - 62
(SR) Корисничко упутство - 57 (SK) Používatel'ská príručka - 55
(AR) دليل التعليمات - 68 (BG) Инструкция за употребا - 71
(AZ) İstifadəyə dair göstərişlər - 74 (ALB) Udhëzime për përdorim - 77

B2 B3 B5 DC 5V AUX B1 B4

C2 C1 C4 - + C5 C3

M1 M2 + M3 - M4 M M5

ENGLISH

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.
3. The applicable voltage is 5V 1A. For safety reasons it is not appropriate to connect multiple devices to one power outlet.
4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.
   5.WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.
5. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!
6. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.
7. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.
8. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

9. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

10. Never use the product close to combustibles.

11. Do not let cord hang over edge of counter or touch hot surfaces.
12. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.
13. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30 mA. Contact professional electrician in this matter.
14. Avoid getting the radio wet.

Device description Karaoke speaker:

Control Panel:

C1. On/Off / Disconnect button C2. Play / Pause button C3. Lights settings button C4. Plus button C5. Minus button

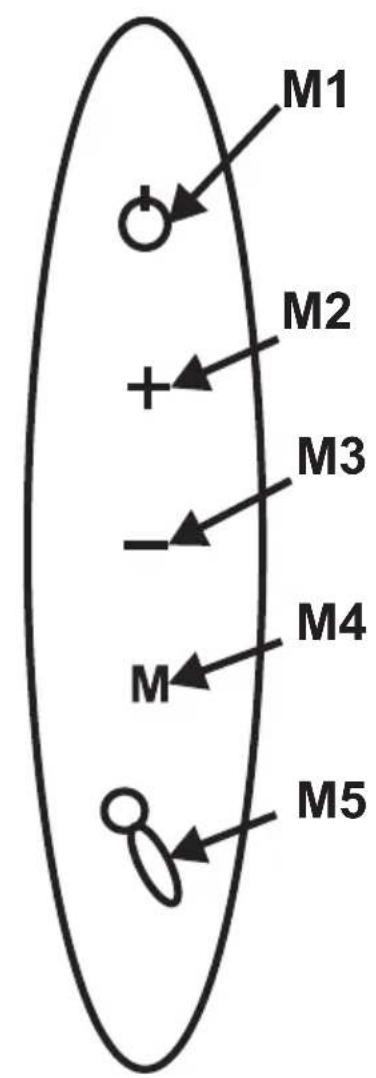

Microphone:

M1. On/Off / Play / Pause Button M2. Plus button M3. Minus button M4. Mode button M5. Microphone button

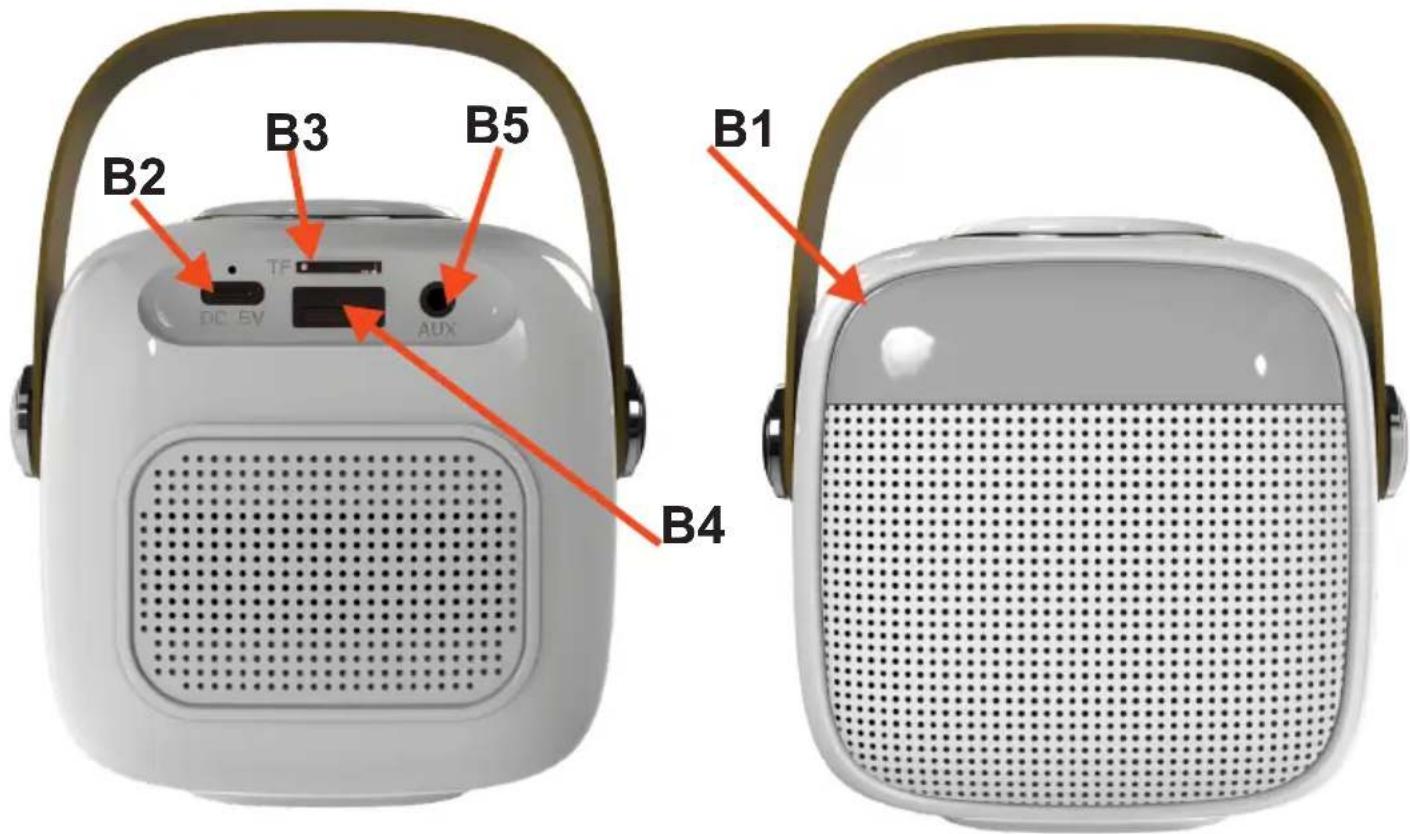

Main body:

B1. Light B2. USB Charging Port B3. SD card port B4. USB playback port B5. AUX port

First setup:

1. remove all package material
2. Charge the device using the USB cable and connect it to the USB charging port (B2) at the back of the device.
3. Turn on the device using the On off button (C1) on top of the device.
4. Turn on your transmitting device such as an Smartphone or tablet.
5. Connect your transmitting device by using the Bluetooth connection and pairing the speaker. Find AD 1199 and press pair on your transmitting device.
6. Turn on the microphone by pressing and holding the On / OFF button (M1) for 3 seconds
7. You have set up the device and it is ready to use.

Switching modes:

The device can use 4 voice modulations and original voice.

1. Baby voice 2. Deep voice 3. Feminine voice

2. Robot voice 5. Original voice.

Press the Modes button (M5) to switch between the modes.

Using the device:

Basic use:

1. Turn on the device by pressing and holding the On / Off button (C1).
2. Connect your transmitting device.
3. Turn on the microphone by pressing the On Off button (M1) on the microphone.
4. Change the voice modulation (M4) to the one you want.
5. You can play music from the transmitting device, and Start / pause (C1) the music on the device. Or short press the On / Off button on the microphone (M1), Make the music louder or quieter using the + / - buttons on the device (C4, C5).
6. To change the volume level of your singing / talking voice you can use the + / - on the microphone (M2, M3).
7. During use you can also change the type of voice modulation using the M5 button on the microphone.
8. To turn off the device press the On / Off button (C1) for 3 seconds

Device buttons use and description:

On off Mode button (C1)

Long press 3 seconds : Power On / Off the device

Short press: Switch between input modes : Bluetooth, USB, SD card, AUX.

Double press: Disconnect Bluetooth connection (Wont connect automatically / reconnect) double press again to connect to your device again.

Play pause button (C2)

Short press play, pause music from transmitting device.

Minus / Plus buttons (C5,C4)

Single press: Volume Up / Down

Long press: Last / Next song

Lights button (C3)

Single press: Lights change

Long press: Turn lights on / off

Microphone:

On / OFF button (M1)

Long press: Turn ON / OFF the device

Single press: play pause music

+ / - button (M2, M3)

Short press: volume of microphone / music UP or Down

Long press: Next / Previous song

Mode button (M4)

Short press: Microphone option change, Music adjustment, microphone adjustment, echo adjustment.

Long Press: Turn the microphone on / off

Microphone button (M5)

Short press: change voice modulation.

Long press: Delete original sound / Power on/off

Technical details:

Built in battery: 3,7V / 1500 mAh

Microphone battery: 500 mAh

Bluetooth: V 5.1

Charging time: 4,5 Hours

Microphone charge time: 2 hours

Playtime: 8 hours at 50% volume

Nominal power: 5 w

SD / USB playback formats: MP3 / WAV

Maximum Output power: 8 W

Changing lights:

You can change the display lights by pressing the C3 button on the device top.

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Electrical appliance must be returned in order to reduce its reuse and utilization. If the device contains batteries they should be delivered to dedicated points
