USER MANUAL AD 1903 ADLER

Exterior view of a black and purple industrial device with mesh grille (no visible text or symbols)

AD 1903

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.
3. The applicable voltage is 5V=1A. For safety reasons it is not appropriate to connect multiple devices to one power outlet.
4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.
   5.WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.
5. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!
6. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.
7. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.
8. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All

the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

1. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.
2. Never use the product close to combustibles.
3. Do not let cord hang over edge of counter or touch hot surfaces.
4. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.
5. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30 mA. Contact professional electrician in this matter.

Device description (Bluetooth speaker)

1. On off Switch 2. Next / + button 3. Play / Pause button 4. Previous / - Button

2. Mode Button 6. Microphone input 7. Aux input 8. SD card input

3. Pen drive input 10. USB charging port 11. Function indicator

4. Speaker 13. Handle

Before first use:

1. Remove all packing material.
2. Using a damp cotton cloth clean the body of the device making sure not to wet the control panel.

Charging:

1. Insert the USB cable. The light will turn stable red which means the device is charging.
2. Once the light turns off. That means the charging is finished and you can start using the device.

Turning on the device:

1. Turn on or off the device by flipping the On / Off switch (1).

Use of the device:

To change between modes press the Mode button (5).

Modes are:

(Bluetooth mode)

1. The function indicator will turn on and begin to blink. (If it's not connected to another device. If such is the case disconnect and connect again).
2. Open your Sender device (Mobile phone, Tablet or other Bluetooth device.)
3. Turn on your Bluetooth connection and locate model AD 1903.
4. Connect with the device. It will confirm connection.
5. You can control the volume from the sending device.
6. To pause and play the currently selected track by pressing the Play Pause button (3).
7. To select next or previous track shortly press the Next or previous button (2,4) This function is only available if you are using a playlist of several audio tracks.
8. You can increase the volume of the device itself by pressing and holding the + and - buttons (2,4).

(AUX mode)

1. Insert the AUX cable into the speaker and your other device with an AUX function.

2. The device will automatically change to AUX mode.

3. By pressing the Play Pause button (3) you can mute and unmute the device.
4. The next and previous buttons are not usable in this mode.

(USB, SD mode)

1. Insert the SD or USB pen drive into the corresponding slot (8,9).
2. The device will change automatically to SD or USB mode respectively.
3. To pause and play the currently selected track by pressing the Play Pause button (3).
4. To select next or previous track shortly press the Next or previous button (2,4) This function is only available if you are using a playlist of several audio tracks.
5. You can increase the volume of the device itself by pressing and holding the + and - buttons (2,4).

(FM mode)

1. To automatically search for available stations press and hold the Play Pause button (3). The device will search and save the found stations.
2. To choose between the found station press the Next / Previous button (2,4)
3. You can increase the volume of the device itself by pressing and holding the + and - buttons (2,4).

Device description:

BT version: 5.3

FM range: 87MHz - 108 MHz

Playback time: Up to 8H (Sound at 50% power)

Input voltage: 5V = 1A Power: 2x 5W

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Electrical appliance must be returned in order to reduce its reuse and utilization. If the device contains batteries they should be delivered to dedicated points

DEUTSCH

Exterior view of a modern silver kettle with blue liquid, no visible text or symbols

Electric Kettle AD 1282

Close-up of a black and white coffee maker with a rolled spout of brown powder nearby (no text or symbols visible)

Burr Coffee Grinder AD 4450

Milk Frother AD 4491

Black rectangular electronic device with a flat lid and ventilation slots (no visible text or symbols)

Sandwich Maker AD 3055

Silver AOLTA 2000 instantstand toaster with dual-tiered top (no visible text or symbols)

TOASTER 2 SLICE AD 3222

Exterior view of a modern kitchen grater with a black and silver plate (no visible text or symbols)

ELECTRIC GRILL AD 3052

White ADLER juiceizer with a wooden squee stick and clear liquid, no visible text or symbols on the device itself.

CITRUS JUICER AD 4009

Product photo of a blender with various orange juice containers and fruit slices (no visible text or labels)

PERSONAL BLENDER AD 4081

Assorted kitchen utensils including blender, spatula, and kitchen tools (no text or labels visible)

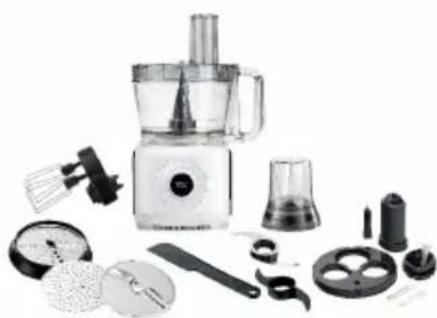

FOOD PROCESSOR AD 4224
