USER MANUAL HW9 Pro Max JIMMY

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

HW9 Pro Max

Instruction Manual Cordless Vacuum&Washer

Instrukcja Obsługi Odkurzacz pionowy z funkcją mycia

Gebrauchsanweisung Schnurloser Staubsauger&Waschmaschine

Manuel d'instruction Aspirateur et laveur sans fil

Manuale d'uso Scopa elettrica e lavapavimenti senza filo

Manual de instrucciones Aspiradora y Lavadora sin cable

Инструкция по эксплуатации Беспроводной пылесос с функцией влажной уборки

Contents

English 2

Polski 14

26Deutsd

Français 39

Italiano 52

Español 64

русский язык 76

Important Safety Instructions

1. Read all instructions and warnings before using this appliance. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury.

2. When using appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury.

Warning

1. The appliance is only for household use.
   2.Before use the product, check whether the local voltage is consistent with the voltage marked on the charging base.

2. Inspect the product before use, stop use if the product or adaptor is damaged.

3. Use only as described in this manual.

4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved children shall not play with the appliance cleaning and user maintenance shall not be made by children without supervision.

5. Do not use this product as a toy. Keep this product away from the reach of children. Take care of children and make sure they will not regard this product as a toy.

6. Do not touch plug with wet hand.

7. Use extra care when cleaning on stairs to prevent falling.

8. Do not use or disassemble or replace any component if there is damage on power cord, plug, battery or conductive parts. Disassembly or replacement of the components by yourself may cause electric shock or fire. JIMMY will not take responsibility. Once damaged, the product need to be repaired or replaced by JIMMY, JIMMY's distributor or qualified person designated by JIMMY to avoid injury.

9. Recharge only with the charging base model specified by JIMMY.

10. Only to use the battery pack specified by JIMMY. Use of any other battery pack may cause explosion, injury and or product damage.

11. If the product does not operate in accordance with the instructions, is seriously impacted, falls from a height, is damaged, or falls into the water, do not use it and contact JIMMY or JIMMY distributor.

12. Only use JIMMY specified replacement parts or attachments.

13. Do not pull or press the cable. Keep cable away from heated surfaces. Do not place the cable in a closed door or pull it through a sharp edge or corner. Keep the cable away from walking area. Do not operate product across the cable.

14. Unplug the product when it is not used or before repairing.

15. Do not drag the cord or carry cord to move the product, or use cord as handle.

16. The product is a rechargeable electric appliance. Do not leave the machine to run unattended

17. Remove battery pack when the product is cleaned, repaired or long idled.

18. Do not get close to heating appliance or expose under sunshine longtime, to prevent over heating causing housing deformation.

19. Keep objects that may obstruct air path from air inlet and outlet to prevent machine overheating.

20. Product mainbody and floorhead have electric components, cannot be washed under water.

21. Do not clean or disassemble brushroll cover or brushroll when the machine is power on or under working to prevent injury.

22. Do not use the product to pick up flaming objects like burning charcoal or cigarette etc.

24.Do not use the product to pick up sharp objects like broken glass.

1. Do not use the product to pick up lime, cement, toner, gypsum powder, flour and other ultra-fine substances.

26.Do not use the product to pick up acid-base cleaning liquid, washing powder and other corrosive liquids.

1. Do not use the product to pick up inflammable and explosive objects like gasoline, alcohol, perfume, paint, etc.

2. Do not disassemble the closed machine, and do not try to change the performance of the machine. Only get help from the professional personnel of the manufacturer, its maintenance department or similar departments, otherwise it will cause danger.

3. Turn off power and unplug charger if the products is long idled.

4. Product technical specification of this manual are based on results from lab tests of JIMMY or designated third parties. The company reserves all rights for final explanations.

About use of the product

1. This product is suitable for hard floor in indoor environment, including waxed floor, rubber floor, tile floor and sealed wood floor, solid wood floor and other flat surface, use of the product on unflat ground may not achieve the best effect.
2. Do not turn on the machine before dirty water tank and clean water tank are assembled in place according to instruction.
3. Do not shake the product up and down or collide violently to prevent dirty water from flowing into the motor; when the product is turned on, do not lift or carry the machine up and down, and do not tilt the product to one side or lay it flat on the floor to prevent dirty water from flowing into the motor.
4. Do not run the product for a long time with the float blocking the air inlet to avoid damage.
5. After using the product, clean the dirty water tank, suction nozzle, air path and store it in ventilated and dry place. Wet place will affect the insulation and life of electrical appliances.

About Cleaning Solution

1. A large amount of cleaning solution entering into the motor may cause damage to the appliance.
2. Mix the solution with clean water according to the instructions (the ratio of solution to clean water is 1:50). It is recommended to use provided cleaning solution. Do not use cleaning solution contains acid, alkali, alcoholic solution or substances harmful to the environment.
3. Keep cleaning solution out of reach of children. If any solution gets into the eyes, immediately flush them with clean water. If any solution is swallowed by accident, see medical care immediately.
4. Dirty water and solution disposal should comply with local environmental regulations.

About disposal of battery

1. The battery in the product contains materials harmful to the environment. Take out the battery pack from the product before disposal.
2. Turn off the product and unplug adaptor before taking out battery pack.
3. Handle the waste battery pack safely and properly. Do not put it into fire, water or soil.
4. If the disposed battery leakage causes pollution to skin or clothes, Wash with clean water and see medical care immediately.

The product may have following signs, which have following meanings:

Sign Meaning
	Pay attention to high-temperature surfaces, as they may become hot during use. Be careful of burns
	Do not use during bathing or showering
	Powered head of water vacuuming device
	Do not cover up
	Water proof grade

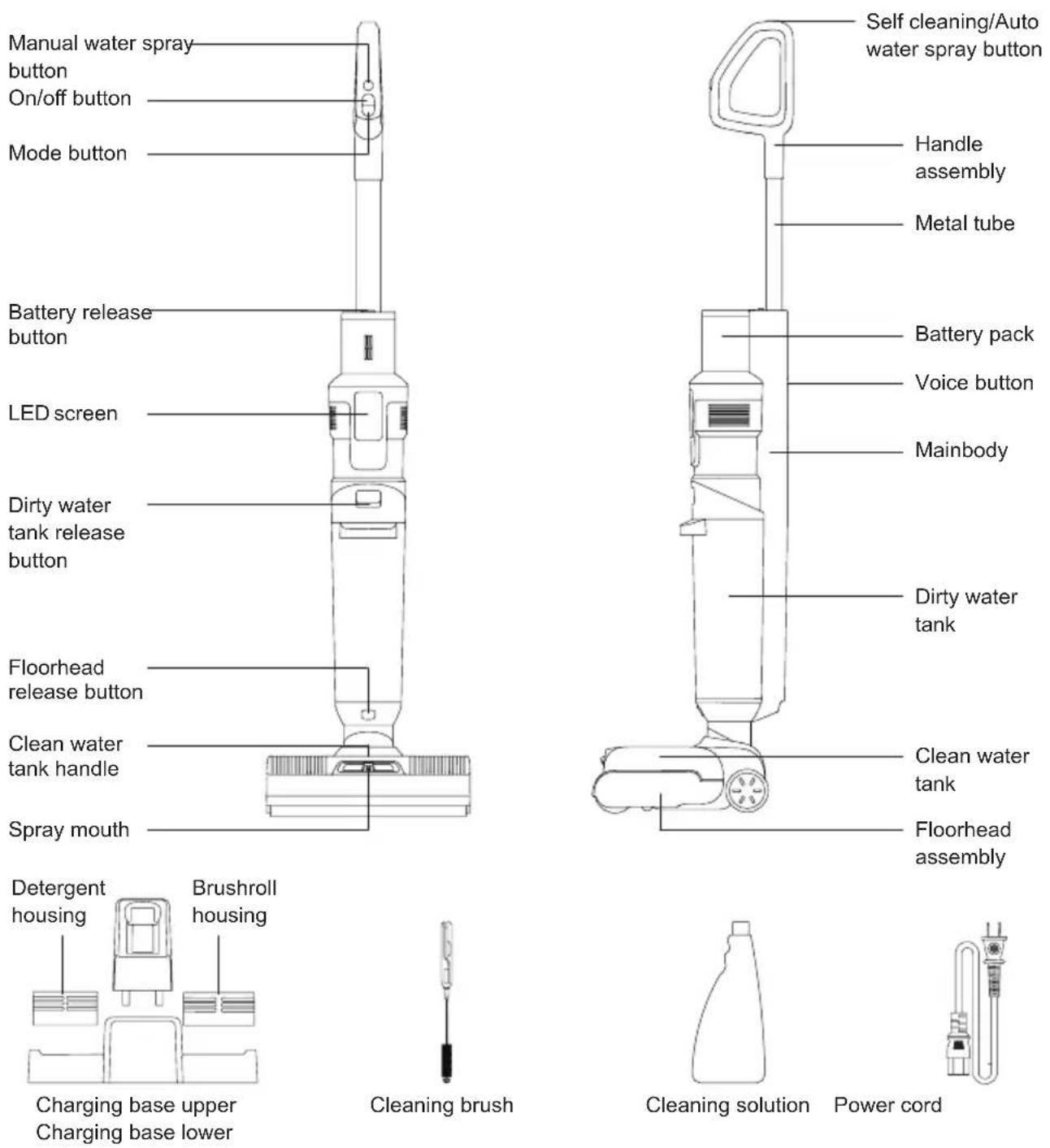

Chapter 1 Product Assembly

Part Name

Packing list

Handle assembly	Floorhead	Mainbody assembly	Dirty water tank	Charging base upper	Charging base lower	Battery pack
1 1 1 1	1 1 1
Brushroll housing	Cleaning solution housing	Cleaning solution	Cleaning brush	Power cord	Instruction Manual
1 1 1 1	1 1

Product assembly and disassembly

Noted: Cut off electricity before product assembly and disassembly.

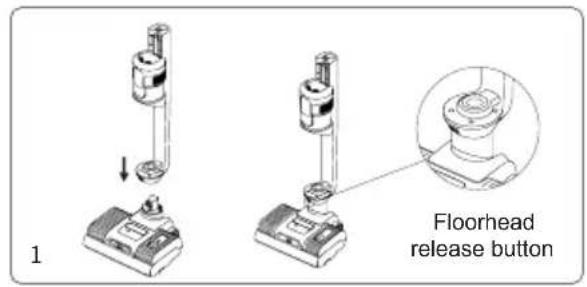

Floorhead assembly and disassembly

To install the floorhead assembly, first align the bottom of the mainbody assembly with the head of the floorhead assembly, insert it down on the floorhead, and push it in until a "click" sound is heard; To take out the floorhead, place the machine on the ground, hold the floorhead with one hand and press floorhead release button with the other hand, lift the mainbody up, and remove the floorhead assembly.(Fig 1)

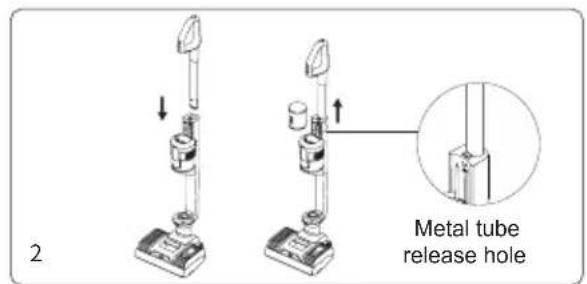

Metal tube assembly and disassembly

Insert the metal tube into the mainbody vertically until a "click" sound is heard. Make sure metal tube is firmly locked. To disassemble the metal tube, Remove battery pack and the use a hard tool like a screw driver to insert into the handle release hole and meanwhile pull out the metal tube upward.(Fig 2)

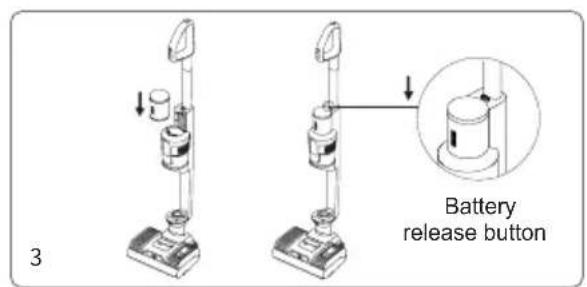

Assemble and disassemble battery pack

1. Slide battery pack along the slot and press the battery pack down firmly until a "click" sound is heard. The battery pack is locked.
2. Press the battery pack release button and pull the battery pack in the direction opposite to the assembly to unlock the battery pack.(Fig 3)
   Note: Except for the replacement of the battery pack, the battery pack doesn't need to be taken out frequently.

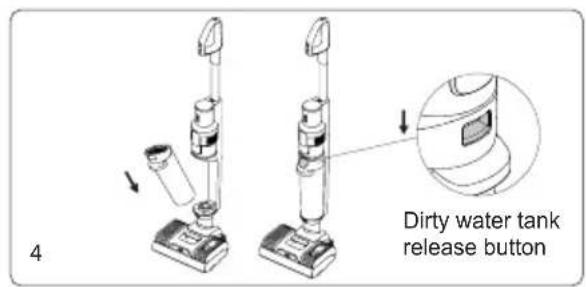

Dirty water tank assembly and disassembly

To assemble dirty water tank, place dirty water tank bottom into mainbody, push dirty water tank towards mainbody until a "click" sound is heard.

To take off dirty water tank, hold machine with one hand and hold dirty water tank with another hand, press dirty water tank release button to pull out dirty water tank. (Fig 4)

Floorhead release button

2 Metal tube release hole

Battery release button

4 Dirty water tank release button

Charging base upper Brushroll housing Charging base lower Cleaning solution housing

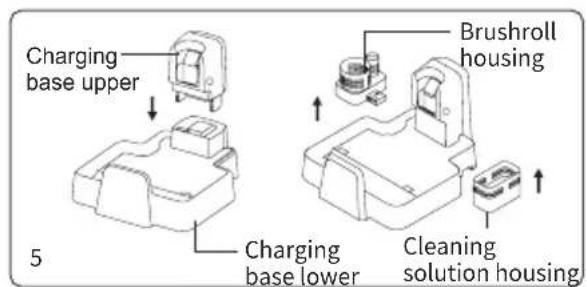

Charge base assembly

Press charging base upper, cleaning solution housing, and brushroll housing to the charging base lower along the illustrated position until a "click" sound is heard. (Fig 5)

Place machine to charging base

Make sure floorhead is in upright position, hold machine handle to lift the machine, aim charging slot on bottom of machine to the charging socket on charging base and put the machine into charging base. To use the machine, hold machine handle and lift out machine from charging base (Fig 6)

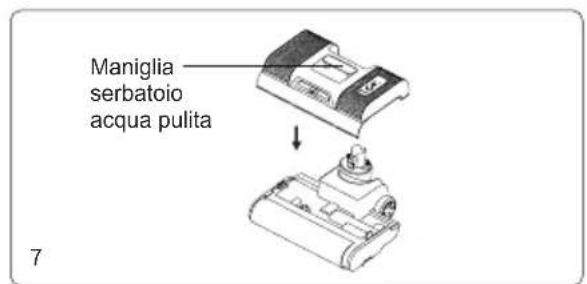

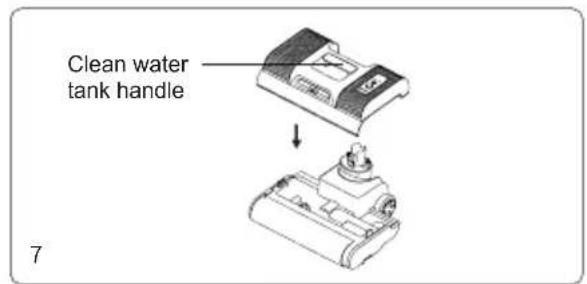

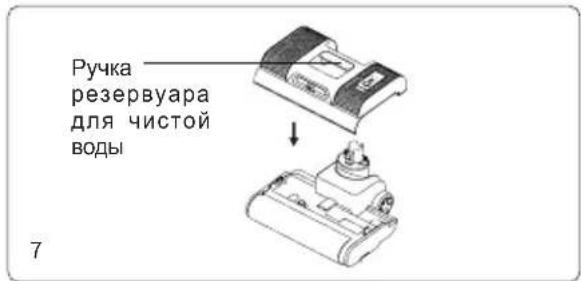

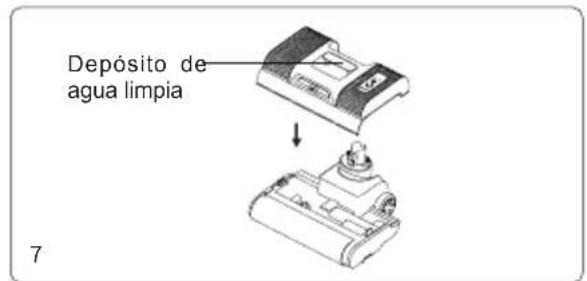

Clean water tank assembly and disassembly

To take off clean water tank, hold the clean water tank handle and pull out the clean water tank. To assemble clean water tank, put the clean water tank back to nozzle, align with the brushroll window. (Fig 7)

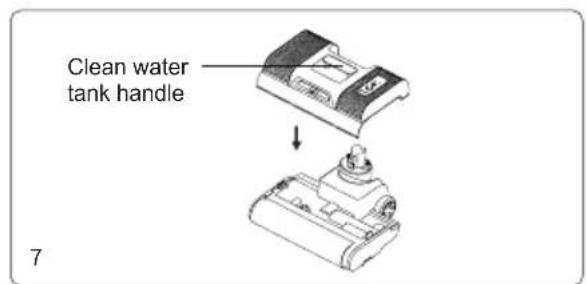

Brushroll assembly and disassembly

To remove the brushroll assembly, first remove the clean water tank assembly, then hold the floorhead down with one hand, rotate the brushroll end cap upwards with the other hand, and remove the brushroll outward;

When installing the brushroll assembly, first align the other end of the brushroll with the spline, rorate the brushroll to the end, and then push the brushroll inward, rotate the brushroll end cover down and install it in place, align brushroll cap with the floorhead top surface. (Fig 8)

Diagram of a medical or laboratory device with a vertical tube and two smaller devices, one being lifted by an arrow (no text or symbols present)

Clean water tank handle 7

Brushroll cap 8

Chapter 2 Use of the Product

Note: Before use, please check whether the machine has power, if no power, please fully charge the machine before using it.

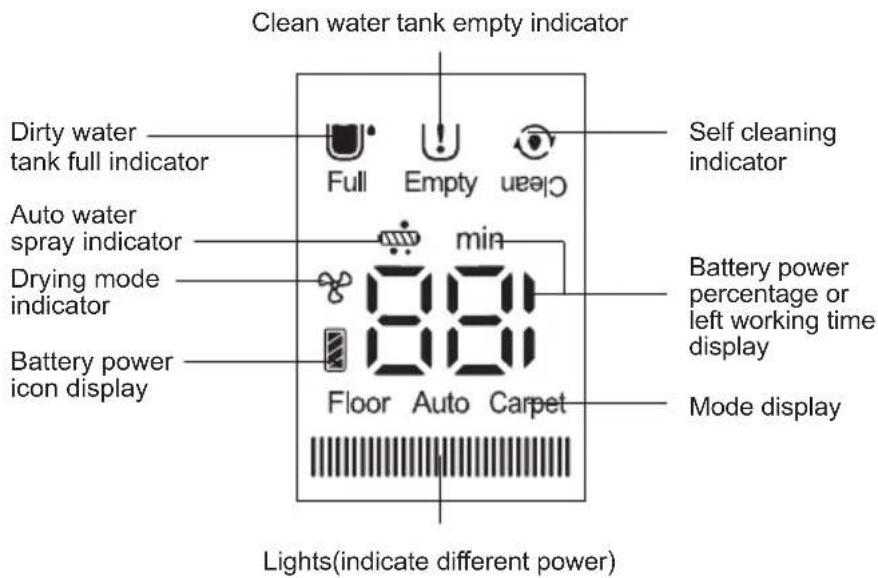

LED screen and instructions

Clean water tank empty indicator Dirty water tank full indicator Auto water spray indicator Drying mode indicator Battery power icon display Full Empty Clean min 800 Floor Auto Carpet Self cleaning indicator Battery power percentage or left working time display Mode display Lights(indicate different power)

Operation of machine

Step on floorhead and push back the handle to release mainbody to tilt state, press the on/off button, default is in Auto mode, press the mode button to switch among floor mode, carpet mode and Auto mode, accompanied by English voice reminding. Press the on/off button again, the voice reminds "Machine turning off", the main motor will run for 2 seconds and then the machine stops working. (Fig 9)

Note:

1. When cleaning carpet, please clean the floorhead first (refer to "Cleaning and Maintenance, Floorhead Cleaning" for details) and propose to change to carpet brush (Carpet brush can be purchased from JIMMY distributors).
2. Under carpet mode, keep pressing mode button for 5 seconds, product will work in maximum power and provide stronger cleaning performance.
3. When the battery power is lower than 20%, it cannot be switched to Carpet mode.

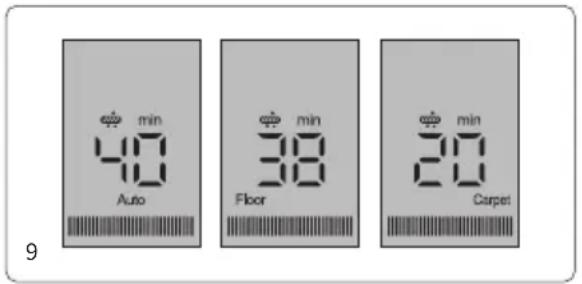

In Auto mode, the machine power changes automatically basing on how much dirty water or dust is detected. And LED light colour changes accordingly. The more dirty water or dust is detected, the more red lights. And the less dirty water or dust is detected, the more blue lights.

40 min Auto 38 min Floor 20 min Carpet 9

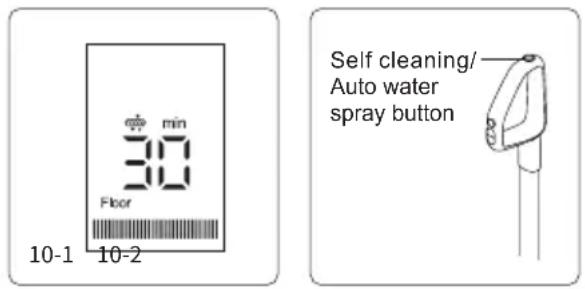

30 min Floor 10-1 10-2 Self cleaning/ Auto water spray button

Manual spray button 10-3

Water spray function

When upright vacuum cleaner is working, press the water spray button, the auto water spray function is open by default. LED screen will show auto spray indicator and clean water will be sprayed to brushroll automatically. (Fig 10-1). To turn off auto water spray function, keep pressing the self cleaning button for over 3 seconds when product is on. To turn on auto water spray function again, keep pressing the self cleaning button for over 3 seconds when product is on.(Fig 10-2)

If floor is very dirty, you can choose to spray more water to floor by using manual water spray function to improve floor washing effect. With the machine turned on, press manual water spray button, spray mouth sprays fan-shaped water; release the water spray button to stop spraying water. Manual water spray function can be activated no matter whether auto water spray function is turned on or off. (Fig 10-3)

Keep pressing self-cleaning button for 3s to turn on or turn off brushroll auto water spray function.

Note:

1. The manual water spray button cannot be used with the on/off button or the mode button at the same time.
2. It is recommended to use carpet mode when there is heavy pollution or water stain.
3. When cleaning carpet, please turn off auto water spray function.
4. Please use the low-foam cleaning solution with this product for cleaning, do not put the easy foaming cleaning solution into the clean water tank for use, otherwise more foam will be generated during use, which may penetrate into the machine and cause danger.

Machine charging

Connect the power cord to the power supply, put the product into the charging base to start charging. The display screen will turn off when fully charged.(Fig 11)

Note:

1. Before the first use, please fully charge the battery pack, and before the second charge, please empty the battery to ensure the life of the battery pack.

2. If the product is long idled, please charge the battery within every 3 months. (Be sure to use the power cord supplied with the product to charge)

3. When not charging, please unplug power cord from the socket to prevent the danger of accidental touching.

Hot drying function

Under charging mode, press mode button to enter hot dry mode. Hot air will dry entire air path including burshroll, dust cup and dirty water tank for about 0.5 hour and then only dry brushroll for another 2.5 hours. In the first 0.5 hour full air path drying, vacuum motor will work to send hot air through the full air path.

To stop drying air path and only keep brushroll drying for silent drying mode, press on/off button, vacuum motor will not work in this mode.(Fig 11)

To turn on and turn off hot air drying function, press mode button.

Brushroll & air path self-cleaning function

In charging mode, press the self-cleaning button to enter cleaning mode (Fig 11), and after completing self-cleaning, the machine enters the brushroll hot drying

11 Charging mode

Self-clean mode

Air drying mode

Line drawing of a mechanical device with a cylindrical component and ventilation slots (no text or symbols)

12

Water filling mouthWater filling p

13

Pure diagram of two vertical cylindrical objects with internal structures, no text or symbols present

-Mute button

mode automatically; Self-cleaning process can be stopped in advance by pressing on/off button or mode button, and product will return to the charging mode. Fan will be turned off with a delay of 3mins.

Note:

1. Self-cleaning mode is only to clean floorhead air path and hardfloor brushroll.
2. Before turning on the cleaning mode, please empty the dirty water in the dirty water tank, check that the machine is firmly placed on the charging base, the power cord is plugged into the power socket, the power cord is connected to the charging base, and the clean water tank retains at least 1/2 of the water; After completing the self-cleaning, clean the dirty water tank again;
3. When the battery is less than or equal to 10% power, the self-cleaning mode cannot be turned on, and it can be turned on normally after charging for a period of time.

Clean water tank empty indicator

1. When using the water spray function, if " ! " indicator appears in screen and the voice reports "No clean water, fill in water", please turn off the machine and add water to the clean water tank.
2. When using the self-cleaning mode, if it is detected that there is no water in the clean water tank, " ⚠ " indicator appears in screen and the brushroll self cleaning will be stopped. The voice reports "No clean water, please fill water". To continue self cleaning, please add water to the clean water tank and empty the dirty water tank, then restart self clean mode.

Fill up clean water tank

Fill up clean water tank: Remove the clean water tank and lift the water filling plug of the clean water tank or directly open the water filling plug of the clean water tank, expose the water inlet hole, pour clean water and cleaning solution in,, and press the water filling plug down to install it to the end, and install it back into the clean water tank. (Fig 12)

Note:

When adding clean water, you can add the equipped cleaning solution in the ratio of about one bottle cap to one full tank of clean water.

Dirty water tank full indicator

1. When the upright vacuum cleaner detects that the dirty water tank is full, "Indicator appears on screen, the machine will stop and give a voice reminder. Please clean the full dirty water tank and put it back.
2. When it is detected that the dirty water tank is full in self clean mode, "Indicator appears on screen, the machine will stop working and give a voice reminder. Please clean the full dirty water tank and put it back within 5 minutes and self cleaning will continue.

Dirty water tank cleaning

Take out dirty water tank upper cover and filter frame, dump the dirty water, assemble the dirty water tank after washing, and put it back on the floorhead (refer to "Cleaning of dirty water tank" for details).

Brushroll stuck indicator

When the cleaner is in working or cleaning mode, if the brushroll is stuck, the machine will stop and give a voice reminder. Please take out the brushroll, clean up the foreign matter or entangled hair on the brushroll.

Brushroll cleaning

After removing the clean water tank, pull out brushroll, use the cleaning brush to cut off and remove the hair winded around the brushroll, and clean the foreign matter attached to the brushroll and floorhead, Install brushroll and clean water tank back (refer to "Cleaning of Floorhead assembly" for details).

Air path blocked indicator

When the vacuum cleaner is working /self cleaning mode, if the air path is blocked, the machine will stop working and give a voice reminder. Please clean the possible blockage of the floorhead air path and dirty water tank, check and clean up in turn before continuing to work.

Air path cleaning

Disassemble the dirty water tank, take out dirty water tank upper cover and filter, wash all parts and them assemble back. Use pipe brush to clean the dirt, foreign objects and hair inside air path of floorhead. and then load the dirty water tank back into the floorhead assembly.

Voice function

The product includes voice reminding of 5 different language: English, German, Italian, French and Russian. Voice of the new machine is turned on and in English by default, press the voice button to switch to other language, keep pressing the voice button to turn off the voice function; press the voice button again to turn on the voice function. (Fig 13)

Low battery power indicator

1. When the upright cleaner is working, if the voice reminds "Low battery. Please charge the battery ", Please use it after charging.
2. When the upright cleaner is working, if the voice reminds "Low battery. Machine will be turned off soon. Please charge the battery", the power is about to be exhausted, and it will automatically shut down. Need to charge for use.
3. When using vacuum cleaner, The LED screen displays left working minutes under current working mode. The icon on top right corner of the screen shows left battery power, full grid means 75% to 100% battery; 3/4 grid means to 50% to 75% battery; 1/2 grid means 25% to 50% battery; 1/4 grid means 1% to 25% of the battery; the blank means the battery being empty, and it needs to be charged before use.

Chapter 3 Cleaning and Maintenance

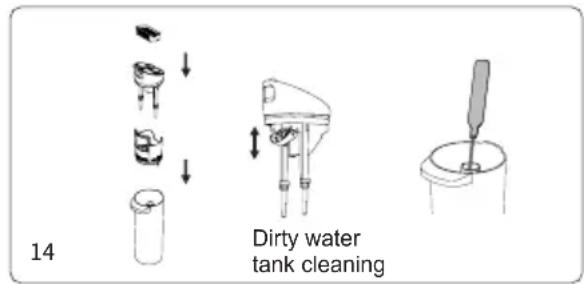

Dirty water tank cleaning

1. When dirty water tank is full, the dirty water tank full indicator on LED screen will blink. The machine will stop working immediately and has voice reminding "Dirty water tank full, please empty tank".

2. After turning off the vacuum cleaner, remove the dirty water tank, lift the water tank top cover, and remove the foam filter frame from it, open the flip cover of the foam filter frame, take out the foam filter. Pour out dirty water and dirt in the water tank, then wash dirty water tank, water tank cover, foam filter frame and foam filter. (Fig 14)

3. If there is foreign matter in the dirty water tank pipe, it can be cleaned with the cleaning brush

4. Dry the above parts after washing. And then reassemble all the parts back into dirty water tank. Note:

5. When the machine is not in use, the upper cover of dirty water tank should be taken out for airing to avoid odor.

6. After the machine has finished working, it is recommended to clean the dirty water tank immediately to avoid odor.
7. After cleaning the upper cover of the dirty water tank, the metal contact sheet on the top cover of the dirty water tank must be wiped dry before use

14 Dirty water tank cleaning

Floorhead cleaning 15

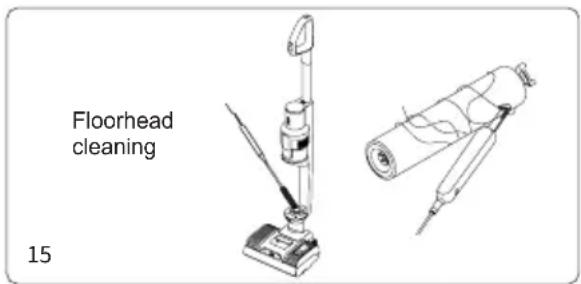

Floorhead cleaning

After removing the brushroll window, brushroll, clean water tank, and dirty water tank, insert the multifunctional cleaning brush through the circular hole below the installation position of the dirty water tank to clear foreign matter and scales in the pipe, and the clogged hair; Use the multi-functional cleaning brush to cut off the tangled hairs on the brushroll; Wipe the machine and the dirty parts removed with a rag, and then put it back on the machine separately (the brushroll can also be put into the brushroll box to dry); Rinse off the dirt attached to the multi-function cleaning brush and place it in the brushroll box.(Fig 15)

Note: Do not wash floorhead!

Maintenance and Storage

1. Please turn off the machine before the cleaning.
2. It is recommended to clean the dirty water tank, filter, brushroll and brushroll window after each use. The machine will stop working if the dirty water reaches MAX line. Please drain the dirty water tank immediately. After the accumulated use time of the filter reaches 30-50 hours (various basing on filter status), replace the filter to avoid affecting machine performance. Filter can be bought from local distributor.
3. When the machine is long idled, place it in a cool and dry place, avoid direct sunlight or wet environment.
4. When pack and store the machine, Please be sure to clean the machine and dry all parts to prevent damage to the machine.

Troubleshooting

Please check the following points before contacting the after sale service.

Problem Possible cause	Solution
Can not start or stop during use	No or Low battery power Recharge and use in time
	On/off button is not pressed down Press down on/off button
	Brushroll is entangled Clean brushroll in time
	Dirty water tank full Clean dirty water tank
	Battery pack not assembled properly Reassemble battery pack
	Suction inlet blocked Clean suction inlet and filter
	Battery pack is not in place Install the battery pack
Weak suction	Suction inlet blocked Clean suction inlet and filter
	No HEPA assembled Assemble HEPA
Abnormal noise	Suction inlet blocked Clean suction inlet and filter
	No HEPA assembled Assemble HEPA
Spray mouth does not spray water	Clean water tank empty Fill clean water tank
	Water spray button not pressed Press water spray button
	Clean water tank not assembled properly	Reassemble clean water tank
Water spray out from air path	Metal filter is not assembled in the dirty water tank	Assemble metal filter in dirty water tank
	Soft plastic folds under the filter	Reassemble the filter, the soft glue must not be folded
	HEPA filter put to use without fully dry	Dry the HEPA filter after washing before use

Note: If the above troubleshooting guide fails to provide a solution or the screen displays error code F1 to F8, please contact after service or local distributor for support.

Product Specification

Technical parameters

Product Name Cordless Vacuum&Washer
Model HW9 Pro Max
Rated Power 460W
Battery Capacity 4000mAh
Charging Time 4h±0.5
Rated Input 220 - 240V ~ 50/60 Hz
Rated Voltage 21.6V	==

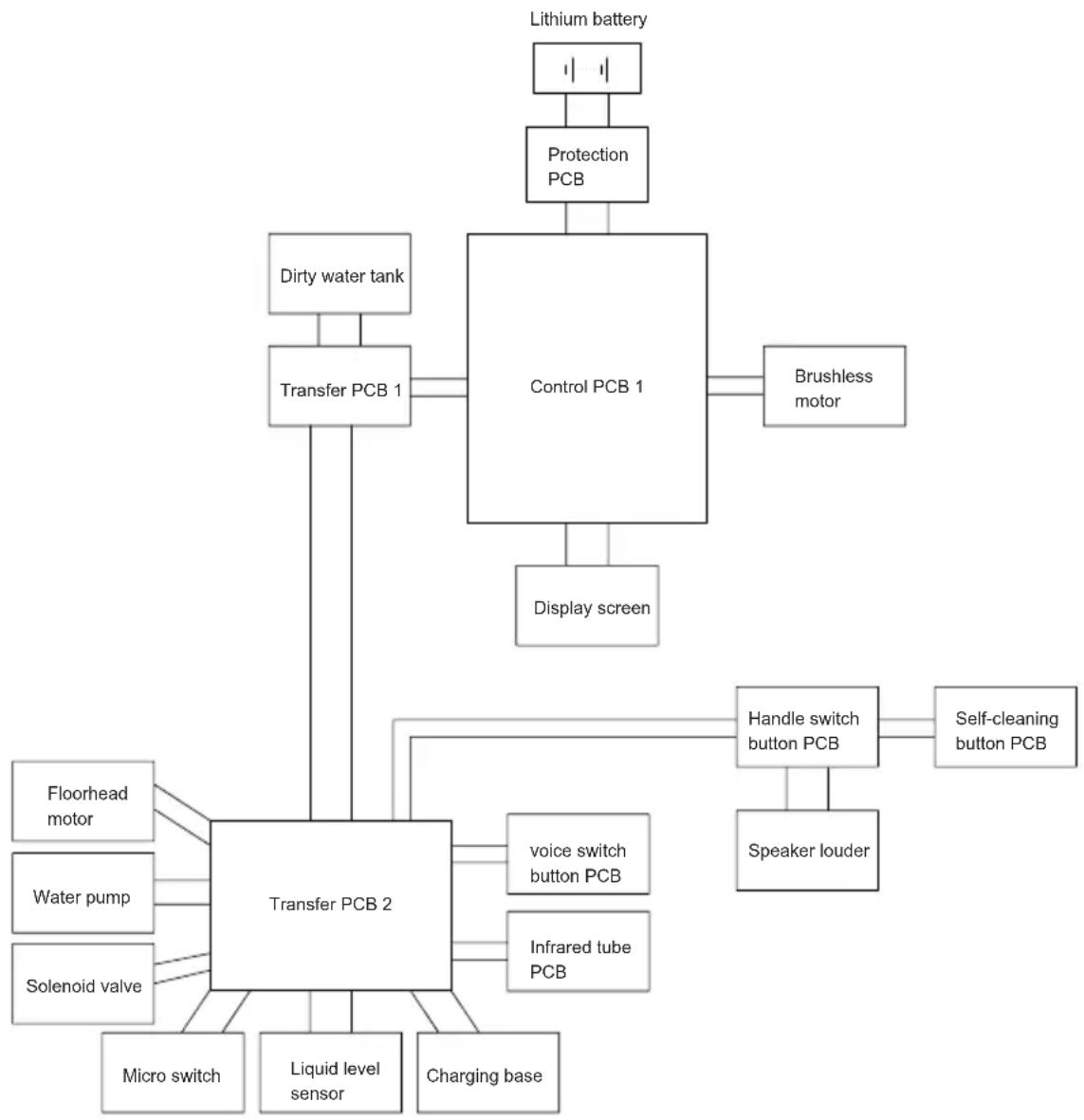

Circuit Diagram

Manufacturer Information

Manufacturer	Kingclean Electric Co., Ltd
Address	No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009, China

CE

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of the machine into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Integrated batteries may only be removed for disposal by qualified personnel. Opening the housing shell can damage or destroy the machine.

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should, if possible, be discharged, collected, recycled or disposed of in an environmental-friendly manner.

Subject to change without notice.

Warranty Information

This product enjoys two years warranty from the date of purchase.

Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances.

Diagram of a medical or laboratory device with a vertical tube and two smaller components, one being lifted by an arrow (no text or symbols present)

Note: If the above trouble shooting guide fails to provide a solution or the screen displays error code F0 to F9, please contact after service or local distributor for support.

The product may have following signs, which have following meanings:

Sign Meaning
	Pay attention to high-temperature surfaces, as they may become hot during use. Be careful of burns
	Do not use during bathing or showering
	Powered head of water vacuuming device
	Do not cover up
IPX4	Water proof grade

Diagram of a medical device with a vertical tube and base, showing a downward arrow indicating a process (no text or symbols present)

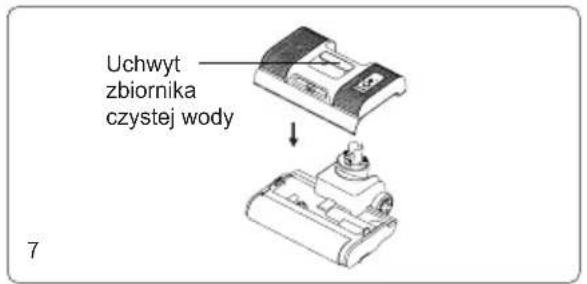

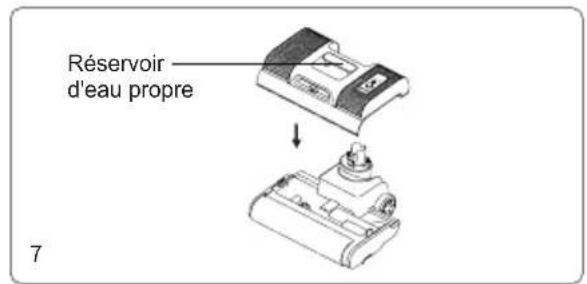

Clean water tank handle 7

Brushroll cap 8

Line drawing of a mechanical device with a cylindrical component and ventilation slots (no text or symbols)

12

Diagram of a medical or laboratory device with a vertical tube and two smaller devices, one being lifted by an arrow (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

12

Water filling mouth Water filling p

Noted: Cut off electricity before product assembly and disassembly.

Diagram of a medical or laboratory device with a vertical tube and two smaller devices, one being lifted by an arrow (no text or symbols present)

Maniglia serbatoio acqua pulita 7

Coperchio rullo 8

Technical line drawing of a mechanical component with a pointed tip and base, no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

12

Diagram of a medical or laboratory device with a vertical tube and two smaller devices, one being lifted by an arrow (no text or symbols present)

Please check the following points before contacting the after sale service.

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

In Auto mode, the machine power changes automatically basing on how much dirty water or dust is detected. And LED light colour changes accordingly. The more dirty water or dust is detected, the more red lights. And the less dirty water or dust is detected, the more blue lights.

Clean water tank empty indicator

Technical line drawing of a mechanical component with no visible text or symbols

12
