BKM-39H - Electronic accessory SONY - Free user manual and instructions

Product type	Monitor controller mounting base
Brand	Sony
Model	BKM-39H
Usage	Bracket for assembling a BVM-E171 monitor and BKM-17R control unit
Components supplied	S side cover (right) x1, S side cover (left) x1, Screw A (4×8 mm) x8, Connection cable x1
Number of screws	8 screws A of 4×8 mm
Connection cable	Yes, with DC 12V (L-shaped) and LAN (10/100) connectors
Power supply	Connection via monitor DC 12V OUT connector
Compatibility	BVM-E171 monitor and BKM-17R control unit
Safety precautions	Install on a stable surface; use only the supplied screws; do not stand on the base; wear gloves during handling
Mounting	Place the monitor upside down; remove the feet; attach the control unit; assemble the side covers; reconnect the cables
Maintenance	Clean with a soft cloth; avoid solvents; check stability regularly
Weight	Approx. 0.5 kg (estimated)
Dimensions	Approx. 200 x 150 x 80 mm (estimated)

Frequently Asked Questions - BKM-39H SONY

What is the usage of the BKM-39H?

The BKM-39H is a mounting base for assembling a BVM-E171 monitor and BKM-17R control unit to form a compact control station.

What components are included in the BKM-39H?

The kit includes two side covers (right and left), eight screws A (4×8 mm), and a connection cable with DC 12V and LAN connectors.

How to install the mounting base?

Place the monitor upside down on a soft cloth, remove the feet from the monitor and control unit, attach the removed feet to the control unit, place the unit on the monitor, then assemble the side covers with the supplied screws. Finally, reconnect the cables.

What safety precautions should I take during installation?

Ensure the surface is stable, use only the supplied screws, do not step on the base, and wear gloves to avoid injury.

What type of cable is provided and how to connect it?

The connection cable has an L-shaped DC 12V connector and a LAN connector. Connect it first to the control unit (DC 12V and LAN), then to the monitor (DC 12V OUT and LAN) respecting the orientation.

Can I use the BKM-39H with other monitors?

No, it is specially designed for the BVM-E171 and BKM-17R models. Use with other units may cause falls.

How to maintain the mounting base?

Clean it with a soft, dry cloth. Regularly check the screw tightening and stability.

What to do if a screw is lost?

Use only screws of the same specification (4×8 mm) to avoid any risk. Contact a Sony dealer for replacement parts.

Does the BKM-39H require a power supply?

No, it is a mechanical support. Power is supplied via the connection cable that links the monitor to the control unit.

Can I mount the base without tools?

Yes, the screws can be hand-tightened, but it is recommended to use a suitable screwdriver for proper tightening.

USER MANUAL BKM-39H SONY

Japanese/English/French/German/Italian/Spanish

Simplified Chinese/Traditional Chinese/Korean

1st Edition (Revised 3)

安全のために

警告表示の意味

Technical line drawing of an electronic device casing with mounting points and indicator lights (no text or symbols)

Technical line drawing of a rectangular electronic device with four ports and mounting holes, showing mounting points and downward arrows indicating assembly or adjustment (no text or symbols present)

Technical line drawing of a mechanical device with mounting brackets and internal components (no text or symbols)

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Table of Contents

Precautions 9

Overview 9

Features....9

Components....9

Assembly 10

Note

Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

Precautions

• When you assemble the attachment stand, turn off the monitor power before unplugging the cable. If you attach the attachment stand with the monitor power on, the cable may become trapped between the monitor and the attachment stand, and this may lead to electric shock.
• Install the attachment stand on a steady table. If the attachment stand is installed on a wobbly or sloping surface, the monitor may drop down and may cause personal injury. Make sure that the installation location is sufficiently strong.
• The use of screws other than those supplied may lead to injury, because they may loosen or fall out.
• Do not attach the attachment stand to units other than those specified. If you do, the monitor may drop down and may cause personal injury.
• Do not climb on the attachment stand or place anything heavy on it, as this may cause you to fall and injure yourself or the monitor to crash to the floor.
• Do not touch any sharp points of the attachment stand with bare hands. When you unpack, carry, attach and disassemble the attachment stand, wear protective gloves to avoid injury.

Overview

Features

The BKM-39H Controller Attachment Stand is an attachment stand for joining a BVM-E171 and a BKM-17R Monitor Control Unit.

Components

The BKM-39H consists of the following components. Make sure that you have all the components before beginning assembly.

Side cover S (right) (1)
Side cover S (left) (1)
Screws A (4 × 8 mm) (8)
Connecting cable (1)

Assembly

1 Turn the monitor upside down.

Note

Place the monitor flat on a soft cloth. When the handle is attached to the monitor, remove the handle beforehand.

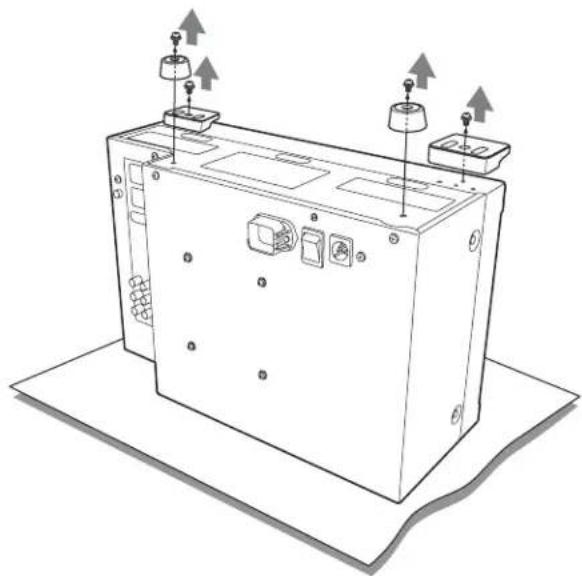

2 Remove the four legs from the bottom of the monitor.

Technical line drawing of a device casing with mounting hardware and three hanging components (no text or symbols)

3 Remove the two legs from the bottom of the control unit.

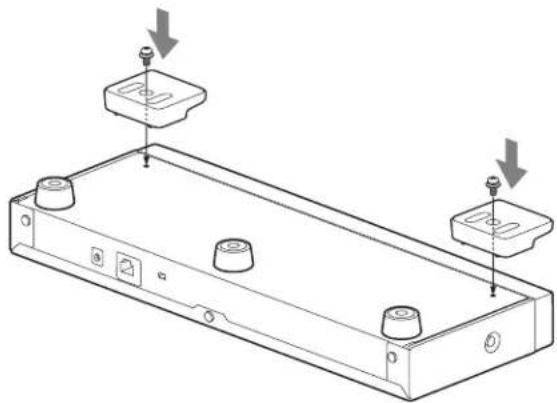

4 Attach the two legs removed from the front side of the monitor to the bottom of the control unit.

Note

Secure the legs to the control unit using the two screws removed from the monitor.

Technical line drawing of a rectangular electronic device with four ports and mounting holes, showing no text or symbols.

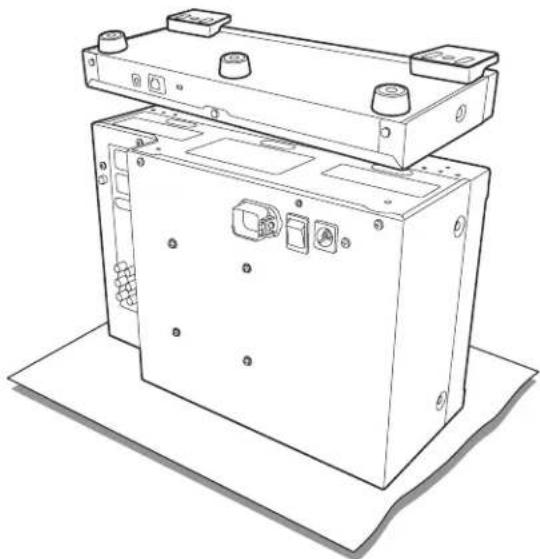

5 Place the control unit on the monitor.

Technical line drawing of a mechanical device with mounting holes and internal components (no text or symbols)

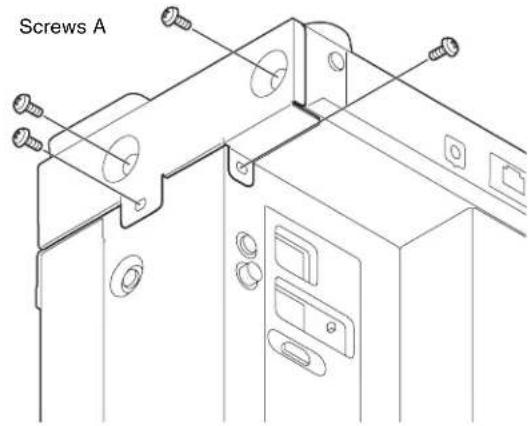

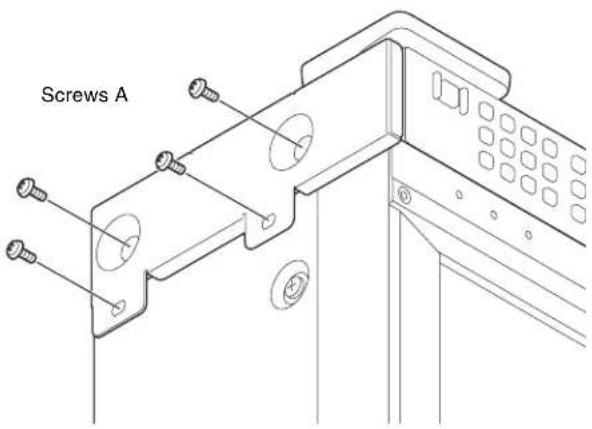

6 Connect the monitor and the control unit using the side cover S (right) and side cover S (left). Secure the side covers to the control unit and the monitor, using screws A (4 × 8 mm).

Right side

Left side

7 Turn the monitor upright and connect the supplied connecting cable to the DC 12V and LAN (10/100) connectors on the rear panel of the control unit.

Note

Plug the connector of the DC cable (L-shaped) to the DC 12V connector.

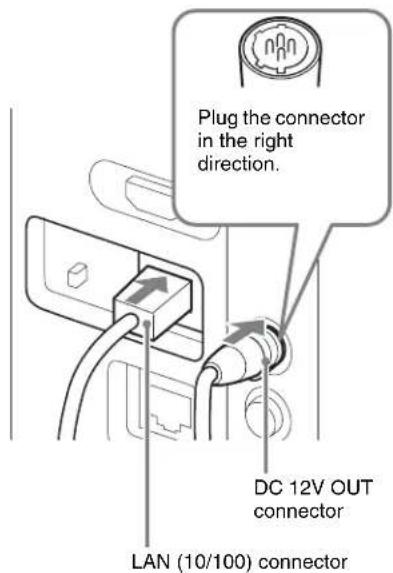

8 Plug the connecting cable into the DC 12V OUT and LAN (10/100) connectors on the rear panel of the monitor.

Note

When connecting the cable into the DC 12V OUT connector, be sure to plug the connector of the cable into the DC 12V OUT connector on the monitor in the right direction.

Français

Technical line drawing of a device casing with mounting hardware and three hanging components (no text or symbols)

Technical line drawing of a rectangular electronic device with four ports and mounting holes, showing no text or symbols.

Technical line drawing of an electronic device casing with mounting tabs and ports (no text or symbols)

Technical line drawing of a device chassis with mounting points and indicator lights (no text or symbols)

Technical line drawing of a rectangular electronic device with four ports and mounting holes, showing no text or symbols.

Technical line drawing of an electronic device casing with mounting holes and internal components (no text or symbols)

Technical line drawing of a device casing with mounting points and three upward arrows indicating orientation (no text or symbols present)

Technical line drawing of a rectangular electronic device with four ports and mounting holes, showing no text or symbols.

Technical line drawing of a mechanical device with mounting tabs and internal components (no text or symbols)

Technical line drawing of a device casing with mounting points and indicator lights (no text or symbols)

Technical line drawing of a rectangular electronic device with four ports and mounting holes, showing no text or symbols.

Technical line drawing of a mechanical device with mounting tabs and internal components (no text or symbols)

Technical line drawing of a device chassis with mounting points and indicator lights (no text or symbols)

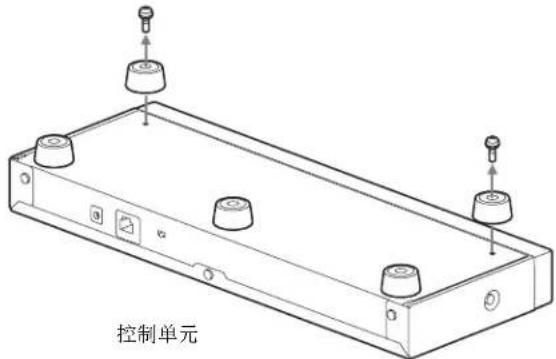

3 从控制单元底部拆下两个支脚。

Technical line drawing of a rectangular electronic device with four ports and two mounting holes, showing mounting points (no text or symbols)

5 将控制单元置于监视器上。

Technical line drawing of a mechanical or electronic device casing with mounting holes and internal components (no text or symbols)

Technical line drawing of a device chassis with mounting points and indicator lights (no text or symbols)

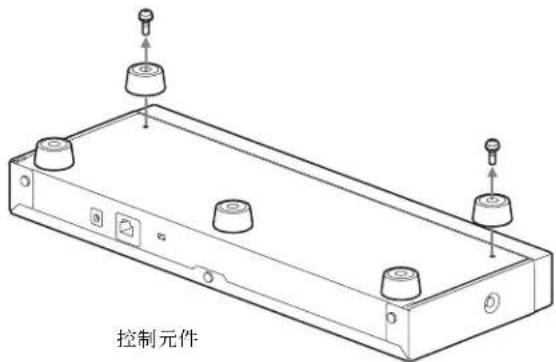

3 將兩個支腳從控制元件底部拆下。

Technical line drawing of a rectangular electronic device with four ports and two mounting holes, showing no text or symbols.

5 將控制元件置於顯示器上。

Technical line drawing of an electronic device casing with mounting holes and internal components (no text or symbols)

Technical line drawing of a device chassis with mounting points and indicator lights (no text or symbols)

Technical line drawing of a rectangular electronic device with four ports and two mounting holes, showing mounting points (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and internal components (no text or symbols)

The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual.

Sony Corporation expressly prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual without the express written permission of Sony Corporation.
