USER MANUAL T300RS GT Edition THRUSTMASTER

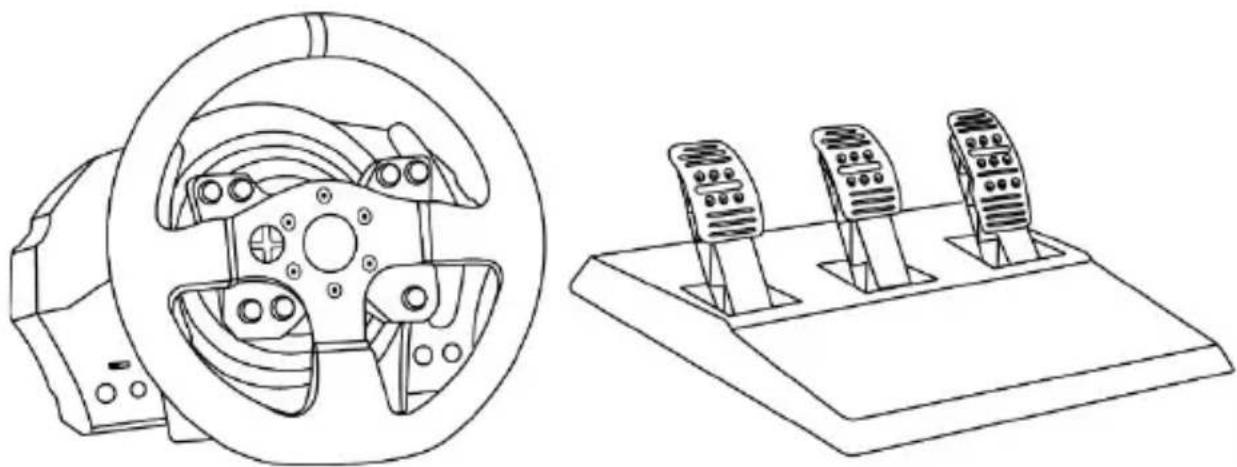

Technical line drawing of a steering wheel assembly (no text or symbols)

Line drawing of three remote control devices on a base platform (no text or symbols)

WARNING:

To ensure that your T300 racing wheel functions correctly with games, you may be required to install the game's automatic updates (available when your console is connected to the Internet).

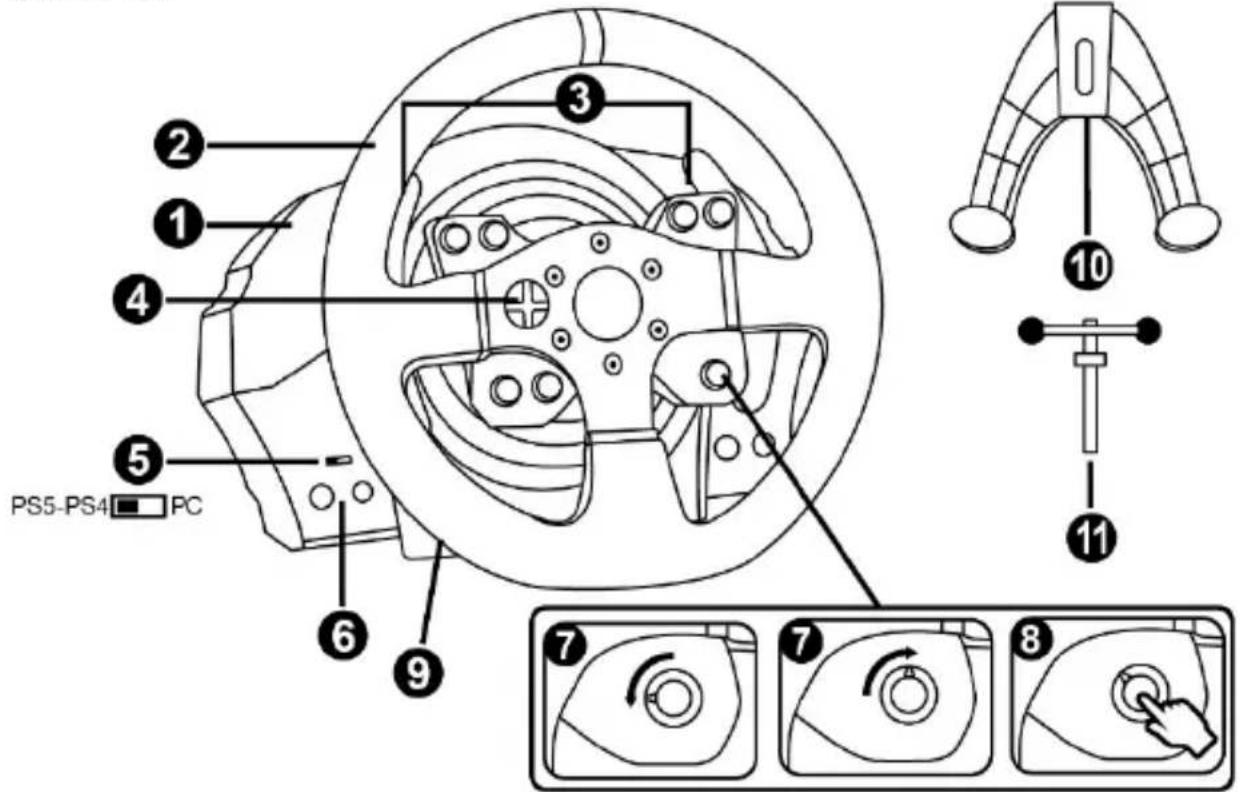

TECHNICAL FEATURES

PS5-PS4 PC 1 2 3 4 5 6 7 8 9 10 11

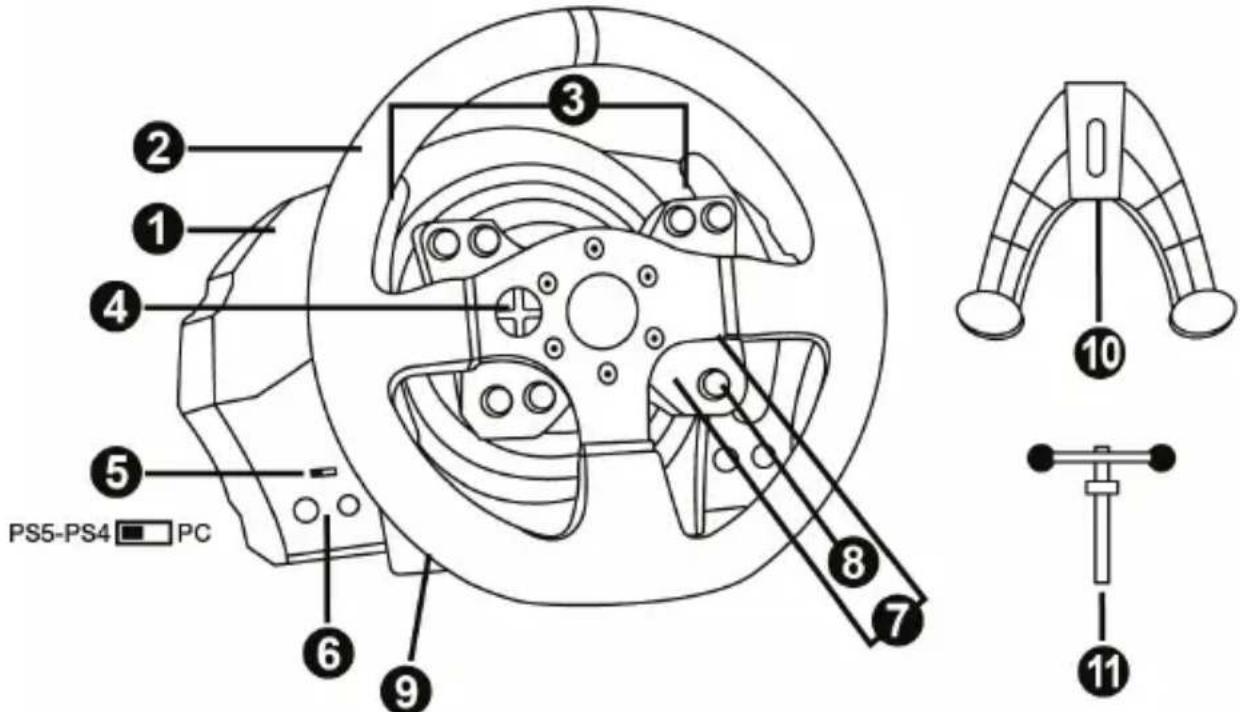

1 T300 RS base
2 Ferrari 599XX EVO Wheel
3 2 sequential paddle shifters (up & down)
4 Directional buttons
5 Built-in USB sliding switch for PS5 ^TM consoles, PS4 ^TM consoles and PS3 ^TM systems
6 MODE button + red/green indicator light

7 SELECT/START buttons on PS3 ^TM systems, SHARE/OPTIONS on PS4 ^TM consoles and CREATE/OPTIONS on PS5 ^TM consoles
8 PS button
9 Large threaded hole (for attachment system and fastening screw)
10 Attachment system
11 Metal fastening screw

Important notes regarding the USB sliding switch (5):

• In order to function on a PS5™ console or PS4™ console, the USB sliding switch (5) on the racing wheel's base must always be in the PS5™-PS4™ position before connecting the racing wheel's USB cable to the console.
• In order to function on a PS3™ console, the USB sliding switch (5) on the racing wheel's base must always be in the PC position before connecting the racing wheel's USB cable to the console.
• In order to function on PC, the USB sliding switch (5) on the racing wheel's base must always be in the PC position before connecting the racing wheel's USB cable to the PC.

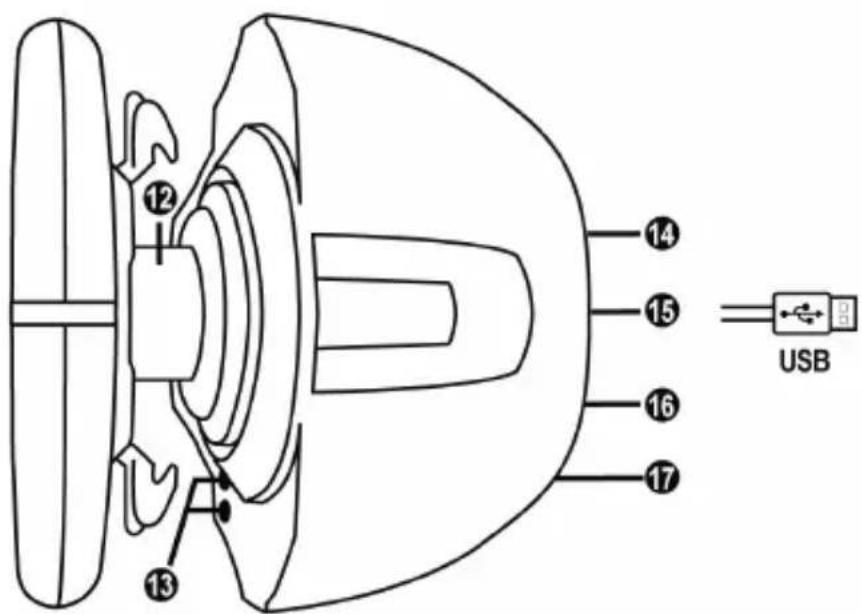

12 14 15 USB 16 17 13

12 Thrustmaster Quick Release
13 L3/R3 buttons
14 Power supply connector (type A or B) (varies from one country to another)

15 Racing wheel USB cable and connector
16 Gearbox connector (gearbox sold separately)
17 Pedal set connector

PLUGGING THE RACING WHEEL INTO AN ELECTRICAL OUTLET: PLEASE READ BEFORE PROCEEDING!

Your racing wheel's power supply varies according to the country where you purchased your device. The power supply can be:

Internal, with:

* a power supply unit located directly inside the racing wheel's base, with a type A connector.
* a 220-240 V power supply cable.
= compatible only with 220-240 V electrical power.

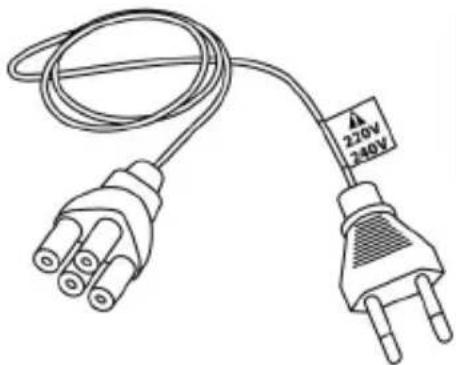

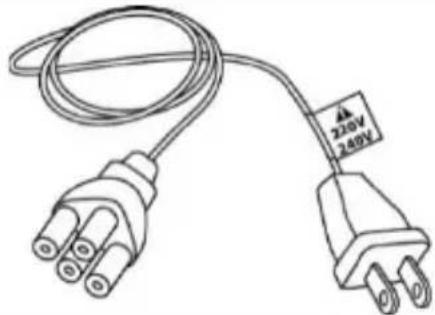

Line drawing of a three-pin electrical plug with a 220V and 240V power rating label (no text or symbols beyond labels)

Never connect the 220-240 V cable a 100-130 V electrical outlet!!!

Never connect this cable to a power adapter!!!

Internal, with:

* a power supply unit located directly inside the racing wheel's base, with a type A connector.
* a 100-125 V power supply cable.
= compatible only with 100-125 V electrical power.

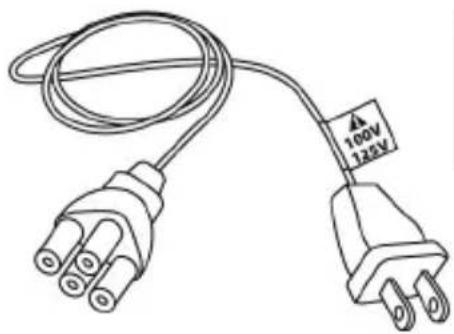

Line drawing of an electrical plug with three leads and a 100V label, no text or symbols present

Never connect the 100-125 V cable a 220-240 V electrical outlet!!!

Never connect this cable to a power adapter!!!

IMPORTANT: if you do not know which voltage is supplied in the area in which you are using your racing wheel, please ask your local electricity supplier.

External, with:

* an external power supply unit, with a type B connector.
* a power supply cable.
= compatible with all electrical voltages, from 110-240 V.

110V 240V

WARNING

Before using this product, please read this manual carefully and save it for later reference.

Warning – Electrical shock

* Keep the product in a dry location and do not expose it to dust or sunlight.
* Do not twist or pull on the connectors and cables.
* Do not spill any liquid on the product or its connectors.
* Do not short-circuit the product.
* Never dismantle the product; do not throw it onto a fire and do not expose it to high temperatures.
* Do not use a power supply cable other than the one provided with your racing wheel.
* Do not use the power supply cable if the cable or its connectors are damaged, split or broken.
* Make sure that the power supply cable is properly plugged into an electrical outlet, and properly connected to the connector at the rear of the racing wheel's base.
* Do not open up the racing wheel: there are no user-serviceable parts inside. Any repairs must be carried out by the manufacturer, its authorized representative or a qualified technician.
* Only use attachment systems/accessories specified by the manufacturer.
* If the racing wheel is operating abnormally (if it is emitting any abnormal sounds, heat or odors), stop using it immediately, unplug the power supply cable from the electrical outlet and disconnect the other cables.
* If you will not be using the racing wheel for an extended period of time, unplug its power supply cable from the electrical outlet.
* The power outlet shall be installed near the equipment and shall be easily accessible.

Air vents

Make sure not to block any of the air vents on the racing wheel's base. For optimal ventilation, make sure to do the following:

* Position the wheel's base at least 10 cm away from any wall surfaces.
* Do not place the base in any tight spaces.
* Do not cover the base.
* Do not let any dust build up on the air vents.

For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.

THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

Warning – Injuries due to force feedback and repeated movements

Playing with a force feedback racing wheel may cause muscle or joint pain. To avoid any problems:

* Avoid lengthy gaming periods.
* Take 10 to 15 minute breaks after each hour of play.
* If you feel any fatigue or pain in your hands, wrists, arms, feet or legs, stop playing and rest for a few hours before you start playing again.

Warning – Injuries due to force feedback and repeated movements (continued)

* If the symptoms or pain indicated persist when you start playing again, stop playing and consult your doctor.
* Keep out of children's reach.
* During gameplay, always leave both hands correctly positioned on the wheel without completely letting go.
* During gameplay, never place your hands or your fingers under the pedals or anywhere near the pedal set.

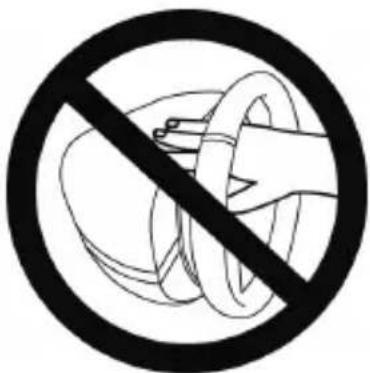

* During calibration and gameplay, never place your hand or your arm through the openings in the racing wheel.
* Make sure that the racing wheel's base is properly secured, as per this manual's instructions.

16+

Product to be handled only by users 16 years of age or older

HEAVY PRODUCT

7kg

Be careful not to drop the product on yourself or on anyone else!

ALWAYS

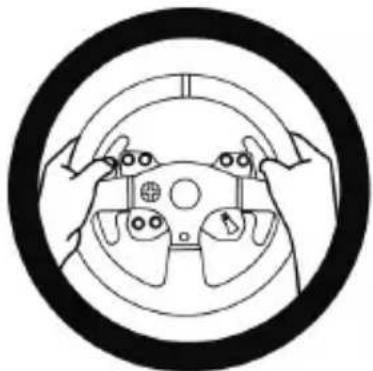

Top-down line drawing of hands holding a steering wheel, enclosed in a circular frame (no text or symbols)

NEVER

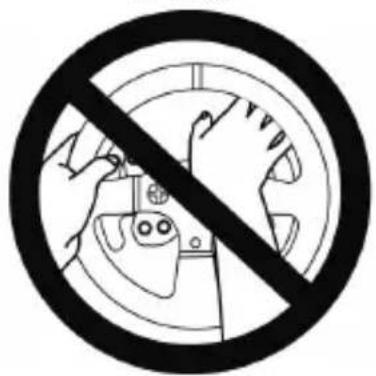

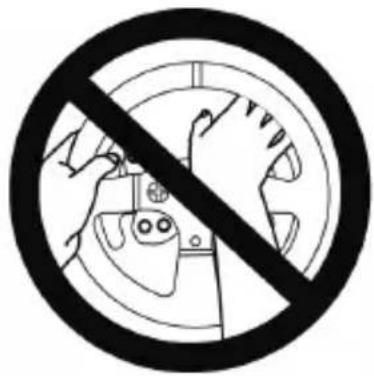

Prohibition sign with crossed hands and circular background, indicating no protection or anti-protection mechanism

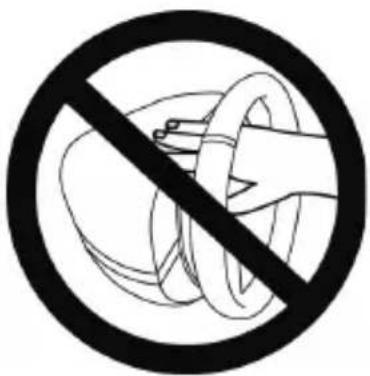

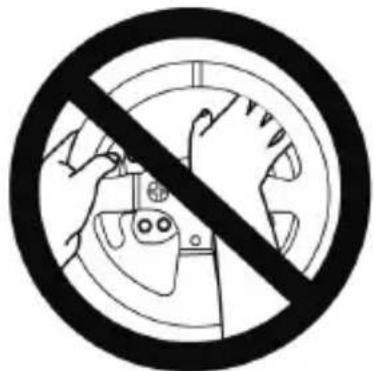

NEVER

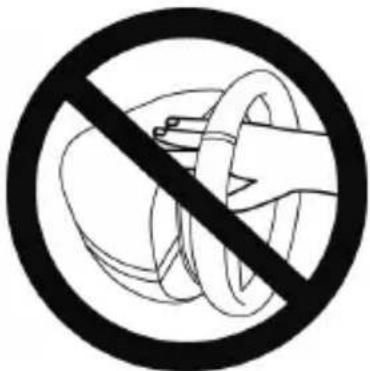

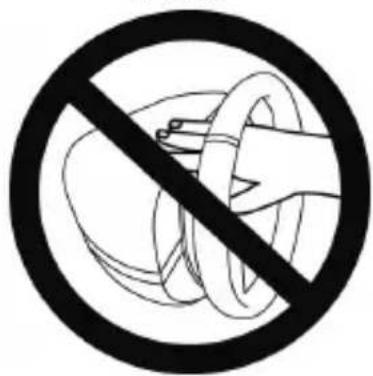

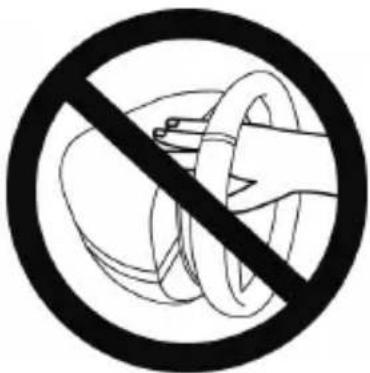

Prohibition sign with crossed rings and hand holding a ring, commonly used in safety or compliance measures.

Warning – Pedal set pinch hazard when playing

* Keep the pedal set out of children's reach.

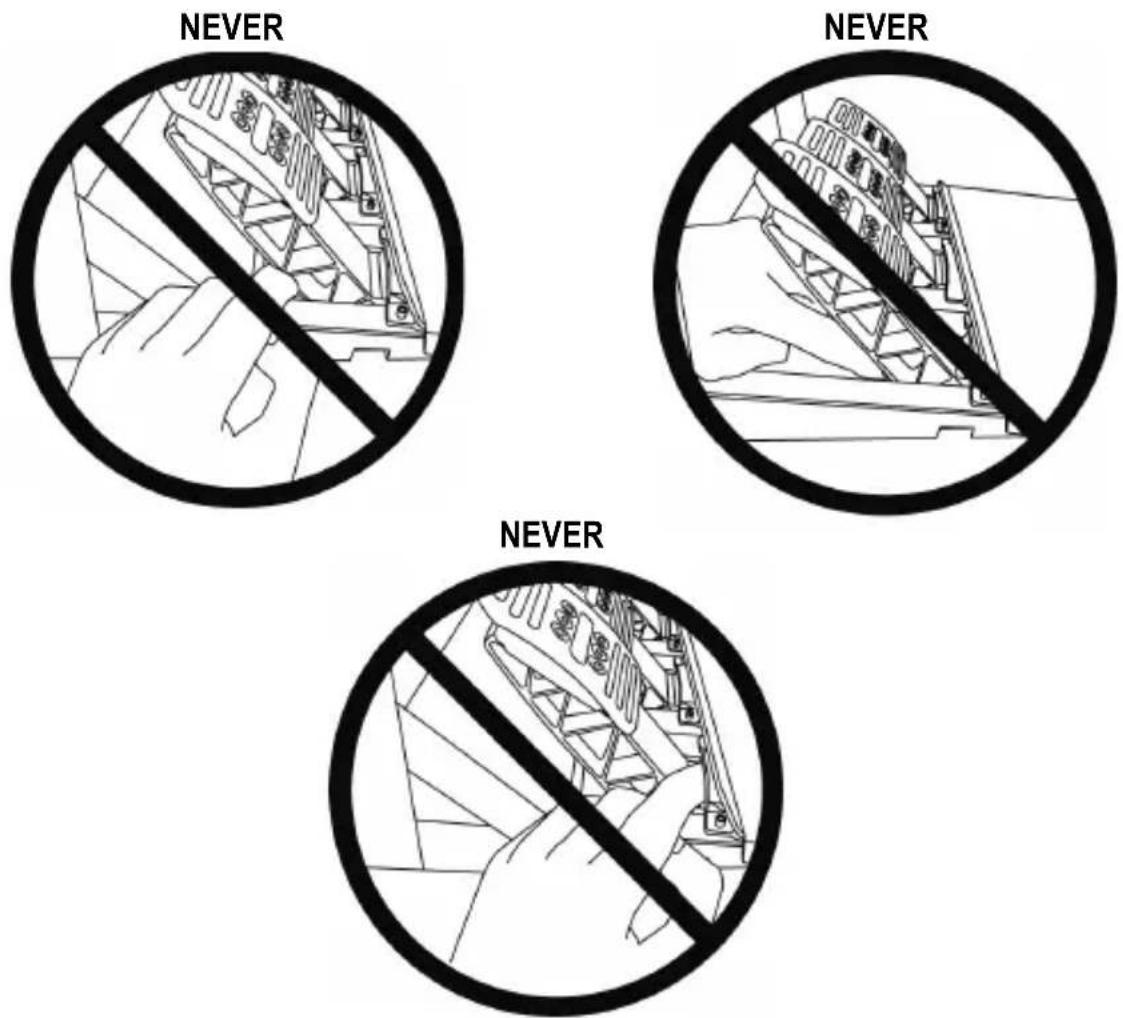

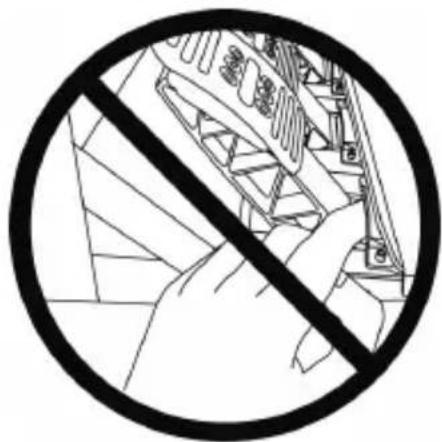

* During gameplay, never place your fingers on or anywhere near the sides of the pedals.
* During gameplay, never place your fingers on or anywhere near the pedal's rear base.

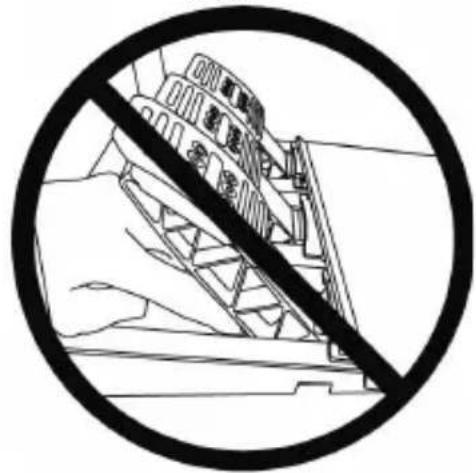

* During gameplay, never place your fingers on or anywhere near the pedal's front base.

Warning – Pedal set pinch hazard when not playing

* Store the pedal set in a safe place, and keep it out of children's reach.

UPDATING YOUR RACING WHEEL'S FIRMWARE

The firmware included in your racing wheel's base can be updated to a more recent version featuring product enhancements.

To display the firmware version that your racing wheel is currently using and update it if required: on PC, visit https://support.thrustmaster.com. Click Racing Wheels / T300 Ferrari Integral Alcantara Edition, then select Firmware and follow the instructions describing the download and installation procedure.

Important note:

In order to function on PC, the USB sliding switch (5) on the racing wheel's base must always be in the PC position before connecting the racing wheel's USB cable to the PC.

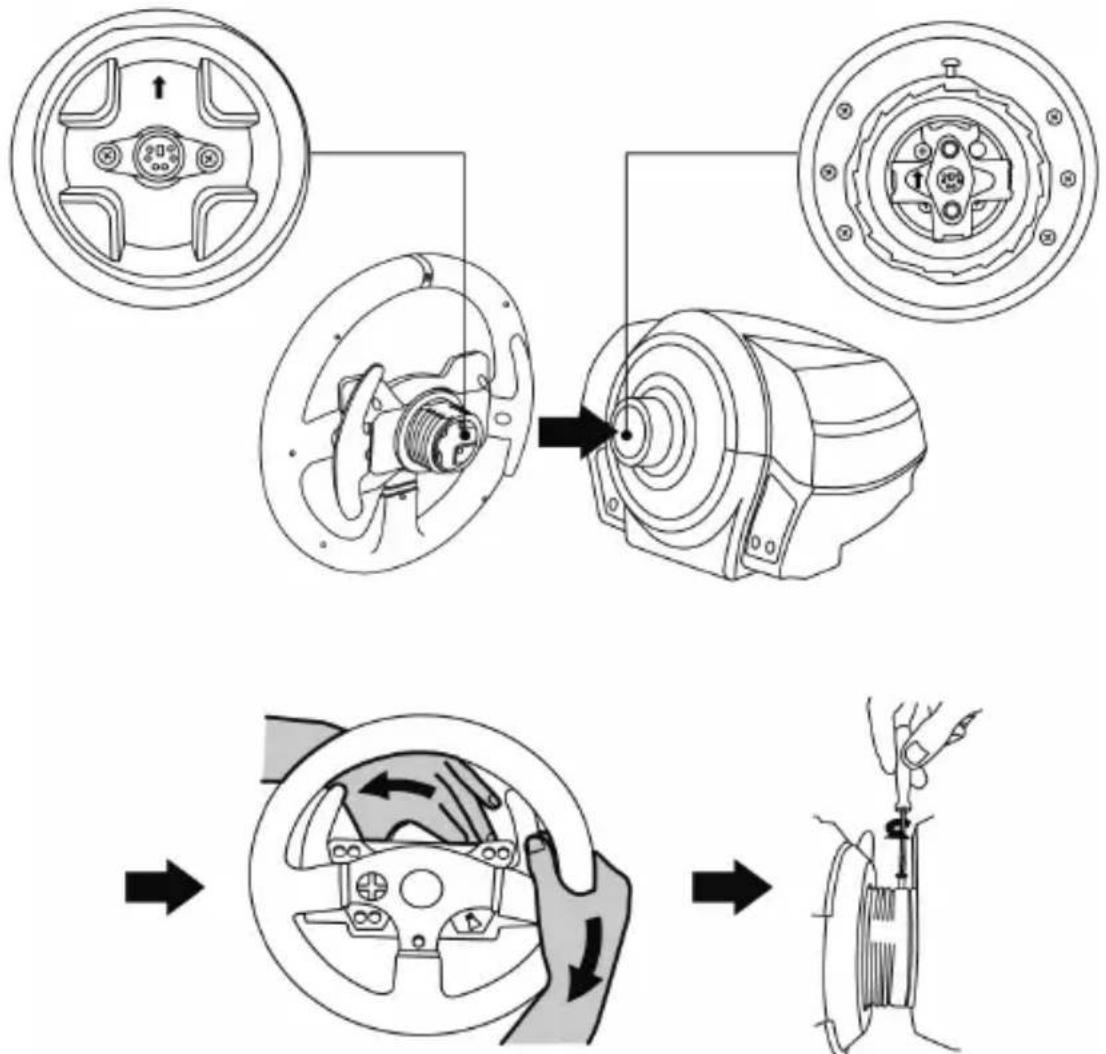

INSTALLING THE WHEEL ON ITS BASE

Align the connector positions using the arrows:

Base (1) connector: Arrow pointing upwards

Racing wheel (2) connector: Arrow pointing upwards

Once the connectors are correctly positioned, simply rotate the Thrustmaster Quick Release (12) device's ring anticlockwise, while holding the racing wheel (2) in position.

Then, tighten the ring as much as you can: to do so, hold the ring in position and rotate the racing wheel clockwise.

    subgraph Initial Components
        E["Top Left Wheel"] --> F["Left Component Disassembly"]
        F --> G["Right Component Assembly"]
    end

    subgraph Final Assembly
        H["Left Component"] --> I["Right Component Assembly"]
    end

Once you have installed the wheel, rotate it 180° (when facing the wheel, the Ferrari® logo should be upside down) to access the small attachment screw located on the ring of the Thrustmaster Quick Release (12) device. Use a large Phillips screwdriver to tighten the small attachment screw (do not use excessive force), turning it clockwise.

Do not use excessive force when tightening the small attachment screw (using a Phillips screwdriver)!

Stop turning the screw as soon as you feel some resistance.

ATTACHING THE RACING WHEEL

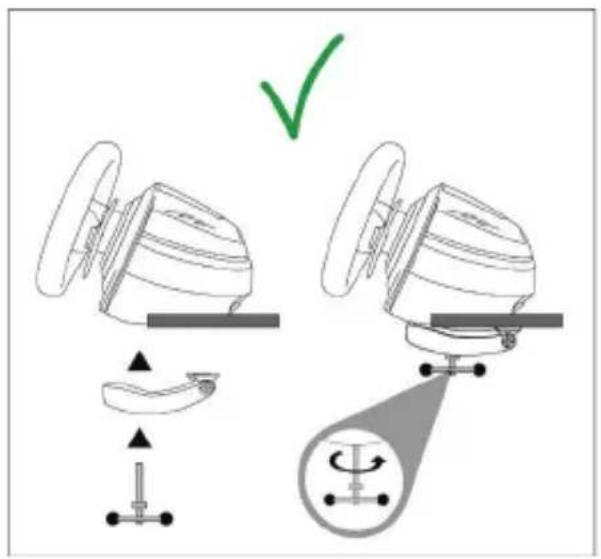

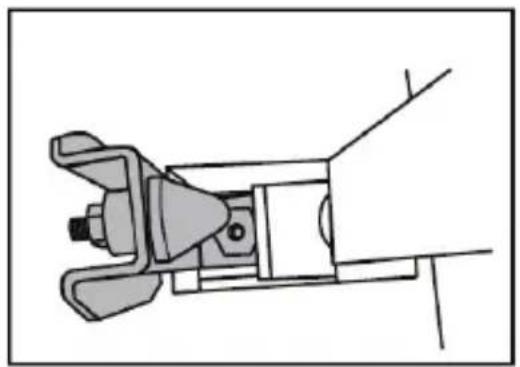

Attaching the racing wheel to a table or a desktop

1. Place the racing wheel on a table or any other horizontal, flat and stable surface.
2. Insert the fastening screw (11) in the attachment system (10), then tighten the device by turning the screw anticlockwise, so that it feeds into the large threaded hole (9) located beneath the racing wheel, until the wheel is perfectly stable.

Diagram illustrating a mechanical assembly or disassembly process with labeled components and a checkmark indicating selection.

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a small black arrow pointing to one component (no text or labels present)

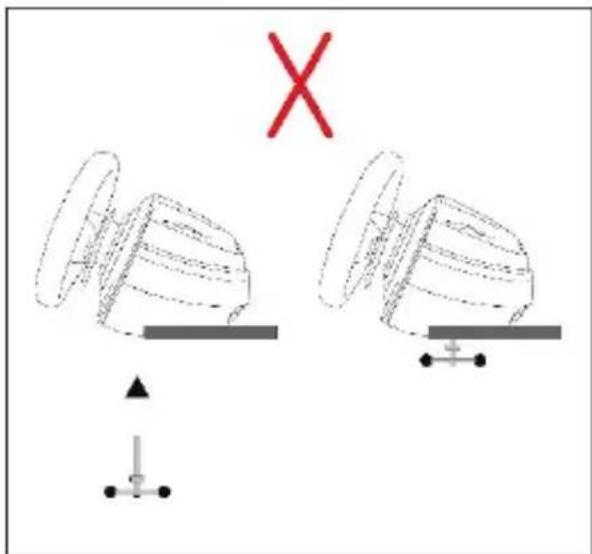

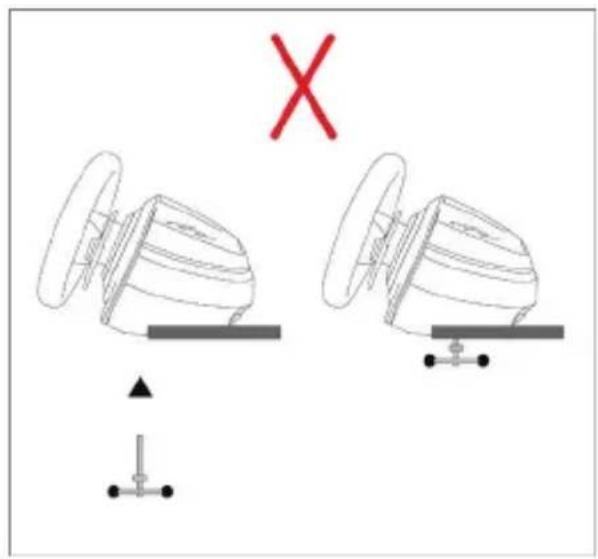

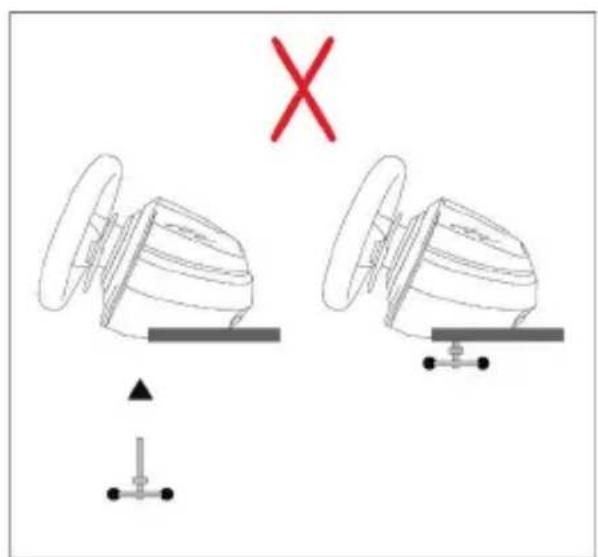

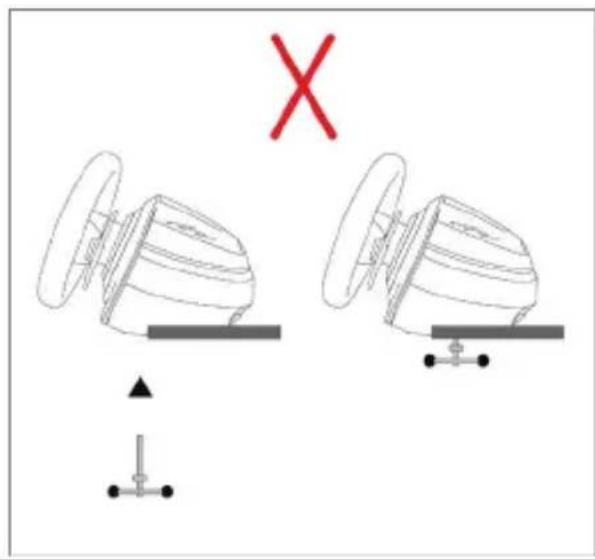

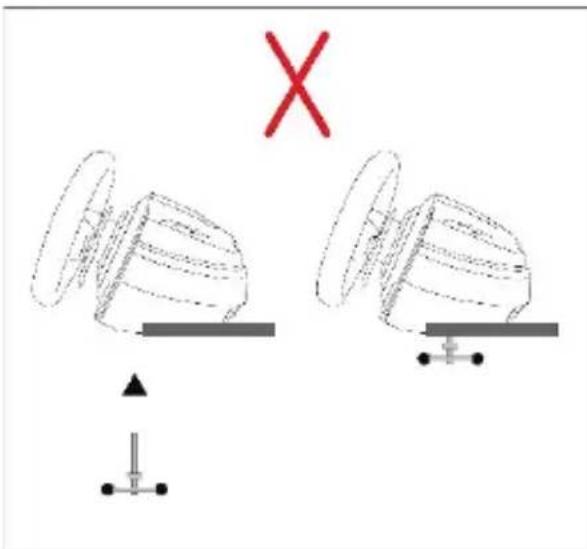

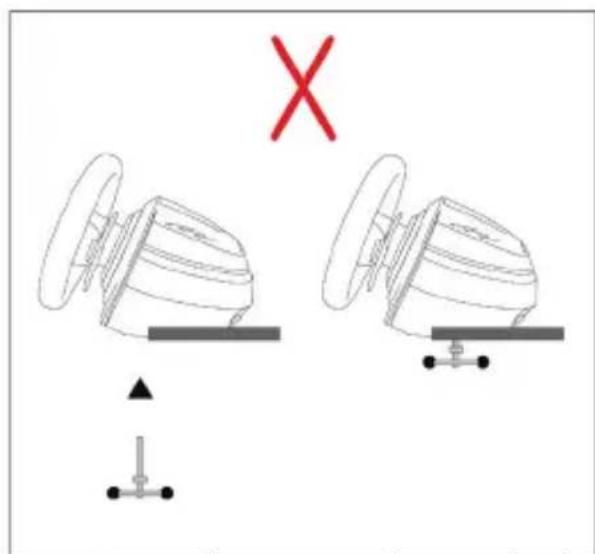

WARNING: Never tighten the screw alone, without the attachment system in place! (This could damage the racing wheel.)

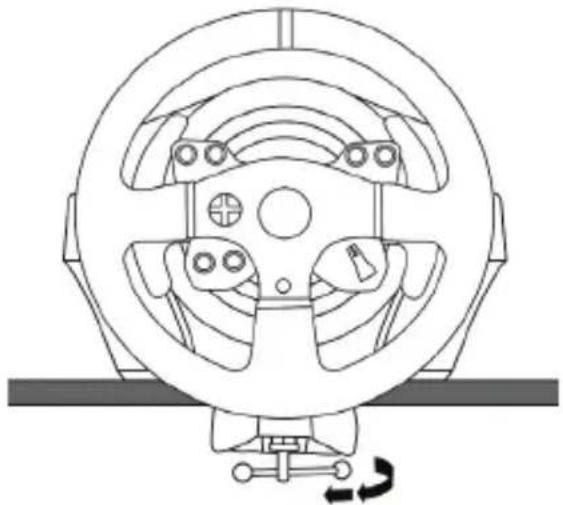

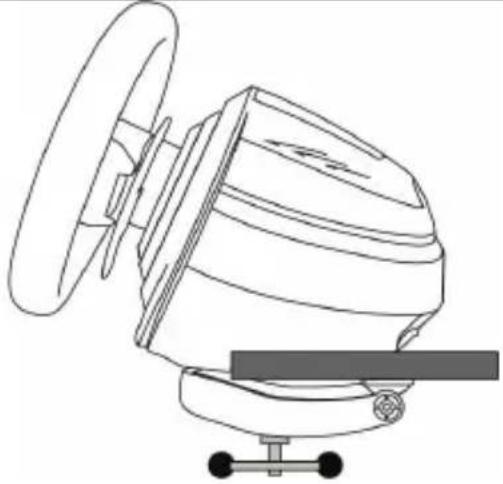

Attaching the racing wheel's base to a cockpit

1. Place the racing wheel's base on the cockpit shelf.
2. Drive two M6 screws (not included) through the cockpit shelf, then feed them into the two small screw threads located on the underside of the racing wheel.
   Important: The length of the two M6 screws must not exceed the thickness of the shelf + 12 mm; longer screws could cause damage to internal components located in the racing wheel's base.

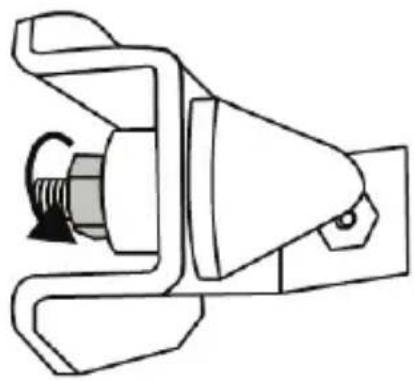

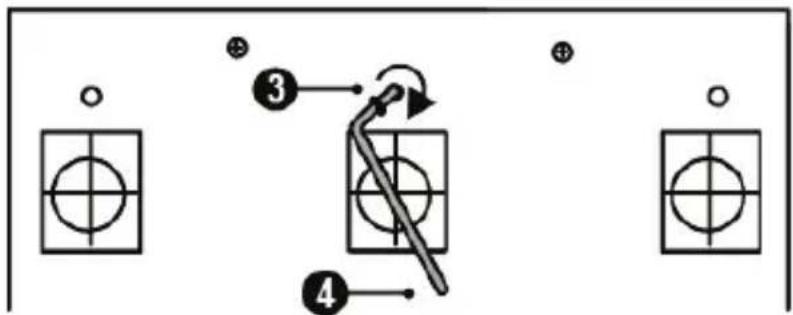

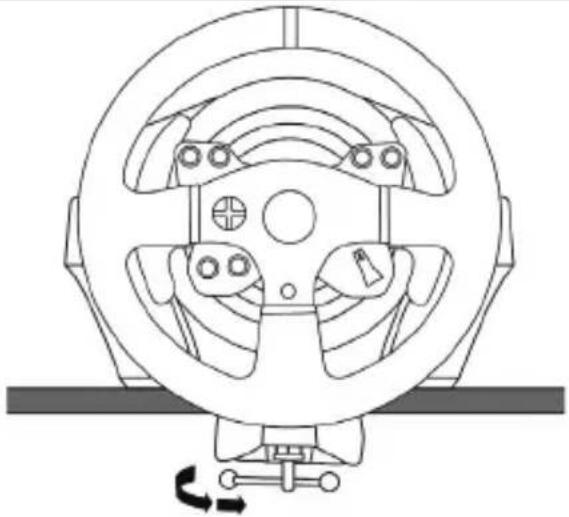

3. If required, tighten the standard attachment system by inserting the fastening screw in the large threaded hole.

ATTACHMENT / REMOVAL	DIRECTION
To tighten:Turn the screw counterclockwise
To release:Turn the screw clockwise

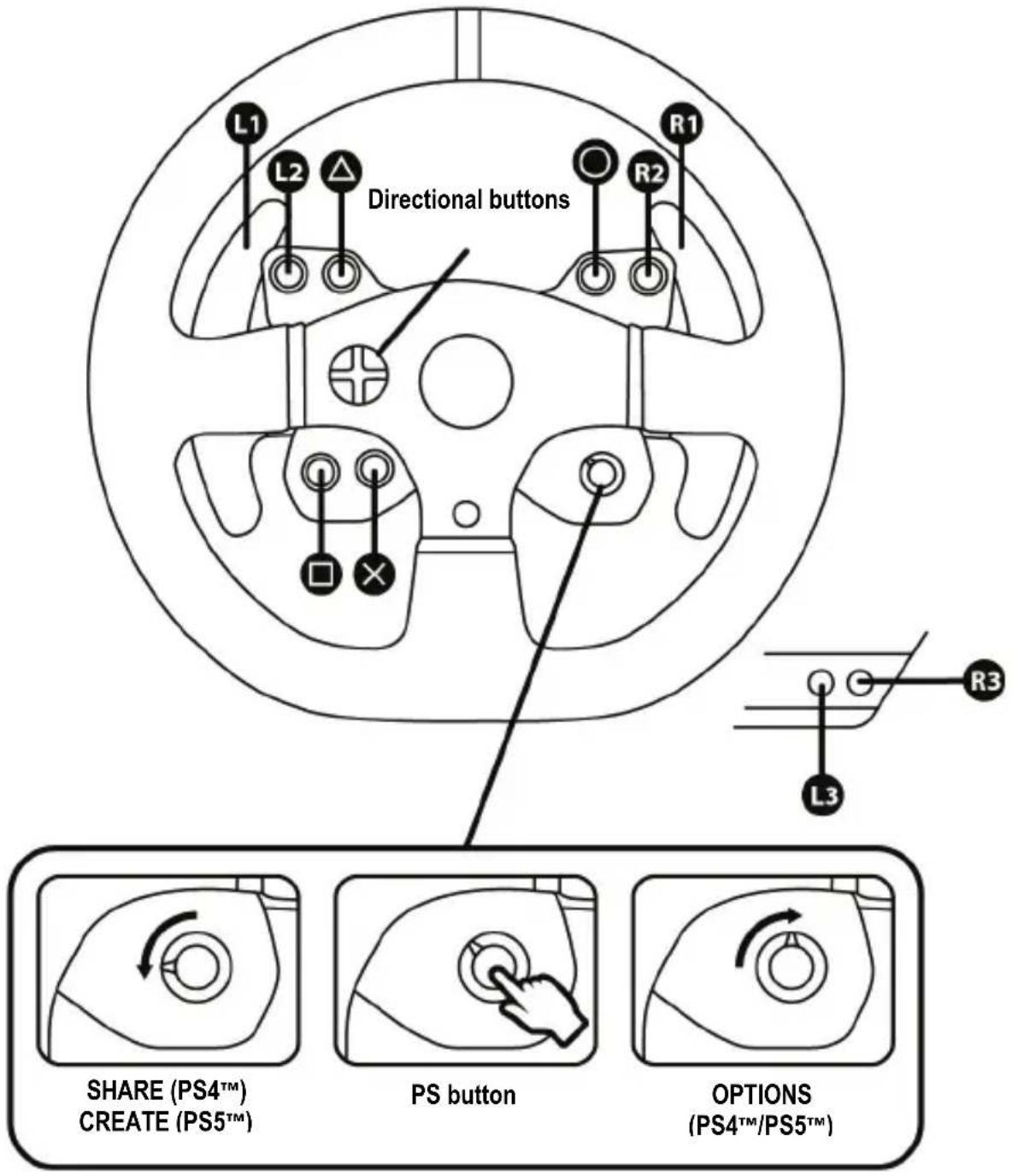

MAPPING FOR PLAYSTATION®5 CONSOLES AND PLAYSTATION®4 CONSOLES

L1 L2 Directional buttons R1 R2 R3 L3 SHARE (PS4™) CREATE (PS5™) PS button OPTIONS (PS4™/PS5™)

MAPPING FOR PC

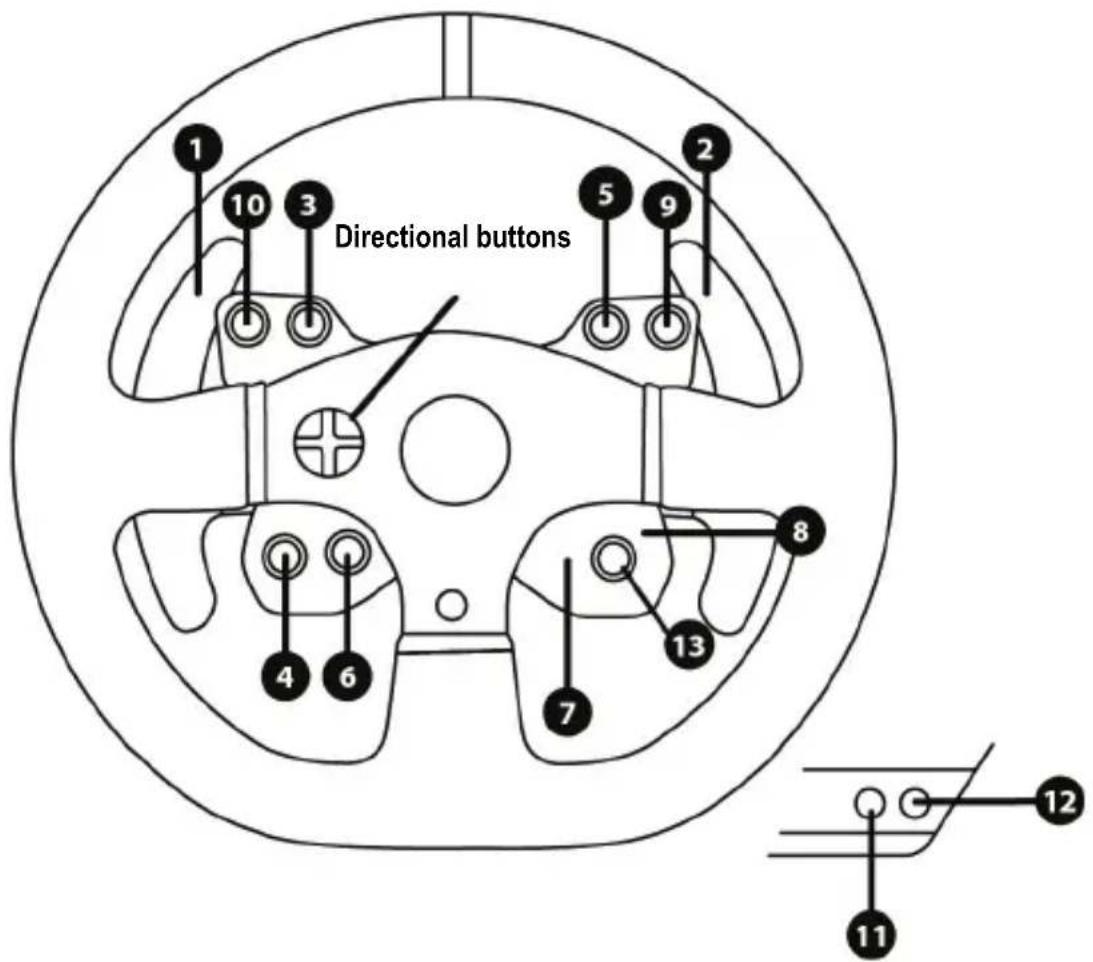

1 2 3 5 9 10 Directional buttons 4 6 7 8 13 12 11

SETTING UP THE RACING WHEEL FOR PLAYSTATION®5 CONSOLES AND PLAYSTATION®4 CONSOLES

1. Connect the pedal set to the connector (17) located at the back of the racing wheel's base.
2. Connect the power supply cable to the connector (14) located at the back of the racing wheel's base.
3. Plug the power supply cable into an electrical outlet with the same voltage specifications.

For more information about this, please refer to the PLUGGING THE RACING WHEEL INTO AN ELECTRICAL OUTLET section, on page 4 of this manual.

1. Set the USB sliding switch (5) on the racing wheel's base to PS5™-PS4™.

2. Connect the racing wheel's USB connector (15) to one of the console's USB ports.

3. Once your console is powered on, your racing wheel will calibrate itself automatically.

4. Press the racing wheel's PS button (8) and sign in to your PlayStation®Network account, in order to be able to use the wheel.

You are now ready to play!

SWITCHING FROM PS5™ MODE TO PS4™ MODE AND VICE VERSA

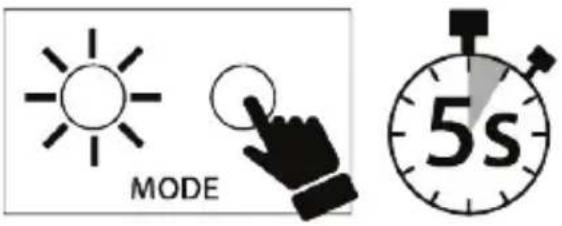

Press and hold down the MODE button (6) for five seconds, and then release it.

The indicator light changes color, and the selection you have made is instantly saved in the racing wheel's internal memory.

MODE 5s

SELECTED MODE	Color of indicator light (6)
PS5TMPS5-PS4 ■ PC	REDMODE
PS4TMPS5-PS4 ■ PC	ORANGEMODE

Important notes:

• The USB sliding switch (5) on the racing wheel's base must always be set to the proper position (PS5™-PS4™) before connecting the wheel's USB cable to the console.
  To change the sliding switch's position, disconnect the USB cable from the console and then change the position of the switch before reconnecting the USB cable to the console.
• On PlayStation®5 consoles and PlayStation®4 consoles, with the USB sliding switch (5) in the PS5™-PS4™ position:
  * Don't forget to press the racing wheel's PS button (8) in order to be able to use the wheel.
  * The wheel is recognized in most games as a T300 RS wheel.
  * The wheel is functional in compatible games and in console menus.
  * The "CREATE/SHARE" and "PS" functions are functional on the wheel.
• The list of games compatible with the PS5™ console and the PS4™ console is available at: https://support.thrustmaster.com (click Racing Wheels / T300 Ferrari Integral Alcantara Edition / Games settings). This list is updated regularly.

SETTING UP THE RACING WHEEL FOR PC\*

*PC compatibility not endorsed by Sony Interactive Entertainment.

1. Connect the pedal set to the connector (17) located at the back of the racing wheel's base.
2. Connect the power supply cable to the connector (14) located at the back of the racing wheel's base.
3. Plug the power supply cable into an electrical outlet with the same voltage specifications.

For more information about this, please refer to the PLUGGING THE RACING WHEEL INTO AN ELECTRICAL OUTLET section, on page 4 of this manual.

1. Set the USB sliding switch (5) on the racing wheel's base to PC.
2. Go to https://support.thrustmaster.com, then select Racing Wheels / T300 Ferrari Integral Alcantara Edition to download the drivers and the Force Feedback software for PC.
3. Once the download is complete, launch the installation, and follow the on-screen instructions to connect the wheel's USB plug to your PC and complete the installation. The racing wheel automatically self-calibrates. The indicator light (6) is green.
4. Once the installation is complete, click Finish and restart your computer.
5. Select Start / All Programs / Thrustmaster / FFB Racing Wheel / Control Panel to open the Game Controllers window.

The Game Controllers window displays the racing wheel's name (Thrustmaster T300RS Racing Wheel) with the status OK.

1. Click Properties to configure your wheel in the T300 control panel:

2. Test Input tab: lets you test and view the action buttons, directional buttons, wheel and pedals axes, and adjust the wheel's rotation angle in your PC games.
   • Test Forces tab: lets you test 12 Force Feedback effects.

3. Gain Settings tab: lets you adjust the power of the Force Feedback effects in your PC games.

General notes:

• On PC, always remember to completely close the Game Controllers window by clicking OK before launching the game.
• Your racing wheel's firmware version is displayed in the upper right-hand corner of the control panel tabs.

You are now ready to play!

Important note:

In order to function on PC, the USB sliding switch (5) on the racing wheel's base must always be in the PC position before connecting the racing wheel's USB cable to the PC.

SELECTED MODE	Color of indicator light (6)
PCPS5-PS4 □ PC	GREEN

AUTOMATIC RACING WHEEL AND PEDAL SET CALIBRATION

The wheel automatically self-calibrates when you plug the racing wheel into an electrical outlet and connect the racing wheel's USB connector to the console.

During this phase, the racing wheel will rotate quickly towards the left and the right, covering a 1080 degree angle, before stopping at the center.

WARNING:

Never touch the racing wheel during the self-calibration phase!

(This could result in improper calibration and/or personal injuries.)

Never connect the pedal set to the racing wheel's base (or disconnect it from the base) when it is connected to the console or during gameplay (this could result in improper calibration).

Always connect the pedal set before connecting the racing wheel to the console.

Once the racing wheel's calibration is complete and the game has been started, the pedals are automatically calibrated after a few presses.

WARNING:

Never press the pedals during the racing wheel's self-calibration phase or while a game is loading!

(This could result in improper calibration.)

If your racing wheel and/or pedal set do not function correctly, or if they seem to be improperly calibrated:

Power off your console and completely disconnect the racing wheel. Then reconnect all cables (including the power supply cable and the pedal set), and restart your console and your game.

INTERNAL TEMPERATURE SENSOR

The wheel's cooling system is composed of a heat sink and a fan.

• A thermostat monitors the wheel's internal temperature.
• When you are using the wheel in a game:

- The cooling fan starts up when the wheel has reached a certain temperature (after a few minutes of gameplay, depending on the strength of the Force Feedback effects used).

- The power of the Force Feedback effects automatically decreases as soon as the wheel reaches a much higher temperature level (to protect the motor). The power of these effects automatically increases as soon as the temperature slightly decreases.

- When you're done playing: due to the motor's thermal inertia, the cooling fan continues to operate until the temperature drops below the fan's startup level. Your wheel has been designed in this way in order to facilitate cooling, and to protect the motor (this may take from 5 to 45 minutes, depending on the temperature reached while using the wheel in a game).

MODE BUTTON AND INDICATOR LIGHT (6)

MODE button for the pedal set

You can electronically swap the accelerator and clutch pedals.

Procedure:

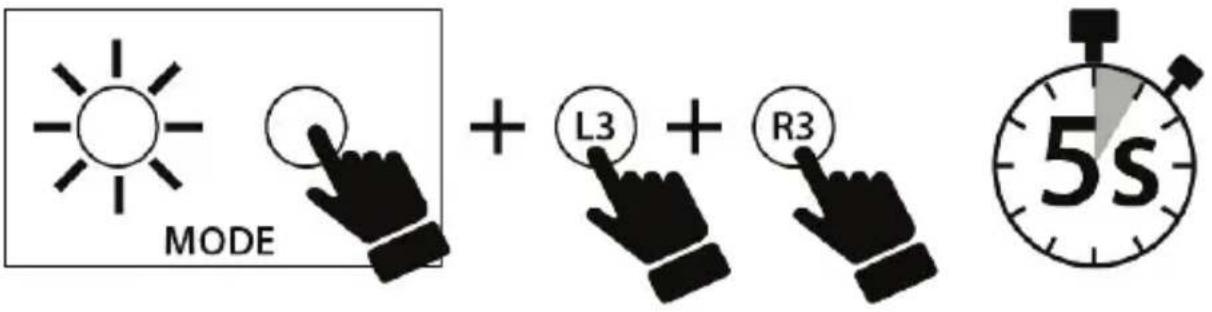

Simultaneously press and hold down the MODE + L3 + R3 buttons (located on the T300 racing wheel's base) for five seconds, and then release them.

MODE + L3 + R3 5s

The racing wheel's internal memory stores whether the pedals have been swapped around or not, and the indicator light (6) flashes differently according to the mode you have selected:

GAS AND CLUTCH PEDALS	Color of the MODE indicator light (6)
Switching to INVERTED mode	Flashes five times after the procedure, then continuously flashes once every eight seconds.
Switching to NORMAL mode	Flashes once after the procedure, then does not flash continuously.

Other information regarding the MODE button

To learn more about the MODE button and indicator light, please visit https://support.thrustmaster.com. Click Racing Wheels / T300 Ferrari Integral Alcantara Edition, and then select Manual or FAQ.

HELP FILES AND FAQs

Please visit https://support.thrustmaster.com. Click Racing Wheels / T300 Ferrari Integral Alcantara Edition, and then select Manual or FAQ.

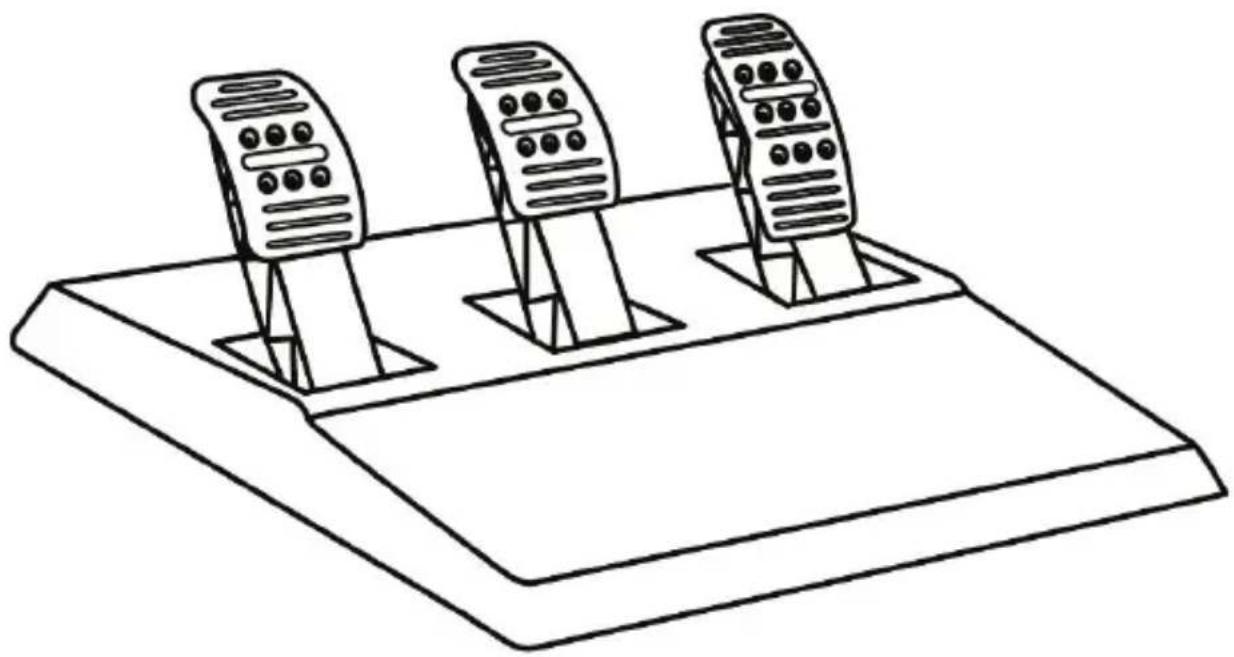

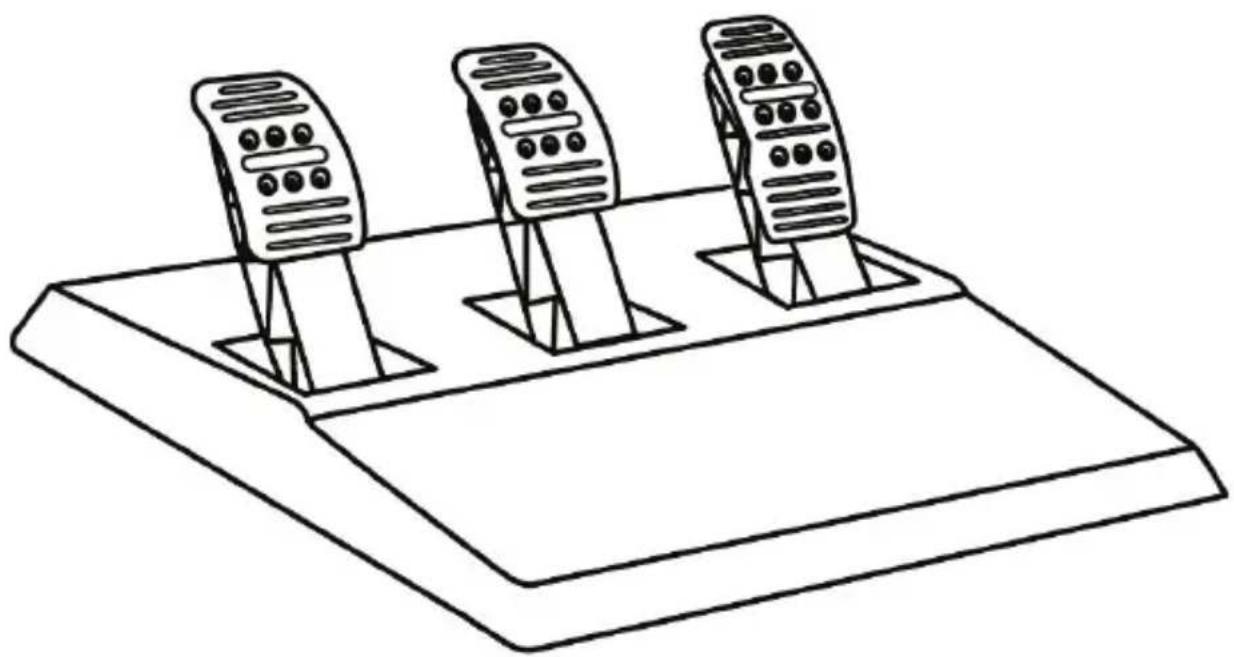

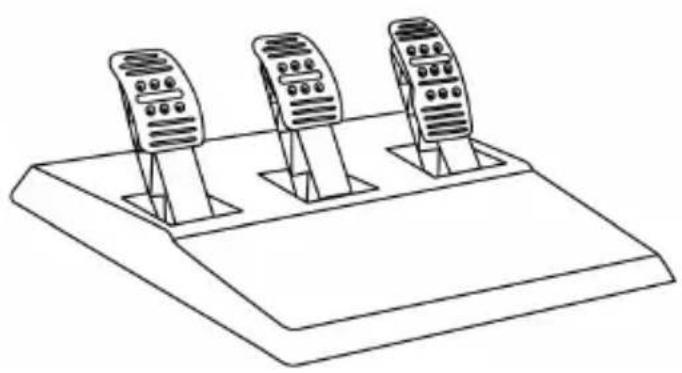

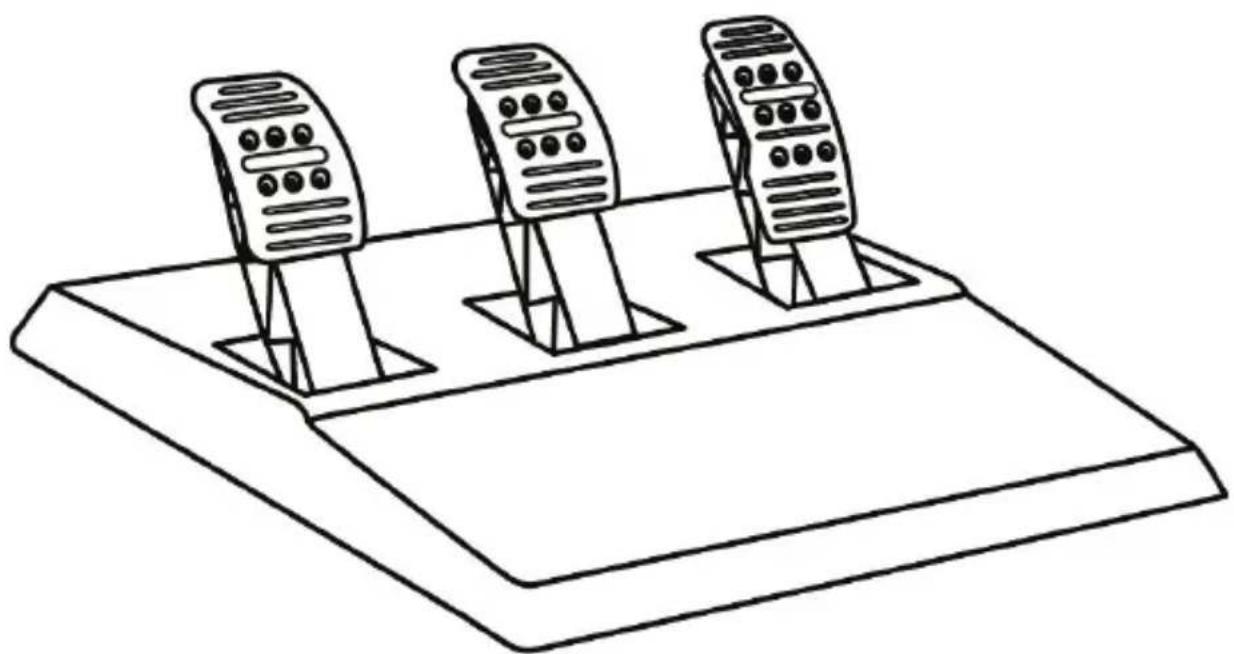

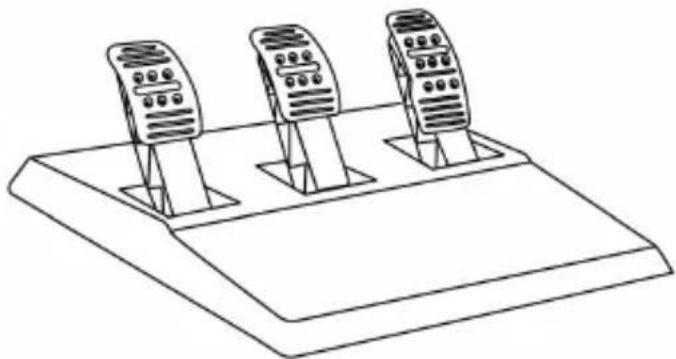

T3PA THRUSTMASTER 3 PEDALS ADD-ON

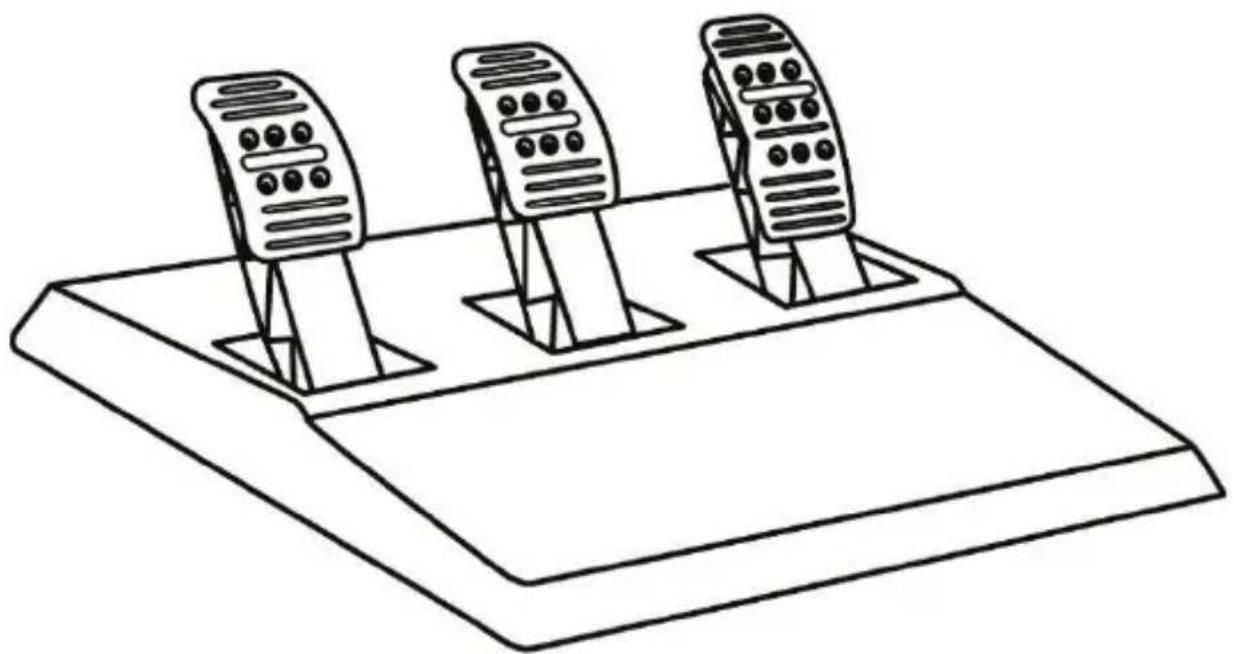

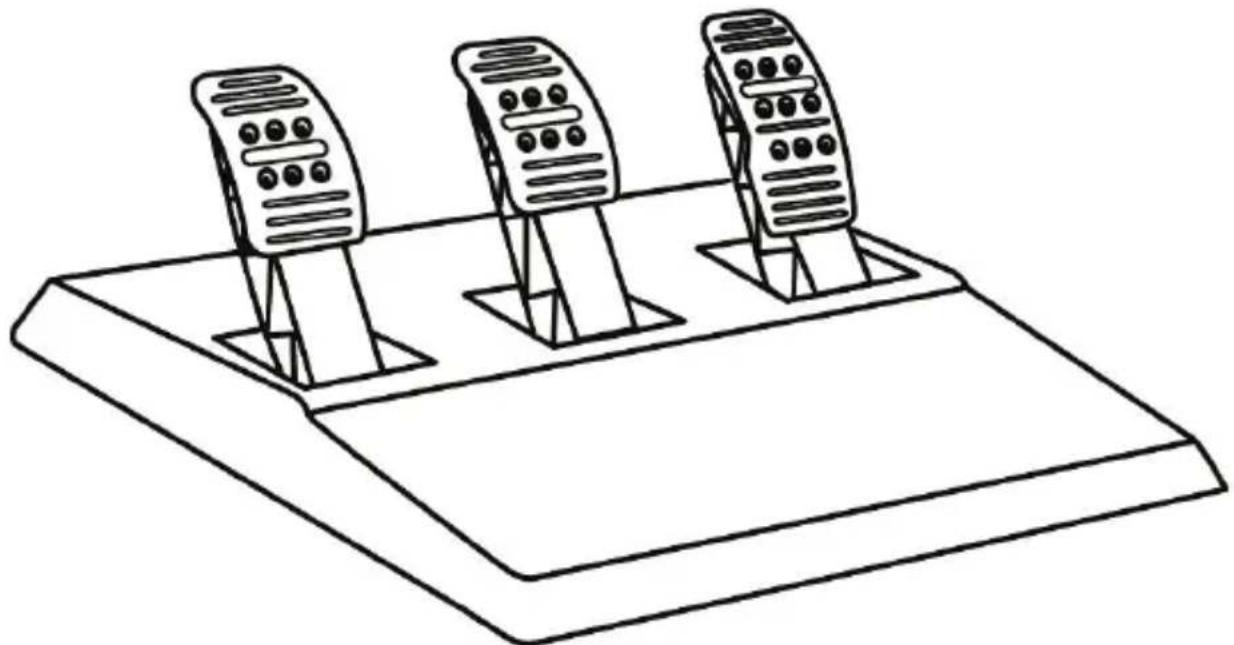

Line drawing of three identical speed limit switches mounted on a base (no text or symbols)

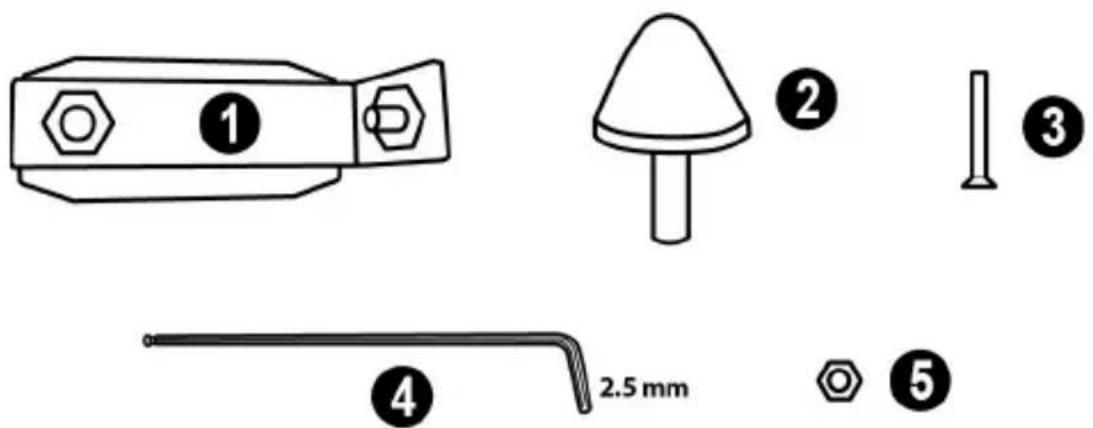

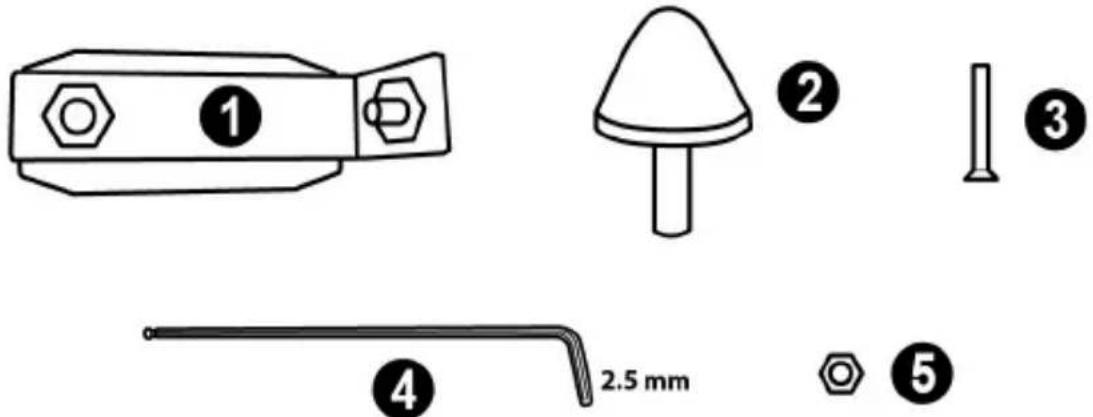

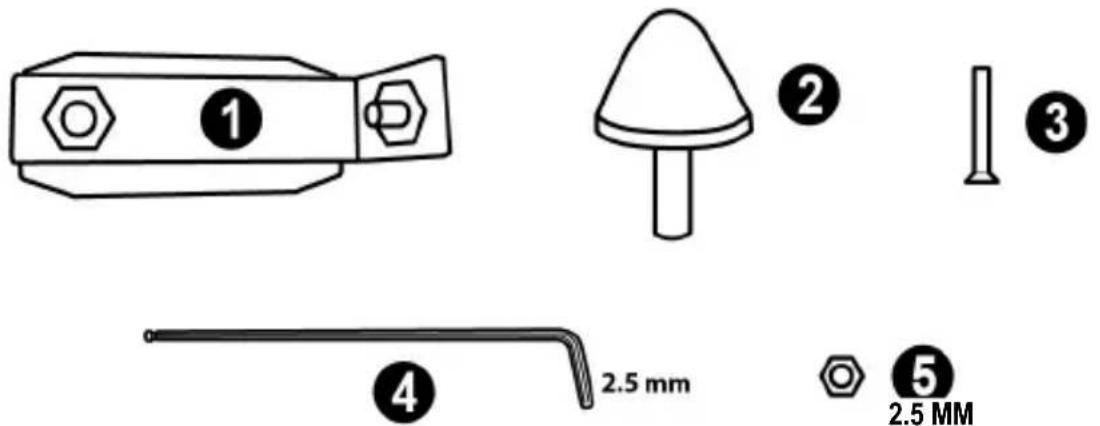

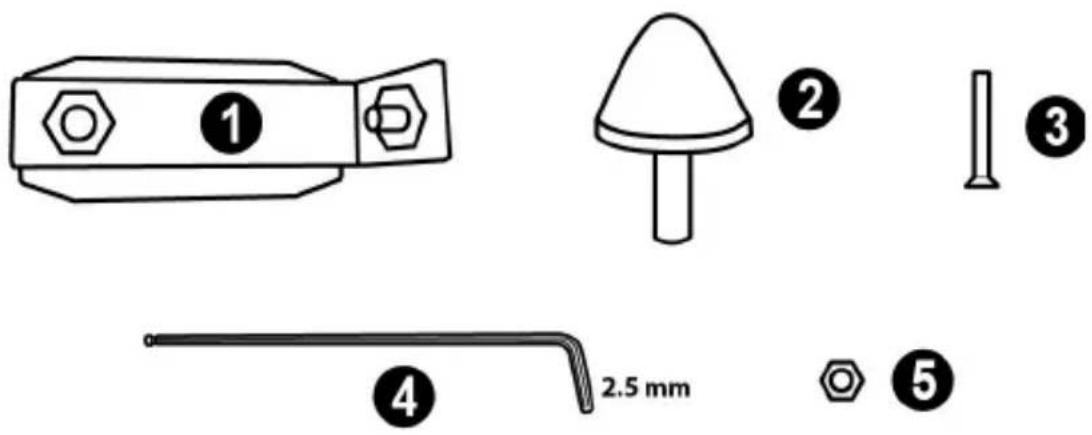

TECHNICAL FEATURES

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

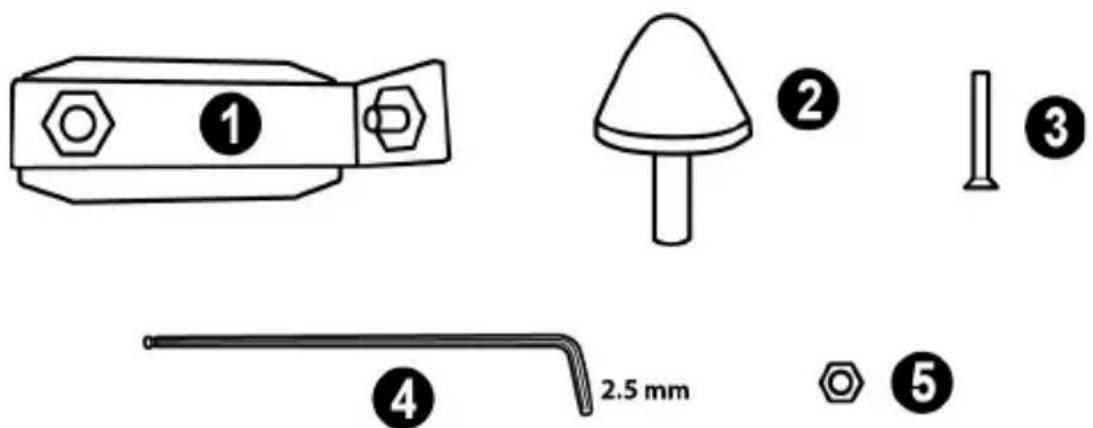

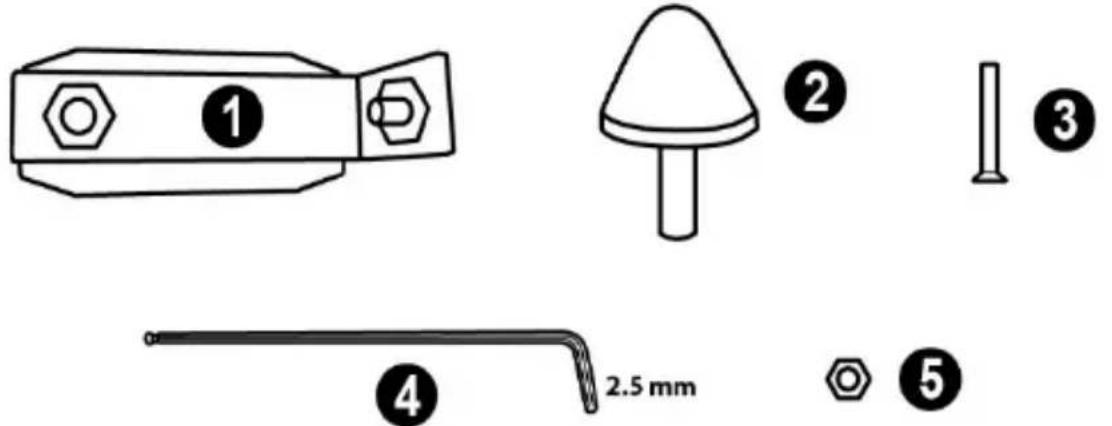

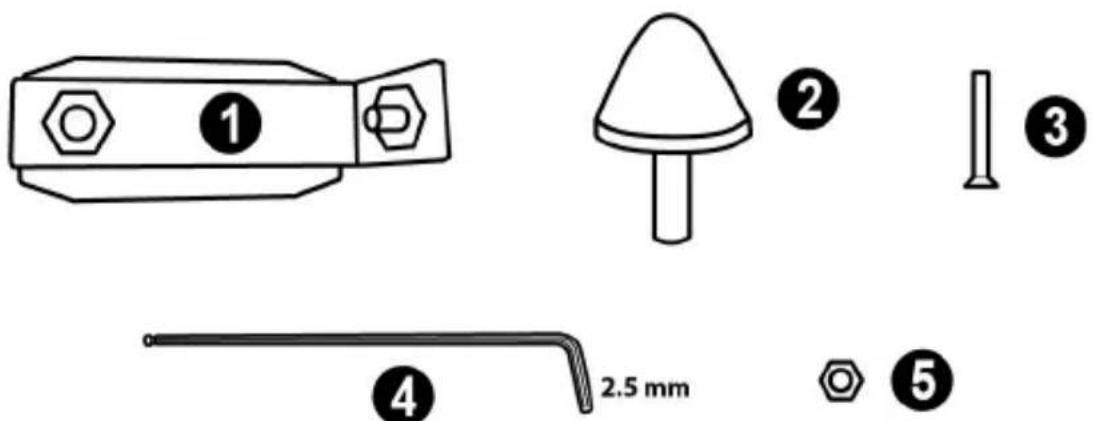

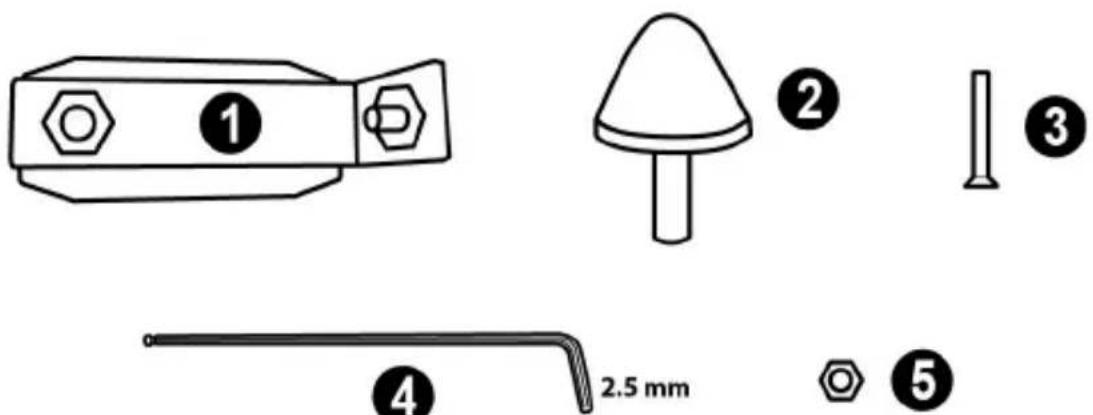

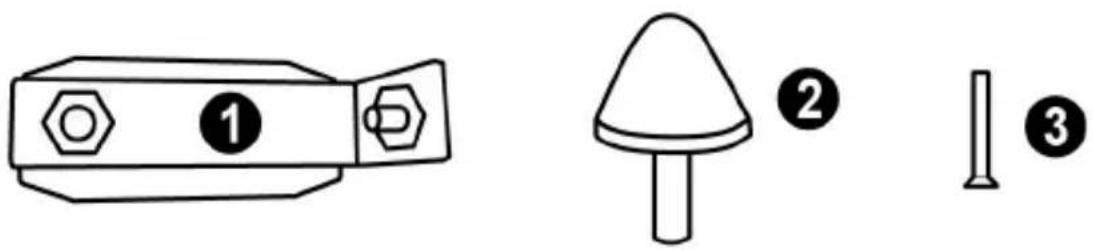

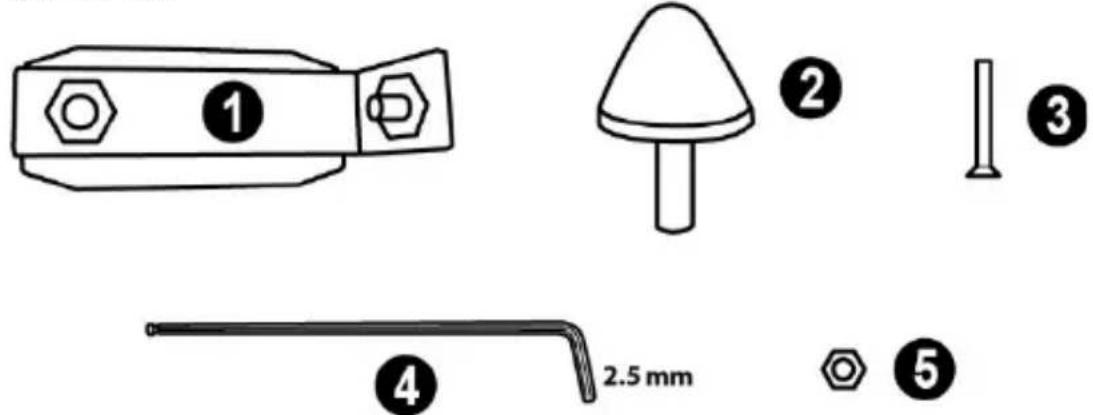

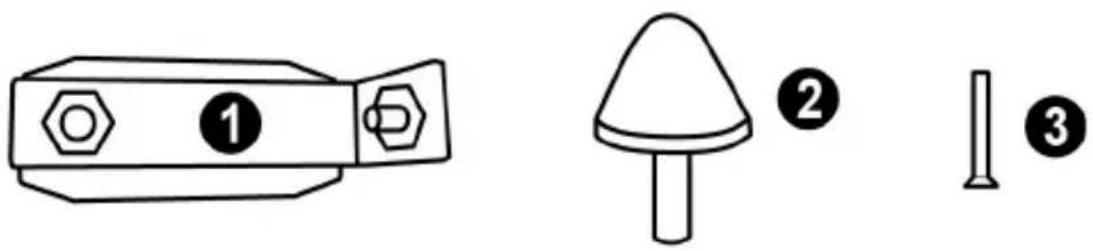

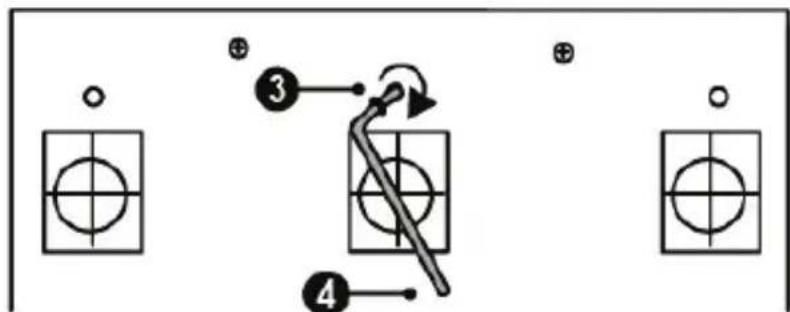

1 Metal support for conical stop (not installed by default)
2 Conical stop
3 Attachment screw for metal support

4 2.5 mm Allen key (included)
5 Position adjustment nut for conical stop

Diagram showing labeled components of a remote control system with numbered parts 6, 7, and 8

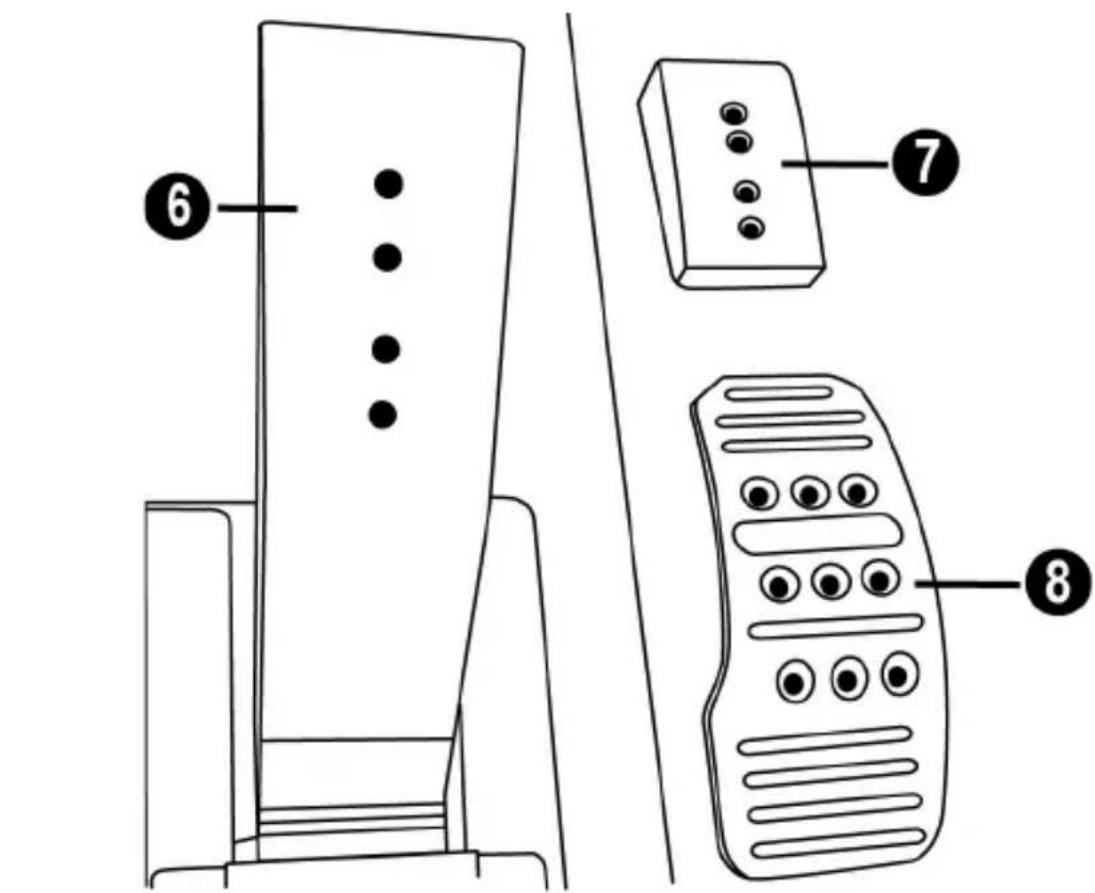

6 Pedal arm
7 Plastic head support

8 Metal pedal head

WARNING

Before using this product, be sure to read these instructions carefully and save them for future reference.

For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.

THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

Warning – Pedal set pinching hazard during gaming sessions

* Keep the pedal set out of the reach of children.

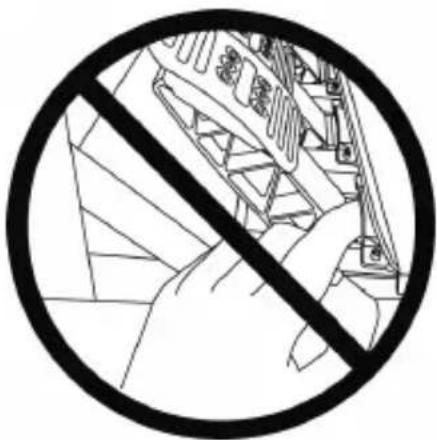

* During gaming sessions, never place your fingers or thumbs on or near the sides of the pedals.
* During gaming sessions, never place your fingers or thumbs on or near the rear base of the pedals.
* During gaming sessions, never place your fingers or thumbs on or near the front base of the pedals.

AUTOMATIC CALIBRATION OF PEDALS

IMPORTANT:

• Never connect or disconnect the pedal set from the base of the wheel when the wheel is connected to the PS5™ console, PS4™ console or to a PC, or during gaming sessions, to avoid calibration problems.
• Always connect the pedal set to the wheel before connecting the wheel to the PS5™ console, PS4™ console or to a PC.
• Once the wheel has self-calibrated and the game has started, the pedals automatically calibrate themselves after being pressed a few times.
• Never press on the pedals when the wheel is self-calibrating or when your game is starting up, to avoid calibration problems.
• If the pedals are not functioning correctly or appear to be improperly calibrated, power off your console, completely disconnect your wheel, then reconnect all of the cables (including the power supply cable and the pedal set cable), power the console back on and restart your game.

ATTACHING THE PEDAL SET TO A COCKPIT

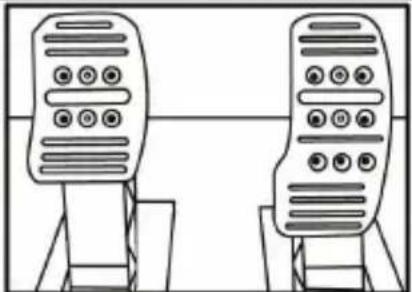

• Attach the pedal set using the small screw threads located on the underside of the pedal set.
• Screw two M6 screws (not included) into the cockpit's pedal support plate and into the two small screw threads located on the underside of the pedal set.

Important: The length of the two M6 screws must not exceed the thickness of the cockpit's pedal support plate plus an additional 10 mm, to avoid damaging the pedal set's internal components.

ADJUSTING THE PEDAL SET

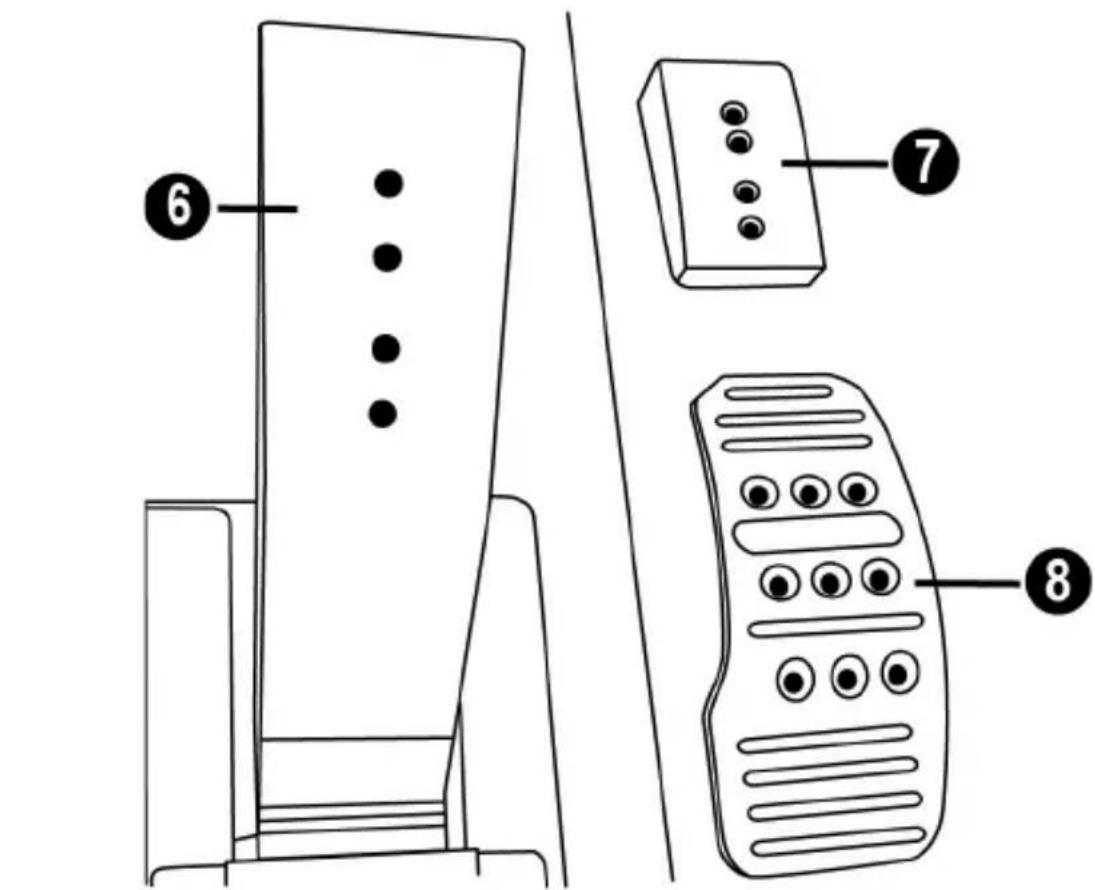

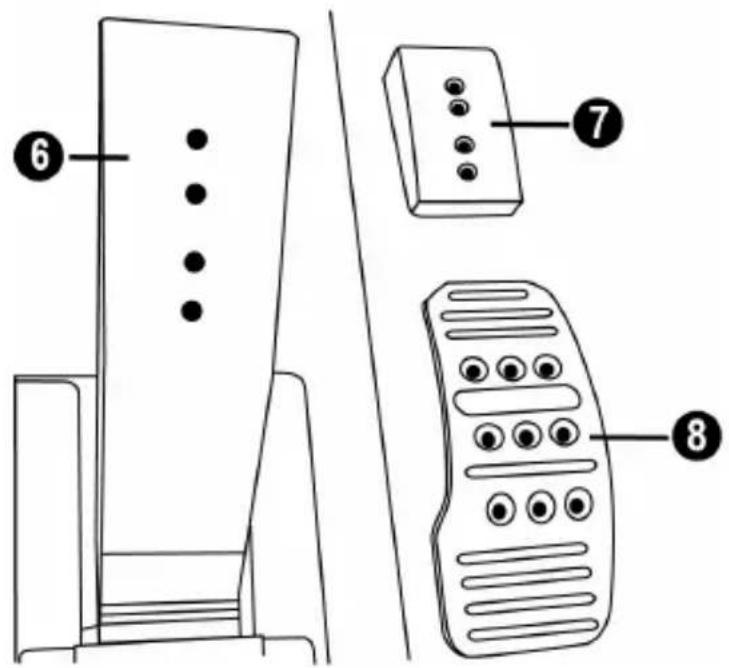

Each of the three pedals includes:

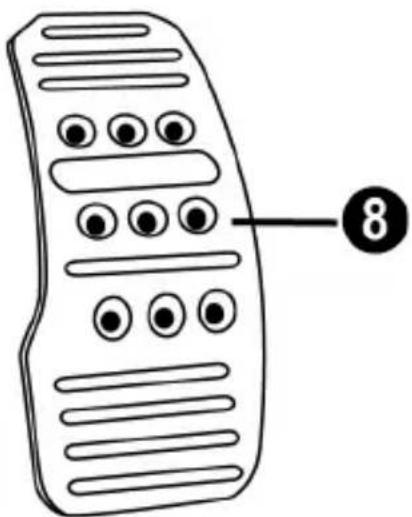

• A metal head (8) with multiple perforations (nine for the accelerator – six for the brake – six for the clutch).
• A plastic head support (7) (placed between the head and the arm) with four perforations.
• A pedal arm (6) with two perforations.

Diagram showing labeled components of a remote control panel with numbered parts 6, 7, and 8

ATTENTION: To avoid any calibration problems, be sure to always disconnect your racing wheel's USB cable before making any adjustments to your pedal set.

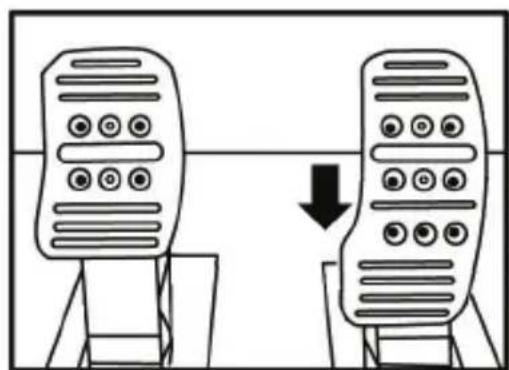

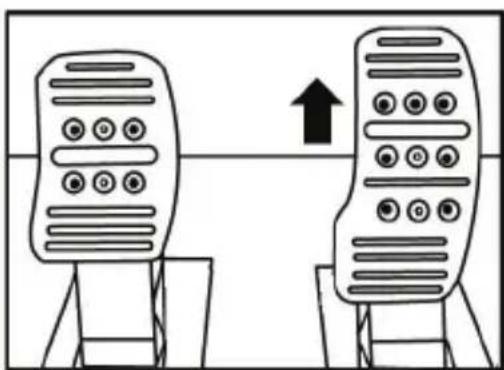

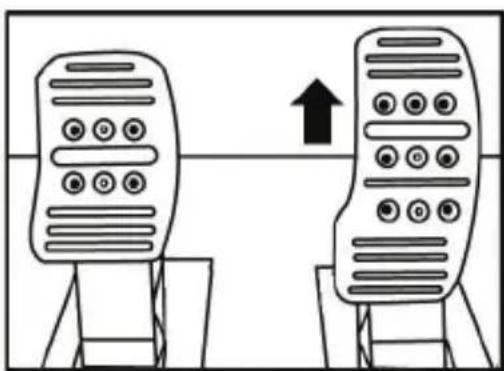

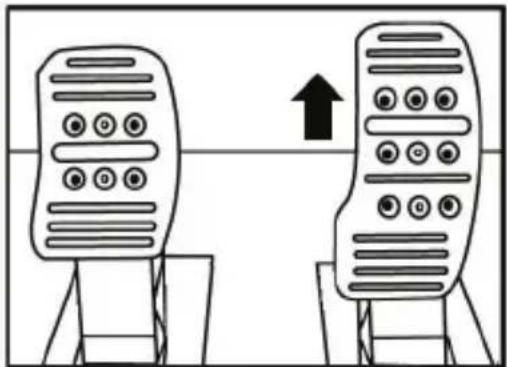

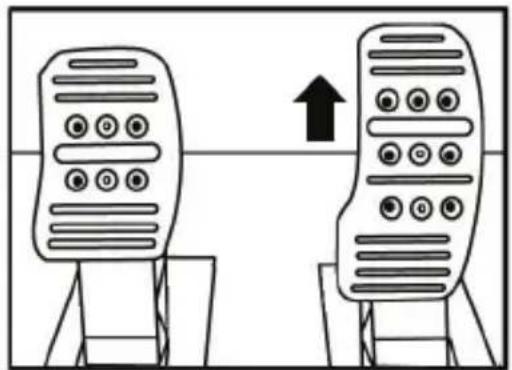

Adjusting the HEIGHT of the accelerator pedal

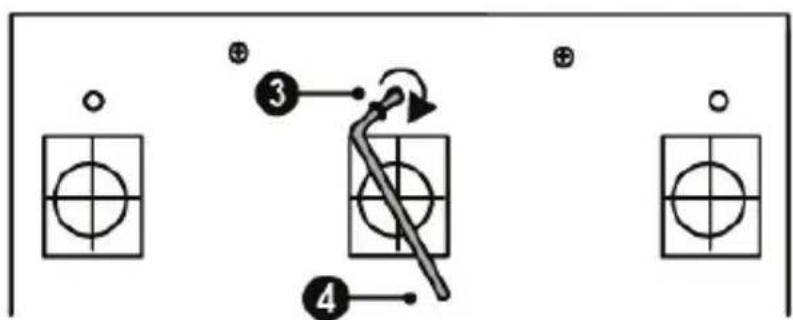

• Using the included 2.5 mm Allen key (4), unscrew the two screws holding the metal head (8) and its support (7) in place.
• Select your preferred height position, then replace and re-tighten the screws so that the metal head (8) and its support (7) are held firmly in place.

Diagram showing two identical mobile phones with circular buttons on top, connected by a downward arrow (no text or symbols)

Low position (default)

Two identical mobile phone screens with circular buttons on stands, connected by a line with an upward arrow (no text or symbols)

High position

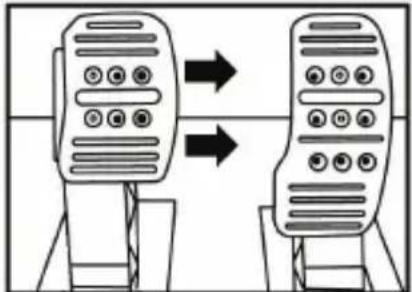

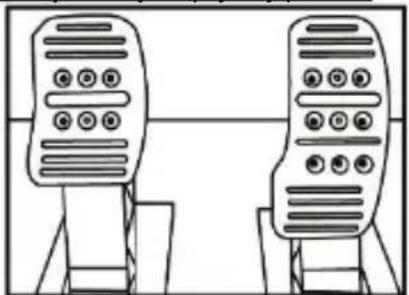

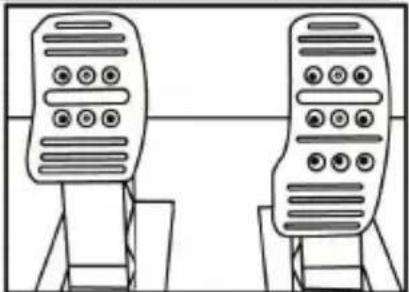

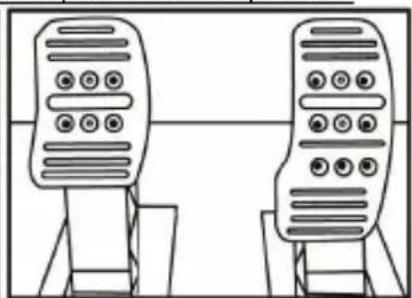

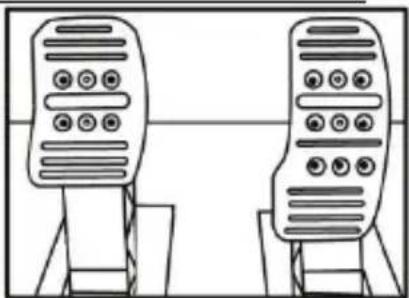

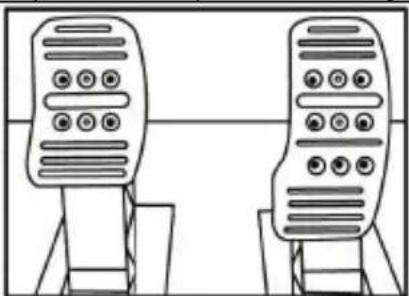

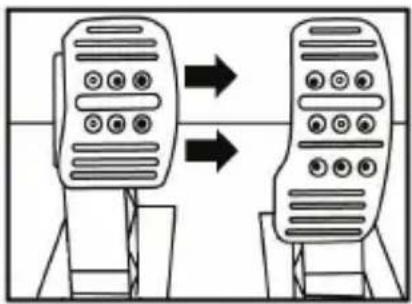

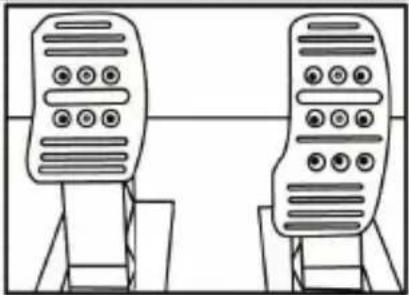

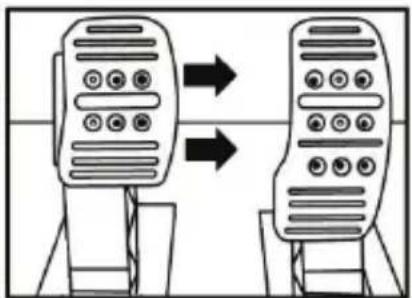

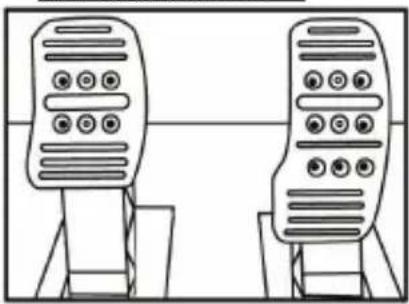

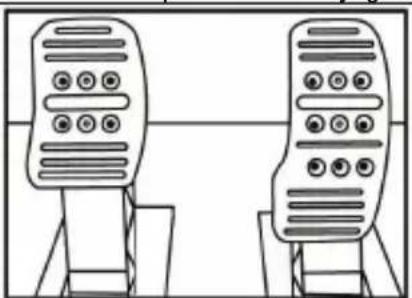

Adjusting the SPACING of the three pedals

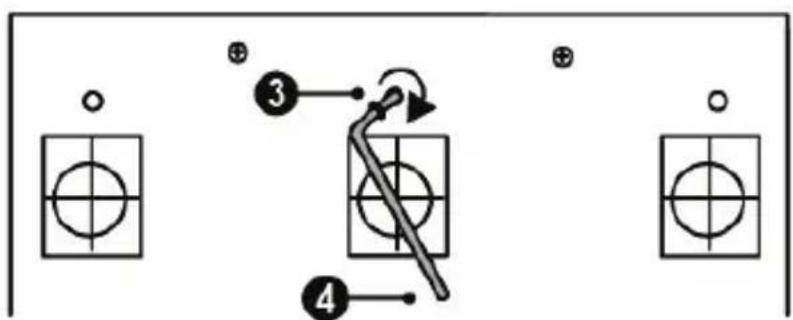

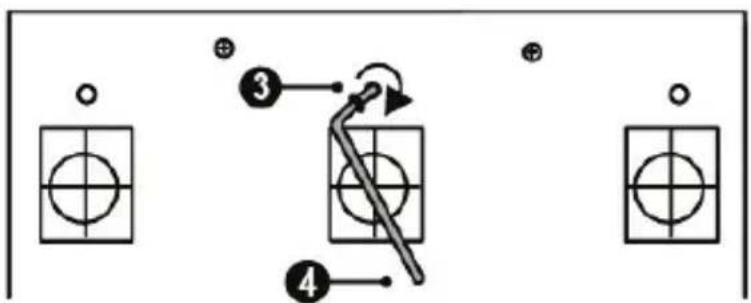

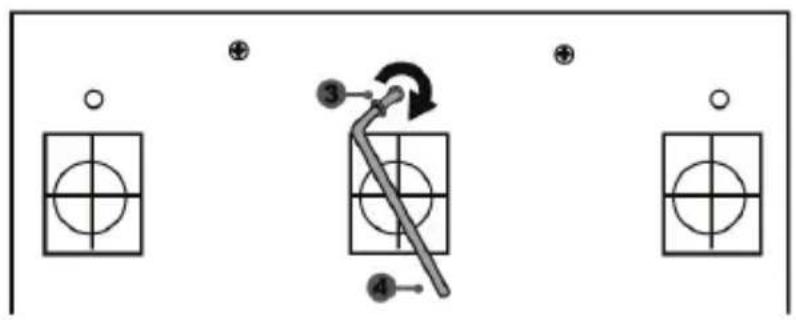

• Using the included 2.5 mm Allen key (4), unscrew the two screws holding the metal head (8) and its support (7) in place.
• Select your preferred position (to the left, centered, or to the right), then replace and re-tighten the screws so that the metal head (8) and its support (7) are held firmly in place.

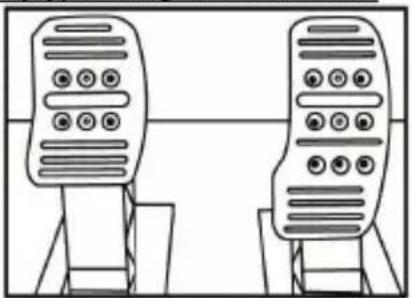

Examples illustrating the brake pedal:

Two identical mobile phone controllers with left-pointing arrows indicating bidirectional connection (no text or symbols)

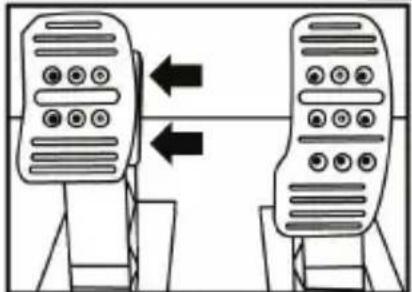

Left position

Line drawing of two identical mobile phones with control buttons and ventilation slots (no text or symbols)

Centered position (default)


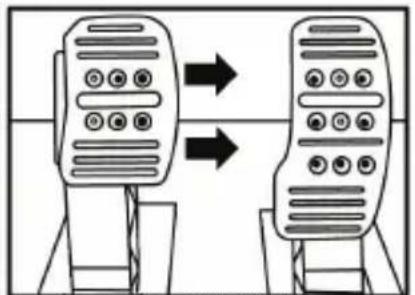

Right position

Number of possible spacing positions per pedal:

- Three for accelerator pedal

• Three for brake pedal
• Three for clutch pedal

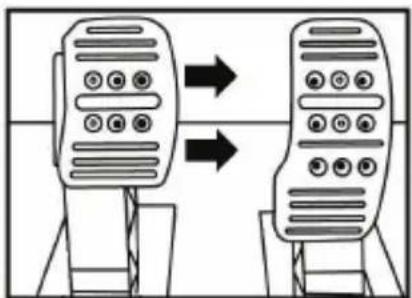

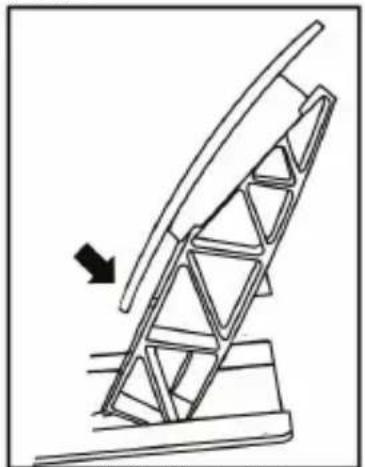

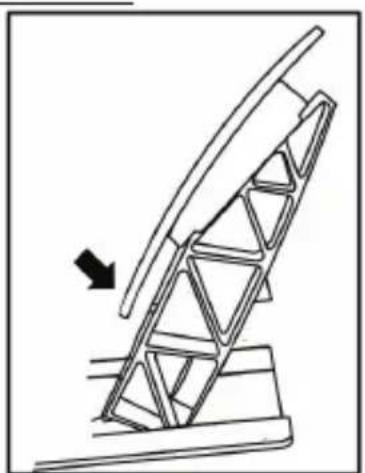

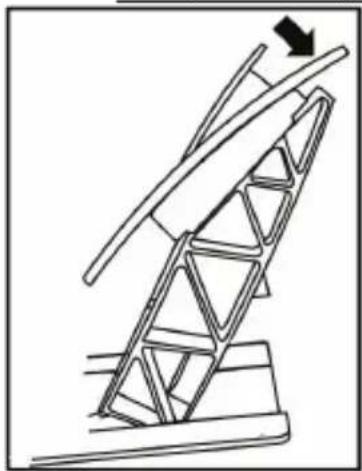

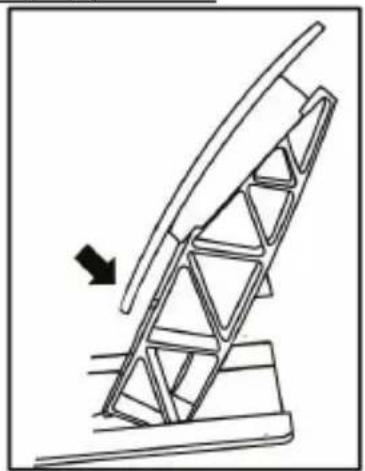

Adjusting the INCLINATION of the pedals

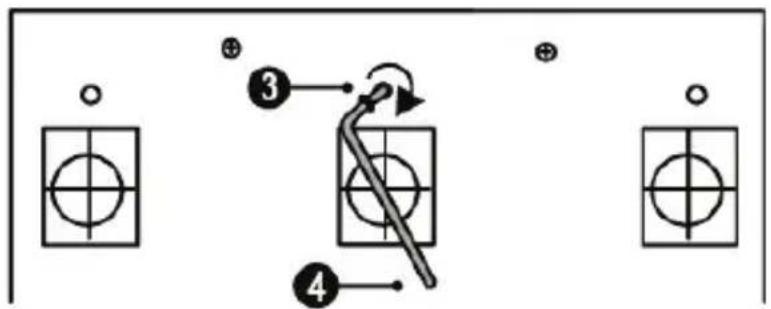

• Using the included 2.5 mm Allen key (4), unscrew the two screws holding the metal head (8) and its support (7) in place.
• Turn the plastic head support (7) 180°, then replace and re-tighten the screws so that the metal head (8) and its support (7) are held firmly in place.

Examples illustrating the accelerator pedal:

Diagram of a mechanical structure with a triangular frame and an arrow indicating upward motion (no text or symbols)

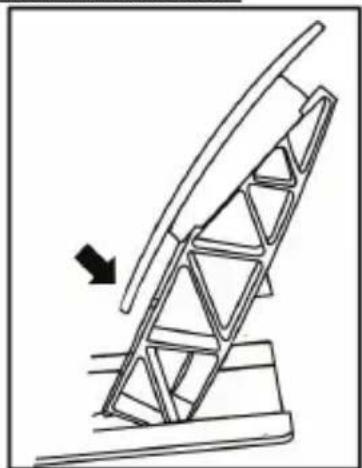

Less inclined position

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

More inclined position (default)

Number of possible inclination positions per pedal:

- Two for accelerator pedal

• Two for brake pedal
• Two for clutch pedal

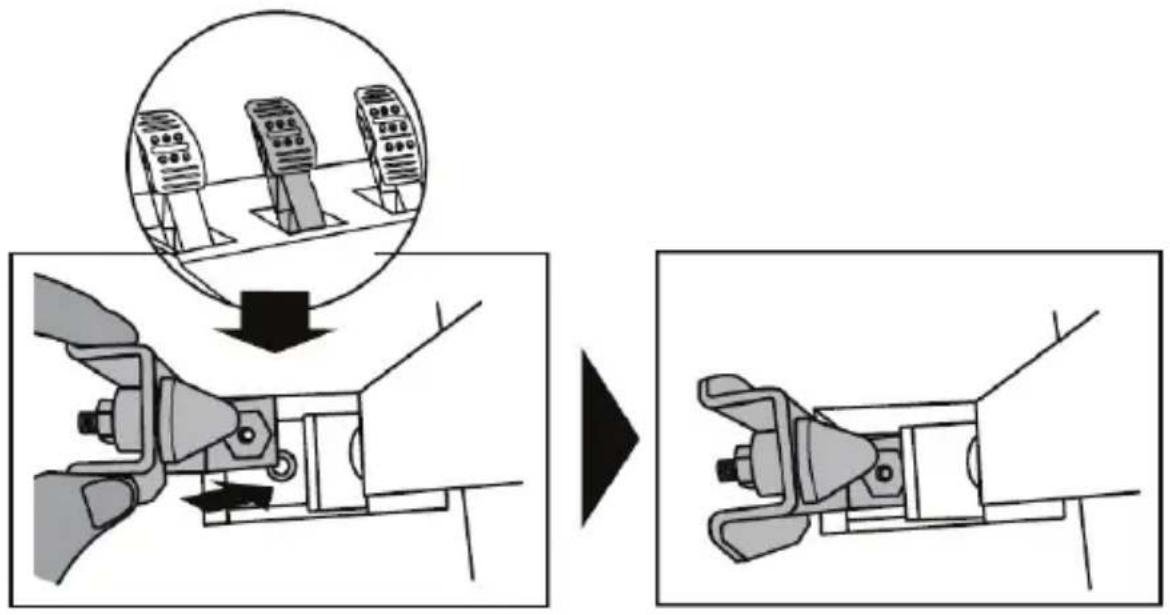

Installing the conical stop ("CONICAL RUBBER BRAKE" mod)

This modification (or "mod") is not essential, and is not installed by default. This means that the brake pedal functions perfectly even if the mod is not installed.

This mod lets you experience a different feeling and resistance when braking.

It's up to you whether or not to install it, depending on your own preferences.

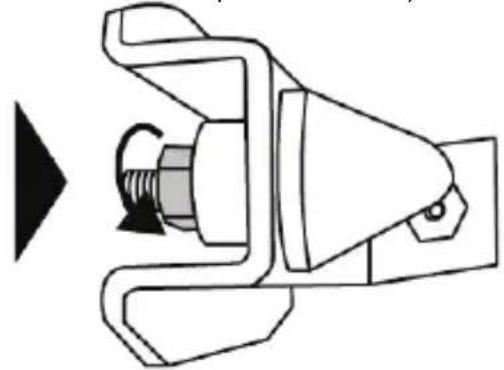

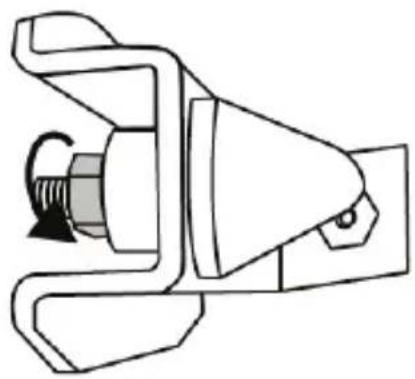

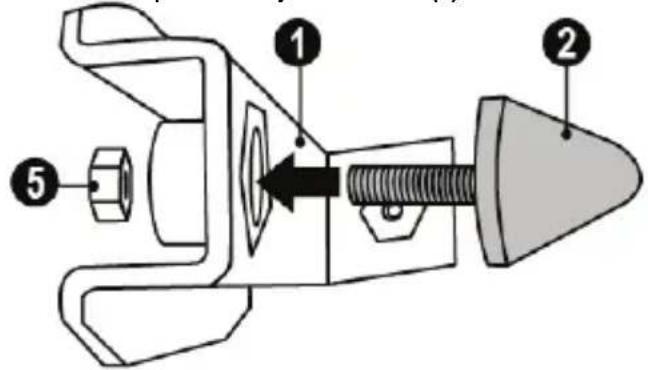

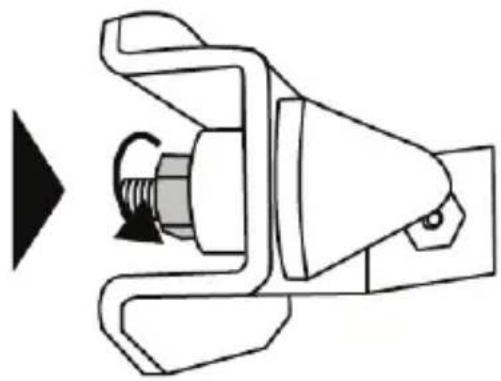

• Screw the conical stop (2) onto its metal support (1).

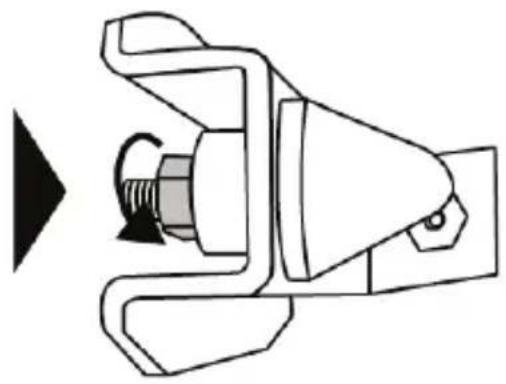

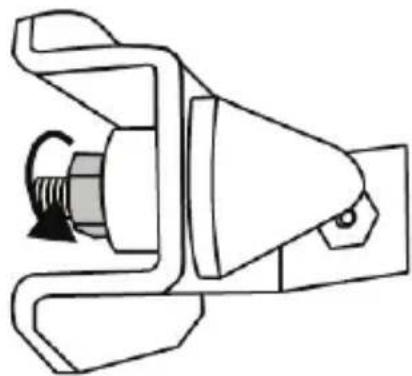

• Screw the position adjustment nut (5) onto the bottom (onto the conical stop's screw thread).

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Mechanical component diagram showing a valve or connector with a rotating knob (no text or symbols)

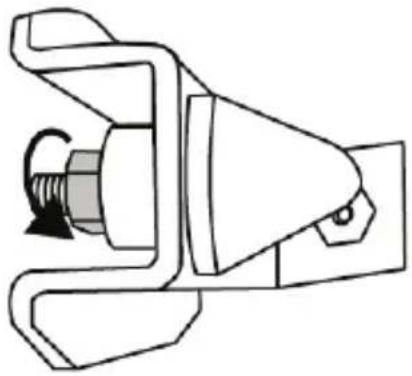

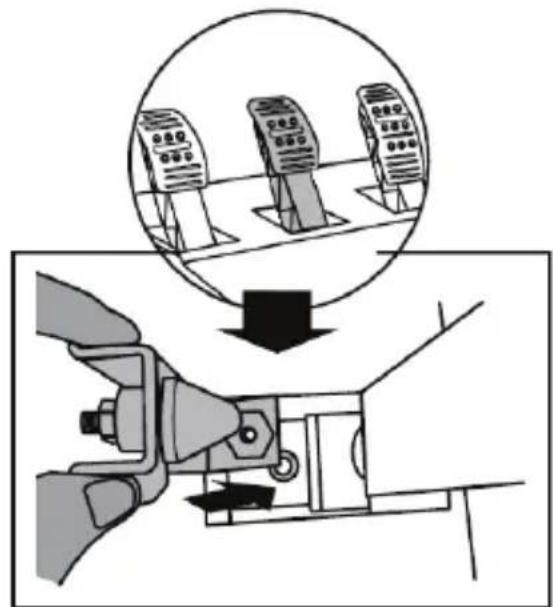

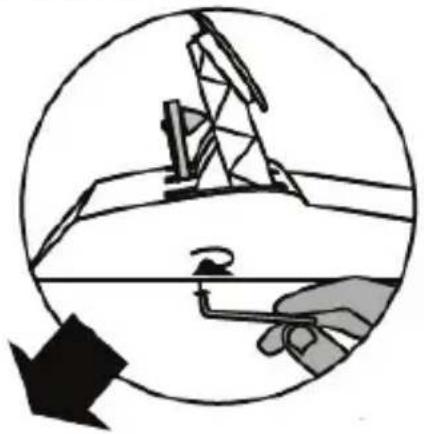

- Position the unit at the back of the brake pedal's arm.

Diagram illustrating a mechanical assembly process with three labeled components and directional arrows indicating movement.

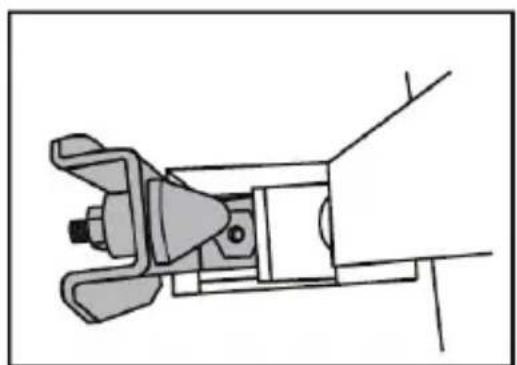

- Using the included 2.5 mm Allen key (4), attach the unit using the attachment screw (3) and the small central screw thread located on the underside of the pedal set.

Illustration of an oil pumpjack inside a circular frame with a hand holding a tool, no text or symbols present.


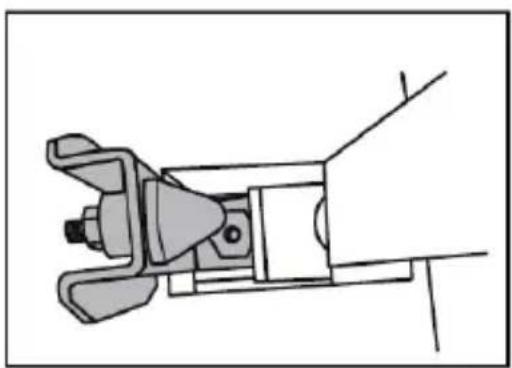

The "CONICAL RUBBER BRAKE" mod is now installed!

Adjusting the brake pedal's RANGE of travel and STRENGTH of resistance

By slightly unscrewing the nut (5), you can further strengthen the resistance of the brake pedal by moving the conical stop (2) closer to the back of the pedal's arm (if necessary, use a 14 mm wrench or pliers to re-tighten the nut and maintain the selected position). The closer the conical stop is positioned to the back of the pedal's arm, the greater the strength of resistance will be.

Mechanical component diagram showing a valve mechanism with directional arrows (no text or labels)

Note: When the conical stop is very close to the back of the brake pedal's arm, you may experience difficulties in reaching the maximum calibration value. Should that be the case:

* Slowly, press very hard on the brake pedal so as to reach the maximum value (if necessary, stand very briefly on the pedal – just for a second), then release the pressure; or else
* Move the conical stop a bit farther away from the back of the brake pedal's arm.

CONSUMER WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143, 35571 Chantepie, France (hereinafter "Guillemot") warrants to the consumer that this Thrustmaster product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from delivery of the Thrustmaster product. In other countries, the warranty period corresponds to the time limit to bring an action for conformity with respect to the Thrustmaster product according to applicable laws of the country in which the consumer was domiciled on the date of purchase of the Thrustmaster product (if no such action exists in the corresponding country, then the warranty period shall be one (1) year from the original date of purchase of the Thrustmaster product).

Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer's defective product shall, at Technical Support's option, be either replaced or returned to working order. If, during the warranty period, the Thrustmaster product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer's request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Thrustmaster product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose.

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product); (2) if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product's lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction.

This warranty is nontransferable.

The consumer's legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.

Additional warranty provisions

During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical Support is the only party authorized to open and/or recondition any Thrustmaster product (with the exception of any reconditioning procedures which Technical Support may request that the consumer carry out, by way of written instructions – for example, due to the simplicity and the lack of confidentiality of the reconditioning process – and by providing the consumer with the required spare part(s), where applicable).

Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall not provide, in principle, any reconditioning notification or spare parts for any Thrustmaster product whose warranty period has expired.

In the United States of America and in Canada, this warranty is limited to the product's internal mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any third party for any consequential or incidental damages resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of liability for consequential or incidental damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or Province to Province.

Liability

If permitted under applicable law, Guillemot Corporation S.A. (hereinafter "Guillemot") and its subsidiaries disclaim all liability for any damages caused by one or more of the following: (1) the product has been modified, opened or altered; (2) failure to comply with assembly instructions; (3) inappropriate or abusive use, negligence, an accident (an impact, for example); (4) normal wear; (5) the use of the product for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example). If permitted under applicable law, Guillemot and its subsidiaries disclaim all liability for any damages unrelated to a material or manufacturing defect with respect to the product (including, but not limited to, any damages caused directly or indirectly by any software, or by combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product).

DECLARATION OF CONFORMITY

CANADIAN COMPLIANCE NOTICE: this Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

USA COMPLIANCE NOTICE: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

THRUSTMASTER® TECHNICAL SUPPORT https://support.thrustmaster.com UK: 020 3147 4889 US: [phone] Canada: 866-889-2181

COPYRIGHT

©2022 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Manufactured and distributed by Guillemot Corporation S.A. All other trademarks and brand names are hereby acknowledged and are the property of their respective owners. Contents, design, and specifications are subject to changes without notice and may vary from one country to another. Photos and illustrations not binding. Designed in North America and Europe, made in China.

Ferrari® is a registered trademark of Ferrari Idea S.p.A.

For use exclusively with PlayStation®5 consoles and PlayStation®4 consoles.

"LP", "PlayStation", "PS5", "PS4" and "PlayStation Shapes Logo" are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All rights reserved. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment LLC.

WARNING: this product can expose you to chemicals including Bisphenol A (BPA),

which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

ENVIRONMENTAL PROTECTION RECOMMENDATION

Simple line drawing of a trash bin with crossed lines and a black rectangle below (no text or symbols)

In the European Union and Turkey: At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.

This is confirmed by the symbol found on the product, user manual or packaging.

Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment.

Please contact your local authorities for information on the collection point nearest you.

For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.

Retain this information. Colors and decorations may vary.

Plastic fasteners and adhesives should be removed from the product before it is used.

www.thrustmaster.com

*Applicable to EU, UK and Turkey only

T30C Ferrari Integral Racing Wheel

ALCANTARA® Edition

Pour consoles PlayStation®5, consoles PlayStation®4 et PC

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

ATTENTION :

Line drawing of an electrical plug with three leads and a 220V/240V label (no text or symbols on the plug itself)

Line drawing of an electrical plug with three leads and a 100V power label (no text or symbols beyond labels)

Diagram illustrating a mechanical assembly or disassembly process with labeled components and a checkmark indicating selection.

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a black arrow pointing to a component (no text or labels present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three speed limit switches mounted on a base (no text or symbols)

CARACTÉRISTIQUES TECHNIQUES

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

Diagram showing two remote control devices with labeled buttons and numbered parts

Diagram showing labeled components of a remote control system with numbered parts 6, 7, and 8

Diagram showing two identical mobile devices connected by a black arrow, no text or symbols present

Two identical mobile phone screens with circular buttons on stands, connected by a black arrow (no text or symbols)

Position haute

Two identical mobile phone controllers with left-hand side arrows, no text or symbols present

Position à gauche

Line drawing of two identical mobile phones with buttons on stands (no text or symbols)

Diagram of a ladder structure with an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Mechanical component diagram showing a valve or connector with a rotating knob (no text or symbols)

Diagram illustrating a mechanical assembly process with three labeled components and directional arrows indicating motion or assembly.

Illustration of an oil pumpjack inside a circular frame with a hand holding a tool, no text or symbols present.

Diagram showing four labeled geometric shapes with circular and cross patterns, possibly illustrating a mechanical or electrical concept.

Mechanical component diagram showing a rotating shaft and housing with directional arrows indicating motion (no text or symbols)

INFORMATIONS RELATIVES A LA GARANTIE AUX CONSOMMATEURS

THRUSTMASTER® SUPPORT TECHNIQUE https://support.thrustmaster.com © email telephone

COPYRIGHT

Symbol of a trash bin crossed with no text or labels, including a black rectangle and an asterisk (no readable text or symbols)

www.thrustmaster.com

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

ACHTUNG!

Line drawing of a three-pin electrical plug with a 220V and 240V power rating label (no text or symbols on the plug itself)

Line drawing of an electrical plug with three leads and a 100V label, no text or symbols present

Top-down line drawing of hands holding a steering wheel, enclosed in a circular frame (no text or symbols)

NIE

Prohibition sign with crossed-out hand holding a device, indicating no manual use or usage of a device.

NIE

Prohibition sign with crossed-out ring and hand symbol, indicating no prohibition or resistance

Diagram illustrating a mechanical assembly or disassembly process with labeled components and directional arrows, including a checkmark and a circular component.

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a black arrow pointing to a component (no text or labels present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base (no text or symbols)

TECHNISCHE MERKMALE

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

Diagram showing labeled parts of a remote control system with numbered components

EINBAU DES PEDALSETS IN EIN COCKPIT

ANPASSEN DES PEDALSETS

Diagram showing labeled components of a remote control system with numbered parts 6, 7, and 8

Line drawing of two identical mobile devices with buttons and ventilation slots (no text or symbols)

Diagram of a ladder structure with an arrow indicating upward motion (no text or symbols)

Diagram of a ladder structure with an arrow indicating upward motion (no text or symbols present)

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Mechanical component diagram showing a valve or connector with a rotating arrow (no text or symbols)

Diagram illustrating a mechanical assembly process with three devices and a directional arrow indicating motion or transformation.

Illustration of a hand holding a tool inside a circular frame, with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with directional arrows (no text or labels)

www.thrustmaster.com

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

WAARSCHUWING:

Line drawing of a three-pin electrical plug with a 220V and 240V power rating label (no text or symbols beyond labels)

Line drawing of a three-pin electrical plug with a 100V power label (no text or symbols on the plug itself)

Top-down line drawing of hands holding a steering wheel (no text or symbols)

Prohibition sign with crossed-out hand holding a device, indicating no use or prohibition of the device.

Prohibition sign with crossed rings and diagonal line, indicating no prohibition or resistance

Prohibition sign with diagonal line crossing over machinery silhouette (no text or symbols)

Prohibition sign with crossed-out hand holding a device, commonly used in safety or hazard prevention.

Prohibition sign with a circular border and diagonal line crossing through it, indicating no barrier to the road or bridge.

Diagram illustrating mechanical assembly steps with labeled components and directional indicators

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a small black arrow pointing to one component (no text or labels present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base (no text or symbols)

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

Diagram showing labeled components of a remote control system with numbered parts 6, 7, and 8

6 Pedaalarm
7 Kunststof pedaalsteun

8 Metalen pedaal

WAARSCHUWING

NOOIT NOOIT NOOIT

AUTOMATISCHE KALIBRATIE VAN PEDALEN

BELANGRIJK:

DE PEDAALSET AAN EEN COCKPIT BEVESTIGEN

Diagram showing labeled parts of a remote control device with numbered annotations pointing to different components.

Diagram showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating process flow.

Diagram illustrating a mechanical assembly process with three labeled components and directional arrows indicating motion or assembly.

Illustration of an oil pumpjack inside a circular frame with a hand holding a tool, no text or symbols present.

De "CONICAL RUBBER BRAKE" mod is nu gemonteerd

Mechanical component diagram showing a valve mechanism with directional arrows (no text or labels)

INFORMATIE MET BETREKKING TOT KOPERSGARANTIE

https://support.thrustmaster.com

Three black icons: a lowercase 'i' in a circle, an envelope symbol, and a telephone handset (no text or labels)

COPYRIGHT

Symbol of a trash bin with crosshair and a black rectangle below (no text or labels)

www.thrustmaster.com

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

ATTENZIONE:

Line drawing of a three-pin electrical plug with a 220V and 240V power rating label (no text or symbols on the plug itself)

Line drawing of an electrical plug with three leads and a 100V AC power terminal (no text or symbols on the plug itself)

Diagram illustrating a mechanical assembly or disassembly process with labeled components and directional indicators.

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a black arrow pointing to a component (no text or labels present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base (no text or symbols)

CARATTERISTICHE TECNICHE

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

Diagram of a remote control with labeled buttons and an arrow pointing to the number 8

8 Copri-pedale in metallo

ATTENZIONE

Diagram showing labeled parts of a remote control device with numbered annotations

Two identical mobile phone controllers with buttons on top, connected by a black arrow indicating transformation (no text or symbols present)

Two identical remote control devices on stands, one with a black upward arrow indicating rotation (no text or symbols)

Posizione alta

Two identical mobile phone controllers with left-hand side indicators (no text or symbols)

Line drawing of two identical mobile phone devices standing upright, no text or symbols present

Diagram of a ladder structure with an arrow indicating upward motion (no text or symbols)

Diagram of a ladder structure with an arrow indicating upward motion (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating process flow.

Diagram illustrating a mechanical assembly process with three motor units and directional arrows indicating motion or movement.

Illustration of an oil pumpjack inside a circular frame, with a hand holding a tool near it (no text or symbols)

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

THRUSTMASTER® ASSISTENZA TECNICA https://support.thrustmaster.com © email telephone

COPYRIGHT

Symbol of a trash bin crossed with diagonal lines and a black rectangle below (no text or labels)

www.thrustmaster.com

Technical line drawing of a steering wheel assembly (no text or symbols)

Line drawing of three identical remote control devices mounted on a base (no text or symbols)

ADVERTENCIA:

Line drawing of an electrical plug with three leads and a 220V/240V label (no text or symbols on the plug itself)

Line drawing of an electrical plug with three leads and a 100V AC power outlet (no text or symbols on the plug itself)

Diagram illustrating a mechanical assembly or disassembly process with labeled components and directional indicators.

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a black arrow pointing to a component (no text or labels present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base platform (no text or symbols)

CARACTERÍSTICAS TÉCNICAS

Diagram showing labeled parts of a remote control device with numbered annotations

Diagram showing two identical mobile phones with circular buttons on top, connected by a downward arrow (no text or symbols)

Two identical mobile phone controllers with buttons and a bidirectional arrow between them (no text or symbols)

Posición alta

Two identical mobile phone controllers with left-hand side arrows indicating bidirectional connection (no text or symbols)

Posición izquierda

Line drawing of two identical mobile phones with buttons on stands (no text or symbols)

Diagram of a ladder structure with an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Mechanical component diagram showing a valve or connector with a rotating knob (no text or symbols)

Diagram illustrating a mechanical assembly process with three mobile phones on stands, showing step-by-step assembly and disassembly.

Illustration of an oil pumpjack inside a circular frame with a hand holding a tool, no text or symbols present.

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

https://support.thrustmaster.com

Three black icons: a lowercase 'i' in a circle, an envelope symbol, and a telephone handset (no text or labels)

COPYRIGHT

Symbol of a trash bin crossed with two crossed lines, no text or labels present

www.thrustmaster.com

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

ATENÇÃO:

Line drawing of a three-pin electrical plug with a 220V and 240V power rating label (no text beyond labels)

Nunca ligue o cabo de 220-240 V

Line drawing of an electrical plug with three leads and a 100V power label (no text or symbols beyond labels)

Illustration of a 110V and 240V power supply connected by wires (no text or symbols on components)

AVISO

Diagram illustrating a mechanical assembly or disassembly process with labeled components and directional arrows, including a checkmark and rotation indicator.

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a small black arrow pointing to a component below (no text or labels present)

SENSOR DA TEMPERATURA INTERNA

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base (no text or symbols)

CARACTERÍSTICAS TÉCNICAS

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

Diagram showing labeled components of a remote control system with numbered parts 6, 7, and 8

FIXAR O CONJUNTO DE PEDAIS A UM COCKPIT

• Fixe o conjunto de pedais utilizando os pequenos furos roscados situados na parte inferior do conjunto de pedais.
• Enrosque dois parafusos M6 (não incluídos) na placa de suporte do conjunto de pedais e nos dois furos roscados pequenos situados na parte inferior do conjunto de pedais.

Diagram showing labeled components of a remote control panel with numbered parts and buttons

Diagram showing two identical devices connected by a double-headed arrow, indicating bidirectional interaction or transformation (no text or symbols present)

Two identical mobile phone icons on stands, one with a black upward arrow between them (no text or symbols)

Posição alta

Two identical mobile phone controllers with left-hand side arrows indicating bidirectional connection (no text or symbols)

Posição à esquerda

Line drawing of two identical mobile phone devices standing upright, no text or symbols present

Diagram of a mechanical structure with a triangular frame and an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Technical diagram showing mechanical assembly steps with numbered components and directional arrow indicating transformation

Diagram illustrating a mechanical assembly process with three labeled components and directional arrows indicating movement.

Illustration of an oil pumpjack inside a circular frame with a hand holding a tool, no text or symbols present.

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

https://support.thrustmaster.com

Icon set with three symbols: information (i), email, and telephone

DIREITOS DE AUTOR

Symbol of a trash bin crossed with a diagonal line and a black rectangle below (no text or labels)

www.thrustmaster.com

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

ATENÇÃO:

Line drawing of an electrical outlet with three leads and a 220V/240V power rating label (no text or symbols beyond labels)

Nunca ligue o cabo de 220-240 V a tomada elétrica de 100-130 V!

Line drawing of an electrical plug with three leads and a 100V power label (no text or symbols beyond labels)

Nunca ligue o cabo de 100-125 V a tomada elétrica de 220-240 V!

Top-down line drawing of hands holding a steering wheel, enclosed in a circular frame (no text or symbols)

NUNCA

Prohibition sign with hands using a device to avoid wheel rim, enclosed in a circle

NUNCA

Prohibition sign with crossed rings and diagonal line, indicating no prohibition or resistance

Diagram illustrating a mechanical assembly or disassembly process with labeled components and directional indicators.

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a black arrow pointing to a component (no text or labels present)

SENSOR DA TEMPERATURA INTERNA

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three speed limit switches mounted on a base (no text or symbols)

CARACTERÍSTICAS TÉCNICAS

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

Diagram showing labeled parts of a remote control system with numbered components

FIXAR O CONJUNTO DE PEDAIS A UM COCKPIT

• Fixe o conjunto de pedais utilizando as pequenas roscas de parafusos situadas na parte inferior do conjunto de pedais.
• Enrosque dois parafusos M6 (não incluídos) na chapa de apoio do conjunto de pedais e nas duas pequenas roscas de parafusos situadas na parte inferior do conjunto de pedais.

Diagram showing labeled parts of a remote control device with numbered annotations

Diagram showing two identical devices with circular buttons on top, connected by a double-headed arrow (no text or symbols)

Two identical mobile phone controllers standing upright, one with a black upward arrow between them (no text or symbols)

Posição alta

Two identical mobile phone controllers with left-pointing arrows indicating bidirectional connection (no text or symbols)

Posição à esquerda

Two identical mobile phone controllers standing upright on stands, no text or symbols visible

Diagram of a ladder structure with an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical ladder with an arrow indicating motion direction (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating process flow.

Diagram illustrating a mechanical assembly process with three labeled components and directional arrows indicating movement.

Illustration of an oil pumpjack inside a circular frame with a hand holding a tool, no text or symbols present.

Mechanical component diagram showing a valve mechanism with directional arrows (no text or labels)

THRUSTMASTER® SUPORTE TÉCNICO https://support.thrustmaster.com © 📧

www.thrustmaster.com

T30C Ferrari Integral Racing Wheel

ALCANTARA® Edition

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

ВНИМАНИЕ!

Line drawing of a three-pin electrical plug with a 220V and 240V power rating label (no text or symbols beyond specifications)

Line drawing of two electrical plug wires with a 100V AC power label (no text or symbols on the main subject)

Diagram illustrating a mechanical assembly or disassembly process with labeled components and a checkmark indicating selection.

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a black arrow pointing to a horizontal bar (no text or labels present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three speed limit switches mounted on a base (no text or symbols)

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

Diagram showing labeled components of a remote control system, including a monitor, remote device, and two numbered buttons.

Diagram showing labeled parts of a remote control device with numbered annotations

Diagram showing two identical devices with circular buttons on top, connected by a downward arrow (no text or symbols)

Two identical mobile phone monitors on stands, one with a black upward arrow indicating direction (no text or symbols)

Высокое положение

Two identical mobile phone devices connected by a bidirectional arrow, no text or symbols present

Левое положение

Line drawing of two identical mobile phones with buttons on stands (no text or symbols)

Diagram of a mechanical structure with a triangular frame and an arrow indicating upward motion (no text or symbols)

Угол наклона меньше

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Technical diagram showing mechanical assembly steps with numbered components and directional arrow indicating transformation

Diagram illustrating a mechanical assembly process with three labeled components and directional arrows indicating motion or assembly.

Illustration of an oil rig with a hand holding a tool, enclosed in a circular arrow (no text or symbols)

Модуль CONICAL RUBBER BRAKE mod установлен!

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

https://support.thrustmaster.com

АВТОРСКИЕ ПРАВА

www.thrustmaster.com

EAC

T30C Ferrari Integral Racing Wheel

ALCANTARA® Edition

Pro konzole PlayStation®5, konzole PlayStation®4 a PC

Uživatelský manuál

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

UPOZORNĚNÍ:

Line drawing of an electrical plug with three leads and a 220V AC power outlet (no text or symbols on the plug itself)

Line drawing of an electrical plug with three leads and a 100V power label (no text or symbols beyond labels)

Diagram illustrating a mechanical assembly or disassembly process with labeled components and a checkmark indicating completion.

X

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base platform (no text or symbols)

TECHNICKÉ VLASTNOSTI

Diagram showing two remote control devices labeled with numbers 7 and 8, likely for electronics or navigation instructions.

Prohibition sign showing a hand using a tool to cut a mechanical component (no text or symbols)

NIKDY

Prohibition sign showing a large ship at the bottom of a circular border (no text or symbols)

NIKDY

Prohibition sign with diagonal line crossing over a mechanical component (no text or symbols)

AUTOMATICKÁ KALIBRACE PEDÁLOVÉ SADY

DÜLEŽITÉ:

Diagram showing labeled components of a remote control system, including a monitor, remote device, and control panel.

Diagram showing two identical server units connected by a double-headed arrow, indicating data transfer or data flow (no text or symbols present)

Two identical mobile phone icons on stands, one with a black upward arrow between them (no text or symbols)

Vysoká poloha

Two identical mobile phone controllers with left-hand side arrows (no text or symbols)

Poloha vlevo

Line drawing of two identical mobile phone holders standing upright, no text or symbols present

Diagram of a mechanical structure with a triangular frame and an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating process flow.

Diagram illustrating a mechanical assembly process with three mobile phones on a lift, showing step-by-step assembly and disassembly.

Illustration of an oil pump being handled by a hand, enclosed in a circular frame with a downward arrow (no text or symbols)

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

https://support.thrustmaster.com

Three black icons: a lowercase 'i' in a circle, an envelope symbol, and a telephone handset (no text or labels)

AUTORSKÁ PRÁVA

Simple line drawing of a trash bin with crossed lines and a black rectangular base (no text or symbols)

www.thrustmaster.com

Technical line drawing of a steering wheel assembly (no text or symbols)

Line drawing of three identical mobile phones mounted on a base (no text or symbols)

UYARI:

Line drawing of an electrical plug with three leads and a 220V/240V power rating label (no text or symbols beyond labels)

Line drawing of an electrical plug with three leads and a 100V power label (no text or symbols beyond labels)

Top-down line drawing of hands holding a steering wheel, enclosed in a circular frame (no text or symbols)

ASLA

Prohibition sign with hands holding a device, crossed out by a diagonal line

ASLA

Prohibition sign with crossed rings and diagonal line, indicating no prohibition or resistance

Diagram illustrating a mechanical assembly or disassembly process with labeled components and a checkmark indicating selection.

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a black arrow pointing to a support structure below (no text or labels present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base platform (no text or symbols)

TEKNİK ÖZELLİKLER

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

Diagram showing labeled parts of a remote control system with numbered components

Diagram showing labeled parts of a remote control device with numbered annotations

Diagram showing two identical server units connected by a double-headed arrow, indicating data transfer or system change (no text or symbols present)

Two identical mobile phone icons on stands, one with a black upward arrow between them (no text or symbols)

Yüksek pozisyon

Two identical mobile phone controllers with left-hand side indicators (no text or symbols)

Sol pozisyon

Line drawing of two identical mobile phones with buttons on stands (no text or symbols)

Technical line drawing of a mechanical structure with triangular supports and a downward arrow indicating force or motion (no text or symbols)

Az eğimli pozisyon

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Mechanical component diagram showing a valve or connector with a rotating knob (no text or symbols)

Diagram illustrating a mechanical assembly process with three labeled components and a downward arrow indicating motion or direction.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of an oil pumpjack inside a circular frame with a hand holding a tool, no text or symbols present.

Diagram showing four labeled geometric shapes with circular and cross patterns, possibly illustrating a mechanical or electrical concept.

"CONICAL RUBBER BRAKE" mod şimdi monteli!

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

https://support.thrustmaster.com

Icon set with three symbols: lowercase 'i', envelope, and telephone handset

TELİF HAKKI

www.thrustmaster.com

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

OSTRZEŻENIE:

Line drawing of a three-pin electrical plug with a 220V and 240V power rating label (no text or symbols on the plug itself)

Line drawing of an electrical plug with two terminal pins and a 100V power label (no text or symbols beyond labels)

Top-down line drawing of hands holding a steering wheel (no text or symbols)

NIGDY

Prohibition sign with crossed-out hands and circular background, indicating no protection or disapproval.

NIGDY

Prohibition sign with crossed-out ring and hand symbol, indicating no prohibition or resistance

Diagram illustrating a mechanical or optical setup with labeled components and a checkmark indicating selection.

Diagram showing two identical mechanical components with a red X mark above, and a black arrow pointing to a support structure (no text or symbols present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three speed limit switches mounted on a base (no text or symbols)

ELEMENTY

Diagram showing labeled parts of a remote control device with numbered annotations

Diagram showing two identical mobile phones with circular buttons on their heads, connected by a black arrow indicating rotation (no text or symbols present)

Two identical remote control devices on stands, one with a black upward arrow indicating rotation (no text or symbols)

Położenie wysokie

Line drawing of two identical mobile phones with buttons on stands (no text or symbols)

Diagram of a mechanical structure with a triangular frame and an upward arrow, no text or symbols present

Mniejsze nachylenie

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Pure mechanical diagram of a lever mechanism without any text or symbols

Diagram illustrating a mechanical assembly process with three mobile phones on stands, showing step-by-step assembly and disassembly.

Illustration of an oil pumpjack inside a circular frame with a hand holding a tool, no text or symbols present.

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

https://support.thrustmaster.com

Icon set with three symbols: lowercase circle (i), envelope, and telephone handset

PRAWA AUTORSKIE

Simple line drawing of a trash bin with crossed lines and a black rectangle below (no text or symbols)

www.thrustmaster.com

Technical line drawing of a steering wheel assembly (no text or symbols)

Line drawing of three identical mobile phones mounted on a base (no text or symbols)

警告：

https://support.thrustmaster.com/ja/

技術仕様

PS5-PS4 PC ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

Pure electrical circuit lines without any symbols

Line drawing of an electrical outlet with three leads and a 230V AC power label (no text or symbols beyond labels)

電源內蔵型:

Line drawing of an electrical outlet with three leads and a 100V power label (no text or symbols beyond labels)

Top-down line drawing of hands operating a car steering wheel (no text or symbols)

Prohibition sign with crossed-out hands and circular background, indicating no manual hand use or no manual work.

Prohibition sign with crossed rings and diagonal line, indicating no prohibition or exclusion

Three black-and-white prohibition signs with Chinese characters, depicting illegal machinery use.

Diagram illustrating a mechanical assembly or disassembly process with labeled components and a checkmark indicating selection.

Diagram showing two mechanical components with a red 'X' symbol above, indicating failure or rejection.

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical mobile phones on a base platform (no text or symbols)

技術仕様

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

1 円錐ストップ用金属サポート

(出荷時には取り付けられていません)

Diagram showing two remote control devices with labeled buttons and numbered parts

8 メタルペダルヘッド

警告

Prohibition sign with diagonal line crossing over a mechanical component diagram (no text or symbols)

危険

Prohibition sign with Chinese characters and a diagonal line crossing over a landscape background

危険

Black and white prohibition symbol over a mechanical device (no text or symbols present)

ペダルの自動調整

重要：

Diagram showing labeled parts of a remote control device with numbered annotations

Diagram showing two scenarios of a mobile phone with icons and directional arrows indicating change or movement.

低ポジション（デフォルト）高ポジション

3 ペダルのスペース間隔の調整

Two identical mobile phone controllers with left-pointing arrows indicating bidirectional connection (no text or symbols)

左ポジショ

Two identical mobile phone controllers standing upright, no text or symbols visible

中央ポジション（デフォルト）

右ポジション

Diagram of a mechanical structure with a triangular frame and an arrow indicating upward motion (no text or symbols)

Line drawing of a ladder structure with an arrow indicating upward motion (no text or symbols)

傾き小 傾き大（デフォルト）

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

Diagram illustrating a mechanical assembly process with three labeled components and directional arrows indicating motion or assembly.

Diagram showing a hand holding a tool inside a circular frame with an oil pumpjack, no text or symbols present.

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

©2022 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Manufactured and distributed by Guillemot Corporation S.A. All other trademarks and brand names are hereby acknowledged and are the property of their respective owners. Contents, design, and specifications are subject to changes without notice and may vary from one country to another. Photos and illustrations not binding. Designed in North America and Europe, made in China.

Ferrari® is a registered trademark of Ferrari Idea S.p.A.

For use exclusively with PlayStation®5 consoles and PlayStation®4 consoles.

“▶”, “PlayStation”, “PS5”, “PS4” and “PlayStation Shapes Logo” are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All rights reserved. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment Inc.

環境保護推獎

www.thrustmaster.com

Made in China.

:外箱

T30C Ferrari Integral Racing Wheel

ALCANTARA® Edition

Technical line drawing of a steering wheel assembly (no text or symbols)

Line drawing of three remote control devices on a base platform (no text or symbols)

警告：

Line drawing of an electrical outlet with three leads and a 220V/240V power rating label (no text or symbols beyond labels)

切勿将 220-240V 电源线连接到

Line drawing of an electrical outlet with two 3-pin connectors and a 100V power label (no text or symbols beyond labels)

切勿将 100-125V 电源线连接到

Top-down line drawing of hands holding a steering wheel, enclosed in a circular frame (no text or symbols)

绝对禁止

Prohibition sign with crossed-out hand holding a device, indicating no use or prohibition of the device.

绝对禁止

Prohibition sign with crossed-out ring and hand symbol, indicating no prohibition or restriction

警告 — 玩游戏时踏板组夹住危险

Diagram illustrating mechanical assembly steps with labeled components and a checkmark indicating selection

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a black arrow pointing to a component (no text or labels present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base (no text or symbols)

技术特性

① ② ③ ④ 2.5 mm ⑤

Diagram showing labeled components of a remote control system with numbered parts 6, 7, and 8

6 踏板臂
7 塑料踏板头支架

8 金属踏板头

警告

Prohibition sign showing a hand blocking a building interior (no text or symbols)

绝对禁止

Black and white prohibition symbol on a mountain slope, no text or symbols present

绝对禁止

Prohibition sign with diagonal line crossing over a mechanical component diagram (no text or symbols)

踏板自动校准

重要说明：

Diagram showing labeled components of a remote control device with numbered parts 6, 7, and 8

Diagram showing two identical devices with circular buttons, one moving down and the other increasing, indicating a change in device state or operation.

低位（默认） 高位

调整间距

Two identical mobile phone controllers with bidirectional arrows indicating data flow (no text or symbols)

左侧位置 居中位置（默认） 右侧位置

Line drawing of two identical mobile phone devices standing upright, no text or symbols present

每个踏板的可能间距位置数目：

• 加速踏板三个
• 刹车踏板三个
• 离合器踏板三个

调整踏板的倾角

Diagram of a ladder structure with an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Mechanical component diagram showing a valve or clamp mechanism with no visible text or symbols

- 将该部件装在单元刹车踏板臂的背面。

Diagram illustrating a mechanical device operation with three labeled test devices and a downward arrow indicating motion or adjustment.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of an oil pumpjack inside a circular frame with a hand holding a tool, no text or symbols present.

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

Technical line drawing of a steering wheel assembly (no text or symbols)

Line drawing of three remote control devices on a base platform (no text or symbols)

警告：

Line drawing of an electrical plug with three leads and a 220V/240V label (no text or symbols on the plug itself)

Line drawing of an electrical outlet with two plug terminals and a cable, no text or symbols present

Diagram of hands holding a steering wheel with control buttons, enclosed in a circular frame (no text or symbols)

禁止

Prohibition sign with crossed-out hand holding a device, indicating no use or prohibition of the device.

禁止

Prohibition sign with crossed rings and hand, symbolizing no-prohibition or prohibition

注意 - 遊玩時請小心別被腳踏板組夾傷

Diagram illustrating a mechanical assembly or disassembly process with labeled components and directional indicators.

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a black arrow pointing to a component (no text or labels present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base (no text or symbols)

技術特點

① ② ③ ④ 2.5 mm ⑤

1 錐形塞金屬支架（並未預設安裝）

2 錐形塞

3 金屬支架固定螺桿

Diagram showing labeled components of a remote control system with numbered parts 6, 7, and 8

6 踏板臂

7 腳踏板頭支架

Diagram showing two remote control devices with labeled buttons and numbered parts

8 金屬踏板頭

警告

Diagram showing labeled components of a remote control system with numbered parts 6, 7, and 8

Two identical mobile phone controllers with left-hand side arrows, no text or symbols present

左侧位置 居中位置（默认） 右侧位置

Two identical mobile phone controllers standing upright, no text or symbols visible

每個踏板可能的間隔位置數：

Diagram of a mechanical structure with a triangular frame and an arrow indicating upward motion (no text or symbols)

較平位置

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

較斜位置（預設）

每個踏板可能的傾斜位置數：

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Technical line drawing of a mechanical clamp or connector (no text or symbols)

- 將修改器置於煞車踏板臂背部。

Diagram illustrating a mechanical device operation with three labeled devices and a downward arrow indicating motion or assembly.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of a hand using a tool to measure a drilling rig, with a circular arrow indicating direction (no text or symbols)

「錐形橡膠煞車器」修改器已安裝成功！

調整煞車踏板的行動範圍及阻力強度

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

Line drawing of a steering wheel and a three-hand robotic platform (no text or symbols)

경고:

⑫ ⑬ ⑭ ⑮ ⑯ ⑰ USB

Line drawing of an electrical plug with three leads and a 220V/240V label (no text or symbols on the plug itself)

Top-down line drawing of a car steering wheel with hands operating controls (no text or symbols)

절대 금지

Prohibition sign with crossed-out hand holding a device, indicating no use or prohibition of the device.

절대 금지

Prohibition sign with a hand holding a ring, crossed out by a diagonal line

Diagram illustrating mechanical assembly steps with labeled components and a checkmark indicating selection

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a small black arrow pointing to a horizontal bar below (no text or labels present)

THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base platform (no text or symbols)

기술적 특징

① ② ③ ④ 2.5 mm ⑤ 2.5 MM

Diagram showing labeled components of a remote control system, including a monitor, remote device, and control panel with numbered parts.

6 페달 암

7 플라스틱 헤드 지지물

8 금속 페달 헤드

경고

Prohibition sign with hand holding a device, no text or symbols present

절대 금지

Prohibition sign with Chinese characters and a diagonal line crossing over a mountain-like structure

절대 금지

Black and white prohibition symbol with hand holding a device, no text or symbols present

페달 자동 보정

중요:

Diagram showing labeled parts of a remote control device with numbered annotations

Diagram showing two identical mobile phones with circular buttons on the left, connected by a black arrow to their sides (no text or symbols present)

낮은 위치(기본 위치)

Two identical mobile phone icons on stands, one with a black upward arrow between them (no text or symbols)

높은 위치

간격 조정

Two identical mobile phone controllers with bidirectional arrows indicating signal or connection (no text or symbols)

왼쪽 위치

Line drawing of two identical mobile phones with control buttons on stands (no text or symbols)

가운네 위치(기몬 위치)

오른쪽 위지

페달 별 가능한 간격 위치 수:

- 가속 폐달 3 개

-클러치 폐달 3 개

페달 경사 조정

Diagram of a ladder structure with an arrow indicating upward motion (no text or symbols)

떨 경사진 위치

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

더 경사진 위치(기본 위치)

페달 별 가능한 경사 위치 수:

- 가속 폐달용 2 개

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating process flow.

Diagram illustrating a mechanical assembly process with three labeled components and directional arrows indicating movement.

Diagram showing a hand holding a tool inside a circular frame with an arrow indicating rotation (no text or symbols)

Mechanical component diagram showing a valve mechanism with directional arrows (no text or labels)

©2022 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Manufactured and distributed by Guillemot Corporation S.A. All other trademarks and brand names are hereby acknowledged and are the property of their respective owners. Contents, design, and specifications are subject to changes without notice and may vary from one country to another. Photos and illustrations not binding. Designed in North America and Europe, made in China.

Ferrari® is a registered trademark of Ferrari Idea S.p.A.

"1", "PlayStation", "PS5", "PS4" 및 "PlayStation Shapes Logo"는 Sony Interactive Entertainment Inc.의 등록 상표 또는 상표입니다. All rights reserved. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment Inc.

환경 보호 권장 사항

www.thrustmaster.com

MSIP-REI-MF0-

T300FERRARI-IA

MSIP-REI-MF0-

T3PAADD-ON

T30C Ferrari Integral Racing Wheel

ALCANTARA® Edition

Technical line drawing of a steering wheel assembly (no text or symbols)

Line drawing of three identical remote control devices on a base platform (no text or symbols)

WARNING:

Line drawing of a three-pin electrical plug with a 220V and 240V power rating label (no text or symbols beyond specifications)

Line drawing of an electrical plug with three leads and a 100V power label (no text or symbols beyond labels)

Anslut aldrig 100-125 V-kabeln

Diagram of hands holding a steering wheel, enclosed in a circular frame (no text or symbols)

ALDRIG

Prohibition sign with crossed-out hand holding a device, indicating no use or prohibition of the device.

ALDRIG

Prohibition sign with crossed-out ring and hand symbol, indicating no prohibition or restriction

Diagram illustrating mechanical assembly steps with labeled components and a checkmark indicating selection

X

INTERN TEMPERATURSENSOR

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base platform (no text or symbols)

TEKNISKA DELAR

Diagram showing three labeled components: a connector, a conical tip, and a vertical rod.

2.5 mm ④ ⑤

Diagram showing labeled components of a remote control system, including a monitor, remote device, and control panel with numbered parts.

MONTERA PEDALSETET PÅ EN COCKPIT

Diagram showing labeled components of a remote control device with numbered parts 6, 7, and 8

Two identical mobile phones with circular buttons on the left, connected by a black arrow to a horizontal line (no text or symbols)

Låg position (standard)

Two identical mobile phone controllers with buttons and a bidirectional arrow between them (no text or symbols)

Hög position

Justera MELLANRUMMET mellan de tre pedalerna

Two identical mobile phone controllers with left-hand side arrows, no text or symbols present

Vänster position

Two identical mobile phone controllers standing upright, no text or symbols visible

Central position (standard)

Höger position

Diagram of a mechanical structure with a triangular frame and an arrow indicating upward motion (no text or symbols)

Mindre lutad position

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Mer lutad position (standard)

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Mechanical component diagram showing a valve or connector with a rotating knob (no text or symbols)

Diagram illustrating a mechanical assembly process with three labeled components and directional arrows indicating movement.

Illustration of an oil pumpjack inside a circular frame with a hand holding a tool, no text or symbols present.

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

https://support.thrustmaster.com

UPPHOVSRÄTTSSKYDD

Symbol of a trash bin crossed with diagonal lines and a black rectangle below (no text or labels)

www.thrustmaster.com

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

VAROITUS:

Line drawing of a three-pin electrical plug with a 220V and 240V power rating label (no text or symbols on the plug itself)

Line drawing of an electrical plug with three leads and a 100V power label (no text or symbols beyond labels)

Diagram of hands holding a steering wheel, enclosed in a circular frame (no text or symbols)

EI IKINÄ

Prohibition sign with hands holding a device, crossed out by a diagonal line

EI IKINÄ

Prohibition sign with crossed rings and hand holding a tool, commonly used in safety or resistance measures.

Diagram illustrating a mechanical assembly process with labeled components and a checkmark indicating selection.

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a small black arrow pointing to a component below (no text or labels present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base platform (no text or symbols)

TEKNISET OMINAISUUDET

Diagram showing three labeled components: a connector, a conical tip, and a vertical rod.

2.5 mm ④ ⑤

Diagram showing labeled components of a remote control system with numbered parts 6, 7, and 8

6 Polkimen varsi
7 Muovinen kärkituki

Diagram showing labeled parts of a remote control device with numbered annotations

Diagram showing two identical mobile phones with circular buttons on their heads, connected by a downward arrow (no text or symbols)

Matala asento (oletus)

Two identical mobile phone screens with circular buttons on the left, connected by a black arrow on the right (no text or symbols)

Korkea asento

Two identical mobile phone controllers with bidirectional arrows indicating signal or connection (no text or symbols)

Vasen asento

Line drawing of two identical mobile phone holders standing upright, no text or symbols present

Keskiasento (oletus)

Oikea asento

Diagram of a mechanical structure with triangular supports and a directional arrow (no text or symbols)

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating process flow.

Diagram illustrating a mechanical assembly process with three labeled devices and directional arrows indicating movement.

Illustration of a hand holding a tool inside a circular frame, with an arrow indicating rotation (no text or symbols)

Mechanical component diagram showing a valve mechanism with directional arrows (no text or labels)

THRUSTMASTER® TEKNINEN TUKI https://support.thrustmaster.com © 📧

TEKIJÄNOIKEUS

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or labels)

www.thrustmaster.com

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

UPOZORNENIE:

Line drawing of a three-pin electrical plug with a 220V and 240V power rating label (no text beyond specifications)

Nikdy nepripájajte kábel s 220 - 240 V o elektrickej zásuvky s 100 - 130 V !!!

Line drawing of an electrical outlet with three leads and a 100V power label (no text or symbols beyond labels)

Nikdy nepripájajte 100-125 V kábel elektrickej zásuvky 220-240 V !!!

NIKDY NIKDY NIKDY

Varovanie - Nebezpečenstvo privretia do pedálu mimo hrania

Diagram illustrating a mechanical assembly or disassembly process with labeled components and a checkmark indicating completion.

NIKDY

Diagram showing two identical mechanical components with a red 'X' symbol above them, and a black arrow pointing to a component (no text or labels present)

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base platform (no text or symbols)

TECHNICKÉ VLASTNOSTI

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

1 Kovová podpera pre kužel'ovitú zarážku (predvolene nie je nainštalovaná)
2 Kužel'ovitá zarážka
3 Upevňovacia skrutka pre kovovú podperu

Diagram showing labeled parts of a remote control system with numbered annotations pointing to different devices.

Diagram showing labeled parts of a remote control device with numbered annotations

Diagram showing two identical devices with circular buttons on top, connected by a downward arrow (no text or symbols)

Two identical mobile phones on stands, one with a black upward arrow between them (no text or symbols)

Vysoká pozícia

Nastavenie ROZOSTUPU troch pedálov

Two identical mobile phone controllers with left-hand side arrows (no text or symbols)

L'avá poloha

Line drawing of two identical mobile phones with buttons on stands (no text or symbols)

Diagram of a mechanical structure with triangular supports and a directional arrow (no text or symbols)

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Mechanical component diagram showing a valve or connector with a rotating knob (no text or symbols)

Diagram illustrating a mechanical assembly process with three motor holders and a close-up of the device, showing step-by-step assembly.

Illustration of a hand holding a tool inside a circular frame, with an arrow indicating rotation (no text or symbols)
    BR
    BC
    CA
    CB
    DC
    DE
    EF
    BG
    BH
    BI
    BJ
    BK
    BL
    BM
    BN
    BO
    BP
    DB
    CE
    CF
    DG
    BE
    CE
    BF
    BG
    BE
    BF
    BG
    BE
    BF
    BG
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE
    BF
    BE

Mechanical assembly diagram showing a valve mechanism with directional arrows (no text or labels)

https://support.thrustmaster.com

Icon set with a lowercase 'i', an envelope, and a telephone handset, likely representing email, communication, or phone.

AUTORSKÉ PRÁVA

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or labels)

www.thrustmaster.com

Line drawing of a steering wheel and three motor drive holders on a platform (no text or symbols)

FIGYELMEZTETÉS:

Line drawing of an electrical plug with three leads and a 220V/240V label (no text or symbols on the plug itself)

Line drawing of an electrical plug with three leads and a 100V label, no text or symbols present

Top-down line drawing of hands holding a steering wheel, enclosed in a circular frame (no text or symbols)

HIBÁS

Prohibition sign with hands holding a device, set against a circular background with partial text and symbols

HIBÁS

Prohibition sign with crossed rings and diagonal line, indicating no prohibition or resistance

Diagram illustrating mechanical assembly steps with labeled components and a checkmark indicating selection

Diagram showing two identical mechanical components with a red 'X' symbol above them, no text or labels present.

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base platform (no text or symbols)

MÜSZAKI LEÍRÁS

Diagram showing two remote control devices labeled with numbers 7 and 8, likely for electronics or system labeling.

Diagram showing labeled parts of a remote control device with numbered annotations

Diagram showing two identical mobile phone devices connected by a double-headed arrow (no text or symbols present)

Two identical mobile phone icons on stands, one with a black upward arrow between them (no text or symbols)

Magas pozíció

Line drawing of two identical mobile phones with control buttons and ventilation slots (no text or symbols)

Diagram of a mechanical structure with a triangular frame and an arrow indicating upward motion (no text or symbols)

Kevésbé döl

Line drawing of a mechanical structure with an arrow indicating direction (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating process flow.

Diagram illustrating a mechanical assembly process with three labeled components and directional arrows indicating motion or assembly.

Illustration of an oil pump being handled by a hand, with no visible text or symbols

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

https://support.thrustmaster.com

i

SZERZÓI JOG

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or labels)

*

www.thrustmaster.com

Technical line drawing of a steering wheel assembly (no text or symbols)

Line drawing of three identical mobile phones mounted on a base (no text or symbols)

تحذير:

Thrustmaster Quick Release 12

L3/R3 13

Line drawing of a three-pin electrical plug with a 270V and 240V power rating label (no text or symbols on the plug itself)

Line drawing of an electrical outlet with three leads and a 100V/125V power label (no text or symbols beyond labels)

Pure electrical circuit lines without any symbols

Diagram illustrating a mechanical assembly or disassembly process with labeled components and a checkmark indicating selection.

Diagram showing two mechanical components with a red 'X' symbol indicating failure or rejection, and a black arrow pointing to a component.

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical speed limit switches mounted on a base (no text or symbols)

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts and a 2.5 mm dimension reference.

Diagram showing labeled components of a remote control system with numbered parts 6, 7, and 8

Diagram showing labeled components of a remote control panel with numbered parts 6, 7, and 8

Diagram showing two identical mobile phones with circular buttons on their heads, connected by a black arrow indicating rotation (no text or symbols present)

Two identical mobile phone icons on stands, one with a black upward arrow between them (no text or symbols)

الوضع المرتفع

Two identical mobile phone controllers with bidirectional arrows indicating signal or connection (no text or symbols)

قليوس

Line drawing of two identical mobile phone devices standing upright, no text or symbols present

Diagram of a ladder structure with an arrow indicating upward motion (no text or symbols)

مائل قليلا

Diagram of a mechanical structure with an arrow indicating direction, no text or symbols present

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Mechanical component diagram showing a rotating assembly with no visible text or symbols

Diagram showing a hand operating a mechanical device with three circular insets depicting the same devices (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of an oil pumpjack inside a circular frame with a hand holding a tool, no text or symbols present.

Mechanical component diagram showing a valve mechanism with directional arrows (no text or labels)

https://support.thrustmaster.com

Icon set with three symbols: lowercase 'i', envelope, and telephone

حقوق النشر

Jeffrey Guillemot Corporation S.A. 2022 لعام 2022 مملكة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة مُسْتَلَة ل commemoration مُسْتَلَة مُسْتَلَة ل commemoration مُسْتَلَة مُسْتَلَة ل commemoration مُسْتَلَة مُسْتَلَة ل commemoration مُسْتَلَة مُسْتَلَة ل commemoration مُس ^® Thrustmaster Guillemot Corporation S.A. 2022 لعام 2022 مملكة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemorationمُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْتَلَة ل commemoration مُسْرِمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍمٍحِيمي واتزیعه بواسته مجعو ةه نامعیه، فهی مُعترف بها بمoglobin هده الئیقة وملكة لآصاحهالمعنین. وتحضع المحتويات والتصميم المواصفات للのごير دون إشعار، وقد تختلف من بل إلى أخرى. وتحدّ الصور والرسومات غير ملزمة. صُّم في أكُباً الشمالية وأوروبًا، وصُّنع في الصين.

Symbol of a trash bin with crossed lines and an asterisk, no text or numbers present

www.thrustmaster.com

Technical line drawing of a steering wheel and dashboard (no text or symbols)

Line drawing of three remote control devices on a base platform (no text or symbols)

:7771N

Thrustmaster Quick Release 12

16

L3/R3 13

Line drawing of a three-pin electrical plug with a 220V and 240V power rating label (no text beyond labels)

:בְרָה, בַרִיּוֹת

Line drawing of an electrical outlet with two terminal plugs and a cable (no text or symbols)

Thrustmaster Quick Release

!הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Diagram illustrating a mechanical assembly or disassembly process with labeled components and a checkmark indicating completion.

Diagram showing two identical mechanical components with a red 'X' symbol above them, no text or labels present.

PS4™ PS5™ (Racing Wheels) https://support.thrustmaster.com T300 Ferrari Integral Alcantara Edition/Games Settings/(https://www.psd.com/).

(Thrustmaster T300RS Racing Wheel)

'קְרָה לַשׁו

.T300 ⁷

•

.הַבָר PC-שְׁעֹרִיָהַתְאָהַתְאָהַתְאָהַתְאָהַתְאָהַתְאָהַתְאָהַתְאָהַתְאָהַתְאָהַתְאָהַתְא'

T3PA THRUSTMASTER 3 PEDALS ADD-ON

Line drawing of three identical mobile phones on a base platform (no text or symbols)

Simple line drawing of a mechanical component with two hexagonal holes and a numbered circle (no text or symbols)

Simple line drawing of a mushroom with a conical top and stem (no text or symbols)

2

2.5 mm ④

(הכלה) 2.5 (הכלה) 4

Simple 3D diagram of a rectangular block with four circular holes and a numbered arrow pointing to the top-right corner (no text or symbols)

8

הכלה 6

הכלה 7

Diagram showing labeled parts of a remote control device with numbered annotations

Diagram showing two identical mobile phones with circular buttons on the left, connected by a downward arrow (no text or symbols)

Two identical mobile phone controllers with buttons and a bidirectional arrow between them (no text or symbols)

תְבָרִי בְּשָׁ

Diagram showing two mechanical configurations with arrows indicating motion, no text or symbols present

Technical diagram of a mechanical clamp or clamp assembly with numbered parts and directional arrow indicating movement

Mechanical component diagram showing a valve or connector with a rotating knob (no text or symbols)

Diagram illustrating a mechanical operation with three labeled components and a downward arrow indicating motion or direction.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of an oil pumpjack inside a circular frame, with a hand holding a tool and a downward arrow indicating rotation (no text or symbols)

Mechanical component diagram showing a valve mechanism with directional arrows (no text or labels)

https://support.thrustmaster.com

Icon set with three symbols: lowercase 'i', envelope, and telephone

הכלהה.הכלהה.© 2022 Guillemot Corporation S.A. Guillemot Corporation S.A. .Guillemot Corporation S.A.

www.thrustmaster.com

*

CE*
