Go Ranger PT - Surveillance Camera REOLINK - Free user manual and instructions

Product Type	4G LTE Wireless Security Camera
Brand	Reolink
Model	Go Ranger PT
Dimensions (L x H x D)	98 x 112 x 98 mm
Weight (with battery)	485 g
Power Supply	Built-in rechargeable battery, charging via USB-C 5 V, compatible with Reolink solar panel
Charging Indicator	Orange LED: charging; Green LED: full charge
Cellular Connectivity	4G LTE (Nano SIM card, WCDMA and FDD LTE)
Local Storage	microSD card slot (not included)
Motion Detection	PIR sensor, adjustable distance up to 10 m, horizontal angle 120°
Night Vision	Yes, built-in infrared (IR)
Audio Alarm	Customizable voice-recorded alerts
Notifications	Push notifications on smartphone and email
Viewing Angle	Motorized pan/tilt (PT)
Weather Resistance	IP64
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Charging Temperature	0°C to 45°C
Warranty	2 years (limited)
Cleaning and Maintenance	Clean with a soft dry cloth; keep the USB charging port clean and dry; cover the port with the rubber cap after charging
Security	Data encryption, factory reset possible
Spare Parts and Repairability	Non-user-replaceable built-in battery; removable antenna; mounting bracket included
Box Contents	Camera, bracket, USB cable, antenna, reset needle, quick start guide, screw bag, mounting template, Allen key

Frequently Asked Questions - Go Ranger PT REOLINK

What type of SIM card to use with the Go Ranger PT?

Use a Nano SIM card that supports WCDMA and FDD LTE bands. IoT or M2M SIM cards should not be inserted into a smartphone. Disable the SIM card PIN before inserting it.

How to connect the camera to the cellular network?

Insert the SIM card, then turn on the camera. Wait until the blue LED blinks then turns off. A voice message 'Network connection successful' confirms the connection. If you hear 'Not registered on network', check the card activation and signal strength.

Is the battery of the Go Ranger PT replaceable?

No, the battery is built-in and cannot be removed by the user. Recharge it via the USB-C port with a 5V adapter or a Reolink solar panel.

How to optimize PIR detection?

Install the camera about 2 meters above the ground, perpendicular to the expected movement. Avoid obstacles like trees. The maximum detection distance is 10 meters with a 120° angle.

Why am I not receiving push notifications?

Check that push notifications are enabled in the Reolink app, that the PIR schedule is configured, and that the camera is connected to the internet. On your phone, allow the Reolink app to send notifications in system settings.

Does the Go Ranger PT have night vision?

Yes, it is equipped with infrared LEDs for night vision, automatically activated in low light.

What is the level of weather resistance?

The camera is IP64 certified, meaning it is resistant to water splashes and dust. Always keep the rubber cap on the charging port after use.

How to reset the Go Ranger PT to factory settings?

Use the provided reset needle to press the reset button located under the lens. Hold it for a few seconds until the camera restarts.

Can I use a non-Reolink solar panel to charge the camera?

It is recommended to use only the Reolink solar panel. Using other brands may damage the battery or camera.

What is the warranty period?

The limited warranty is 2 years, valid only for purchases made on the official Reolink store or from an authorized reseller.

USER MANUAL Go Ranger PT REOLINK

If you need any technical help, please visit our official support site and contact our support team before returning the products, https://support.creolink.com.

EC REP CET PRODUCT SERVICE SP.Z.O.O.

Ul. Dluga 33 102 Zgierz, Polen

UK REP CET PRODUCT SERVICE LTD.

Beacon House Stokenchurch Business Park, Istone Rd, Stokenchurch High Wycombe, HPI43FF, United Kingdom

EN/DE/FR/IT/ES

Quick Start Guide

Apply to: Reolink Go Ranger PT

@ReollnkTech https://reollnk.com

EN

Content

What's in the Box 2

Camera Introduction 3

Set up the Camera 4

Charge the Camera 10

Install the Camera....11

Safety Instructions of Battery Usage 15

Troubleshooting 16

Specifications....17

Notification of Compliance 17

What's in the Box

Camera

Camera Bracket USB-C Cable Antenna

Reset Needle

Quick Start Guide

Pack of Screws Mounting Hole Template

Hex Key

Camera Introduction

Technical diagram of a washing machine with numbered parts and internal components

①Lens

②Daylight Sensor

③Built-in PIR Sensor

④Built-in Mic

⑤Status LED

©Nano SIM Card Slot

* Rotate the camera's lens to find the reset hole, SIM card slot and SD card slot.

⑦Reset Hole

* Press the reset button with a pin to restore camera to factory settings.

©microSD Card Slot

③Speaker

©USB-C Cable

⑪Battery Status LED

②Antenna

③Power Switch

* Please always cover the USB charging port with rubber plug after charging the battery.

EnglishEnglish34

Set up the Camera

Activate SIM Card for the Camera

• Choose a Nano SIM card that supports WCDMA and FDD LTE.
• Some SIM cards have a PIN code. You may use your smartphone to disable the PIN first.

NOTE: Do not insert the IoT or M2M SIM into your smartphone.

Insert the SIM Card

Diagram showing a device with a brush and a magnified view of its internal components, including Chinese text labels.

Rotate the camera lens, and remove the rubber cover.

Technical diagram showing a device with labeled parts and an inset close-up of its internal structure.

Insert the SIM card.

Cayon Cayon Cayon Cayon

With these done, press the rubber cover firmly for better waterproof performance.

* The SIM card slot is above the 5D card slot. When inserting the SIM card in, remember that the gold contacts shall face down and you need to push the trimmed corner inside the camera.
* The SD card slot is below the SIM card slot. When inserting the SD card in, remember that gold contacts shall face up.

EnglishEnglish5 6

Register the SIM Card

Diagram showing a device with a switch and a magnified view of the power button labeled 'POWER'

With the SIM card inserted, you can turn on the camera.

Technical line drawing of a mechanical device with a close-up inset showing a circular component detail (no text or symbols)

Wait a few seconds and a red light will be on and solid for a couple of seconds. Then, it will go out.

Technical line drawing of a mechanical component with an inset circular detail (no text or symbols)

A blue LED will flash for a few seconds and then go solid before going out. You will hear a voice prompt "Network connection succeeded", which means the camera has been successfully connected to the network.

Set up the Camera on the Phone

Step 1

Scan to download the Reolink App from the App Store or Google Play store.

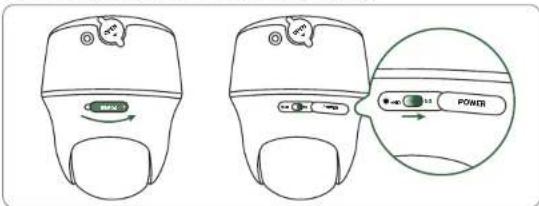

Step 2

Turn on the power switch to power on the camera.

Diagram showing two identical device head profiles with labeled buttons and a magnified view of the power button.

EnglishEnglish78

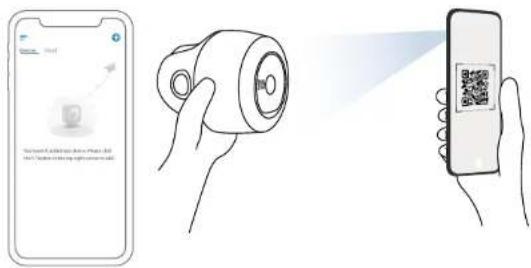

Step 3

Launch the Reolink App, click the " + " button in the top right corner to add the camera. Scan the QR code on the device and follow the onscreen instructions to finish initial setup.

Illustration showing three digital scanning methods: a mobile app, a hand holding a camera, and a smartphone displaying a QR code.

Set up the Camera on PC (Optional)

Step 1

Download and install the Reolink Client: Go to https://reolink.com > Support > App&Client.

Step 2

Launch the Reolink Client, click the " + " button, input the UID code of the camera to add it and follow the onscreen instructions to finish initial setup.

NOTE: You may also run into the following situations:

	Voice Prompt	Camera Status	Solutions
1	"SIM card cannot be recognized"	Camera cannot recognize this SIM card.	1. Check if the SIM card is facing the reverse direction.2. Check if the SIM card is not fully inserted and insert it again
2	"The SIM card is locked with a PIN.Please disable it."	Your SIM card has a PIN.	Put the SIM card into your mobile phone and disable the PIN.
3	"Not registered on network. Please activate your SIM card and check the signal strength"	Camera fails to register to the operator network.	1. Check whether your card is activated or not. If not, please call your operator to activate the SIM card.2. The signal is weak at the current position. Please move the camera to a location with better signal.3. Check if you are using the correct version of the camera.
4	"Network connection failed"	Camera fails to connect to the server.	The camera will be in Standby mode and reconnect later.
5	"Data call failed. Please confirm your cellular data plan is available or import the APN settings"	The SIM card has run out of data or APN settings are not correct.	1. Please check whether the data plan for the SIM card is still available.2. Import the correct APN settings to the camera.

EnglishEnglish910

Charge the Camera

It's recommended to fully charge the camera before installing it.

Simple line drawing of a washing machine connected to a power outlet (no text or symbols)

Charge the camera with a 5V power adapter (not included).

Simple line drawing of a smartphone connected to a wall-mounted security camera (no text or symbols)

Charge the camera with the Reolink Solar Panel

Charging Indicator:

• Orange LED: Charging Green LED: Fully charged

For better weatherproof performance, please always cover the charging port with the rubber plug after charging the camera.

Install the Camera

-For better motion detection performance, it is recommended to position the camera perpendicular to the expected movement of wildlife.

- It is recommended to install the camera about 2 meters (7ft) above the ground to maximize the detection range of the PIR motion sensor.

NOTE: Mount the camera where there are few trees to ensure better monitoring.

Illustration of a deer in a forested landscape with trees and grass (no text or symbols)

Illustration of a deer in a forested landscape with trees and grass (no text or symbols)

Install the Camera on a Surface

Line drawing of a garment sleeve with screws and a close-up view of a small object (no text or symbols)

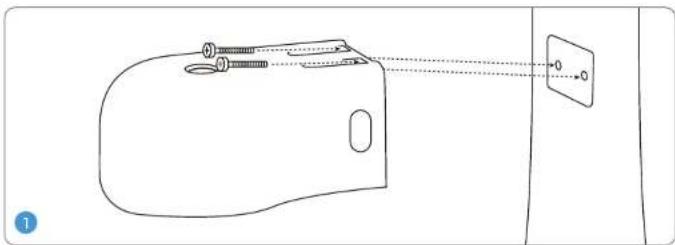

Install the Camera on a Wall

If installing on a wood surface, hold the security mount in place and screw it directly into your wall.

if installing on a masonry surface like stucco or brick, drill holes in a slightly angled way in accordance with the mounting hole template, then insert wall anchors before screwing the security mount into your wall.

NOTE: Avoid using drills which could damage the bracket.

Diagram showing a mechanical component with a close-up inset of its circular detail (no text or symbols)

Put the camera into the bracket, make sure that the hole on the bracket aligns with the antenna post and the charging port, as shown in the picture.

Diagram showing a mechanical device with a circular inset illustrating rotational motion (no text or symbols)

Technical diagram of a mechanical component with an inset close-up showing a circular detail (no text or symbols)

Open the rubber plug on the top of the bracket and secure the camera with the hex key, then close it firmly.

Install the antenna to the camera.

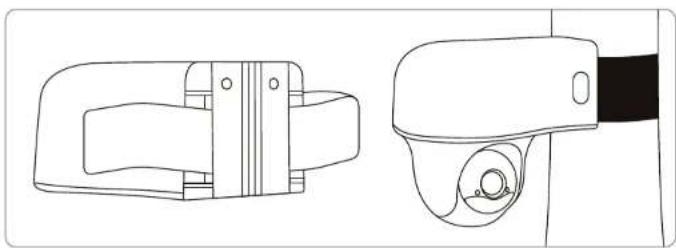

Install the Camera with Loop Strap

Thread the provided strap through the bracket and fasten it to a tree.

Technical line drawing of a mechanical device with two views: top shows a rectangular component, bottom shows a circular component (no text or symbols)

Safety Instructions of Battery Usage

The camera is not designed for running 24/7 at full capacity or around-the-clock live streaming. It's designed to record motion events and to live view remotely only when you need it. Learn useful tips on how to extend the battery life in this post https://support.reolink.com/hc/en-us/articles/360006991893

1. The battery is built-in, so do not remove it from the camera.
2. Charge the rechargeable battery with a standard and high-quality DC 5V battery charger or Reolink solar panel. Do not charge the battery with solar panels from any other brands.
3. Charge the battery when temperatures are between 0^ C and 45^ C and always use the -10^ C to 55^ C ( 14^ F to 131^ F).
4. Keep the USB charging port dry, clean and free of any debris and cover the USB charging port with the rubber plug when the battery is fully charged.
5. Do not charge, use or store the battery near any ignition sources, such as fire or heaters.
6. Do not use the battery if it gives off an odor, generates heat, becomes discolored or deformed, or appears abnormal in any ways. If the battery is being used or charged, turn off the power switch or remove the charger immediately, and stop using it.
7. Always follow the local waste and recycle laws when you get rid of the used battery.

EnglishEnglish15 16

Troubleshooting

Camera is not Powering On

If your camera is not turning on, please apply the following solutions:

- Make sure you've turned the power button on.

- Charge the battery with a DC 5V/2A power adapter. When the green light is on, the battery is fully charged.

If these won't work, please contact Reolink Support.

PIR Sensor Fails to Trigger Alarm

If the PIR sensor fails to trigger any kind of alarm within the covered area, try the following solutions:

• Make sure that the PIR sensor or the camera is installed in the right direction.
• Make sure the PIR sensor is enabled or the schedule is set up properly and running.
• Check the sensitivity settings and make

sure it's set up properly.

• Make sure the battery is working.
• Reset the camera and try again.

If these won't work, please contact Reolink Support.

Unable to Receive Push Notifications

If you fail to receive any push notifications when motion is detected, try the following solutions:

• Make sure the push notification has been enabled.
• Make sure the PIR schedule is set up properly.
• Check the network connection on your phone and try again.
• Make sure the camera is connected to the Internet. If the LED indicator under the camera lens is solid red or flickering red, it means that your device disconnects from the Internet.
• Make sure you've enabled Allow Notifications on your phone. Go to the System Settings on your phone and allow Reolink App to send push notifications.

If these won't work, please contact Reolink Support.

Specifications

PIR Detection & Alerts

PIR Detection Distance:

Adjustable/up to 10m (33ft)

PIR Detecting Angle: 120° horizontal

Audio Alert:

Customized voice-recordable alerts

Other Alerts:

Instant email alerts and push notifications

General

Operating Temperature:

-10°C to 55°C (14°F to 131°F)

Weather Resistance:

IP64 certified weatherproof

Size: 98 x 112 mm

Weight (Battery included): 485g (17.1 oz)

Notification of Compliance

EnglishEnglish17 18

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC RF warning statement:

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Simplified EU Declaration of Conformity

Reolink declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

Correct Disposal of This Product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environment safe recycling.

Limited Warranty

This product comes with a 2-year limited warranty that is valid only if purchased from Reolink Official Store or a Reolink authorized reseller. Learn more: https://reolink.com/warranty-and-return/.

NOTE: We hope that you enjoy the new purchase. But if you are not satisfied with the product and plan to return, we strongly suggest that you reset the

camera to factory default settings and take out the inserted SD card before returning.

Terms and Privacy

Use of the product is subject to your agreement to the Terms of Service and Privacy Policy at reolink.com. Keep out of reach of children.

End User License Agreement

By using the Product Software that is embedded on the Reolink product, you agree to the terms of this End User License Agreement ("EULA") between you and Reolink. Learn more: https://reolink.com/eula/.

ISED Radiation Exposure Statement

This equipment complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Technical Support

If you need any technical help, please visit our official support site and contact our support team before returning the products, https://support.reolink.com

English19

DE

Katalog

Lieferumfang 21

Über die Kamera 22

Diagram of a smart air purifier with numbered parts and labeled internal components

①Objektiv

②Tageslichtsensor

Diagram showing a device with a brush and a magnified view of its internal components, labeled in Chinese.

Technical diagram showing a device with labeled parts and an inset close-up of its internal structure.

Diagram showing a device with a switch and a magnified view of the power button labeled 'POWER'

Technical line drawing of a mechanical device with an inset close-up showing a circular component (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing a central eye (no text or symbols)

Diagram showing two views of a device head with labeled buttons and a power button, including an arrow indicating direction.

DeutschDeutsch26 27

Schritt 3

Illustration showing three steps: scanning a QR code on a smartphone, adding a camera lens, and scanning a smartphone with a QR code.

Simple line drawing of a washing machine connected to a power outlet (no text or symbols)

Simple line drawing of a smartphone connected to a wall-mounted security camera (no text or symbols)

Illustration of a deer in a forested landscape with trees and hills (no text or symbols)

Illustration of a deer in a forested landscape with trees and grass (no text or symbols)

Line drawing of a garment collar with screws and a close-up view of a small object (no text or symbols)

Diagram showing a mechanical component with a close-up inset of its circular detail (no text or symbols)

Diagram showing a mechanical device with a circular inset illustrating rotational motion (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset view of a circular component (no text or symbols)

Technical line drawing of a mechanical device with two views: top shows a rectangular component, bottom shows a circular component (no text or symbols)

Technical diagram of a smart air purifier with numbered parts and internal components

①Lentille

Diagram showing a device with a brush and a magnified view of its internal components, labeled in Chinese.

Technical diagram showing a device with labeled parts and an inset magnified view of its internal structure.

Diagram showing a device with labeled buttons and a magnified view of a control panel labeled 'POWER'

Technical line drawing of a mechanical device with an inset close-up showing a circular component (no text or symbols)

Technical line drawing of a mechanical component with an inset circular detail (no text or symbols)

Diagram showing two identical medical device head profiles with labeled buttons and a magnified view of the power button.

Illustration showing a smartphone scanning QR code, a hand holding a camera lens, and a smartphone displaying the same QR code.

Simple line drawing of a washing machine connected to a power outlet (no text or symbols)

Simple line drawing of a smartphone connected to a wall-mounted device (no text or symbols)

Illustration of a deer grazing in a forest with trees and grass (no text or symbols)

Illustration of a deer in a forested landscape with trees and grass (no text or symbols)

Line drawing of a garment sleeve with screws and a close-up view of a small object (no text or symbols)

Diagram showing a mechanical component with a close-up inset of its circular detail (no text or symbols)

Diagram showing a mechanical component with a circular inset illustrating the rotation of a rotating shaft (no text or symbols present)

Technical illustration of a mechanical component with an inset close-up showing a circular detail (no text or symbols)

Technical line drawing of a mechanical device with two views: top shows a rectangular component, bottom shows a circular component (no text or symbols)

https://support.reolink.com.

Français57

IT

Contenuto

Technical diagram of a washing machine with numbered parts and internal components

①Lente

Diagram showing a device with a brush and a magnified view of its internal components, labeled in Chinese.

Technical diagram showing a device with labeled parts and an inset magnified view of its internal structure.

Diagram showing a device with a switch and a magnified view of the power button labeled 'POWER'

Technical line drawing of a mechanical device with a close-up inset showing a circular component (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing internal components (no text or symbols)

Diagram showing two views of a device head with labeled buttons and a power button, including an arrow indicating direction.

Italianoltaliano64 65

Passaggio 3

Illustration showing three steps: scanning a QR code on a smartphone, adding a camera lens, and scanning a smartphone displaying a QR code.

Scaricare e installare il client Reolink: Visitare https://reolink.com > Support > App&Client.

Passaggio 2

Simple line drawing of a washing machine connected to a power outlet (no text or symbols)

Line drawing of a smartphone connected to a security camera with a cable (no text or symbols)

Silhouette of a deer in a forest with trees and grass, no text or symbols present

Illustration of a deer grazing on a hillside surrounded by trees and greenery (no text or symbols)

Diagram showing a device with screws and a magnified view of a screen (no text or symbols)

Installare la telecamera a parete

Diagram showing a mechanical component with a close-up inset of its circular detail (no text or symbols)

Diagram showing a mechanical device with a circular inset illustrating rotational motion (no text or symbols)

Technical illustration of a mechanical component with an inset showing a circular component (no text or symbols)

Technical line drawing of a mechanical device with two views: top shows a rectangular component, bottom shows a circular component (no text or symbols)

Technical diagram of a washing machine with numbered parts and internal components highlighted

EspañolEspañol79 80

①Lente

②Sensor de luz diurna

③Sensor PIR incorporado

Technical diagram of a walk-in device with labeled components and a magnified inset showing internal components.

Technical diagram showing a device with labeled parts and an inset close-up of its internal structure.

Inserte la tarjeta SIM.

Cayon Bone/Ala 100% Bone/Ala 100%

Diagram showing a device with a switch and a magnified view of the power button labeled 'POWER'

Technical line drawing of a mechanical device with an inset circular detail showing internal components (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing internal features (no text or symbols)

Diagram showing two identical device head profiles with labeled buttons and a magnified view of the power button.

EspañolEspañol83 84

Paso 3

Illustration showing a mobile app interface, a hand holding a camera, and a smartphone displaying a QR code.

Descargue e instale el Cliente Reolink: Vaya a https://reolink.com > Support > App&Client.

Paso 2

Simple line drawing of a washing machine connected to a power outlet (no text or symbols)

Simple line drawing of a smartphone connected to a wall-mounted security camera (no text or symbols)

Silhouette of a deer in a forest with trees and grass, no text or symbols present

Illustration of a deer in a forested landscape with trees and hills (no text or symbols)

Line drawing of a garment sleeve with screws and a close-up view of a small object (no text or symbols)

Diagram showing a mechanical component with a close-up inset of its circular detail (no text or symbols)

Diagram showing a mechanical device with a circular inset illustrating rotational motion (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset view (no text or symbols)

Technical line drawing of a mechanical device with two views: top shows a rectangular component, bottom shows a circular component (no text or symbols)

Ajustable/hasta 10 m (33 pies)
