USER MANUAL Argus 4 REOLINK

If you need any technical help, please visit our official support site and

contact our support team before returning the products:

https://support.reolink.com.

https://support.reolink.com.

Assistenza Tecnica

EC REP CET PRODUCT SERVICE SP. Z O.O.

Ul. Dluga 33 102 Zgierz, Polen

UK REP CET PRODUCT SERVICE LTD.

Beacon House Stokenchurch Business Park, Ibstone

Rd. Stokenchurch High Wycombe, HP14 3FE, UK

Be Prepared, Be Reolink

EN/DE/FR/IT/ES

Item No.: B740

Operational Instruction

Apply to: Argus 4

May 2024

QSG1_A

58.03.006.0131

@ReolinkTech https://reolink.com

EN

Contents

What's in the Box 2

Device Overview 3

Set up the Camera 4

Charge the Camera 6

Install the Camera 7

Safety Instructions of Battery Usage....11

Troubleshooting....12

Specifications 13

Notification of Compliance 13

What's in the Box

Camera Security Mount Bracket's

USB-C Cable

Mounting Plate

Surveillance Sign Quick

Start Guide

Mounting Hole Template

Pack of Screws

Device Overview

Technical diagram of a handheld device with numbered parts labeled 1 through 5

①Daylight Sensor ②Spotlight

①Daylight Sensor
②Spotlight
③Spotlight
④Mic USB-C Port
⑤PIR Sensor
⑥Speaker

Power Switch
⑨ microSD Card Slot
⑩ IR Leds
* Press and hold the power switch for two seconds to power on the camera.
Camera States of Different Power Switch Actions:
Power on: Press and hold for 2s.
Power off: Press and hold for 5s
Reset to factory settings: Press the button 3
times in a row when the camera is on
EnglishEnglish3 4

Set up the Camera

Set up the Camera Using a Smartphone

Step 1 Scan to download the Reolink App from the App Store or Google Play store.

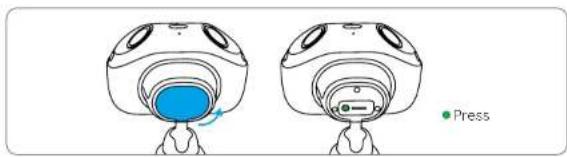

Step 2 Press and hold the power switch for two seconds to power on the camera.

Press

Step 3 Launch the Realink App, click the " + " button in the top right corner to add the camera. Scan the QR code on the device.

NOTE: This device supports 2.4 GHz and 5 GHz Wi-Fi networks. It is recommended to connect the device to 5 GHz Wi-Fi for a better network experience.

Illustration of a hand holding a camera and a smartphone displaying a QR code (no text or symbols present)

Step 4 In the "Add Device" page, configure the Wi-Fi connection by enabling Bluetooth on your phone and follow the onscreen instructions to finish the initial setup.

EnglishEnglish5 6

Charge the Camera

It's recommended to fully charge the camera before installing it.

Charging Indicator:

• Orange LED: Charging Green LED: Fully charged

Simple line drawing of a device connected to an electrical outlet (no text or symbols)

Charge the camera with a 5V power adapter (not included).

Line drawing of a mobile phone connected to a wall-mounted device (no text or symbols)

Charge the camera with the Reolink Solar Panel (not included if you only purchase the camera). For details about the installation of Reolink Solar Panel, see its Operational Instruction.

For better weatherproof performance, please always cover the charging port with the rubber plug after charging the camera.

Install the Camera

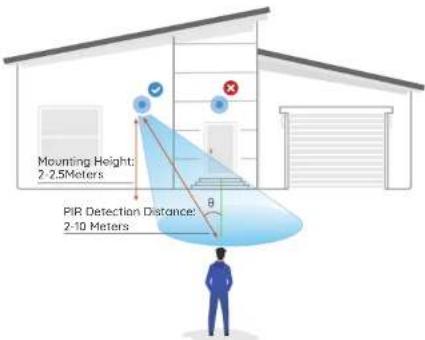

• Install the camera 2-2.5 meters (7-10 ft) above the ground. This height maximizes the detection range of the PIR motion sensor.
- For better motion detection performance, please install the camera angularly.

Mounting Height: 2-2.5Meters PIR Detection Distance: 2-10 Meters θ

NOTE: Make sure the side-to-side movement crosses the camera's field of view.

Mount the Camera

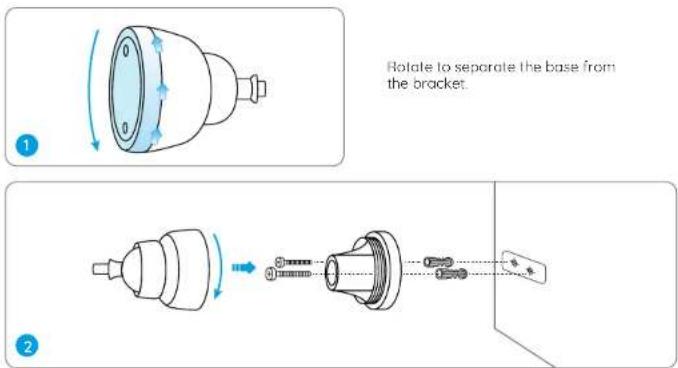

Rotate to separate the base from the bracket.

Drill holes in accordance with the mounting template and screw the base of the bracket to the wall. Next, attach the other part of the bracket to the base.
NOTE: Use the drywall anchors included in the package if needed.

Line drawing of a hand holding a handheld device with a circular button and scroll (no text or symbols)

Screw the camera to the bracket. Adjust the camera angle to get the best field of view.

Line drawing of a handheld device with a hand holding it, showing no text or symbols

Secure the camera by turning the part on the bracket identified in the chart clockwise.

NOTE: To adjust the camera angle later, please loosen the bracket by turning the upper port anticlockwise.

EnglishEnglish910

Install the Camera with Loop Strap

Technical line drawing of a mechanical assembly showing a shaft, nut, and housing with motion indicators (no text or symbols)

Secure the bracket's mounting plate to the base with screws.

Pure diagram of a door handle with lock and buckle (no text or symbols)

Line drawing of a handheld device with circular ports and a handle (no text or symbols)

Thread the provided strap to the plate and fasten it to a tree. Next, attach the camera to the plate and you are good to go.

Safety Instructions of Battery Usage

Argus 4 is not designed for running 24/7 at full capacity or around-the-clock live streaming. It's designed to record motion events and to live view remotely only when you need it. Learn useful tips on how to extend the battery life in this post: https://support.reolink.com/nc/en-us/articles/360006991893

1. The battery is built-in, so do not remove it from the camera.
2. Charge the rechargeable battery with a standard and high-quality DC 5V battery charger or Re-olink solar panel. Do not charge the battery with solar panels from any other brands.
3. Charge the battery when temperatures are between 0°C and 45°C and always use the battery when temperatures are between -10°C-+55°C.
4. Keep the USB charging port dry, clean and free of any debris and cover the USB charging port with the rubber plug when the battery is fully charged.
5. Do not charge, use or store the battery near any ignition sources, such as fire or heaters.
6. Do not use the battery if it gives off an odor, generates heat, becomes discolored or deformed, or appears abnormal in any ways. If the battery is being used or charged, turn off the power switch or remove the charger immediately, and stop using it.
7. Always follow the local waste and recycle laws when you get rid of the used battery.

Troubleshooting

Camera is not Powering on

If your camera is not turning on, please apply the following solutions:

Charge the battery with a DC 5V/2A power adapter. When the green light is on, the battery is fully charged.

If the problem is not solved, please contact Reolink Support.

Failed to Connect to Wi-Fi During Initial Setup Process

If the camera fails to connect to Wi-Fi, please try the following solutions:

• Ensure that you have entered the correct Wi-Fi password.
• Put the camera closer to your router to ensure a strong Wi-Fi signal.
• Change the encryption method of the Wi-Fi network to WPA3/WPA2/WPA(sofer encryption) on your router interface.
• Change your Wi-Fi SSID or password and make sure that SSID is within 31 characters and password is within 64 characters.
• Set your password using only the characters available on the keyboard.
  If the problem is not solved, please contact Reolink Support.

Specification

Operating Temperature: -10°C to 55°C (14°F to 131°F)

Size: 128×87×80 mm

Weight (Battery included) : 401g

For more specifications, visit the Reolink official website.

Notification of Compliance

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a presidential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

| English13 14English

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help

FCC RF warning statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

CE Simplified EU Declaration of Conformity

Reolink declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

Correct Disposal of This Product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environment safe recycling.

Limited Warranty

This product comes with a 2-year limited warranty that is valid only if purchased from Reolink Official Store or a Reolink authorized reseller. Learn more: https://reolink.com/warranty-and-return/.

NOTE: We hope that you enjoy the new purchase. But if you are not satisfied with the product and plan to return, we strongly suggest that you reset the camera to factory default settings and take out the inserted SD card before returning.

Terms and Privacy

Use of the product is subject to your agreement to the Terms of Service and Privacy Policy at reolink.com Keep out of reach of children.

End User License Agreement

By using the Product Software that is embedded on the Reolink product, you agree to the terms of this End User License Agreement ("EULA") between you and Reolink. Learn more: https://reolink.com/eula/.

English15 16English

ISED Compliance Statements

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

ISED Radiation Exposure statement

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

NOTE: Operation of 5150-5250 MHz is restricted to indoor use only. (IC certification)

Operation of 5150-5350 MHz is restricted to indoor use only (CE certification)

OPERATING FREQUENCY

(the maximum transmitted power)

2.4 GHz EIRP <20dBm

5 GHz EIRP <23dBm

5.8 GHz EIRP <14dBm

The functions of Wireless Access Systems including Radio Local Area Networks(WAS/

RLANs) within the band 5150-5350 MHz for this device are restricted to indoor use only

within all European Union countries (BE/BG/CZ/DK/DE/EE/IE/EL/ES/FR/HR/IT/CY/LV/

LT/LU/HU/MT/NL/AT/PL/PT/RO/SI/SK/FI/SE/TR/N O/CH/IS/LI/UK(NI)
