BHS 75

Gehörschutz

Ear muffs

Labeled diagram of a mechanical cutting tool with numbered parts for identification

Labeled diagram of a power saw with numbered parts for identification

3

D

1. Beschreibung:

Close-up of a black industrial saw blade with visible blades and mounting base (no text or symbols)

Close-up of a mechanical power saw with labeled parts (3, 4), no visible text or symbols beyond labels

Close-up of a mechanical component with labeled parts (no readable text or symbols)

GB

1. Description

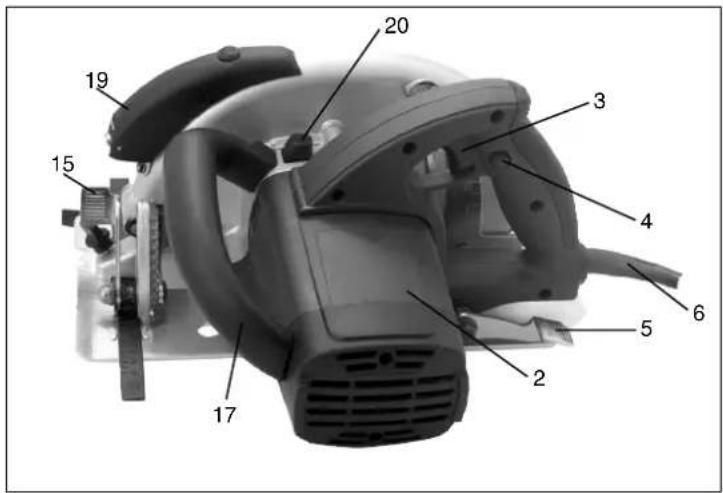

1. Handle

2. Data plate

3. ON/OFF switch

4. Locking button for ON/OFF switch

5. Locking lever for cutting depth setting

6. Power cord

7. Splitter

8. Swing guard hood

9. Screw

10. Soleplate

11. Flange

12. Saw blade

13. Parallel stop

14. Locking screw for parallel stop

15. Locking lever for miter setting

16. Connection for dust extractor

17. Additional handle

18. Actuator for swing guard hood

19. Laser attachment

20. Locking button

Please read these instructions carefully and pay particular attention to the safety regulations. Keep the instructions together with the circular saw.

2. Technical data

Voltage 230 V - 50 Hz

Power rating 1800 W

Idle speed 5000 rpm

Cutting depth at 0° 75 mm

Cutting depth at 45° 53 mm

Saw blade 210 mm dia.

Saw blade mount 30 mm dia.

Saw blade thickness 2

Sound pressure level LPA 97.2 dB(A)

Sound power level LWA 110.2 dB(A)

Vibration a_w <2.5 m/s ^2

Weight 6,4 kg

Totally insulated II / ☐

Laser class 2

Laser wave length 650 nm

Laser output ≤1 mW

Laser module power supply 2 x 1.5 V (AAA)

3. Applications

The hand-held circular saw is designed for sawing straight cuts in wood, in materials similar to wood, and in plastics.

4. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Important!

Laser radiation

Do not look into the beam

Laser class 2

Protect yourself and your environment from accidents by taking the appropriate precautionary measures.

- Do not look directly into the laser beam with the naked eye.

● Never look directly into the laser path.

● Never direct the laser beam at reflecting surfaces or persons or animals. Even a low output laser beam can inflict injury on the eye.

- Caution: It is vital to follow the work procedures described in these instructions. Using the tool in any other way may result in hazardous exposure to laser radiation.

● Never open the laser module.

- When the device is not going to be used for an extended period of time, the batteries should be removed.

5. Working with the hand-held circular saw

● Always hold the circular saw firmly.

● The hinged guard hood will be pushed back automatically by the workpiece.

- Never apply force! Advance the circular saw gently and steadily.

● The off-cut piece should be to the right of the circular saw so that the wide part of the base plate is supported over its entire surface.

- When sawing along a marked line, guide the

circular saw along the corresponding groove

- Clamp small pieces of wood securely before sawing. Never hold them in your hand.

● Always observe the safety regulations! Wear goggles!

- Do not use defective saw blades or blades with cracks or flaws.

- Do not use flanges or flange nuts with a hole which is larger or smaller than that of the saw blade used.

- Do not try to stop the saw blade with your hand or by applying pressure to the side of the blade.

● The hinged guard must not jam and must return to its original position once work is completed.

● Before plugging in the circular saw, check that the hinged guard is functioning properly.

GB

●Before each use, always check that the safety devices - the hinged guard, splitter, flanges and adjustment devices - are functioning properly and have been adjusted and secured correctly.
- You can connect a suitable dust extractor to the guard hood. Check that the dust extractor is fitted securely and properly.
●The hinged guard hood is not to be wedged in the retracted guard hood when sawing.

6. Maintenance

• Keep the cooling vents on the motor housing clean and unobstructed at all times. Blow out any dust and dirt at regular intervals.
  ●Have a specialist workshop check the carbon brushes in the event of excessive sparking.
  ●Worn carbon brushes are to be replaced only by a specialist workshop or by our Customer Service Centre.
• Keep the machine clean at all times.
  ●Never use any caustic agents to clean the plastic parts.
• If ever you discover any damage, consult the exploded drawing and parts list to determine exactly which replacement parts you need to order from our Customer Service Centre.

7. Ordering replacement parts

Please provide the following information on all orders for replacement parts:

●Model/type of device

●Article number of the device

ID number of device

●Replacement part number of the required spare part

Replacement part

Replacement part no.:

Switch 43.308.30.01.001

Replacement carbon brushes 43.308.30.01.002

GB

Important!
Wear car muffs and goggles.

2 A B 1

Parallel cuts

1. Release the lock screw 1

2. For 90° cuts, adjust the parallel stop 2 using the scale on groove A, for 45° cuts adjust the parallel stop 2 using the scale on groove B. Observe the saw blade width.

3. Tighten the lock screw

Important!

First make a trial cut.

Adjustment of the cutting depth

1. Release the lock screw (1).
2. Swing the shoe downwards
3. Adjust the cutting depth using the scale.
   The saw teeth must project approx. 2 mm out of the wood.
4. Tighten the lock screw.

Close-up of a mechanical power saw with visible blades and mounting bracket (no text or symbols)

Close-up of a mechanical device with a circular cutter and labeled parts (no readable text or symbols)

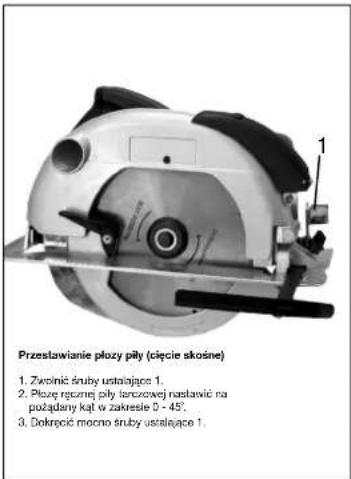

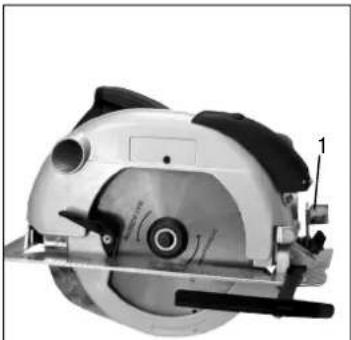

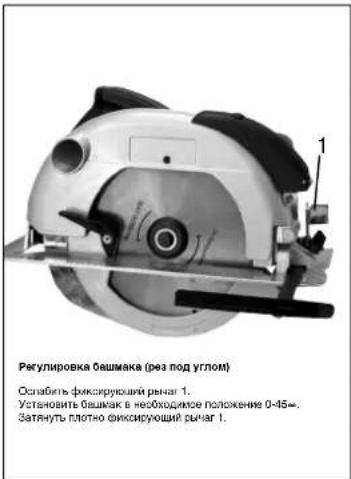

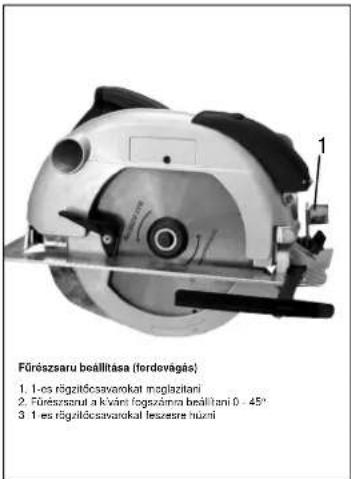

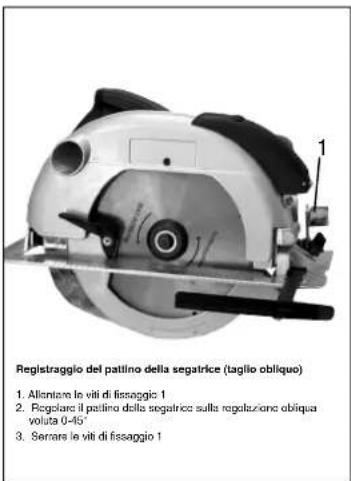

Adjustment of the shoe (cutting angle)

1. Release the lack screw 1
2. Adjust the shoe to the desired angle between 0 and 45°.
3. Tighten the lock screws 1

Important!

Pull out the plug before
making any changes to the
circular saw!

Labeled mechanical diagram of a cutting tool with numbered parts, likely for assembly or manufacturing documentation.

Sägeblatt wechseln

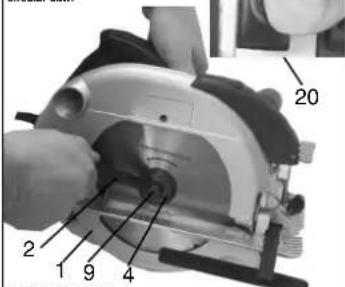

1. Open swing guard hood 1 and hold in place
2. Changing the saw blade is easy thanks to the spindle lock.
   Press the locking button (20) and allow the saw blade to lock into
   place
   3 Undo the screw
3. Remove flange 4 and the saw blade in a downwards direction
4. Clean the flange and insert the new saw blade. Pay attention to
   the running direction (see arrow on the guard hood)
5. Tighten the screw, ensure smooth running of the blade

Switching on and off

To switch on: Press the interlock button 3 and the switch 4 simultaneously. To switch off: Release the interlock button and the switch.

Close-up of a mechanical power saw with labeled parts (3, 4), no visible text or symbols beyond labels

Operating the laser

You can switch the laser ON and OFF with the switch 1. The laser beam marks the line of the cut on the workpiece.

Close-up of a mechanical component with labeled parts (no readable text or symbols)

F

1. Description:

Close-up of a mechanical power saw with visible blades and mounting base (no text or symbols)

Technical diagram of a mechanical device with numbered parts labeled 1 through 20

Remplacer la lame de scle

Close-up of a mechanical power shaver with labeled parts (3, 4), no visible text or symbols beyond labels

Close-up of a mechanical component with labeled parts (no readable text or symbols)

NL

1. Beschrijving:

Close-up of a black industrial saw blade with visible blades and mounting bracket (no text or symbols)

Close-up of a mechanical power saw with visible blades and mounting bracket (no text or symbols)

Close-up of a mechanical power saw with visible blades and mounting bracket (no text or symbols)

Close-up of a mechanical device with a circular blade and cutouts, labeled with number 1 (no visible text or symbols)

Close-up of a mechanical power saw with labeled parts (3 and 4), no visible text or symbols beyond labels

Close-up of a mechanical component with labeled part '1' (no readable text or symbols)

PL

1. Opis

Close-up of a black industrial saw blade with visible blades and mounting bracket (no text or symbols)

Labeled diagram of a power saw with numbered parts pointing to specific components

Close-up of a mechanical component with labeled part '1' (no readable text or symbols)

H

1. Leírás:

Close-up of a mechanical power saw with visible blades and mounting bracket (no text or symbols)

Labeled mechanical component image showing a power saw with numbered parts 3 and 4

Laserska funkcija

Close-up of a mechanical component with labeled part '1' (no readable text or symbols beyond label)

RUS

Close-up of a black industrial power saw with visible blades and cooling fan (no text or symbols)

Technical diagram of a mechanical device with numbered parts labeled 1 through 20

Замена полотна пилы

● The product meets the requirements of EN 61000-3-11 and is subject to special connection conditions.

● The product does not meet the requirements of EN 61000-3-3, meaning that use of the product at any freely selectable connection point is not

●The product is exclusively intended for use at connection points which

a) do not exceed a maximum permissible supply impedance Z, or

b) which have a continuous current-carrying capacity of the mains of at least 100 A per phase.

● As the user, you are required to ensure, in consultation with your electric power company if necessary, that the connection point at which you

wish to operate the product meets one of the two requirements, a) or b), named above.

●The electric power company may impose restrictions for the connection of the product.

①

The product described in these instructions comes with a 2-year warranty covering defects. This 2-year warranty period begins with the passing of risk or when the customer receives the product.

For warranty claims to be accepted, the product has to receive the correct maintenance and help to the proper use as described in the operating instructions.

Your statutory rights of warranty are naturally unaffected during these 2 years.

This warranty applies in Germany, or in the respective country of the manufacturer's main regional sales partner, as a supplement to local regulations. Please note the details for contacting the customer service center responsible for your region or the service address listed below.

N DK GARANTIBEVIS
