About This Guide

The Gobozap Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

- Always connect the product to a grounded circuit.

- Make sure the power cord is not crimped or damaged.

• Always disconnect the product from the power source before cleaning it or replacing the fuse.

- Never disconnect the product from the power source by pulling or tugging on the cord.

- If mounting the product overhead, make sure there is adequate support for the product's weight and always secure the product using a safety cable.

- Make sure there are no flammable materials close to the product when it is operating.

- Avoid direct eye exposure to the light source while the product is on.

- Do not touch the product's housing when the product is operating because the housing can be very hot.

- The product is not intended for permanent installation.

- The product is for indoor use only. It is rated at IP20.

- Do not expose the product to rain or moisture.

- Always connect the product to a power source that is within the voltage range stated on the label or rear panel of the product.

- Never connect the product to a dimmer or rheostat.

- Make sure to replace the fuse with another of the same type and rating.

• Always install the product in a location with adequate ventilation.

• Always leave at least 20 in (50 cm) between the product and adjacent surfaces.

- Be sure that no ventilation slots on the product's housing are blocked.

- Do not operate the product at an ambient temperature higher than 104^ (40 °C).

- Never carry the product by the power cord or any moving part.

• Always use the mounting/hanging bracket to lift the product.

- If there is a serious operating problem, stop using the product immediately.

- Never try to repair the product. Repairs carried out by untrained people can lead to damage or malfunction.

- To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Contact

Outside the U.K., Ireland, Benelux, France, or Germany, contact your distributor to request support or return a product. Visit Contact Us for contact information.

What is Included

• Gobozap

- Hanging bracket

• P o w e r c o

r Quick Reference Guide

To Begin

Unpack your Gobozap and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power linking

It is possible to link up to 6 Gobozap products at 230 V. Never exceed this number. Power-linking cords can be purchased separately.

Fuse replacement

1. Disconnect the product from power.
2. Wedge the tip of a flathead screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes. Make sure the mounting clamps used are capable of supporting the weight of the product.

Mounting diagram

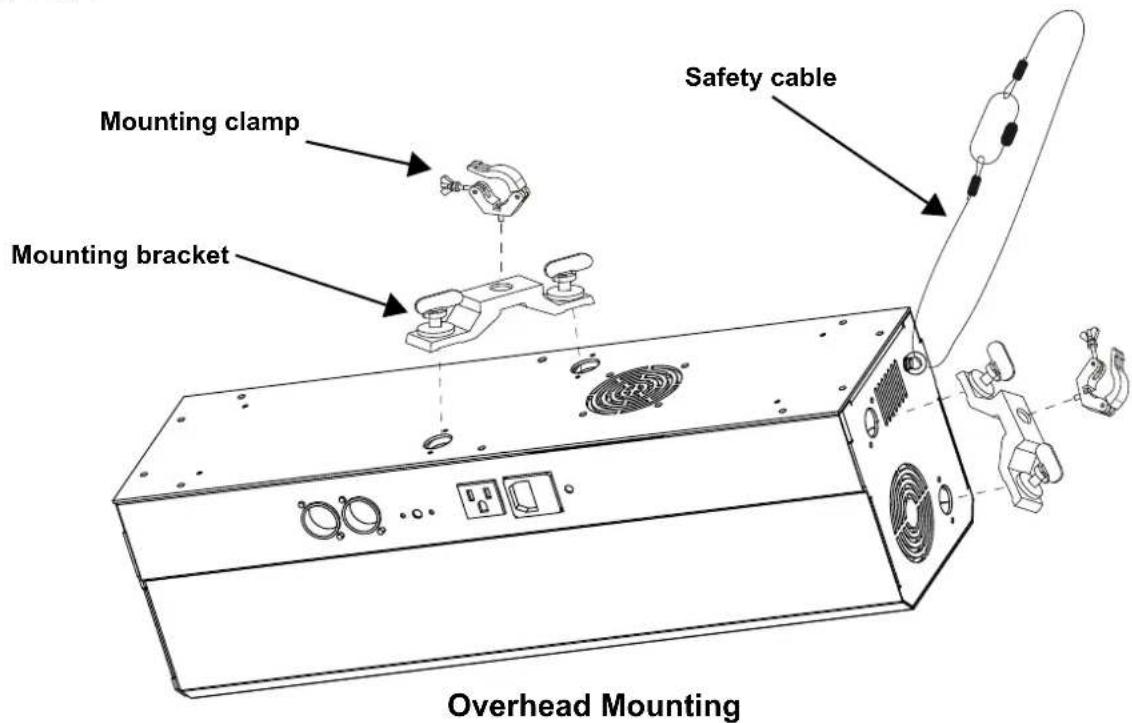

Mounting clamp Mounting bracket Safety cable Overhead Mounting

DMX Linking

The Gobozap can work with a DMX controller. If you are not familiar with DMX, download the DMX Primer from https://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf.

Starting address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 512.

Master/Slave connection

The Gobozap uses the DMX data connection for its Master/Slave mode. Information about configuring the Gobozap for Master/Slave operation is in the User Manual available from the Chauvet website.

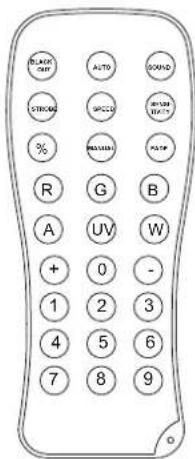

IRC-6 (Infrared Remote Control)

The Gobozap can be operated with the CHAUVET IRC-6.

BLACK OFF AUTO COVID STOCK SPEED PULSE WHIP % R G B A UV W + 0 - 1 2 3 4 5 6 7 8 9

Button Function
	Black out
	Automatic mode
	Sound mode
		Auto speed(press button <+> / <-> to increase or decrease the speed of the program)
		Auto speed(press button <+> / <-> to increase or decrease the speed of the program)
		Auto speed(press button <+> / <-> to increase or decrease the speed of the program)
<0-9>		Manual color control(press any number between <0> and <9> to choose a specific color of the LED. The colors should match the colors on the remote.)
<0>		LED intensity(press <0> to set LED at full intensity)

Control Panel Description

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the Gobozap product page on www.chauvetdj.com for the latest menu map.

Mode Programming Levels Description
Address	2Ch	d001-512 Sets the DMX personality7Ch
	11Ch
Auto programs	P--	auto	Auto programs
Auto speed	S--	001-100	Auto programs speed
Sound-active mode	Snd	BO	Blackout when no sound
		SLOW	Rotate slow when no sound
Sound sensitivity	SENV	001-100	Adjusts sound sensitivity
Infrared mode	SET	on	Turns infrared on or off
		off
Master/Slave mode	SLV	SLV1 Copies the master unit
		SLV2 Slave unit for coordinated show
Motor	mot	on Reverses motor rotation
		off	Normal motor rotation
		000-100	Overrides mirror dish rotation speed for auto/sound only. If this is set to 000, this setting has no effect on anything. When set to 050, the mirror dish or gobo will rotate at 50% speed, and the auto or sound program speed control will adjust the colors and gobos only.

DMX Values
11Ch

Channel Function Value Percent/Setting
1 Auto programs		001 ⇔ 127 Auto mode128 ⇔ 255 Sound mode
2	Auto speed 000 ⇔ 255		Slow to fast(activates when Channel 1 is on auto mode)
	Sound sensitivity 000 ⇔ 255		0–100%(activates when Channel 1 is on sound mode)
3	Dimmer 1	000 ⇔ 255	0–100%
4	Dimmer 2	000 ⇔ 255	0–100%
5	Shutter 1	000 ⇔ 255	Strobe speed, slow to fast
6	Shutter 2	000 ⇔ 255	Strobe speed, slow to fast
7 Colour wheel 1		001 ⇔ 004 White005 ⇔ 009 Red010 ⇔ 014 Green015 ⇔ 019 Blue020 ⇔ 024 Yellow025 ⇔ 029 Amber030 ⇔ 034 Pink035 ⇔ 039 Lime green040 ⇔ 044 Light blue045 ⇔ 049 Magenta050 ⇔ 054 Cyan055 ⇔ 059 Orange060 ⇔ 064 UV065 ⇔ 069 Dark pink070 ⇔ 074 Dark pink + white075 ⇔ 079 UV + dark pink080 ⇔ 084 Orange + UV085 ⇔ 089 Cyan + orange090 ⇔ 094 Magenta + cyan095 ⇔ 099 Light blue + magenta100 ⇔ 104 Lime green + light blue105 ⇔ 109 Pink + lime green110 ⇔ 114 Amber + pink115 ⇔ 119 Yellow + amber120 ⇔ 124 Blue + yellow125 ⇔ 129 Green + blue130 ⇔ 134 Red + green135 ⇔ 139 White + red140 ⇔ 197 Clockwise scroll, fast to slow198 ⇔ 255 Counterclockwise scroll, slow to fast
8 Colour wheel 2		001 ⇔ 004 White005 ⇔ 009 Red010 ⇔ 014 Green015 ⇔ 019 Blue020 ⇔ 024 Yellow025 ⇔ 029 Amber030 ⇔ 034 Pink035 ⇔ 039 Lime green040 ⇔ 044 Light blue045 ⇔ 049 Magenta050 ⇔ 054 Cyan055 ⇔ 059 Orange060 ⇔ 064 UV065 ⇔ 069 Dark pink070 ⇔ 074 Dark pink + white075 ⇔ 079 UV + dark pink080 ⇔ 084 Orange + UV085 ⇔ 089 Cyan + orange090 ⇔ 094 Magenta + cyan095 ⇔ 099 Light blue + magenta100 ⇔ 104 Lime green + light blue105 ⇔ 109 Pink + lime green110 ⇔ 114 Amber + pink115 ⇔ 119 Yellow + amber120 ⇔ 124 Blue + yellow125 ⇔ 129 Green + blue130 ⇔ 134 Red + green135 ⇔ 139 White + red140 ⇔ 197 Clockwise scroll, fast to slow198 ⇔ 255 Counterclockwise scroll, slow to fast
9 Gobo wheel 1		001 ⇔ 009 Gobo 1010 ⇔ 019 Gobo 2020 ⇔ 029 Gobo 3030 ⇔ 039 Gobo 4040 ⇔ 049 Gobo 5050 ⇔ 059 Gobo 6060 ⇔ 069 Gobo 7070 ⇔ 079 Gobo 8080 ⇔ 089 Gobo 9090 ⇔ 099 Gobo 10100 ⇔ 109 Gobo 11110 ⇔ 119 Gobo 12120 ⇔ 129 Gobo 13130 ⇔ 139 Gobo 14140 ⇔ 197 Clockwise scroll, fast to slow198 ⇔ 255 Counterclockwise scroll, slow to fast
10 Gobo wheel 2		001 ⇔ 009 Gobo 1010 ⇔ 019 Gobo 2020 ⇔ 029 Gobo 3030 ⇔ 039 Gobo 4040 ⇔ 049 Gobo 5050 ⇔ 059 Gobo 6060 ⇔ 069 Gobo 7070 ⇔ 079 Gobo 8080 ⇔ 089 Gobo 9090 ⇔ 099 Gobo 10100 ⇔ 109 Gobo 11110 ⇔ 119 Gobo 12120 ⇔ 129 Gobo 13130 ⇔ 139 Gobo 14140 ⇔ 197 Clockwise scroll, fast to slow198 ⇔ 255 Counterclockwise scroll, slow to fast
11 Barrel rotation		001 ⇔ 042 Stop043 ⇔ 086 Counterclockwise rotation, slow to fast087 ⇔ 129 Stop130 ⇔ 173 Clockwise rotation, slow to fast174 ⇔ 217 Stop218 ⇔ 255 Alternating clockwise-counterclockwise rotation, slow to fast

7Ch

Channel Function Value Percent/Setting
1 Auto programs		001 ⇔ 127 Auto mode128 ⇔ 255 Sound mode
2	Auto speed 000 ⇔ 255		Slow to fast(activates when Channel 1 is on auto mode)
	Sound sensitivity 000 ⇔ 255		0–100%(activates when Channel 1 is on sound mode)
3	Dimmer	000 ⇔ 255	0–100%
4	Shutter	000 ⇔ 255	Strobe speed, slow to fast
5 Colour wheel		001 ⇔ 004 White005 ⇔ 009 Red010 ⇔ 014 Green015 ⇔ 019 Blue020 ⇔ 024 Yellow025 ⇔ 029 Amber030 ⇔ 034 Pink035 ⇔ 039 Lime green040 ⇔ 044 Light blue045 ⇔ 049 Magenta050 ⇔ 054 Cyan055 ⇔ 059 Orange060 ⇔ 064 UV065 ⇔ 069 Dark pink070 ⇔ 074 Dark pink + white075 ⇔ 079 UV + dark pink080 ⇔ 084 Orange + UV085 ⇔ 089 Cyan + orange090 ⇔ 094 Magenta + cyan095 ⇔ 099 Light blue + magenta100 ⇔ 104 Lime green + light blue105 ⇔ 109 Pink + lime green110 ⇔ 114 Amber + pink115 ⇔ 119 Yellow + amber120 ⇔ 124 Blue + yellow125 ⇔ 129 Green + blue130 ⇔ 134 Red + green135 ⇔ 139 White + red140 ⇔ 197 Clockwise scroll, fast to slow198 ⇔ 255 Counterclockwise scroll, slow to fast
6 Gobo wheel		001 ⇔ 009 Gobo 1010 ⇔ 019 Gobo 2020 ⇔ 029 Gobo 3030 ⇔ 039 Gobo 4040 ⇔ 049 Gobo 5050 ⇔ 059 Gobo 6060 ⇔ 069 Gobo 7070 ⇔ 079 Gobo 8080 ⇔ 089 Gobo 9090 ⇔ 099 Gobo 10100 ⇔ 109 Gobo 11110 ⇔ 119 Gobo 12120 ⇔ 129 Gobo 13130 ⇔ 139 Gobo 14140 ⇔ 197 Clockwise scroll, fast to slow198 ⇔ 255 Counterclockwise scroll, slow to fast

Channel Function Value Percent/Setting
7 Barrel rotation	001 ⇔ 042 Stop043 ⇔ 086 Counterclockwise rotation, slow to fast087 ⇔ 129 Stop130 ⇔ 173 Clockwise rotation, slow to fast174 ⇔ 217 Stop218 ⇔ 255 Alternating clockwise-counterclockwise rotation, slow to fast

2Ch

Channel Function Value Percent/Setting
1 Auto	programs	001 ⇔ 127 Auto mode128 ⇔ 255 Sound mode
2	Auto speed 000 ⇔ 255		Slow to fast(activates when Channel 1 is on auto mode)
	Sound sensitivity 000 ⇔ 255		0–100%(activates when Channel 1 is on sound mode)

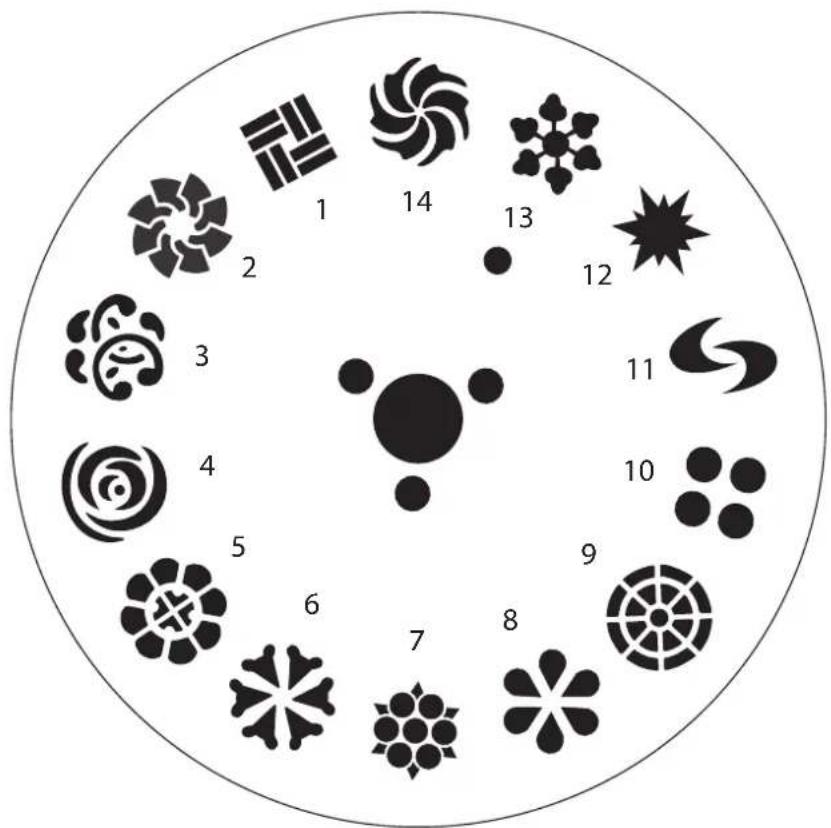

Gobos

1 2 3 4 5 6 7 8 9 10 11 12 13 14
