Product Type	DJ Equipment - Rotating Light Effect
Brand	Chauvet
Model	Rotosphere HP
Power Supply	100-240 VAC, 50/60 Hz (universal)
Power Consumption	Approximately 50 W (estimated)
Dimensions (estimated)	Approximately 35 x 35 x 45 cm
Weight (estimated)	Approximately 5 kg
Light Sources	RGBWA+ LEDs (red, green, blue, white, cyan, magenta, yellow, orange) – 3 sections
Control Modes	DMX (3, 12, 28 channels), master/slave, infrared (IRC-6), standalone, sound activation
Main Functions	Motorized rotation, strobe, automatic programs, static colors, custom color mixing
Connectivity	DMX input/output (3-pin XLR), IEC power
Mounting	Mounting bracket with safety cable (required for overhead use)
Fuse	Replaceable, same type and rating
Operating Temperature	Max 40 °C
Protection Rating	IP20 (indoor use only)
Maintenance and Cleaning	Disconnect before cleaning; do not use flammable products
Safety	Grounding required; do not expose eyes to light source; do not open the device
Spare Parts and Repairability	Fuse and power cable replaceable; no user-serviceable parts inside
Warranty	Limited, see Chauvet website for terms

Frequently Asked Questions - Rotosphere HP Chauvet

How to connect the Rotosphere HP in DMX mode?

Use a 3-pin XLR DMX cable to connect the controller DMX output to the device DMX input. Set the starting address via the menu (max recommended address: 485). Select the desired DMX mode (3, 12 or 28 channels) in the menu.

How to adjust the motor rotation speed?

In the menu, access the Mateur Mot option (M000-100) to adjust the motor speed from 0 to 100%. In DMX mode, use the dedicated channel (channel 28 in 28-channel mode, channel 12 in 12-channel mode, channel 3 in 3-channel mode).

How to use the IRC-6 infrared remote control?

Make sure infrared mode is enabled: go to menu, then SET > ir and set to on. Point the IRC-6 remote at the front sensor of the device to control functions.

What to do if the device does not respond?

First check the power supply and fuse. Ensure the power cord is properly connected. If the fuse is blown, replace it with a fuse of the same type and rating. If the problem persists, contact Chauvet support.

How to replace the fuse?

Disconnect the device. Use a flat-head screwdriver to pry open the fuse holder cap. Remove the blown fuse and replace it with an identical fuse (same type and rating). Replace the cap and reconnect.

How to configure master/slave mode?

Daisy-chain the devices via DMX. On the master, select a standalone mode (program or sound). On the slaves, set the DMX address to 1 (or slave mode). See manual for details.

What are the available DMX modes?

The Rotosphere HP offers three DMX modes: 3 channels (program, speed/sensitivity, motor), 12 channels (program, speed/sensitivity, red/green/blue/white/cyan/magenta/yellow/orange, strobe, motor) and 28 channels (individual control of 8 colors on 3 sections, strobe, program, speed/sensitivity, motor).

How to activate Sound-Active mode?

In the menu, select Snd then bo (black without sound) or SLoU (slow without sound). Adjust sensitivity via SEnS (u001-100). The device will then react to the music rhythm.

What are the important safety precautions?

The device must be connected to a grounded outlet. Do not look directly into the light source. Do not use outdoors (IP20). Ensure at least 50 cm ventilation around. Do not plug into a dimmer. Disconnect before maintenance.

How to clean the Rotosphere HP?

Disconnect the device. Use a soft dry cloth to remove dust. Do not use solvents or flammable products. Do not clean when the device is hot.

USER MANUAL Rotosphere HP Chauvet

The Rotosphere HP Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTY. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cable is not crimped or damaged.
• Never disconnect this product from power by pulling on the cable.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
  DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
  This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• Be sure that no ventilation slots on the unit's housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• Never carry the product by the power cable. Use only the hanging bracket or handle to carry this product.
  The maximum ambient temperature is 104^ (40^) . Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
  To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Rotosphere HP

• Power cable

• Quick Reference Guide

To Begin

Unpack the Rotosphere HP and make sure all parts have been received in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50 / 60Hz

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to link up to 8 Rotosphere HP products at 120V or 13 products at 230V . Never exceed this number. Power-linking cables can be purchased separately.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

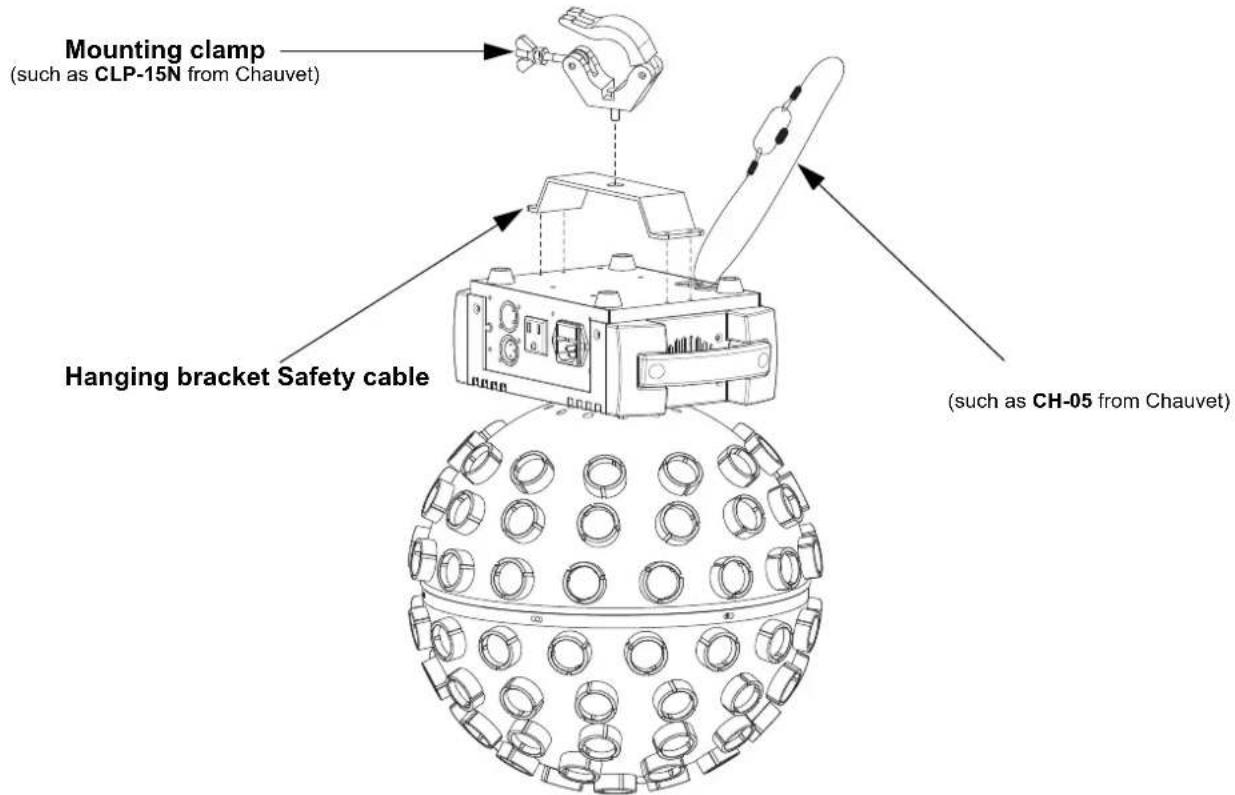

Mounting Diagram

Control Panel Description

Button Function
<MENU>Exists from the current menu or function
<UP>	Navigates upwards through the menu list and increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list and decreases the numeric value when in a function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the Rotosphere HP product page on www.chauvetdj.com for the latest menu map.

Mode Programming Levels Description
DMX Mode	3Ch	channel DMX01e542		3-channel DMX mode
	12Ch 12-channel DMX mode
	28Ch 28-channel DMX mode
Programs P-- P 1-5 Automatic programs
Auto Speed S-- S001-100 Program speed for P 1-5
Motor Mot M000-100 Motor speed for programs and static colors
Static Colors	C--	C001-015		Static colors
Sound Mode	Snd	bo		Sound-active program, blackout without sound
		SLoU Sound-active program, slow down without sound
Sensitivity	SEnS	u001-100		Sets sound sensitivity
Custom Color Mixing	U--	r000-255		Custom static colorsCombine red, green, blue, white, cyan, magenta, yellow, and orange
		G000-255
		b000-255
		U000-255
		C000-255
		M000-255
		y000-255
		o000-255
		S000-100 Strobe rate
		DI_	DI-L	Rotate left
			DI-R	Rotate right
		M000-100 Motor speed		Speed
Infrared Mode	SET	on		Turns infrared on or off
		oFF

DMX Linking

The Rotosphere HP can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 485.

Master/Slave Connection

The Rotosphere HP uses the DMX data connection for its Master/Slave mode. Information about configuring the Rotosphere HP for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

IRC-6 (Infrared Remote Control)

The Rotosphere HP can be operated with the CHAUVET IRC-6. For more information about the IRC-6, download instructions for the IRC-6 or the Rotosphere HP User Manual from www.chauvetdj.com.

DMX Values

28Ch

Channel	Function Value Percent/Setting
1	Red 1	000 ⇌ 255	0-100%
2	Green 1	000 ⇌ 255	0-100%
3	Blue 1	000 ⇌ 255	0-100%
4	White 1	000 ⇌ 255	0-100%
5	Cyan 1	000 ⇌ 255	0-100%
6	Magenta 1	000 ⇌ 255	0-100%
7	Yellow 1	000 ⇌ 255	0-100%
8	Orange 1	000 ⇌ 255	0-100%
9	Red 2	000 ⇌ 255	0-100%
10	Green 2	000 ⇌ 255	0-100%
11	Blue 2	000 ⇌ 255	0-100%
12	White 2	000 ⇌ 255	0-100%
13	Cyan 2	000 ⇌ 255	0-100%
14	Magenta 2	000 ⇌ 255	0-100%
15	Yellow 2	000 ⇌ 255	0-100%
16	Orange 2	000 ⇌ 255	0-100%
17	Red 3	000 ⇌ 255	0-100%
18	Green 3	000 ⇌ 255	0-100%
19	Blue 3	000 ⇌ 255	0-100%
20	White 3	000 ⇌ 255	0-100%
21	Cyan 3	000 ⇌ 255	0-100%
22	Magenta 3	000 ⇌ 255	0-100%
23	Yellow 3	000 ⇌ 255	0-100%
24	Orange 3	000 ⇌ 255	0-100%
25	Strobe	000	No function
		001 ⇌ 255	Strobe, slow to fast
26	Program	000	No function
		001 ⇌ 250	Automatic program
		251 ⇌ 255	Sound-active program
27	Program speed(when Ch. 26 is 001 ⇌ 250)	000 ⇌ 255	Automatic program speed, slow to fast
	Sound sensitivity(when Ch. 26 is 251 ⇌ 255)	000 ⇌ 255	Sound sensitivity, low to high
28	Motor speed	000 ⇌ 255	Motor rotation speed, slow to fast

12Ch

Channel	Function Value Percent/Setting
1 Program		000 No	function
		001 ⇌ 250	Automatic program
		251 ⇌ 255	Sound-active program
2	Program speed (when Ch. 1 is 001 ⇌ 250)	000 ⇌ 255	Automatic program speed, slow to fast
	Sound sensitivity (when Ch. 1 is 251 ⇌ 255)	000 ⇌ 255	Sound sensitivity, low to high
3 Red	000 ⇌ 255 0–100%
4 Green	000 ⇌ 255 0–100%
5	Blue	000 ⇌ 255	0–100%
6 White	000 ⇌ 255 0–100%
7	Cyan	000 ⇌ 255	0–100%
8	Magenta	000 ⇌ 255	0–100%
9	Yellow	000 ⇌ 255	0–100%
10	Orange	000 ⇌ 255	0–100%
11	Strobe	000 ⇌ 005	No function
		006 ⇌ 255	Strobe, slow to fast
12	Motor speed	000 ⇌ 255	Motor rotation speed, slow to fast

3Ch

Channel Function Value Percent/Setting
1 Program		000 No function
		001 ⇌ 250	Automatic program
		251 ⇌ 255	Sound-active program
2	Program speed (when Ch. 1 is 001 ⇌ 250)	000 ⇌ 255	Automatic program speed, slow to fast
	Sound sensitivity (when Ch. 1 is 251 ⇌ 255)	000 ⇌ 255	Sound sensitivity, low to high
3	Motor speed	000 ⇌ 255	Motor rotation speed, slow to fast
