USER MANUAL 4BAR LT QuadBT ILS Chauvet

4BAR LT QuadBT ILS Quick Reference Guide

Quick Reference Guide

CHAUVET3

About This Guide

The 4BAR LT QuadBT ILS Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTY. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

FCC Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cable is not crimped or damaged.
• Never disconnect this product from power by pulling on the cable.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
• DO NOT touch the product's housing when it is on because it will be hot.

The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
- Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- Be sure that no ventilation slots on the unit's housing are blocked.
- Never connect this product to a dimmer or rheostat.
- Replace the fuse with the same type and rating.
- Never carry the product by the power cable.
The maximum ambient temperature is 104^ (40^) . Do not operate this product at higher temperatures.
- In the event of a serious operating problem, stop using immediately.
- DO NOT open this product. It contains no user-serviceable parts.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

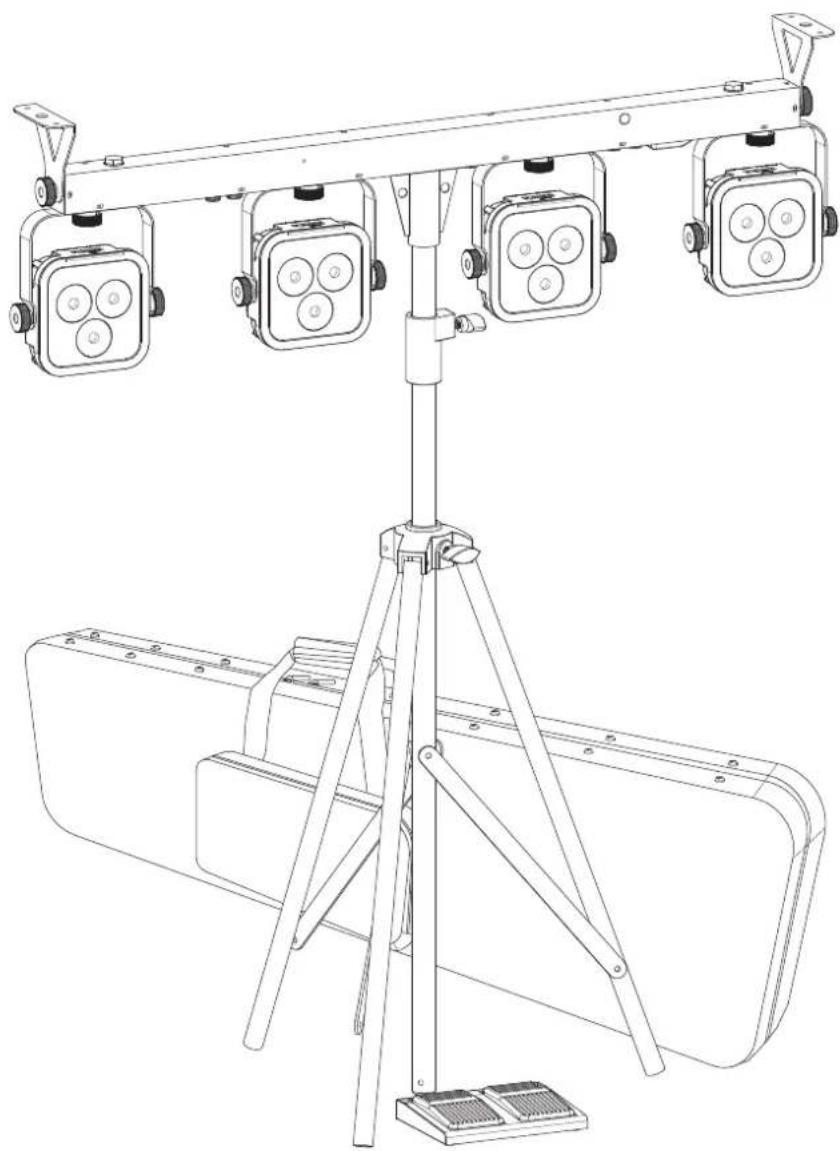

What is Included

4BAR LT QuadBT ILS

• Carrying bag

L brackets

Power cable

Footswitch

Quick Reference Guide

T r i p o d

To Begin

Unpack the 4BAR LT QuadBT ILS and make sure all parts have been received in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50 / 60Hz

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

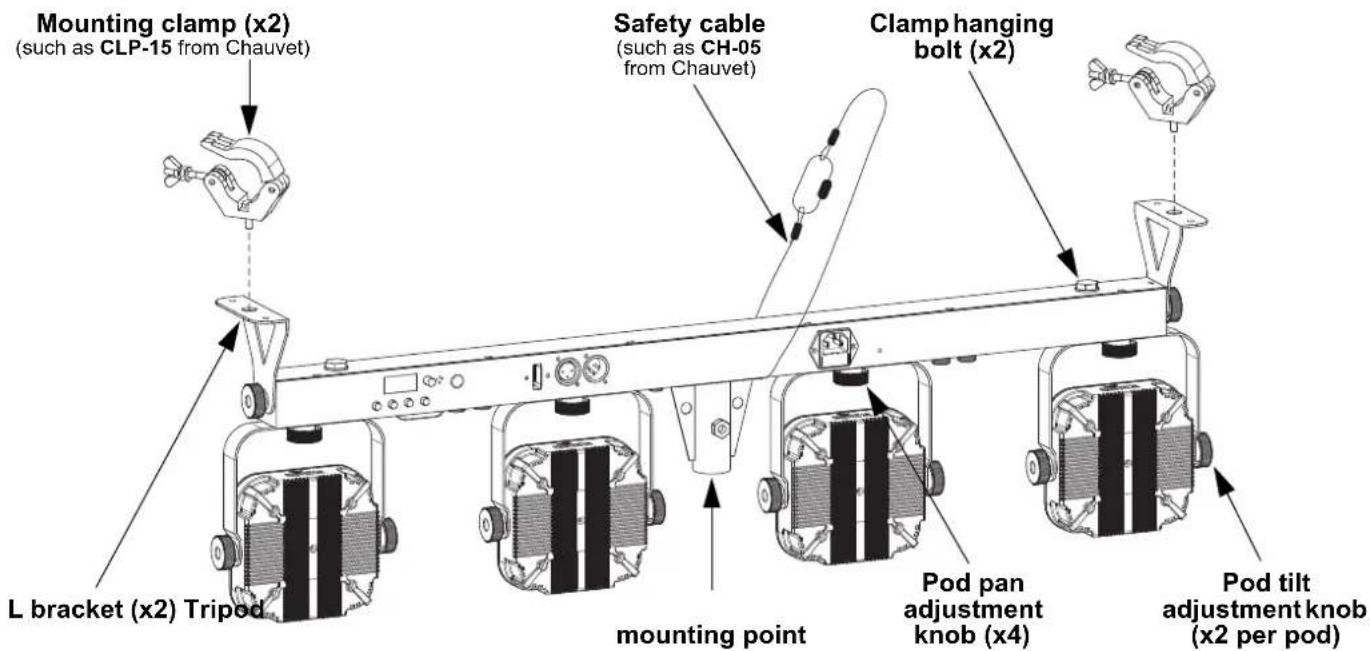

Mounting Diagram

Control Panel Description

Button Function
<MENU>Exists from the current menu or function
<UP>	Navigates upwards through the menu list and increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list and decreases the numeric value when in a function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the 4BAR LT QuadBT ILS product page on www.chauvetdj.com for the latest menu map.

Mode Programming Levels Description
DMX Mode	4Ch	DMXdmb509		4-channel DMX mode
	6Ch 6-channel DMX mode
	19Ch 19-channel DMX mode
ILS Mode iLS iLS1-4 Sets	ILS mode
Static Colors	C-- C 1-15 Static colors
Programs P-- P 1-8 Automatic programs
Auto Speed	S--	S. 1-100		Program speed for P 1-8
Dimmer	d--	L. 1-255		Dimmer
Sound Mode	Snd	Snd1-8		Sound-active programs
Sensitivity	SEnS	u 0-100		Sets sound sensitivity
Custom Color Mixing	u--	r. 0-255		Custom static colorsCombine red, green, blue, and amber
		G. 0-255
		b. 0-255
		A. 0-255
		S. 0-100		Strobe rate
Bluetooth Mode*	bLE			Bluetooth control mode, displays Bluetooth ID
Control Mode	SEt	ir	on	Turns infrared on or off for footswitch orIRC-6 control
			oFF
		out	SLAV	Enable Master/Slave with non-BT products
			dMX	Enable Master/Slave with other BT products

*The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.

DMX Linking

The 4BAR LT QuadBT ILS can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 494.

Master/Slave Connection

The 4BAR LT QuadBT ILS uses the DMX data connection for its Master/Slave mode. Information about configuring the 4BAR LT QuadBT ILS for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

ILS Connection

The 4BAR LT QuadBT ILS uses the DMX data connection and the D-Fi USB for wireless connection to the Integrated Lighting System (ILS) ecosystem (patent pending). For more information about configuring the 4BAR LT QuadBT ILS into ILS mode, please refer to the User Manual available at www.chauvetdj.com.

IRC-6 (Infrared Remote Control)

The 4BAR LT QuadBT ILS can be operated with the CHAUVET IRC-6. For more information about the IRC-6, download instructions for the IRC-6 or the 4BAR LT QuadBT ILS User Manual from www.chauvetdj.com.

Bluetooth Control

The 4BAR LT QuadBT ILS can be operated with the BTAir application over a Bluetooth connection. For more information on using the BTAir app, download the BTAir User Manual from www.chauvetdi.com.

D-Fi USB Connectivity

The 4BAR LT QuadBT ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from CHAUVET DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product's DMX Personality and DMX Address. Further instructions for connecting and configuring this product for D-Fi USB operation are in the User Manual.

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.

Once plugged in, the D-Fi USB will take over the product. Wired DMX and manual display control/menu buttons will be unavailable until you unplug the D-Fi USB. The priority levels are:

1. D-Fi USB
2. Wired DMX
3. IRC-6 Remote Control
4. Manual Digital Display/Menu Buttons

Footswitch Operation

Pedal	Action	Function	Pedal	Action	Function
Left	Tap pedal to activate, then tap to navigate to desired function	White	Left (cont.)	Tap to navigate (cont.)	Auto snap program
		Red Auto fade program
		Green	Right	Tap Blackout
		Blue Press and hold	Fade out or in
		Amber	Both	Tap	Sound-active mode
		10 preset static colors		Press and hold Strobe

DMX Values

19Ch

Channel Function Value Percent/Setting
1	Automatic Programs	000 ⇌ 009	No function
		010 ⇌ 029	Auto program 1
		030 ⇌ 049	Auto program 2
		050 ⇌ 069	Auto program 3
		070 ⇌ 089	Auto program 4
		090 ⇌ 109	Auto program 5
		110 ⇌ 129	Auto program 6
		130 ⇌ 149	Auto program 7
		150 ⇌ 169	Auto program 8
		170 ⇌ 189	Auto program 9
		190 ⇌ 209	Auto program 10
		210 ⇌ 229	Auto program 11
		230 ⇌ 249	Auto program 12
		250 ⇌ 255	Sound-active program
2	Dimmer	000 ⇌ 255	0-100%
3	Strobe(when Ch. 1 is 000 ⇌ 009)	000 ⇌ 009	No function
		010 ⇌ 255	Strobe, slow to fast
	Program speed(when Ch. 1 is 010 ⇌ 249)	000 ⇌ 255	Program speed, slow to fast
	Sound sensitivity(when Ch. 1 is 250 ⇌ 255)	000 ⇌ 010	Sound sensitivity off
		011 ⇌ 255	Sound sensitivity, low to high
4	Red 1	000 ⇌ 255	0-100%
5	Green 1	000 ⇌ 255	0-100%
6	Blue 1	000 ⇌ 255	0-100%

EN

Channel	Function	Value	Percent/Setting
7	Amber 1	000 ⇌ 255	0-100%
8	Red 2	000 ⇌ 255	0-100%
9	Green 2	000 ⇌ 255	0-100%
10	Blue 2	000 ⇌ 255	0-100%
11	Amber 2	000 ⇌ 255	0-100%
12	Red 3	000 ⇌ 255	0-100%
13	Green 3	000 ⇌ 255	0-100%
14	Blue 3	000 ⇌ 255	0-100%
15	Amber 3	000 ⇌ 255	0-100%
16	Red 4	000 ⇌ 255	0-100%
17	Green 4	000 ⇌ 255	0-100%
18	Blue 4	000 ⇌ 255	0-100%
19	Amber 4	000 ⇌ 255	0-100%

6Ch

Channel	Function	Value	Percent/Setting
1	Red	000 ⇌ 255	0-100%
2	Green	000 ⇌ 255	0-100%
3	Blue	000 ⇌ 255	0-100%
4	Amber	000 ⇌ 255	0-100%
5 Dimmer 000 ⇌ 255 0-100%
6	S t ro b e	000 ⇌ 015	No function
		016 ⇌ 255	Strobe, slow to fast

4Ch

Channel	Function	Value	Percent/Setting
1	Red	000 ⇌ 255	0-100%
2	Green	000 ⇌ 255	0-100%
3	Blue	000 ⇌ 255	0-100%
4	Amber	000 ⇌ 255	0-100%

Acerca de esta guía

General Information Technical Support

World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

U.K.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu

NG16 6NT

Voice: [phone]

Fax. [phone]

Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetdj.eu

Voice: [phone]

Germany

Address: Bruno-Burgel-Str. 11

28759 Bremen

Germany Website: www.chauvetdj.eu

Voice: [phone]

Mexico

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetdj.mx

Lerma, Edo. de Mexico, CP 52000

Voice: [phone]

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

4BAR LT QuadBT ILS QRG

ML6 Rev. 1

Copyright 2022 Chauvet

All rights reserved
