USER MANUAL Ovation Rêve E-3 Chauvet

Model ID: OVATIONREVEE3

About This Guide

The Ovation Rêve E-3 Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, the customer must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives the customer specific legal rights. The customer may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult a local distributor.

Safety Notes

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 10 ft (3 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it (IP20).
  • DÔ NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• CAUTION: This product's housing may be hot when lights are operating.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• USE a safety cable when mounting this product overhead.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact a distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Ovation Rêve E-3

• Seetronic Powerkon

• Soft-focus filter

• Ovation metal gobo holder

- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

It is possible to link up to 3 Ovation Rêve E-3 products at 100 V, 4 products at 120 V, 7 products at 208 V, 8 products at 230 V, or 8 products at 240 V. Never exceed this number. Power-linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow		Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect this product from power.
2. Using a Phillips-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Ovation Rêve E-3 will work with a DMX controller using a 3- and 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation Rêve E-3 uses a 3- and 5-pin DMX data connection for its DMX personalities: 1Ch, 5Ch, 6Ch, 8Ch, 12Ch, 14Ch1, 14Ch2, 18Ch, and HSV. See the User Manual for information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The Ovation Rêve E-3 uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check with the manufacturer or the DMX controller's User Manual, as not all DMX controllers have this capability. The Ovation Rêve E-3 supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

USB Software Update

The Ovation Rêve E-3 allows for software update through USB using the built-in USB port. To update the software using USB flash drive, do the following:

1. Power on the fixture and plug the flash drive into the USB port.
2. Once the flash drive has been detected, the message "Upgrade Firmware" will be displayed. Press .

- If a different message appears on the display, search for the updated software in the Main Menu (Update Firmware) and select from Only This Unit, Multiple Units, or Other Fixture Type. A list of the software update files will be displayed.

1. Select the file that needs to be uploaded. The message "Are you sure?" will be displayed. Press .
2. If the selected file is correct, the upgrade will be completed. Restart the fixture.

- If the selected file is incorrect, the upgrade will fail, and the display will go back to the main interface. Repeat steps 1-3 using the correct file.

The .chl format file needs to be placed in the OVATION folder in the USB flash drive.

The “Other Fixture Type” option can only be selected for connected products compatible with the Upload 03 (the first 2 digits of the item code must be 03).

Lens Tubes

The following lens tubes are available for purchase:

• 19^ , 26^ , 36^ , and 50^ with gel frame (6.25 in/159 mm accessories)
• 5^ zoom gel frame (14 in/356 mm)
• 10^ zoom gel frame (12 in/304 mm)
• 14°, 15–30° and 25°–50° zoom gel frame (7.5 in/191 mm accessories)

Soft Focus Filter

The Ovation Rêve E-3 comes with a soft focus filter. To keep the soft focus filter in good condition:

• Ensure that no fingerprints are left on the filter, as this may cause the filter to heat unevenly and eventually warp.
- When placing the filter in the holder, follow the orientation direction printed on the filter.
- When inserting shutter blades into the light path, note that the heat is reflected back at the filter. The deeper the blades are inserted, and the longer the fixture runs, the more heat gets reflected on to the filter, causing it to warp and potentially adhere to the shutter blades.

If there is a protective film on the soft-focus filter, it must be removed before use. The filter is in a holder in the metal gobo slot.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps can support the weight of the product. For the Chauvet line of mounting clamps, go to: http://trusst.com/productcategory/truss-clamps/.

Product Mounting Diagram

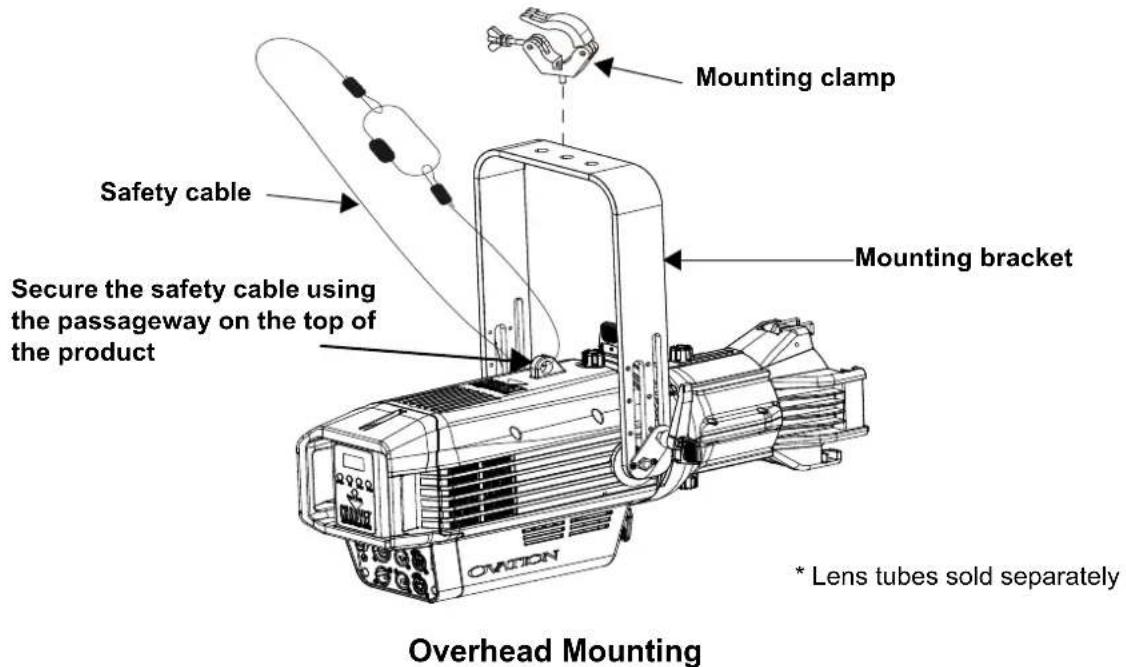

Mounting clamp Safety cable Secure the safety cable using the passageway on the top of the product Mounting bracket Overhead Mounting * Lens tubes sold separately

Adjustable Yoke

The Ovation Rêve E-3 comes with an adjustable yoke for mounting in low-clearance areas. To modify the height of the yoke, do the following:

1. Loosen the bracket adjustment knobs on both sides of the fixture.
2. On each side of the fixture, remove the two screws and loosen the bolt attaching the plate to the mounting bracket.
3. Using the screw holes as guide, adjust the position of the mounting bracket to achieve the desired height of the yoke.
4. Put the screws back in place, and tighten the bolts and the bracket adjustment knobs.

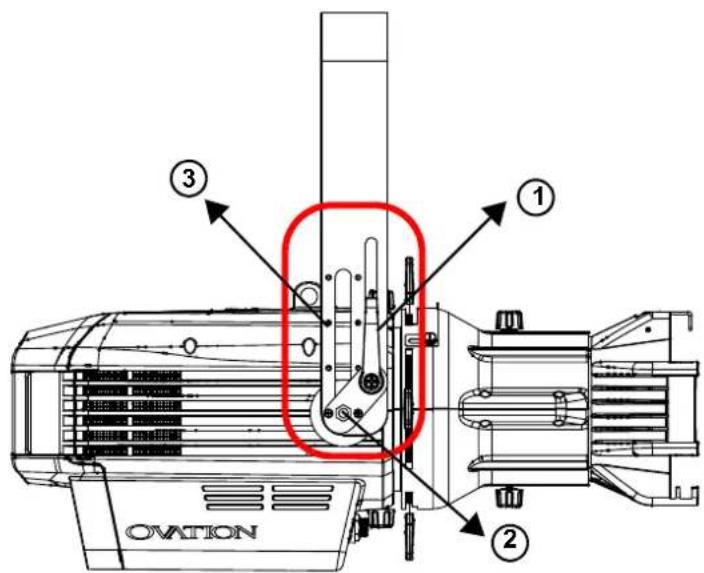

OVATION ① ② ③

Virtual Color Wheel

The Ovation Rêve E-3 includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming.

The DMX values used to mix these colors are provided below. The overall intensity of the Ovation fixture can be adjusted to more closely replicate familiar industry-standard colors. A chart is available on www.chauvetprofessional.com to compare Chauvet's premixed colors with popular gel colors. This chart is for comparison purposes only and is not an assertion that Chauvet's premixed colors match any of the gel colors listed.

Virtual Color Wheel Chart

DMX Channel Value	Display Readout	Red Value	Green Value	Blue Value	Amber Value	Mint Value
000 ⇔ 005	--	--	--	--	--	--
006 ⇔ 013	C3050 - Md Yellow	255	225	0	255	37
014 ⇔ 021	C3040 - Lt Yellow	255	177	3	255	37
022 ⇔ 028	C3240 - Amb Yellow	255	220	0	255	0
029 ⇔ 035	C2340 - VLt Amber	195	0	15	255	57
036 ⇔ 043	C2040 - Lt Amber	255	0	11	255	61
044 ⇔ 051	C2050 - Md Amber	255	53	0	255	17
052 ⇔ 059	C2060 - Dk Amber	255	8	0	255	17
060 ⇔ 067	C1050 - Lt Red	255	0	3	14	0
068 ⇔ 075	C1080 - Md Red	255	0	2	0	0
076 ⇔ 083	C1020 - NC Pink	255	75	62	255	73
084 ⇔ 091	C1030 - Md Pink	255	75	57	255	41
092 ⇔ 099	C1630 - Dk Pink	218	77	57	255	61
100 ⇔ 107	C1250 - Md Red Amber	255	0	9	168	0
108 ⇔ 115	C1060 - Dk Red Amber	255	5	9	36	0
116 ⇔ 121	C1650 - Magenta	255	3	62	255	12
122 ⇔ 130	C6170 - Dk Magenta	255	0	55	0	0
131 ⇔ 138	C6020 - Lt Lavender	255	220	93	255	44
139 ⇔ 146	C5030 - Lt Blue	0	255	159	112	78
147 ⇔ 154	C5020 - VLt Blue	0	215	145	196	65
155 ⇔ 162	C5430 - Lt Blue2	0	215	132	52	92
163 ⇔ 170	C5070 - Blue	0	195	188	0	19
171 ⇔ 178	C5050 - Md Blue	0	163	190	0	68
179 ⇔ 186	C5060 - Dk Blue	0	128	193	0	38
187 ⇔ 194	C5690 - Indigo	53	9	255	0	0
195 ⇔ 202	C5080 - VDk Blue	7	84	116	0	0
203 ⇔ 210	C5081 - VDk Blue2	11	82	139	0	0
211 ⇔ 218	C4370 - Yel Green	0	255	2	25	0
219 ⇔ 226	C4070 - Green	0	255	9	0	175
227 ⇔ 234	C4550 - Turquoise	0	255	87	96	255
235 ⇔ 242	C4560 - Aqua	0	255	98	44	255
243 ⇔ 250	C4570 - Blue Green	0	255	26	8	0
251 ⇔ 255	--	--	--	--	--	--

The colors above are simulated renditions of the color output produced compared with other similar incandescent products. Chauvet makes no guarantee of the color output accuracy.

Color Temperature Chart

Color Temperature	Red Value	Green Value	Blue Value	Amber Value	Mint Value
2800K 253 0	25 255 145
2900K 253 3	28 255 153
3000K 251 5	33 255 161
3100K 248 7	36 255 169
3200K 245 9	45 255 173
3300K 242 13	47 255 182
3400K 237 22	53 255 185
3500K 230 30	58 255 185
3600K 225 40	64 255 185
3700K 221 48	70 255 185
3800K 220 48	74 255 197
3900K 220 50	79 255 203
4000K 210 58	84 255 203
4100K 205 63	88 255 203
4200K 199 68	95 255 204
4300K 189 69	98 255 204
4400K 183 71	103 255 204
4500K 174 78	107 255 204
4600K 170 80	112 255 204
4700K 166 89	119 255 204
4800K 164 98	123 255 203
4900K 163 100	129 255 205
5000K 163 103	137 255 206
5100K 163 108	142 255 208
5200K 163 116	147 255 208
5300K 163 118	156 255 210
5400K 162 122	162 255 216
5500K 162 124	166 255 224
5600K 162 127	172 255 229
5700K 159 127	177 255 231
6000K 158 134	192 241 231
6500K 152 152	206 225 231
7000K 144 157	224 218 231
7500K 127 172	238 218 231
8000K 122 175	245 200 231

The color temperatures above are simulated renditions of the color output produced compared with a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy.

Color Temperature DMX Chart

DMX Channel	Color Temperature	DMX Channel	Color Temperature	DMX Channel	Color Temperature
000 ⇔ 005	No function	084 ⇔ 090	3900–4000K	168 ⇔ 174	5100–5200K
006 ⇔ 013	2800–2900K	091 ⇔ 097	4000–4100K	175 ⇔ 181	5200–5300K
014 ⇔ 020	2900–3000K	098 ⇔ 104	4100–4200K	182 ⇔ 188	5300–5400K
021 ⇔ 027	3000–3100K	105 ⇔ 111	4200–4300K	189 ⇔ 195	5400–5500K
028 ⇔ 034	3100–3200K	112 ⇔ 118	4300–4400K	196 ⇔ 202	5500–5600K
035 ⇔ 041	3200–3300K	119 ⇔ 125	4400–4500K	203 ⇔ 209	5600–5700K
042 ⇔ 048	3300–3400K	126 ⇔ 132	4500–4600K	210 ⇔ 216	5700–6000K
049 ⇔ 055	3400–3500K	133 ⇔ 139	4600–4700K	217 ⇔ 223	6000–6500K
056 ⇔ 062	3500–3600K	140 ⇔ 146	4700–4800K	224 ⇔ 230	6500–7000K
063 ⇔ 069	3600–3700K	147 ⇔ 153	4800–4900K	231 ⇔ 237	7000–7500K
070 ⇔ 076	3700–3800K	154 ⇔ 160	4900–5000K	238 ⇔ 244	7500–8000K
077 ⇔ 083	3800–3900K	161 ⇔ 167	5000–5100K	245 ⇔ 255	8000K

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function
	Sets fixture into Focus Mode, which takes the unit to full power for easy focusing without changing any other fixture settings. Press again to release from Focus Mode.

Menu Map

Refer to the Ovation Rêve E-3 product page on www.chauvetprofessional.com for the latest menu map.

Main Level Programming Levels Description
DMX Address	001-512*			Selects DMX address(*highest channel restricted to personality chosen)
DMX Channel	1Ch	Virtual Color Wheel		1-channel: dimmer
		Color Temperature
		Manual Color Mixer
	5Ch			5-channel: dimmer, virtual color wheel (VCW), color temperature, hue, gobo rotator
	6Ch			6-channel: red, green, blue, amber, mint, gobo rotator
	8Ch 8-channel: dimmer, RGBAM, strobe, gobo rotator
	12Ch			12-channel: 16-bit dimmer, RGBAM, strobe, VCW, color temperature, hue, gobo rotator
	14Ch1			14-channel: dimmer, RGBAM, strobe, VCW, color temperature, hue, auto programs, auto speed, control, gobo rotator
	14Ch2			14-channel: 16-bit dimmer, 16-bit RGBAM, strobe, gobo rotator
	18Ch			18-channel: 16-bit RGBAM and dimmer, strobe, VCW, color temperature, hue, control, gobo rotator
	HSV 4-channel: hue, saturation, value, gobo rotator
Virtual Color Wheel	Virtual Color Wheel	C3050 - Md YellowC3040 - Lt YellowC3240 - Amb YellowC2340 - VLt AmberC2040 - Lt AmberC2050 - Md AmberC2060 - Dk AmberC1050 - Lt RedC1080 - Md RedC1020 - NC PinkC1030 - Md PinkC1630 - Dk PinkC1250 - Md Red AmberC1060 - Dk Red AmberC1650 - MagentaC6170 - Dk MagentaC6020 - Lt LavenderC5030 - Lt BlueC5020 - VLt BlueC5430 - Lt Blue 2C5070 - BlueC5050 - Md BlueC5060 - Dk Blue	Dimmer000-255	Virtual Color Wheel simulates the output of each gel color. Refer to theVirtual Color Wheel Chart for specific values.

Main Level Programming Levels Description
Virtual Color Wheel	Virtual Color Wheel	C5690 - IndigoC5080 - VDk BlueC5081 - VDk Blue 2C4370 - Yel GreenC4070 - GreenC4550 - TurquoiseC4560 - AquaC4570 - Blue Green		Dimmer000-255	Virtual Color Wheel simulates the output of each gel color. Refer to theVirtual Color Wheel Chartfor specific values.
	Color Temperature	2800K2900K3000K3100K3200K3300K3400K3500K3600K3700K3800K3900K4000K4100K4200K4300K4400K4500K4600K4700K4800K4900K5000K5100K5200K5300K5400K5500K5600K5700K6000K6500K7000K7500K8000K	Dimmer 0-255	Hue -25-25	Preset white color temperatures. Emulates a tungsten lamp at the specified color temperature. Refer to theColor Temperature Chartfor specific values.
	Manual Color Mixer	RedGreenBlueAmberMint		000-255	Combines red, green, blue, amber, and mint to make a custom color (0-100%)
	Color X-Fade Speed	Off Turns off the face transition between colors
		X-Fade Speed 1			Creates fade transition between colors when using colors in the Virtual Color Wheel or ColorTemperature chart, from fast (X-Fade Speed 1) to slow (X-Fade Speed 4)
		X-Fade Speed 2
		X-Fade Speed 3
		X-Fade Speed 4

Main Level	Programming Levels			Description
Auto Show A	Auto 1-5 1-100			Selects automatic programs and auto program speed
Red Shift	On			Mimics halogen lamp dimming
	Off
Gobo Rotator	000-255 Controls the gobo rotator
Master/Slave	Master			Receives DMX signal from the DMX controller (master)
	Slave Receives DMX signal			from the master unit
Dimmer Curve	SCurveLinearSquareInverse Square			Sets the dimmer curve
Dimmer Mode	Off Linear dimmer
	Dimmer 1-3			Dimming curves, from fast (Dimmer 1) to slow (Dimmer 3)
Color Calibration	Off			Deactivates color calibration
	User Calibration	Red	Green LED max	Sets red LED maximum value
		Green Sets green LED max	L25+25.5	Maximum value
		Blue Sets blue LED max	L25+25.5	Maximum value
		Amber Sets amber LED max	L25+25.5	Maximum value
		Mint Sets mint LED max	L25+25.5	Maximum value
	Factory Calibration Uses factory de			default white setting
LED Frequency	600Hz1200Hz2000Hz4000Hz6000Hz25KHz			Sets the PWM output frequency
Fan Mode	Auto Sets the fan to auto mode
	On Sets the fan to always on
	Off Sets the fan to always off
	Silent Sets the fan to silent
Back Light	10S			Turns off display backlight after 10 seconds of inactivity
	30S			Turns off display backlight after 30 seconds of inactivity
	2Min			Turns off display backlight after 2 minutes of inactivity
	Always On			Display backlight always on
Gobo Power	OnOff			Enables/disables gobo power output
Information	Fixture Hours	____H		Shows total hours the product has been powered on
	LED Hours	____H		Shows total hours the LED has been powered on
	Version	V._		Shows current firmware version
	UID	--------		Shows product UID
Update Firmware	Only This Unit	--------CHL		Selects an update file for this product, or shows “No such file!”
		...
	Multiple Units	--------CHL		Selects an update file for this and connected Ovation Rêve E-3 products, or shows “No such file!”
		...
	Other Fixture Type	--------CHL		Selects an update file for other connected products, or shows “No such file!”
		...
Reset Factory	No			Resets settings to factory default
	Yes

WARNING: When operating in Fan Mode: Off and Fan Mode: Silent, the fixture will become hotter to the touch than when using other fan modes. Use proper protective equipment to prevent burns. Keep a safe distance from flammable objects.

NOTICE: When operating in Fan Mode: Off and Fan Mode: Silent, output of the fixture will be reduced and will not reach the same levels as when using other fan modes.

DMX Values HSV

Channel Function Value Percent/Setting
1	H	u	e		000 ⇔ 255 0–100%
2	S	a	t	u	r a	t i o n 000 ⇔ 255 0-
3	V	a	l	u	e	000 ⇔ 255 0–100%
4 Gobo	rotator				000 ⇔ 127 Index128 ⇔ 190 Clockwise rotation, fast to slow191 ⇔ 192 Stop193 ⇔ 255 Counterclockwise rotation, slow to fast

18Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Dimmer fine	000 ⇔ 255	0–100%
3	R e d	000 ⇔ 255 0–100%
4	Red fine	000 ⇔ 255	0–100%
5	Green	000 ⇔ 255	0–100%
6	Green fine	000 ⇔ 255	0–100%
7	Blue	000 ⇔ 255	0–100%
8	Blue fine	000 ⇔ 255	0–100%
9	Amber	000 ⇔ 255	0–100%
10	Amber fine	000 ⇔ 255	0–100%
11	Mint	000 ⇔ 255	0–100%
12	Mint fine	000 ⇔ 255	0–100%
13	Strobe	000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast
14	Virtual color wheel	000 ⇔ 255	Refer toVirtual Color Wheel Chart
15	Color temperature	000 ⇔ 255	Refer toColor Temperature DMX Chart
16	Hue	000 ⇔ 000 0001 ⇔ 255 -25–25
17	Control(hold for 3 seconds)	000 ⇔ 007 No function008 ⇔ 015 Dimmer reset016 ⇔ 023 Red shift on024 ⇔ 031 Red shift off032 ⇔ 039 S-curve dimmer040 ⇔ 047 Linear dimmer048 ⇔ 055 Square dimmer curve056 ⇔ 063 Inverse square dimmer curve064 ⇔ 071 Dimmer speed mode: OFF072 ⇔ 079 Dimmer speed 1 (fastest)080 ⇔ 087 Dimmer speed 2088 ⇔ 095 Dimmer speed 3 (slowest)096 ⇔ 103 Fan auto104 ⇔ 111 Fan on112 ⇔ 119 Fan off120 ⇔ 127 Fan silent128 ⇔ 135 X-Fade Speed: OFF136 ⇔ 143 X-Fade Speed: 1 (fastest)144 ⇔ 151 X-Fade Speed: 2152 ⇔ 159 X-Fade Speed: 3160 ⇔ 167 X-Fade Speed: 4 (slowest)168 ⇔ 255 Reserved for future use
18	Gobo rotator	000 ⇔ 127 Index128 ⇔ 190 Clockwise rotation, fast to slow191 ⇔ 192 Stop193 ⇔ 255 Counterclockwise rotation, slow to fast

14Ch1

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	R e d	000 ⇔ 255 0–100%
3 Green 000 ⇔ 255 0–100%
4	B l u e	000 ⇔ 255 0–100%
5	A m b e	r	000 ⇔ 255 0–100%
6	M i n t	000 ⇔ 255 0–100%
7 Strobe		000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast
8	Virtual color wheel	000 ⇔ 255	Refer to Virtual Color Wheel Chart
9	Color temperature	000 ⇔ 255	Refer to Color Temperature DMX Chart
10	Hue	000 ⇔ 000 0001 ⇔ 255 -25–25
11	Auto programs	000 ⇔ 010 No function011 ⇔ 060 Auto program 1061 ⇔ 110 Auto program 2111 ⇔ 160 Auto program 3161 ⇔ 210 Auto program 4211 ⇔ 255 Auto program 5
12	Auto speed	000 ⇔ 255	Auto speed, slow to fast
13	Control(hold for 3 seconds)	000 ⇔ 007 No function008 ⇔ 015 Dimmer reset016 ⇔ 023 Red shift on024 ⇔ 031 Red shift off032 ⇔ 039 S-curve dimmer040 ⇔ 047 Linear dimmer048 ⇔ 055 Square dimmer curve056 ⇔ 063 Inverse square dimmer curve064 ⇔ 071 Dimmer speed mode: OFF072 ⇔ 079 Dimmer speed 1 (fastest)080 ⇔ 087 Dimmer speed 2088 ⇔ 095 Dimmer speed 3 (slowest)096 ⇔ 103 Fan auto104 ⇔ 111 Fan on112 ⇔ 119 Fan off120 ⇔ 127 Fan silent128 ⇔ 135 X-Fade Speed: OFF136 ⇔ 143 X-Fade Speed: 1 (fastest)144 ⇔ 151 X-Fade Speed: 2152 ⇔ 159 X-Fade Speed: 3160 ⇔ 167 X-Fade Speed: 4 (slowest)168 ⇔ 255 Reserved for future use
14	Gobo rotator	000 ⇔ 127 Index128 ⇔ 190 Clockwise rotation, fast to slow191 ⇔ 192 Stop193 ⇔ 255 Counterclockwise rotation, slow to fast

14Ch2

Channel Function Value Percent/Setting
1	D	i	m	m	e r	000 ⇔ 255 0–100%
2	Dimmer fine				000 ⇔ 255	0–100%
3	R	e	d		000 ⇔ 255 0–100%
4	R	e	d	f	i n	e 000 ⇔ 255 0–100%
5	G	r	e	e	n	000 ⇔ 255 0–100%
6	G	r	e	e	n f	i n e 000 ⇔ 255 0–100%
7	B	l	u	e	000 ⇔ 255 0–100%
8	B	l	u	e	f i	n e 000 ⇔ 255 0–100%
9	A	m	b	e	r	000 ⇔ 255 0–100%
10	Amber fine				000 ⇔ 255	0–100%
11	Mint				000 ⇔ 255	0–100%
12	Mint fine				000 ⇔ 255	0–100%
13	Strobe				000 ⇔ 010 No function011 ⇔ 255	Strobe, slow to fast
14	Gobo rotator				000 ⇔ 127 Index128 ⇔ 190 Clockwise rotation, fast to slow191 ⇔ 192 Stop193 ⇔ 255 Counterclockwise rotation, slow to fast

12Ch

Channel Function Value Percent/Setting
1	D	i	m	m	e r	000 ⇔ 255 0–100%
2	Dimmer fine				000 ⇔ 255	0–100%
3	R	e	d		000 ⇔ 255 0–100%
4	G	r	e	e	n	000 ⇔ 255 0–100%
5	B	l	u	e	000	⇔ 255 0–100%
6	A	m	b	e	r	000 ⇔ 255 0–100%
7	Mint				000 ⇔ 255	0–100%
8 Strobe					000 ⇔ 010 No function011 ⇔ 255	Strobe, slow to fast
9	Virtual color wheel				000 ⇔ 255	Refer toVirtual Color Wheel Chart
10	Color temperature				000 ⇔ 255	Refer toColor Temperature DMX Chart
11	Hue				000 ⇔ 000 0001 ⇔ 255 -25–25
12	Gobo rotator				000 ⇔ 127 Index128 ⇔ 190 Clockwise rotation, fast to slow191 ⇔ 192 Stop193 ⇔ 255 Counterclockwise rotation, slow to fast

8Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	R	e	d		000 ⇔ 255 0–100%
3 Green 000 ⇔ 255 0–100%
4	B	l	u	e	000	⇔ 255 0–100%
5	A	m	b	e	r	000 ⇔ 255 0–100%
6	M	i	n	t	000	⇔ 255 0–100%
7 Strobe					000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast
8 Gobo rotator					000 ⇔ 127 Index128 ⇔ 190 Clockwise rotation, fast to slow191 ⇔ 192 Stop193 ⇔ 255 Counterclockwise rotation, slow to fast

6Ch

Channel Function Value Percent/Setting
1	R	e	d		000 ⇔ 255 0–100%
2 Green	000 ⇔ 255 0–100%
3	B	l	u	e	000 ⇔ 255 0–100%
4	A	m	b	e	r	000 ⇔ 255 0–100%
5	M	i	n	t	000 ⇔ 255 0–100%
6 Gobo	rotator				000 ⇔ 127 Index128 ⇔ 190 Clockwise rotation, fast to slow191 ⇔ 192 Stop193 ⇔ 255 Counterclockwise rotation, slow to fast

5Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Virtual color wheel	000 ⇔ 255	Refer to Virtual Color Wheel Chart
3	Color temperature	000 ⇔ 255	Refer to Color Temperature DMX Chart
4	Hue	000 ⇔ 000 0001 ⇔ 255 -25–25
5 Gobo rotator		000 ⇔ 127 Index128 ⇔ 190 Clockwise rotation, fast to slow191 ⇔ 192 Stop193 ⇔ 255 Counterclockwise rotation, slow to fast

1Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%

Acerca de Esta Guía

RDM (Remote Device Management)

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

UL 1573

® CSA C22.2 No. 166

us E113093

RoHS
