USER MANUAL Ovation ED-200WW Chauvet

Technical line drawing of a mechanical device with no visible text or symbols

*Lens tubes sold separately

About This Guide

The Ovation ED-200WW Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
  • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
  • DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
  • In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact your distributor to request support or return a product. Visit www.chauvetprofessional.com for contact information.

What is Included

• Ovation ED-200WW
- Neutrik® powerCON® power cord
- Warranty Card
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

In 750 W mode, you can link up to 6 Ovation ED-200WW products at 120 V, or 12 products at 230 V.

In 575 W mode, you can link up to 8 products at 120 V, or 15 products at 230 V.

Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow	Green

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Ovation ED-200WW will work with a DMX controller using a 3- or 5-pin DMX data connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation ED-200WW uses a 3- or 5-pin DMX data connection for its DMX personalities: UNO, DOS, and STD.P. See the User Manual for information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The Ovation ED-200WW uses the DMX data connection for its Master/Slave mode. See the User Manual for information about connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. The Ovation ED-200WW supports RDM protocol that allows feedback to monitor temperature and changes to ADDRESS, PERSONALITY, DIMMER, and PWM menu options. Download the User Manual from www.chauvetprofessional.com for more details.

Dimmer Control

The Ovation ED-200WW may be plugged into and controlled using a regular dimmer. In this mode, the product reacts exactly like an incandescent product. See the User Manual to configure Dimmer Control operation.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products.

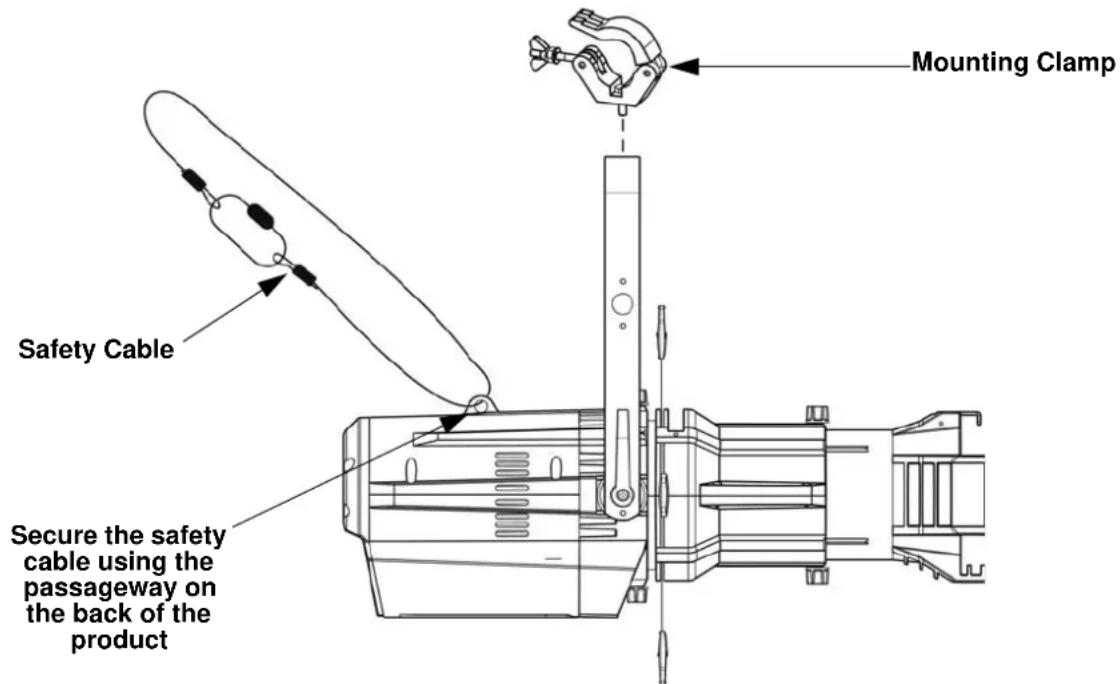

Mounting Diagram

Mounting Clamp Safety Cable Secure the safety cable using the passageway on the back of the product

Lens Tubes

The following lens tubes are available for purchase:

• 19°, 26°, 36°, and 50° w/Gel frame (6.25 in/159 mm accessories)
• 15°–30° and 25°–50° Zoom Gel frame (7.5 in/191 mm accessories)

Passcode

After being prompted, enter the following passcode: , , , , .

This passcode cannot be changed and must be used whenever prompted.

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function

Menu Map

Main Level Programming Levels Description
STATIC DIMMER 0-100 Manual control of output
RUNMODE	DMX512 Sets the mode to DMX control
	SLAVE Sets the mode to master/slave
	DMMR			Sets the mode to dimmer control, which turns off data input
	SENS Automatically chooses between dimmer and DMX
POWER MODE	575W			Matches output to 575 W incandescent fixture
	750W			Matches output to 750 W incandescent fixture
ADDRESS	001-512 Sets the starting address
SETTING	KEY	ON		Sets the key lock (passcode mode)
		OFF
	DIMMER	OFF		Linear dimmer
		DIM1		Slow (DIM4) to fast (DIM1) dimmer speeds. For best performance while using on a dimmer, set this to DIM4.
		DIM2
		DIM3
		DIM4
	CURVE	OFF		No dimmer curve
		CURVE1		Large (CURVE3) to small (CURVE1) dimmer curves. For best performance while using on a dimmer, set this to CURVE3.
		CURVE2
		CURVE3
	PERFORM	LIVE		Balances LED cooling using fans and output power level
		STUDIO		Maintains LED cooling by limiting power level
	SLOCK	ON		SETTING menu level access lock
		OFF
	PERSONALITY	UNO		Selects DMX personality
		DOS
		STD.P
	DMX ERROR	SAVE		Continues last command upon loss of DMX signal
		BLACK		Blacks out product upon loss of DMX signal
	RESET	Pass code:		Resets product to factory defaults
	MODE SETTING	SELF No DMX output from product in standalone
		MAST Sends DMX output in standalone mode
	PWM	600Hz		Sets the Pulse Width Modulation frequency
		1200Hz
		2000Hz
		2400Hz
		6000Hz
		18000Hz
		25000Hz
INFO	VERSION	V__		Displays product firmware version
	RDM	UID	-----	Displays product UID for RDM
		LABEL __	____ Displays product label for RDM

DMX Values

STD.P

Channel Function Value Percent/Setting
1 Dimmer 000		255 0-100%
2 Dimmer Fine 000		255 0-100%
3	S t r o	000 009 Open
		010 099 Strobe, slow to fast
		100 109 Open
		110 179 Lightning effect, slow to fast
		180 189 Open
		190 255 Random strobe, slow to fast

DOS

Channel Function Value Percent/Setting
1 Dimmer 000	255 0–100%
2 Dimmer Fine 000	255 0–100%

UNO

Channel Function Value Percent/Setting
1 Dimmer 000	255 0–100%
