USER MANUAL Ovation E-260WW IP Chauvet

Technical line drawing of a mechanical device with no visible text or symbols

* Lens tubes sold separately

About This Guide

The Ovation E-260WW IP Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on.
• CAUTION: This product's housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

• Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).

• Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.

• Locations that are prone to flooding or being buried in snow.
  • Other areas where the product will be subject to extreme radiation or caustic substances.

• USE a safety cable when mounting this product overhead.

• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the US, United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Ovation E-260WW IP
- Seetronic Powerkon IP65 power cord
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

You can link up to 7 Ovation E-260WW IP products at 120 V, 12 products at 208 V, or 13 products at 230 V. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• When using this product in an outdoor IP65-type environment, be sure to use IP65 (or higher) rated power cables and secure unused ports with attached IP65 covers.

DMX Linking

The Ovation E-260WW IP will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation E-260WW IP uses a 5-pin DMX data connection for its DMX personalities: 2 Ch, 3 Ch, 4 Ch, and 7 Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

When using this product in an outdoor IP65-type environment, be sure to use IP65 (or higher) rated data cables and secure unused ports with attached IP65 covers.

Master/Slave Connection

The Ovation E-260WW IP uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Ovation E-260WW IP supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

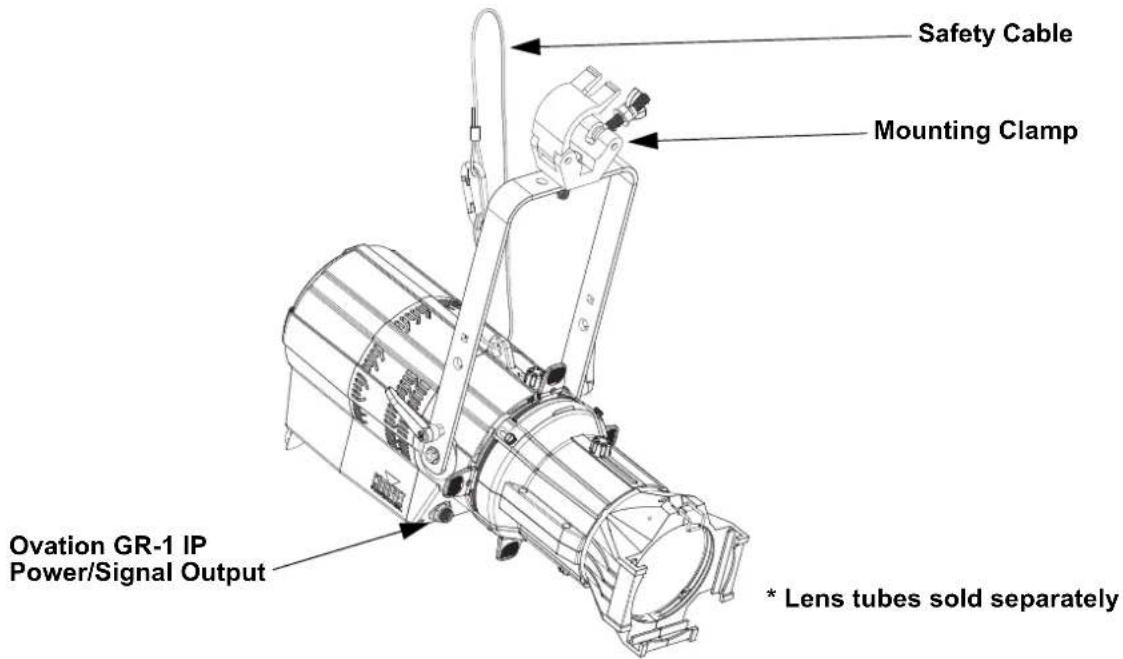

Product Mounting Diagram

Safety Cable Mounting Clamp Ovation GR-1 IP Power/Signal Output * Lens tubes sold separately

Overhead Mounting

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Lens Tubes

The following lens tubes are available for purchase:

• 19^ , 26^ , 36^ , and 50^ w/Gel frame (6.25 in/159 mm accessories)
• 14°, 15°–30° and 25°–50° Zoom Gel frame (7.5 in/191 mm accessories)

Passcode

After being prompted, enter the following passcode by pressing:

, , , ,

This passcode cannot be changed and must be used whenever prompted.

Menu Map

Main Level Programming Levels Description
DMX Address 001-512			Selects DMX address (highest channel restricted to personality chosen).
DMX Channel	2 Ch 2-channel: dimmer, gobo rotate
	3 Ch 3-channel: 16-bit	dimmer, gobo rotate
	4 Ch 4-channel: 16-bit	dimmer, strobe, gobo rotate
	7 Ch		7-channel: 16-bit dimmer, strobe, auto programs, auto speed, dimmer mode, gobo rotate
Static	Dimmer	0-255	Sets the intensity of the light output
	Strobe Sets the strobe rate
Main Level	Programming Levels		Description
Auto Show	Auto 1	1-100 Selects automatic programs and speed
	Auto 2
	Auto 3
	Auto 4
Gobo Rotator 0-255 Rotating gobo index
Master/Slave Mode	Master Master mode
	Slave DMX slave mode
Dimmer Curve	Linear		Sets the dimmer curve
	Square
	I Square
	SCurve
Dimmer Mode	Off Linear dimming
	Dimmer 1-3		Dimming curves: Dimmer 1 (fast) to Dimmer 3 (slow)
LED Frequency	600Hz		PWM frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Fan Mode	Auto Sets the fan to auto mode
	On Sets the fan to always on
	Off Sets the fan to always off
	Silent Sets the fan to silent
Back Light	10S		Turns off display backlight after 10 seconds of inactivity
	30S		Turns off display backlight after 30 seconds of inactivity
	2Min		Turns off display backlight after 2 minutes of inactivity
	Always On Display backlight always on
Key Lock	On		Sets to key lock (Passcode mode)
	Off
Information	Fixture Hours _ _H		Shows total hours the product has been powered on
	Version V_ _	Shows installed software version
	UID	_____.	Shows product ID
Reset Factory	No		Reset to factory defaults
	Yes

DMX Value

7 Ch

Channel Function Value Percent/Setting
1 Dimmer 000		255 0–100%
2 Fine Dimmer 000		255 0–100%
3 Strobe		000 010 No function011 255 Strobe, slow to fast
4 Auto Program		000 010 No function011 070 Auto 1071 130 Auto 2131 190 Auto 3191 255 Auto 4
5 Auto Speed 000		255 Slow to fast
6 Dimmer Speed		000 051 Preset dimmer speed from display menu052 101 Dimmer speed mode off102 152 Dimmer speed mode 1 (fastest)153 203 Dimmer speed mode 2204 255 Dimmer speed mode 3 (slowest)
7 Gobo Rotator		000 127 Index128 190 CW Fast to Slow191 192 Stop193 255 CCW Slow to Fast

4 Ch

Channel Function Value Percent/Setting
1 Dimmer 000		255 0–100%
2 Fine Dimmer 000		255 0–100%
3 Strobe		000 010 No function011 255 Strobe, slow to fast
4 Gobo	Rotator	000 127 Index128 190 CW Fast to Slow191 192 Stop193 255 CCW Slow to Fast

3 Ch

Channel Function Value Percent/Setting
1 Dimmer 000		255 0–100%
2 Fine Dimmer 000		255 0–100%
3 Gobo	Rotator	000 127 Index128 190 CW Fast to Slow191 192 Stop193 255 CCW Slow to Fast

2 Ch

Channel Function Value Percent/Setting
1 Dimmer 000		255 0–100%
2 Gobo Rotator		000 127 Index128 190 CW Fast to Slow191 192 Stop193 255 CCW Slow to Fast

Acerca de Esta Guía

RDM (Remote Device Management)

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

[EMPTY]

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, United Kingdom, Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

UL 1573

CSA C22.2 No. 166

us E113093

CE FC

RoHS
