USER MANUAL Ovation F-145WW Chauvet

The Ovation F-145WW Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTY. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
  To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  DO NOT leave any flammable material within 50~cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
  DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
  The maximum ambient temperature is 113^ (45^) . Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the US, UK, Ireland, France, Germany, Mexico, or Benelux, contact your distributor to request support or return a product. Visit www.chauvetprofessional.com for contact information.

What is Included

• Ovation F-145WW
• Neutrik® powerCON® power cord

Gel Frame
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100-240 VAC, 50 / 60Hz

Power Linking

You can link up to 19 Ovation F-145WW products at 120 V, 34 products at 208 V, or 38 products at 230 V. Never exceed this number. Power-linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow	Green/Yellow	Green

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Ovation F-145WW will work with a DMX controller using a 3- or 5-pin DMX data connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation F-145WW uses a 3- or 5-pin DMX data connection for its DMX personalities: 1Ch: 8bit Dim, 2Ch: 16bit Dim, 2Ch: 8bit Dim+Zoom, and 5Ch: 16bit-Full. See the User Manual for information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The Ovation F-145WW uses the DMX data connection for its Master/Slave mode. See the User Manual for information about connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. The Ovation F-145WW supports RDM protocol that allows feedback to monitor temperature and changes to DMX Address, DMX Personality, Dimmer Mode, and LED Frequency menu options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products.

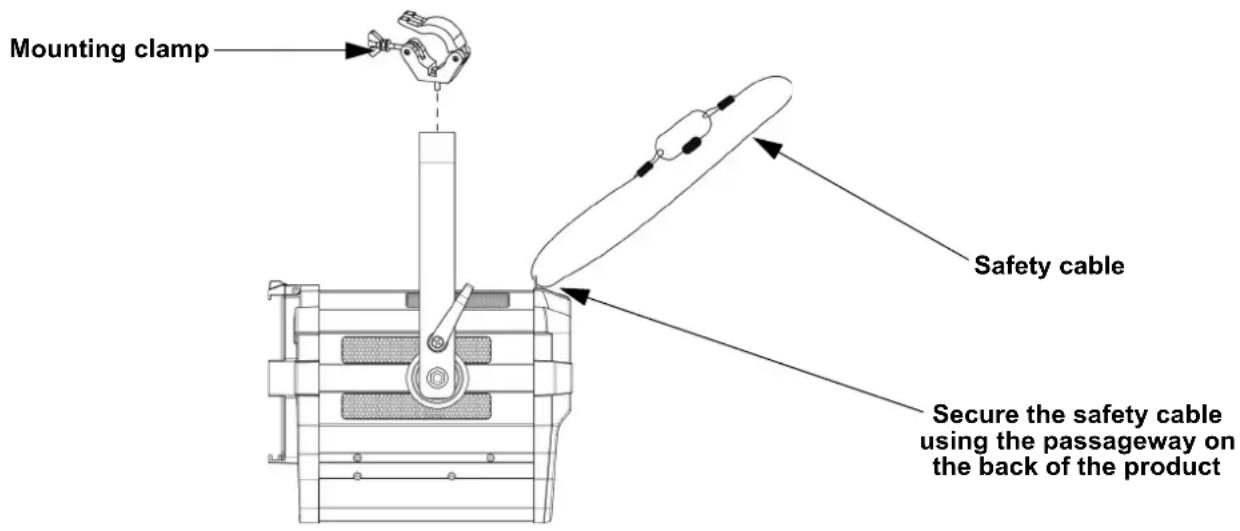

Mounting Diagram

Control Panel Description

Button/Knob Function
<MENU>Exists from the current menu or function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>	Navigates upwards through the menu list and increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list and decreases the numeric value when in a function
<KNOB1>Push then turn to increase or decrease the dimmer

Push then turn to increase or decrease the zoom

Menu Map

Main Level Programming Levels Description
DMX Address 001-512			Selects DMX address (highest channel restricted to personality chosen)
DMX Personality	1Ch: 8bit Dim 1-channel: 8-bit dimmer
	2Ch: 16bit Dim 2-channel: 16-bit dimmer
	2Ch: 8bit Dim+Zoom 2-channel: 8-bit dimmer, zoom
	5Ch: 16bit-Full 5-channel: 16-bit dimmer, zoom, strobe, motor reset
Static	Dimmer	0-255	Controls intensity
	Zoom	0-255	Controls zoom
	Strobe	0-255	Controls strobe rate
Master/Slave	Master		DMX mode (Master)
	Slave		Slave mode
Dimmer Curve	Linear		Sets the dimmer curve
	Square
	I Square
	SCurve
Dimmer Mode	Off		Linear dimmer
	Dimmer 1-3		Dimming curves Dimmer 1 (fast) to Dimmer 3 (slow)
LED Frequency	600Hz		Sets the PWM frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Fan Mode	Auto		Sets the fan to auto mode
	On		Sets the fan to always on
	Off		Turns the fan off
	Silent		Sets the fan to silent
Back Light	10S		Turns off display backlight after 10 seconds of inactivity
	30S		Turns off display backlight after 30 seconds of inactivity
	2Min		Turns off display backlight after 2 minutes of inactivity
	Always On		Display backlight always on
Information	Fixture Hours	----H	Shows total hours the product has been powered on
	Version	V_	Shows current firmware version
	UID	--------	Shows product UID
Reset Zoom w/ Power	No		Reset zoom setting when product is turned off
	Yes
Reset Factory	No		Reset the product to factory default settings
	Yes

DMX Values

5Ch: 16bit-Full

Channel Function Value Percent/Setting
1 Dimmer 000		\Leftrightarrow 255 0-100%
2 Dimmer Fine 000		\Leftrightarrow 255 0-100%
3 Zoom 000		\Leftrightarrow 255 0-100%
4	S t r o	000\Leftrightarrow 009 Open
		010\Leftrightarrow 099 Strobe, slow to fast
		100\Leftrightarrow 109 Open
		110\Leftrightarrow 179 Lightning effect, slow to fast
		180\Leftrightarrow 189 Open
		190\Leftrightarrow 255 Random strobe, slow to fast
5 Motor	Reset	000\Leftrightarrow 200 No function
		201\Leftrightarrow 220 Motor reset
		221\Leftrightarrow 255 No function

2Ch: 8bit Dim+Zoom

Channel Function Value Percent/Setting
1 Dimmer 000	\( \Leftrightarrow 2550-100\% \)
2 Zoom 000	\( \Leftrightarrow 2550-100\% \)

2Ch: 16bit Dim

Channel Function Value Percent/Setting
1 Dimmer 000	\( \Leftrightarrow 2550-100\% \)
2 Dimmer Fine 000	\( \Leftrightarrow 2550-100\% \)

1Ch: 8bit Dim

Channel Function Value Percent/Setting
1 Dimmer 000	\( \Leftrightarrow 2550-100\% \)

Acerca deEsta Guía

RDM (Remote Device Management)

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax. [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

Address: Bruno-Burgel-Str. 11

28759 Bremen

Germany Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Mexico

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Lerma, Edo. de Mexico, CP 52000

Voice: [phone]

Email:增值服务@chauvet.com.mx

Outside the US, UK, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details.

UL 1573

CSA C22.2 No.166

E113093

RoHS
