About This Guide

The Ovation F-415FC Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, the customer must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives the customer specific legal rights. The customer may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult a local distributor.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it (IP20).
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• CAUTION: This product's housing may be hot when lights are operating.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• USE a safety cable when mounting this product overhead.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact a distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Ovation F-415FC
  • N e ^® powerCON ^® power cord

• Gel frame holder (6.25 in/159 mm accessories)
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

It is possible to link up to 13 Ovation F-415FC products at 120 VAC, 22 products at 208 V, or 24 products at 230 VAC. Never exceed this number. Power-linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Ovation F-415FC will work with a DMX controller using a 3- and 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation F-415FC uses a 3- and 5-pin DMX data connection for its DMX personalities: 1Ch, 3Ch, 5Ch, 7Ch, 11Ch, 13Ch, 14Ch, 18Ch, and HSV. See the User Manual for information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The Ovation F-415FC uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check with the manufacturer or the DMX controller's User Manual, as not all DMX controllers have this capability. The Ovation F-415FC supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps can support the weight of the product. For the Chauvet line of mounting clamps, go to: http://trusst.com/productcategory/truss-clamps/.

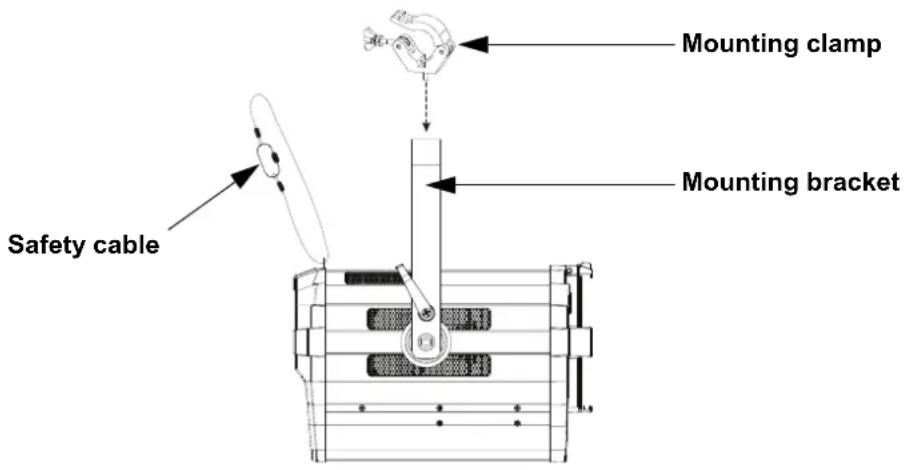

Product Mounting Diagram

Mounting clamp Mounting bracket Safety cable

Virtual Color Wheel (VCW)

The Ovation F-415FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming.

The DMX values used to mix these colors are provided below. The overall intensity of the Ovation fixture can be adjusted to more closely replicate familiar industry-standard colors. A chart is available on www.chauvetprofessional.com to compare Chauvet's premixed colors with popular gel colors. This chart is for comparison purposes only and is not an assertion that Chauvet's premixed colors match any of the gel colors listed.

Virtual Color Wheel Chart

DMX Value	Display Readout	Red Value	Green	Blue	Amber	Lime
000 ⇔ 005	--	000	000	000	000	000
006 ⇔ 013	C3050 - Md Yellow	233	163	020	123	255
014 ⇔ 021	C3040 - Lt Yellow	224	158	047	255	231
022 ⇔ 028	C3240 - Amb Yellow	180	060	000	245	255
029 ⇔ 035	C2340 - VLt Amber	245	107	081	255	213
036 ⇔ 043	C2040 - Lt Amber	230	130	062	255	155
044 ⇔ 051	C2050 - Md Amber	255	000	025	255	194
052 ⇔ 059	C2060 - Dk Amber	255	000	024	255	150
060 ⇔ 067	C1050 - Lt Red	255	037	027	030	038
068 ⇔ 075	C1080 - Md Red	255	004	017	000	000
076 ⇔ 083	C1020 - NC Pink	238	135	129	255	255
084 ⇔ 091	C1030 - Md Pink	255	131	120	255	195
092 ⇔ 099	C1630 - Dk Pink	255	165	123	255	210
100 ⇔ 107	C1250 - Md Red Amber	255	000	041	195	055
108 ⇔ 115	C1060 - Dk Red Amber	255	000	045	120	030
116 ⇔ 121	C1650 - Magenta	255	050	115	255	115
122 ⇔ 130	C6170 - Dk Magenta	255	035	117	000	000
131 ⇔ 138	C6020 - Lt Lavender	127	122	142	251	255
139 ⇔ 146	C5030 - Lt Blue	000	255	197	100	255
147 ⇔ 154	C5020 - VLt Blue	158	255	189	000	255
155 ⇔ 162	C5430 - Lt Blue 2	000	255	180	000	243
163 ⇔ 170	C5070 - Blue	043	255	210	043	036
171 ⇔ 178	C5050 - Md Blue	000	255	218	000	181
179 ⇔ 186	C5060 - Dk Blue	000	210	206	000	118
187 ⇔ 194	C5690 - Indigo	065	000	210	040	055
195 ⇔ 202	C5080 - VDk Blue	000	203	230	000	040
203 ⇔ 210	C5081 - VDk Blue2	040	199	240	000	045
211 ⇔ 218	C4370 - Yel Green	027	255	028	016	104
219 ⇔ 226	C4070 - Green	049	255	055	120	090
227 ⇔ 234	C4550 - Turquoise	060	230	109	000	245
235 ⇔ 242	C4560 - Aqua	020	240	126	036	255
243 ⇔ 250	C4570 - Blue Green	000	255	079	030	053
251 ⇔ 255	--	000	000	000	000	000

The colors above are simulated renditions of the color output produced compared with other similar incandescent products. Chauvet makes no guarantee of the color output accuracy.

Color Temperature Chart

DMX Value	Display Readout	Red Value	Green	Blue	Amber	Lime
000 ⇔ 005	--	000	000	000	000	000
006 ⇔ 025	2800K	198	065	056	220	230
026 ⇔ 050	3000K	181	078	074	220	230
051 ⇔ 075	3200K	165	092	093	220	230
076 ⇔ 100	3500K	153	128	111	220	230
101 ⇔ 125	4000K	127	128	163	220	230
126 ⇔ 150	4500K	106	128	200	220	230
151 ⇔ 175	5000K	092	128	230	220	230
176 ⇔ 200	5600K	073	128	255	220	230
201 ⇔ 225	6000K	048	128	255	220	230
226 ⇔ 250	6500K	019	128	255	220	230
251 ⇔ 255	--	000	000	000	000	000

The color temperatures above are simulated renditions of the color output produced compared with a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy.

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function
	Push twice, then turn to select the color temperature
	Push twice, then turn to increase or decrease the dimmer

Push twice, then turn to increase or decrease the zoom

Menu Map

Refer to the Ovation F-415FC product page on www.chauvetprofessional.com for the latest menu map.

Main Level	Programming Levels Description
DMX Address	001-512*			Selects DMX address(*highest channel restricted to personality chosen)
DMX Channel	1Ch 1-channel: dimmer
	3Ch			3-channel: dimmer, virtual color wheel, color temperature
	5Ch 5-channel: RGBAL
	7Ch 7-channel: dimmer, RGBAL, strobe
	11Ch			11-channel: 16-bit dimmer, RGBAL, virtual color wheel, color temperature, strobe, zoom
	13Ch 13-channel: 16-bit dimmer, 16-bit RGBAL, strobe
	14Ch			14-channel: dimmer, RGBAL, strobe, virtual color wheel, color temperature, auto show, auto speed, control, zoom, motor reset
	18Ch			18-channel: 16-bit RGBAL and dimmer, strobe, virtual color wheel, color temperature, zoom, motor reset, control
	HSV 3-channel: hue, saturation, value
Virtual Color Wheel	Virtual Color Wheel	C3050 - Md Yellow	Dimmer 0-255	Virtual Color Wheel simulates the output of each gel color. Refer to the Virtual Color Wheel Chart for specific values.
		C3040 - Lt Yellow
		C3240 - Amb Yellow
		C2340 - VLt Amber
		C2040 - Lt Amber
		C2050 - Md Amber
		C2060 - Dk Amber
		C1050 - Lt Red
		C1080 - Md Red
		C1020 - NC Pink
		C1030 - Md Pink
		C1630 - Dk Pink
		C1250 - Md Red Amber
		C1060 - Dk Red Amber
		C1650 - Magenta
		C6170 - Dk Magenta
		C6020 - Lt Lavender
		C5030 - Lt Blue
		C5020 - VLt Blue
		C5430 - Lt Blue 2
Virtual Color Wheel (cont.)	Virtual Color Wheel (cont.)	C5070 - Blue	Dimmer 0-255	Virtual Color Wheel simulates the output of each gel color. Refer to the Virtual Color Wheel Chart for specific values.
		C5050 - Md Blue
		C5060 - Dk Blue
		C5690 - Indigo
		C5080 - VDk Blue
		C5081 - VDk Blue 2
		C4370 - Yel Green
		C4070 - Green
		C4550 - Turquoise
		C4560 - Aqua
		C4570 - Blue Green
	Color Temperature	2800K	Dimmer 0-255	Preset white color temperatures. Emulates a tungsten lamp at the specified color temperature. Refer to the Color Temperature Chart for specific values.
		3000K
		3200K
		3500K
		4000K
		4500K
		5000K
		5600K
		6000K
		6500K
	Manual Color Mixer	Red	0-255	Combines red, green, blue, amber, and lime to make a custom color (0-100%)
		Green
		Blue
		Amber
		Lime
	Color X-Fade Speed	Off Turns off the fade transition between colors
		X-Fade Speed 1		Creates fade transition between colors when using colors in the Virtual Color Wheel or Color Temperature chart, from fast (X-Fade Speed 1) to slow (X-Fade Speed 4)
		X-Fade Speed 2
		X-Fade Speed 3
		X-Fade Speed 4
Auto Show	Auto 1-5 1-100 Selects automatic programs and auto program speed
Zoom 0-255 Controls zoom
Red Shift	On			Mimics halogen lamp dimming
	Off
Master/ Slave	Master			Receives DMX signal from the DMX controller (master)
	Slave Receives DMX signal from the master unit
Dimmer Curve	S-Curve			Sets the dimmer curve
	Linear
	Square
	Inverse Square
Dimmer Mode	Off Linear dimmer
	Dimmer 1-3			Dimming curves, from fast (Dimmer 1) to slow (Dimmer 3)
Main Level	Programming Levels			Description
White Balance	Off Uses factory default white setting
	Manual	Red	LED maximum value	Sets red LED maximum value
		Green Sets green LED maximum value
		Blue Sets blue LED maximum value
		Amber Sets amber LED maximum value
		Lime Sets lime LED maximum value
LED Frequency	600Hz			Sets the PWM output frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Fan Mode	Auto Sets the fan to auto mode
	On Sets the fan to always on
	Off Sets the fan to always off
	Silent Sets the fan to silent
Back Light	10S			Turns off display backlight after 10 seconds of inactivity
	30S			Turns off display backlight after 30 seconds of inactivity
	2Min Turns off display backlight after 2 minutes of inactivity
	Always On Display backlight always on
Information	Fixture Hours ____	H Shows total hours the product has been powered on
	LED Hours ____	H Shows total LED hours
	Version V.. Shows current firmware version
	UID	--------		Shows product UID
Reset Zoom w/ Power	No			Keeps zoom in last position when powered on
	Yes			Resets the zoom to home position when powered on
Factory Reset	No			Resets the product to factory default settings
	Yes

WARNING: When operating in Fan Mode: Off, the fixture will become hotter to the touch than when using other fan modes. Use proper protective equipment to prevent burns. Keep a safe distance from flammable objects.

When operating in Fan Mode: Off, output of the fixture will be reduced and will not reach the same levels as when using other fan modes.

DMX Values
18Ch / 14Ch / 13Ch / 11Ch / 7Ch / 5Ch / 3Ch

3Ch	5Ch	7Ch	11Ch	13Ch	14Ch	18Ch	Function Value Percent/Setting
1	-	1	1	1	1	1	D i m m e r			000 ⇔ 255 0–100%
-	-	-	2	2	-	2	Dimmer fine		000 ⇔ 255	0–100%
-	1	2	3	3	2	3	R e d 000 ⇔ 255 0–100%
-	-	-	-	4	-	4	Red fine		000 ⇔ 255	0–100%
-	2	3	4	5	3	5	Green		000 ⇔ 255	0–100%
-	-	-	-	6	-	6	Green fine		000 ⇔ 255	0–100%
-	3	4	5	7	4	7	Blue		000 ⇔ 255	0–100%
-	-	-	-	8	-	8	Blue fine		000 ⇔ 255	0–100%
-	4	5	6	9	5	9	Amber		000 ⇔ 255	0–100%
-	-	-	-	10	-	10	Amber fine		000 ⇔ 255	0–100%
-	5	6	7	11	6	11	Lime		000 ⇔ 255	0–100%
-	-	-	-	12	-	12	Lime fine		000 ⇔ 255	0–100%
-	-	7	8	13	7	13	Strobe		000 ⇔ 010	No function
									011 ⇔ 255	Strobe, slow to fast
2	-	-	9	-	8	14	Virtual color wheel		000 ⇔ 255	See the Virtual Color Wheel Chart
3	-	-	10	-	9	15	Color temperature		000 ⇔ 255	See the Color Temperature Chart
-	-	-	-	-	1	0	- Auto t o		000 ⇔ 010	No function
									011 ⇔ 060	Auto program 1
									061 ⇔ 110	Auto program 2
									111 ⇔ 160	Auto program 3
									161 ⇔ 210	Auto program 4
									211 ⇔ 255	Auto program 5
-	-	-	-	-	11	-	Auto speed		000 ⇔ 255	Auto speed, slow to fast
-	-	-	11	-	-	16	Zoom		000 ⇔ 255	Narrow to wide
-	-	-	-	-	-	1	7 M o t o		000 ⇔ 200	No function
									201 ⇔ 220	Motor reset e t
									221 ⇔ 255	No function

3Ch	5Ch	7Ch	11Ch	13Ch	14Ch	18Ch	Function	Value Percent/Setting
								000 ⇔ 007	No function
								008 ⇔ 015	Dimmer reset
								016 ⇔ 023	Red shift on
								024 ⇔ 031	Red shift off
								032 ⇔ 039	Dimmer: S-Curve
								040 ⇔ 047	Dimmer: linear
								048 ⇔ 055	Dimmer: square
								056 ⇔ 063	Dimmer: inverse square
								064 ⇔ 071	Dimmer speed mode off
								072 ⇔ 079	Dimmer speed mode 1
								080 ⇔ 087	Dimmer speed mode 2
								088 ⇔ 095	Dimmer speed mode 3
								096 ⇔ 103	Fan auto
								104 ⇔ 111	Fan on
								112 ⇔ 119	Fan off
								120 ⇔ 127	Fan silent
								128 ⇔ 135	X-Fade Speed: OFF
								136 ⇔ 143	X-Fade Speed: 1 (fastest)
								144 ⇔ 151	X-Fade Speed: 2
								152 ⇔ 159	X-Fade Speed: 3
								160 ⇔ 167	X-Fade Speed: 4 (slowest)
								168 ⇔ 225	No Function
	-	-	-	-	13	-	Zoom	000 ⇔ 255	Narrow to wide
								000 ⇔ 200	No function
-	-	-	-	-	1	4	- M o t o	201 ⇔ 220	Motor reset e t
								221 ⇔ 255	No function

1Ch

Channel	Function Value Percent/Setting
1	Dimmer	000 ⇔ 255	0–100% (color set through menu)

HSV

Channel	Function Value Percent/Setting
1	Hue	000 ⇔ 255	0–100%
2	Saturation	000 ⇔ 255	0–100%
3	Value	000 ⇔ 255	0–100%

Acerca de Esta Guía

RDM (Remote Device Management)

Intentionally Left Blank Page

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Email: [e-mail]

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

UL 1573 ® CSA C22.2 No. 166 us E113093

RoHS
